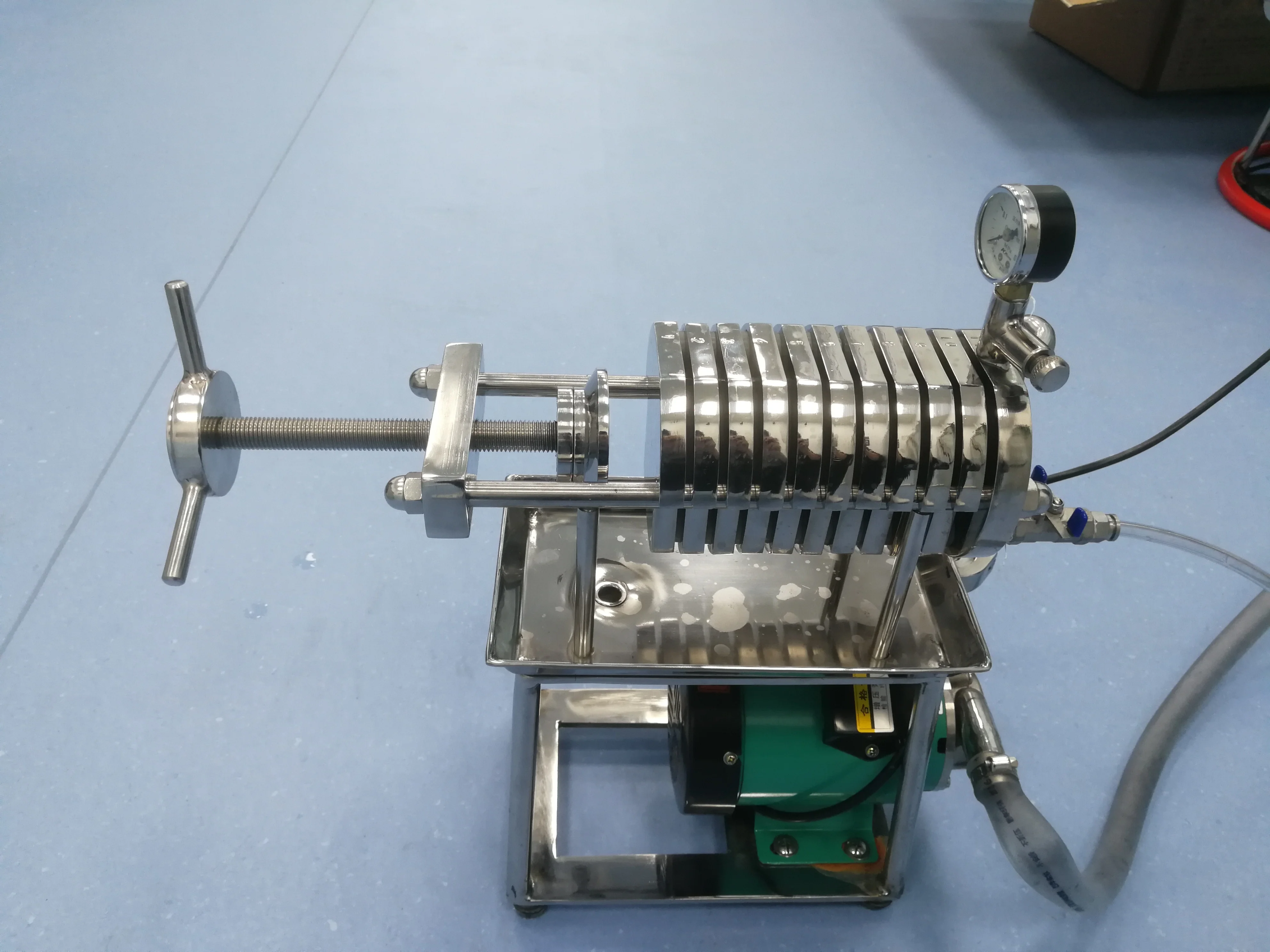

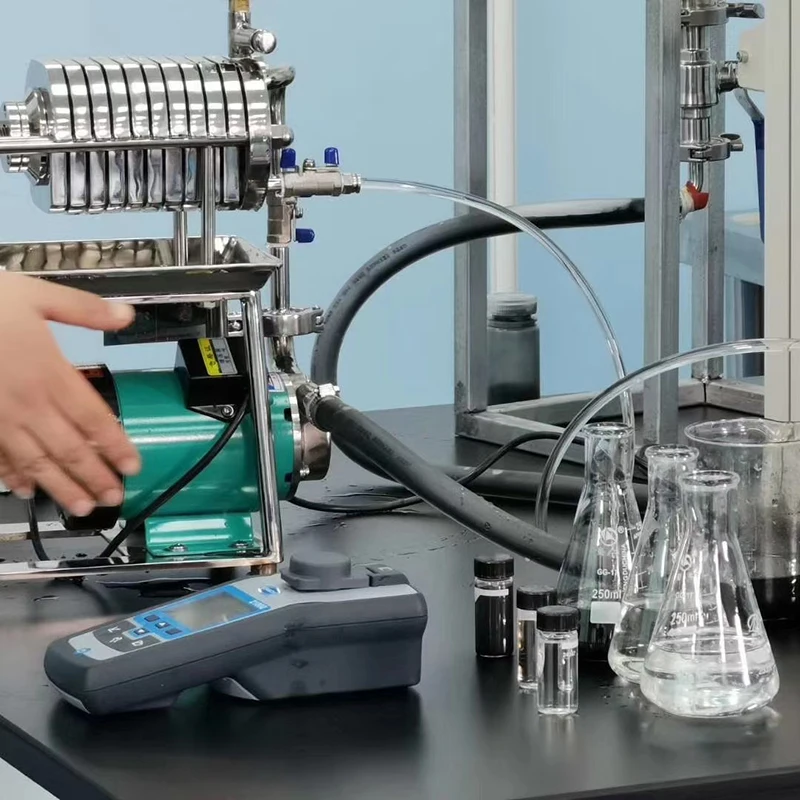

Perfume filter press Small automatic plate frame filter
- Category: >>>
- Supplier: Shenyang Great Wall Filtration Co. Ltd.
Share on (1601223205747):
Product Overview
Description
Product description
Operating principle
Before work filter cloth covers in the filter plate,and then operating pressure filter, drivencompaction pole, will pressure plate tightly pressure filter plate tight. Starting feeding pumpthrough feed material mouth input pressure filter, the material through the filter plate into thechannel filter room, under the function of feeding pump pressure, clear liquid through filter clothinto the filter plate cloudy round bullet point filter face. Then through the way of filter plate aftercollection by a liquid mouth outflow. And filter cake interception in the room, until the cake fulwith filter room,then stop feeding pump, release the pressing plate, the filter plate piece bypiece to pull to pressing plate direction unloading frame in the cake, then back into the nextwork cycle.
Specific Advantages

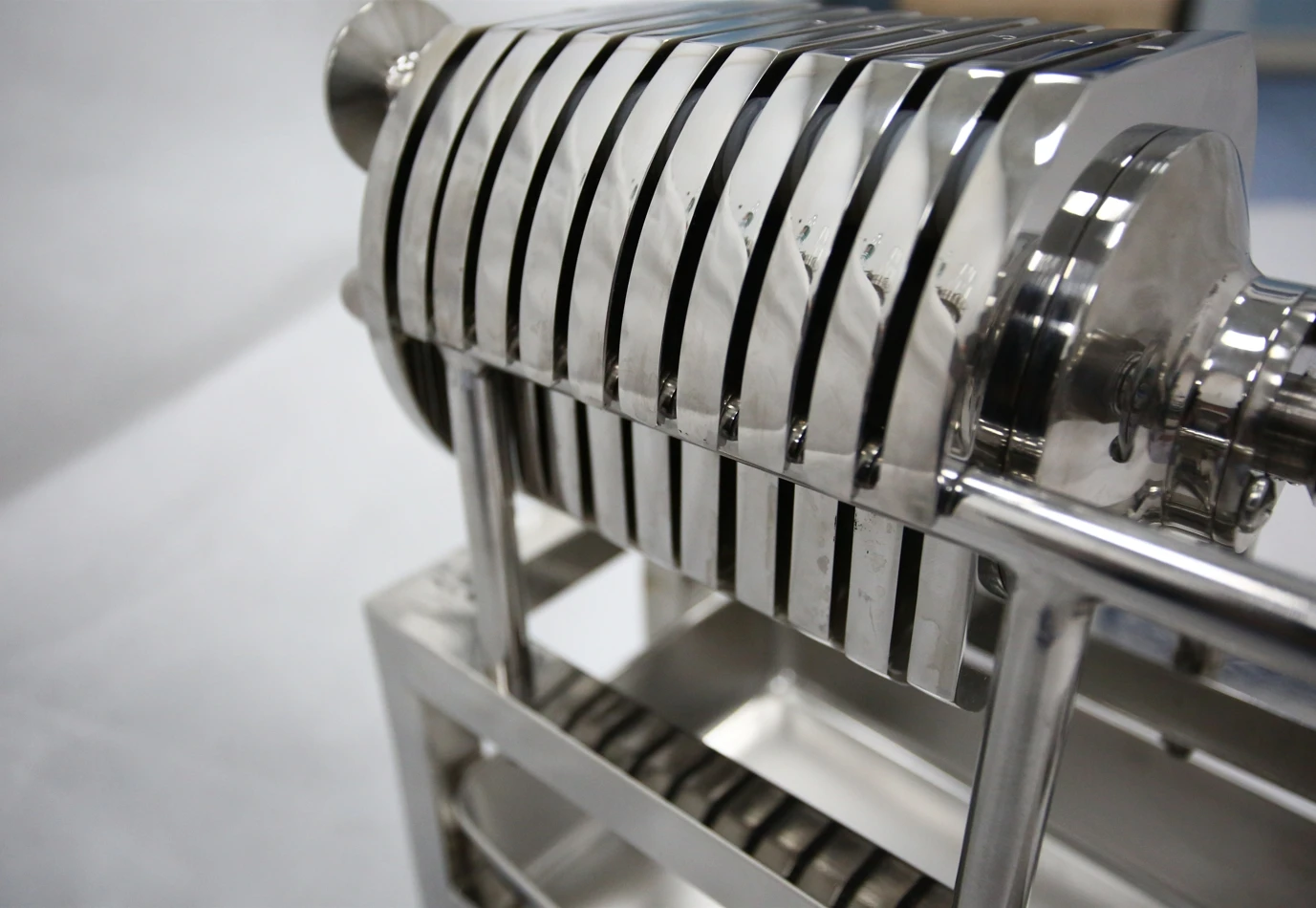

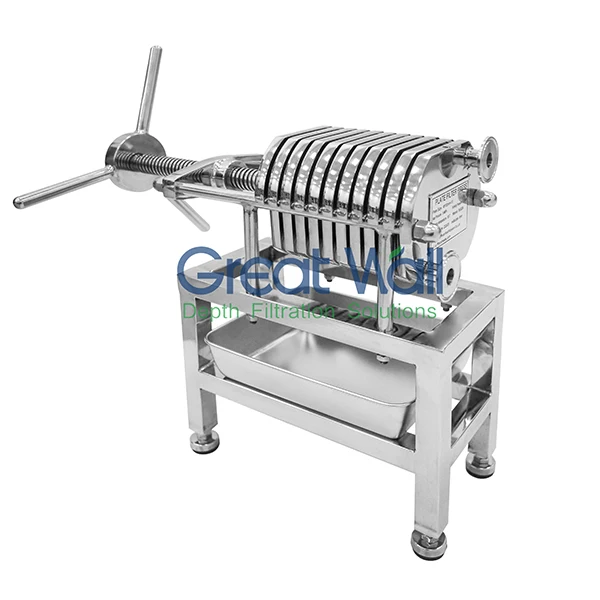

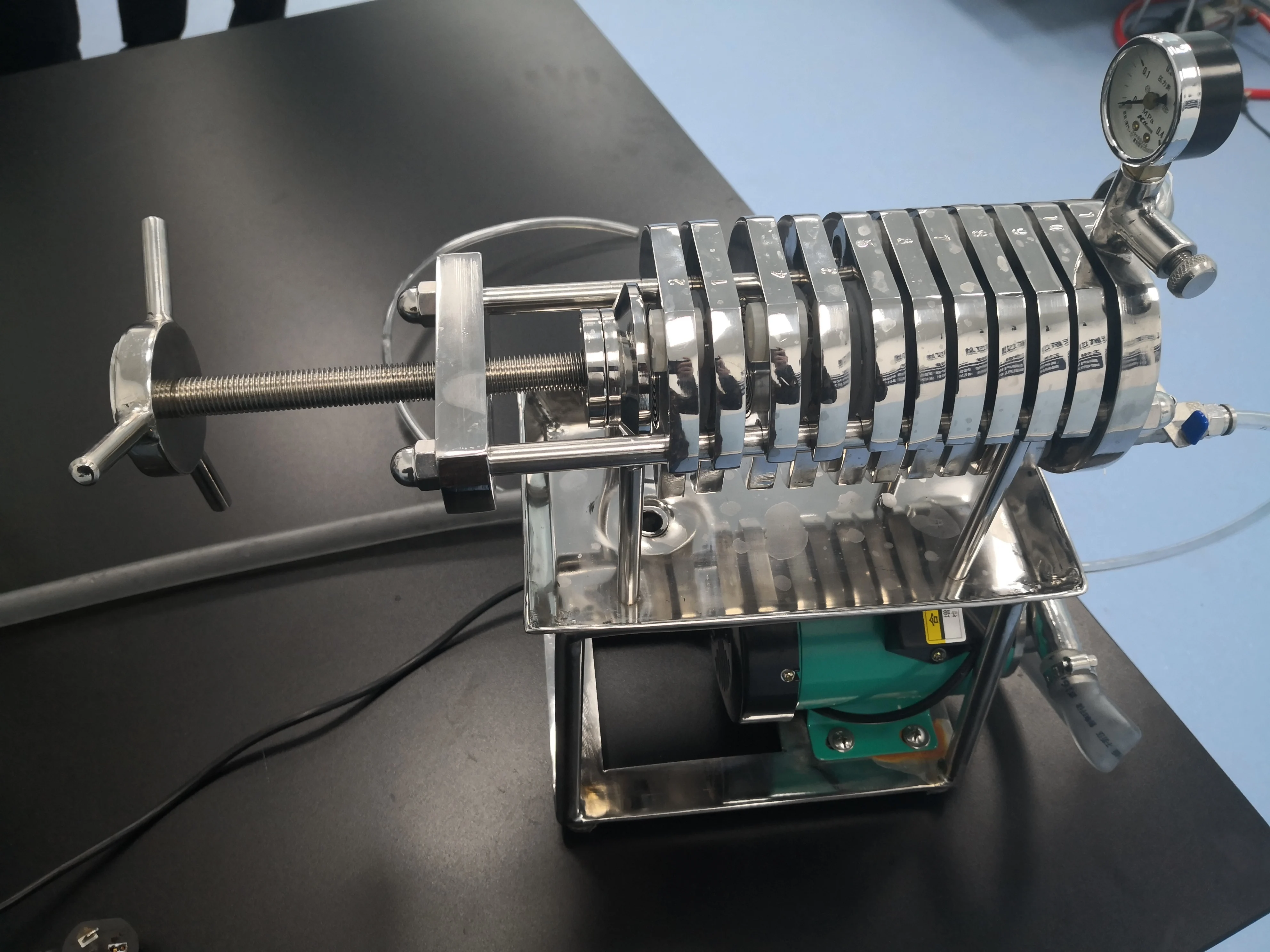

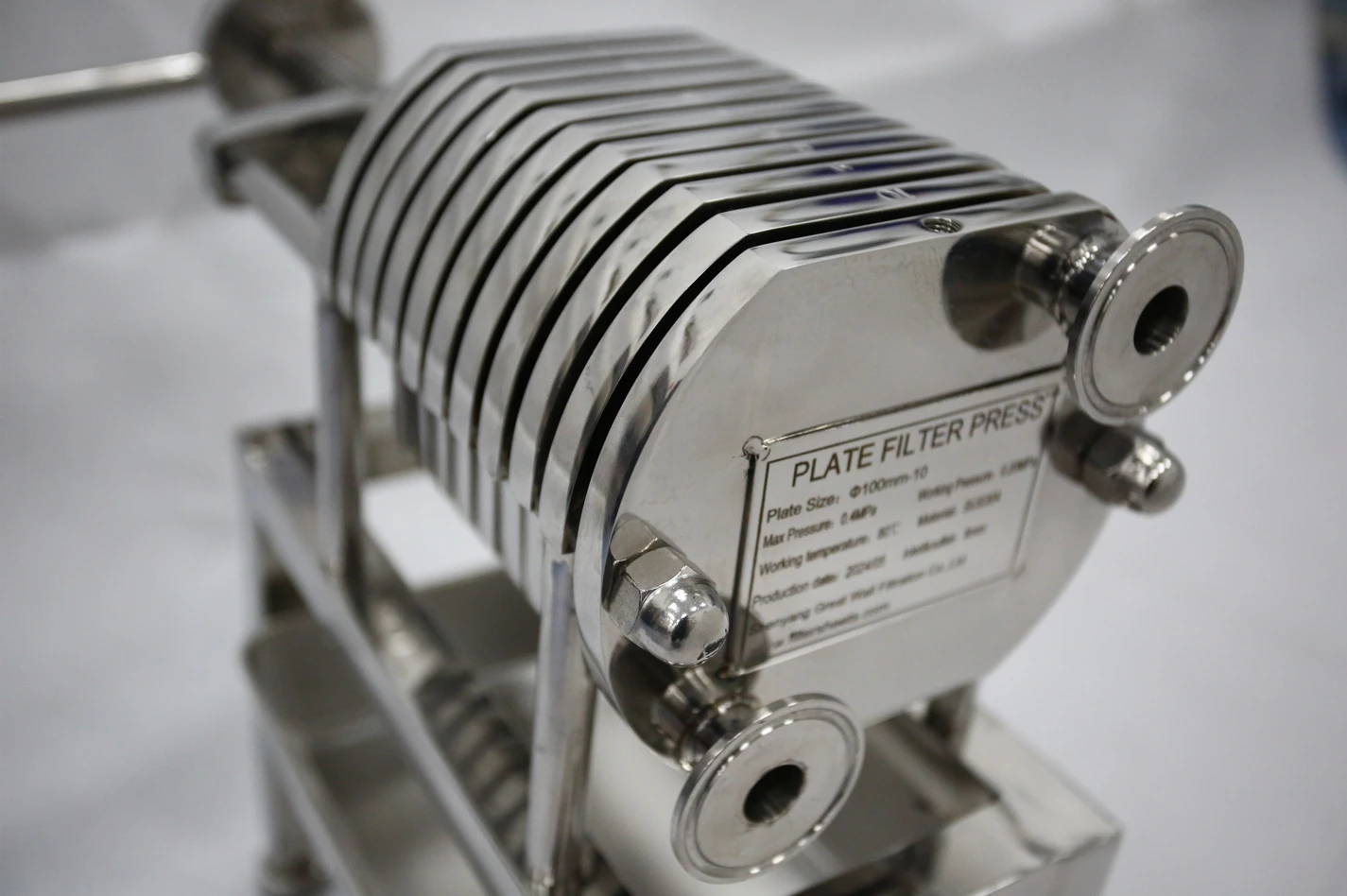

Product Name: | Stainless steel plate and frame filter |
Model number | RFP100-10 |
Filter sheet used | 10pcs |
Filtration area | 0.078m² |
Filter Chamber Volume | 0.3L |
Reference Flow Rate | 0.2T/h |

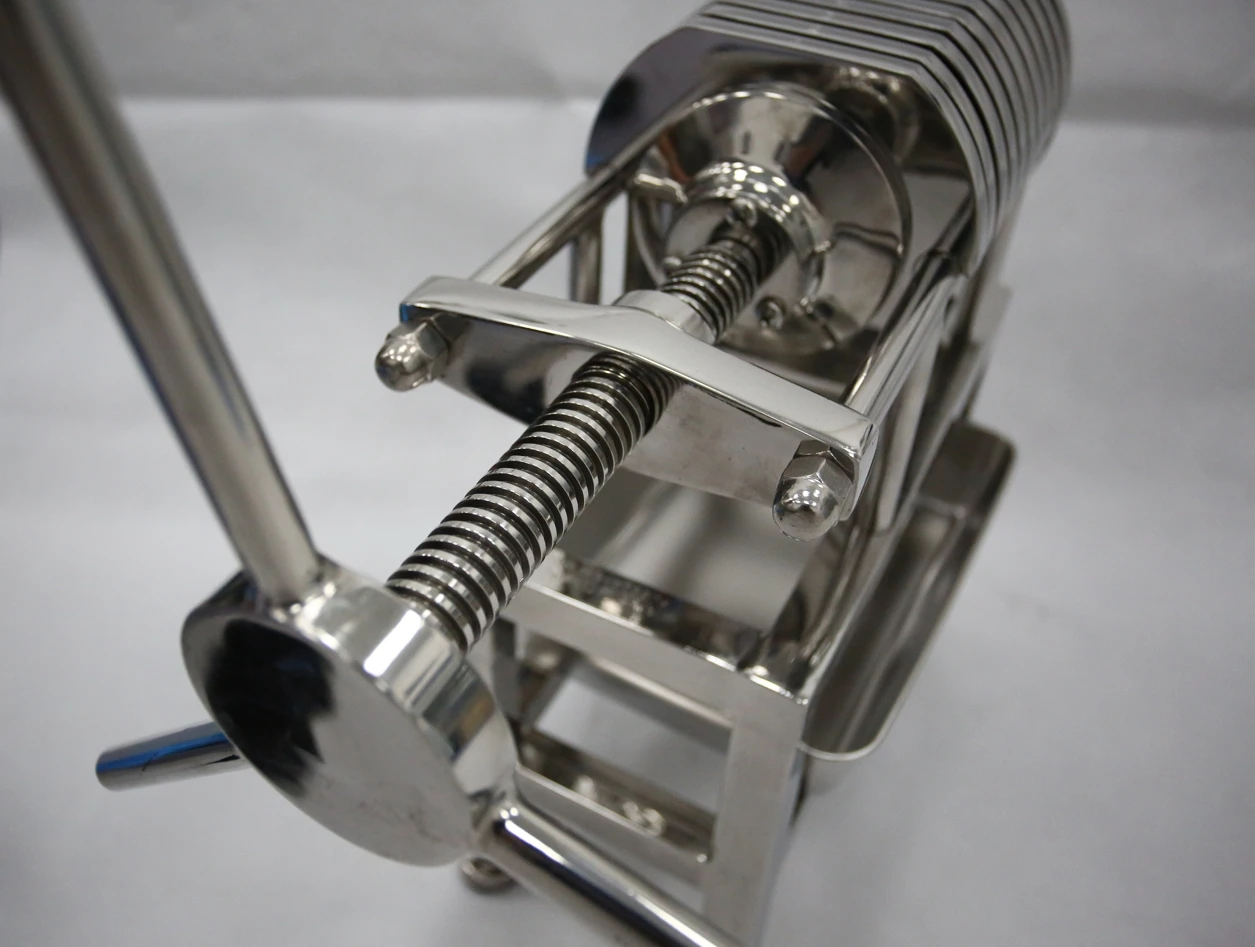

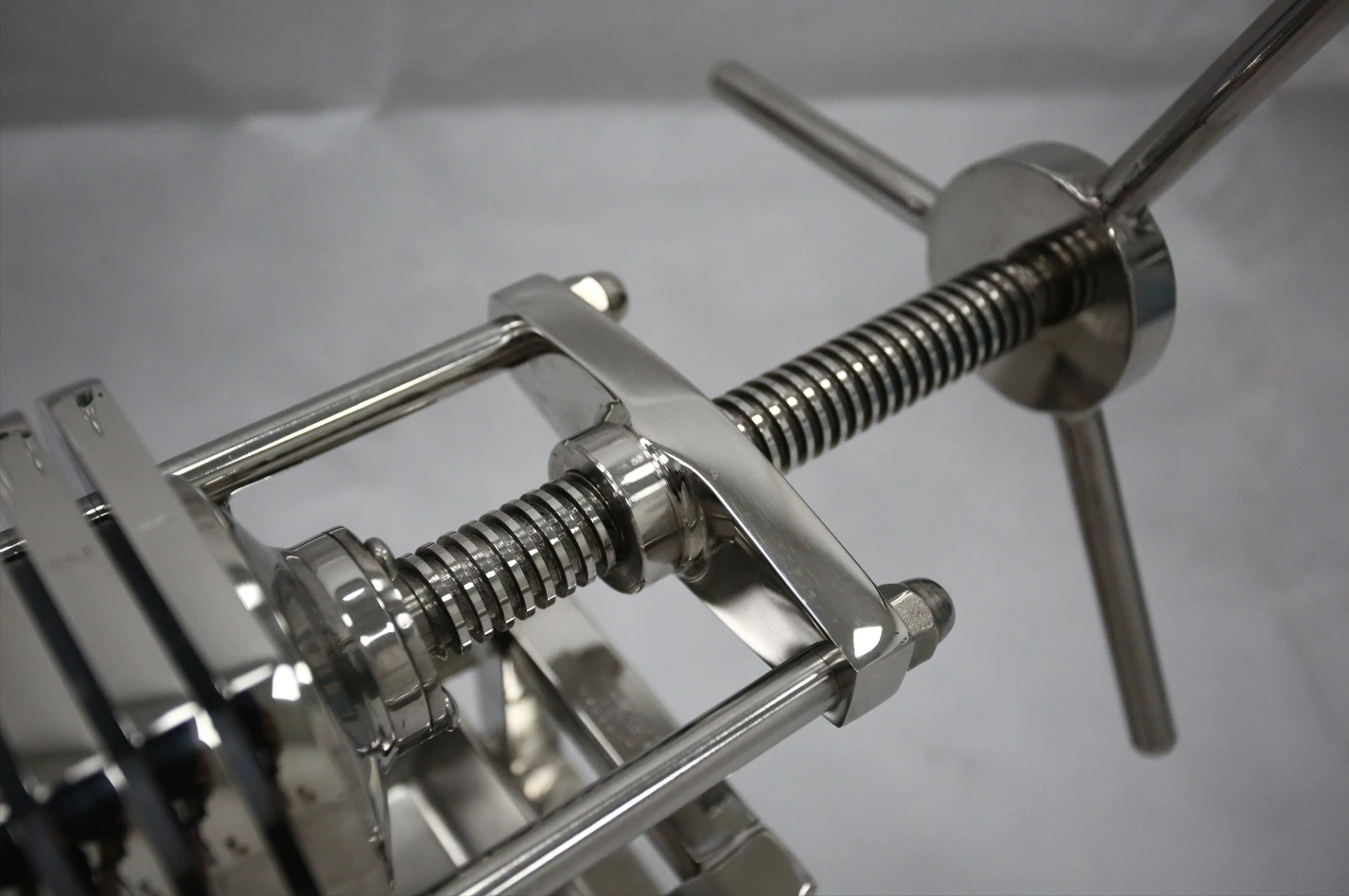

Pressing method | Manual screw tightening |
Feed pump | Explosion-proof sanitary pump |
Pipeline connection | Quick release clamp |
Caster wheels | Fixed casters |
Material | SUS316L |
Sealing ring, gasket | Silicone Rubber |
Filter size | Φ100 mm |

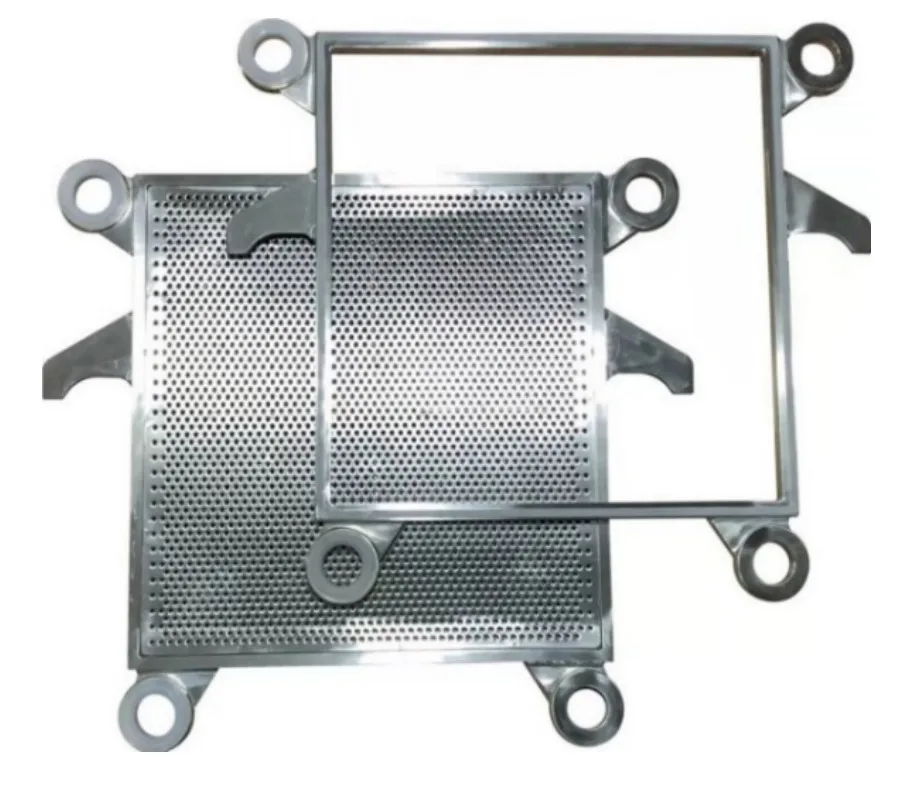

Thickness | Filter plate 12mm, filter frame 12 mm |
Inlet and outlet diameter | Φ19mm |
Machine size | 500×350×600 mm |
Working pressure | ≦0.4 MPa |
Temperature | ≦ 80 ℃ |
Filter material | Depth filter sheet and filter paper |
Note: Before starting filter, ensure there is no miscellaneous personnel nearby, and ensure there is no foreign matter between filter plates.

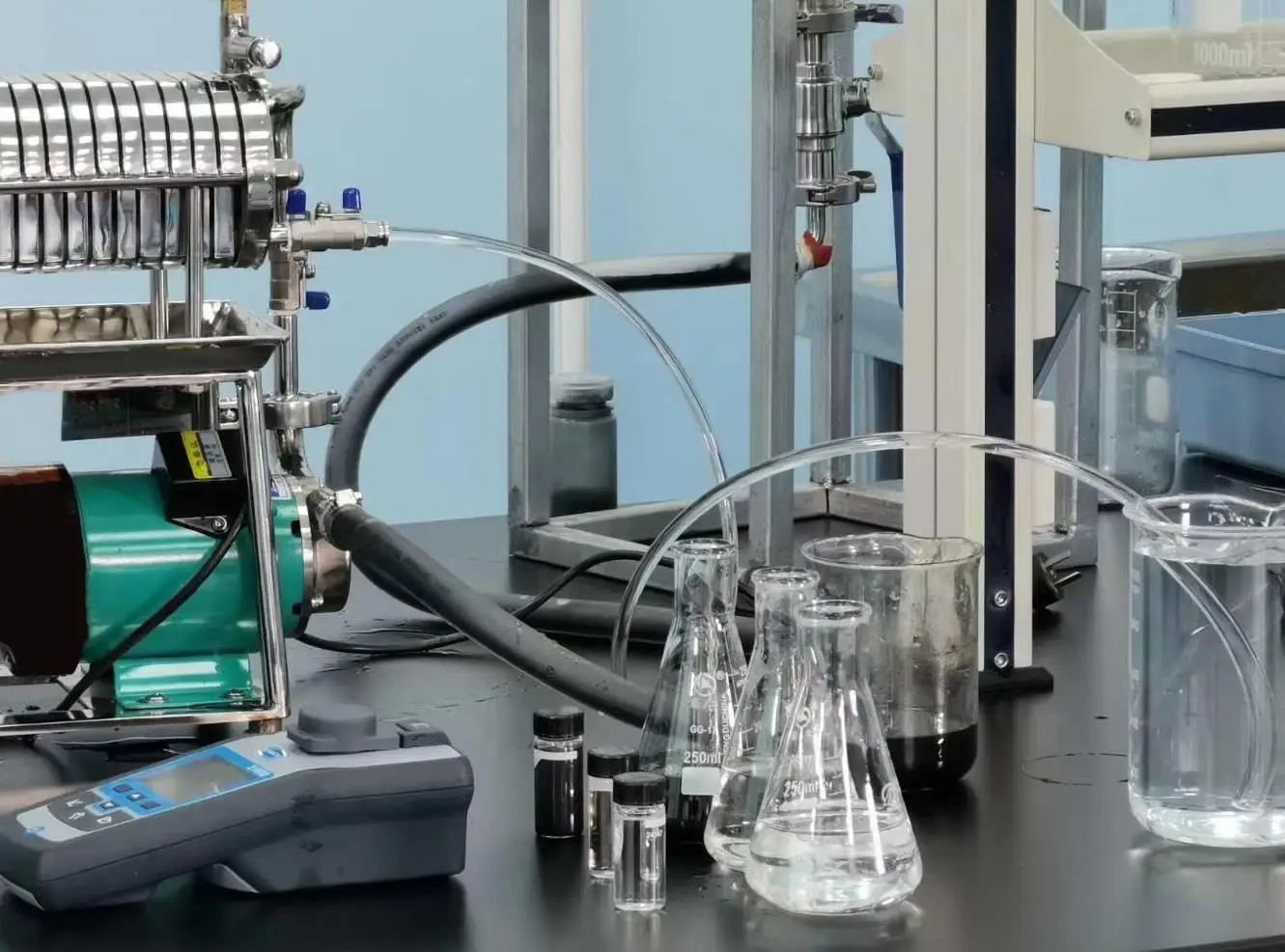

Stainless steel Rlate frame filter Application

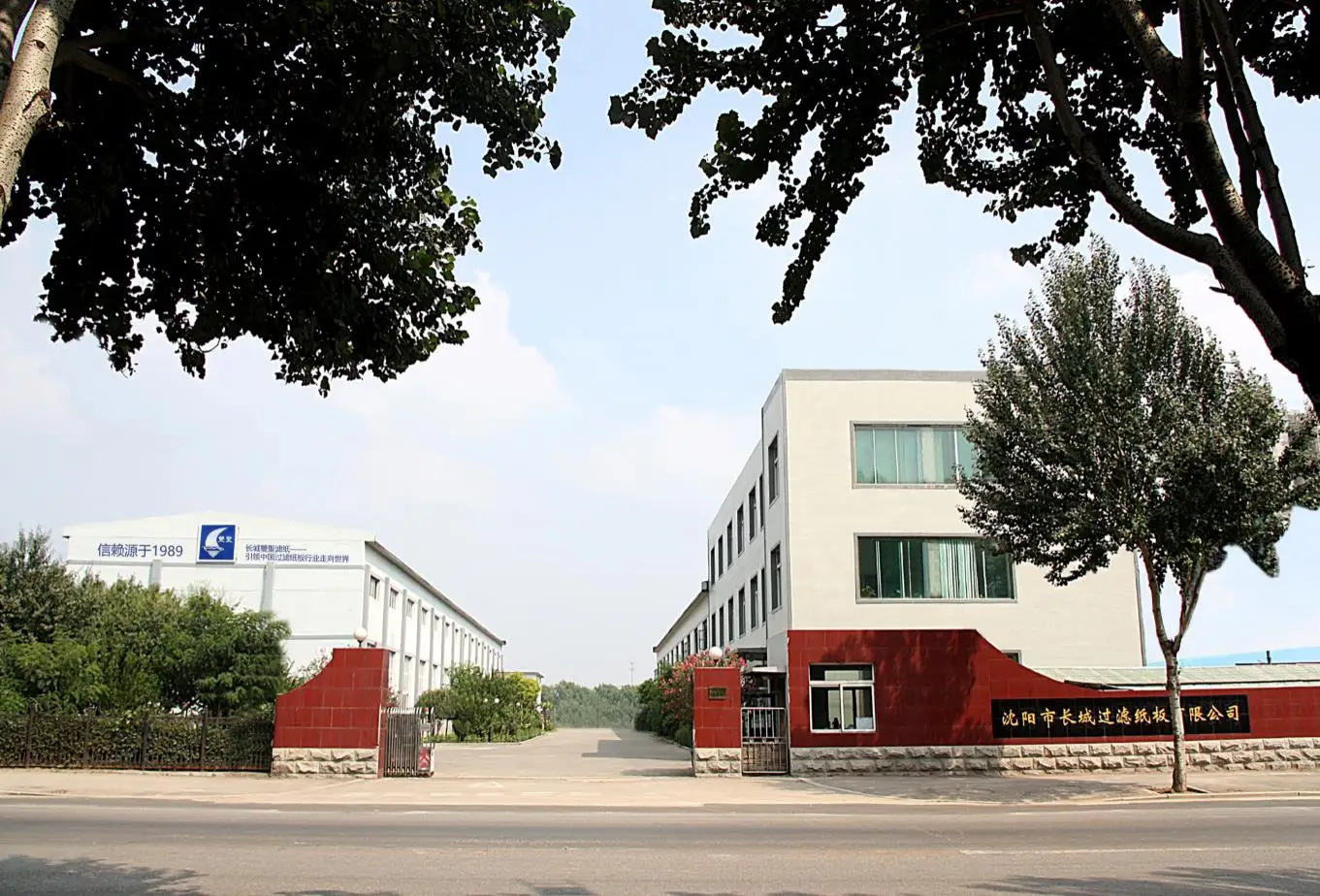

Company Profile
Shenyang Great Wall Filtration Co.,Ltd was established in 1989, it is manufacturer specializing in the production of Filter paper and Filter sheets. The product is used for filtration in the food and beverage industry, Oil industry, pharmaceutical industry, chemical industry and food additives and other industries

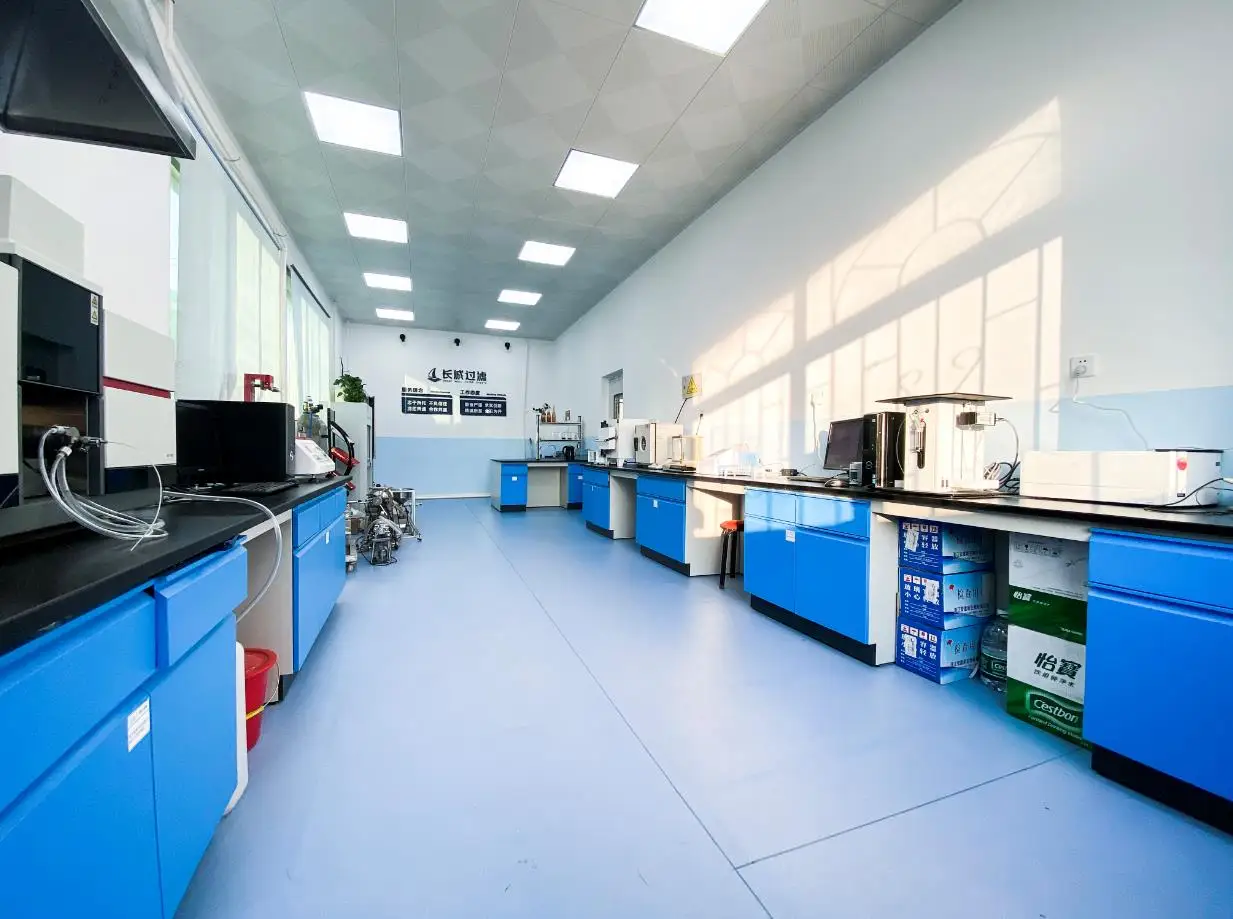

We have production workshop and Research and Development department, and have the ability to develop new product series with customers.Also, our company is the drafting unit of China's filter paper industry board standard and the first brand of China's filter paperboard.
At present, our company cooperates with many well-known domestic and foreign corporate brands such as: beverages Pepsi and Coca-Cola, beer Budweiser InBev and Tsingtao Brewery, WACKER chemical industry, etc.,
Our company has professional technicians who are very experienced in filtration; we can provide your company with technical support for filter paper at any time.
We have production workshop and Research and Development department, and have the ability to develop new product series with customers.Also, our company is the drafting unit of China's filter paper industry board standard and the first brand of China's filter paperboard.
At present, our company cooperates with many well-known domestic and foreign corporate brands such as: beverages Pepsi and Coca-Cola, beer Budweiser InBev and Tsingtao Brewery, WACKER chemical industry, etc.,
Our company has professional technicians who are very experienced in filtration; we can provide your company with technical support for filter paper at any time.
Our Exhibition
Packing & Delivery
Our customer
FAQ
1.Q: Are you a factory or a trading company?
A: We are a professional manufacturing factory of Filter sheets, we are able to supply you with top quality and perfect
workmanship. OEM and ODM products.
2.Q: What is your Product material?
A: Our products are made up from high quality wood pulp, cotton pulp, cellulose, diatomaceous earth and so on.
3. Q:What’s you sample policy?
A: We can provide some samples free for your test, freight will be paid by your side.
4.Q: Can you do any size?
A: Yes, we can do any size according to your request.
5.Q: What are your manufacturing and shipping time?
A: About 15-25 days after confirming the details.
6.Q: What certification do you have?
A: 1).Quality Management System ISO 9001 and Environmental Management System ISO 14001.
2). Food contact certificates
3). Meet testing Lab requirements
The products are pure natural raw materials, and can be tested according to customer requirements, including calcium and magnesiumion and heavy metal detection
A: We are a professional manufacturing factory of Filter sheets, we are able to supply you with top quality and perfect
workmanship. OEM and ODM products.
2.Q: What is your Product material?
A: Our products are made up from high quality wood pulp, cotton pulp, cellulose, diatomaceous earth and so on.
3. Q:What’s you sample policy?
A: We can provide some samples free for your test, freight will be paid by your side.
4.Q: Can you do any size?
A: Yes, we can do any size according to your request.
5.Q: What are your manufacturing and shipping time?
A: About 15-25 days after confirming the details.
6.Q: What certification do you have?
A: 1).Quality Management System ISO 9001 and Environmental Management System ISO 14001.
2). Food contact certificates
3). Meet testing Lab requirements
The products are pure natural raw materials, and can be tested according to customer requirements, including calcium and magnesiumion and heavy metal detection
