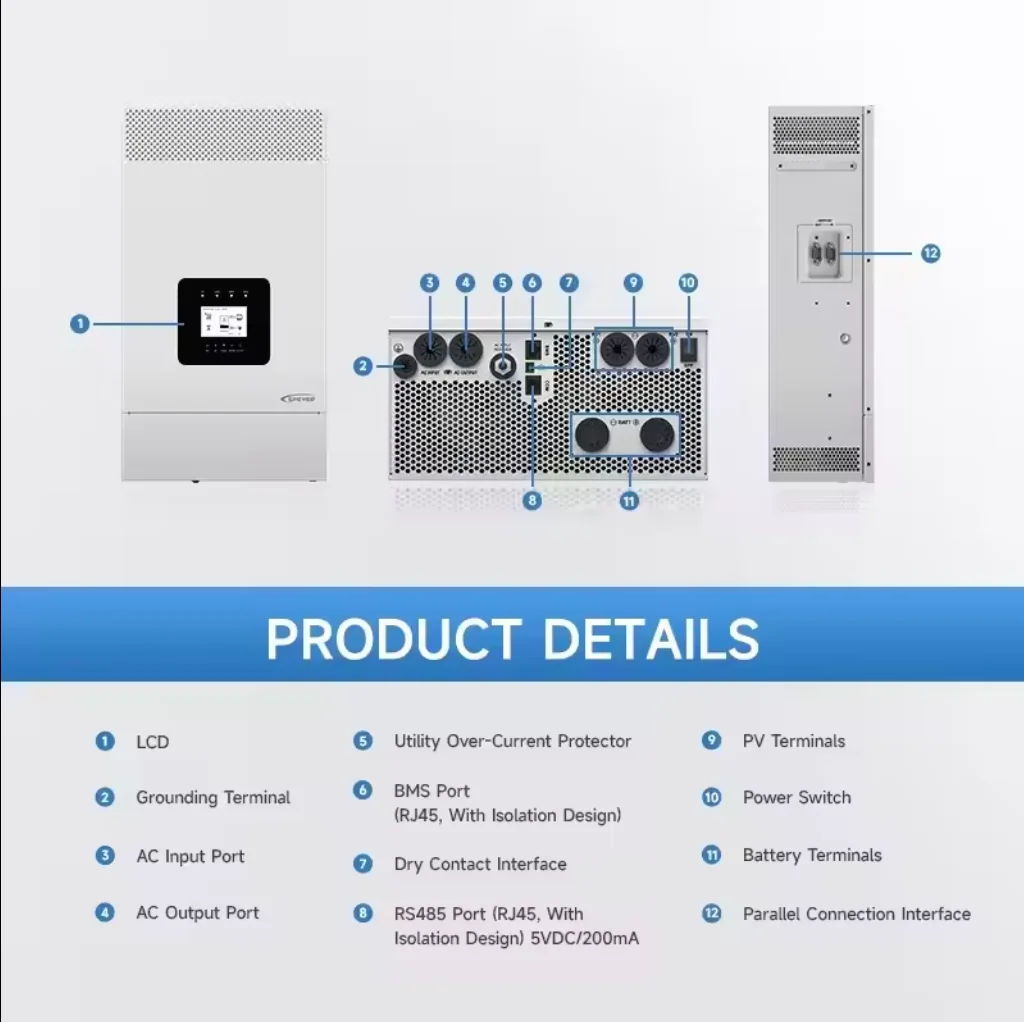

HP 20SA Series EPEVER 3.5KW 5.5KW 48V 220V 230V Single Phase Pure Sine Wave Hybrid Solar Power Inverter
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.
Share on (1601223316945):
Product Overview
Description
Title goes here.

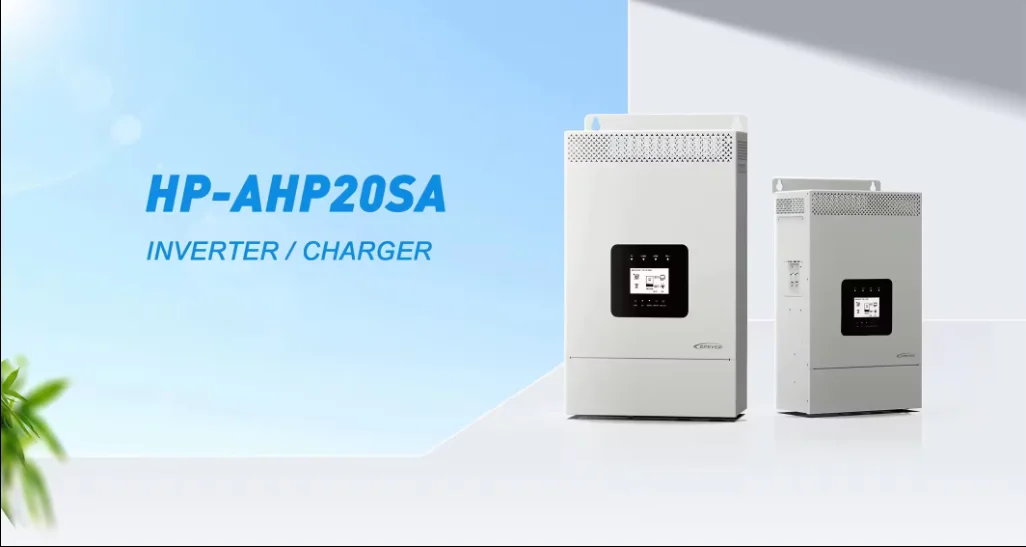

EPEVER HP-AHP20SA Series 3500W 5500W
High Frequency Hybrid Solar Inverter With MPPT
High Frequency Hybrid Solar Inverter With MPPT
The HP-AHP20SA series is a cost-effective product. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings.
Title goes here.
Technical Specifications
Model | HP3542-AH0650P20SA | HP5542-AH1050P20SA | ||
Utility input | Utility Voltage | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | ||
Utility Frequency | 45Hz~65Hz | |||
Maximum Utility Charging Current | 60A | 100A | ||
Switch Response Time | Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms | |||
Inverter output | Inverter Rated Power (@30℃) | 3500W | 5500W | |
3-second Transient Surge Output Power | 7000W | 8500W | ||
Inverter Output Voltage | 220/230VAC±3% | |||
Inverter Frequency | 50/60Hz±0.2% | |||
Inverter Frequency | Pure sine wave | |||
Load Power Factor | 0.2~1(VA ≤ Rated output power) | |||
THDu (Total Harmonic Voltage Distortion) | ≤3% (48V resistive load) | |||
Maximum Load Efficiency | 92% | |||
Maximum Inverter Efficiency | 94% | |||
Solar controller | PV Maximum Open-circuit Voltage | 500V (At minimum operating environment temperature) 440V (At 25℃) | ||
MPPT Voltage Range | 85~400V | |||
PV Maximum Input Power | 4000W | 6000W | ||
PV Maximum Charging Current | 60A | 100A | ||
MPPT Maximum efficiency | ≥99.5% | |||
Battery | Battery Rated Voltage | 48VDC | ||
Battery Work Voltage Range | 43.2VDC~60VDC | |||
Battery Maximum Charging Current | 60A | 100A | ||
Others | No-load Losses | ＜0.7A | ＜1.0A | |
Test condition: No PV and utility, AC out is on, fan stops@48V input | ||||

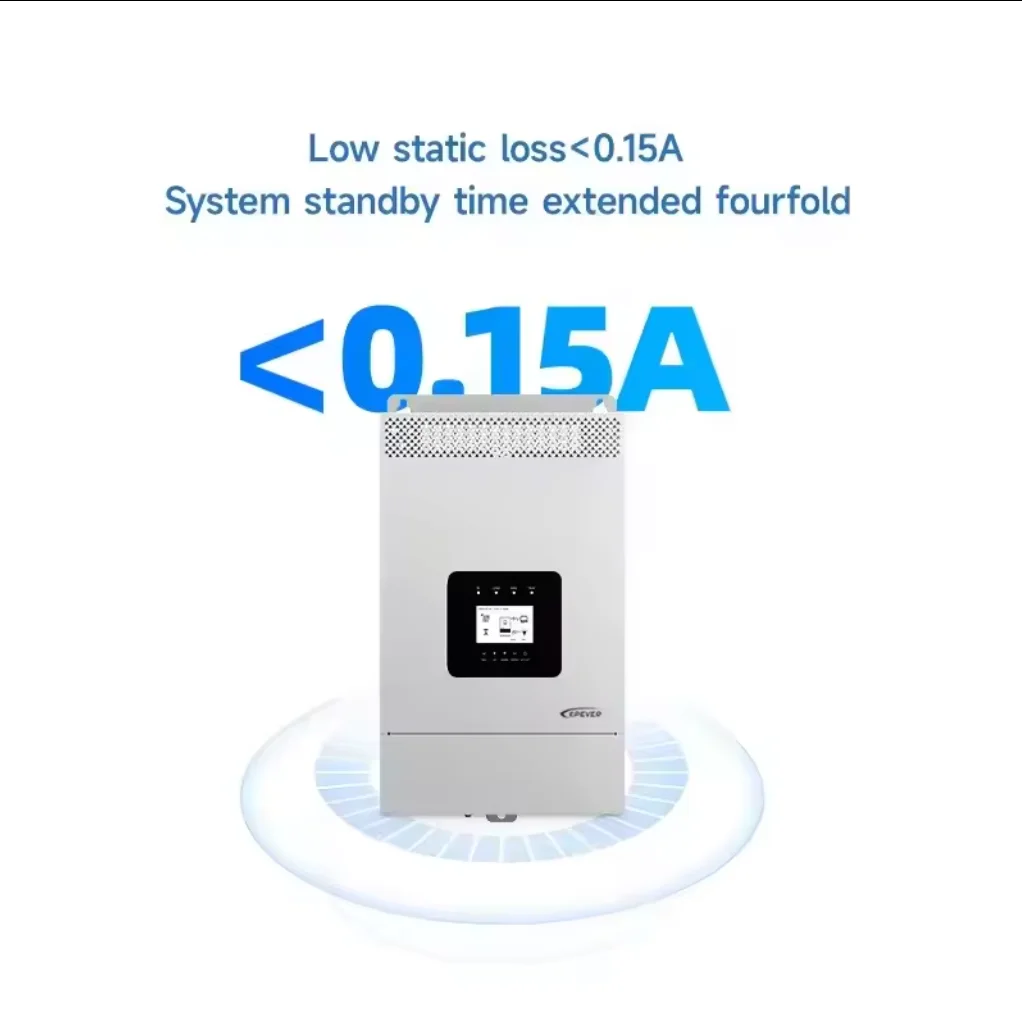

Standby Current | ＜0.15A | |||
Test condition: No PV and utility, AC out is off, fan stops@48V input) | ||||
Work Temperature Range | -20℃~+50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately) | |||
Storage Temperature Range | -25℃~+60℃ | |||
Enclosure | IP20 | |||
Relative Humidity | < 95% (N.C.) | |||
Altitude | ＜4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | |||
Mechanical parameters | Dimension (Length x Width x Height) | 534mm × 288mm × 163mm | 590mm × 288mm × 163mm | |
Mounting size (Length x Width) | 512mm x 245mm | 568mm x 245mm | ||
Mounting hole size | Φ9mm/Φ10mm | Φ9mm/Φ10mm | ||
Net Weight | 12.0Kg | 15.0Kg | ||
Product Features:
>Pure sine wave output

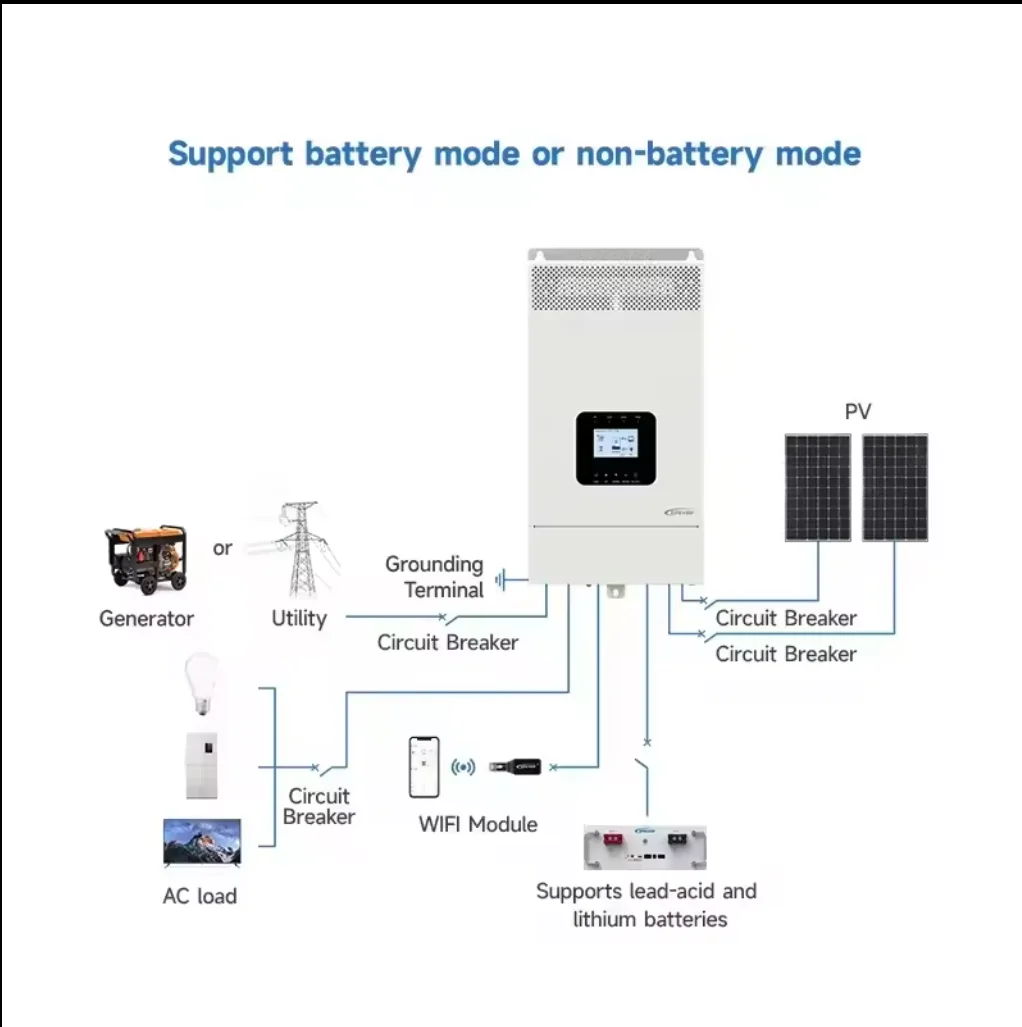

>Supports battery or non-battery modes
>Built-in BMS-Link module for secure battery charge and discharge control
>PFC technology reduces the demand on the power grid capacity
>Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%
>Supports Dual PV inputs to Improve PV utilization

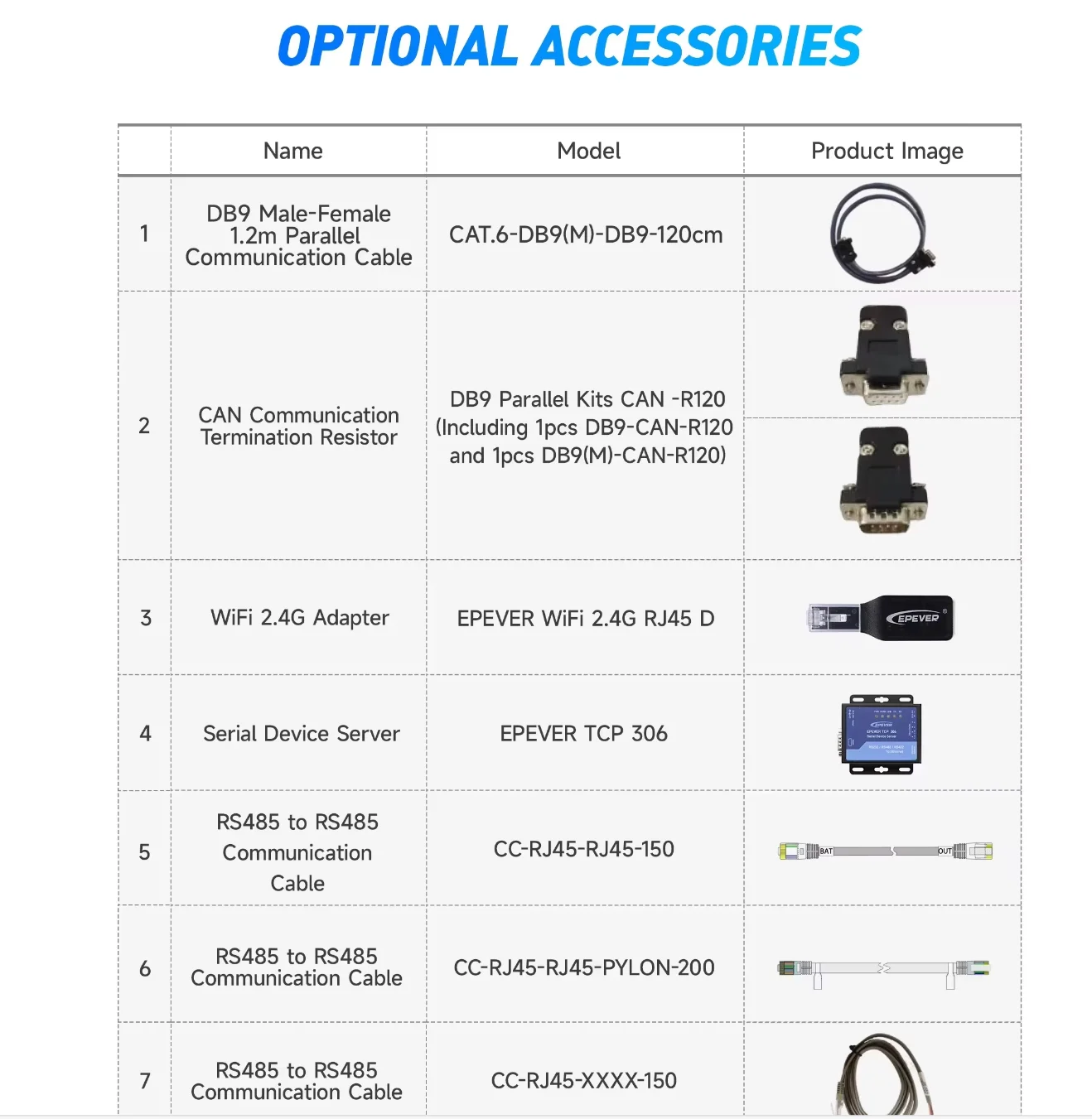

>R$485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring

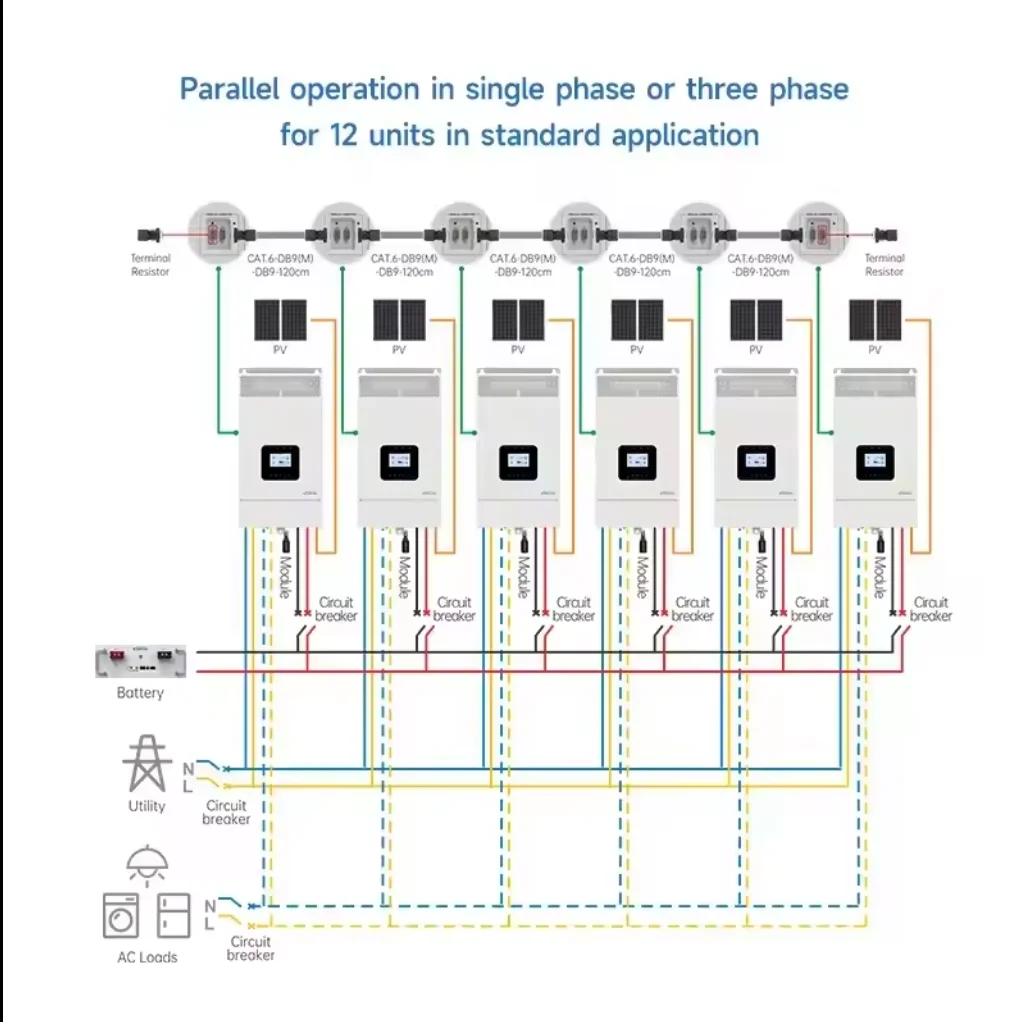

>AC output supports parallel operation, standard configuration of 12 units in parallel
>AC output parallel operation supports single-phase and three-phase settings
>Supports battery or non-battery modes
>Built-in BMS-Link module for secure battery charge and discharge control
>PFC technology reduces the demand on the power grid capacity
>Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%
>Supports Dual PV inputs to Improve PV utilization
>R$485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
>AC output supports parallel operation, standard configuration of 12 units in parallel
>AC output parallel operation supports single-phase and three-phase settings
