Multifunctional 360 Degree Rotary IT T19600 Roller Heat Press Machine Heat Transfer Machine Printer
- Category: >>>
- Supplier: Guangzhou Ziyu Trading Co. Ltd.
Share on (1601223330758):
Product Overview
Description
SPECIFICATION | ||||||

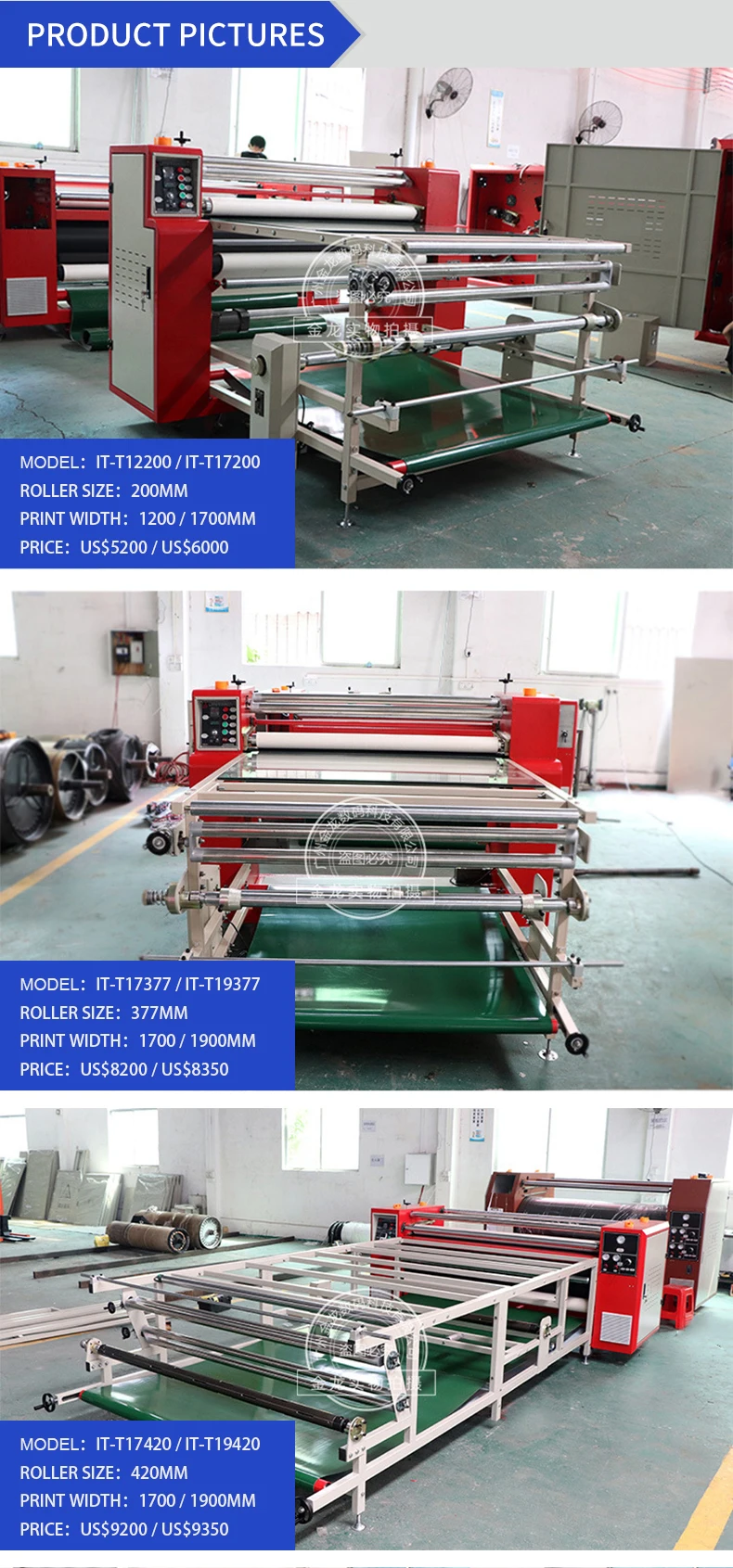

MODEL | IT-T12200/IT-T17200 | IT-T17377/IT-T19377 | IT-T17420/IT-T19420 | |||
ROLLER SIZE | 200mm | 377MM | 420MM | |||
PRINTWIDTH | 1200/1700mm | 1700/1900MM | 1700/1900MM | |||
VOLTAGE | 220V | 380V | 380V | |||
POWER | 5KW | 25 KW | 28KW. | |||
TEMPERATURE RANGE | 0-300 °C | 0-400 °C | 0-400 °C | |||
TIME RANGE | 0-999S | 0-999S | 0-999S | |||
MAIN MACHINE SIZE | 680*1400*2000 | 1050*1250*2550(1700) 1050*1250*2750(1900) | 1100*1260*2580(1700) 1100*1260*2780(1900) | |||
WEIGHT | 600KG | / | 1700KG | |||
PRODUCTION | 20-60M/H | / | 100-200M/H | |||
USAGE DIAMETER | 10 SQUARE METERS | / | 16 SQUARE METERS | |||
OTHER SPECIFICATION | ||||||

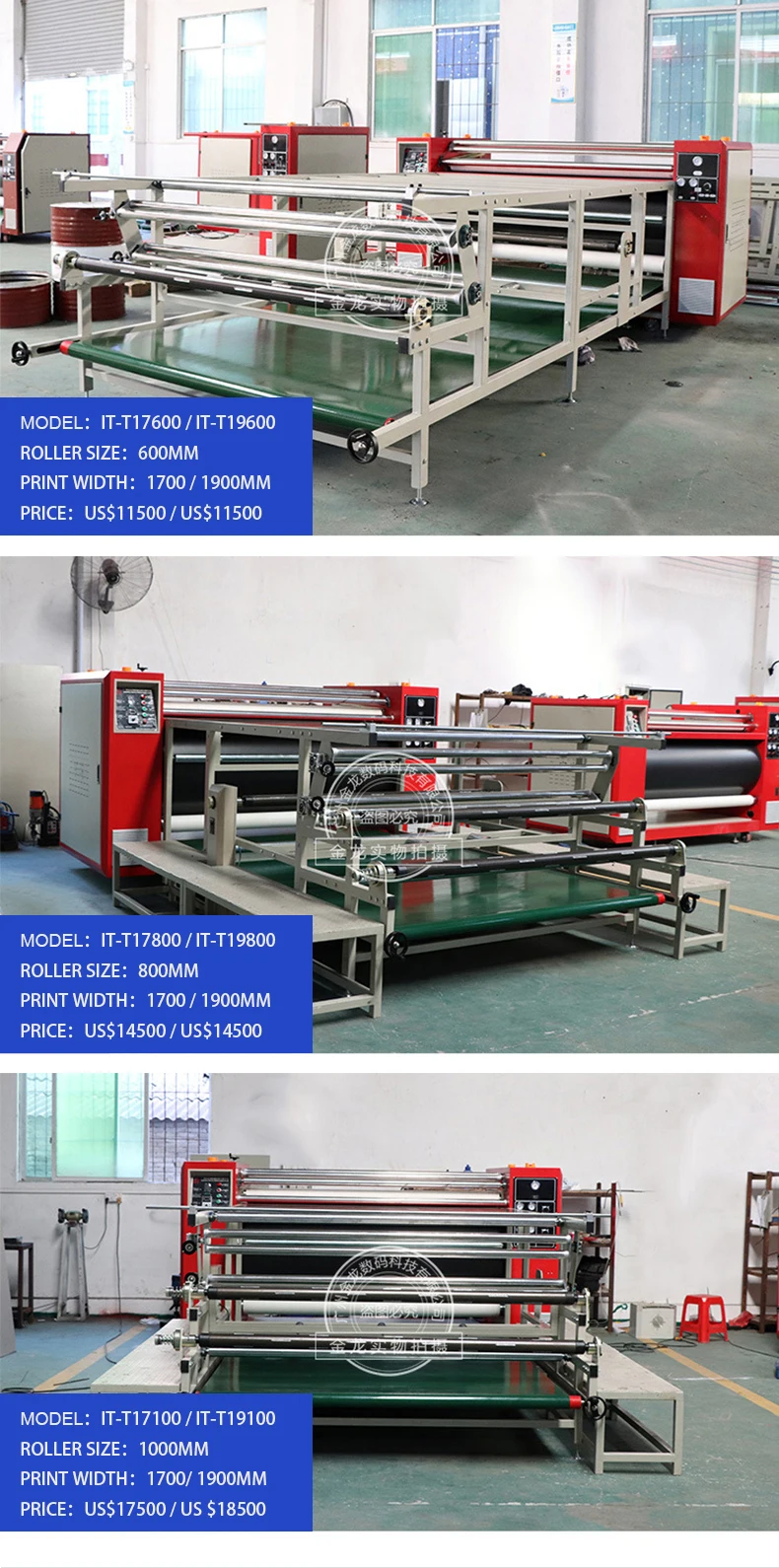

MODEL | IT-T17600/IT-T19600 | IT-T17800/IT-T19800 | IT-T17100/IT-T19100 | |||
ROLLER SOZE | 600MM | 800MM | 1000mm | |||
PRINTWIDTH | 1700/1900MM | 1700/1900MM | 1700mm/1900mm | |||
VOLTAGE | 380V | 380V | 380V | |||
POWER | 35 KW | 54 KW | 64KW | |||
TEMPERATURE RANGE | 0-400 °C | 0-400 °C | 0-400 °C | |||
TIME RANGE | 0-999S | 0-999S | 0-999S | |||
MAIN MACHINE SIZE | 1300*1500*2590(1700) 1300*1500*2850(1900) | 1500*1650*2700(1700) 1500*1650*2880(1900) | / | |||
WEIGHT | 2800KG | 3200KG | / | |||
PRODUCTION | 150-280M/H | 350-600M/H | / | |||
USAGE DIAMETER | 25 SQ1UARE METERS | 35 SQUARE METERS | / | |||
