Hot sale in UAE/Full range of elevator guide rails/T45A/T50A/T70B/T75B/T78B/T82B/T89B/T90B/T114B/T127B/T140B

Share on (1601223356816):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Warranty
1 Year
After-sale Service
Online technical support, Other
Project Solution Capability
graphic design, 3D model design, total solution for projects
Application
Villa,other
Design Style
Traditional
Place of Origin
China
Shandong
Brand Name
Inheritance
Model Number
T-type guide shoe
Product name
T-type guide shoe
Model
T45A/T50A/T70B/T75B/T78B/T82B/T89B/T90B/T114B/T127B/T140B
Certificate
ISO9001 CE
Production time
Goods in stock
Color
Black,other

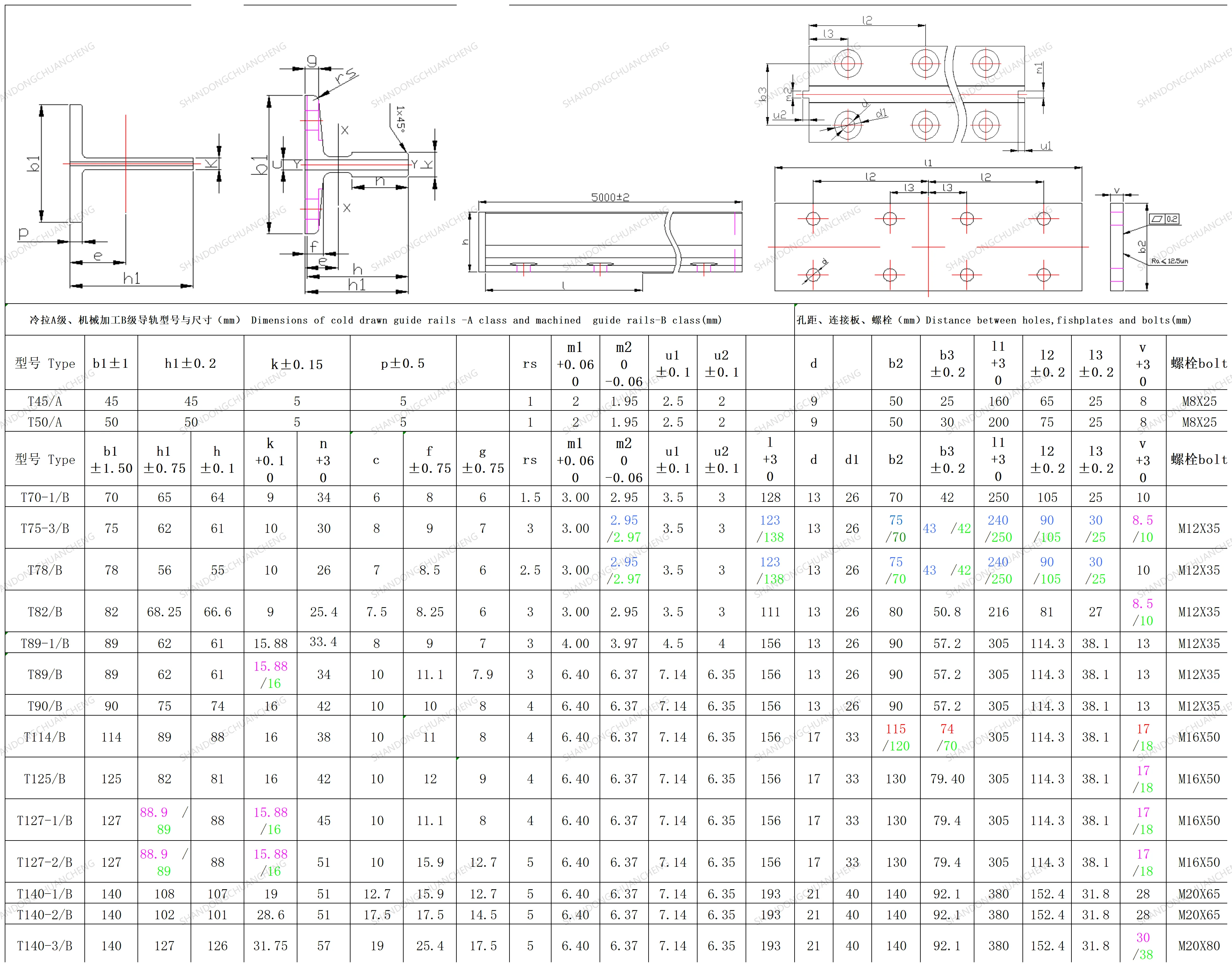

Products Description


T50/A.
1. Main size: 50mm*50mm*5mm
2. Specification:5 meters
3. Material:Q235
4. Elevator guide rail accessories specifications:
Fish plate size: 200mm*50mm*8mm
Screw: m8*25
T70-1/B.
1. Main size: 70mm*65mm*9mm
2. Specification:5 meters
3. Material:Q235
4. Elevator guide rail accessories specifications:
Fish plate size: 250mm*70mm*10mm
Screw: m12*35


T75-3/B.
1. Main size: 75mm*62mm*10mm
2. Specification:5 meters
3. Material:Q235
4. Elevator guide rail accessories specifications:
Fish plate size: 240mm*75mm*10mm
Screw: m12*35
T82/B.
1. Main size: 82.5mm*68.25mm*9mm
2. Specification:5 meters
3. Material:Q235
4. Elevator guide rail accessories specifications:
Fish plate size: 216mm*80mm*10mm
Screw: m12*35


T89/B.
1. Main size: 89mm*62mm*15.88mm
2. Specification:5 meters
3. Material:Q235
4. Elevator guide rail accessories specifications:
Fish plate size: 305mm*90mm*13mm
Screw: m12*40
T90/B.
1. Main size: 90mm*75mm*16mm
2. Specification:5 meters
3. Material:Q235
4. Elevator guide rail accessories specifications:
Fish plate size: 305mm*90mm*13mm
Screw: m12*40


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile




Shandong Inheritance Elevator Co.,Ltd was established in 2017, specializing in R&D,production and sales of private villas and duplex building home elevators, including traction gantry villa elevators, traction backpack villa elevators, traction forced drive villa elevators, screw villa elevators, hydraulic villa elevators, combined steel structures and aluminum alloy sightseeing hoistways, etc, and their supporting parts.
The company has a variety of modern manufacturing equipment, established a perfect quality assurance and after-sales service system, to ensure to provide customers with excellent quality, affordable products. Adhering to the tenet of "quality first,satisfactory service", the company wholeheartedly provides the most satisfactory products and services for customers at home and abroad


FAQ


1. who are we?
We are based in Shandong, China, start from 2017,sell to Domestic Market(50.00%),North America(10.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast Asia(5.00%),Northern Europe(4.00%),South Asia(3.00%),Central America(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Elevator, Elevator Parts

4. why should you buy from us not from other suppliers?
SHANDONG INHERITANCE ELEVATOR CO.,LTD.Professional research and development, production, sales, installation of private villas and duplex building home elevators,The company has a variety of modern manufacturing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
