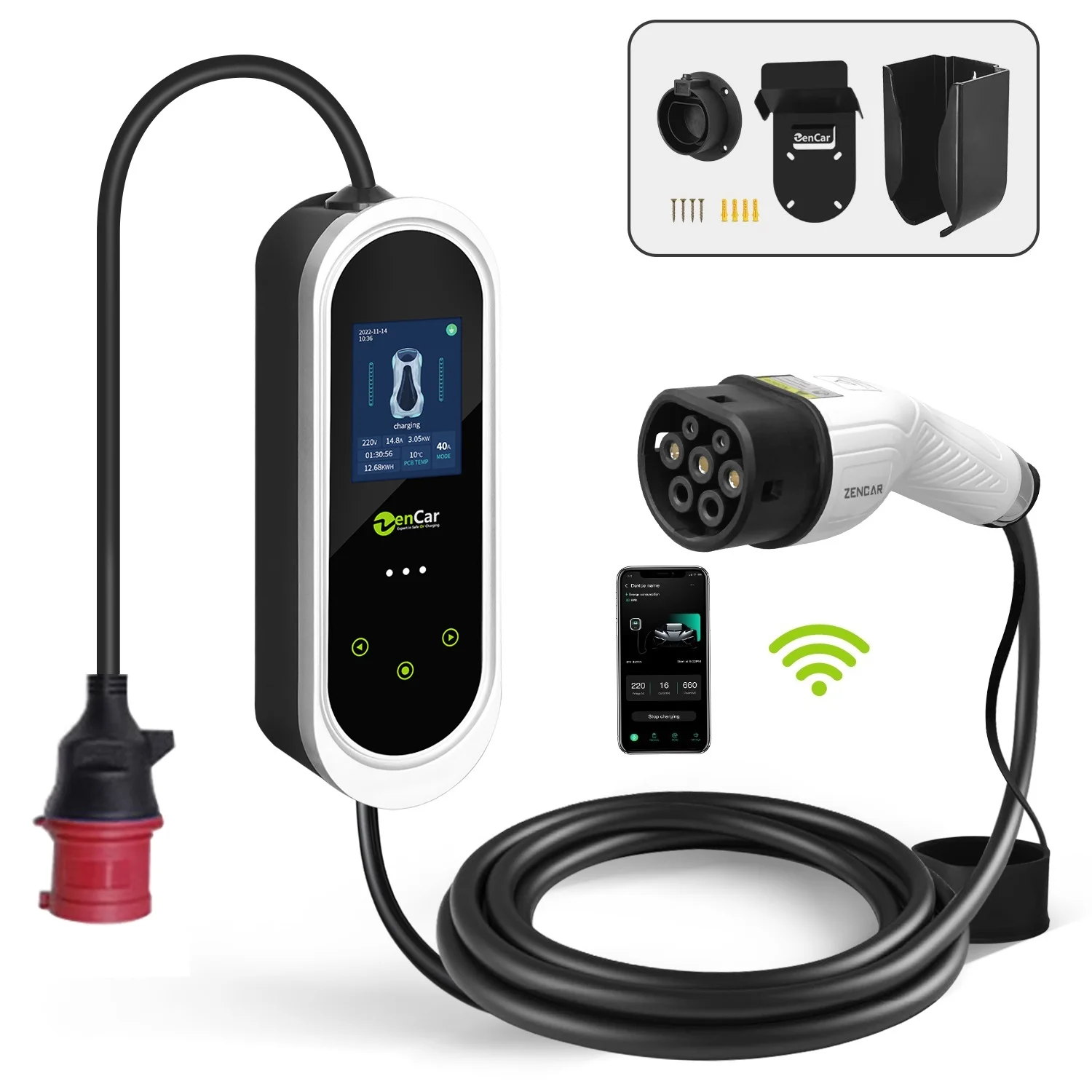

APP 11kw smart EV Charger 16A 3 phase 380v Type 2 electric car charger with WiFi Zencar model E Pro
- Category: >>>
- Supplier: Yocar International Trading (changzhou) Co. Ltd.
Share on (1601223479555):
Product Overview
Description
Product Description
APP 11kw smart EV Charger 16A 3 phase 380v Type 2 electric car charger with WiFi Zencar model E Pro
11kw EV charger EVSE | 16A | 380V| Type 2 | Red CEE | 5m TPU Cable
WiFi + BT: support APP on mobile phone
Type B: AC 30mA DC 6mA leakage protection, Meet IEC 62752
including 1 set of holders ( 3pcs)
Advantages

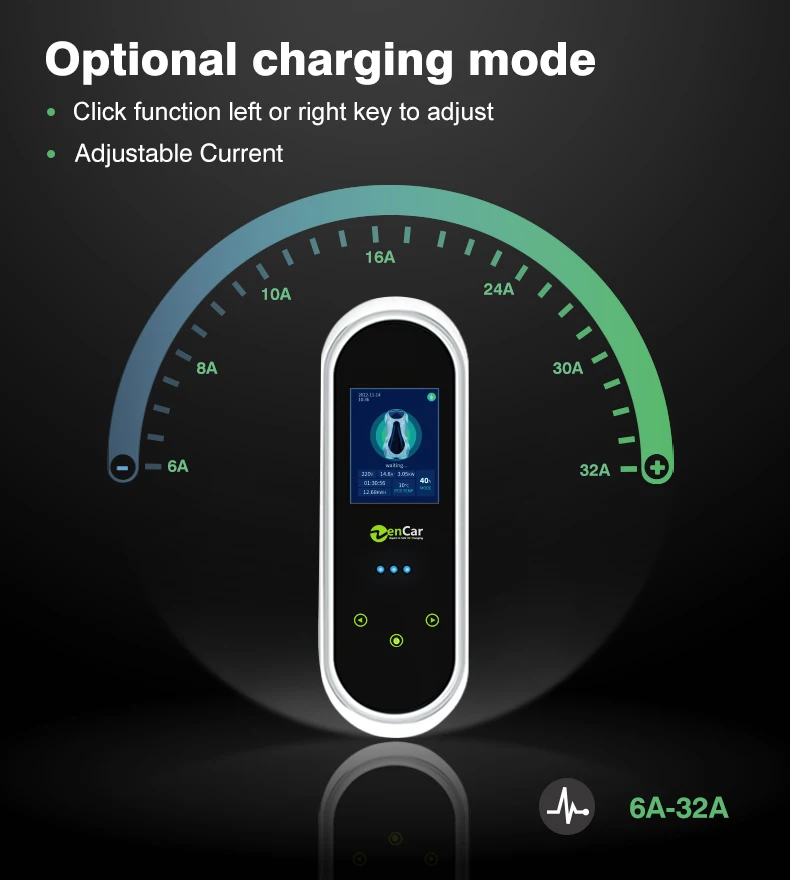

1. Set amps 6A-16A, charging time (eg 21:00-07:00) on APP in mobile phone

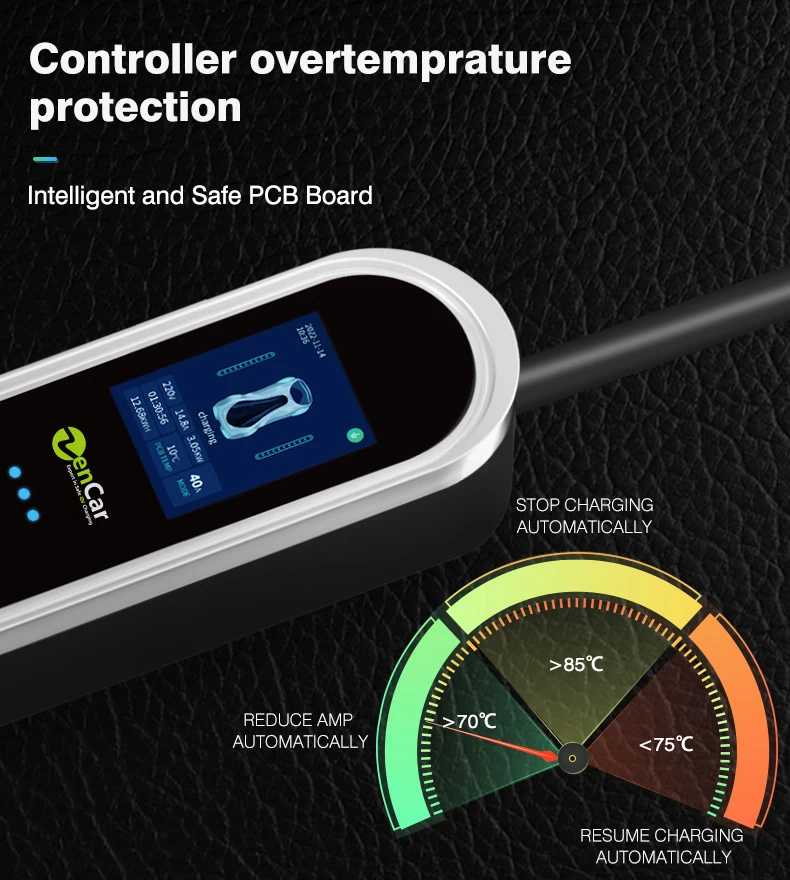

2. Intelligent dual temperature sensor
3. Big LCD screen
4. Meet IEC 62752, Type B AC 30mA DC 6mA
5. Free holders.
Basic Data | ||||||

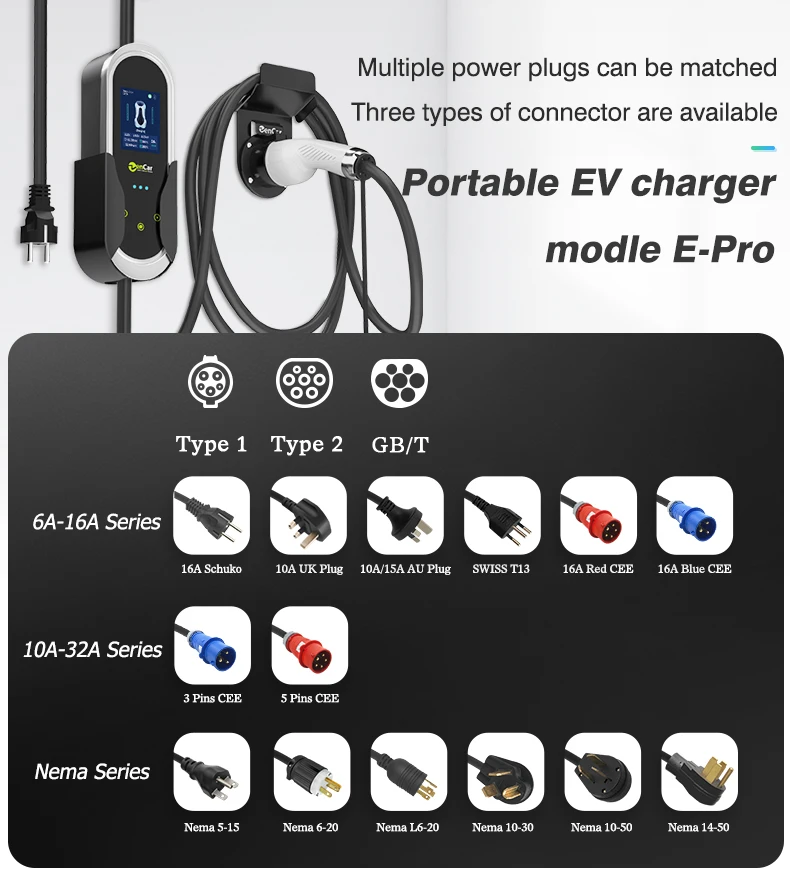

Charging Plug / Connector | Type 2 | Power side plug | Red CEE | |||
Input voltage | 380V AC | Output voltage | 380V AC | |||
Output current | 6A/7A/8A.../16A adjustable | Max. output power | 11KW | |||
Input frequency | 50/60Hz | Cable length | 5m | |||
Function and Accessory | ||||||

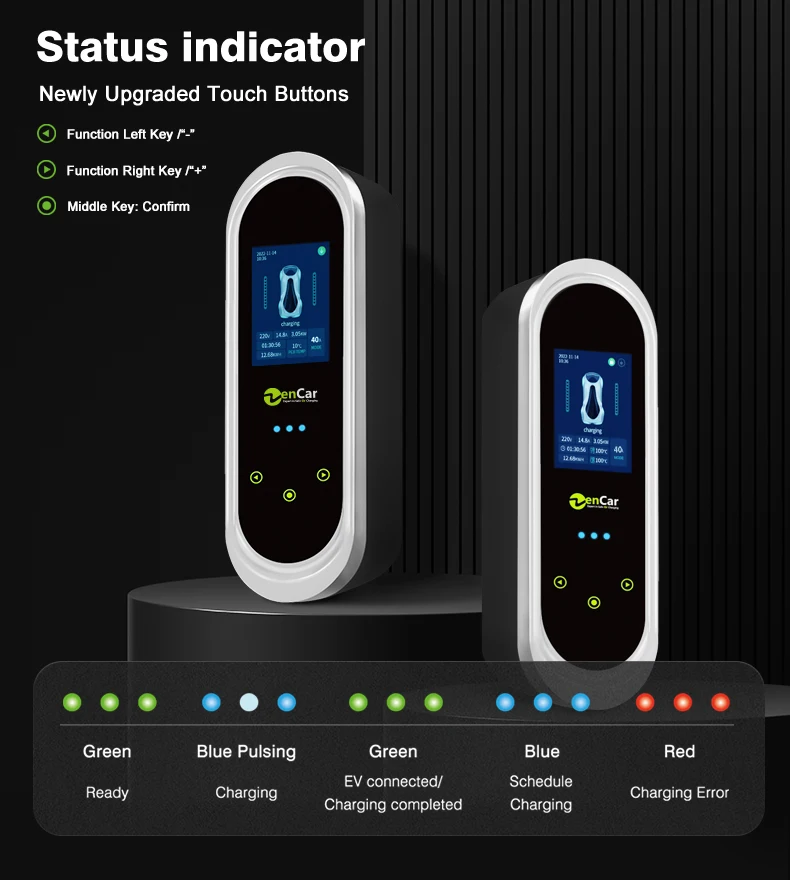

WIFI/BT | Yes, support APP | LED Indicator light | Flash | |||
Intelligent power adjustment | YES | LCD Screen | YES, bigger | |||
RCD | AC 30mA DC 6mA | Timing Function | YES | |||

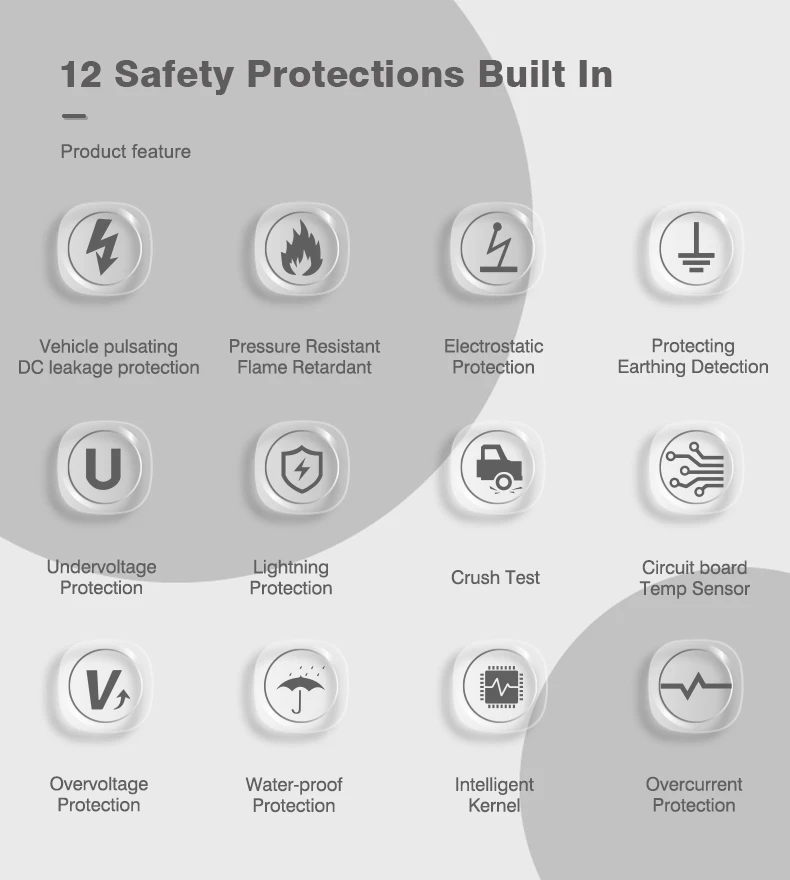

Protection | ||||||
Over Voltage Protection | YES | Protection Earth Detection | YES | |||
Under Voltage Protection | YES | Over-temp Protection | intelligent dual temperature sensor | |||
Over current Protection | YES | Lightning Protection | YES | |||
Pressure Resistant | YES | Flame Resistant | YES | |||

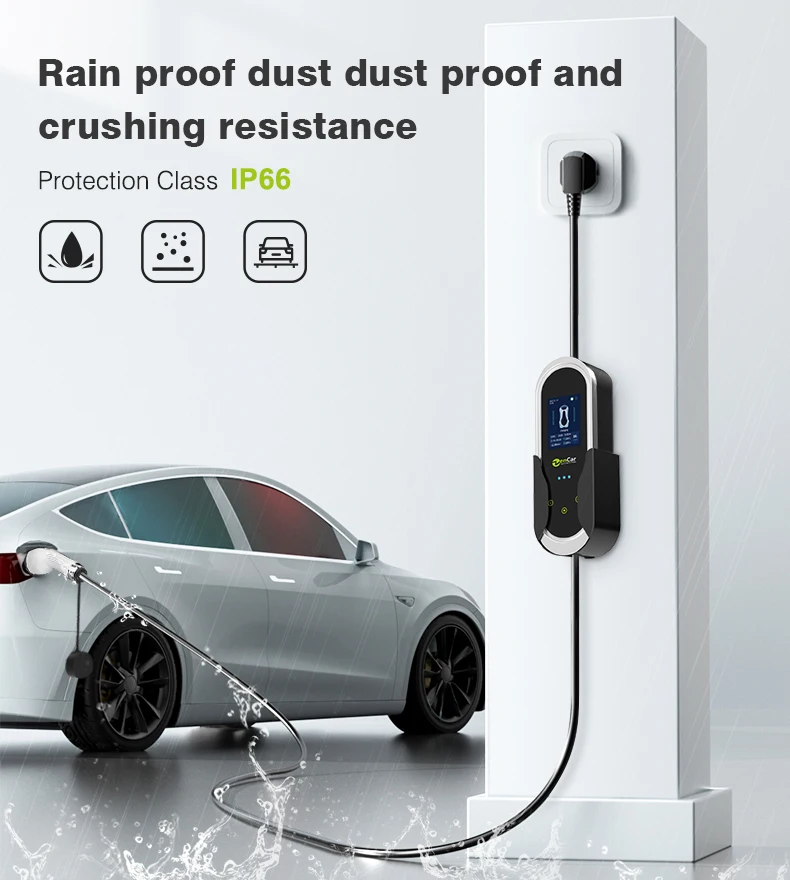

Water-proof Protection | IP65 | Intelligent Kernel | YES | |||
Electrostatic Protection | YES | Crush Test | YES | |||
Package | ||||||
Dimension (W/H/D) | 410/390/100mm | Weight | 4.5KG | |||
Packing Methord | Netruel /Color box | |||||
Guarantee | ||||||
Warranty | 12 months | Certificate | CE | |||
Products Show

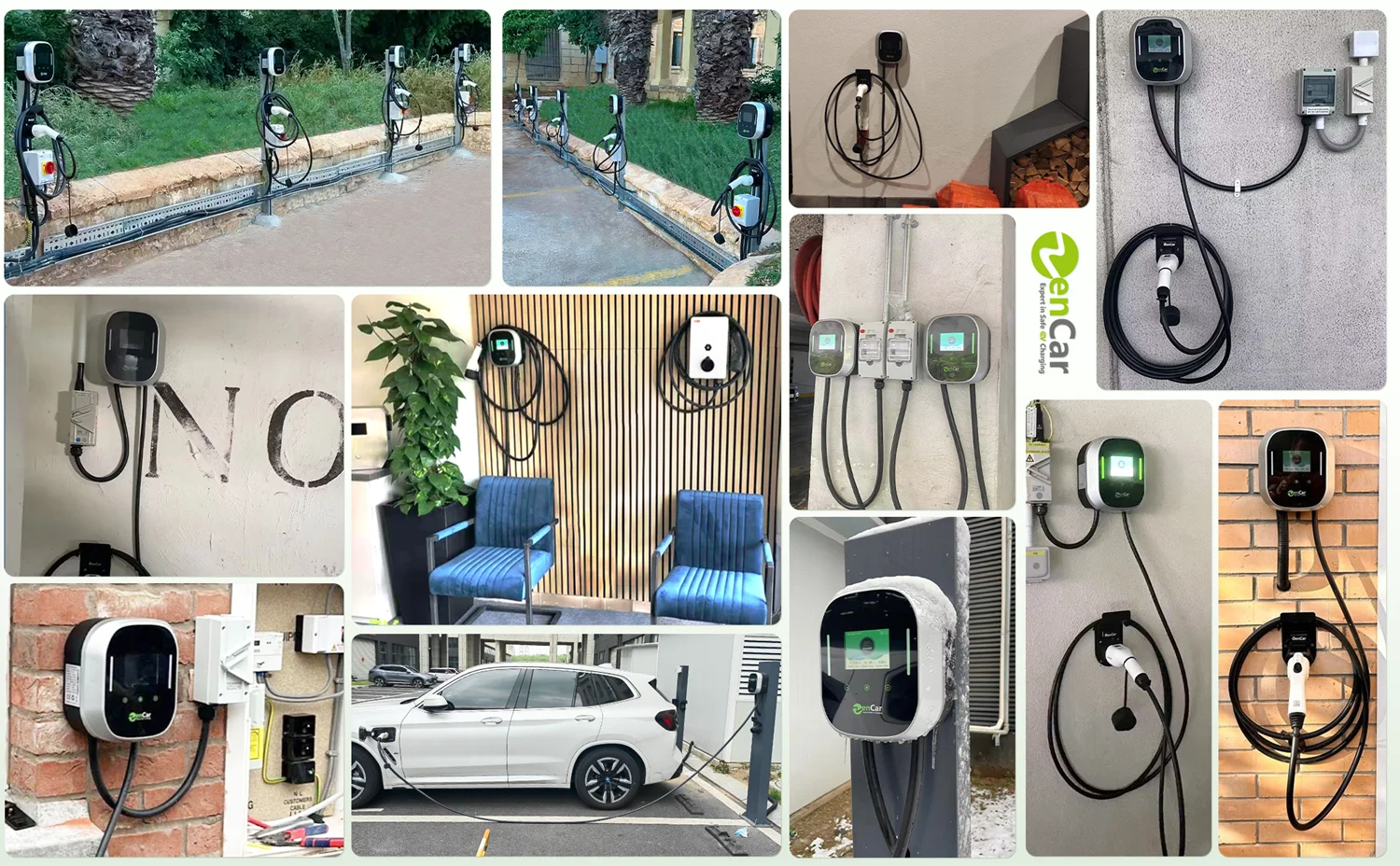

Application
Product packaging
Certifications
Exhibition

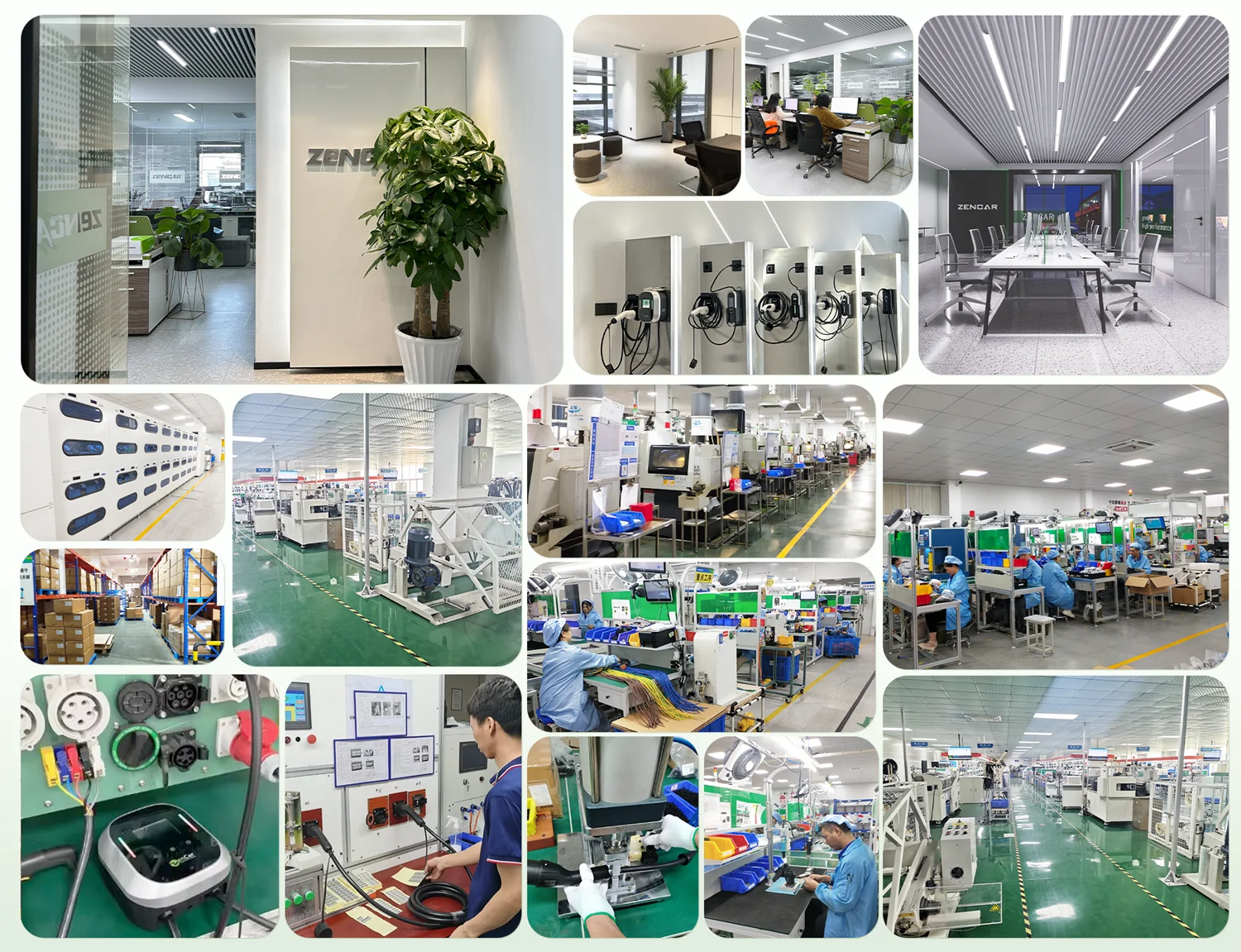

Company Profile
* A manufacturing & trading combo and establish in 2010, filed in EV Chargers more than 14 years , besides we export brands of EV charging cables , plugs , connectors from Chinese Market .
* All of our products come with CE, TUV certification.
* Our customers are covering from online buyers, off-line sellers , EV manufacturers and EV station building companys around the world .
* All of our products come with CE, TUV certification.
* Our customers are covering from online buyers, off-line sellers , EV manufacturers and EV station building companys around the world .
* We provide addtional value at several steps :
1)Product test and validation ,OEM as request
2)Pre sales communication (website guide,OEM packing design , Technical details )
3) After sales support ( Sales promotion support , after sales service , Product warranty , Technical consulting )
* All done by technical expert, experienced sales , experienced designers
1)Product test and validation ,OEM as request
2)Pre sales communication (website guide,OEM packing design , Technical details )
3) After sales support ( Sales promotion support , after sales service , Product warranty , Technical consulting )
* All done by technical expert, experienced sales , experienced designers
