Product Overview
Description
Products Description
captiva compressor ac lpg z24sed mini lpg compressor price zw series mini lpg air compressor
- Ecotec Design & Manufacture

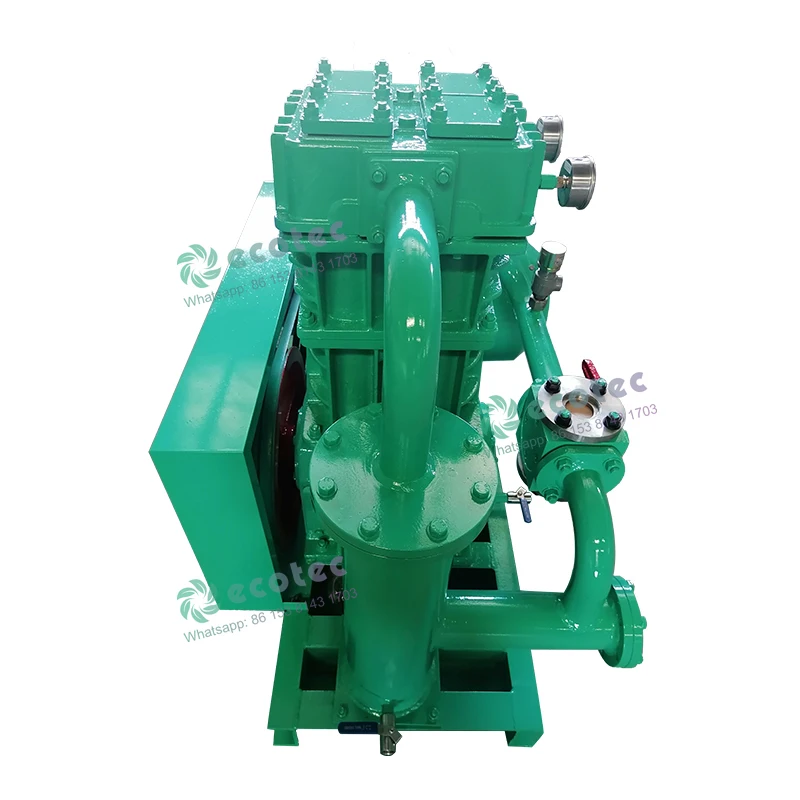

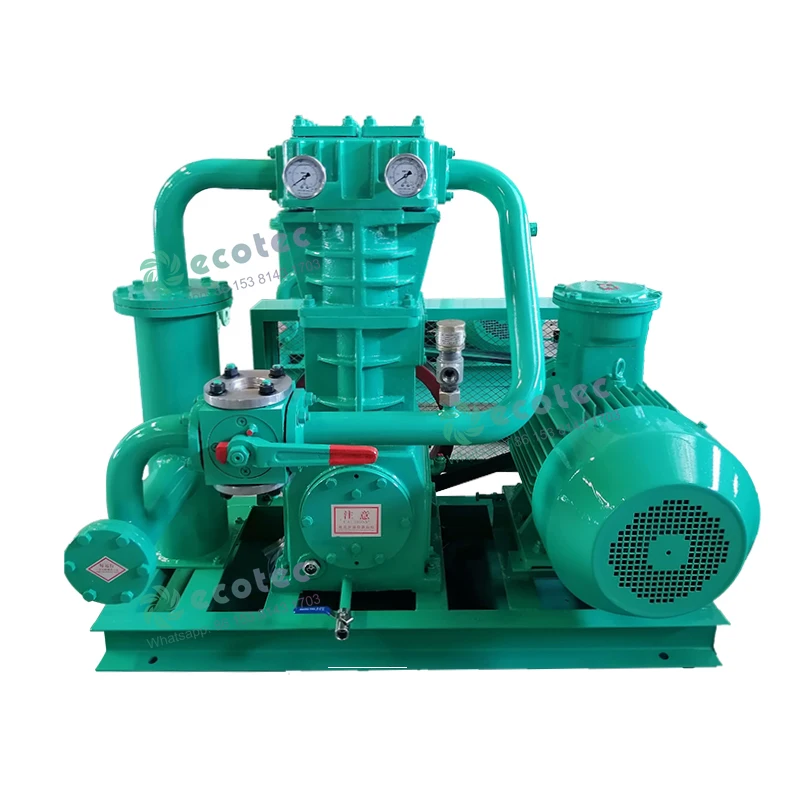

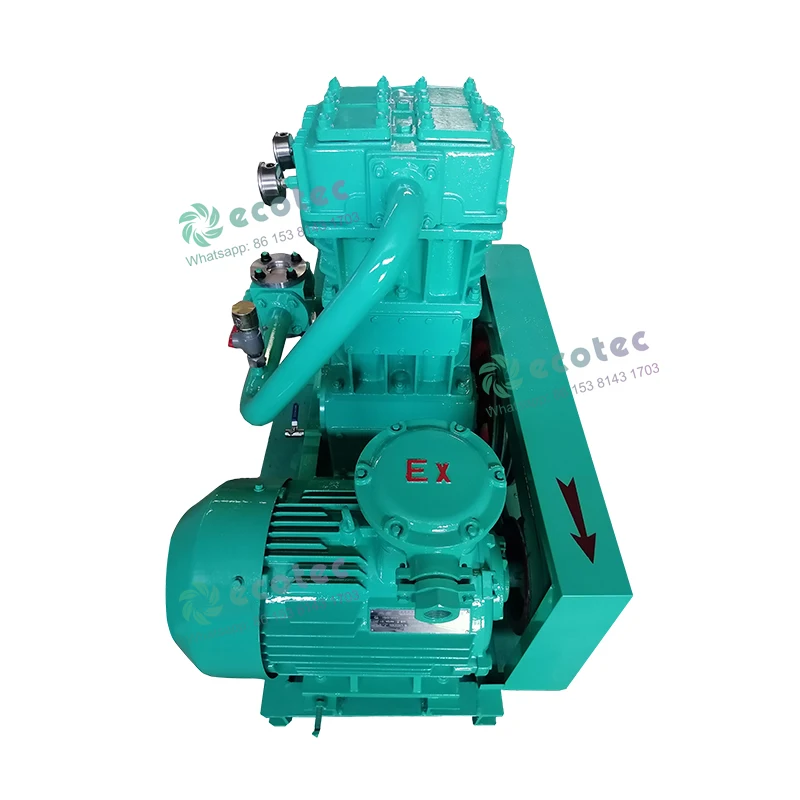

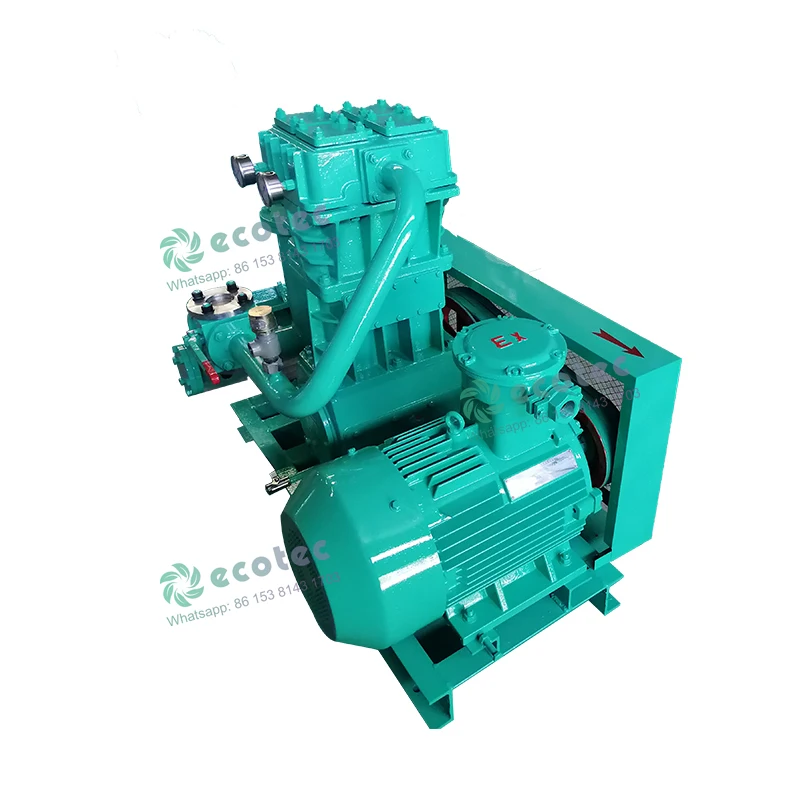

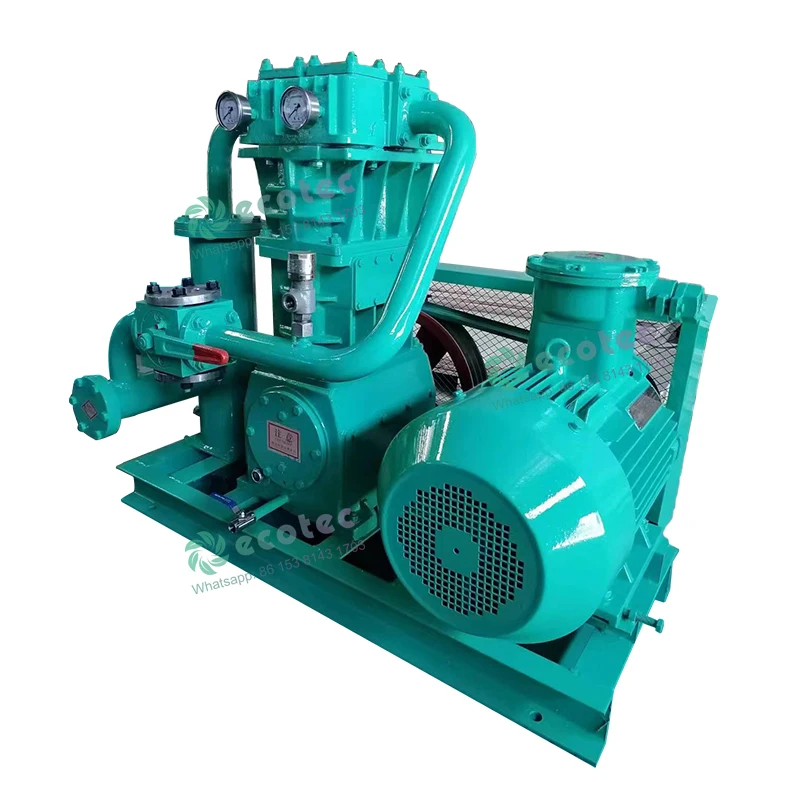

ZW series Oil-Free LPG Gas Compressor, it has many functions, small volume, lightweight, small power, stable and reliable operation, and has good safety performance.
It can transport highly volatile liquid such as liquefied petroleum gas and recover the gas left in the tank. Due to the unique oil-free lubrication design, there is no need for oil lubrication in the cylinder, so it will not pollute the medium (ensure the purity of gas) and keep the transported substances pure.
- Usage of LPG Compressor
gas filling stations, gas mixing stations and tank vehicle loading and has the functions of vehicle loading, unloading, bottle
filling, bottle emptying,conveying, residue removal and residual gas recycling and it can be also used in the processes of other petrol-industries.
It is suitable for working in large, middle and small LPG storage, conveying and distribution stations, bottle filling stations,
gas filling stations, gas mixing stations and tank vehicle loading and has the functions of vehicle loading, unloading, bottle
filling, bottle emptying,conveying, residue removal and residual gas recycling and it can be also used in the processes of other petrol-industries.
Model NO. | ZW-0.4/ 10-16 |
Nominal volume of flow | 0.2 m³/Min |
Rated delivery pressure | 1.6 Mpa |
Rated intake pressure | 1.0 Mpa |
Intake temperature | ≤40 ℃ |
Delivery temperature | ≤110℃ |
Speed | 750 r/min |
Electrical motor type | YB132S-4( 5.5kw) |
Overall dimensions(L×W×H) | 1000×865×710mm |
Flange standard | DN25,PN25(JB/T81-94) |
- Other fuel Disepnser parts

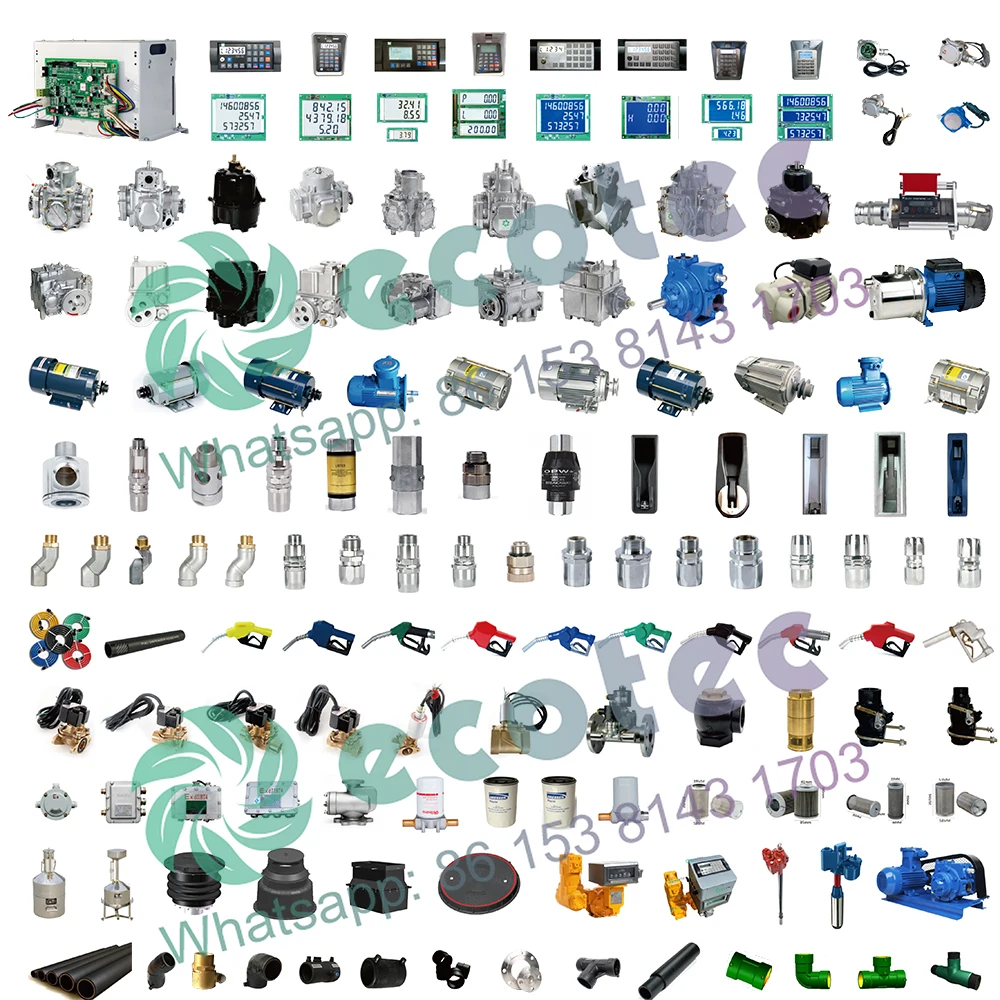

Ecotec offering all type fuel dispenser parts, following is some of our parts.
Company Profile
WENZHOU ECOTEC ENERGY EQUIPEMNT CO., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can offer package service from Design, Manufacturing, Delivery to after-sale service, and we have exported to over 60 countries now, also have agent in Africa, Middle East, Asia and South American countries.
Customer and Dedication is what we standarding for, we will alwasy focus customers need, and struggle for it, Looking forward to cooperate with you!
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can offer package service from Design, Manufacturing, Delivery to after-sale service, and we have exported to over 60 countries now, also have agent in Africa, Middle East, Asia and South American countries.
Customer and Dedication is what we standarding for, we will alwasy focus customers need, and struggle for it, Looking forward to cooperate with you!
Exhibition
Ecotec frequently participate in exhibitions around the world to strengthen contact with customers and provide better services
Certifications
Ecotec produce products with higher standards than the industry, and have been certified by relevant institutions and have a variety of certificates.
Packaging & Shipping
Ecotec accept air, ocean, and land shipping, and will choose the most suitable packaging for you according to the shipping
transportation.
transportation.
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and full life tech support.
3.What can you buy from us?
FUEL DISPENSER,LPG TANK,LPG SKID,SUBMERSIBLE PUMP,Container Station
4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Arabic
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and full life tech support.
3.What can you buy from us?
FUEL DISPENSER,LPG TANK,LPG SKID,SUBMERSIBLE PUMP,Container Station
4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Arabic
Products Specifications
Standard Model List | ||||||||||
Dispenser | Model | Product/Pump | Flow Meter /Nozzle /Hose | Display | Flow rate LPM | |||||
Suction type | A112S | 1 | 1 | 2 | 50L/M | |||||
A122S | 1 | 1 | 2 | 45L/M | ||||||
A224S | 2 | 2 | 4 | 50L/M | ||||||
A112R | 1 | 1 | 2 | 50L/M | ||||||
Submersible type | A122R | 1 | 1 | 2 | 45L/M | |||||
A224R | 2 | 2 | 4 | 50L/M | ||||||
Nozzle number, product number ,flow rate all can be customized, contact for more details | ||||||||||
Specification | ||||
Pump | Type | Optional (tatsuno, tokheim, bennett, submersible) | ||
Inlet Pressure | ≥54kPa. | |||
Flow rate (L/min. ) | 55±5 | |||
Suction Distance (m) | 6(vertical meter) / 50(horizontal meter) | |||
Type | Optional | |||
Accuracy | ±0.2% | |||
Voltage(V) | 110V/220V/380V, 50Hz/60Hz | |||
Capacity(HP) | 1HP(0.75kw) | |||
Input Voltage | 110V/220V/380V, 50Hz/60Hz | |||
Nozzle | Auto Shut-off Nozzle | |||
Environmental Condition | -40ºC~~+55ºC | |||
Control Type | Solenoid Vale Control Type | |||
Preset | Function Provided(Small LCD Indicator) | |||
Display(Counter) | Type | LCD and Bright Backlight | ||
Digit of Volume | 0~~999, 999(6 Digits), Decimal point can be changed | |||
Digit of Amount | 0~~999, 999(6 Digits), Decimal point can be changed | |||
Digit of Unit price | 0~~9999(4 Digits), Decimal point can be changed | |||
Digit of Total Range | 0~~99, 999, 999, 99 | |||
Type | LCD and Bright Backlight | |||
Digit of Volume | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |||
Digit of Amount | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |||
Digit of Unit price | 0~~999999(6 Digits), Decimal point can be changed | |||
Digit of Total Range | 0~~99, 999, 999, 99 | |||
Totalizer | 1~~9, 999, 999 | |||
Hose | 4.5m | |||
Weight | 250kg | |||
Dimension(L×W×H) | 1060*600*2200(mm) | |||
Qty of Container | 40FT: 66pcs 20FT: 22pcs | |||
Title goes here.
Our company specialize in making various kinds of compressors, such as:Diaphragm compressor,Piston compressor, Air
compressors,Nitrogen generator,Oxygen generator ,Gas cylinder,etc. All products can be customized according to your parameters and
other requirements. This series of oil-free compressor is one of the first products produced by our factory in China. The product
has the characteristics of low speed, high component strength, stable operation, long service life and convenient maintenance.
This series compressor is in the form of unit. It integrates compressor, gas-liquid separator, filter, two position four-way
valve, safety valve, check valve, explosion-proof motor and chassis. The utility model has the advantages of small volume, light
weight, low noise, good sealing performance, easy installation, simple operation, etc.Main components:
1. Motion system: crankshaft, piston connecting rod assembly, coupling, etc.
2. Air distribution system: valve plate, valve spring, etc.
3. Sealing system: piston ring, oil seal, gasket, packing, etc.
4. Body system: crankcase, cylinder block, cylinder liner, cover plate, etc.
5. Lubrication system: lubricating oil pump, oil filter, pressure regulating valve, etc.;
6. Safety and energy regulation systems: safety valves, energy regulation devices, etc.
Working principle of piston compressor
When the crankshaft of the piston compressor rotates, the piston will reciprocate through the transmission of the connecting
rod,and the working volume formed by the inner wall of the cylinder, the cylinder head and the top surface of the piston will
periodically change. When the piston of a piston compressor starts to move from the cylinder head, the working volume in the
cylinder gradually increases. At this time, the gas flows along the intake pipe and pushes the intake valve to enter the cylinder
until the working volume reaches the maximum. , The intake valve is closed; when the piston of the piston compressor moves in the
reverse direction, the working volume in the cylinder is reduced, and the gas pressure is increased. When the pressure in the
cylinder reaches and is slightly higher than the exhaust pressure, the exhaust valve opens and the gas is discharged from the
cylinder , Until the piston moves to the limit position, the exhaust valve is closed. When the piston of the piston compressor
moves in the reverse direction again, the above process repeats. In short, the crankshaft of a piston compressor rotates once, the
piston reciprocates once, and the process of air intake, compression, and exhaust is realized in the cylinder, which completes a
work cycle.
Advantages of piston compressor
1. The applicable pressure range of the piston compressor is wide, and the required pressure can be reached regardless of the flow
rate;
2. The piston compressor has high thermal efficiency and low unit power consumption;
3. Strong adaptability, that is, a wide exhaust range, and is not affected by the pressure level, and can adapt to a wider
pressure range and cooling capacity requirements;
4. Piston compressors have low requirements for materials, and use common steel materials, which is easier to process and lower in
cost;
5. The piston compressor is relatively mature in technology, and has accumulated rich experience in production and use;
6. The device system of the piston compressor is relatively simple.
Note: In the unloading process, the compressor pressurizes the gas from the storage tank and then presses it into the tank car
through the gas-phase pipeline, and presses the liquid from the tank car to the storage tank through the gas-phase differential
pressure to complete the unloading process. When the gas phase is pressurized, the temperature of the gas phase will rise. At this
time, forced cooling is not necessary, because if the gas phase is compressed and then cooled, it is easy to liquefy, and it is
difficult to establish the pressure difference of the gas phase, which is not conducive to the replacement of the gas phase and
the liquid phase. In short, it will cause the prolongation of the unloading process. If it is necessary to recover the residual
gas, the cooler can be selected to forcibly cool the gas phase during the recovery operation, so as to recover the residual gas as
soon as possible.The loading process is opposite to the unloading process.
Chemical Process Compressor Description
Chemical process compressors refer to process reciprocating piston compressors used to compress various single or mixed media
gases in petroleum and chemical processes, as well as chemical exhaust gas recycling systems. Its main function is to transport
the medium gas in the reaction device and provide the required pressure to the reaction device. Features
1. Designed for specific process flow.
2. The whole machine is skid-mounted and advanced in structure.
3. The compressor types are: Z type, D type, M type.
4. The middle body of the slideway and the cylinder can be designed in different structural forms according to the process
requirements.
compressors,Nitrogen generator,Oxygen generator ,Gas cylinder,etc. All products can be customized according to your parameters and
other requirements. This series of oil-free compressor is one of the first products produced by our factory in China. The product
has the characteristics of low speed, high component strength, stable operation, long service life and convenient maintenance.
This series compressor is in the form of unit. It integrates compressor, gas-liquid separator, filter, two position four-way
valve, safety valve, check valve, explosion-proof motor and chassis. The utility model has the advantages of small volume, light
weight, low noise, good sealing performance, easy installation, simple operation, etc.Main components:
1. Motion system: crankshaft, piston connecting rod assembly, coupling, etc.
2. Air distribution system: valve plate, valve spring, etc.
3. Sealing system: piston ring, oil seal, gasket, packing, etc.
4. Body system: crankcase, cylinder block, cylinder liner, cover plate, etc.
5. Lubrication system: lubricating oil pump, oil filter, pressure regulating valve, etc.;
6. Safety and energy regulation systems: safety valves, energy regulation devices, etc.
Working principle of piston compressor
When the crankshaft of the piston compressor rotates, the piston will reciprocate through the transmission of the connecting
rod,and the working volume formed by the inner wall of the cylinder, the cylinder head and the top surface of the piston will
periodically change. When the piston of a piston compressor starts to move from the cylinder head, the working volume in the
cylinder gradually increases. At this time, the gas flows along the intake pipe and pushes the intake valve to enter the cylinder
until the working volume reaches the maximum. , The intake valve is closed; when the piston of the piston compressor moves in the
reverse direction, the working volume in the cylinder is reduced, and the gas pressure is increased. When the pressure in the
cylinder reaches and is slightly higher than the exhaust pressure, the exhaust valve opens and the gas is discharged from the
cylinder , Until the piston moves to the limit position, the exhaust valve is closed. When the piston of the piston compressor
moves in the reverse direction again, the above process repeats. In short, the crankshaft of a piston compressor rotates once, the
piston reciprocates once, and the process of air intake, compression, and exhaust is realized in the cylinder, which completes a
work cycle.
Advantages of piston compressor
1. The applicable pressure range of the piston compressor is wide, and the required pressure can be reached regardless of the flow
rate;
2. The piston compressor has high thermal efficiency and low unit power consumption;
3. Strong adaptability, that is, a wide exhaust range, and is not affected by the pressure level, and can adapt to a wider
pressure range and cooling capacity requirements;
4. Piston compressors have low requirements for materials, and use common steel materials, which is easier to process and lower in
cost;
5. The piston compressor is relatively mature in technology, and has accumulated rich experience in production and use;
6. The device system of the piston compressor is relatively simple.
Note: In the unloading process, the compressor pressurizes the gas from the storage tank and then presses it into the tank car
through the gas-phase pipeline, and presses the liquid from the tank car to the storage tank through the gas-phase differential
pressure to complete the unloading process. When the gas phase is pressurized, the temperature of the gas phase will rise. At this
time, forced cooling is not necessary, because if the gas phase is compressed and then cooled, it is easy to liquefy, and it is
difficult to establish the pressure difference of the gas phase, which is not conducive to the replacement of the gas phase and
the liquid phase. In short, it will cause the prolongation of the unloading process. If it is necessary to recover the residual
gas, the cooler can be selected to forcibly cool the gas phase during the recovery operation, so as to recover the residual gas as
soon as possible.The loading process is opposite to the unloading process.
Chemical Process Compressor Description
Chemical process compressors refer to process reciprocating piston compressors used to compress various single or mixed media
gases in petroleum and chemical processes, as well as chemical exhaust gas recycling systems. Its main function is to transport
the medium gas in the reaction device and provide the required pressure to the reaction device. Features
1. Designed for specific process flow.
2. The whole machine is skid-mounted and advanced in structure.
3. The compressor types are: Z type, D type, M type.
4. The middle body of the slideway and the cylinder can be designed in different structural forms according to the process
requirements.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
