SG3125HV MV 30 Center Inverter PV Modular Inverter DC 1500V system Turnkey Station For Integrated MV transformer
SG3125HV-MV-30 Center Inverter PV Modular Inverter DC 1500V system Turnkey Station For Integrated MV transformer
SG3125HV-MV-30 Center Inverter PV Modular Inverter DC 1500V system Turnkey Station For Integrated MV transformer
SG3125HV-MV-30 Center Inverter PV Modular Inverter DC 1500V system Turnkey Station For Integrated MV transformer
SG3125HV-MV-30 Center Inverter PV Modular Inverter DC 1500V system Turnkey Station For Integrated MV transformer
SG3125HV-MV-30 Center Inverter PV Modular Inverter DC 1500V system Turnkey Station For Integrated MV transformer
SG3125HV-MV-30 Center Inverter PV Modular Inverter DC 1500V system Turnkey Station For Integrated MV transformer

SG3125HV MV 30 Center Inverter PV Modular Inverter DC 1500V system Turnkey Station For Integrated MV transformer

Share on (1601223568036):


Price:$9,989.00 - $9,999.00

Quantity:


Product Overview

Description





Product Description

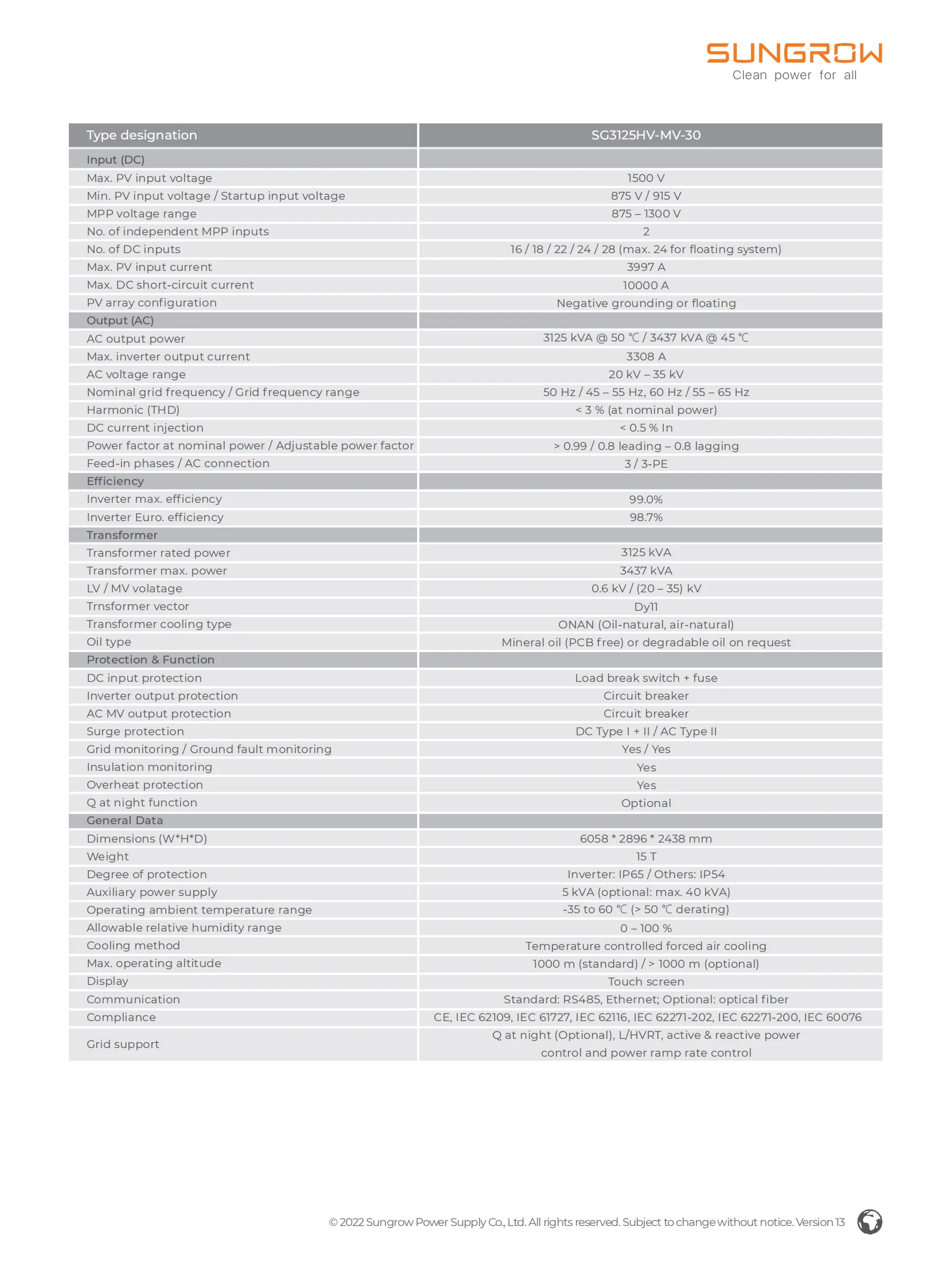

Specification




Weight
15 T
Degree of protection
Inverter:IP65/Others:IP54
Auxiliary power supply
5 kVA (optional:max.40 kVA)
Operating ambient temperature range
-35 to 60℃(>50℃ derating)
Allowable relative humidity range
0-100 %
Cooling method
Temperature controlled forced air cooling
Max.operating altitude
1000 m (standard)/>1000 m (optional)
Display
Touch screen
Communication
Standard:RS485,Ethernet;Optional:optical fiber
Compliance
CE,IEC 62109,IEC 61727,IEC 62116,IEC 62271-202,IEC 62271-200,IEC 60076
Grid support
Q at night (Optional),L/HVRT,active &reactive power
control and power ramp rate control


Application
