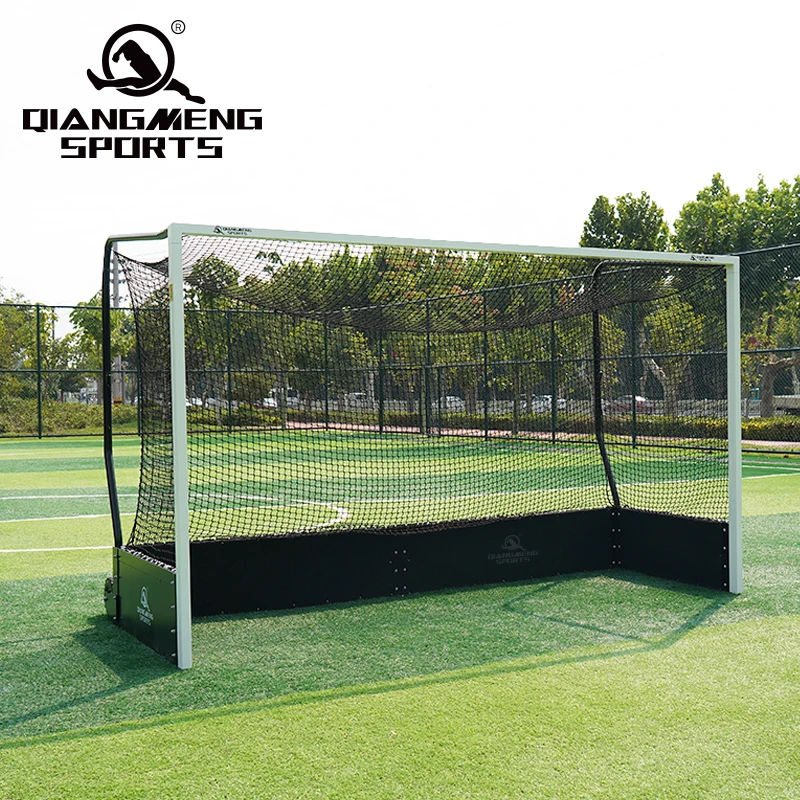

High quality removable 12ft*7ft aluminum hockey goal with training net
- Category: >>>
- Supplier: Beijing Qiangmeng Sports Development Co. Ltd.
Share on (1601223607515):
Product Overview
Description
P.S:Samples are parts of the product, not complete products. Please contact our sales representative for more details.
Product model | QMH-1001 |
Product type | portable type |
Product name | Aluminum field hockey goal |
Net weight | single pcs net weight：320kg 2 pcs net weight 640kg |
Gross weight | single pcs gross weight：335kg 2 pcs gross weight 670kg |

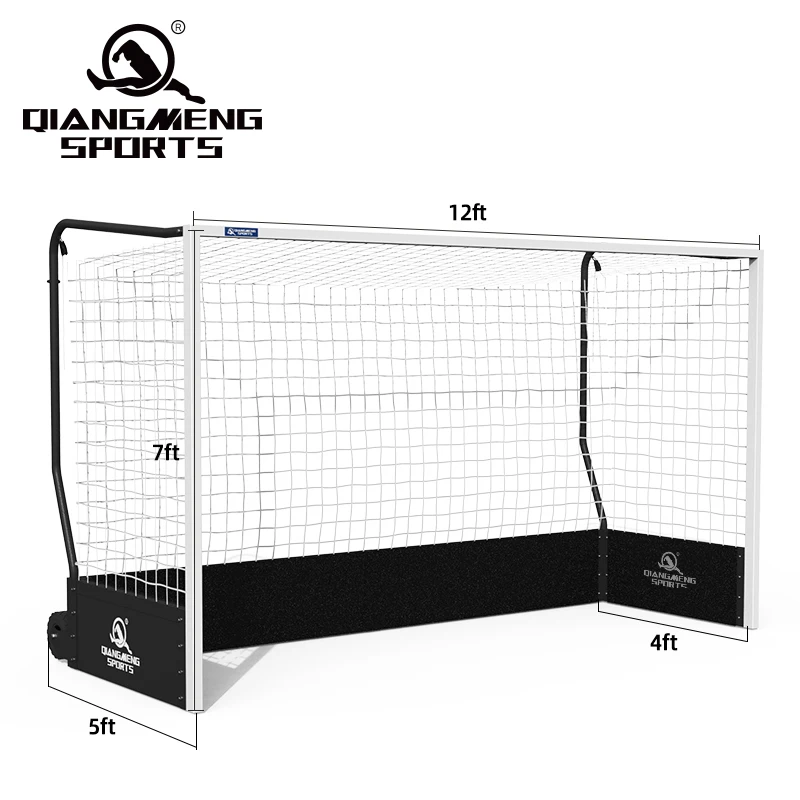

Goal size | 3.66x2.14 meter 12ftx7ft |
Top depth | 1.5 meter |
Bottom depth | 1.3 meter |
Mobile function | Portable design, with Anti Puncture Honeycomb wheel |
Surface treatment | Polishing, galvanizing, chrome plating, spraying |
Main tube size | 50mmx70mm strengthen aluminum |
Main tube thickness | 6mm |
Adjustable height | no |
Wheels material and size | Solid foam rubber、250mm |
Net material and size | Knotless HDPP, 4mm , hole size 40mm/1.5 inch |
Net post material and size | All weather proof φ32 galvanized pipe |
Description
Hockey goal posts are constructed from heavy-duty rectangular reinforced (50x70mm) aluminum to withstand high-velocity impacts from the ball. Standard size aluminum hockey goal posts measure 3.66m (12ft) wide x 2.13m (7ft) high with rails compliant FIH specified height of 46 cm (18.4 inches).
Powder-coated white, reinforced aluminum frame, black back panel and back support.

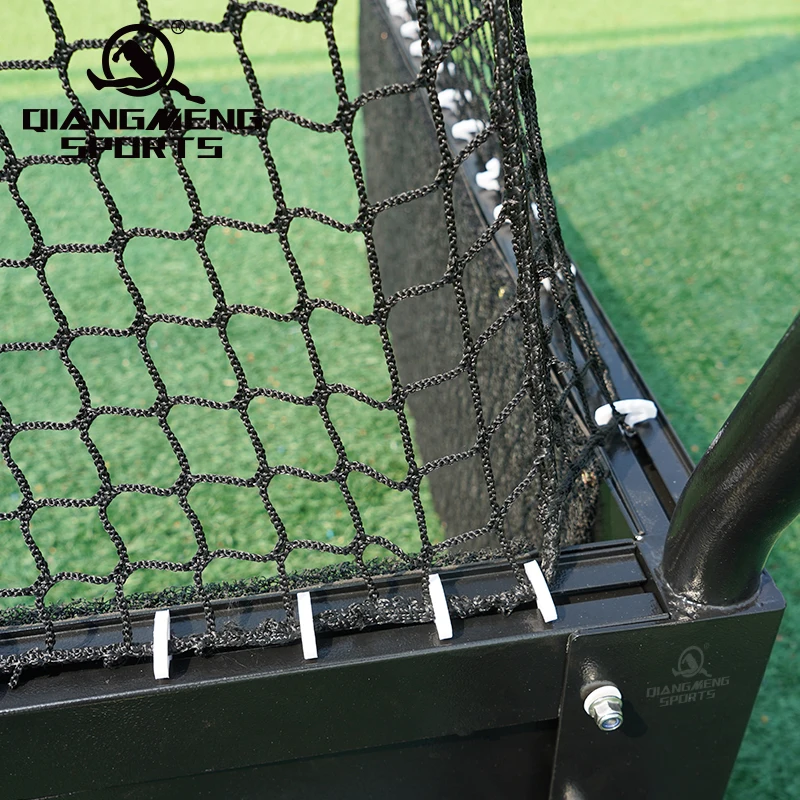

4mm HDPP knotless net with high quality weather resistance and secure to the goal with twisting buckles.

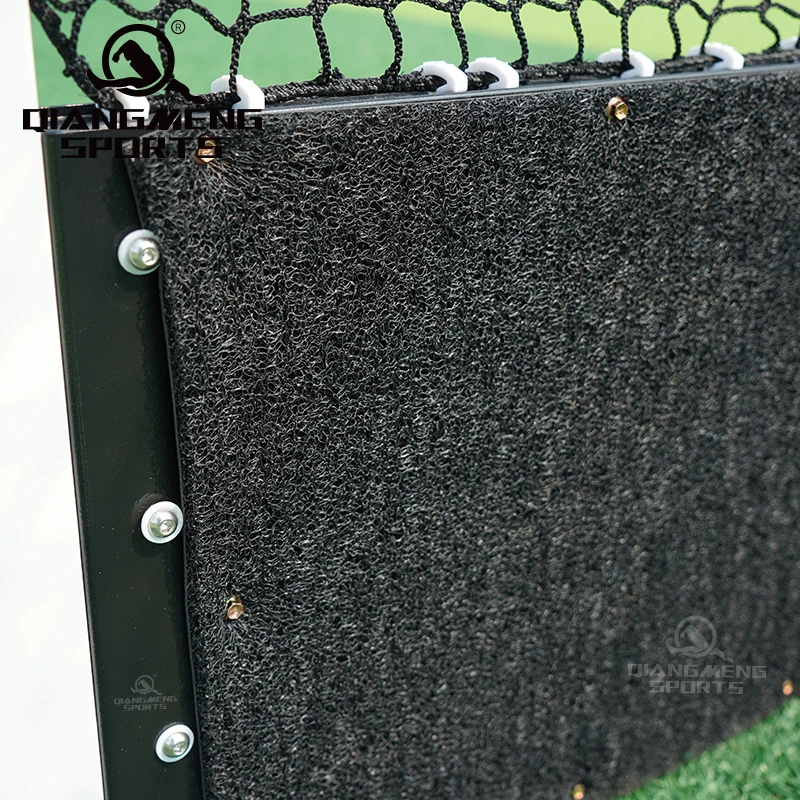

The inside of the reinforced aluminum railing is clad with dense artificial carpeting to reduce noise and bounce.
Completely weatherproof, UV treated metalwork, fixings and mesh.

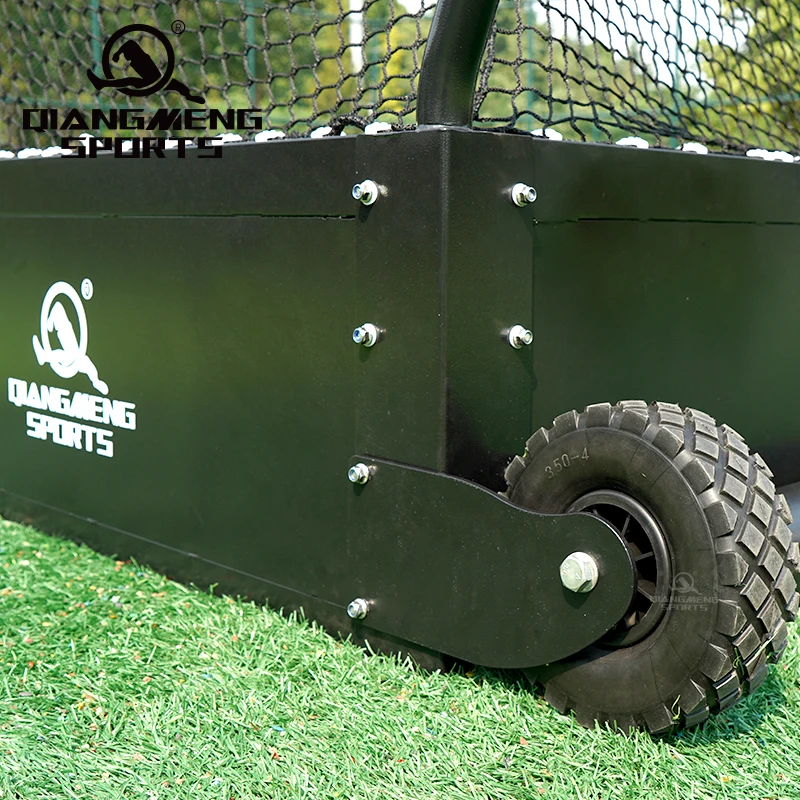

Puncture-resistant wheels and optional weighted back tube for easy portability.
Level 1 FIH Hockey Rules specifications, the integrity of the ball is reinforced with heavy-duty moving wheels to keep the goal in check.

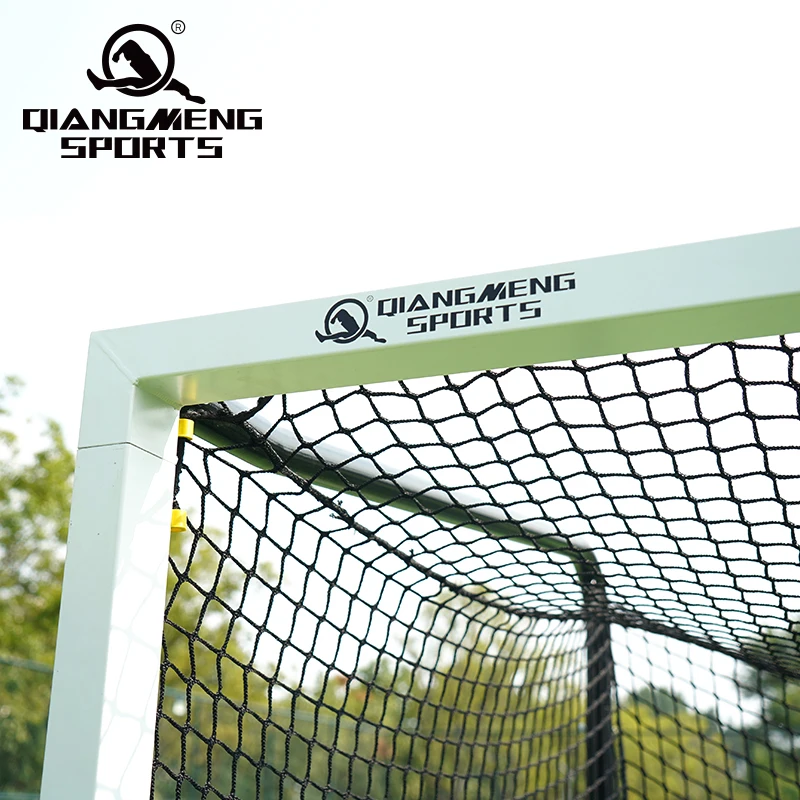

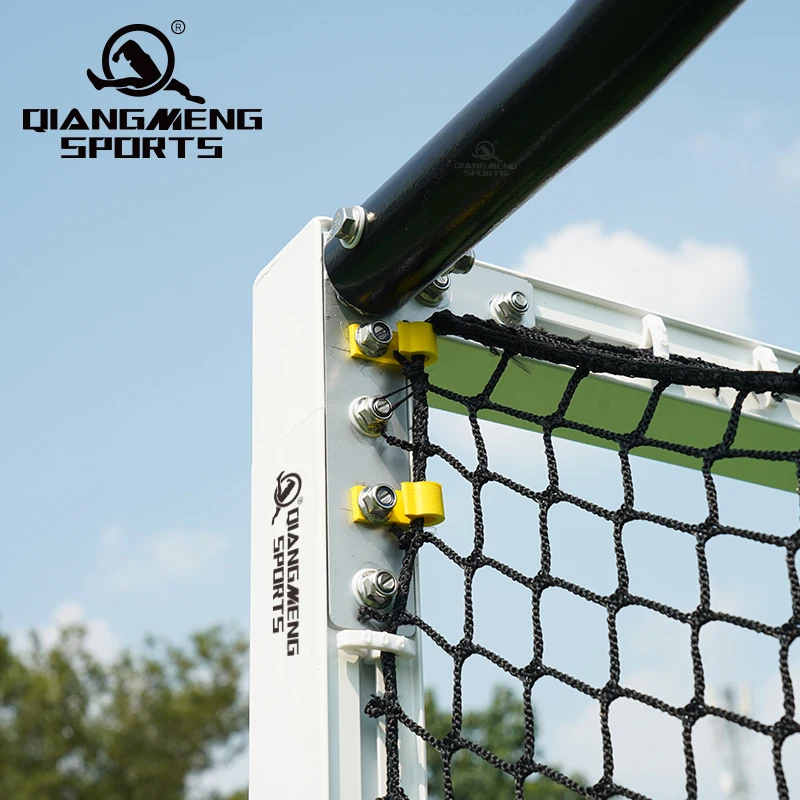

High-strength integrated crossbeam. The corners of the crossbeam are made of steel plates and are reinforced with a special structure to ensure greater stability of the goal. The uprights and crossbars are connected through special connectors at the top corners of the goal. The top of the goal is reinforced with 32mm galvanized pipes.
HDPP advanced knotless ball net uses double-needle weaving technology to make the net overall stronger and more beautiful. It perfectly fits the goal, complies with FIH specifications and eliminates ball rebound.
Powder-coated white, reinforced aluminum frame, black back panel and back support.
4mm HDPP knotless net with high quality weather resistance and secure to the goal with twisting buckles.
The inside of the reinforced aluminum railing is clad with dense artificial carpeting to reduce noise and bounce.
Completely weatherproof, UV treated metalwork, fixings and mesh.
Puncture-resistant wheels and optional weighted back tube for easy portability.
Level 1 FIH Hockey Rules specifications, the integrity of the ball is reinforced with heavy-duty moving wheels to keep the goal in check.
High-strength integrated crossbeam. The corners of the crossbeam are made of steel plates and are reinforced with a special structure to ensure greater stability of the goal. The uprights and crossbars are connected through special connectors at the top corners of the goal. The top of the goal is reinforced with 32mm galvanized pipes.
HDPP advanced knotless ball net uses double-needle weaving technology to make the net overall stronger and more beautiful. It perfectly fits the goal, complies with FIH specifications and eliminates ball rebound.
Main parts description
The overall structure adopts galvanized and chrome plated surface treatment.
Connecting bolts are made of stainless steel toenhance corrosion resistance and durability.
Connecting bolts are made of stainless steel toenhance corrosion resistance and durability.
Installation tips
Before use, check whether the goal is stable to prevent safety accidents during use. Make sure the manufacturer's instructions are followed and all fasteners are secure after construction. Climbing on goalposts and netting is prohibited.
Maintenance: Regularly check the tightness of the connections and mesh materials to ensure safe use.
Storage: Avoid prolonged exposure to extreme weather conditions when storing to extend service life.
Maintenance: Regularly check the tightness of the connections and mesh materials to ensure safe use.
Storage: Avoid prolonged exposure to extreme weather conditions when storing to extend service life.
