Wrecker Truck 25t Lifting and Towing Truck rescue tow truck
Wrecker Truck 25t Lifting and Towing Truck rescue tow truck
Wrecker Truck 25t Lifting and Towing Truck rescue tow truck
Wrecker Truck 25t Lifting and Towing Truck rescue tow truck
Wrecker Truck 25t Lifting and Towing Truck rescue tow truck
Wrecker Truck 25t Lifting and Towing Truck rescue tow truck
Wrecker Truck 25t Lifting and Towing Truck rescue tow truck

Wrecker Truck 25t Lifting and Towing Truck rescue tow truck

Share on (1601223646530):


Price:$19,900.00-26,600.00

Quantity:


Product Overview

Description



Product Description





Above wrecker towing truck is produced for Zambia road rescue company.


It has 30tons lifting capacity with 2*15tons winches, equipped with both manual and remote control switch.


Our factory have rich export experience for wrecker trucks in African and South American countries, such as Zambia, Zimbabwe, Mozambique, Nigeria, Chile, Guyana...













Specification

















































































































































CabinDriving type 6×4
HW76 Cab, with A/C and one sleeper, 70°hydraulically tillable to the front.Right hand driven.
Vehicle Main DimensionsOverall dimensions (L x W x H)mm10600×2500×3700
Wheel base  (mm)4600+1350
Wheel track  (front/rear) (mm)2022/1830
Weight in KGSTare Weight(KGS)26000
Front axles loading capacity(KGS)2x7000
Rear axles loading capacity(KGS)2x16000
Max. driving speed(km/h)95
EngineBrandSINOTRUK
ModelWD615.47
Type4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)371HP
Emission standardEuro II
GearboxHw19710, 10 speed forward and 2 reverse gear
ClutchReinforced diaphragm clutch, diameter 430mm
SteeringZF8098
Oil tank400 liters
Tire12R22.5 tubeless tyre
                         Special Device For Wrecker System
Hoisting OrganRated under-pulling capacity50000
Max Under-hoisting Capacity (kg)25000
Max Under-hoist length (mm)1850
Under hoisting work angle-10~85°
Lifting OrganMax lifting capacity(kg)40000
Max lifting high(mm)12000
Telescope length(mm)6000
Winch20KN×2
Steel rope50M,Φ30
Crane luffing angle 5°~  60°
Crane rotation angle360°All Rotation
 Distance between front legs(mm) 7000
Landing LegDistance between rear legs(mm)  4300




Company Information

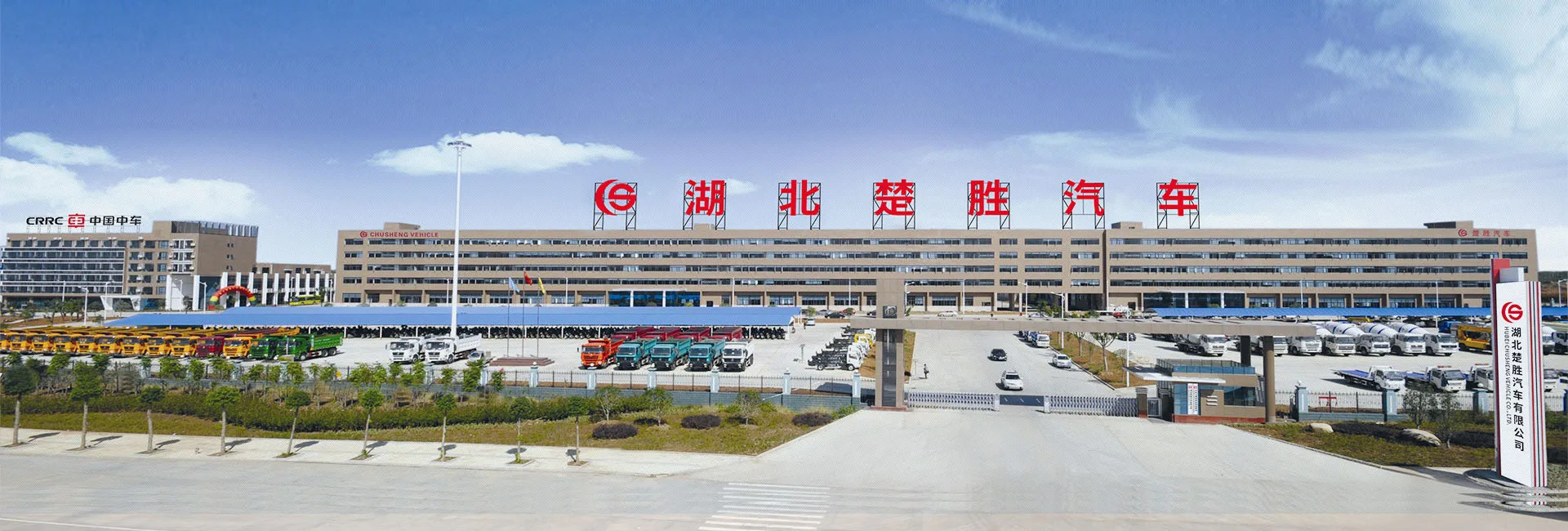

1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest
manufacturer with very professional experience in special automobile field for more than 15 years in China.
We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.





2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated
Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck,
Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation
Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.


Company profile.png








Certifications










Packaging & Shipping


 Packaging and shipping.png





Contact


Justine DENG


Vendeuse/Sales



Hubei Chusheng Vehicle Co., Ltd.





Factory: NO.9, Jiliang Avenue, Suizhou Economic Development Zone,Suizhou,Hubei,China


Office: Room 1108, Eurasia Plaza,No.20 Jinyinhu Road, East- west lake District,Wuhan,Hubei,China.


Tel:+86-27-59323486 , Fax:+86-27-59323485


Mob/Whatsapp/Viber/Imo: +86-153 3717 2243


Email: justine©cs-vehicle.com ; info©cs-vehicle.com


Web:www.cs-vehicle.com
