Haiwang Chrome Wash Plant Chromite Ore Separation Concentrator Sprial Separator Gravity Spiral Chute
- Category: >>>
- Supplier: Weihai Haiwang Hydrocyclone Co. Ltd.
Share on (1601223671139):
Product Overview
Description
Product Description
Spirals are often used to separate coal, iron ore, chromite, pyrites, tungsten ore, tin ore, niobium ore as well as other
non-ferrous metals, and nonmetallic ore with gravity difference, especially suitable for sand ore separation.
non-ferrous metals, and nonmetallic ore with gravity difference, especially suitable for sand ore separation.
Specification & technical parameters
Note: LXA1000 is applied in coal separation while the rest are applied in metal ore separation.
Specification | LXA1000 | LXA1200 | LXA1500 | LXA2000 |
OD, mm | 1000 | 1200 | 1500 | 2000 |
Pitch diameter ratio | 0.45 | 0.6/0.45 | 0.6/0.45 | 0.6 |
Starts no. | 3 | 2/3/4 | 2/3/4 | 2/3/4 |
Turn units | 4 | 4/5 | 4 | 4 |
Capacity, t/h | 2-3 | 4-6 | 8-16 | 15-40 |

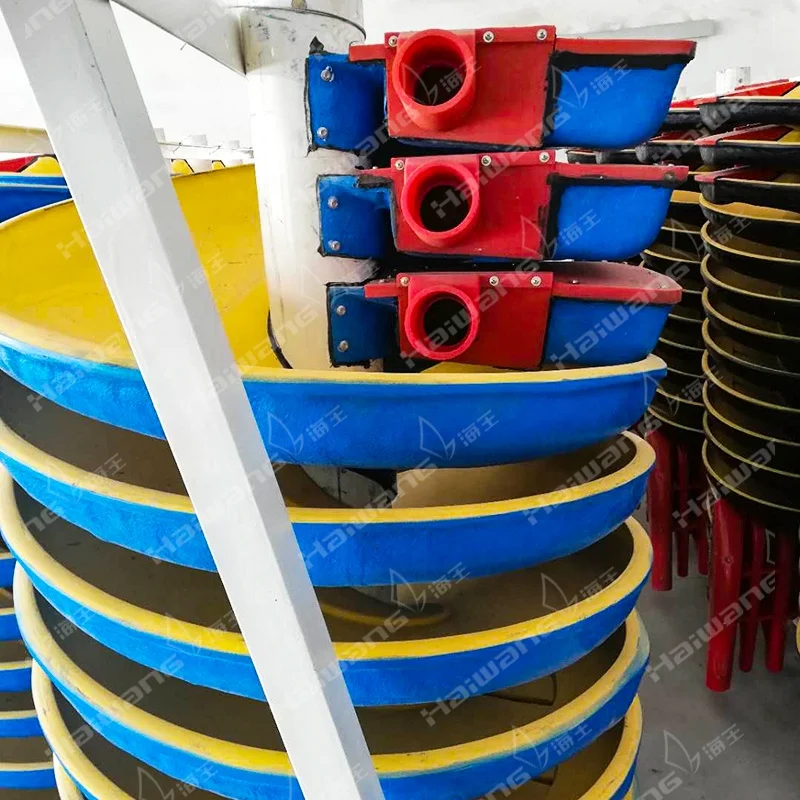

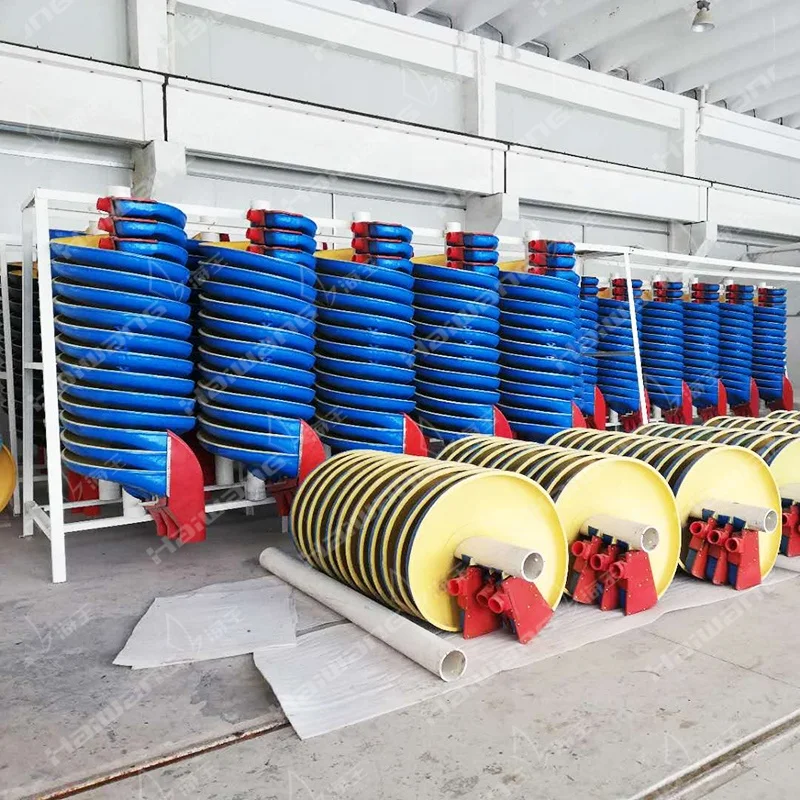

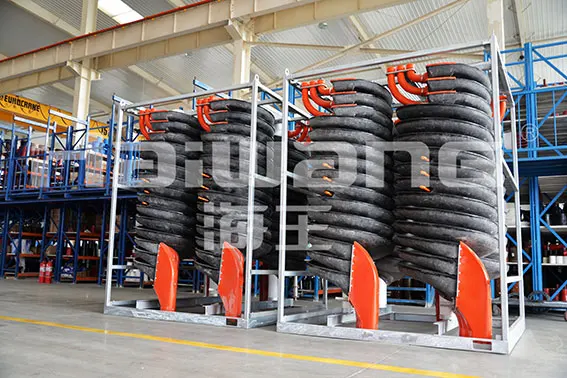

Detailed Images
The LXA spiral chute independently produced by Haiwang company independently adopts the framework of glass fiber reinforced plastics, which is of light weight, high intensity and corrosion resistance.
It has the patented device of tailing
pre-throwing with high separation accuracy.
pre-throwing with high separation accuracy.
The flow passing parts are casted and painted by the hard wearing PU or polyuria with
high strength and the service life of whole machine is over ten years.
high strength and the service life of whole machine is over ten years.

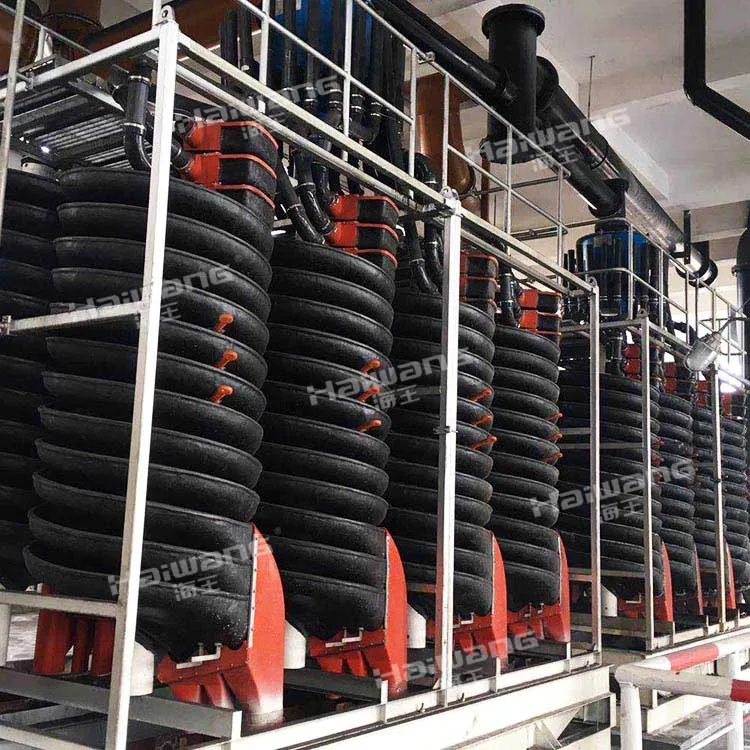

Widely applied in the process of tungsten, tin, gold, platinum, iron and some rare metal ores, especially in the application of low grade sand ore.
Packing&Shipping

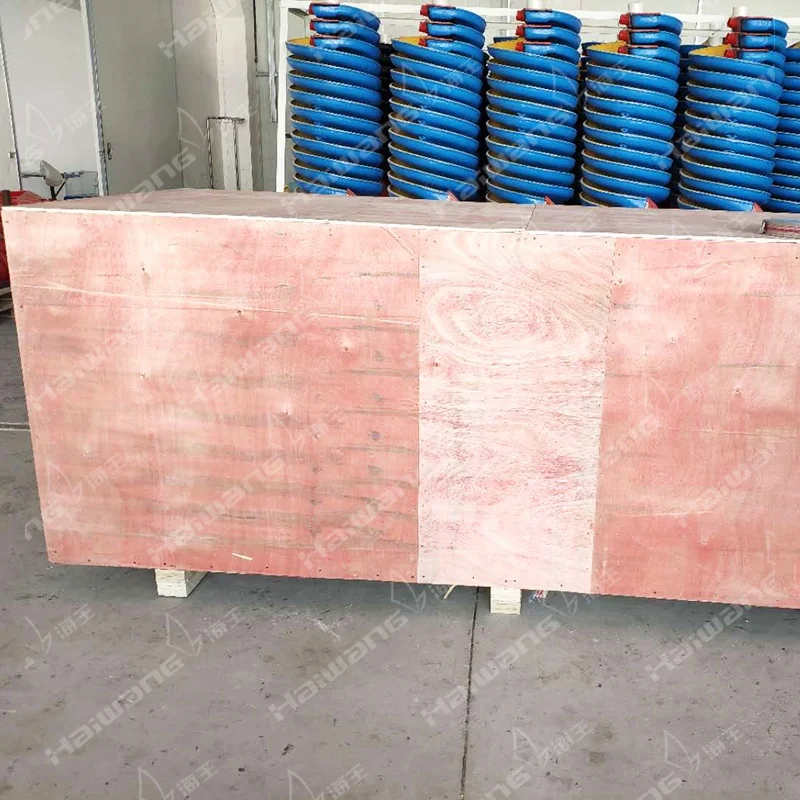

Packing: Non-fumigation plywood case or as required by customer.
Shipping: Sea Freight/Air Freight/Land Transportation.
After Sales Service
Localized Service
Worldwide offices and agents provide localized sales and technical service.
Professional Technical Service
Professional technical team provide optimum solutions and early stage laboratory tests.
Prefect After Sales Service
Assembly, commissioning, training services by professional engineer.
Prompt Delivery
Good production capacity and spare parts stock realize fast delivery.
Company Introduction
One of thelargest and leading supplier of cyclone separation equipment and technical service in Asia-Pacific region
- Established in 1989
- Manufacturing bases more than 150,000 square meters
- The product meets the European, the American and the other international fabrication standards.
- Haiwang has passed the EU CE certification, ISO9001, ISO14001, OHSAS18001
- The annual capacity is over 20,000 sets of different sizes of cyclones, more than 5,000 sets of vibrating screens and separators etc.
- Haiwang products take the leading market share in the field of separation industry, and exported to more than 50 countries ®ions.
- Established in 1989
- Manufacturing bases more than 150,000 square meters
- The product meets the European, the American and the other international fabrication standards.
- Haiwang has passed the EU CE certification, ISO9001, ISO14001, OHSAS18001
- The annual capacity is over 20,000 sets of different sizes of cyclones, more than 5,000 sets of vibrating screens and separators etc.
- Haiwang products take the leading market share in the field of separation industry, and exported to more than 50 countries ®ions.
FAQ
How is the quality of your products?(mining equipment/machine)
Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
Service and Payment Terms
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
Service and Payment Terms
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
