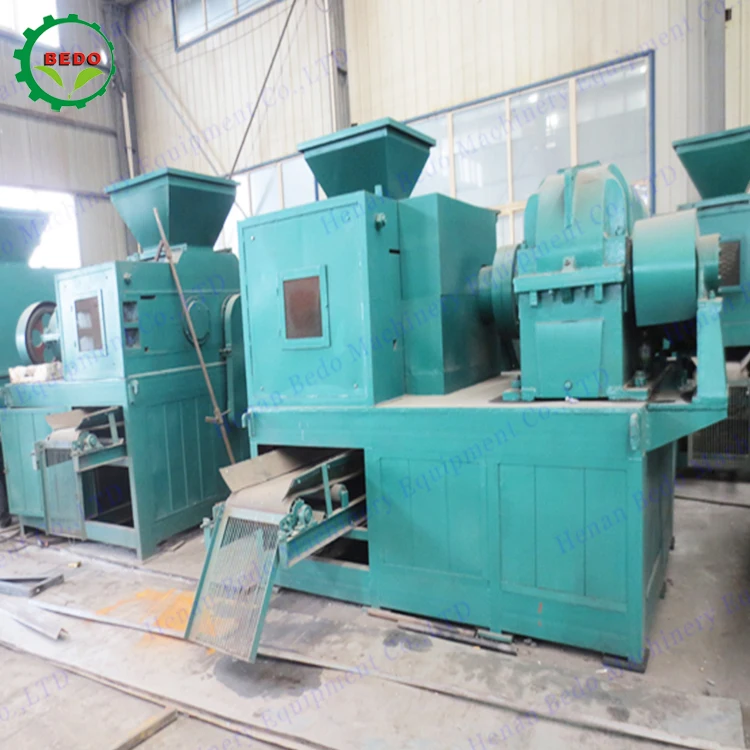

Roller Type Wood Coconut Coal Pressure Ball Molding Briquetting Corn Cob Sawdust Straw Biomass Charcoal Briquette Machines
Product Description
Ball pressing machine is also called: strong ball pressing machine, mineral powder ball pressing machine, roller ball pressing machine, dry powder ball pressing machine, goose egg forming machine and so on. Ball pressing machine is mainly used for a non-ferrous and ferrous metal powder ball making block, directly into the furnace smelting, improve the added value. Is mainly used to suppress difficult to molding powder material, such as various kinds of pulverized coal, coking coal, aluminum, iron powder, carbon powder, coal powder, slag, kaolin, etc., are widely used in refractory material, power plants, metallurgical, chemical, energy, transportation, heating and other industries, after pressing ball mechanism for forming materials, energy conservation, environmental protection, convenience of transportation, improve the utilization of waste, has the good economic efficiency and social Benefits.
Specification

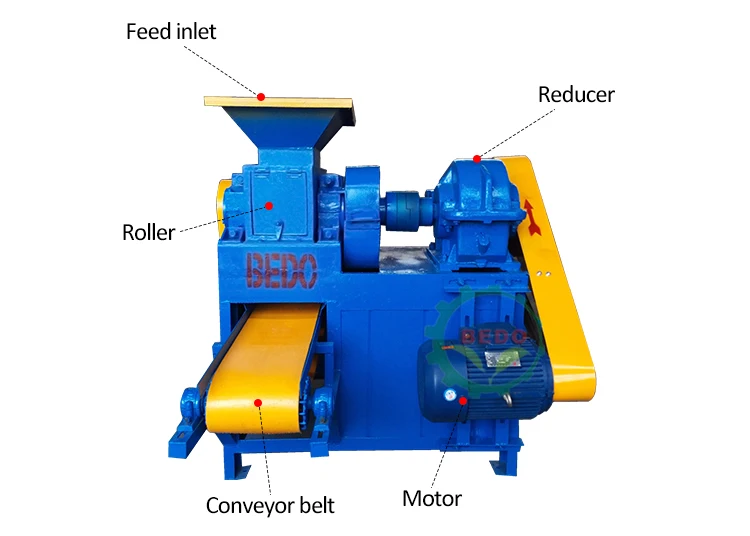

Structure and composition of briquette ball press:
1.feeding part. Mainly to achieve quantitative feeding to ensure that the material evenly into the roller. Skilled operation is an important condition to ensure the normal work of the ball.
2.Drive part. The main drive system is: motor -- triangle belt -- reducer -- open gear -- roller. The main machine is powered by electromagnetic speed regulating motor. Through the belt pulley, cylindrical gear reducer, through the rod pin coupling to drive shaft.
3.Forming part. Mainly refers to the host part, the core part is the roll. The machine can adjust the pressure according to the requirements of ball density, flexible production.
1.feeding part. Mainly to achieve quantitative feeding to ensure that the material evenly into the roller. Skilled operation is an important condition to ensure the normal work of the ball.
2.Drive part. The main drive system is: motor -- triangle belt -- reducer -- open gear -- roller. The main machine is powered by electromagnetic speed regulating motor. Through the belt pulley, cylindrical gear reducer, through the rod pin coupling to drive shaft.
3.Forming part. Mainly refers to the host part, the core part is the roll. The machine can adjust the pressure according to the requirements of ball density, flexible production.
Model | Roller diameter(mm) | Capacity(t/h) | Motor power(kw) |
BD-YQ290 | 290 | 1-3 | 5.5 |
BD-YQ360 | 360 | 4-6 | 7.5 |
BD-YQ430 | 430 | 6-8 | 15 |
BD-YQ500 | 500 | 8-10 | 18 |
BD-YQ650 | 650 | 10-15 | 25 |
BD-YQ800 | 800 | 15-22 | 30 |
BD-YQ1000 | 1000 | 22-30 | 45 |

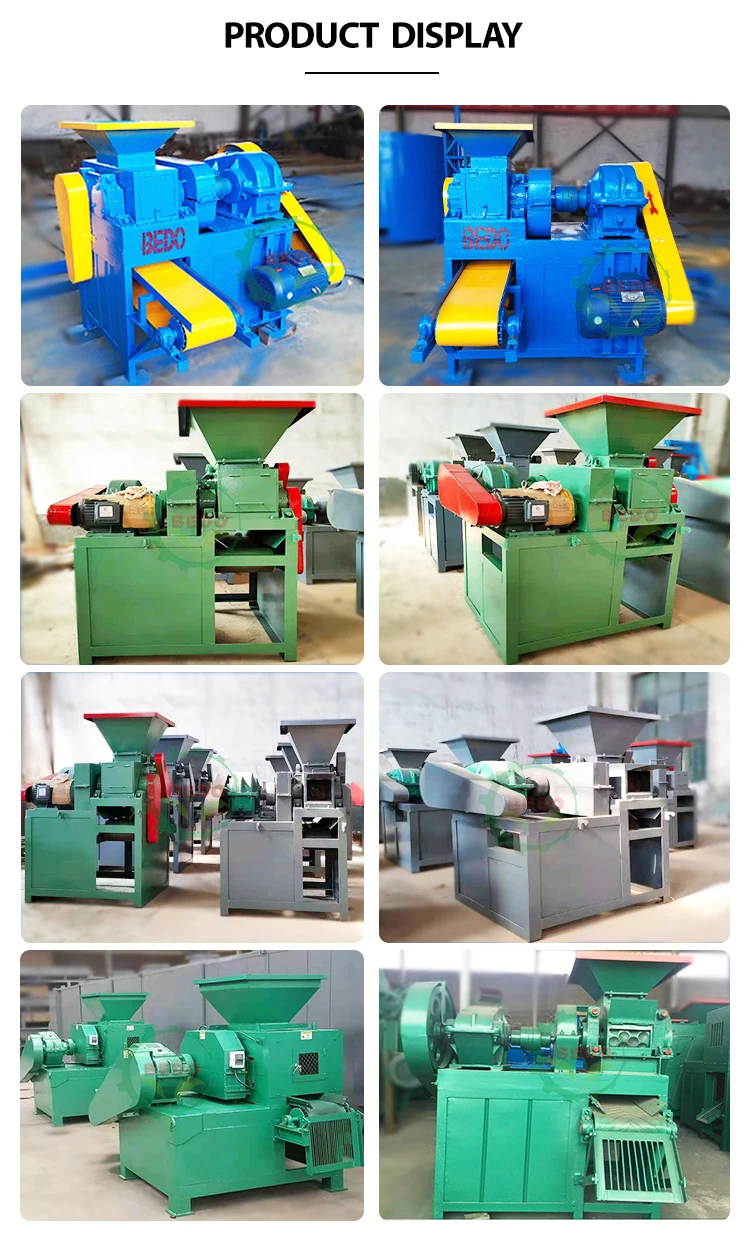

Details Images

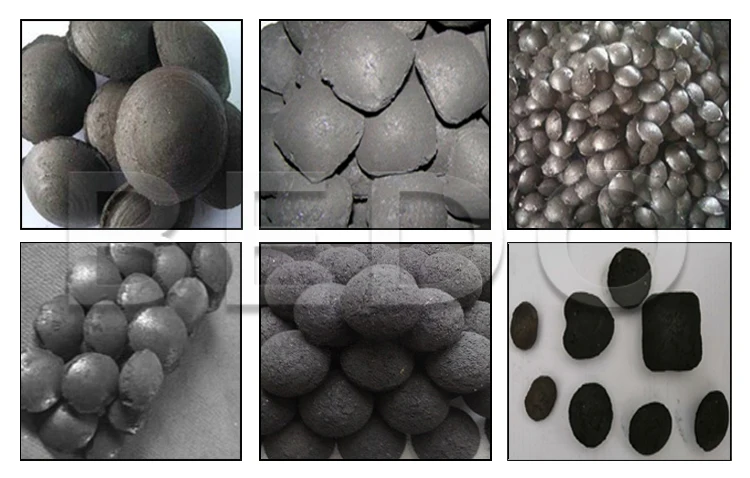

Raw Material and Final Product
The ball press is mainly used for pressing powdery materials which are difficult to form. It has the advantages of high ball forming rate, energy saving and environmental protection, compact structure and easy maintenance. Can be used to suppress coal powder, iron powder, ore powder, aluminum powder, coke powder and other hundreds of materials, widely used in refractory materials, metallurgy, energy, heating and other industries, after the pressure ball mechanism for forming materials, low dust environmental protection, easy transportation, improve the utilization rate of waste, with good economic and social benefits.

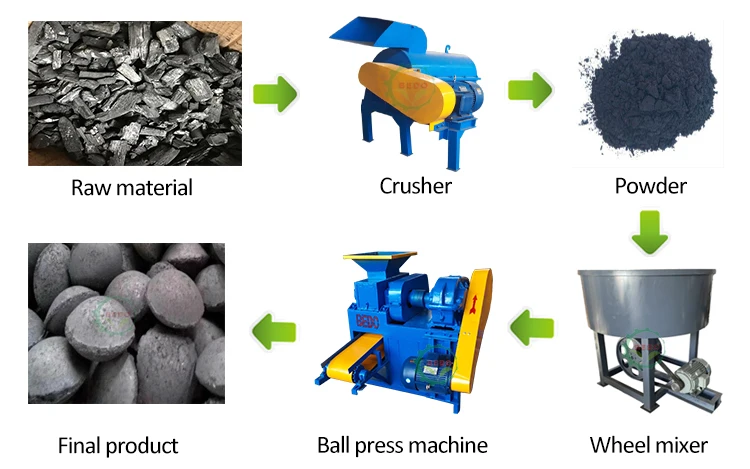

Production Line

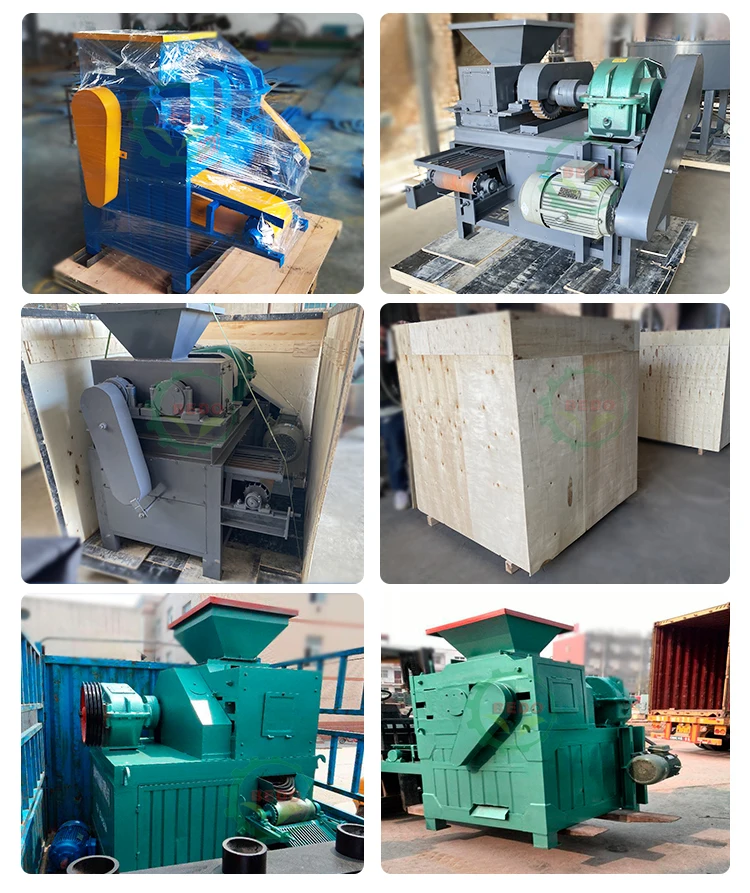

Packing & Delivery
1. Packing:Standard wooden case.
2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
