Product Overview
Description
High Quality Smoke Extractor Portable Welding Cutting Fume Collector
Products Despriction
Working principle:
The smoke generated during the production operation is sucked into the mobile welding fume purifier through the suction hood due to the gravitational effect of the fan. It first passes through the first fire barrier at the air inlet of the purifier, which can remove large particles and spark particles produced by grinding. Separation and interception, the preliminarily filtered smoke and dust pass through the filter protection plate to further block particles and residual sparks, and the filtered smoke and dust enter the main filter core. The main filter core is made of imported anti-static coated polyester fiber material, and the filtration efficiency reaches 99.9%. The purified gas is further purified by activated carbon filter cotton and then discharged through the air outlet up to the standard.
The smoke generated during the production operation is sucked into the mobile welding fume purifier through the suction hood due to the gravitational effect of the fan. It first passes through the first fire barrier at the air inlet of the purifier, which can remove large particles and spark particles produced by grinding. Separation and interception, the preliminarily filtered smoke and dust pass through the filter protection plate to further block particles and residual sparks, and the filtered smoke and dust enter the main filter core. The main filter core is made of imported anti-static coated polyester fiber material, and the filtration efficiency reaches 99.9%. The purified gas is further purified by activated carbon filter cotton and then discharged through the air outlet up to the standard.
Parameters

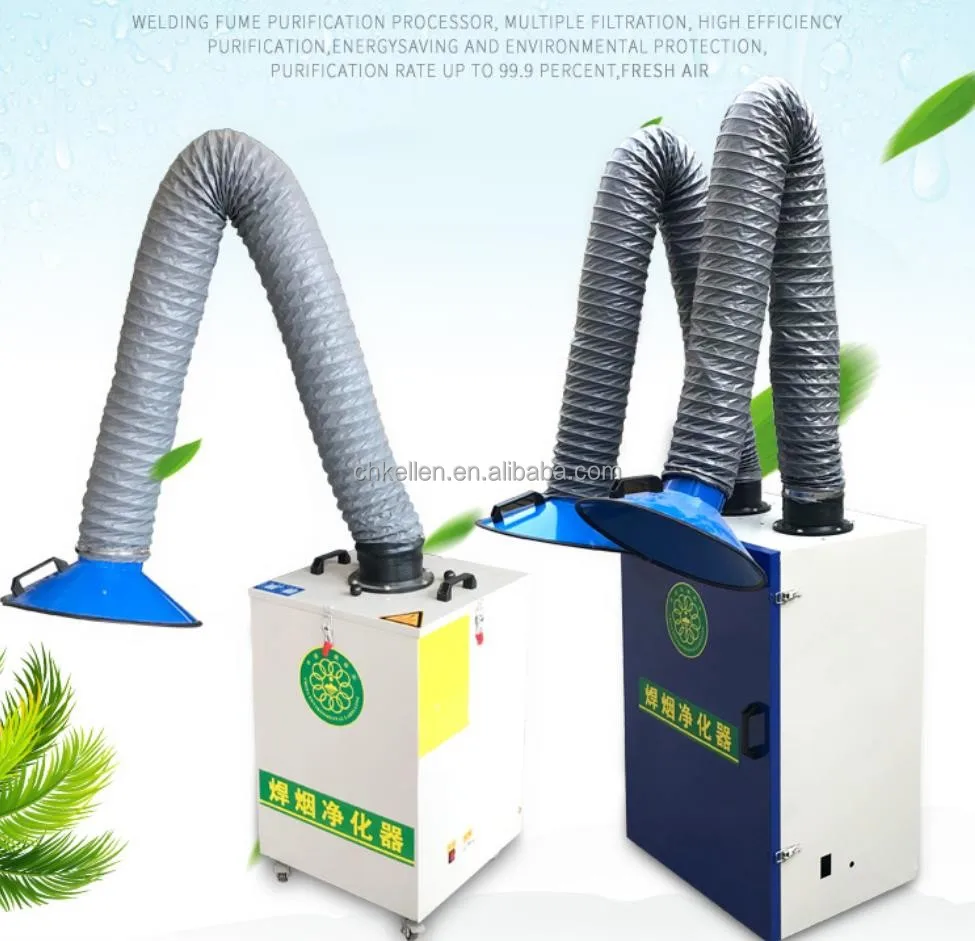

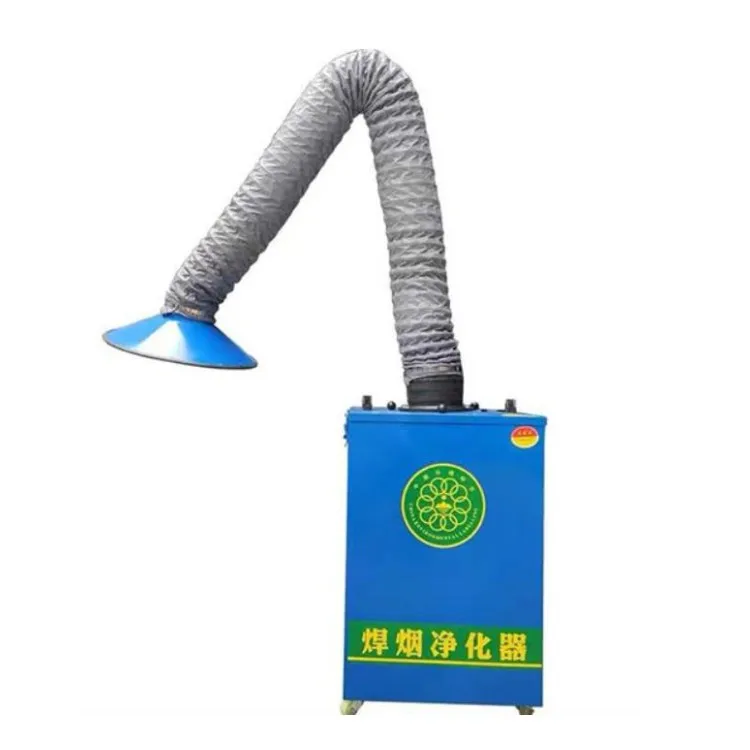

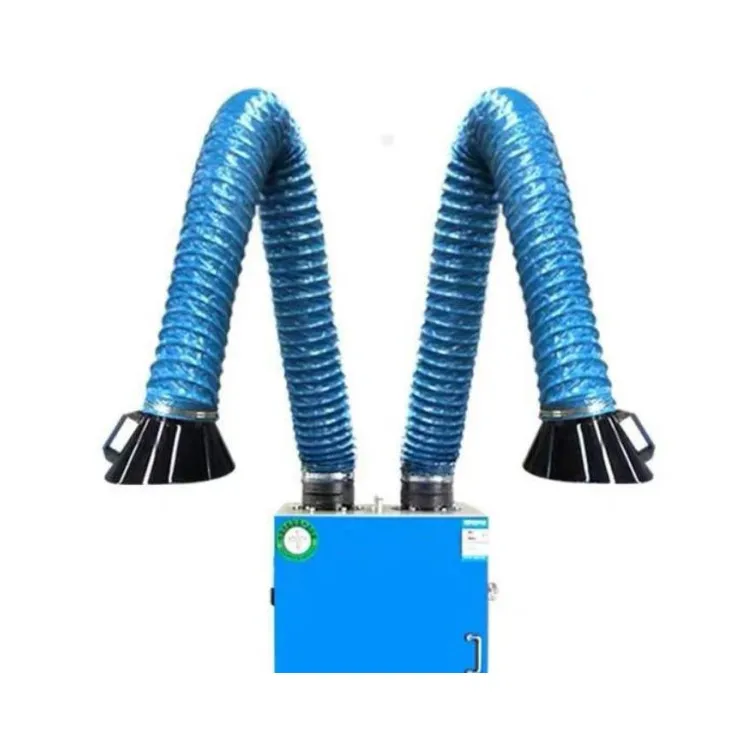

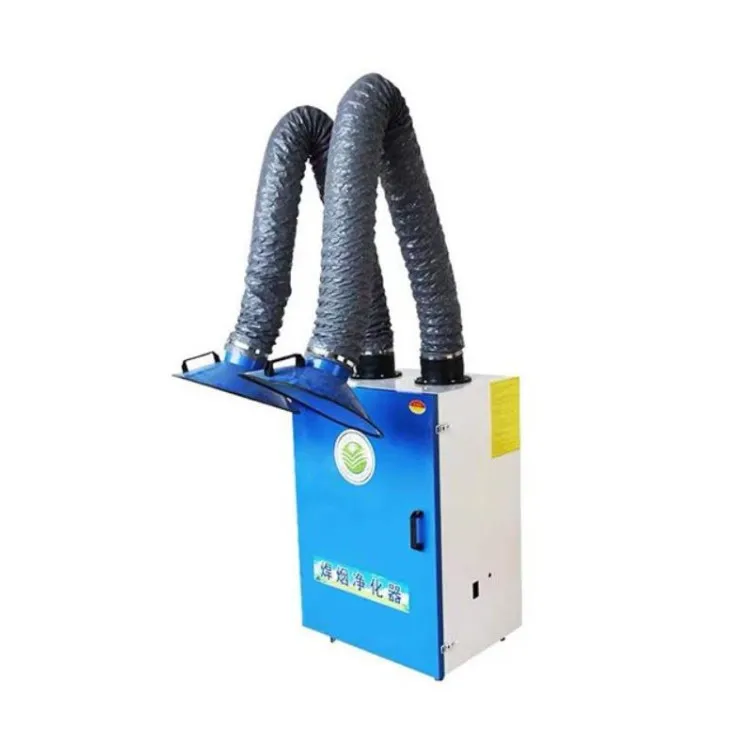

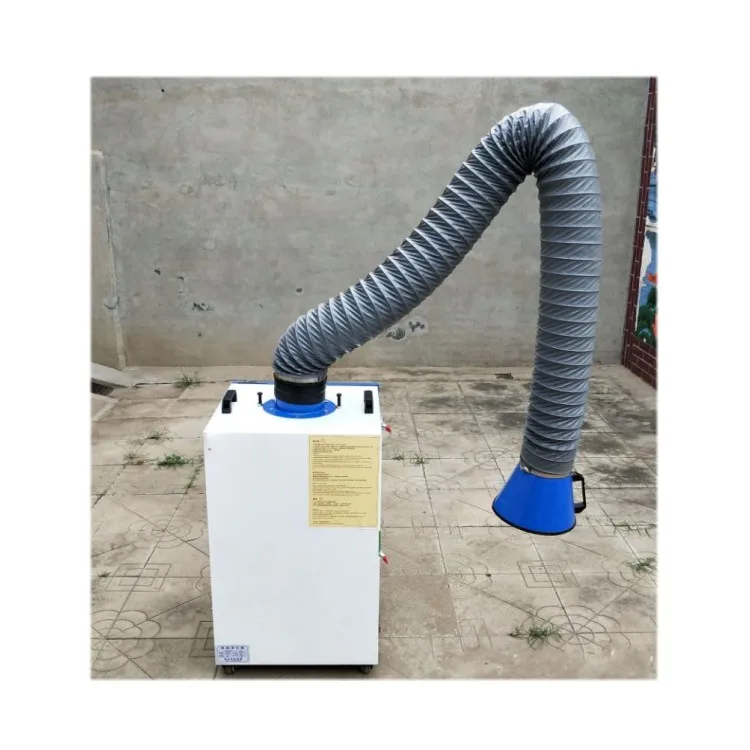

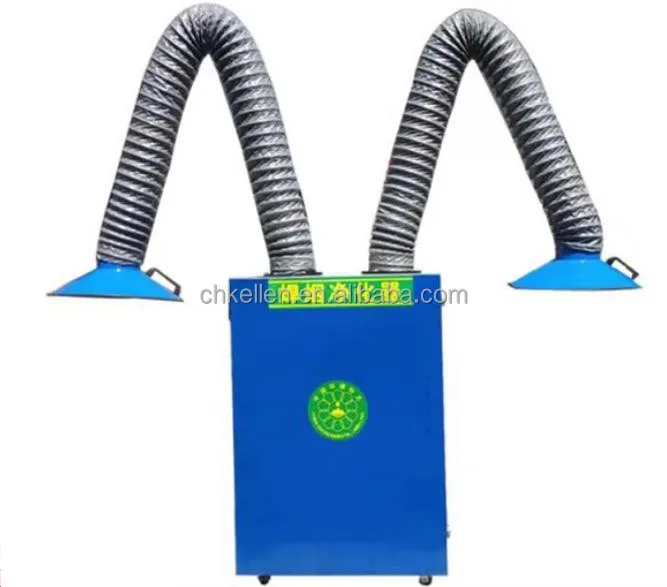

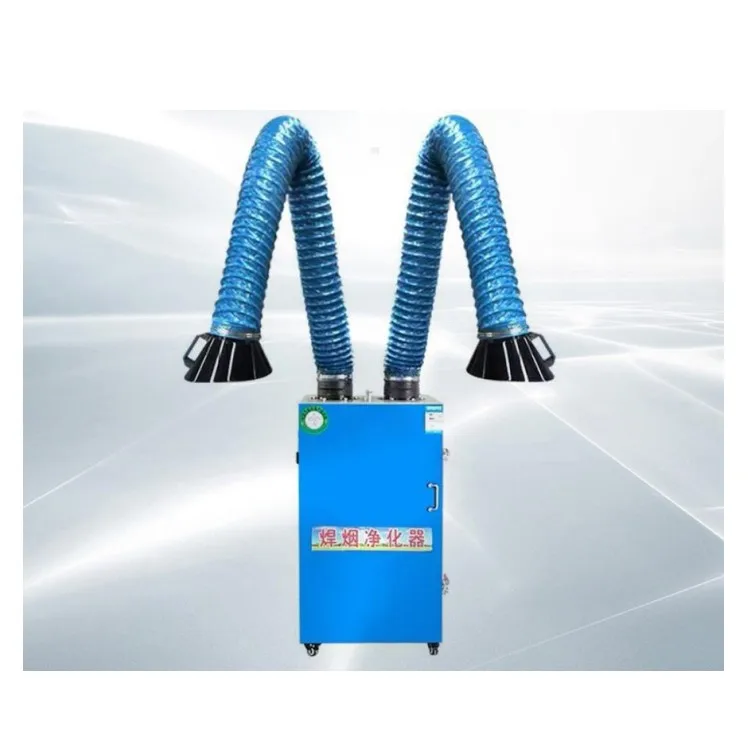

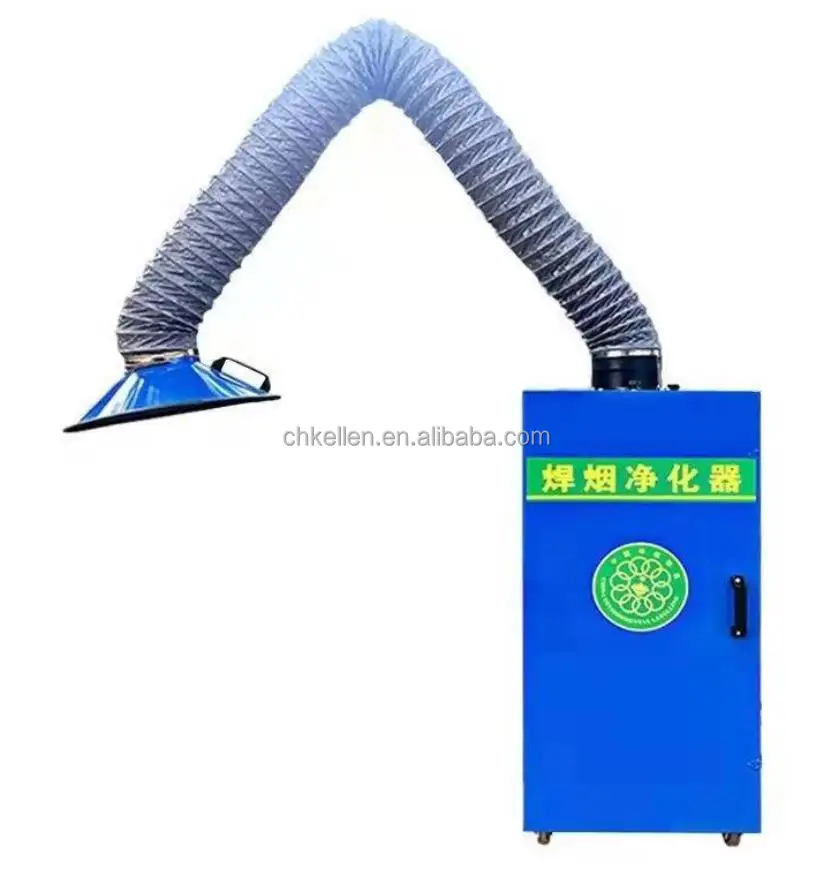

Two type Single arm and Double arm for you to choose!
Model | KL-1.1 | KL-1.5 | KL-2.2-1 | KL-3-1 | KL-2.2-2 | KL-3-2 | |||||
Type | Single arm | Double arm | |||||||||
Power(kw) | 1.1 | 1.5 | 2.2 | 3 | 2.2 | 3 | |||||
Air volume (m3/h) | 1800 | 2100 | 2400 | 3000 | 2400 | 3000 | |||||
Voltage(v) | 220 | 380 | |||||||||
Filtration area (m2) | 10 | ||||||||||
Noise(db) | ≤70 | ||||||||||
Filter size and quantity | Φ380*420mm*1 | ||||||||||
Size | 550*600*1200mm | ||||||||||
Product Application
Diversified use environment, one machine to meet various needs
Mobile welding fume purifiers are widely used in various welding (arc welding, carbon dioxide shielded welding, MAG welding, carbon arc gouging welding, gas fusion cutting, special welding, etc.) Purification and recovery of other metals and precious materials, etc.
Product Details
Long-term inhalation of harmful substances = chronic poisoning
With it, you will no longer have to worry!
With it, you will no longer have to worry!
Filtration precision: 0.1μm
Purification efficiency: 99.9%

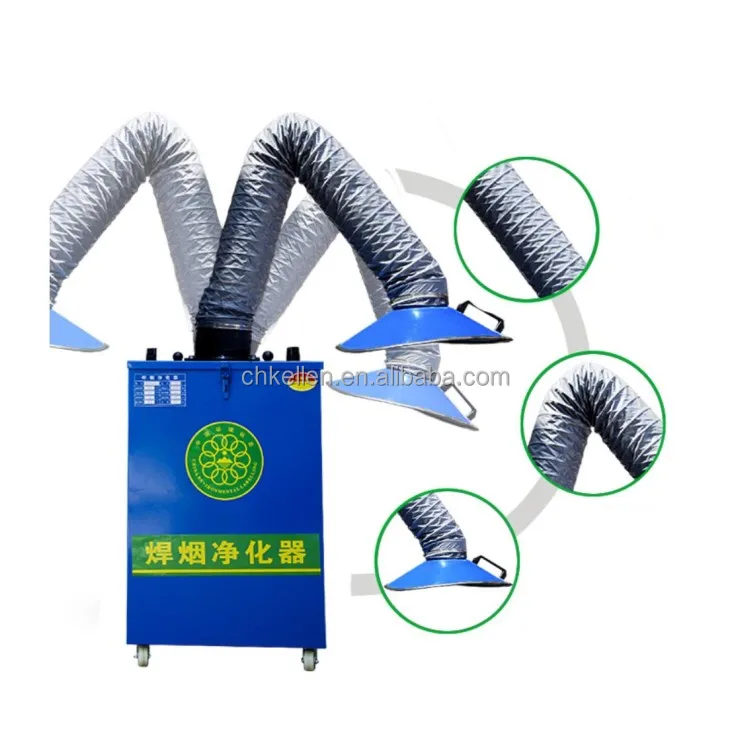

360° rotatable flexible arm for easy movement
Stretching design, the arm length is 2 meters and 4 meters can be customized
Humanized design, 360° arbitrary rotation
Strong suction, high purification efficiency

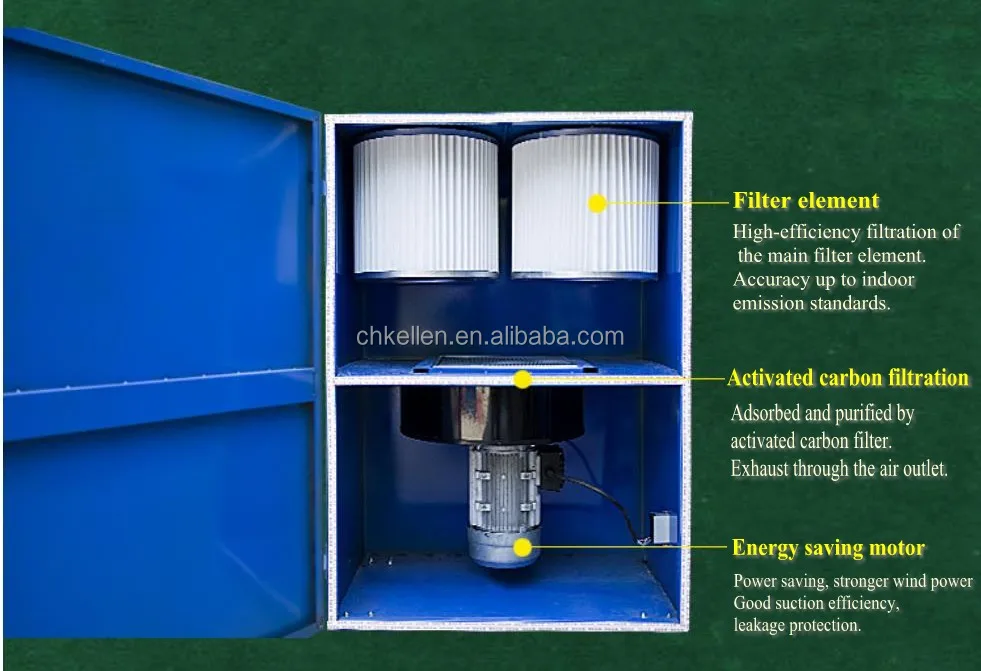

Efficient purification, powerful core

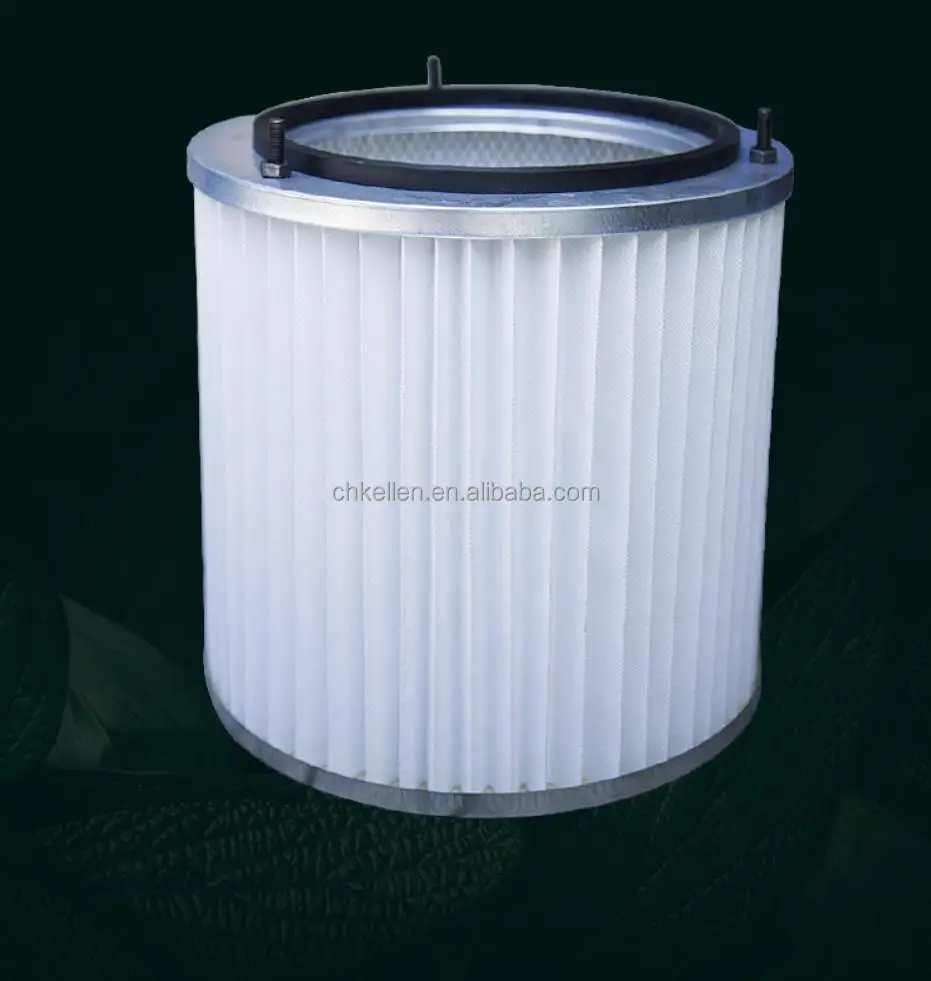

Membrane filter cartridge filter
High/low temperature resistance, anti-corrosion, long electrical insulation life
Large filter area and high efficiency

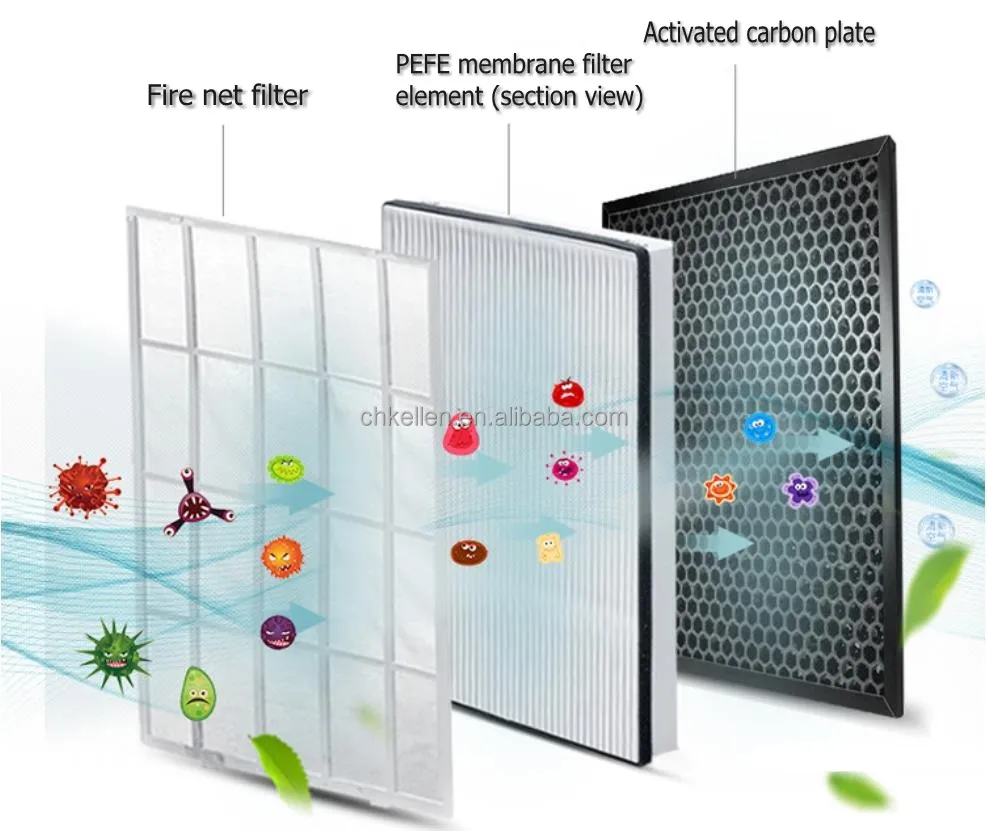

Triple filtration layer by layer fine filtration
Deep Progressive High Efficiency Filtration
More details!
Using a membrane filter cartridge filter,
Filtration accuracy can reach 99.9%
Filtration accuracy can reach 99.9%

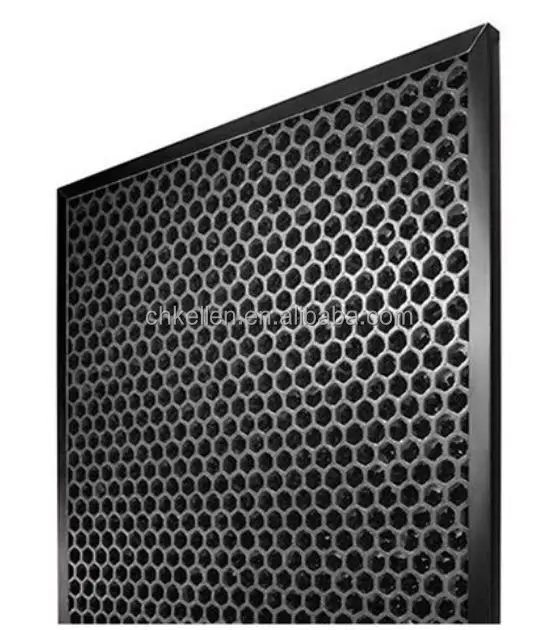

02 Activated carbon filter
Air outlet activated carbon filter effectively removes dust
Heat dissipation holes to prevent motor burnout.
When the temperature reaches a certain level, the cooling device will automatically turn on, which is safe and convenient.
When the temperature reaches a certain level, the cooling device will automatically turn on, which is safe and convenient.
Equipped with universal casters, it can be flexibly moved anywhere in the workshop.
Product Shows
Packing and delivery
All the goods exported are packed in wooden case or carton with export standard except naked package when necessary.We can deliver the goods to every corners in the world with safety and speed, and aslo can supply the services of solving the problems occured during the transaction.
