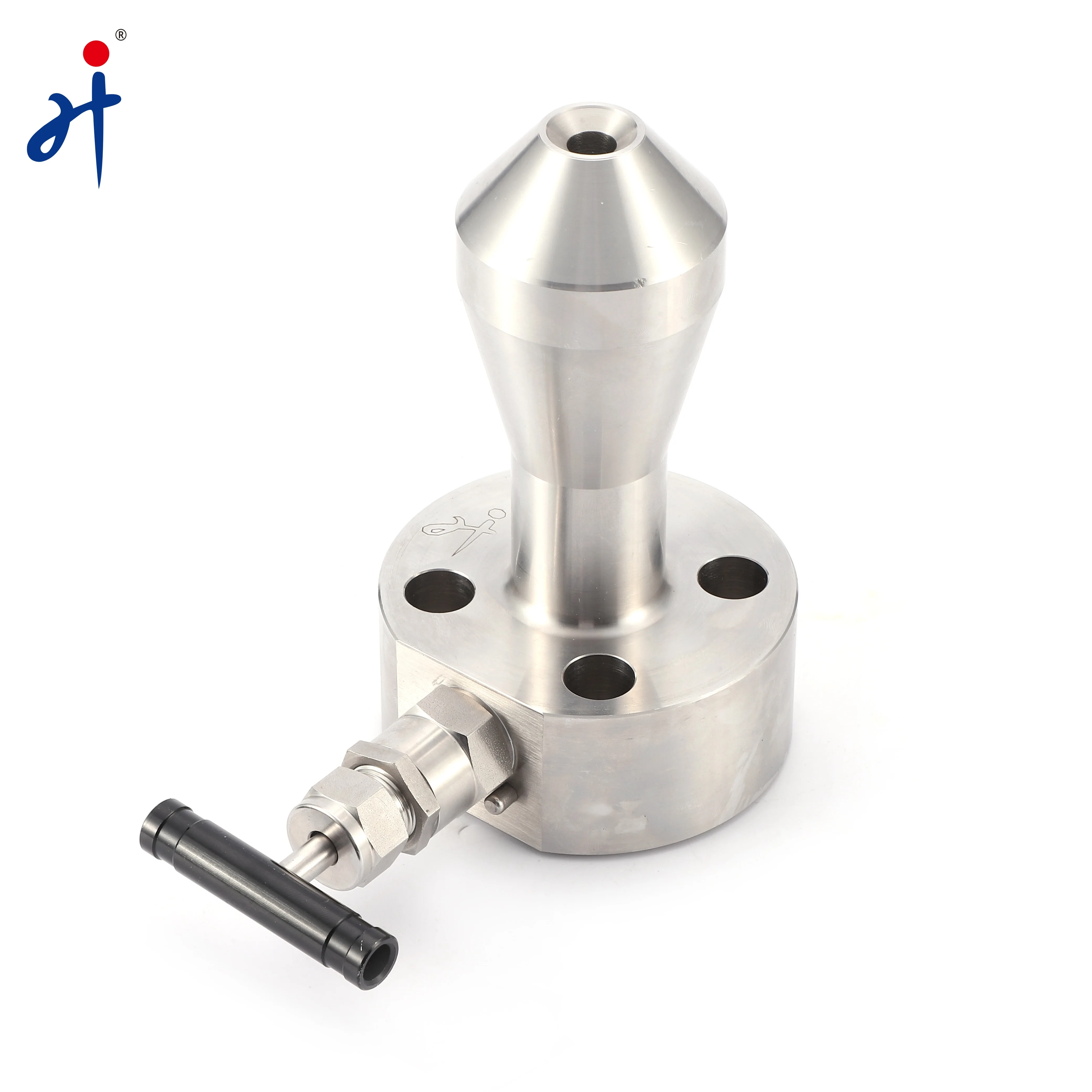

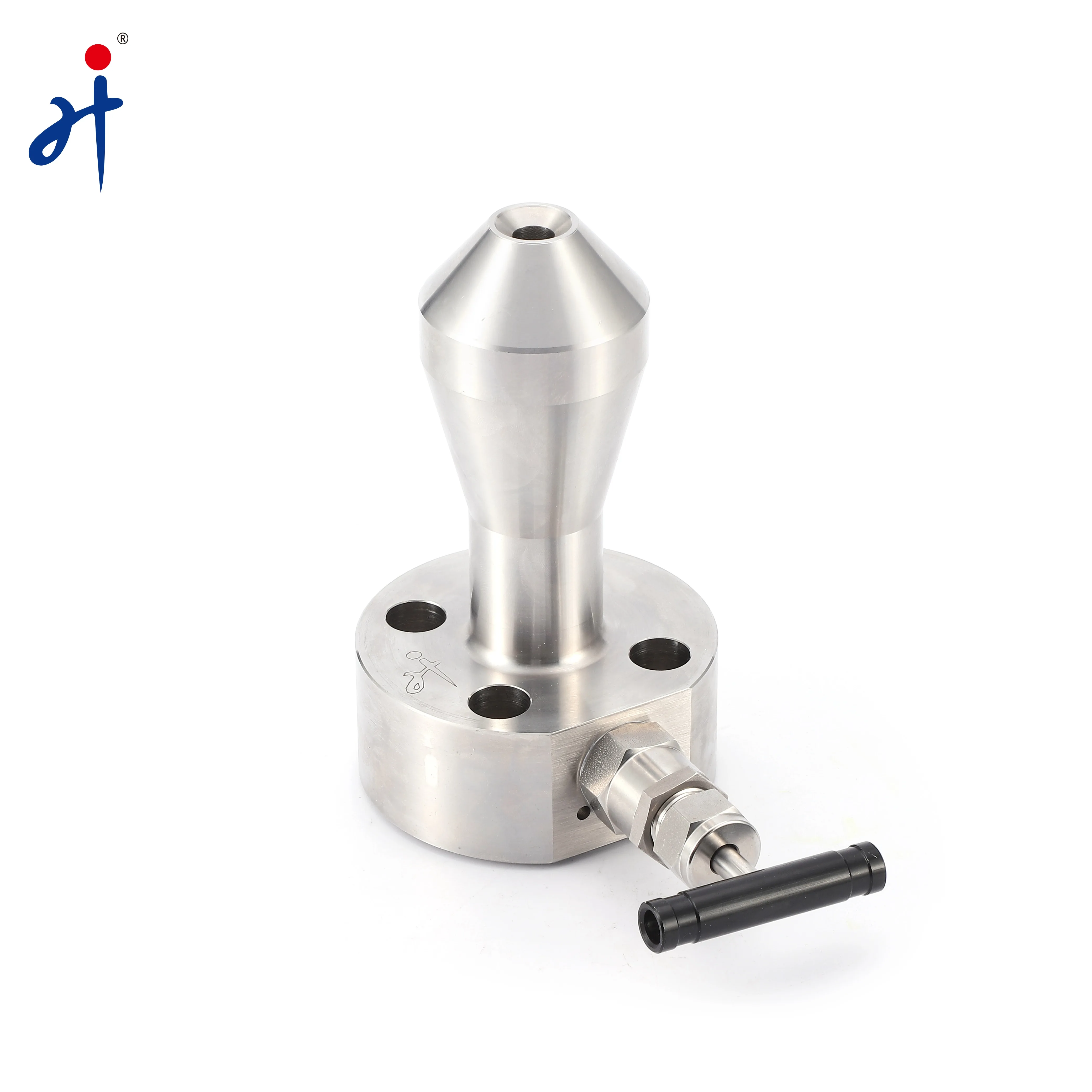

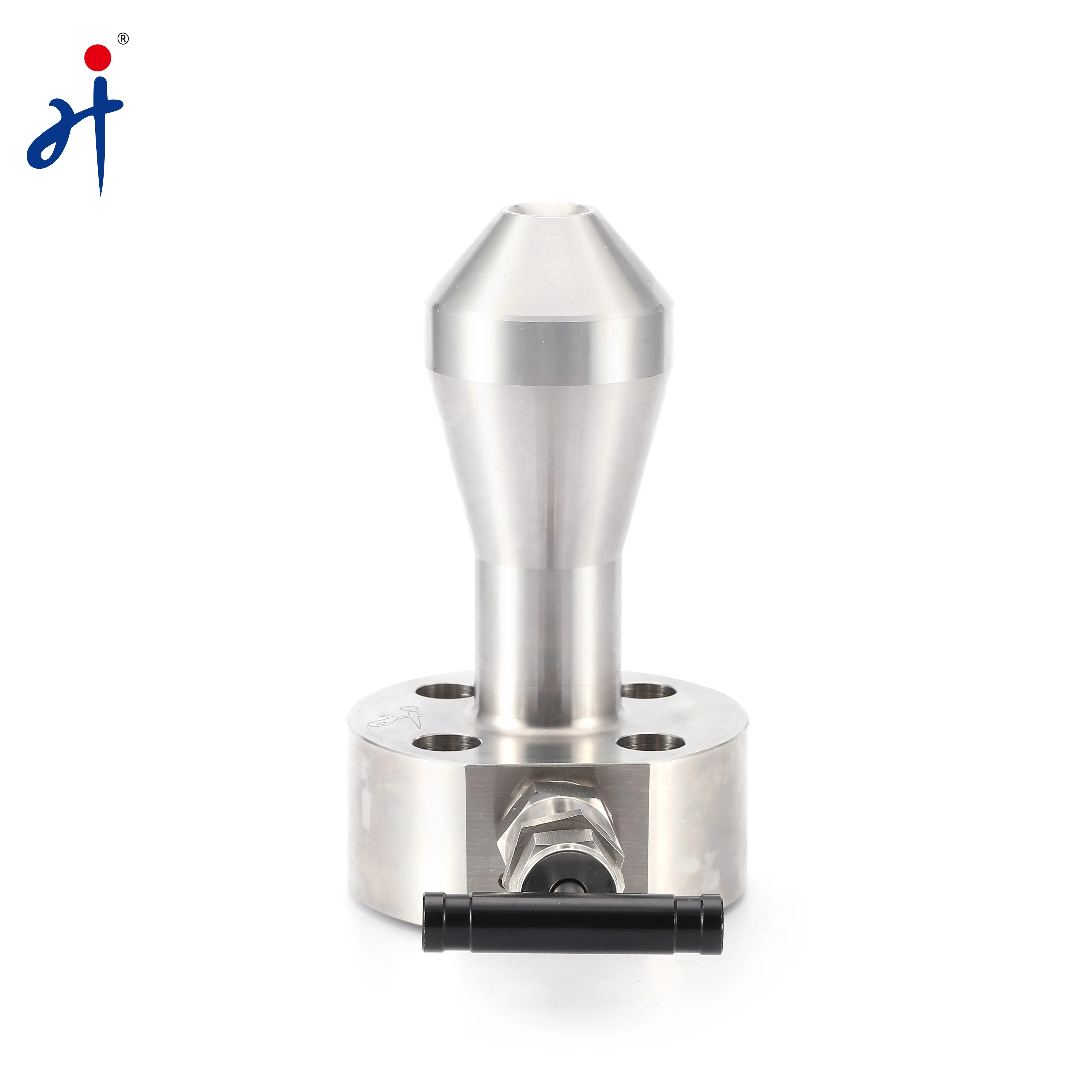

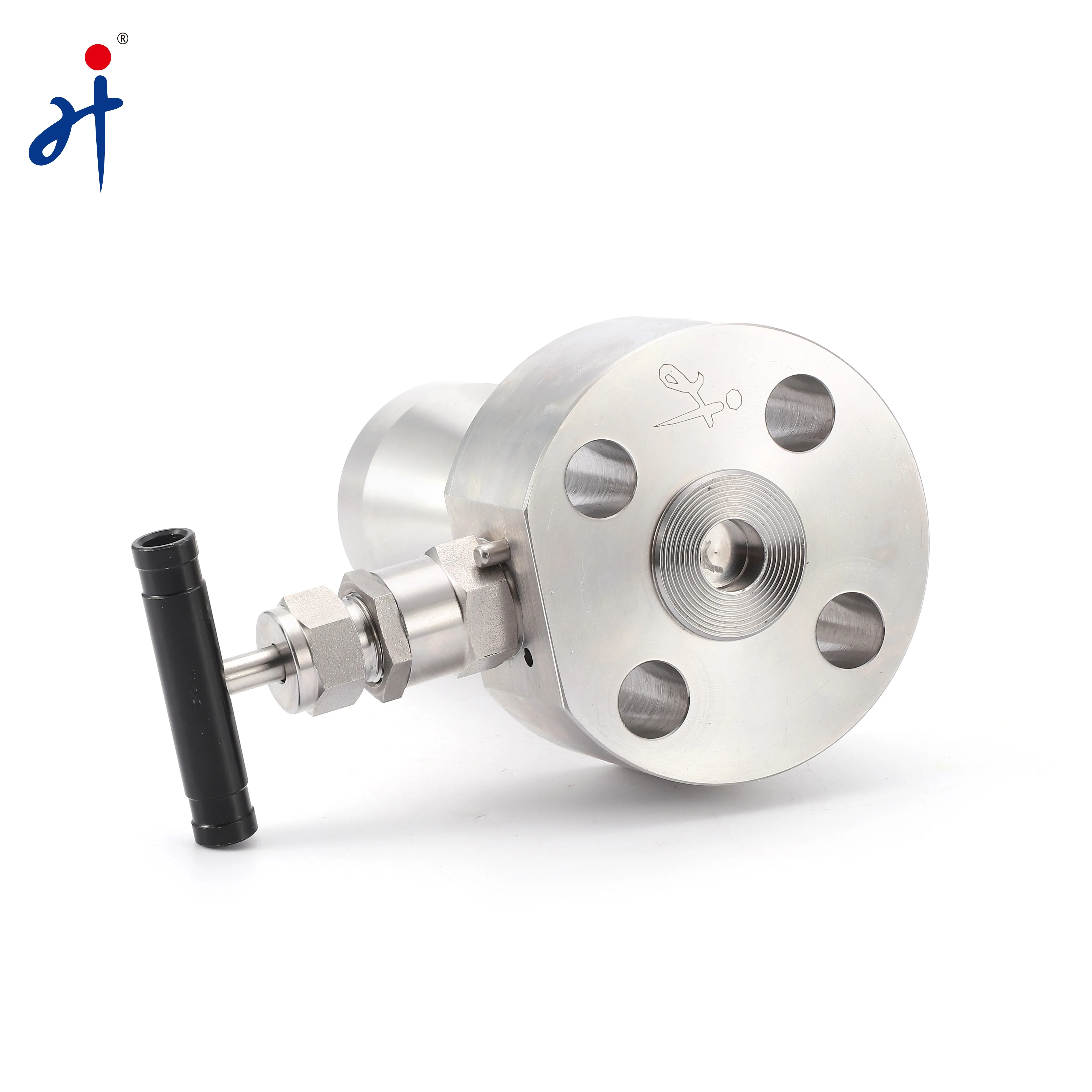

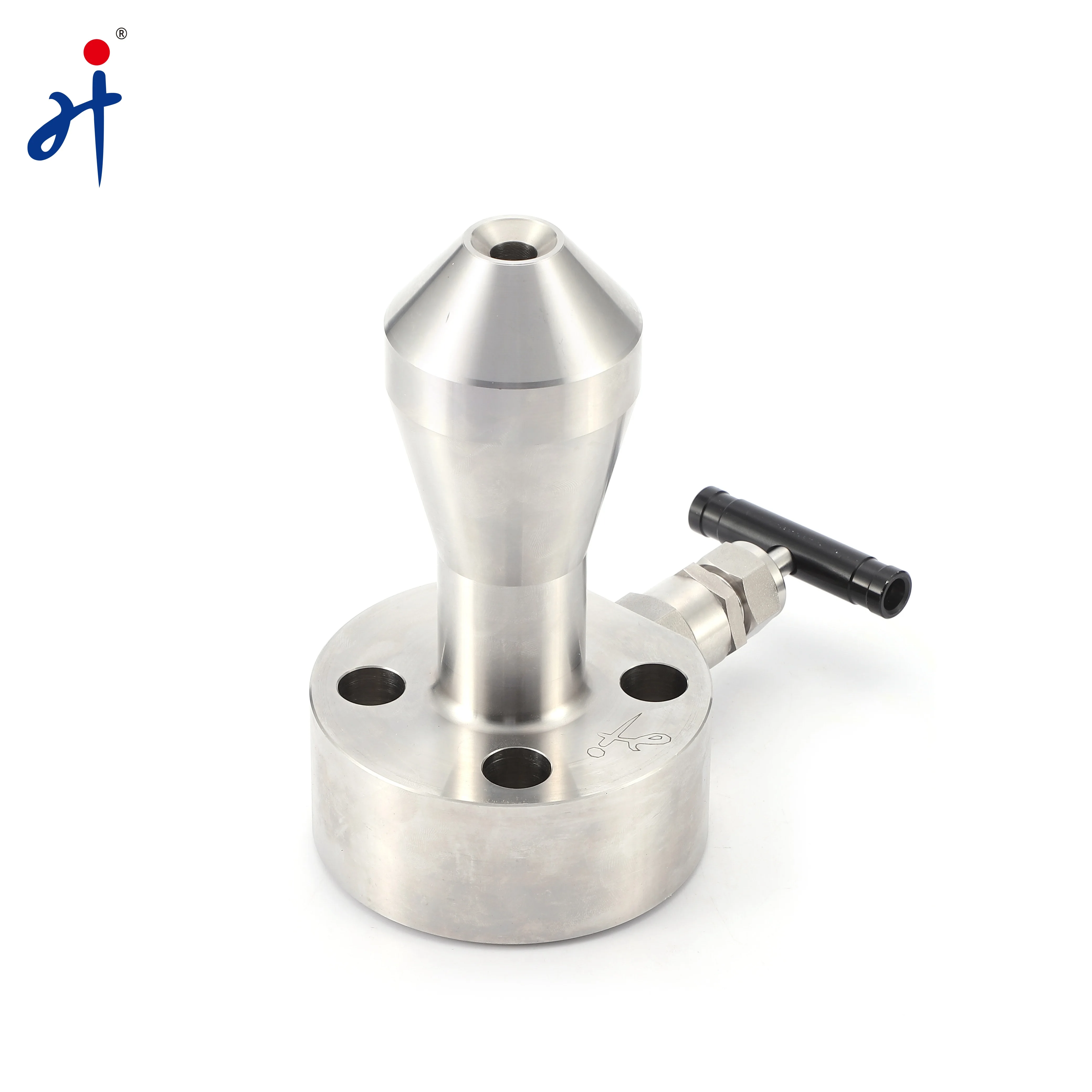

Monoflange Needle Valve 6000 Psi Stainless Steel 316/316L Dbb Double Block & Bleed Valve
- Category: >>>
- Supplier: Anhui Hongji Intrustment Valve Co. Ltd.Anhui Ltd.
Share on (1601223749794):
Product Overview
Description
Products Description
Needle Valves
The needle valve made by Hongji Instrument& Valve Manufacturing Co., Ltd. is a type of valve with a small port and a threaded, needle-shaped plunger. It allows precise regulation of flow, They are also usually used in flow-metering applications, especially when a constant, calibrated, flow rate must be maintained for a certain duration, such as the idle fuel flow in a carburetor, steam in the pipe from the power plant, as well as to provide shut off for the pressure gauge or on
applicators in many industries.
The needle valve made by Hongji Instrument& Valve Manufacturing Co., Ltd. is a type of valve with a small port and a threaded, needle-shaped plunger. It allows precise regulation of flow, They are also usually used in flow-metering applications, especially when a constant, calibrated, flow rate must be maintained for a certain duration, such as the idle fuel flow in a carburetor, steam in the pipe from the power plant, as well as to provide shut off for the pressure gauge or on
applicators in many industries.
Production Details
Needle Valve Features:
* Accurate& Precise control flow rate and pressure.
* Provide reliable cutoff.
* Precise adjustment of flow, bearing resistance, and pressure regulation.
* Also can be used in pump start, turbine by-pass, flow discharge, air regulation, and
Reservoir inlet.
* Small Size.
* Provide reliable cutoff.
* Precise adjustment of flow, bearing resistance, and pressure regulation.
* Also can be used in pump start, turbine by-pass, flow discharge, air regulation, and
Reservoir inlet.
* Small Size.
Needle Valve General Data:
* Pressure Range: 6000psi/414bar-10000Psi/690bar
* Size:Od1/8,1/4,3/8,1/2,3/4,5/8’’ ;1/4-3/4’’NPT
* Connection: Male Thread+Extended Tube
* Application: Liquid or Gas, Steam, Water
* Body Material:304, 316,316L, 321, Alloy,
* Size:Od1/8,1/4,3/8,1/2,3/4,5/8’’ ;1/4-3/4’’NPT
* Connection: Male Thread+Extended Tube
* Application: Liquid or Gas, Steam, Water
* Body Material:304, 316,316L, 321, Alloy,
Industrial Application
* Oil& Gas
* Power Plant
* Nuclear Energy
* Petrochemical
* Chemicals
* Water Treatment
* Semi-Conductor
* Food& Beverage
* Power Plant
* Nuclear Energy
* Petrochemical
* Chemicals
* Water Treatment
* Semi-Conductor
* Food& Beverage
Variety of Needle Valves( Manually Operated, Forged Stainless Steel):
* Inlet/Outlet:
* Straight type
* Tee Type
* Elbow Type
* Y type
Product Paramenters
Model | HJJ00W | Pressure Range | Class 2500/33.4Mpa/4844Psi |
Type | Needle Valve | Net Weight | 1.3kg±0.005kg(DN10) |
Body Material | 304, 316L, ASTM A105. | Manufacturing Capacity | 500/Month |
Type of Connection | Flange | Warranty | 0.5 year |
Seal Type | Hard Sealing | Norms | ISO/GB/JB/DIN |
Manufacturing | Forging and CNC | Test Norms | API 598/ GBT-13927-2008 |
Application | Nontoxic Liquid or Gas, Steam, Oil | Certificate | ISO/TUV |
No. | Component | Material | ||
1 | Handle | SS 316 | Alloy 400 | |
1 | Handle | Stainless Steel | ||
2 | Set Screw | Stainless Steel | ||
3 | Packing Bolt | SS304 | ||
4 | Upper Stem | SS316 | ||
5 | Lock Nut | 17-4PH | ||
6 | Bonnet | SS316 | Alloy 400 | |
7 | Gland | SS316 | ||
8 | Packing | PTFE/Graphite | ||
9 | Lock Pin | Stainless Steel | ||
10 | Lower Stem | SS316 | Alloy 400 | |
11 | Body | SS316 | Alloy 400 | |
12 | Seat | Acetal/PEEK/PFA | ||
