Product Overview
Description
Product Description
MYT CNC hydraulic press brake features * New EU streamlined design * The whole frame of the press brake adopt integrated welding, and by tempering to eliminate the internal stress * The press brake frame adopt shot blast to remove rust and sprayed with anti-rust treatment * The brake press frame is formed by the imported CNC three-dimensional machining center in one process. * The controller can control the Y1 and Y2 axes (Y1 controls the left cylinder and Y2 controls the right cylinder) to ensure the synchronous movement of the ram * Quiet speed waiting and fast down, (about 25 decibels), low noise during pressing and return (the pressure in the hydraulic system is the closed loop control of the servo main motor) * The main oil pump does not apply work under the drive of the servo main motor, and the energy consumption is 60% lower than that of the general CNC press brake machine * The machine oil temperature is stable, which extending the service life of various components of the hydraulic system * More technical innovations to ensure the quality of bending, and powerful, easy to operate * The press brake adopt the latest high-frequency hydraulic control technology, which is faster, more efficient and more stable * The best parameter ratio, the optimal core configuration, the performance is stable, the operation is more convenient, and the bending of various workpieces in complex shape can be realized. DELEM DA53T Touch CNC System for Hydraulic Sheet Metal press Brake 10.1" high resolution colour TFT “Hot-key” touch navigation Up to 4 Axis (Y1,Y2 + 2 aux. Axis) Tool / material / product library Advanced Y-axis control algorithms for closed-loop as well as open-loop valves. CNC Crowning control USB memory stick interfacing Profile-53TL offline software |
Detailed Images

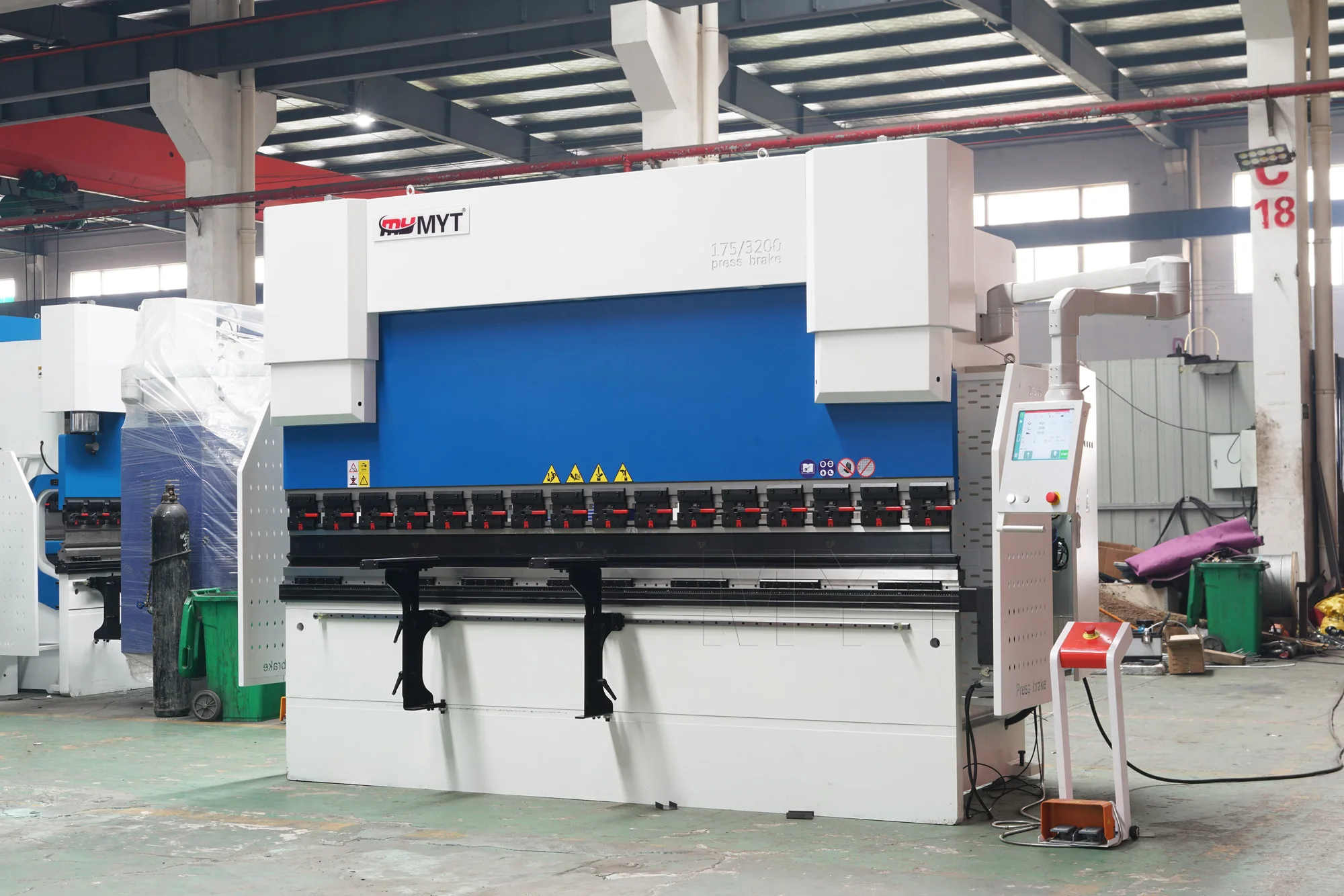

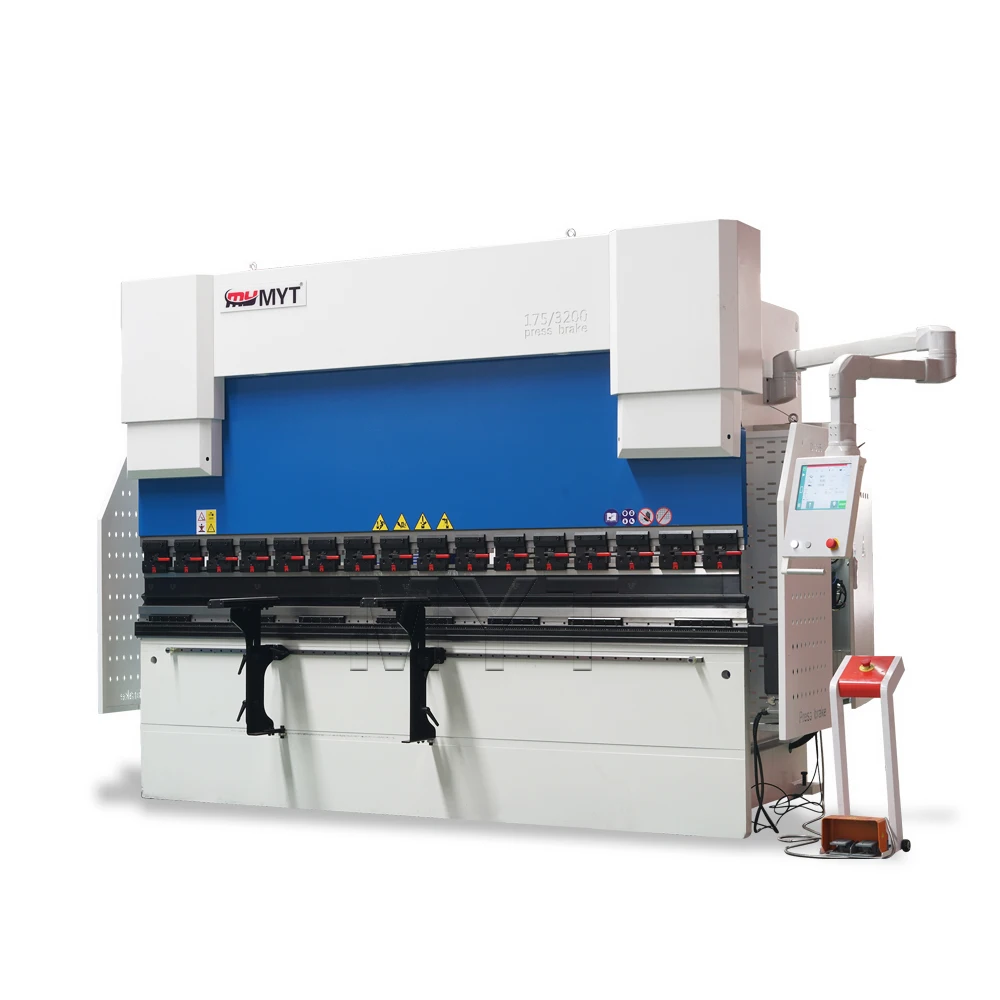

CNC press brake
Optional CNC front support
Back side of press brake
Back side of press brake

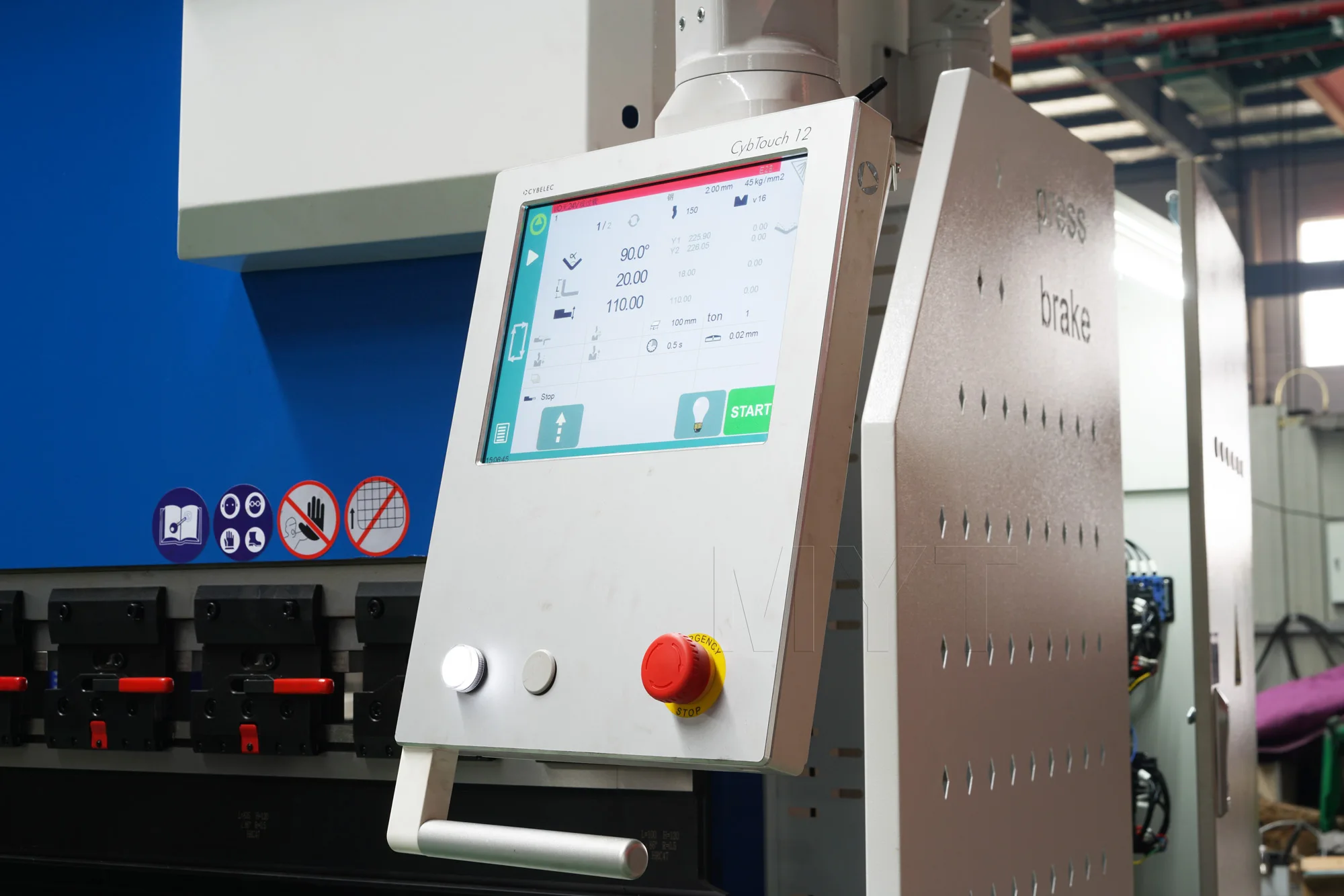

Delem DA53T system

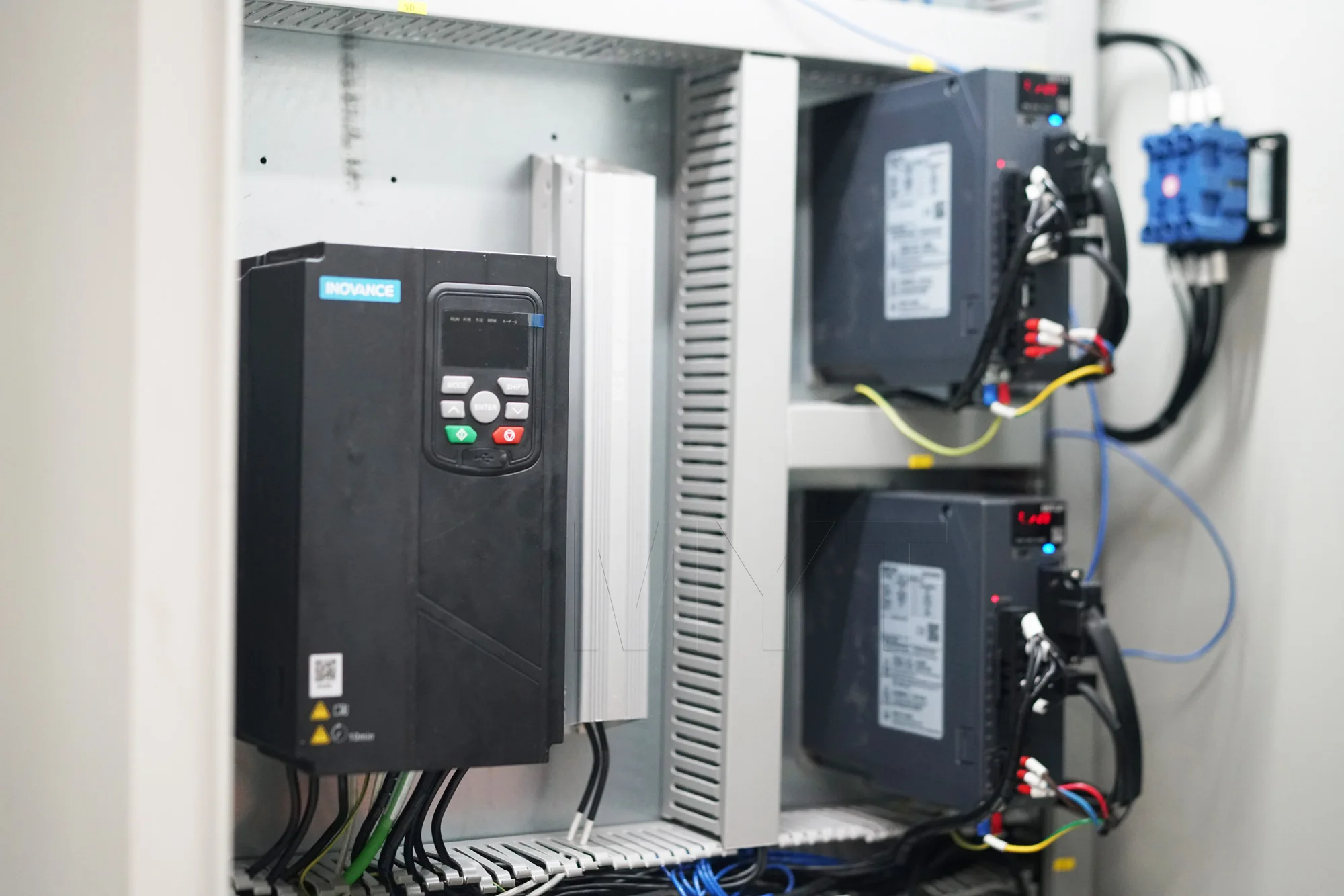

Delta PLC and servo driver
Automatic crowing
Upper upper tool and down tool
Fast clamp for quick installation
Auto backgauge X+R axis

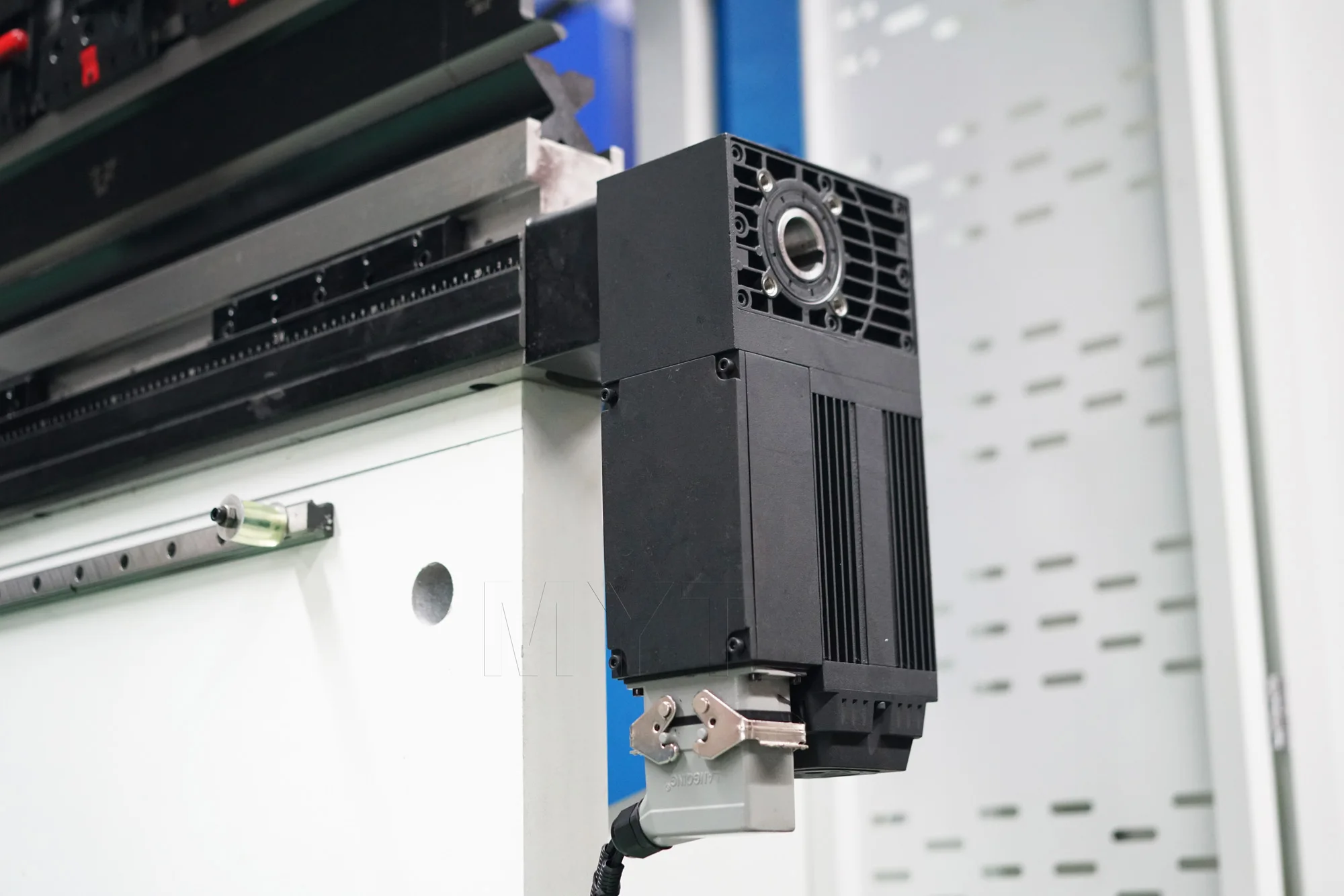

Servo motor for saving 40% electricty
DSP laser protection
Product Parameters
Type | 63T/2500 | 80T/3200 | 100T/3200 | 160T/3200 | 200T/3200 | 250T/3200 | 300T/3200 |
Nominal Force (KN) | 630 | 800 | 1000 | 1600 | 2000 | 2500 | 3000 |
Bending Length (mm) | 2500 | 3200 | 3200 | 3200 | 3200 | 2700 | 3200 |
Vertical Distance (mm) | 1900 | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
Depth of Throat (mm) | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
Slider Travel (mm) | 170 | 170 | 200 | 200 | 200 | 200 | 200 |
Max.Opening (mm) | 380 | 380 | 420 | 420 | 420 | 420 | 420 |
Main Power (Kw) | 5.5 | 7.5 | 7.5 | 11 | 15 | 15 | 22 |
Crowing Cylinders | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
Control Axes | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 |
X Axis Travel(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
X Axis Speed (mm/s) | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Overal Dimension (LxWxH)(mm) | 3100x1450x2050 | 3500x1550x2100 | 3500x1580x2400 | 3500x1650 x2500 | 3500x1680 x2550 | 3500x1700 x2600 | 3500x1800 x2730 |
Weight(Ton) | 5.8 | 7.8 | 8.5 | 11 | 14.2 | 15.6 | 16.8 |
