double shaft coal mixer
US $7999-$8699
JS2000 concrete mixer manufacturer Horizontal concrete mixer for sale
- Category: >>>
- Supplier: Zhengzhou Jianxin Machinery Co. Ltd.
Share on (1601223871256):
Product Overview
Description

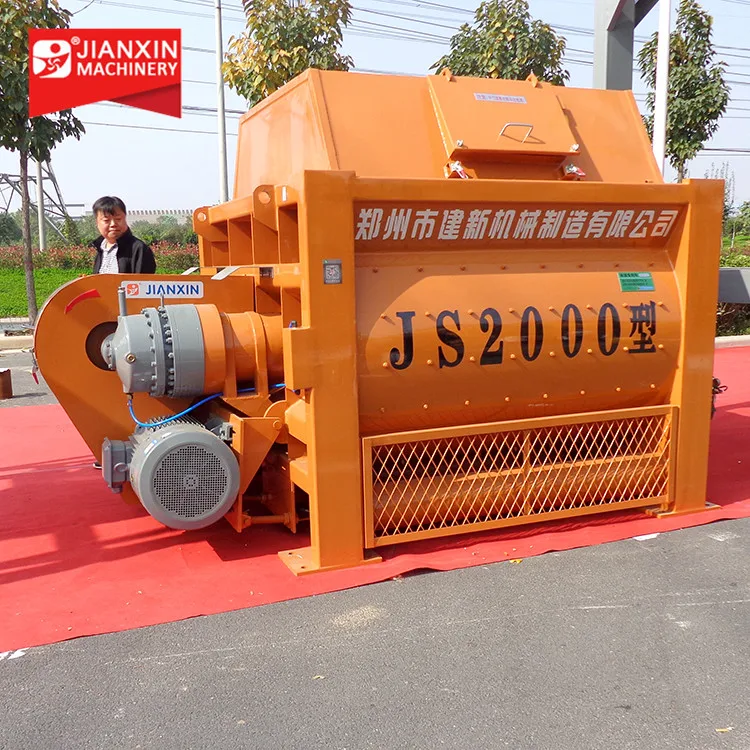

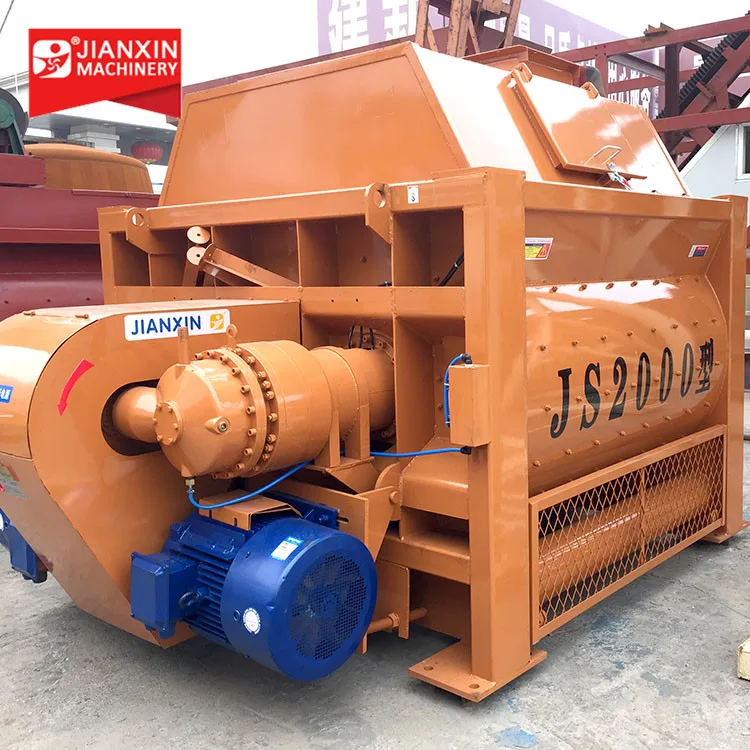

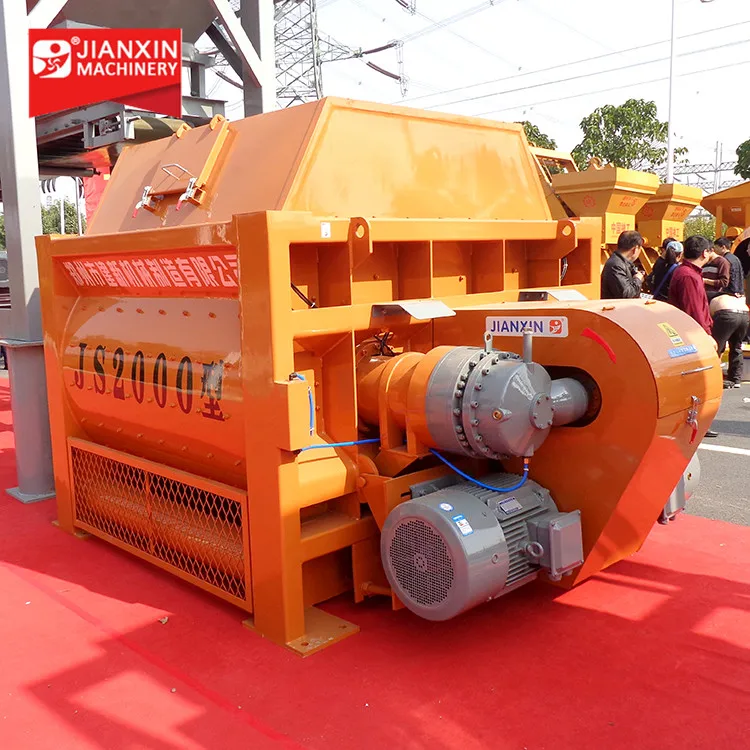

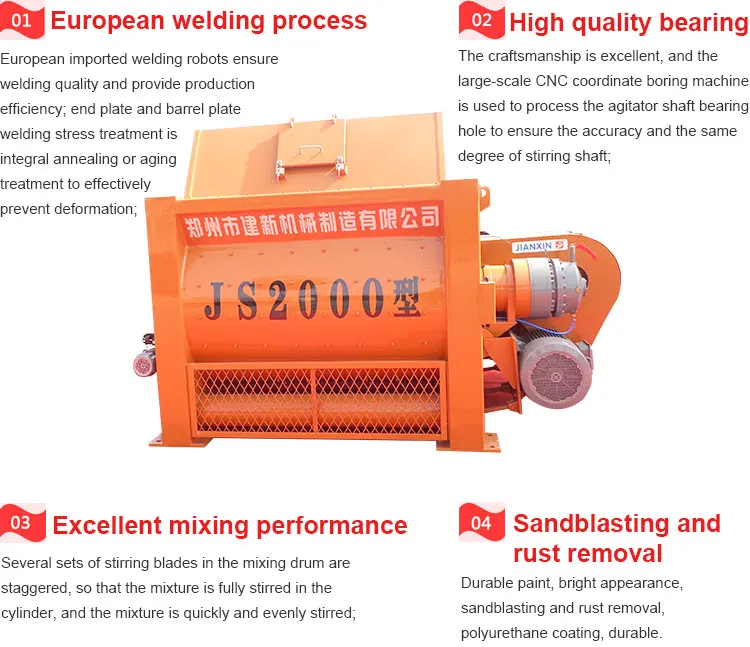

zhengzhou Jianxin Machinery 2000 Liter Twin Shaft concrete mixer is a large and medium-sized mixer, mainly suitable for larger construction projects.
It is a type of forced horizontal shaft mixer and is a multifunctional mixer.
2000 Liter Twin Shaft concrete mixer has dual advantages of separate operation and can integreted with the PLD series batching machine to form a concrete mixing plant.
Mixing dry hard concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortars.

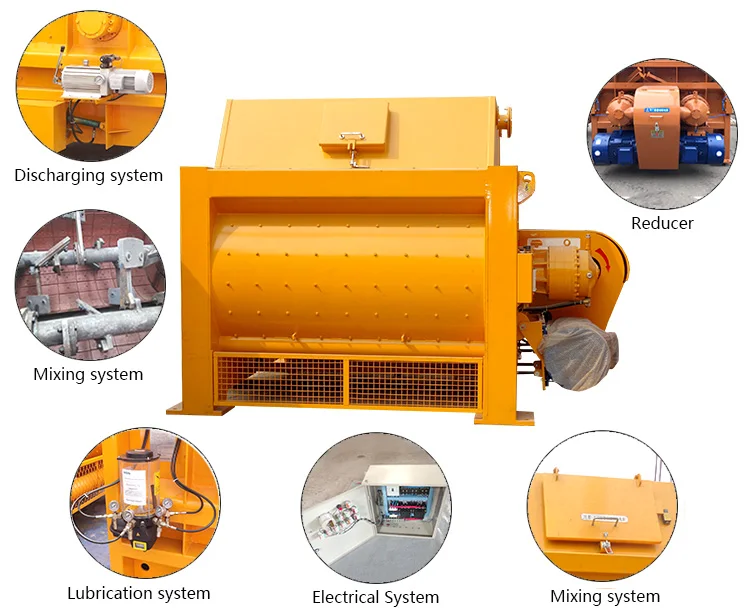

2000 Liter Twin Shaft Concrete Mmixer Mixing System

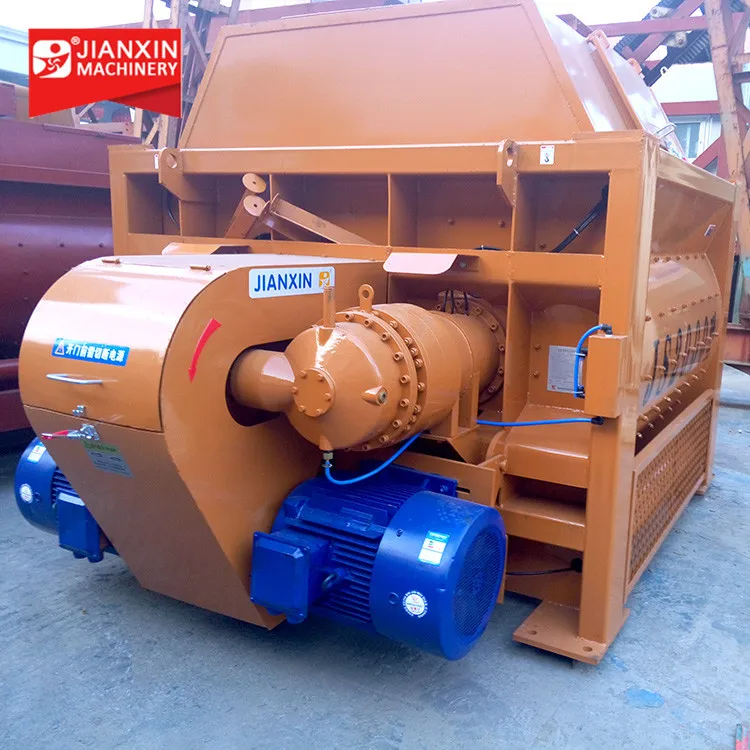

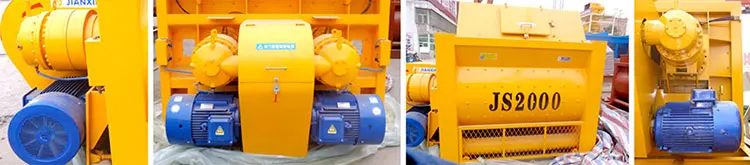

The mixing system of 2000 Liter Twin Shaft concrete mixer is composed of electric motor, pulley, reducer, open gear, mixing drum stirring device, oil supply device and so on.
The motor of 2000 Liter Twin Shaft concrete mixer is directly connected to the cycloidal pin reducer. By means of the split gears, the two output shafts of the reducer drive respectively the horizontally arranged agitating shaft to reverse the rotation at the same speed.
2000 Liter Twin Shaft Concrete Mixer Feeding System

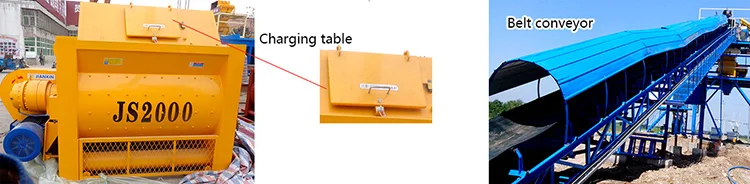

The feeding system of 2000 Liter Concrete Mixer is composed of hoisting mechanism, loading rack, hopper feeding nozzle and so on. A limit switch is installed on the loading frame, and the upper limit has two limit switches, which respectively paly a role in raising the limit position and safety protection of the hopper with rise of the hopper. The upper part of the loading rack is foldable.
2000 Liter Concrete Mixer Discharging System

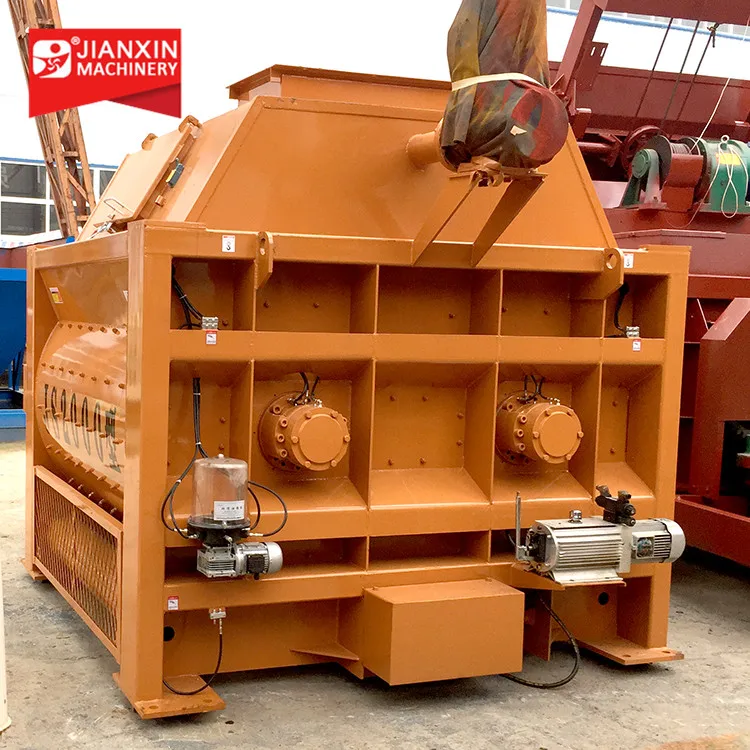

2000 Liter Concrete Mixer discharge system consists of unloading hopper, air pump, reversing valve, gas distribution valve, cylinder, electrical and other institutions.

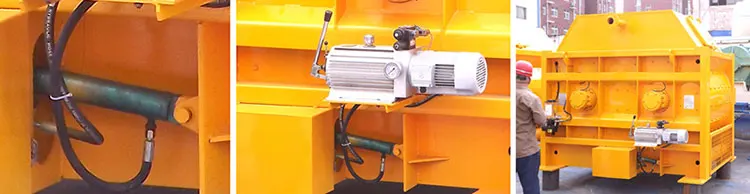

The discharge door of JS2000 concrete mixer is installed at the bottom of the mixer, pneumatically discharged through the cylinder, and can also control the opening and closing position of the discharge door. The position of the sealing strip can be adjusted to ensure the sealing of the discharge door.
2000 Liter Twin Shaft Concrete Mixer Electrical System

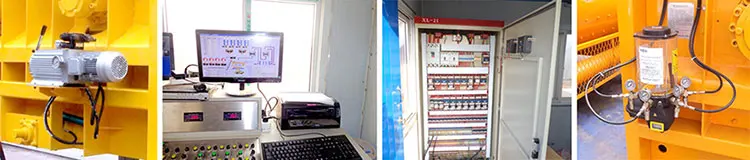

The electric control circuit is equipped with an air switch, a fuse, and a thermal relay, and has the functions of short circuit protection and overload protection. All control buttons and air switch handles and indicators are placed on the distribution box door with a door lock. A protective cover is placed outside the button. The electrical components in the distribution box are mounted on a single edge plate, which is safe and reliable, and easy to operate and maintain.
1, Founded in 1986, jianxin machinery manufacturing company ltd. combines scientific research, manufacture, sales and service together. Dedicated in construction machinery for 30 years, Jianxin now has 2 factories which cover an area of 220 thousand square meters, including 60 thousand square meters building area. Jianxin now has more than 500 staffs, including 26 senior mechanical engineers, 12 electrical engineers, 36 technical engineers, 128 senior electric welders, 6 ISO9001 internal auditors and more than 300 common staffs. While there are more than 80 sets of various lathes and precision machining equipments.
2, Jianxin manufactures 8 series and totally 46 kinds:
HZS25-HZS240 concrete mixing plant,
WBZ300-WBZ800 stabilized soil mixing plant,
YHZS25-YHZS100 mobile mixing plant,
MPC250-MPC2000 vertical planetary concrete mixer,
JS500-JS4000 horizontal shaft concrete mixer,
PLD800-PLD4800 concrete batching machine,
50T-500T cement silo,
JX1500-JX4000 self loading concrete mixer truck,
20m3/h to 80m3/h concrete trailer pump etc.
All products are accord with China national standard and have ISO international certificate of quality system, European CE certificate and export inspection exemption together with many national patents.
3, Customers from more than 30 countries, including africa, middle east, south and north america, europe and asia. Jianxin brand products and service are widely praised!
FAQ
Q How about the quality of 2000 Liter Twin Shaft Concrete Mixer?
A Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.Chinese top brands or world grade brands like Siemens motors etc are equiped.
Q How about the price of 2000 Liter Twin Shaft concrete mixer?
A Jianxin is a manufacturer dedicated in construction industry since 1986. we can give you competitive factory price. And also offer you one-stop purchasing service:Design, manufacturing, installation & debugging, aftersales technical support, etc.
Q Do you provide after-sale service?
A Yes.
The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. Enough spare parts and quick-wear parts sent together.
Onsite installation, debugging, workers training.
Make sure that your workers operate properly and know daily maintenance well.
Q Do you provide equipment operation training?
A Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.It's about 90-120 usd a day.
Q Can you test our samples?
A Yes. You can send your samples to us for test and analysis.
Q How long it takes to do all the installation
A It's at most 5days processing and manufacturing for single machine,for production line,at most 15days.
Q What are your payment terms?
A T/T, L/C, Paypal, Credit card, Western union, Moneygram are all ok.
Q Can you customize by my specialized request?
A Yes, we can.
Q Can we visit your factory?
A Yes. You can visit our factory at anytime you want. Pls contact lily:+8613460279333 (whatsapp/wechat/viber are all availiable)
