Epever High Frequency MPPT Solar Inverter Off Grid 3KW 3.5KW 5KW 5KVA 5.5KW Hybrid Inverter 48V Built in BMS Link
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1601224033950):
Product Overview
Description
EPEVER HP-AHP20SA Series 3500W 5500W
High Frequency Hybrid Solar Inverter With MPPT
Technical Specifications
Model | HP3542-AH0650P20SA | HP5542-AH1050P20SA | ||
Utility input | Utility Voltage | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | ||
Utility Frequency | 45Hz~65Hz | |||
Maximum Utility Charging Current | 60A | 100A | ||
Switch Response Time | Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms | |||
Inverter output | Inverter Rated Power (@30℃) | 3500W | 5500W | |
3-second Transient Surge Output Power | 7000W | 8500W | ||
Inverter Output Voltage | 220/230VAC±3% | |||
Inverter Frequency | 50/60Hz±0.2% | |||
Inverter Frequency | Pure sine wave | |||
Load Power Factor | 0.2~1(VA ≤ Rated output power) | |||
THDu (Total Harmonic Voltage Distortion) | ≤3% (48V resistive load) | |||
Maximum Load Efficiency | 92% | 92% | ||
Maximum Inverter Efficiency | 94% | 94% | ||
Solar controller | PV Maximum Open-circuit Voltage | 500V (At minimum operating environment temperature) 440V (At 25℃) | ||
MPPT Voltage Range | 85~400V | |||
PV Maximum Input Power | 4000W | 6000W | ||
PV Maximum Charging Current | 60A | 100A | ||
MPPT Maximum efficiency | ≥99.5% | |||
Battery | Battery Rated Voltage | 48VDC | ||
Battery Work Voltage Range | 43.2VDC~60VDC | |||
Battery Maximum Charging Current | 60A | 100A | ||
Others | No-load Losses | ＜0.7A | ＜1.0A | |
Test condition: No PV and utility, AC out is on, fan stops@48V input | ||||

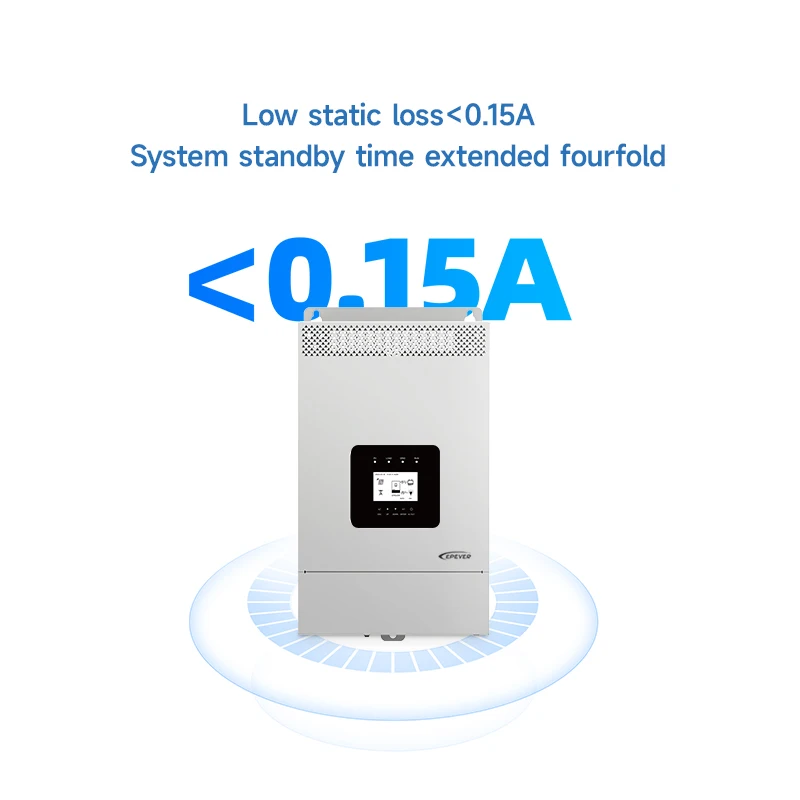

Standby Current | ＜0.15A | |||
Test condition: No PV and utility, AC out is off, fan stops@48V input) | ||||
Work Temperature Range | -20℃~+50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately) | |||
Storage Temperature Range | -25℃~+60℃ | |||
Enclosure | IP20 | |||
Relative Humidity | < 95% (N.C.) | |||
Altitude | ＜4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | |||
Mechanical parameters | Dimension (Length x Width x Height) | 534mm × 288mm × 163mm | 590mm × 288mm × 163mm | |
Mounting size (Length x Width) | 512mm x 245mm | 568mm x 245mm | ||
Mounting hole size | Φ9mm/Φ10mm | Φ9mm/Φ10mm | ||
Net Weight | 12.0Kg | 15.0Kg | ||
Product Features:

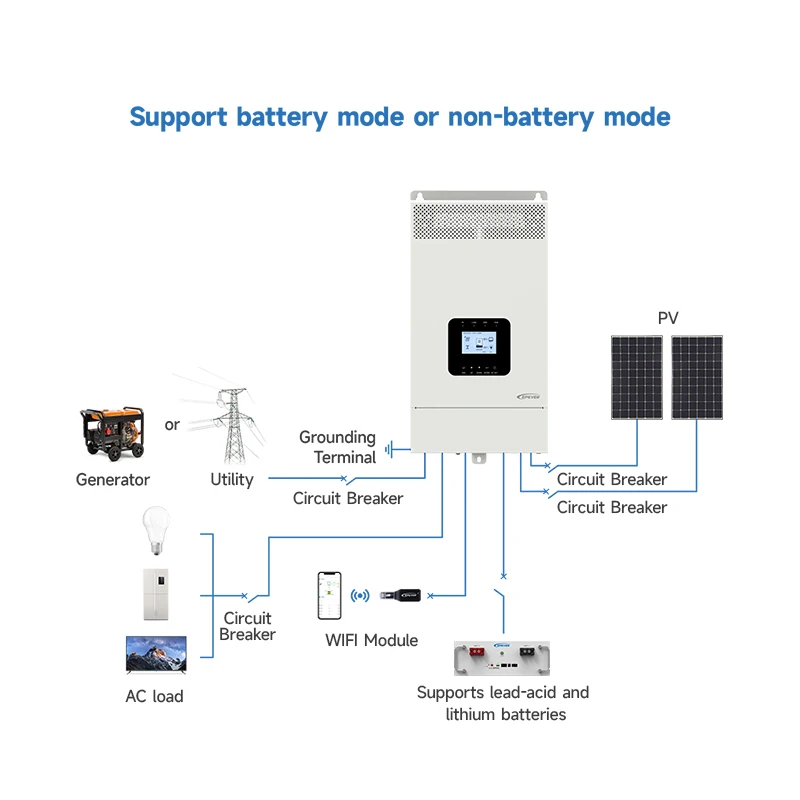

>Pure sine wave output>Supports battery or non-battery modes
>Built-in BMS-Link module for secure battery charge and discharge control
>PFC technology reduces the demand on the power grid capacity
>Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%
>Supports Dual PV inputs to Improve PV utilization
>Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%
>Supports Dual PV inputs to Improve PV utilization

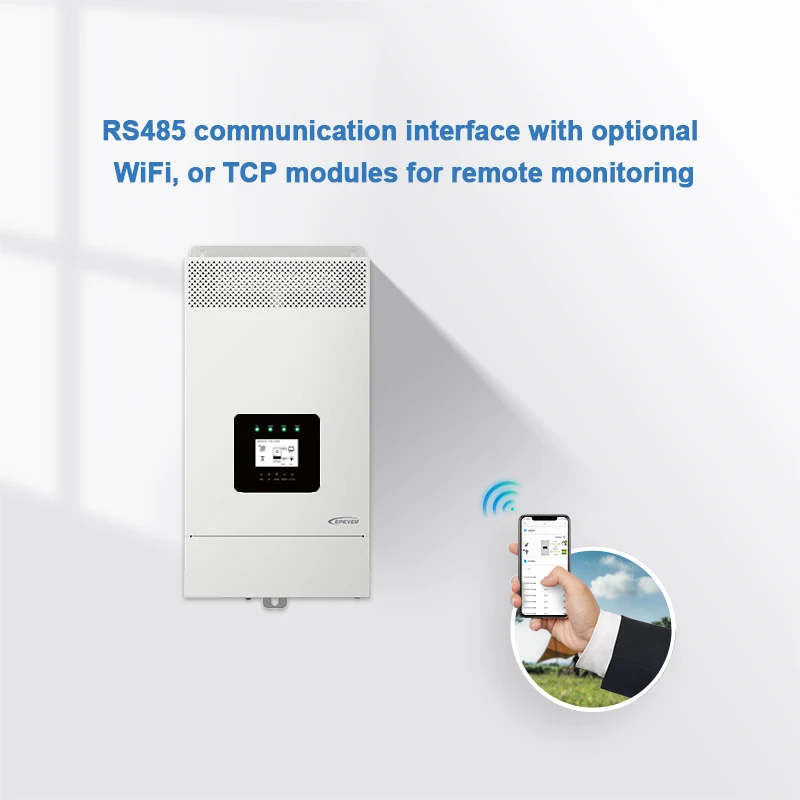

>RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring

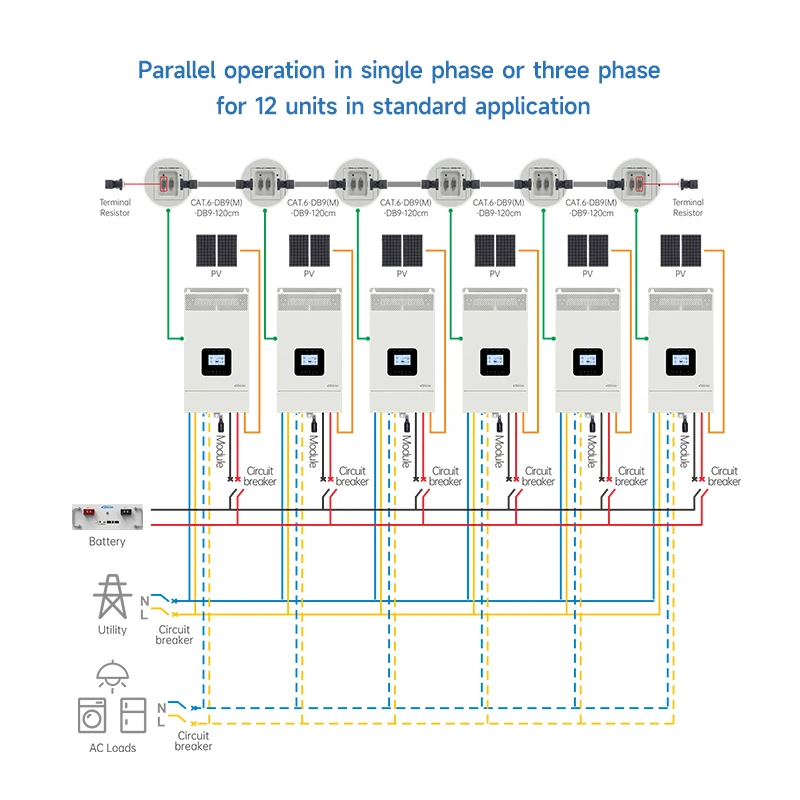

>AC output supports parallel operation, standard configuration of 12 units in parallel
>AC output parallel operation supports single-phase and three-phase settings
