Product Overview
Description
Product Overview

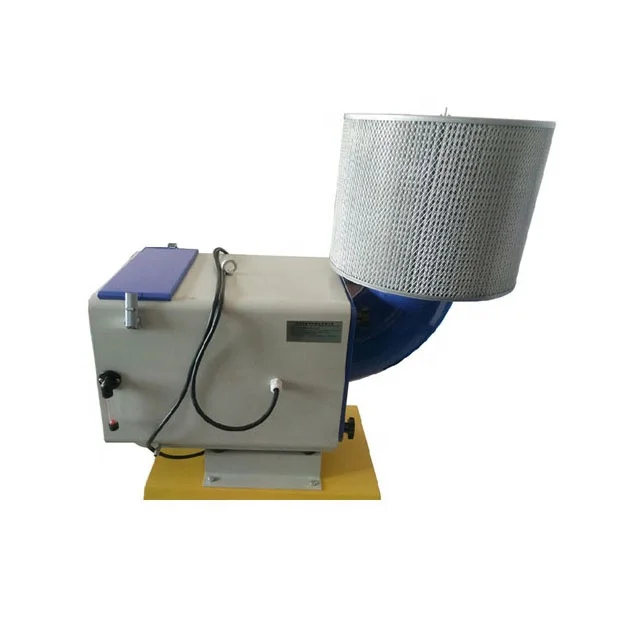

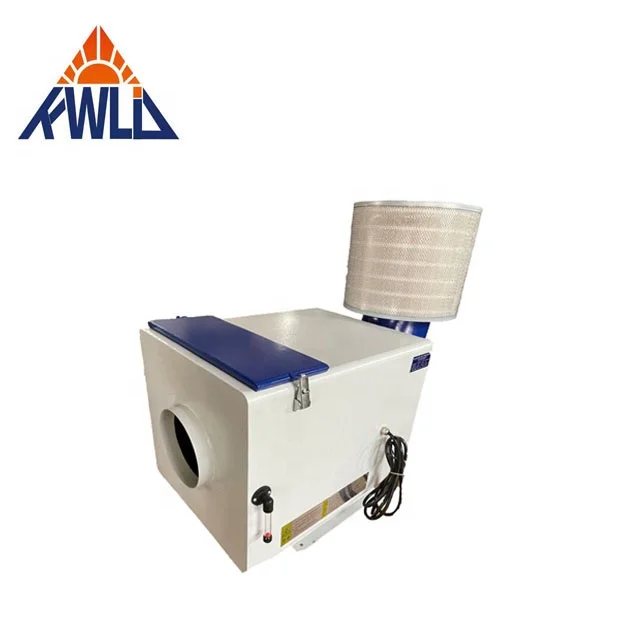

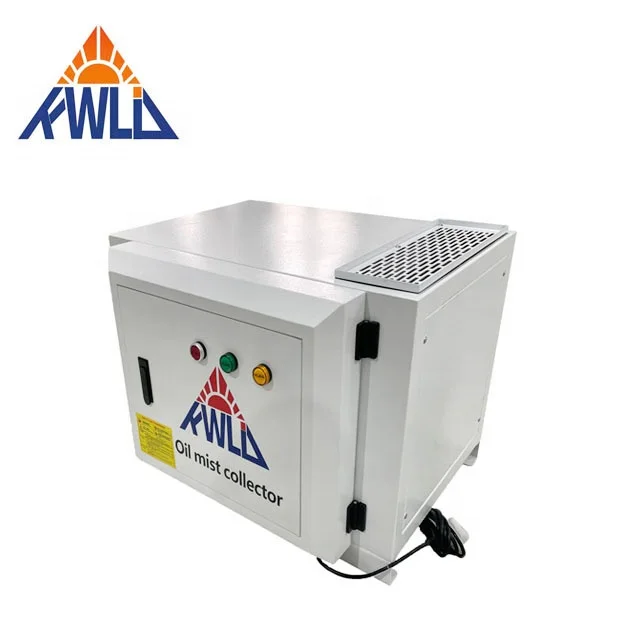

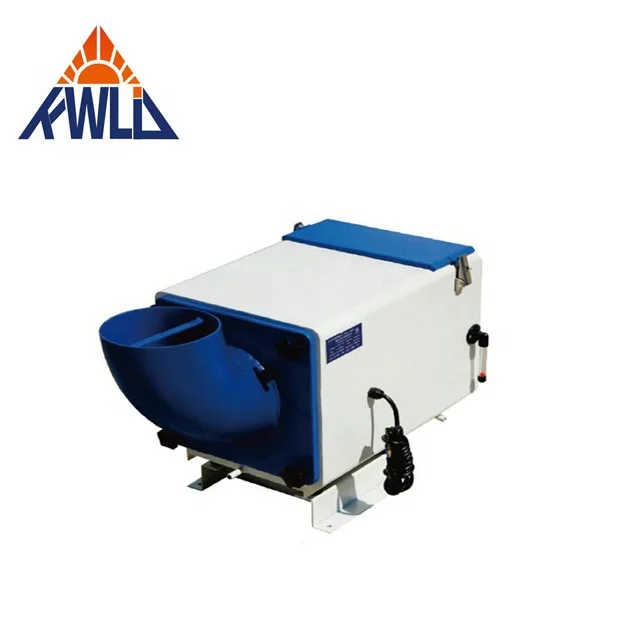

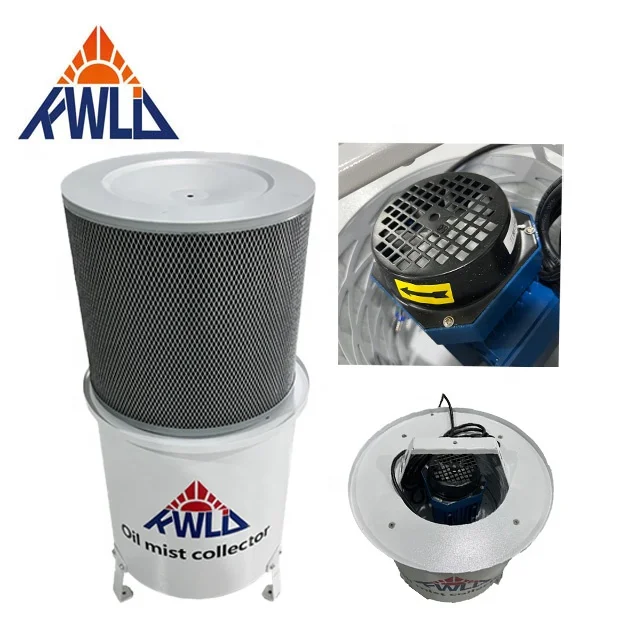

Efficient oil mist collector :
Cutting fluid as lubricating, cooling and cleaning agent during the metal processing such as turning , milling peeling and grinding. The cutting fluid can form tremendous oil mist particles during the high speed processing . The particles could be harmful by mixing with the dust produced in the processing. Oil mist recycling equipment functions to collecting the oil mist diffusing in the air. By intercepting and filtering and getting rid of the dust and particles, the equipment can renew the oil mist into clean fluid and then recycles the fluid. So the equipment environmental friendly and energy-efficient.
Suitable to be installed on general lathe. milling machine, grinding machine, casting machine, CNC machine. melding and so on.
Product Feature

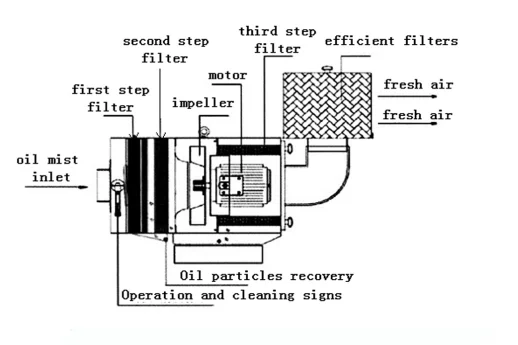

● Base on the theory of step-by-step filtering:the first step catches≥20 um; second step catches≤2 um; third one≤1- 0.1 um. Selectable highly efficient filters are available to catch the mist produced in processing;
● Easy to install All of the machines can be directly installed on the machine tool, bracket, easy tear open outfit;
● Maintenance is simple, safe, and no spark risk and vulnerability of components. Strainers can be replaced with dust-cleaning-hose being connected;
● Impellers are not exposed. So it's safe to be used; Can catch sorts of water-soluble lampblack.mist and dust;
● Can capture the cutting surface grinder,centerless grinder and So on; Can capture the mist and waste gases produced in the processing of EDM machines, CNC machines, gear cutting machines and welding process and other kinds of machine tools or cleaning equipment;
● Here is a signal to warn normal working or the filter cotton need to be changed. The red ball will float upward t lll the top
When the machine is off the red ball will sink to the bottom. The filter cotton will catching oil mist after the machine works for a while when the catching ability is lower than 70%, the red ball will sink to the bottom.That means it's time to replace or clean the filter cotton.
● The catching efficiency can reach 95% or more.
● Impellers are not exposed. So it's safe to be used; Can catch sorts of water-soluble lampblack.mist and dust;
● Can capture the cutting surface grinder,centerless grinder and So on; Can capture the mist and waste gases produced in the processing of EDM machines, CNC machines, gear cutting machines and welding process and other kinds of machine tools or cleaning equipment;
● Here is a signal to warn normal working or the filter cotton need to be changed. The red ball will float upward t lll the top
When the machine is off the red ball will sink to the bottom. The filter cotton will catching oil mist after the machine works for a while when the catching ability is lower than 70%, the red ball will sink to the bottom.That means it's time to replace or clean the filter cotton.
● The catching efficiency can reach 95% or more.
Selections
Model | YW-500 | YW-900 | YW-1500 | YW-1900 |
Applicable cavity volume (m³） | 1.5 | 2.5 | 4 | 7 |
Air volume（m³/h) | 300-500 | 600-900 | 1100-1500 | 1500-1900 |
Power (Kw) | 0.37 | 0.75 | 1.5 | 2.2 |
Power supply (V) | 380/3相220 | 380/3相220 | 380/3相220 | 380/3相220 |
Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
Suction caliber (mm) | 120 | 150 | 180 | 210 |
Noise (dB) | 60 | 62 | 65 | 65 |
Outline size (L x W x H) (mm) | 700x340x460 | 800x380x520 | 1000x420x580 | 1200x480x620 |
Weight (Kg) | 33 | 42 | 58 | 75 |
Accessories selection

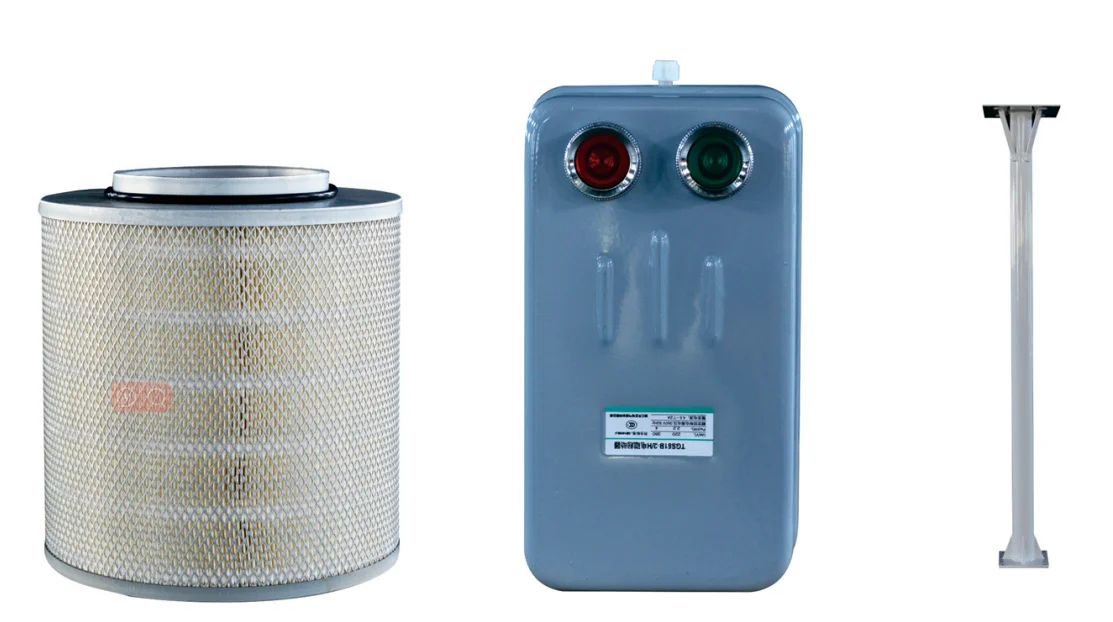

HEPA filter Electromagnetic starter Mounting bracket
Accessories | Model | YW-500 | YW-900 | YW-1500 | YW-1900 |

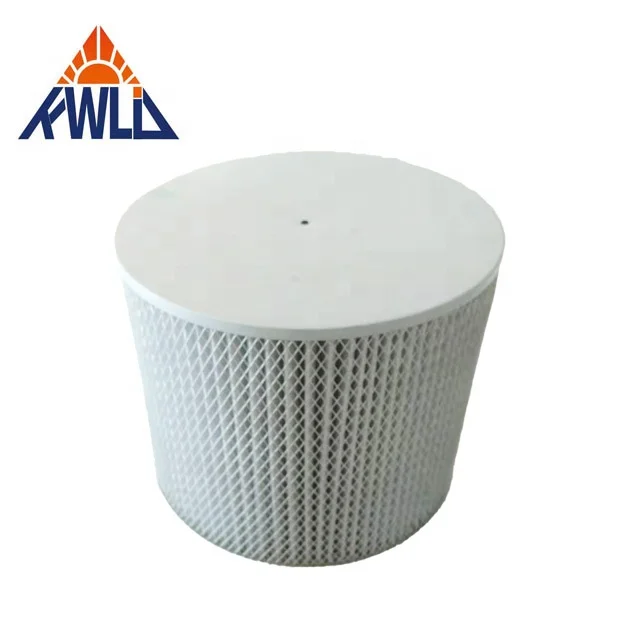

HEPA filter | Diameter(mm) | ∅300 | ∅300 | ∅400 | ∅400 |
High(mm) | 250 | 300 | 330 | 380 | |
Filtration accuracy (um) | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 | |
Electromagnetic starter | Setting current range(A) | 3.2-5 | 4.5-7.2 | 6.8-11 | 6.8-11 |
Mounting bracket | Specifications (mm) | 1800*310*280 | 1800*340*290 | 1800*385*370 | 1800*440*440 |
Application
Packing and delivery
Quantity (sets) | 1-20 | 21-100 | >100 |
Lead time (days) | 10 | 15 | To be negotiated |
Company Frofile
● Kwlid (Jiangsu) Intelligent Equipment Manufacturing Co. Ltd. is a Sino-German cooperative enterprise and specializing in the production of high-quality drag chain series , protective cover series , cantilever box series , oil mist dust purification
equipment series , chip conveyor series and other products .
equipment series , chip conveyor series and other products .
● The company is located in Shenzhou Intelligent Manufacturing Industrial Park , Changshu City , Jiangsu Province .
● The company integrates research and development , production and sales . It is a large-scale supplier of mechanized equipment accessories in the domestic industry .
● The company has advanced production technology and equipment and an excellent design and R&D team .
● Kwlid company provides users with satisfactory services with first-class quality and good reputation . And we sincerely cooperate with colleagues at home and abroad to contribute to the development of CNC supporting products .
