High Quality FM 200 gas fire suppression system Guangzhou manufacturer
- Category: >>>
- Supplier: Guangzhou Xingjin Fire Equipment Co. Ltd.
Share on (1601224172336):
Product Overview
Description
FM-200 fire suppression system Guangzhou manufacturer
Product Description
Heptafluoropropane is a coloress, odourless, electrically non-conductive gas. It doesn't leave any particulates or oily residue behind, so it is very clear. This agent is completely safe for electrical equipment whereas other extinguish ants (water for example) may cause as much damage as an actual fire. It is the first environmentally acceptable replacement for Halon 1301,1211.
parameters
FM200 FIRE SUPPRESSION SYSTEM
NO. | Specifications | Parameters |
1 | Cylinder capacity | 40Ltr,70Ltr,90Ltr,100Ltr, |
2 | Device model | GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5 |
3 | Filling pressure | 2.5Mpa |
4 | Max filling rate | 0.95kg/L |
5 | Discharge time | ≤10s |
6 | Working temperature | 0℃~50℃ |
7 | Max working pressure | 4.2Mpa |
8 | Discharge pressure | 5.6±0.28Mpa |
9 | Proportion of protected zone | ≤500m² |
10 | Volume of protected zone | ≤1600m³ |
11 | Actuation | Automatic or manual start |
Components
FM200 FIRE SUPPRESSION SYSTEM

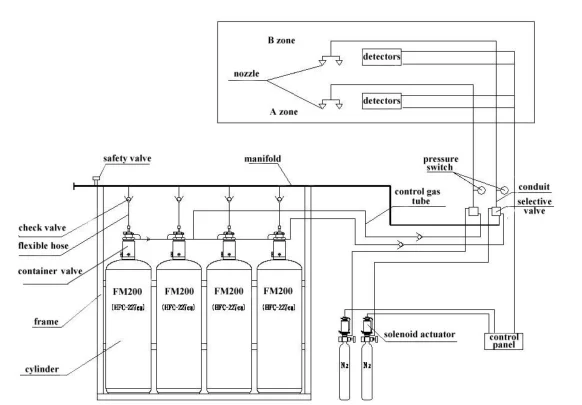

The pipe network type fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.

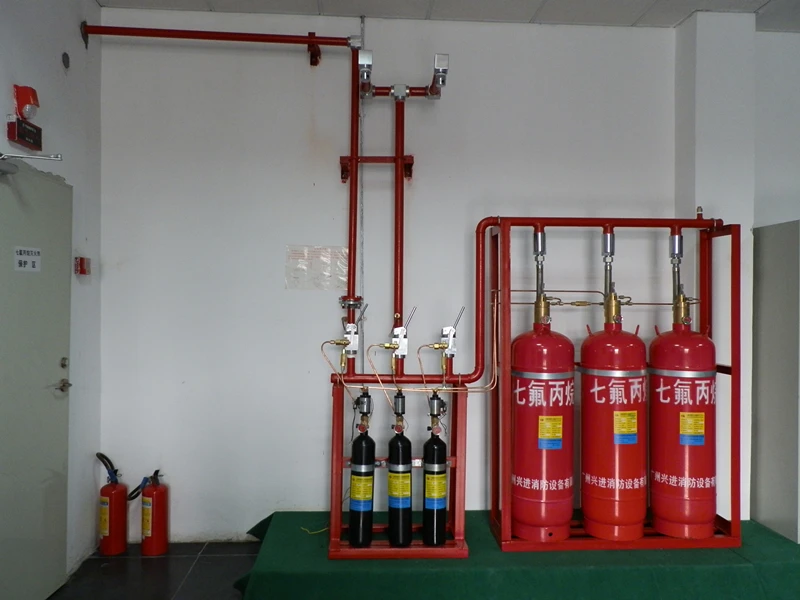

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

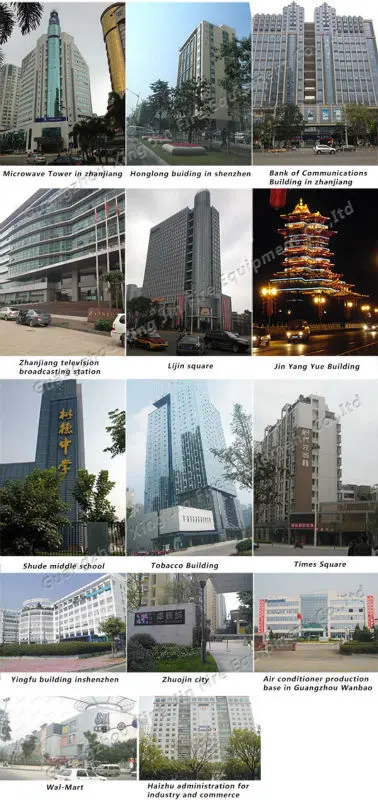

We have Finished many projected in China, enlcosed are some of picture of the building which use our system
Packaging & Shipping
Our Services
We are professional manufacturer,welcome to visit our website: //hz.productposting.alibaba.com
Welcome to contact us in any time. The mobilphone is 15815802051
Hotline: 020-39944101 15815802051
Our Mission: Customer first, quality first,service first!
Company Information
Guangzhou Xingjin Fire Equipment Co,.Ltd. is specialized in firefighting equipment. Our Headquarter is located in Panyu District, Guangzhou, which is the south door of China mainland. Our company has complete and scientific qualilty management system.The sincerity,powerful strength and good quality are recognized by fire industry. All Xingjin staffs welcome everyone from all directions and all industries to come here for visit, guidence and business cooperation.
Our company specializes in all kinds of Heptafluoropropane firefighting systems,aerosol firefighting systems,and we possess an experienced research and development team who have more than 20 years work experiences in national firefighting career.
Company Introduction:
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
FAQ
1.Q:Are you a manufacturer or a trading company?
A: We are a manufacturer.
2.Q:Where is your factory located?how can i visit there?
A:Our factory is located in Guangzhou,Guangdong provience,china,all our clients,we are welcome to visit us.
3.Q:Is it OEM order available?
A:Yes
