Beok wireless RF Tuya WiFi room thermostat for gas boiler heating control with battery power supply
- Category: >>>
- Supplier: Shanghai Beok Industry Co. Ltd.
Share on (1601224178641):
Product Overview
Description
Product Introduction

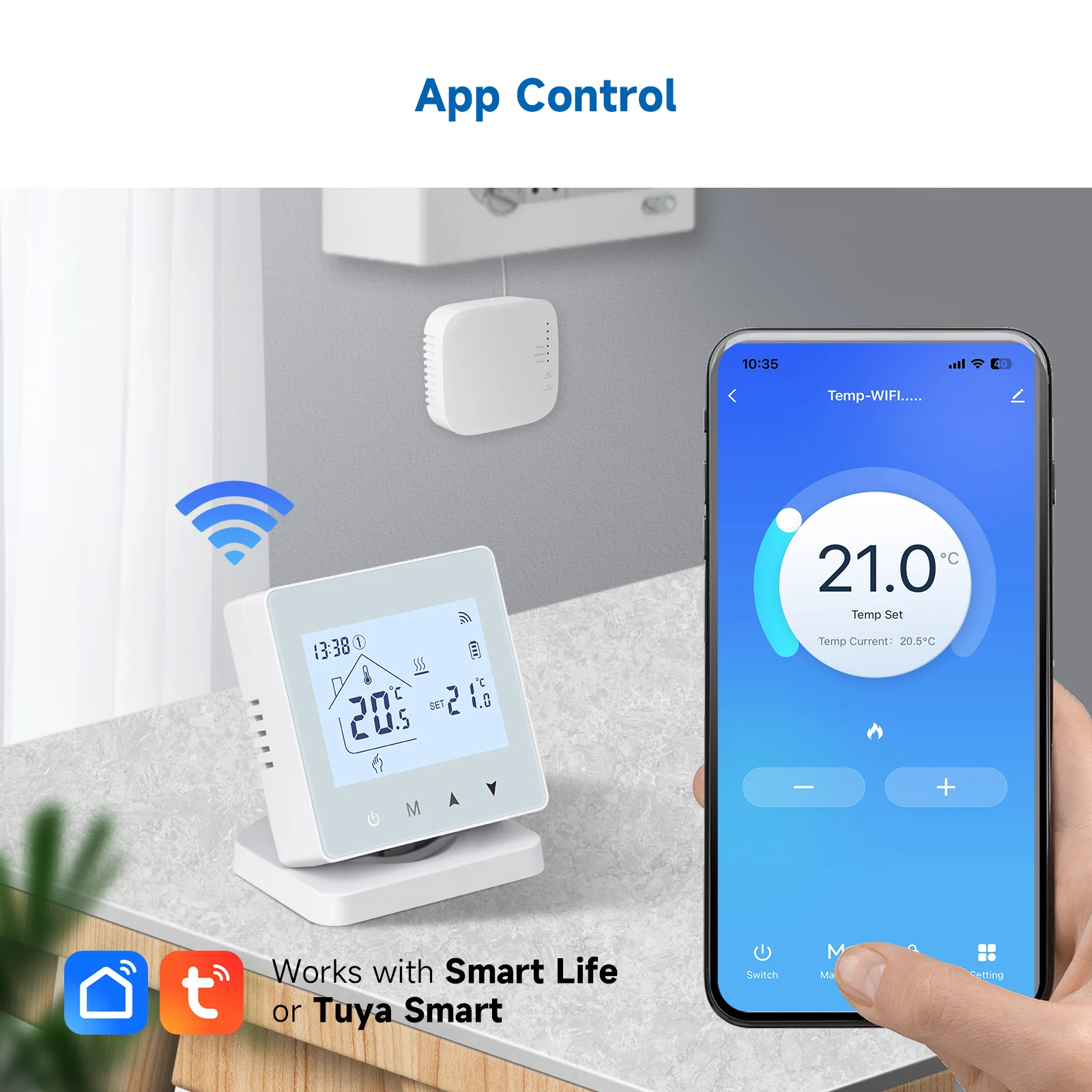

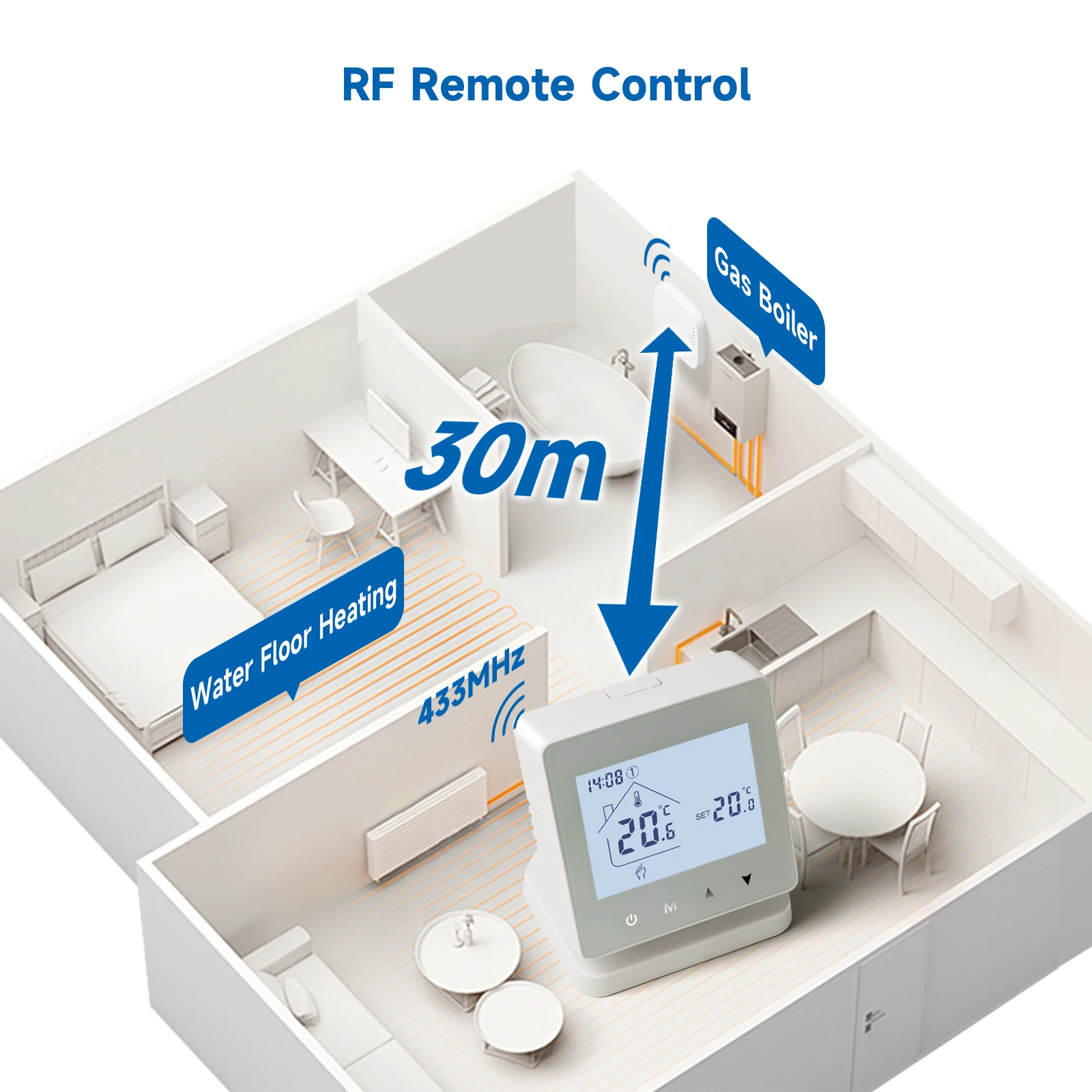

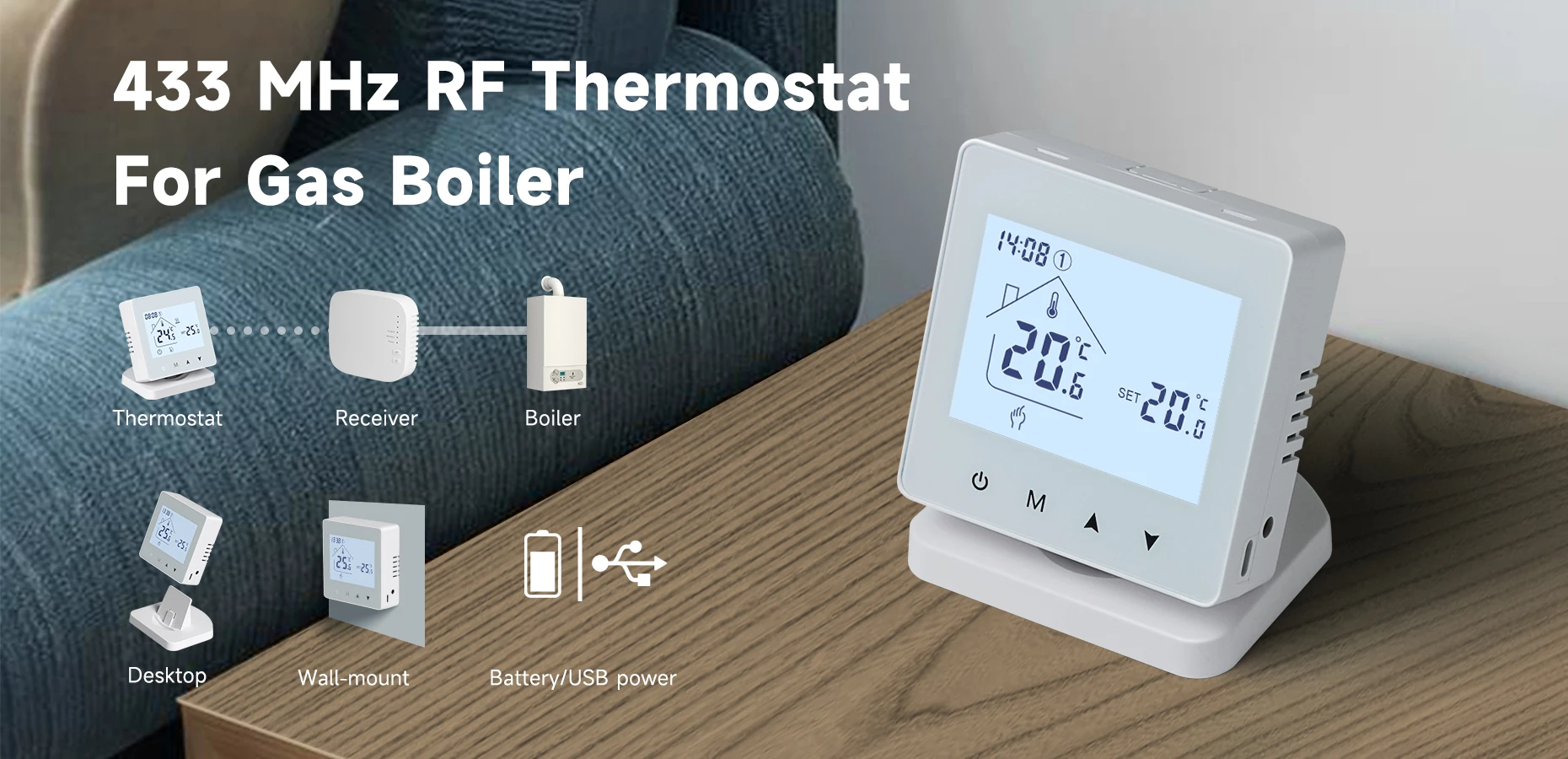

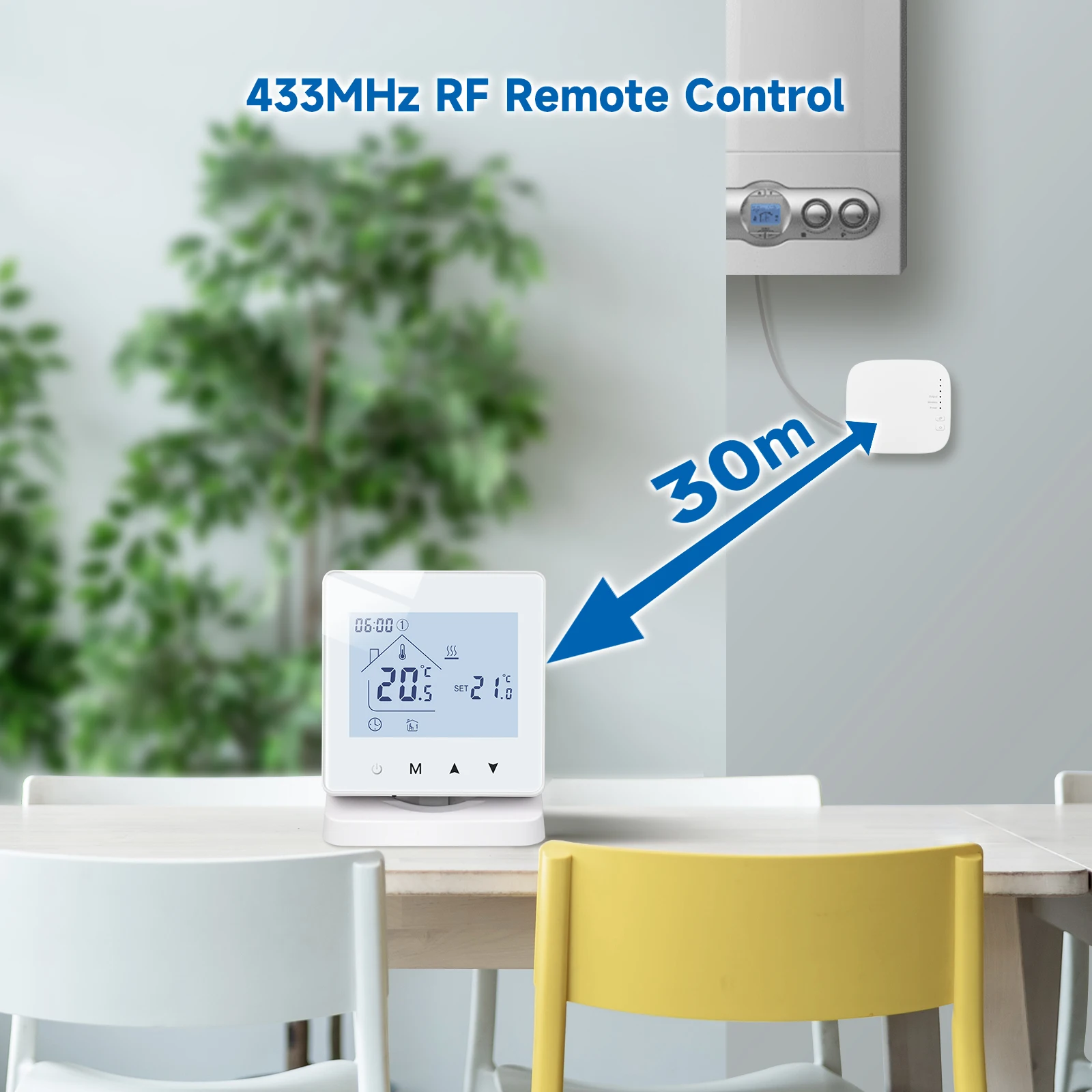

BOT-R6X-WIFI is wireless WiFi remote control gas boiler heating thermostat, the frequency is 433Mhz. It supports 30m long distance remote control. The products has 2 parts: thermostat and receiver. The power supply ways are battery power supply and usb line power supply. It can be controlled by Tuya and Smart Life application, works with Google Home, Amazon Alex and Yandex Alice voice assistant.

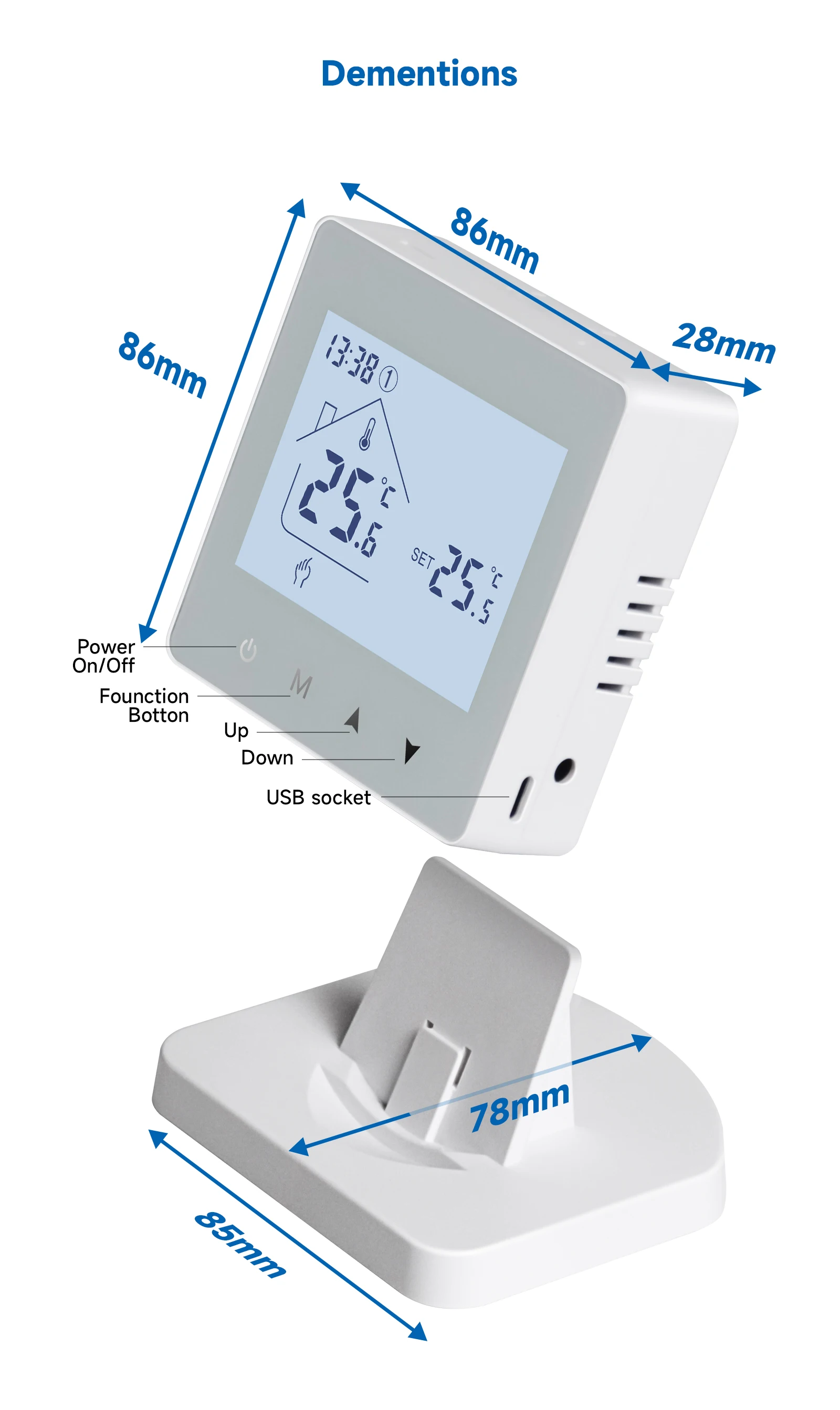

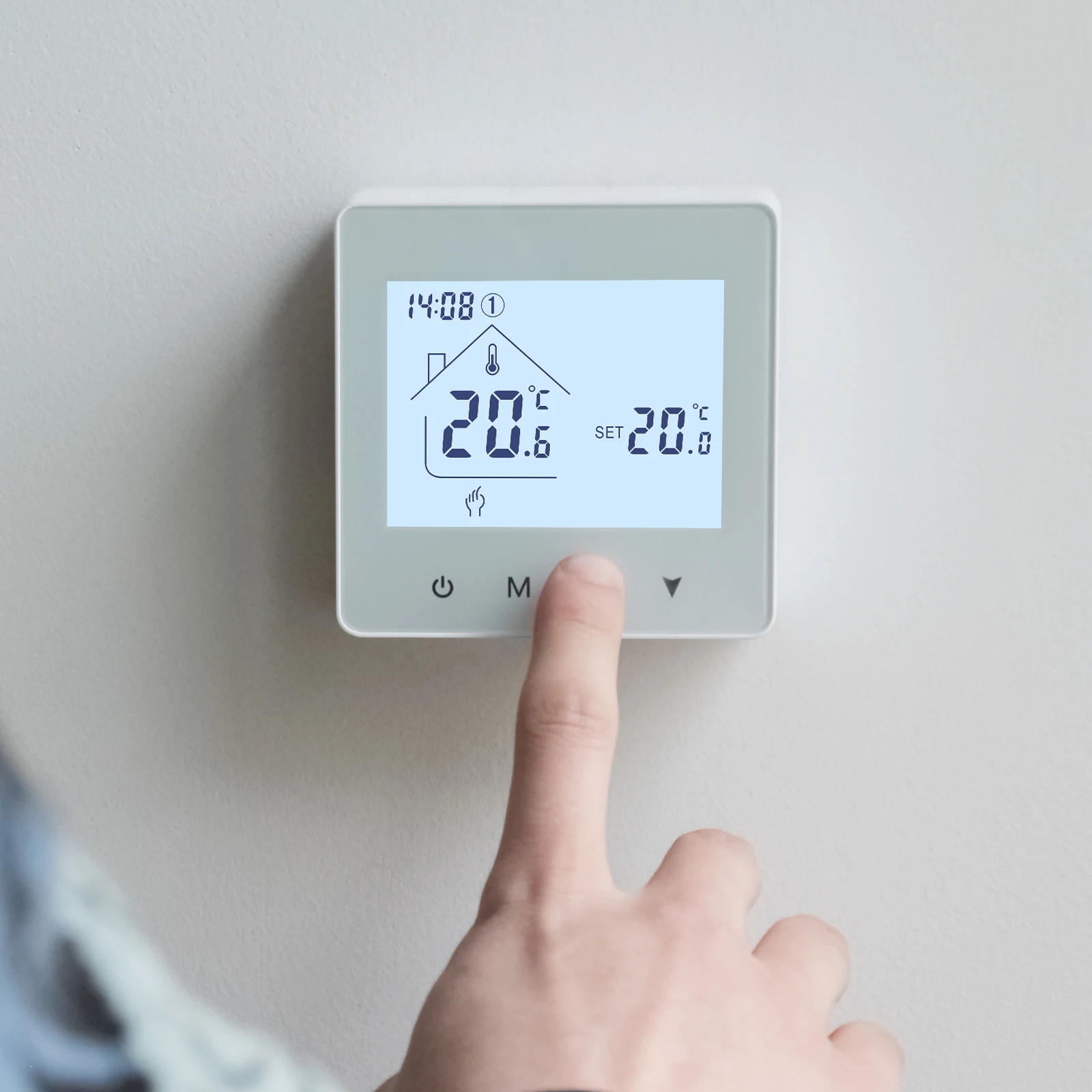

Thermostat Display
Features | Specifications |
Power Supply | 3 AA batteries and usb line |
Max Current Load | 3Amp for Gas Boiler Heating |
Back Light Adjustable | Yes |
Application | Underfloor Heating System |
Temperature Range | 5~99℃ |
Temperature Accuracy | +/-0.5℃ |
Material | Anti-flammable PC |

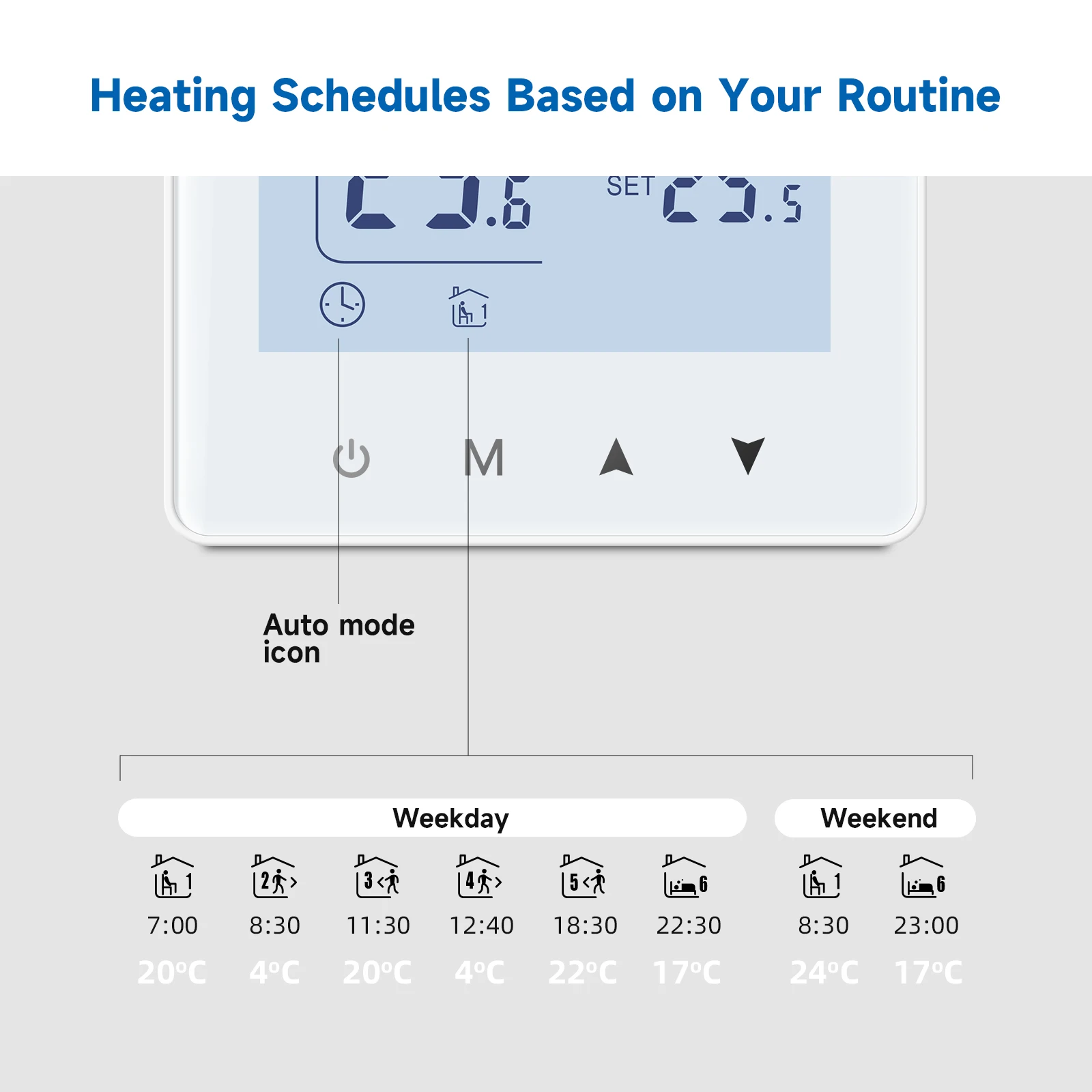

Programmable function | 5+2/6+1/7 Weekly Program optional |
Gross Weight | 350g |

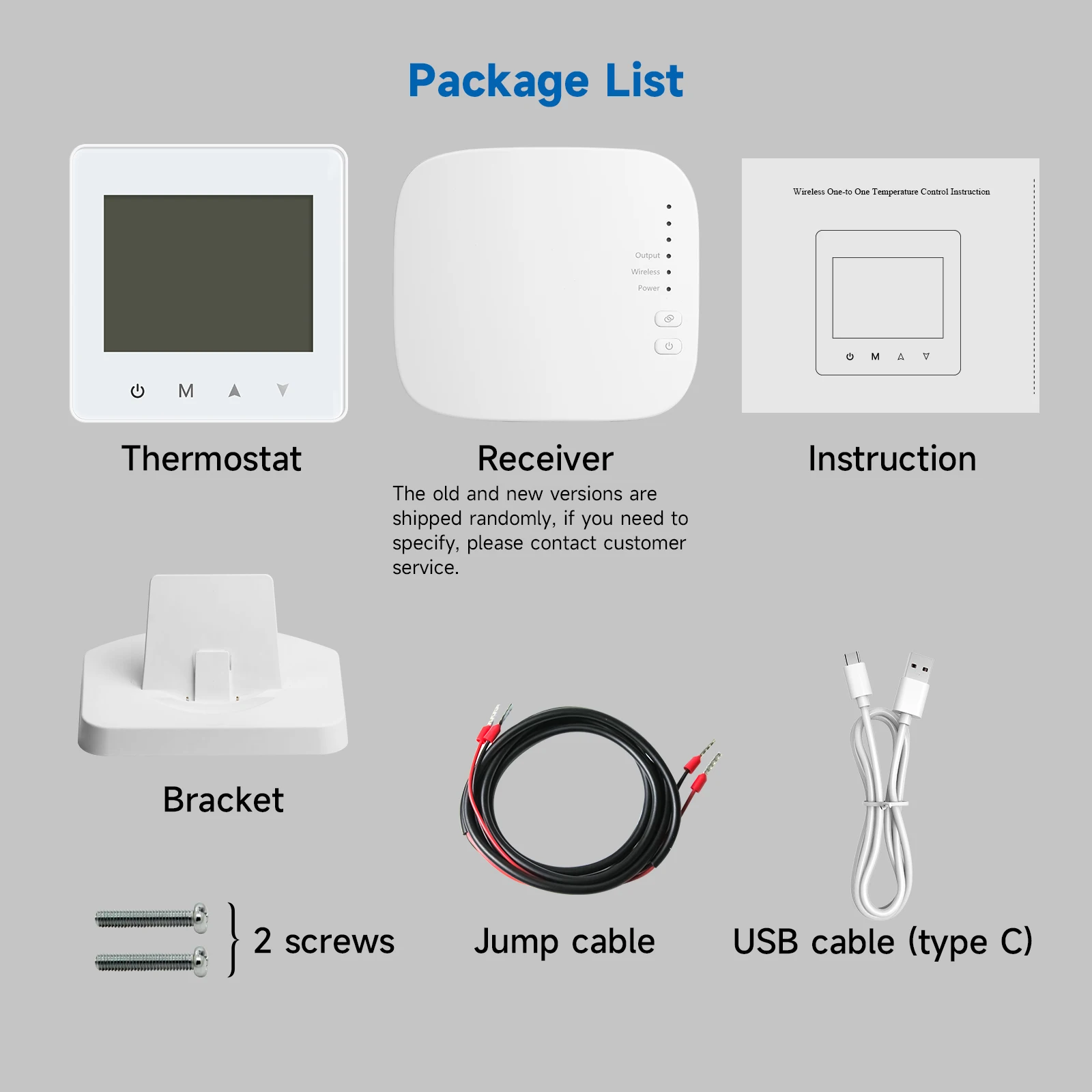

Package Include | Thermostat; Screws; 3m Floor Sensor; Manual |
Warranty | 24 months |
BOT-R6X-WIFI has many useful functions that same to other thermostat model, like weekly programmable function; child lock function; power-off memory function; frost protection function; the temperature accuracy is 0.5℃；large touch screen and so on. Except for these functions, the thermostat also special because it is wireless function, and the power supply has two methods can be choice: 3 AA batteries and Usb line.

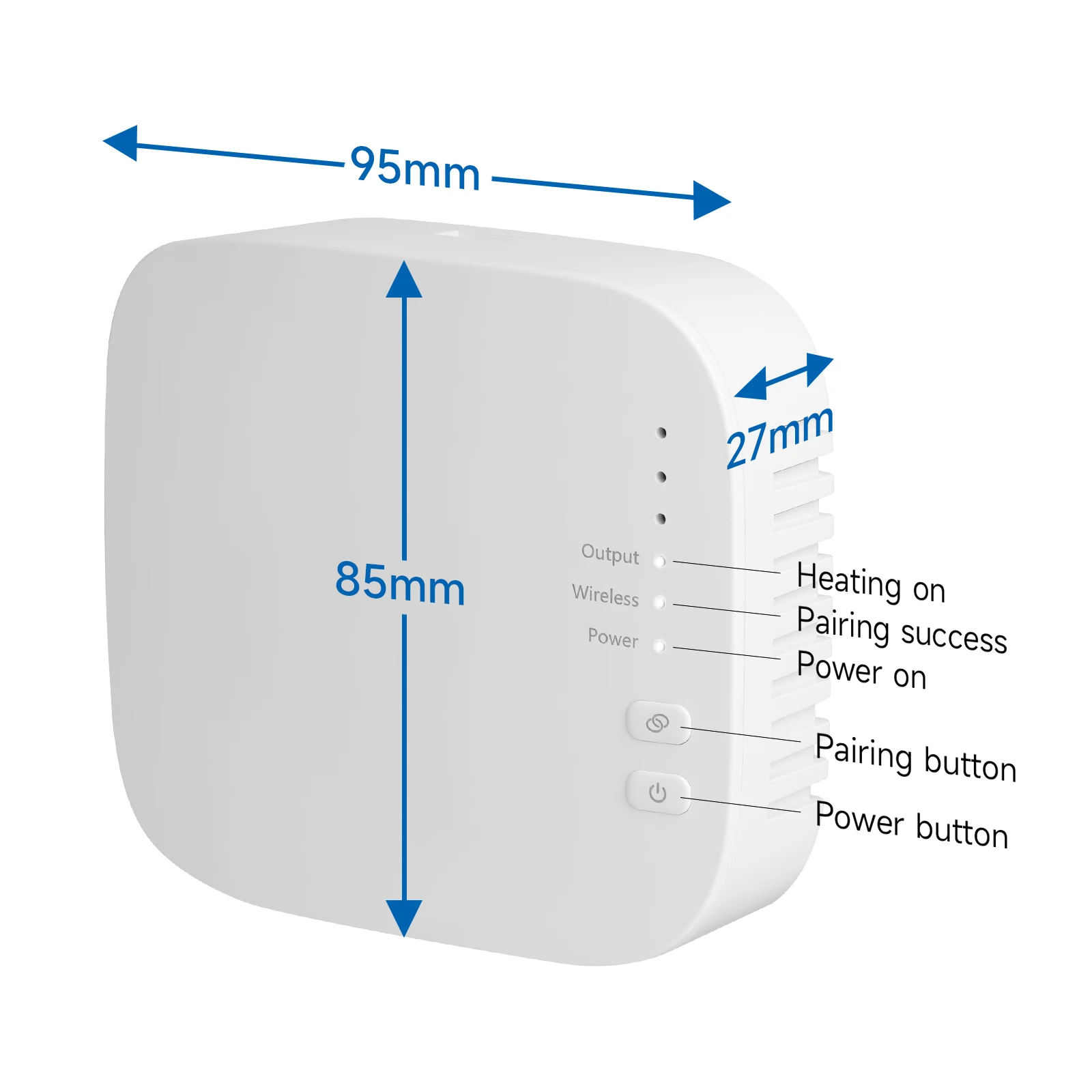

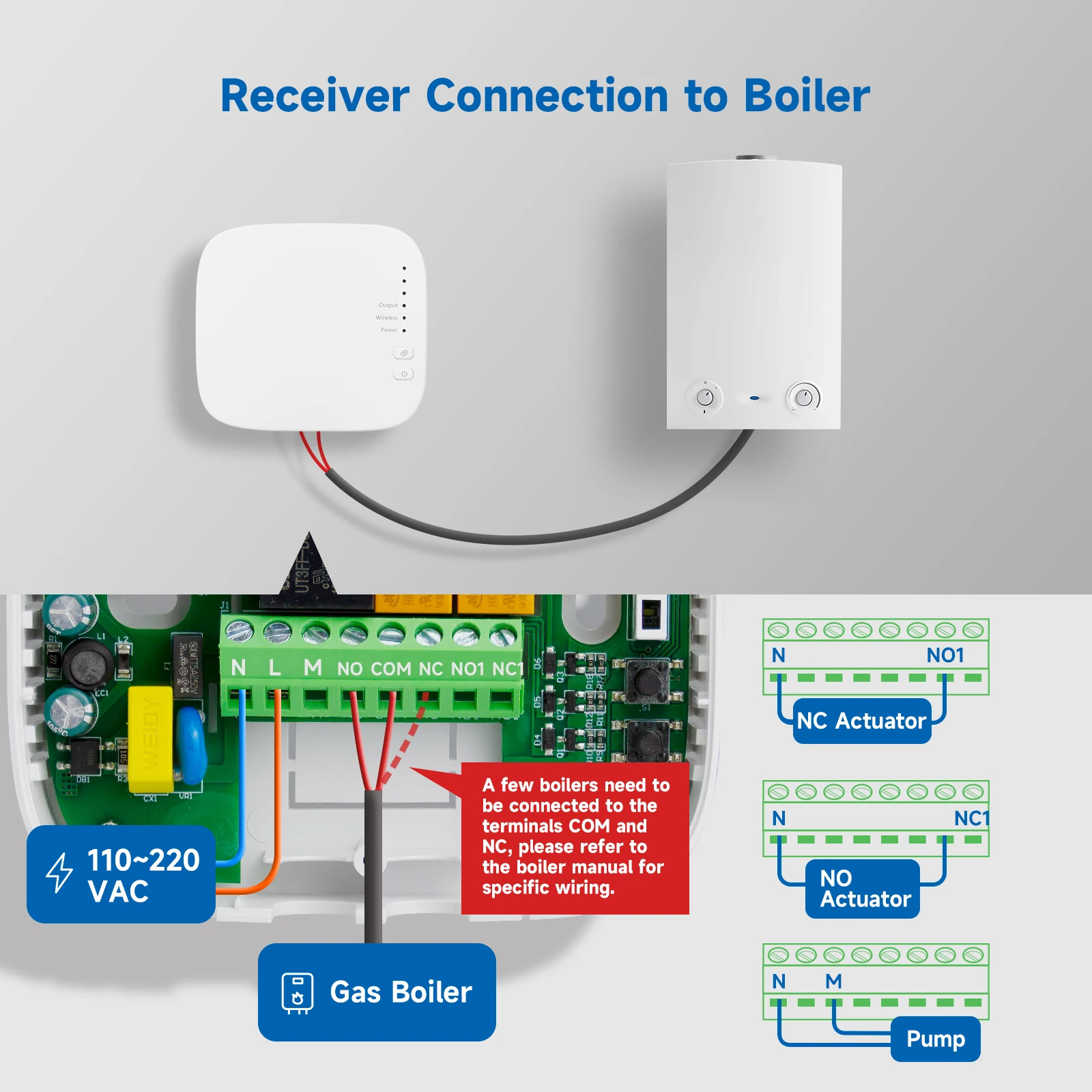

Wire Connection of Receiver
BOT-R6X wire diagram is mainly for Receiver. The receiver is powered by 100-220vac electricity. It can connect with Normally Closed and Normally Opened thermal actuator like a water floor heating thermostat.

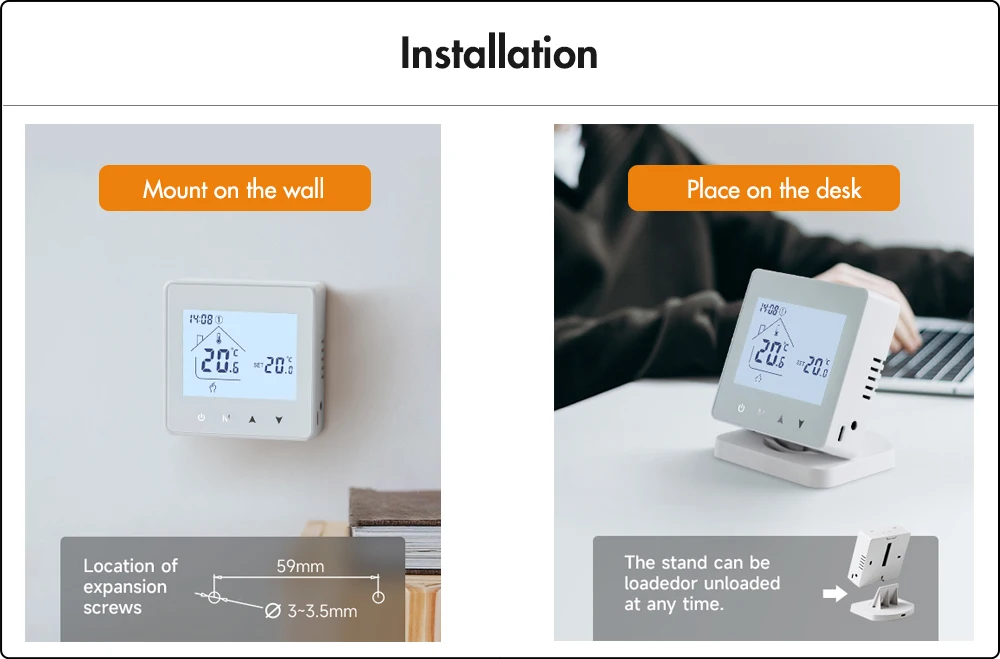

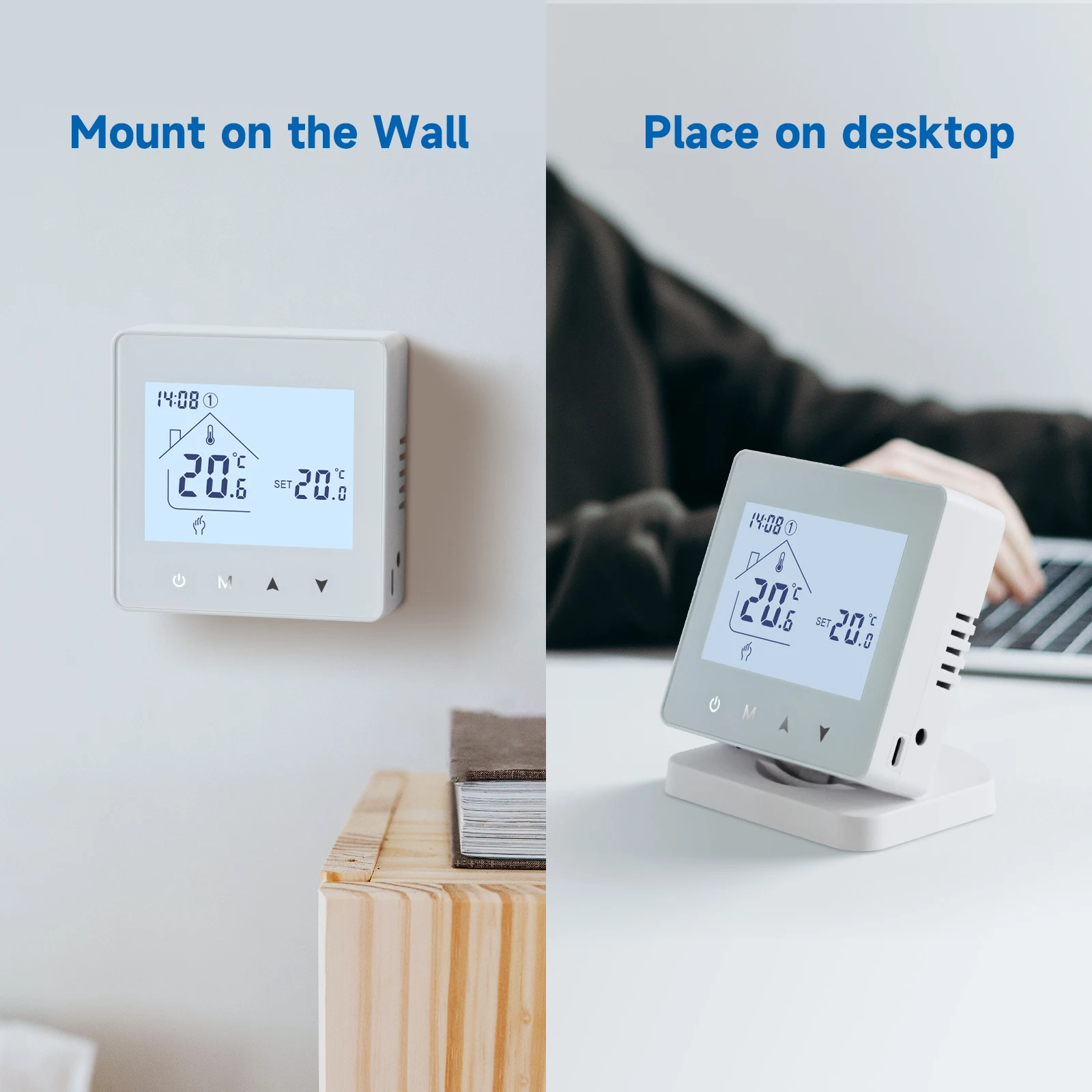

This BOT-R6X thermostat can install in two way, you can mount it on the wall and also you can put it on the desk.
OEM & ODM Service
We are professional manufacture for HVAC products especially for room thermostats. We can offer OEM services like logo print, manual instruction print, App customization, package customization and so on. We also provide ODM services. If you have OEM and ODM requirements, please kindly contact with us directly.
