Korea Doosan original DX225LC DX225 excavators/ 25 ton 25T 25 tons DH225LC secondhand crawler hydraulic excavator for sale
- Category: >>>
- Supplier: BAI YING TRADING SDN. BHD.
Share on (1601224200835):
Product Overview
Description
Products Description

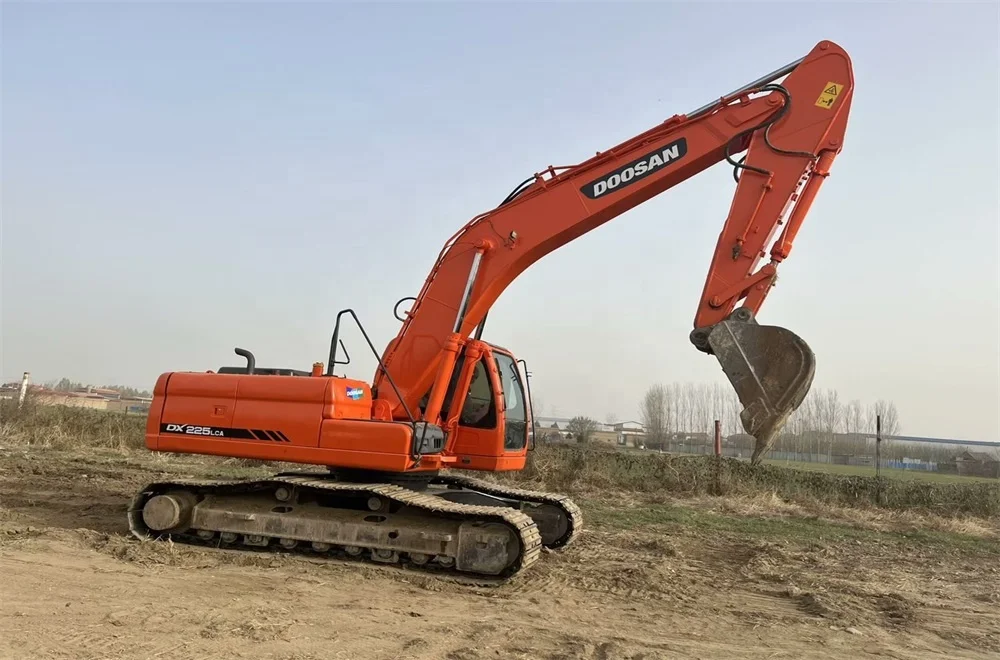

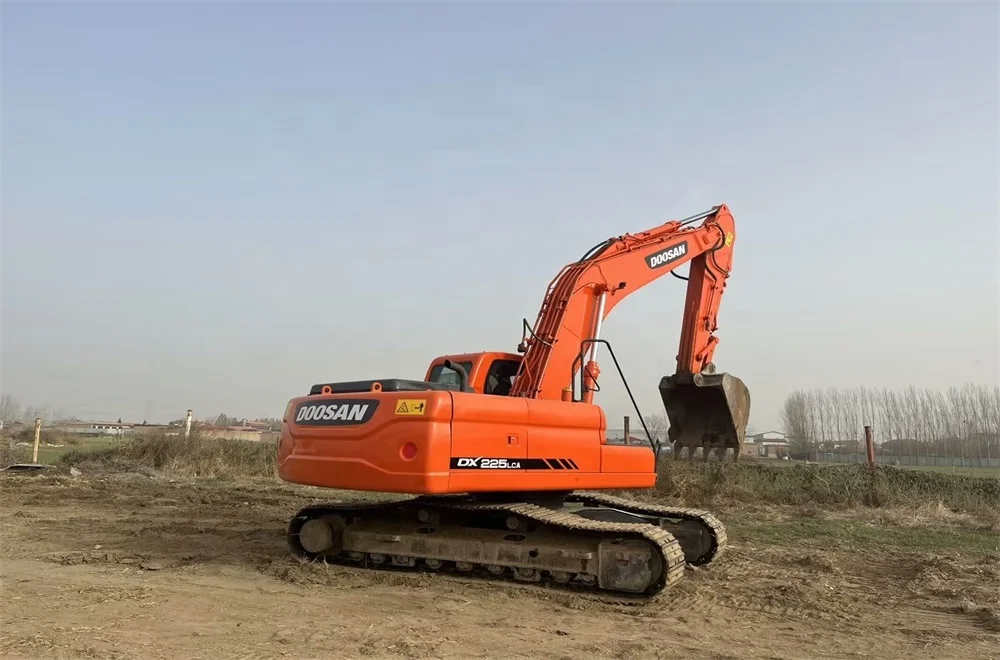

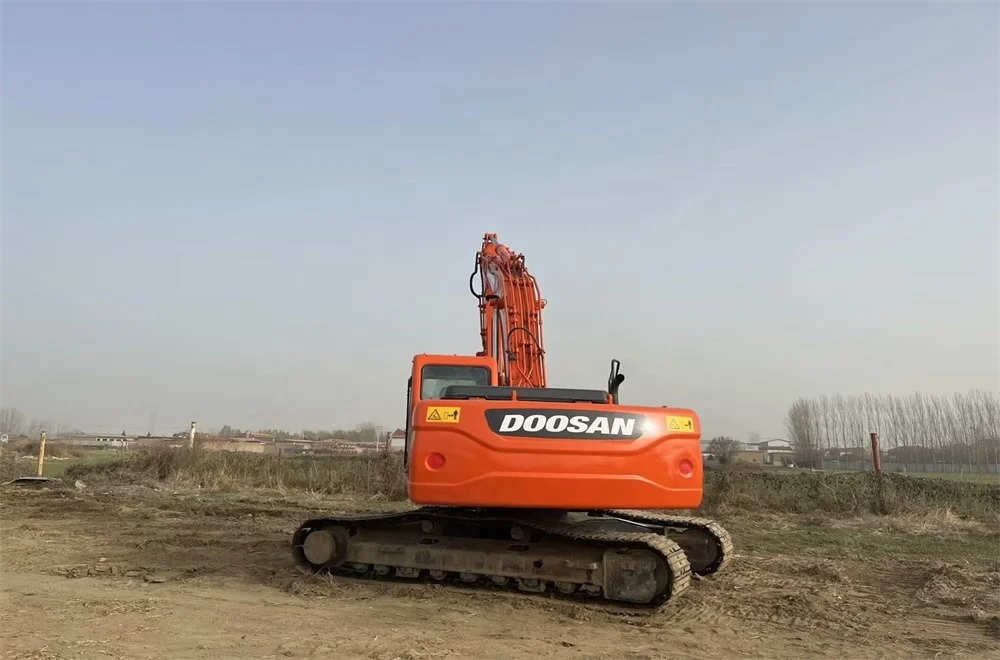

Doosan original Korean DX225LC 30 ton crawler excavator
Shipping Height Of Unit:3050mm
Max Cutting Height:9065mm
Max Loading Height:6300mm
Max Reach Along Ground:8760mm
Max Digging Depth:5755mm
Max Vertical Wall Dig Depth:4880mm
Boom/Stick Option (Hex) 5
Boom 17'1" (5200mm)/Stick 7'11" (2400mm)
Dimensions
Ground Clearance:480mm
Height To Top Of Cab:2975mm
Width To Outside Of Tracks:2990mm
Length Of Track On Ground:3650mm
Tail Swing Radius:2750mm
Removal Counterweight Clearance:1055mm
Undercarriage
Shoe Size:600mm
Ground Pressure:44.13kPa
Max Travel Speed:5.48km/h
Number Of Track Rollers Per Side:9
Number Of Shoes Per Side:49
Number Of Carrier Rollers Per Side:2
Specifications
Engine
Number Of Cylinders:6
Engine Make:2252
Engine Model:DL06
Gross Power:115.6kw
Net Power:110.4kw
Power Measured @:1900rpm
Max Torque:667Nm
Displacement:5.9L
Aspiration
turbo charged with air to air intercooler
Torque Measured @:1400rpm
Operational
Operating Weight:21500kg
Fuel Capacity:400L
Cooling System Fluid Capacity:24L
Hydraulic System Fluid Capacity:330L
Operating Voltage:24V
Engine Oil Capacity:27L
Swing Drive Fluid Capacity:5L
Alternator Supplied Amperage:50amps
Hydraulic System Relief Valve Pressure:32400kPa
Hydraulic Pump Flow Capacity:413L/min
Swing Mechanism
Swing Speed:11rpm
Buckets
Reference Bucket Capacity:1m3
Minimum Bucket Capacity:0.6m3
Maximum Bucket Capacity:1.3m3
Number Of Carrier Rollers Per Side:2
Specifications
Engine
Number Of Cylinders:6
Engine Make:2252
Engine Model:DL06
Gross Power:115.6kw
Net Power:110.4kw
Power Measured @:1900rpm
Max Torque:667Nm
Displacement:5.9L
Aspiration
turbo charged with air to air intercooler
Torque Measured @:1400rpm
Operational
Operating Weight:21500kg
Fuel Capacity:400L
Cooling System Fluid Capacity:24L
Hydraulic System Fluid Capacity:330L
Operating Voltage:24V
Engine Oil Capacity:27L
Swing Drive Fluid Capacity:5L
Alternator Supplied Amperage:50amps
Hydraulic System Relief Valve Pressure:32400kPa
Hydraulic Pump Flow Capacity:413L/min
Swing Mechanism
Swing Speed:11rpm
Buckets
Reference Bucket Capacity:1m3
Minimum Bucket Capacity:0.6m3
Maximum Bucket Capacity:1.3m3
brand | Doosan | location | Shanghai China |
condition | used | made in | Korea |
loading time | 3 days after receiving the payment | term of the payment | 100% TT |
year | 2020 | working hours | 1500h |
Machinery Brand | Type | Operating weight | Dimensions | Conditions |
Doosan | Used dx225LC excavator | condition | Same as new | Workable in good conditions |
Engine pump good | After-sale services provided | Skilled technicians on own yard | Careful maintenance | Optimized equipment matching |
Fast Delivery | Skilled Technics | Good services | Onsite check | Good quality |
specification
packing and delivery
We are a very professional supplier of used machines based in Shanghai, China. We have several warehouses in Shanghai. We have above 20 years experience in exporting used machines to all around the world.So thanks for choosing us,our team will not let you down.
For shipping you can book by yourselves,or we book for you the best and the lowest price,with on time loading and on time arriving the machines in your final destination.
For shipping you can book by yourselves,or we book for you the best and the lowest price,with on time loading and on time arriving the machines in your final destination.
