CLW Aerial Work Platform Truck FAW 4x2 16m 18m 20m 22m 24m 26m 28m 30m with special price
CLW Aerial Work Platform Truck FAW 4x2 16m 18m 20m 22m 24m 26m 28m 30m with special price
CLW Aerial Work Platform Truck FAW 4x2 16m 18m 20m 22m 24m 26m 28m 30m with special price
CLW Aerial Work Platform Truck FAW 4x2 16m 18m 20m 22m 24m 26m 28m 30m with special price
CLW Aerial Work Platform Truck FAW 4x2 16m 18m 20m 22m 24m 26m 28m 30m with special price
CLW Aerial Work Platform Truck FAW 4x2 16m 18m 20m 22m 24m 26m 28m 30m with special price
CLW Aerial Work Platform Truck FAW 4x2 16m 18m 20m 22m 24m 26m 28m 30m with special price

CLW Aerial Work Platform Truck FAW 4x2 16m 18m 20m 22m 24m 26m 28m 30m with special price

Share on (1601224228825):


Price:$25,900.00 - $31,000.00

Quantity:


Product Overview

Description



Product Overview


CHINA 16m to 45m Telescopic Arm Aerial Work Platform Truck
Maximum load：200KG - 260KG
Number of personal in a platform : 2 person
Volume of the platform: 1±0.1 m² or customizied
Operating type：Electro hydraulic ,
Boom Rotation: 360 degree
Power take-off switch: pneumatic control
Telescopic boom type: Four working arms synchronous telescopic
Engine start and stop: The engine can be started or stopped on the vehicle rear control panel.
Multiway valve:Compact structure, low pressure loss

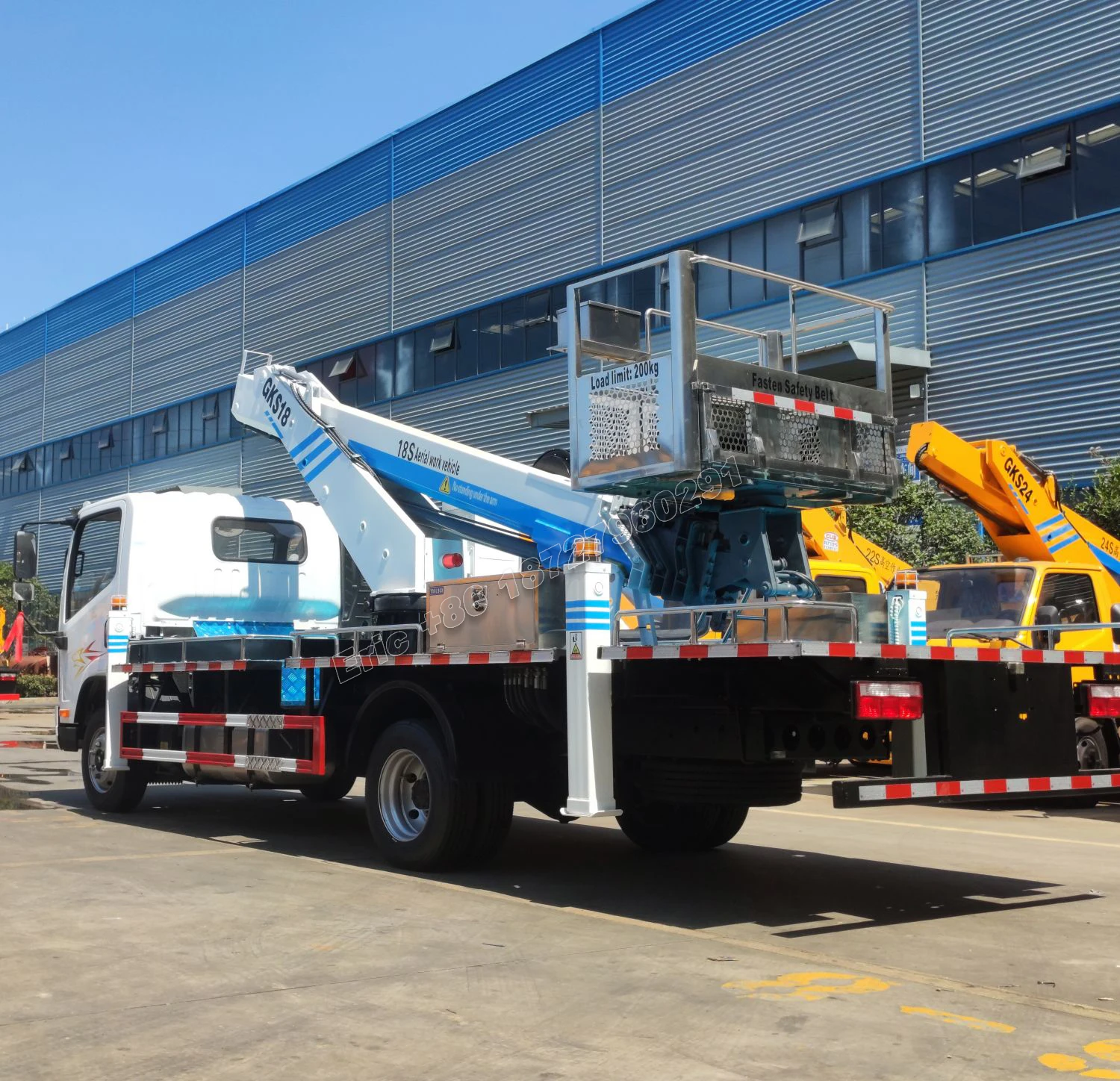

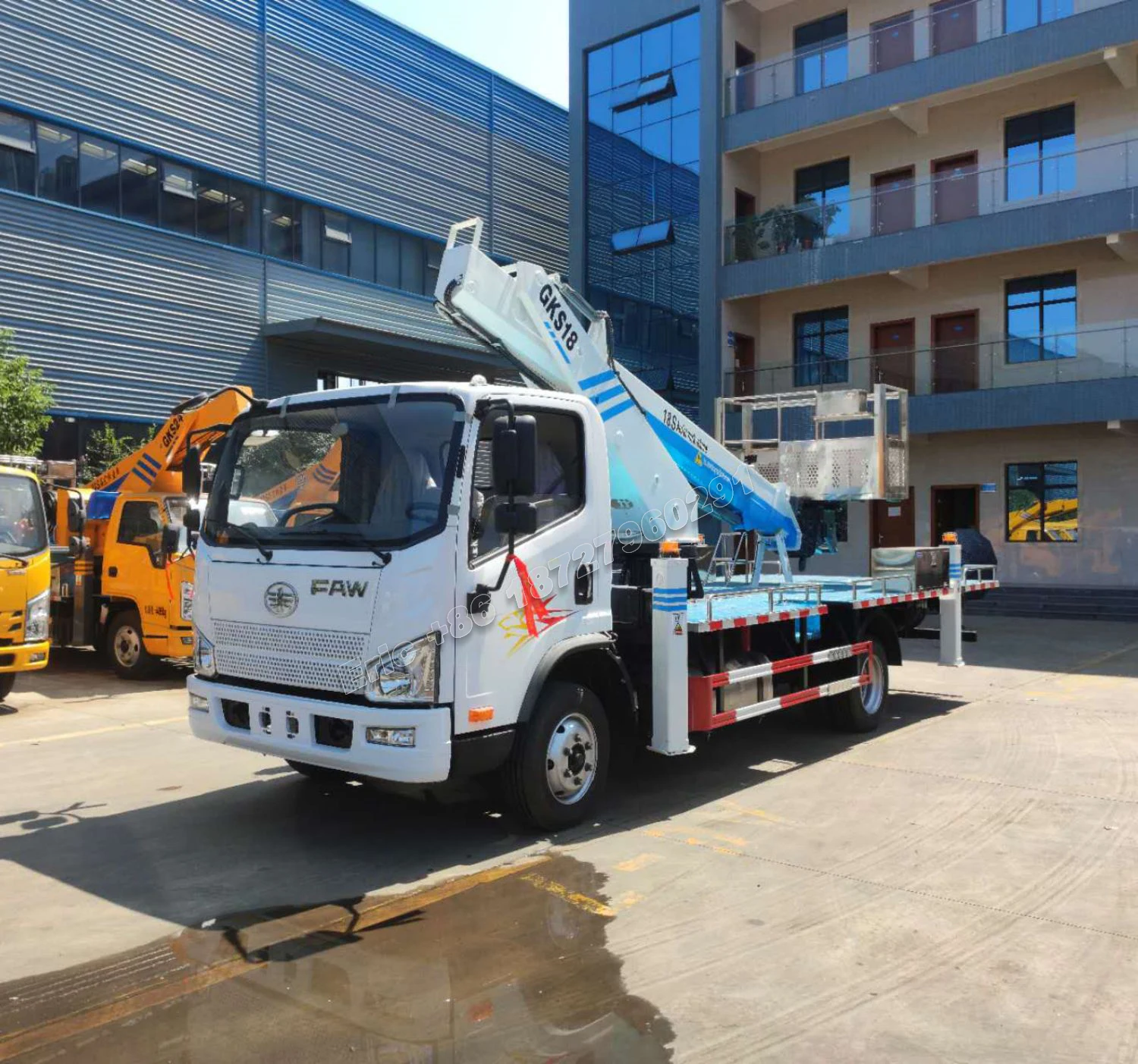

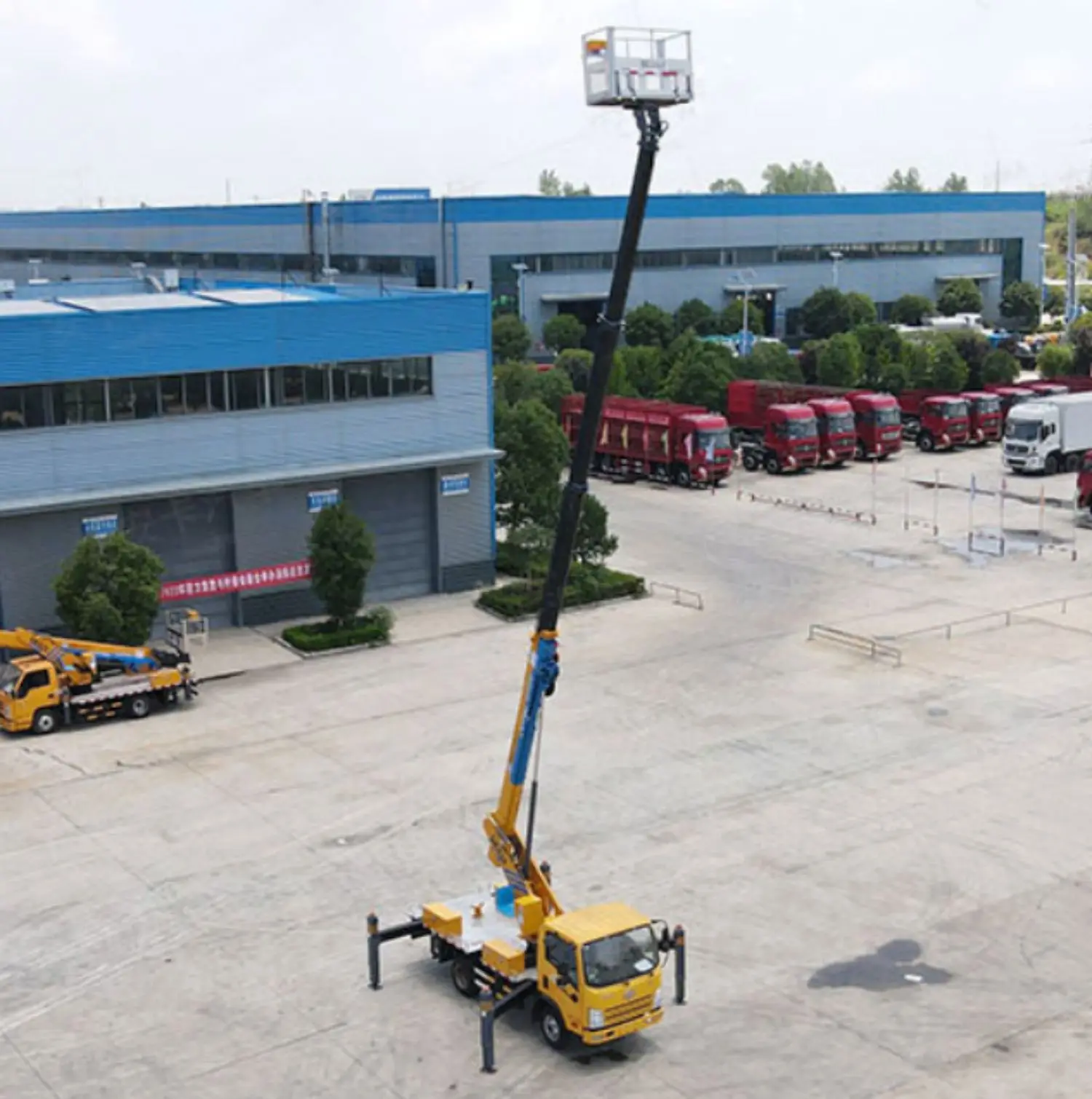

Aerial Work Truck Pictures








Product Advantages

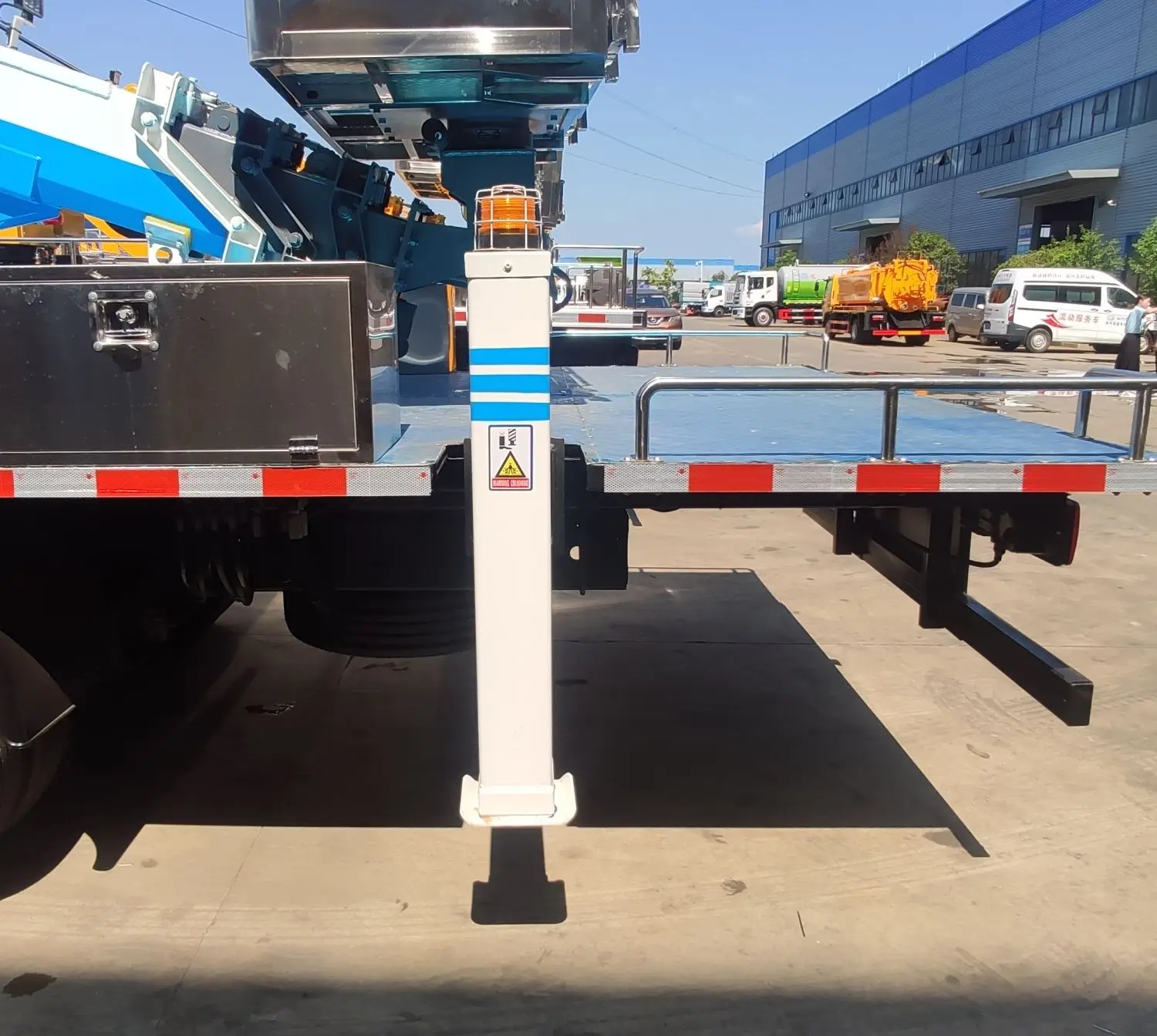

Front “V”, Rear “V” Outrigger,
Better stability
high sensitivity Load balance valve


Cylinder radiator
Hexagon working arm

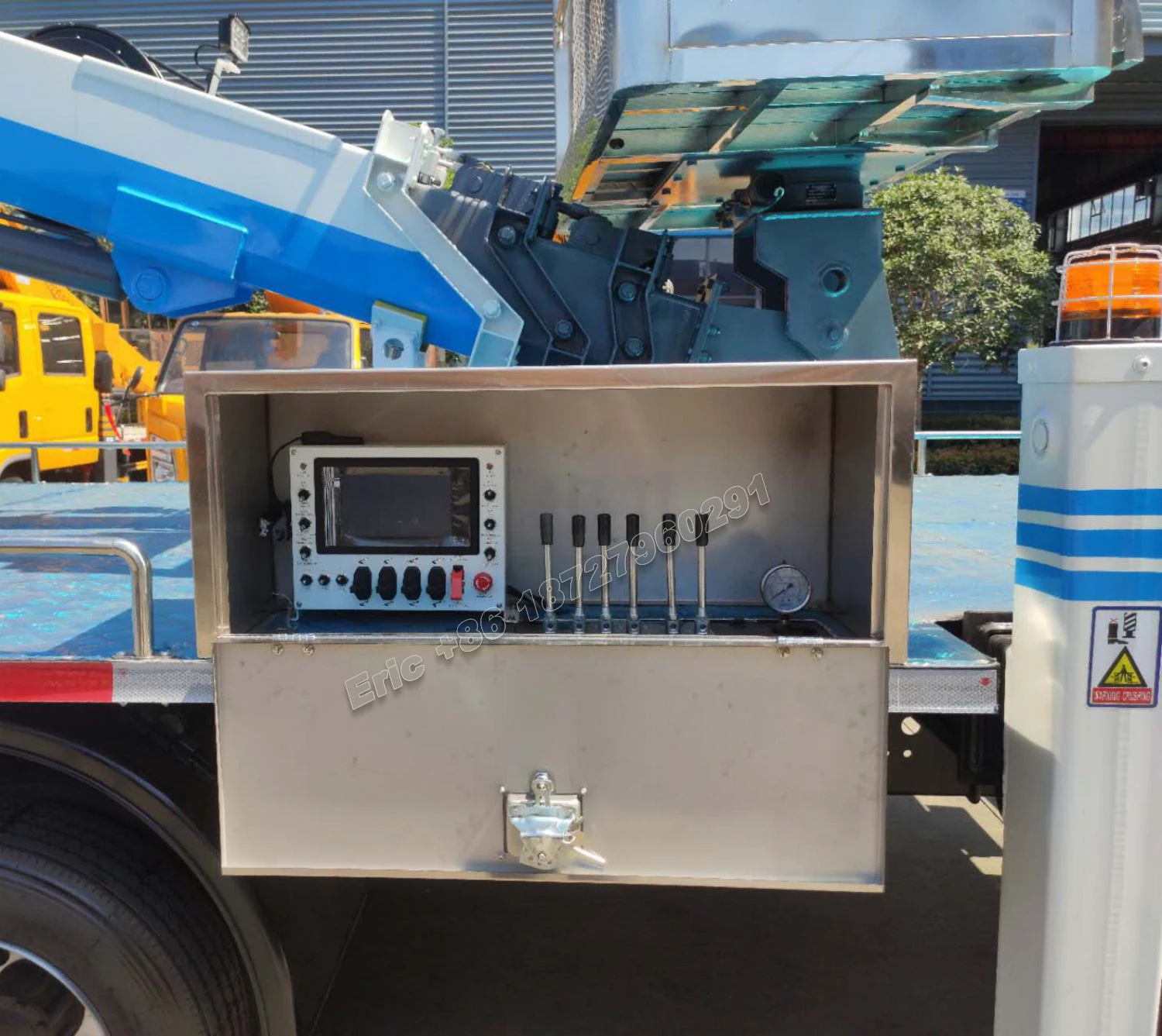

Large display screen

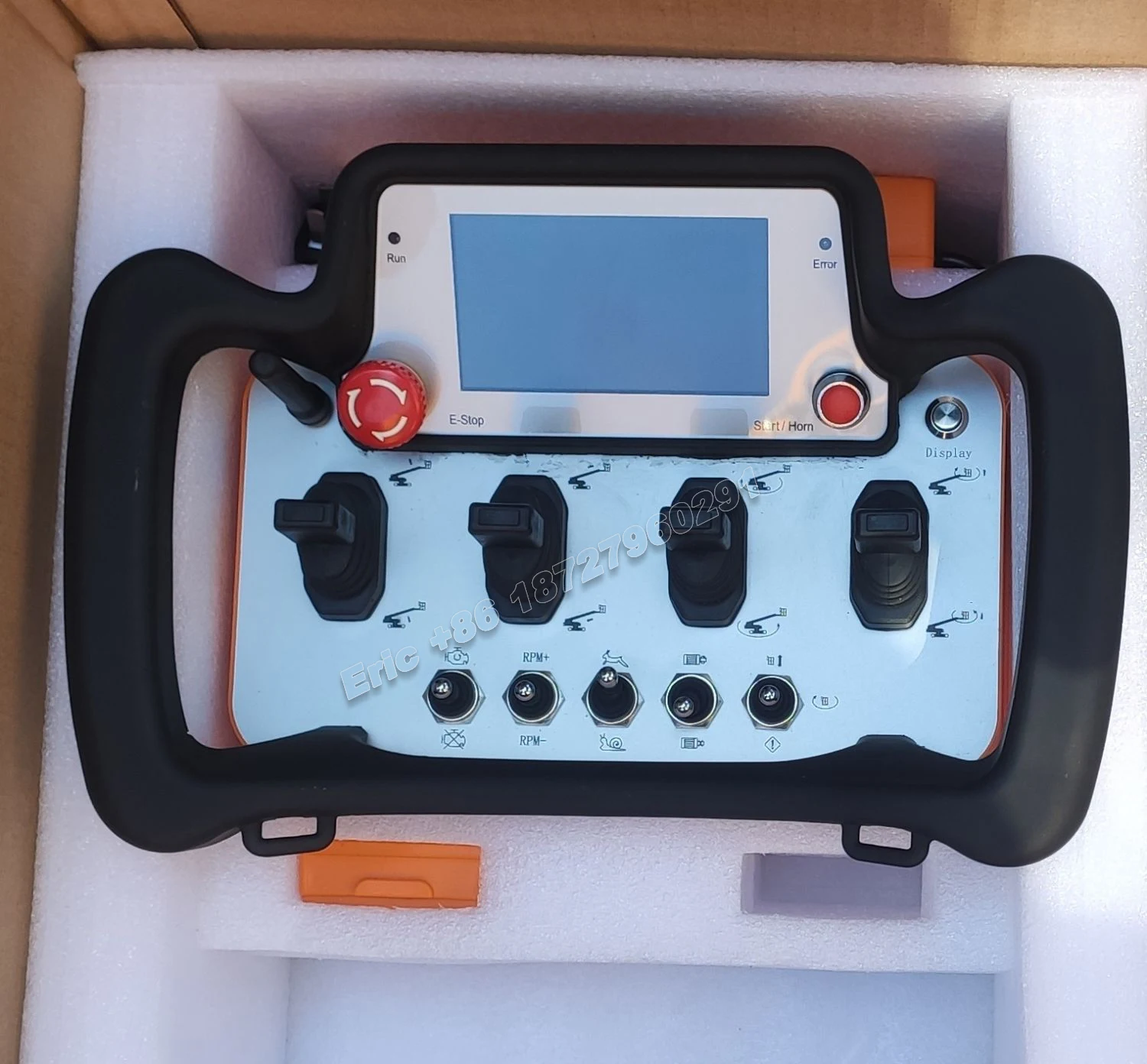

Remote Controller


PRODUCT SPECIFICATIONS


Technical Parameters of the Entire Vehicle
Total Mass (Kg)
8210
Maximum Operating Height(m)
26
Number of Passengers Allowed in the Cab(person)
3
Maximum Operating Radius Amplitude(m)
14
Leg Span (transverse/longitudinal)
4120/4650(mm)
Outrigger
Front V and rear H
Slewing Gear
Rotary gyration
Lifting Weight(kg)
1000
Overall Dimensions (mm)
7840×2240×3150
Platform Rated Load(kg)
200
Emergency Device
Emergency Pump
Maximum Speed (km/h)
115
Warning Device
Engineering Strobe Light
Operating Mode
Remote/Manual
Horizontal Detection
Level Detector
Jib Structure
Five section hexagonal
Chassis Technical Parameters
Brand Name
JMC
Fuel Type
Diesel Oil
Engine Power(KW)
Isuzu 112
Number of Axles
2
Number of Tires
6
Manufacturing Enterprise
Jiangling Motors Co., Ltd
Front Axle/Rear Axle(t)
3.5/6.5
Gearbox Model
6-Speed Manual
Wheelbase (mm)
3815
Tire Size
7.50R16LT
