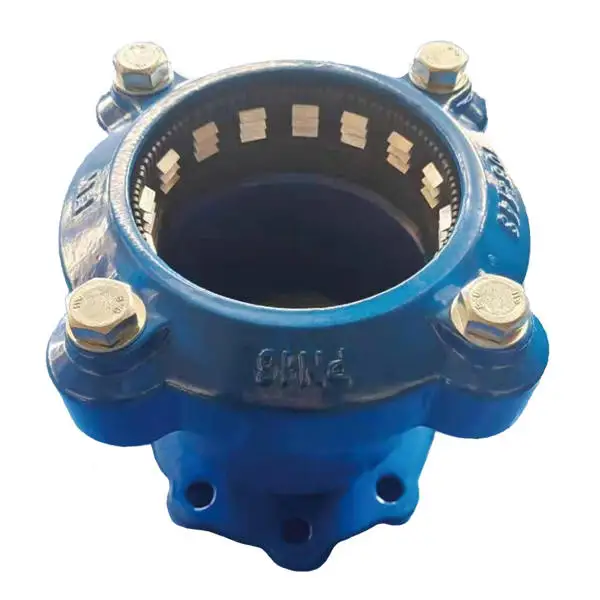

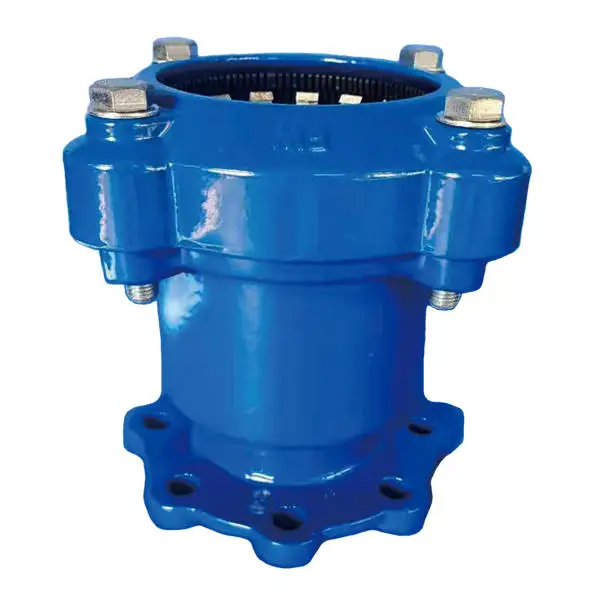

High quality self locking universal flange wide range PE flexible compensation joint
High quality self-locking universal flange wide range PE flexible compensation joint
High quality self-locking universal flange wide range PE flexible compensation joint
High quality self-locking universal flange wide range PE flexible compensation joint
High quality self-locking universal flange wide range PE flexible compensation joint
High quality self-locking universal flange wide range PE flexible compensation joint
High quality self-locking universal flange wide range PE flexible compensation joint

High quality self locking universal flange wide range PE flexible compensation joint

Share on (1601224260307):


Price:$1.20

Quantity:


Product Overview

Description





Product Name
Flange joint
Standards
Flange
/
Coating
EN30677
Test
EN 12266-1
Features
- Wide tolerance range;
- Corrosion resistant construction;
- Total angular deflection of ± 4°
Options
Flange drilling with BS or ANSI standard
GD8.8, Stainless steel
Seal
NBR etc
Various coating


PRODUCTS DESCRIPTION

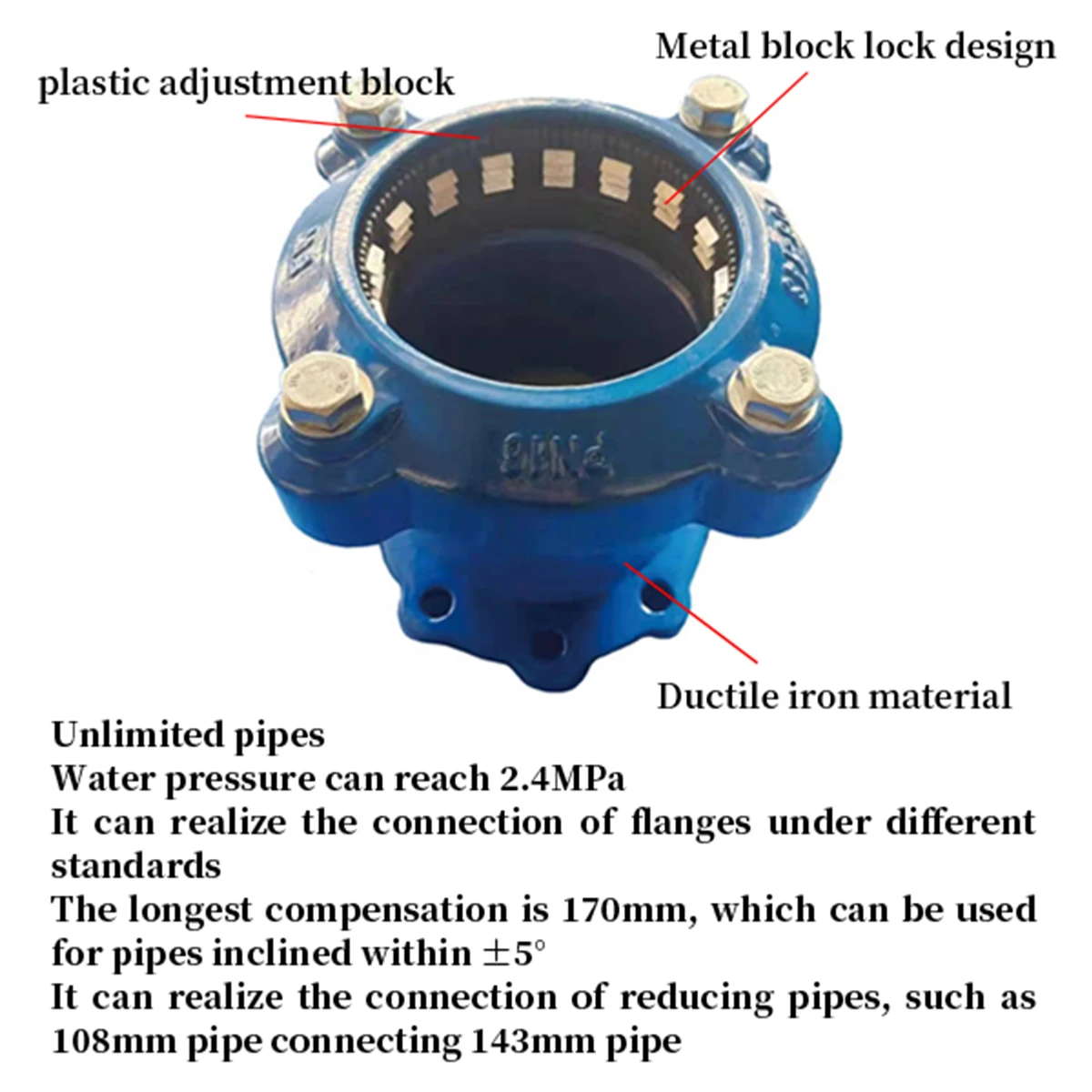

Product features:

-Pipeline connections made of ductile iron, steel, PVC, PE, stainless steel, AC and other materials;
-Mechanical locking is achieved through metal inserts to prevent axial movement of the pipeline.
-Work pressure PN10/16;
-Flange drilling can be used for EN1092-2 PN10/16, ASME B16.5 Class 150, and AS4087 B5;
-Maximum temperature -10 ℃ to+70 ℃;
-Suitable for drinking water, neutral liquids, and wastewater;
-WRAS approval.
