Product Overview
Description
Product Description
Main Features：
1. High precision slant bed line rail CNC lathe with Taiwan screw and linear guideway.
2. High precision cartridge type spindle ensure the rigidity and precision.
3. Taiwan high precision C3 grinding ball screw ensure positioning and more stable.

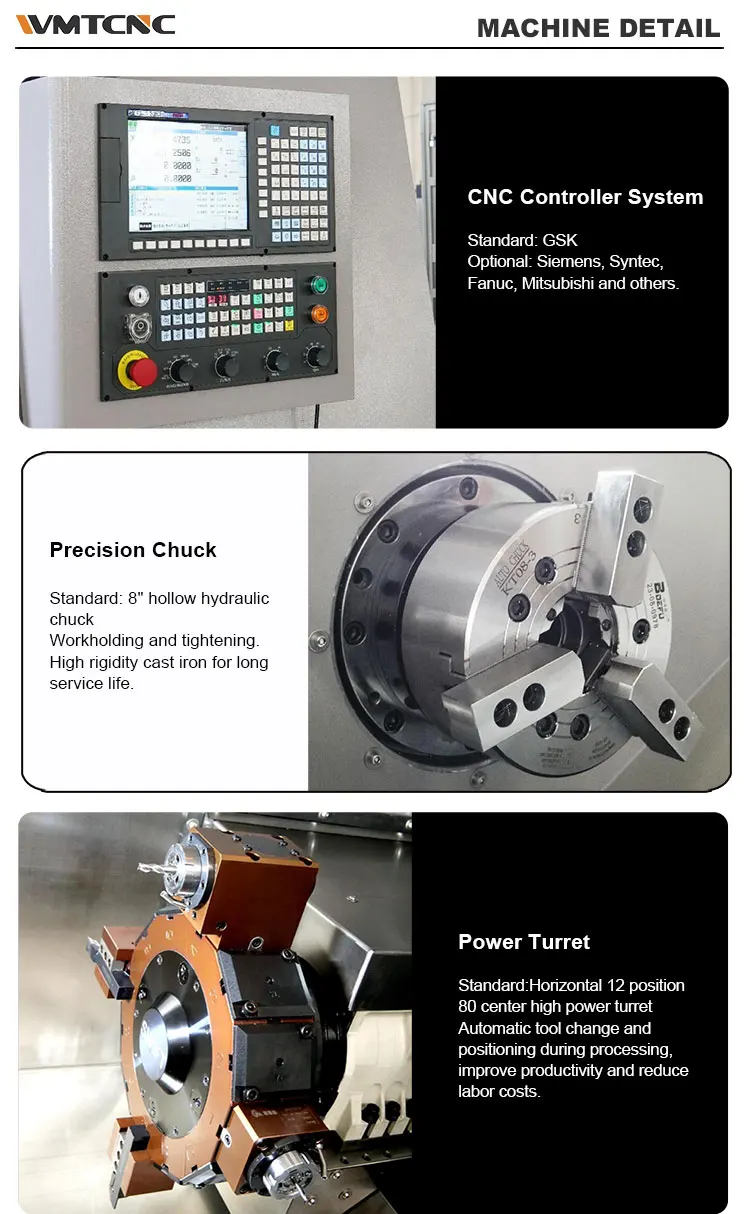

4. Siemens, Fanuc, Syntec, Fagor controller system options.
5. Monoblock cast iron of the whole machine ensure high rigidity.
3. Taiwan high precision C3 grinding ball screw ensure positioning and more stable.
4. Siemens, Fanuc, Syntec, Fagor controller system options.
5. Monoblock cast iron of the whole machine ensure high rigidity.
Specification | ||||
Capacity | ||||
Max. swing dia. over bed | φ560mm | φ560mm | ||
Max. processing length | 460mm | 960mm | ||
Max. turning dia. | Φ460mm (Disc parts) Φ340mm (Shaft parts) | Φ460mm (Disc parts) Φ340mm (Shaft parts) | ||
Max. swing dia. over slide | φ340mm | φ340mm | ||
Spindle | ||||
Spindle speed range | 50～3000rpm | 50～3000rpm | ||
Spindle bore | φ65mm, *φ85mm | φ65mm, *φ85mm | ||
Max. bar diameter | φ50mm, *φ70mm | φ50mm, *φ70mm | ||
Spindle nose | A2-6, *A2-8 | A2-6, *A2-8 | ||
Max. spindle output torque | 150N.m | 150N.m | ||
Spindle motor | 11kw | 11kw | ||

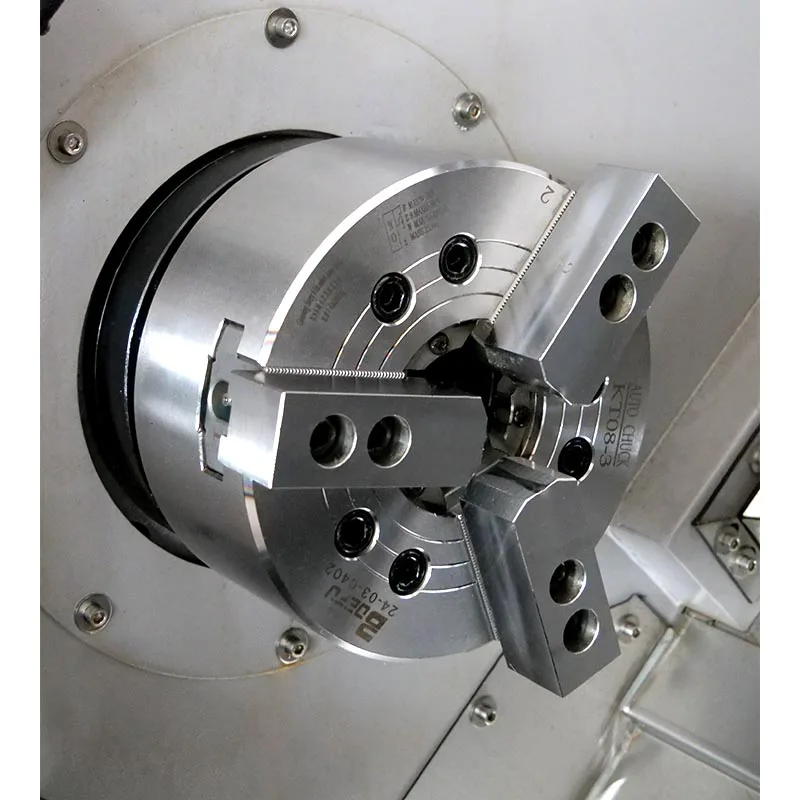

Hydraulic chuck size | 10" | 10" | ||
Axis | ||||
X axis travel | 220mm | 220mm | ||
Z axis travel | 560mm | 1060mm | ||
X axis rapid traverse | 30m/min | 30m/min | ||
Z axis rapid traverse | 30m/min | 30m/min | ||

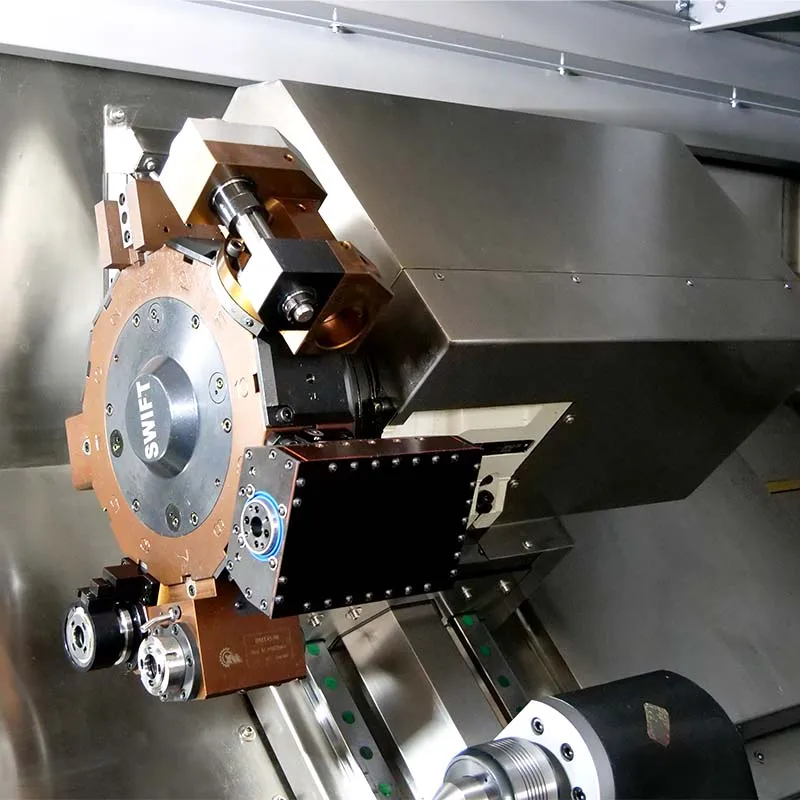

Turret | ||||
Turret type | Servo turret | Servo turret | ||
No. of tool station | 8 position, *12 position | 8 position, *12 position | ||
Tool shank size | 25×25mm | 25×25mm | ||
Boring tool shank size | φ40/φ32 | φ40/φ32 | ||

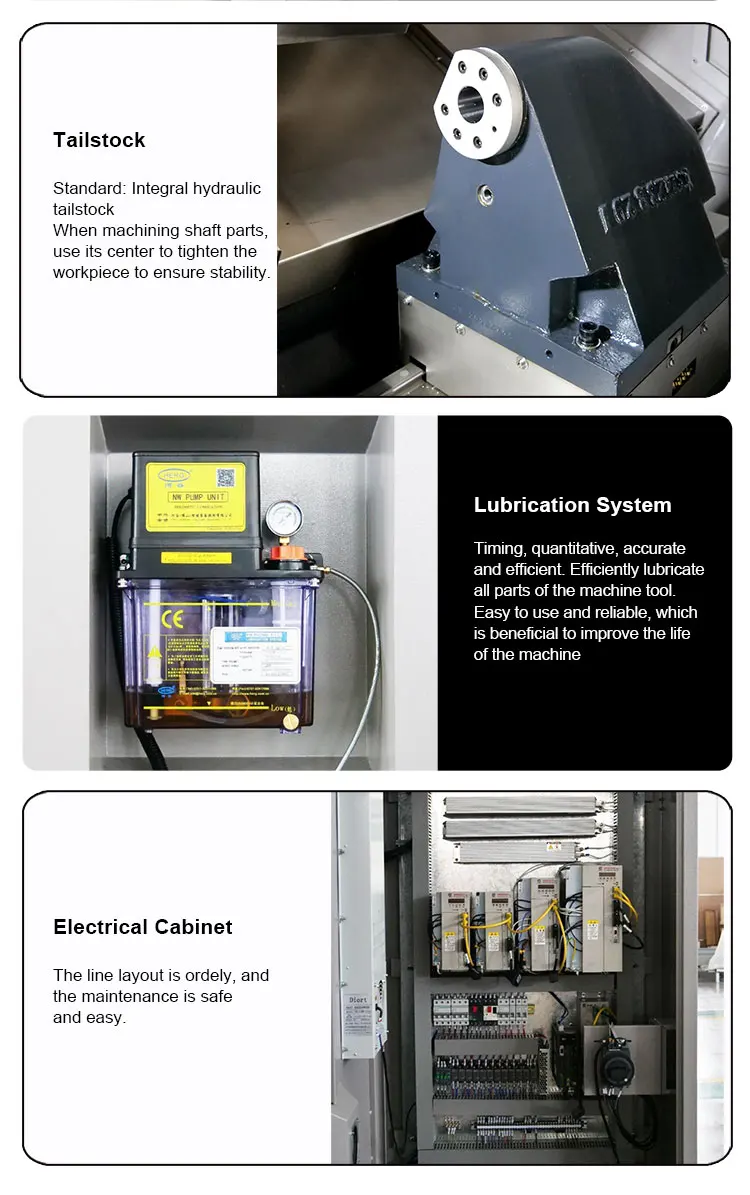

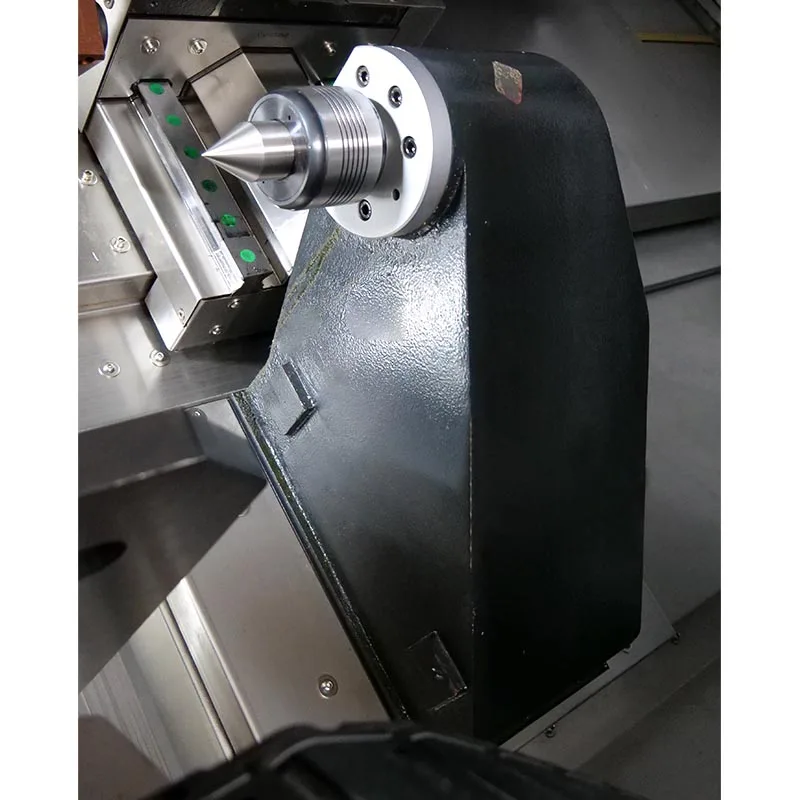

Tailstock | ||||
Tailstock travel | 450mm | 950mm | ||
Taper of tailstock quill | MT5 | MT5 | ||
Max. Loading Capacity | ||||
Disk parts | 200kg | 200kg | ||
Shaft parts | 500kg | 500kg | ||
Machine Dimensions | ||||
Overal dimension（L x W x H） | 2850×2060×1880mm | 3660×2070×1880mm | ||
Machine weight | 4000kg | 4500kg | ||
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
