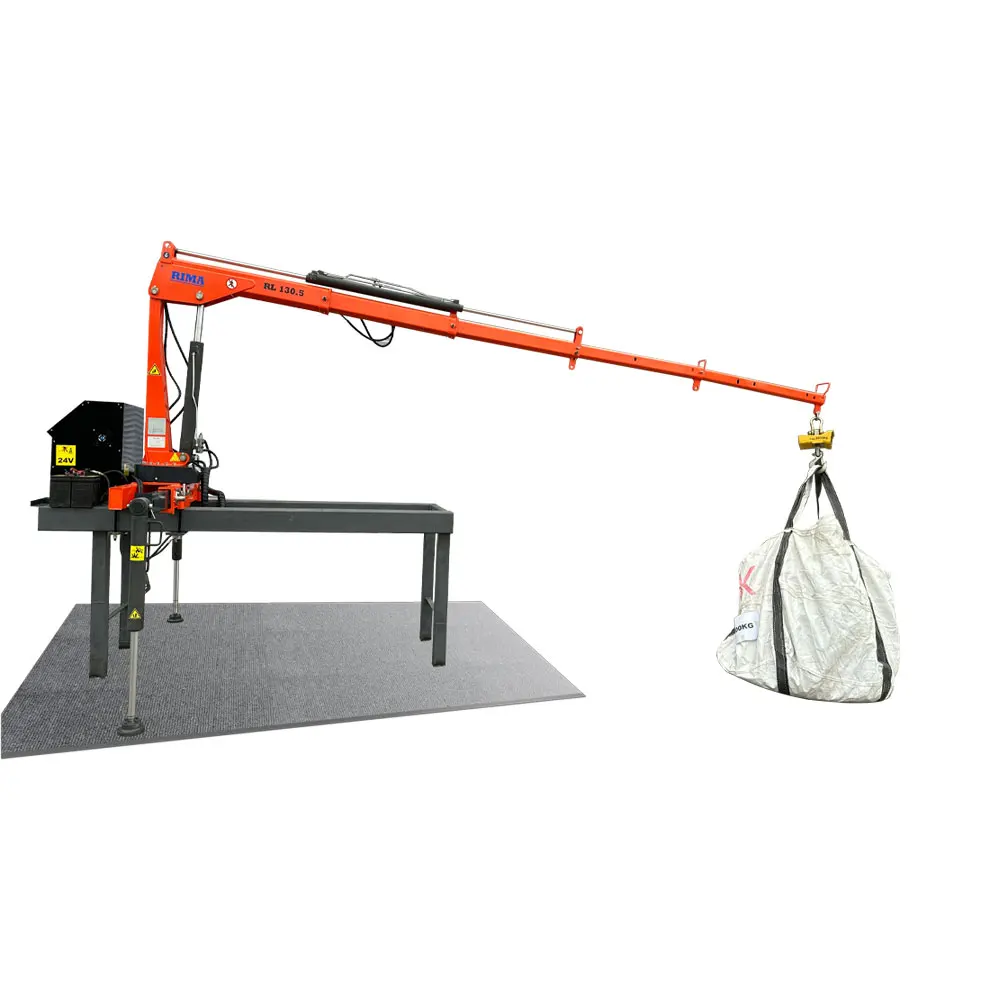

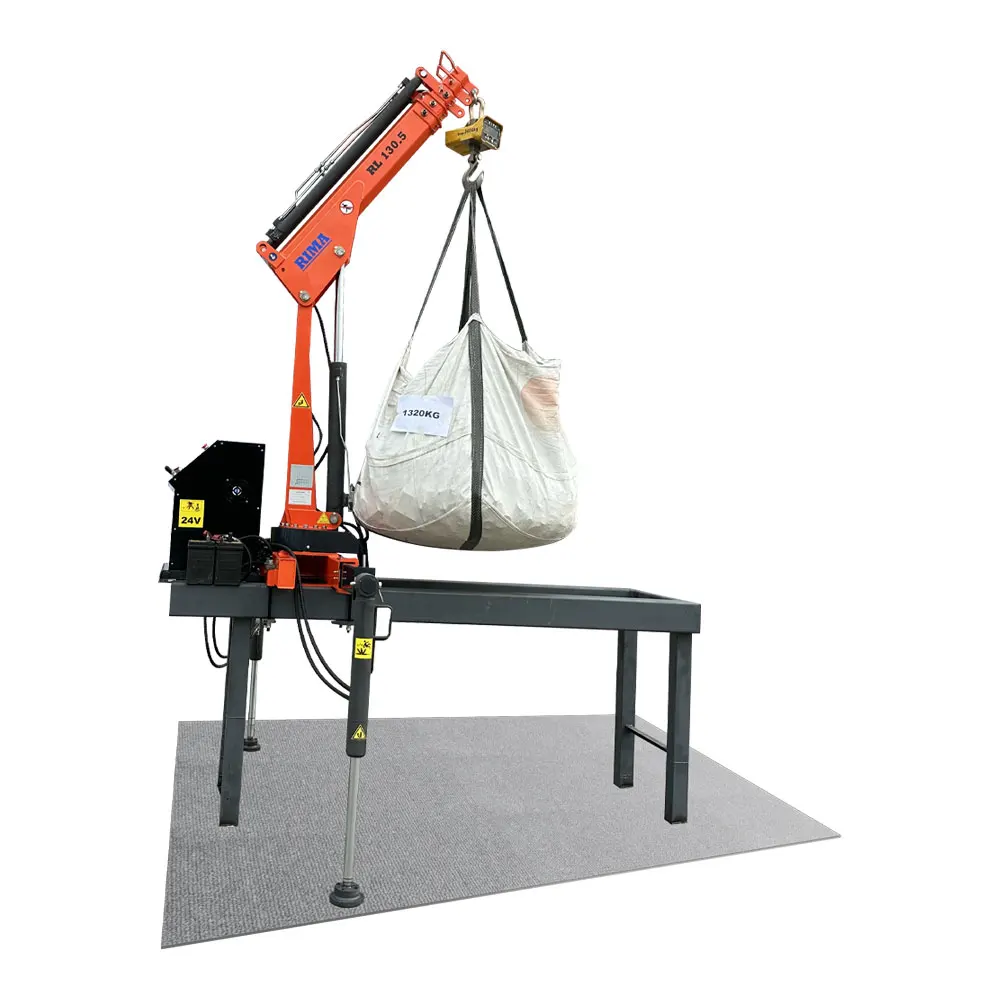

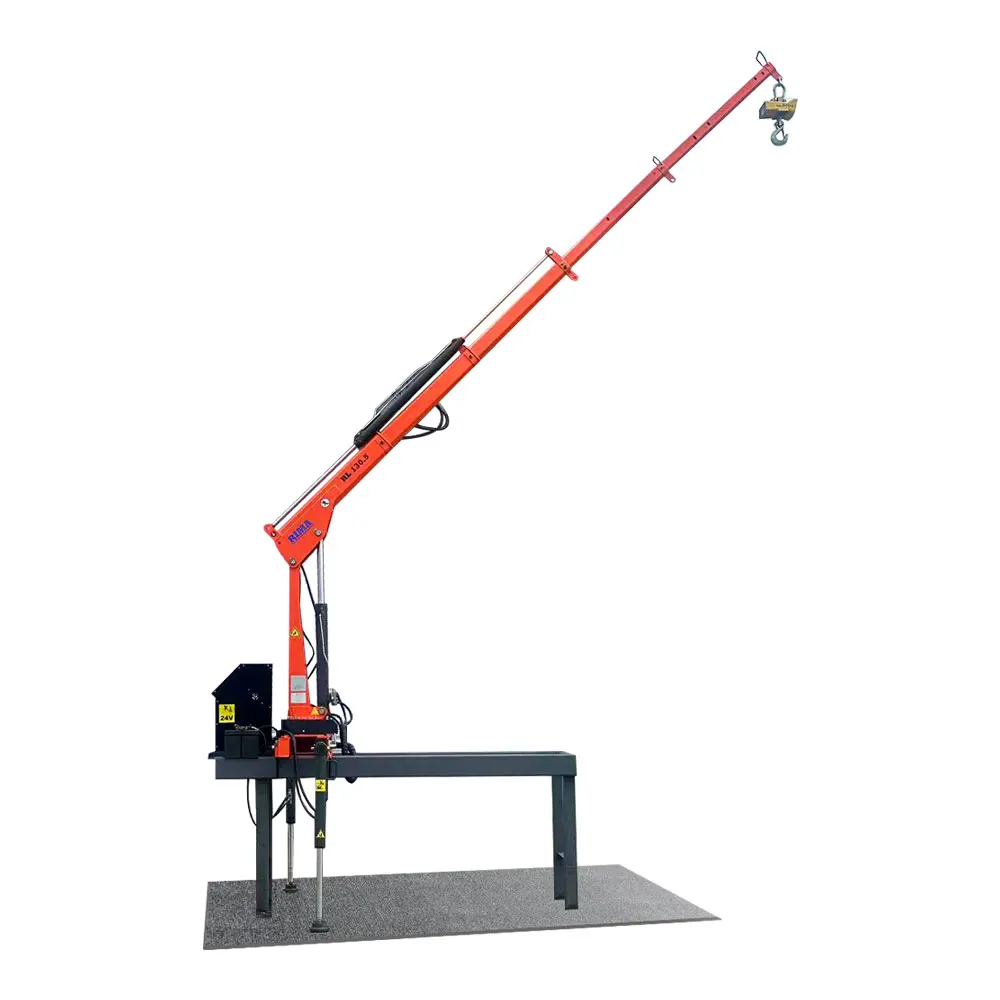

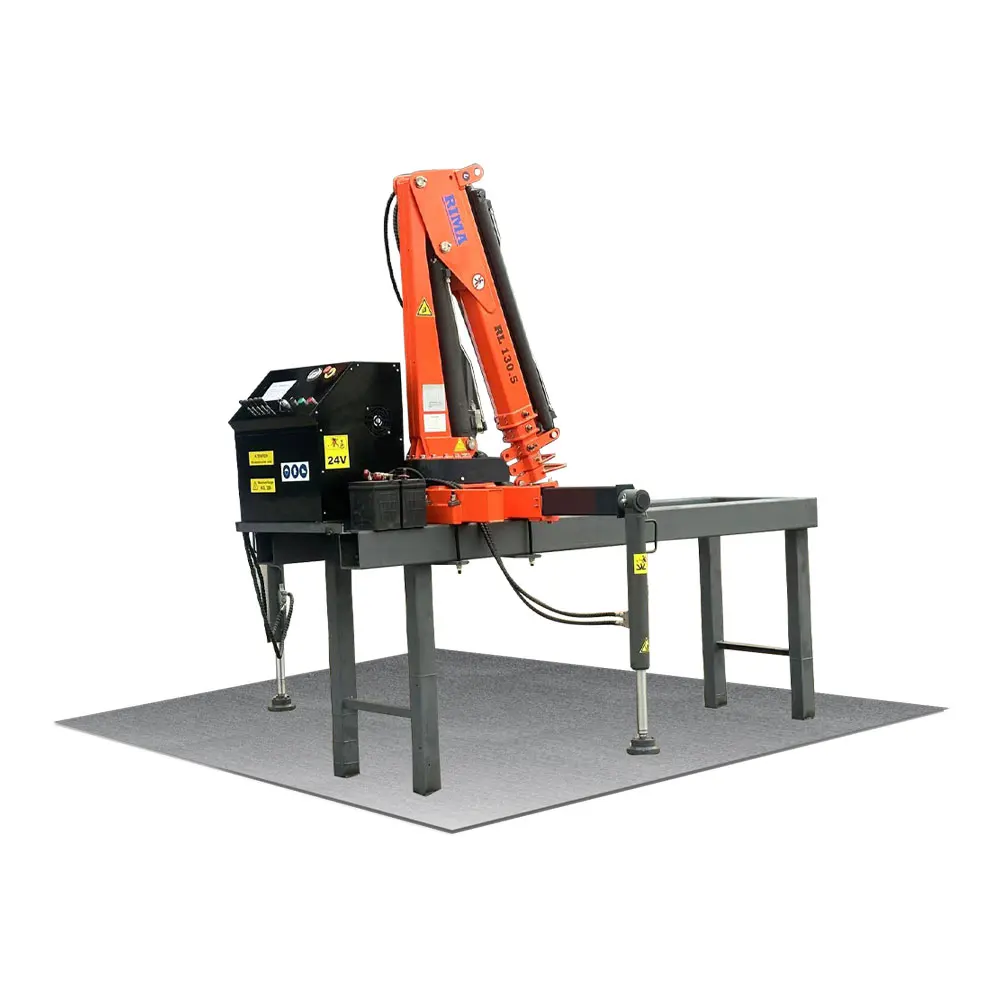

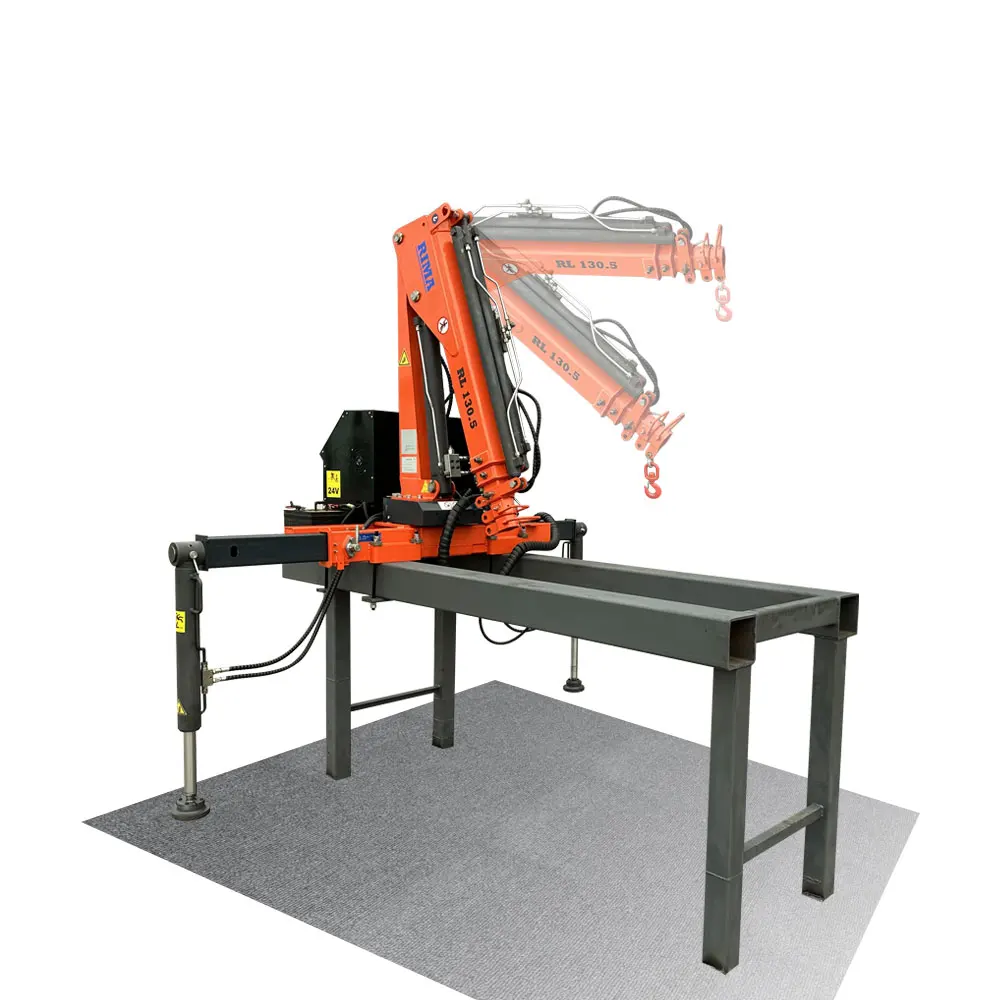

RIMA Small crane truck mini crane hydraulic truck telescopic lifting crane
- Category: >>>
- Supplier: Yantai Rima Machinery Co. Ltd.
Share on (1601224450118):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS
Technical date | U.M. | Model | ||||||||
RL 130.1 | RL 130.2 | RL 130.3 | RL 130.4 | RL 130.5 | ||||||
Max. Lifting moment | T.m | 1.7 | ||||||||
Standard extension | No. | 1M | 1H | 2H | 2H+1M | 2H+2M | ||||
Standard outreach | m | 1.1 | 2.1 | 3.1 | 4.2 | 5.0 | ||||
Swing angle | ° | 330 | ||||||||
Max. Angle slope | ° | 5 | ||||||||
Swing torque | KNm | 6.5 | ||||||||
Max. Lifting height from crane base | m | 3.2 | 4.2 | 5.2 | 6.2 | 6.9 | ||||
Hydraulic pack | OPTIONAL | |||||||||
Motor | KW | 2.2 | ||||||||
Voltage | V | 12/24 | ||||||||
Suggested oil flow | L/min | 3.4 | ||||||||
Hydraulic tank | L | 12 | ||||||||
Max. Working pressure | Mpa | 18 | ||||||||
Standard control type | Manual | |||||||||
Weight | kg | 247 | 256 | 274 | 288 | 300 | ||||
