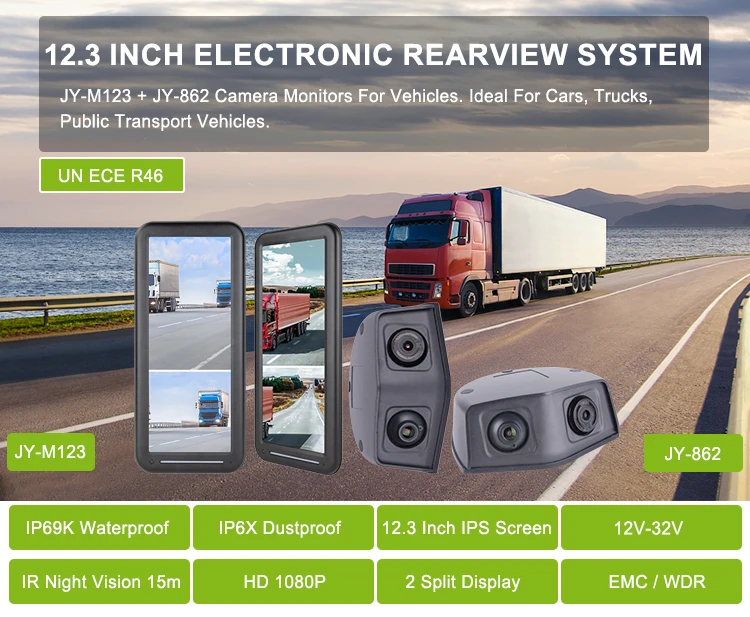

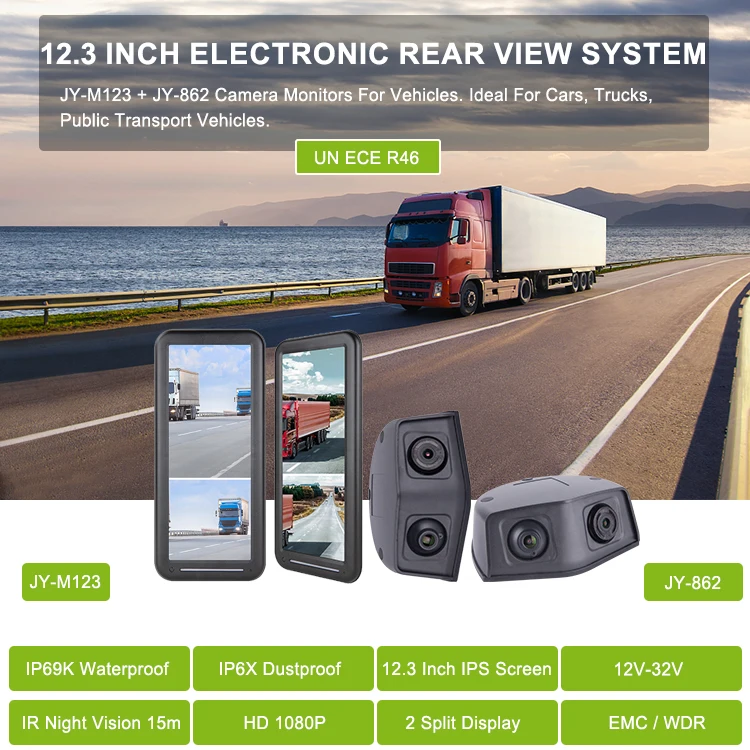

R46 12.3 Inch Truck Mirror Monitor System Car Side View Mirror Camera 1080P Dual Camera Car Side View Mirrors With Camera System

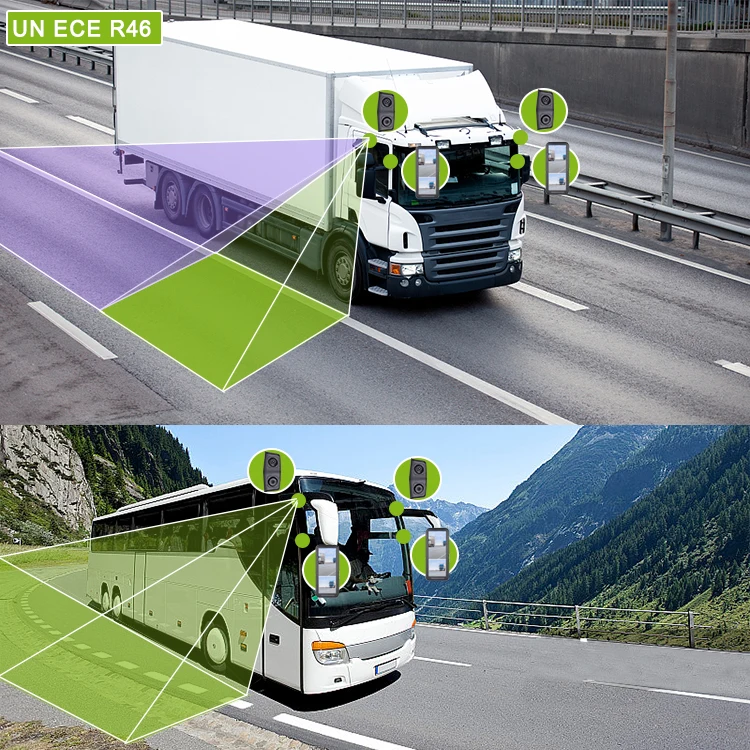

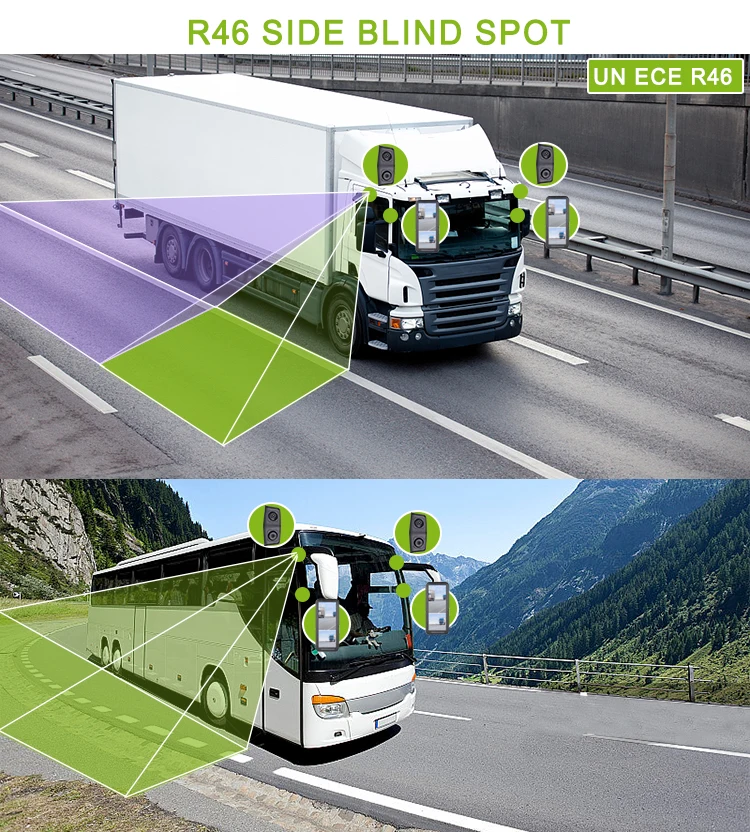

EU UN R46 is a UNECE regulation aimed at standardizing the installation and performance requirements of rear-view mirrors on motor vehicles.
1. The regulation ensures that rear-view mirrors provide clear visibility, stability, and appropriate field of vision to enhance driver safety on the road.
2. R46 specifies the technical requirements and testing methods for rear-view mirrors, including stability, reflection quality, and field of vision.
3. Vehicle manufacturers are required to comply with R46 and undergo the necessary testing and certification procedures to ensure that the rear-view mirrors installed on their vehicles meet the specified requirements.
Compliant rear-view mirrors can be sold and used in the European market.
| JY-862 Side Car Camera | JY-M123 Car Monitor | ||
| Image sensor | 1/2.8 Sony CMOS | screen size | 12.3"/8:3 |
| Standard | NTSC/PAL (optional) | Resolution | 1920 RGB (H) x 720 (V) |
| Effective pixels | 1920(H)*1080(V) | Standard | PAL/NTSC |
| Frame rate | 1080P@25fps / 1080P@30fps | brightness | 850 cd/m² |
| Sync system | Internal synchronization | Contrast | 1100:1 |
| Resolution | 720p / 1080P / 200W | Visible range | 292.032(W) × 109.512(H) mm |
| Minimum illumination | 0.001 Lux (day), 0 Lux (with IR) | Viewing angle | Left/right/up/down 85°/85°/85°/85° |
| Microphone | Optional | Image settings | brightness, chroma, contrast |
| Output signal amplitude | 1.0 Vp-p/75 Ohm | video format | AHD |
| Scan system | line-by-line scan | video channel | 2 video inputs |
| Gain control | Automatic | Reverse delay | 0-15s |
| Signal-to-noise ratio | ≥48dB | Power supply | 12/24V, DC/<6W |
| White balance | Automatic | Operating temperature | -20℃ to +70℃ |
| Gamma coefficient | 0.45 | Storage temperature | -25℃ to +75℃ |
| Dynamic Range | 120dB | ||
| Electronic shutter | AUTO | ||
| BLC | AUTO | ||
| Voltage | DC: 12V | ||
| Camera angle | Upper camera 4.3mm: 40 degrees (H)/80 degrees (V) Lower camera 2.3mm: 68 degrees (H)/134 degrees (V) | ||
| Current consumption | Single camera: 100±5mA; Dual camera: 200±10mA | ||
| Working temperature | -20℃-70℃, maximum humidity 95% | ||
| Storage temperature | -30℃-80℃, maximum humidity 95% | ||
