IP66 Cold storage room 40w 60w 80w tri proof light fixture PC lens emergency water proof LED batten lamp
IP66 Cold storage room 40w 60w 80w tri proof light fixture PC lens emergency water proof LED batten lamp
IP66 Cold storage room 40w 60w 80w tri proof light fixture PC lens emergency water proof LED batten lamp
IP66 Cold storage room 40w 60w 80w tri proof light fixture PC lens emergency water proof LED batten lamp
IP66 Cold storage room 40w 60w 80w tri proof light fixture PC lens emergency water proof LED batten lamp
IP66 Cold storage room 40w 60w 80w tri proof light fixture PC lens emergency water proof LED batten lamp
IP66 Cold storage room 40w 60w 80w tri proof light fixture PC lens emergency water proof LED batten lamp

IP66 Cold storage room 40w 60w 80w tri proof light fixture PC lens emergency water proof LED batten lamp

Share on (1601224801274):


Price:$25.77-28.52

Quantity:


Product Overview

Description

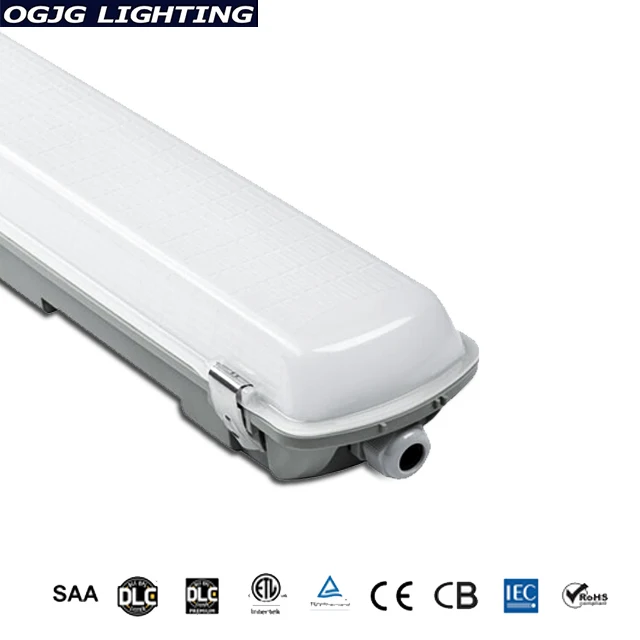

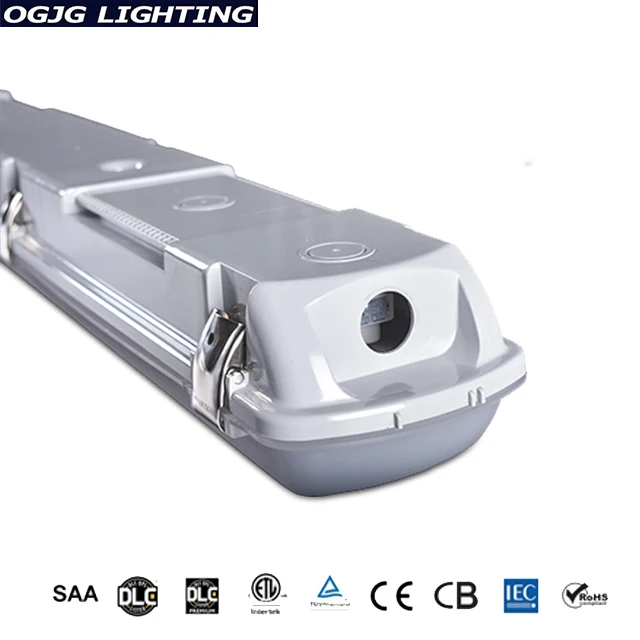

IP66 Cold storage room 40w 60w 80w tri proof light fixture PC lens emergency water proof LED batten lamp





Product Description




Model
OG-SF(LED)
Material
PC housing, PC cover
Color
Light grey
Size
2ft, 4ft, 5ft, 8ft
Wattage
10W, 20W, 30W, 40W, 50W, 60W, 80W, 120W, 180W
Luminous Efficiency
105lm/w, 130lm/w
Input Voltage
100-277V, 347V
CRI
>83
Power Factor
>0.9
LED Light Source
Epistar SMD2835
Working Lifetime
50000hours
CCT
3000K, 3500K, 4000K, 5000K, 6000K, 6500K
Function
0-10V dali dimming, Microwave motion sensor, Emergency battery backup, Linkable

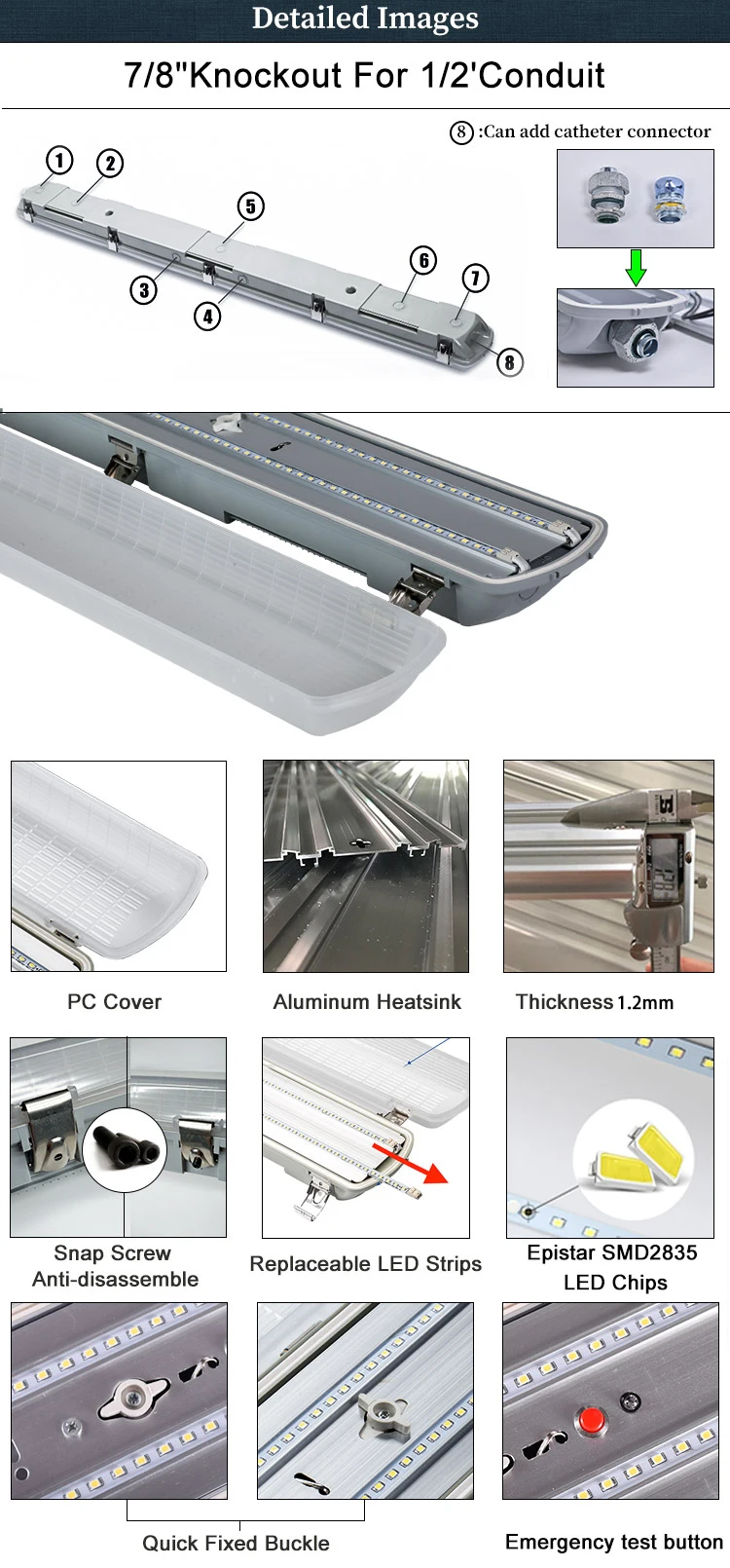

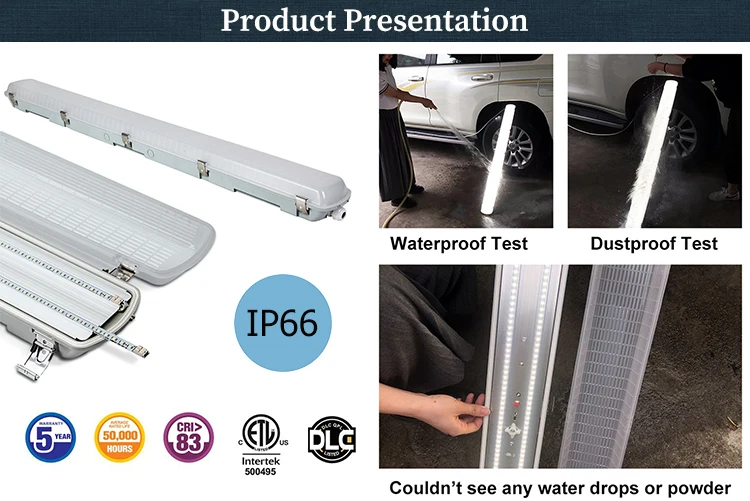

Feature
IP65/IP66, Isolated driver, Aluminum heatsink, Replaceable LED strips, Lockable clips, Knockouts
Certificate
ETL, cETL, DLC premium, TUV-CE(EMC, LVD), TUV-SAA, CB
Installation
Ceiling mounted, Wall mounted, Suspended


Low Wattage



  Model
  Wattage
  Size
  Dimensions (mm)
  Voltage
  Lumens
  OG-LED10-SF
  10W
  2'
  618x81x74
  100~277V
  1050lm / 1300lm
  OG-LED20-SF
  20W
  4'
  1215x81x74
  100~277V
  2100lm / 2600lm
  OG-LED30-SF
  30W
  5'
  1515x81x74
  100~277V
  3150lm / 3900lm


Normal Wattage



  Model
  Wattage
  Size
  Dimension (mm)
  Voltage
  Lumen
  OG-LED220-SF
  40W
  4'
  1215x116x74
  100~277V
  4200lm / 5200lm

  OG-LED230-SF


  60W
  4'
  1215x116x74
  100~277V
  7800lm
  OG-LED225-SF
  50W
  5'
  1515x116x74
  100~277V
  5250lm / 6500lm
  OG-LED230-SF-5
  60W
  5'
  1515x116x74
  100~277V
  6300lm / 7800lm


High Wattage



  Model
  Wattage
  Size
  Dimension (mm)
  Voltage
  Lumen
  OG-LED410-SF
  40W

  2'


  664x140x90
  100~277V
  4200lm / 5200lm
  OG-LED415-SF
  60W
  2'
  664x140x90
  100~277V
  7800lm

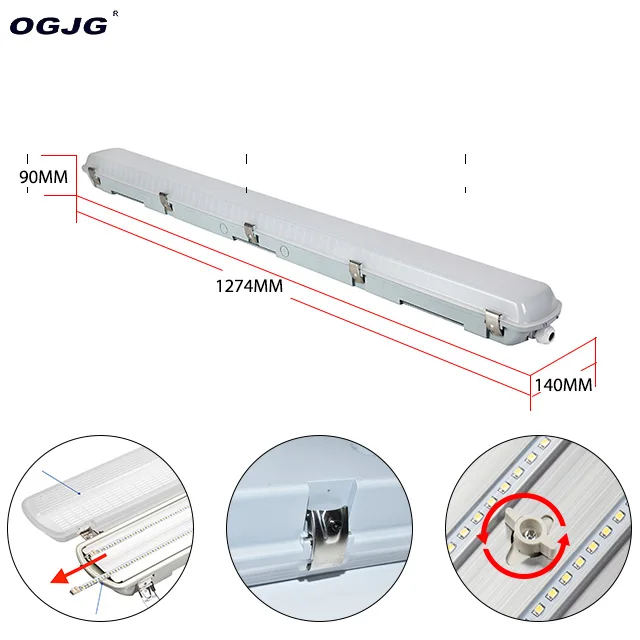

  OG-LED420-SF
  80W
  4'
  1274x140x90
  100~277V
  8400lm / 10400lm
  OG-LED430-SF
  120W
  5'
  1574x140x90
  100~277V
  12600lm / 15600lm


More details




Extra functions:


Microwave motion sensor, Emergency battery backup, 0-10v dali dimming/DALI dimmable


Welcome contact us for more details or quote.

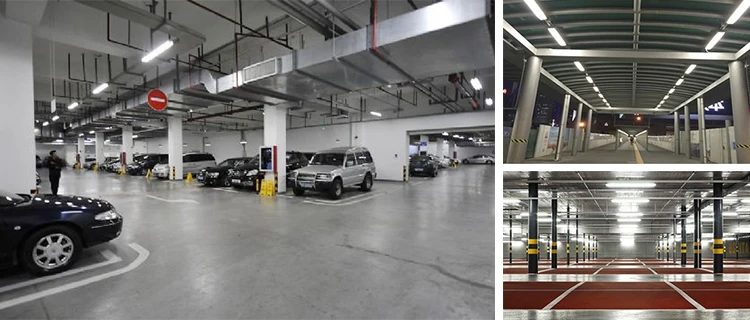

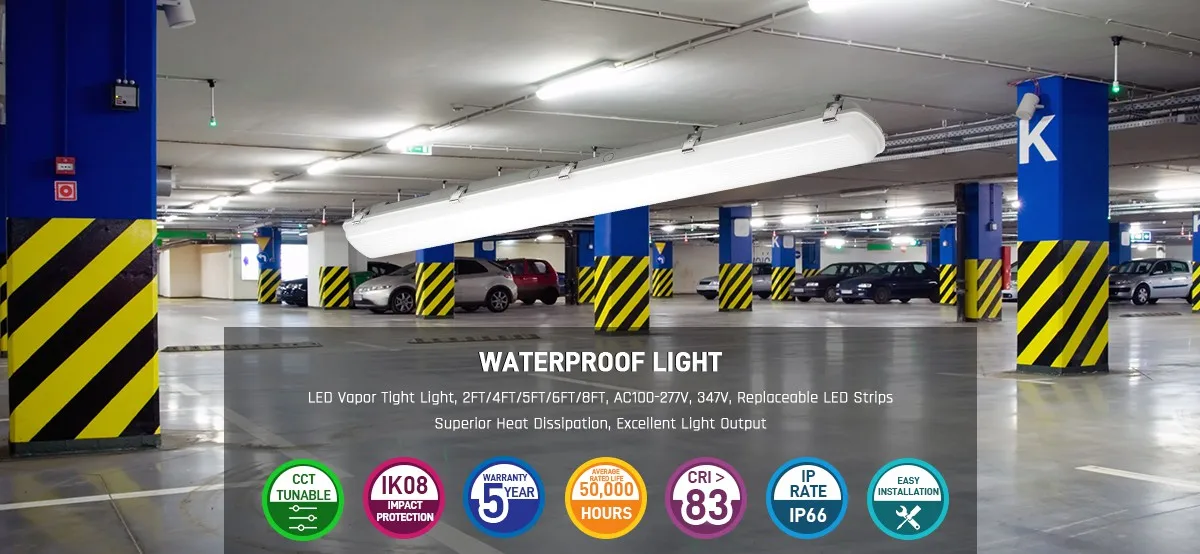

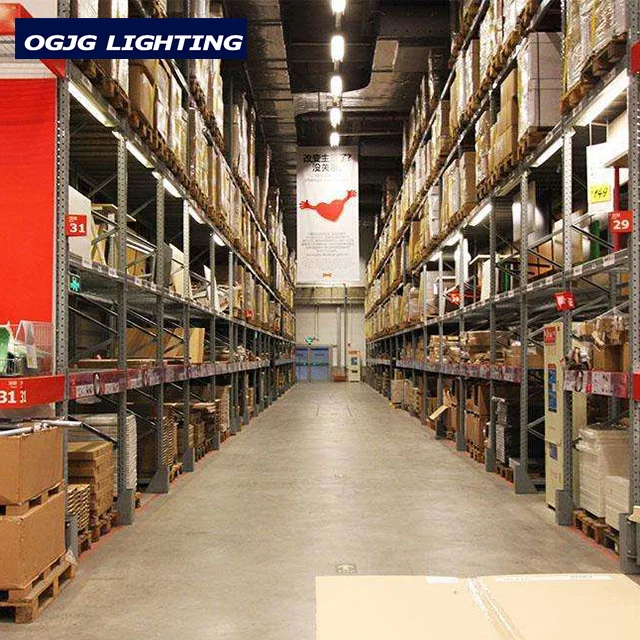

Application

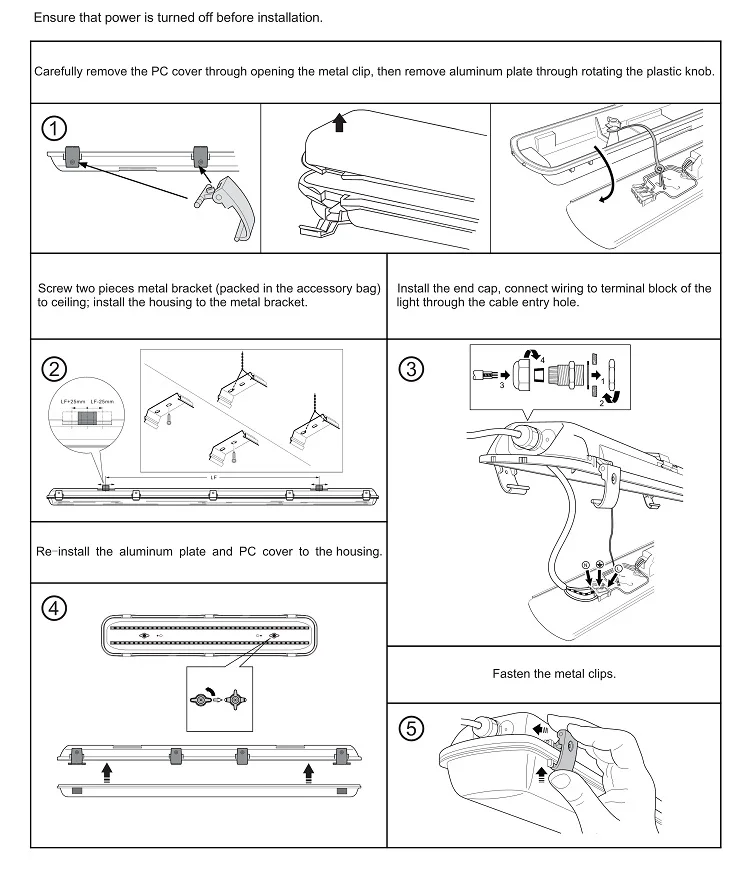

Installation Method




Hot sale




Company Profile




Established in 2006 in the city of Jiangmen, Guangdong Province, OGJG Lighting has been engaged in production of LED linear light, LED batten light, LED tube light, LED vapor tight light, LED linear high bay light and related products for more than 14 years.
All of our products are certified with CE, CB, EMC, SAA, ETL, DLC, which qualifies our product to be sold all over the world.
Every year, we attend the international lighting fair in Hong Kong, USA, and Germany.
With over 26 years of experience in lighting engineering and 14 years of experience in production, OGJG can provide our client with the best lighting solution.
Please contact us for more information.





FAQ


Q1. Can I have a sample order?
A: Yes.





Q2. What's the lead time?
A: Sample 3-5 days, mass order 15-30 days.





Q3. MOQ?
A: 1pc available.





Q4. What's the payment item?
A:30% deposit , 70% balance finished before delivery.





Q5.Payment way?
A:TT,Paypal, West union, Pay online, Visa, Alibaba Pay later, Trade assurance. L/C.





Q6. Logo customize?
A: Yes.





Q7. What's the guarantee?
A: 5 years warranty free after-sales service.



Q8: How long is our aging test?
A: At least 24 hours aging test on 100% complete Lighting Fixture, 48 hours aging test on the first batch of order. Because lighting fixtures delivered without aging put customers at risk of faulty LED products. Aging test process is treat seriously in our company.
