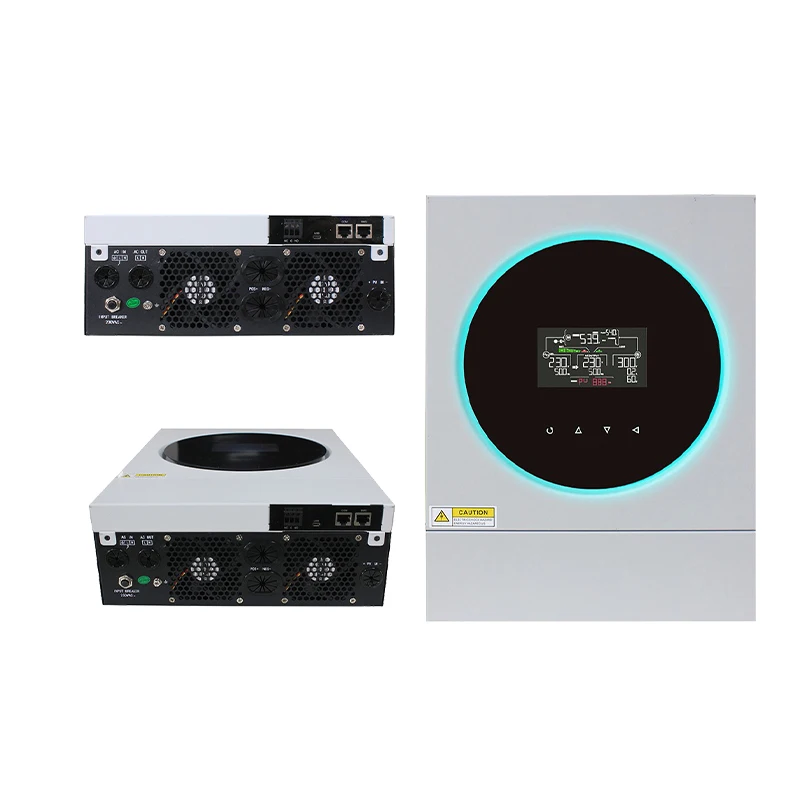

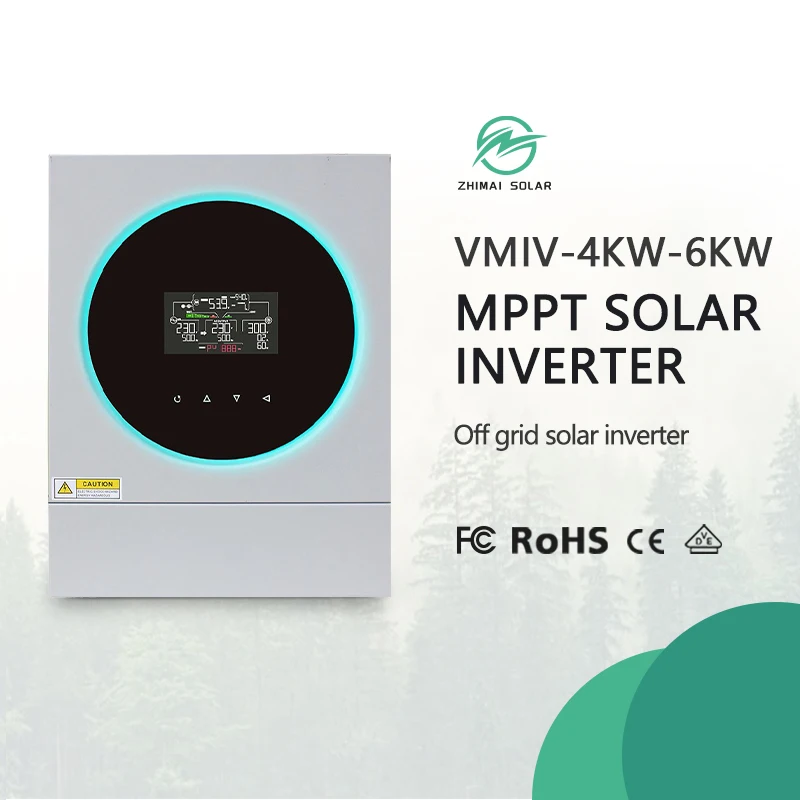

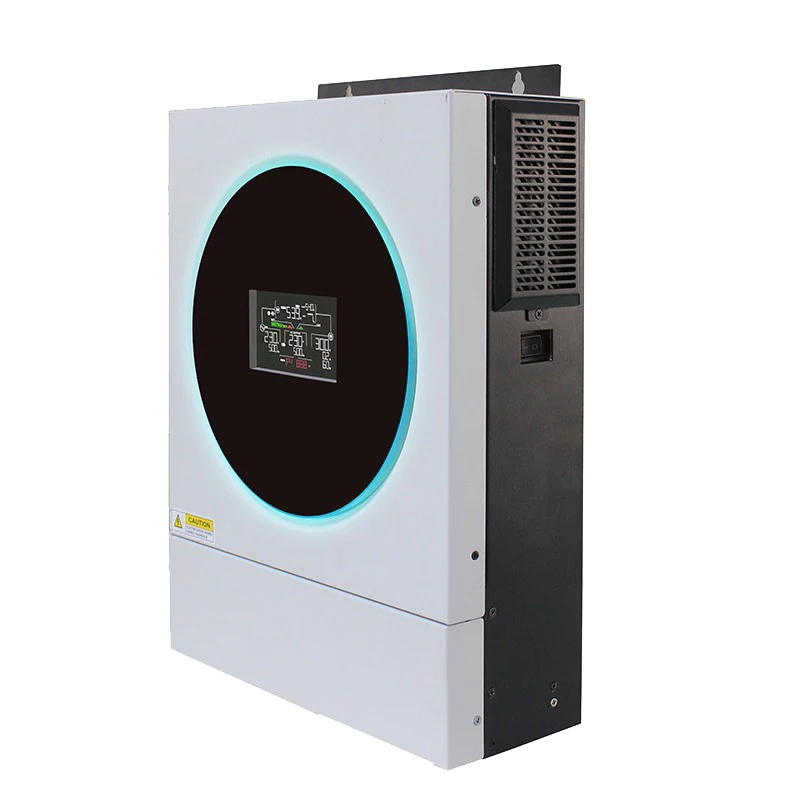

4kw 6kw 300Vac 24v 48v Mppt Pure Sine Wave off grid Solar Power Inverter Kit
- Category: >>>
- Supplier: Zhimai (shenzhen) New Energy Co. Ltd.Zhimai Ltd.
Share on (1601224888972):
Product Overview
Description
Model | 4KW | 6KW | ||
Rated Output Power | 4000VA/4000w | 6000VA/6000w | ||
Input Valtage Waveform | Pure Sine wave | |||
Nominal Input Voltage | 230VAC | |||
Low Loss Voltage | 170Vac±7V(UPS) 90Vac±7V(Appliances) | |||
Low Loss Return Voltage | 180Vac+7V(UPS) 100Vac+7V(Appliances) | |||
High Loss Valtage | 280Vac+7V | |||
High Loss Return Voltage | 270Vac+7V | |||
Max AC Input Voltage | 300Vac | |||
Nominal input Frequency | 50Hz/ 60Hz (Auto detection) | |||
Low Loss Frequency | 40±1Hz | |||
Low Loss Return Frequency | 42±1HZ | |||
High Loss Frequency | 65±1HZ | |||
High Loss Retum Frequency | 63±1HZ | |||
Output Short Circuit Protection | Circuit Breaker | |||
Efficiency (Line Mode) | >95% ( Rated R load, battery full charged ) | |||
Transfer Time | 10ms typical (UPS); 20ms typical (Appliances) | |||
Inverter Mode Specifications | ||||
Output Voltage Waveform | Pure Sine wave | |||
Output Voltage Regulation | 230Vac+10% | |||
Oulput Frequency | 50Hz | |||
Peak Efficiency | 0.93 | |||
Overoad Protection | 5s@≥110%load;10s@105%-110%load | |||
Surge Capacity | 2*rated power for 5 seconds | |||
Nominal DC input Voltage | 24VDC | 48VDC | ||
Cold Start Voltage | 23VDC | 46VDC | ||
Low DC Warning woltage | ||||
@load ＜50% | 23.5VDC | 46VDC | ||
@load ≥ 50% | 23VDC | |||
Low DC Warning Return Voltage | ||||
@load ＜50% | 21.5VDC | 43VDC | ||
@load ≥ 50% | 21VDC | 42VDC | ||
High DC Recovery Voltage | 32VDC | 62VDC | ||
High DC Cut off Voltage | 33VDC | 63VDC | ||
No Load Power Consumption | ＜40w | ＜55w | ||
Charging Mode Specifications | ||||
Charging Algorithm | 3-Step | |||
Charging Current (UPS)@Norminal input Voltage | 100Amp(@VIP=230Vac) | |||
Bulk Charging Voltage | ||||
Flooded Battery | 29.2VDC | 58.4VDC | ||
AGM/GEL BATTERY | 28.2VDC | 56.4VDC | ||
Floating Charging Voltage | 27VDC | 54VDC | ||
MPPT Solar Charging Mode | ||||
Max PV Array Power | 5000W | 6000W | ||
Max PV Current | 27A | |||
Norminal Pv Voltage | 320VDC | 360VDC | ||
PV Aray MPPT voltage Range | 60vdc-450vdc | |||
Max PV Array Open Circuit Voltage | 500VDC | |||
Max Charging Current(AC charger plus solar charger) | 120Amp | |||
Operating Temperature Range | -10°C~ 60°C | |||
Storage Temperature | -15°C-60°C | |||
Dimension (D*Vv*H),mm | 119X313.6X457.5 | |||
Net Weight, kg | 10 | 12 | ||
Product Description
Company Profile
FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer with more than 10 years experience and can control the production of goods quality and delivery time
Q: What kind of certificates your products have?
A:CE,FCC,ROHS,PSE.MSDS
Q: What's your products MOQ?
A: MOQ is 1set
Q: How about your delivery time?
A: Generally,our stock products would be shipped in 1-3 days after payment re-ceived. finally depends on order quantities
Q: What's your warranty?
A: All our products will be 100% test before shipment. Warranty 2 years
Q: What is the payment method?
A: We accept payment by T/T, Credit card, Alibaba platform, Western Union and etc
