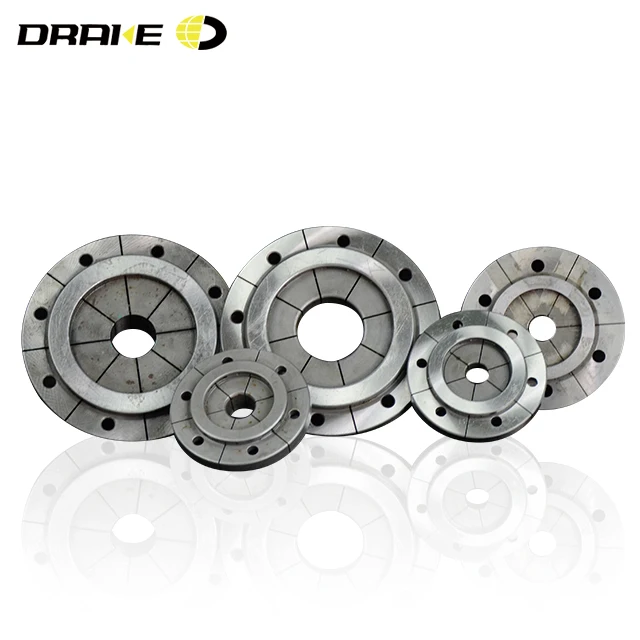

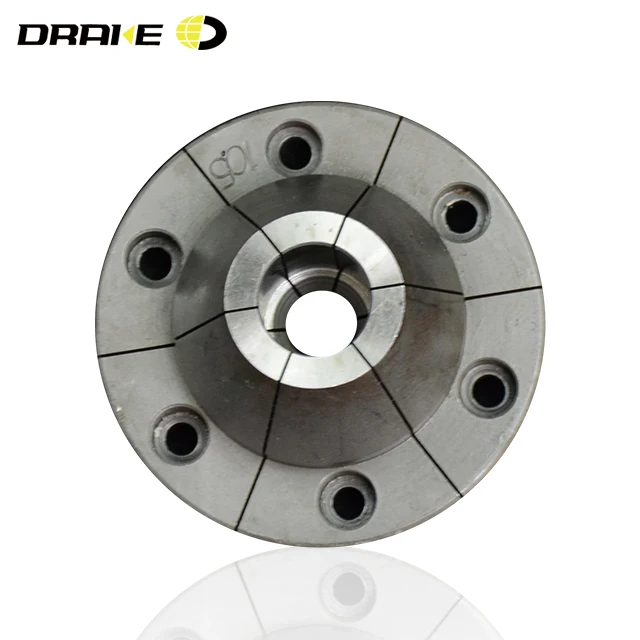

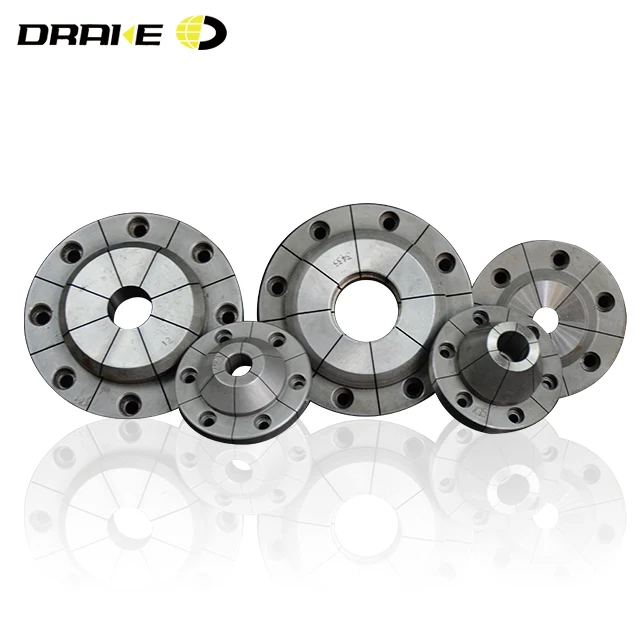

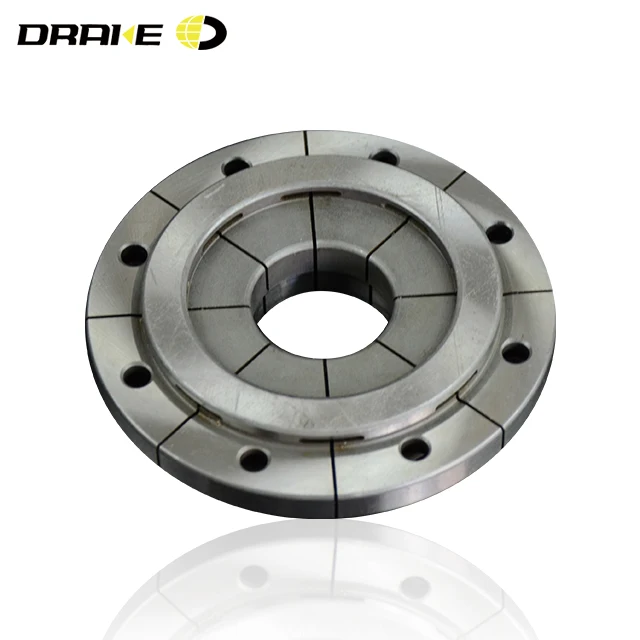

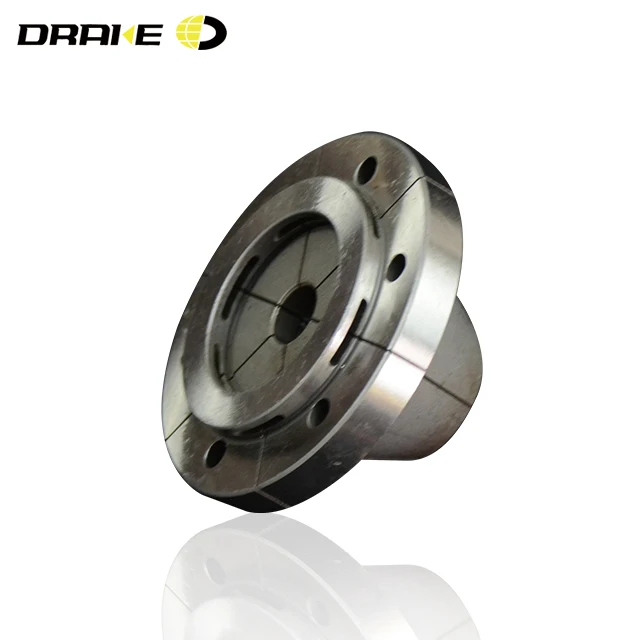

Ultra precision diaphragm collet JD series for cnc collet chuck external JD 60 collet
Ultra-precision diaphragm collet JD series for cnc collet chuck external JD-60 collet
Ultra-precision diaphragm collet JD series for cnc collet chuck external JD-60 collet
Ultra-precision diaphragm collet JD series for cnc collet chuck external JD-60 collet
Ultra-precision diaphragm collet JD series for cnc collet chuck external JD-60 collet
Ultra-precision diaphragm collet JD series for cnc collet chuck external JD-60 collet
Ultra-precision diaphragm collet JD series for cnc collet chuck external JD-60 collet

Ultra precision diaphragm collet JD series for cnc collet chuck external JD 60 collet

Share on (1601224928883):


Price:$74.00 - $89.00

Quantity:


Product Overview

Description



Product Description




Technical features:
1.Repeatability is 1 or less
2.Clamping accuracy of up to 2
3.The one-piece structure has a permanent precision life

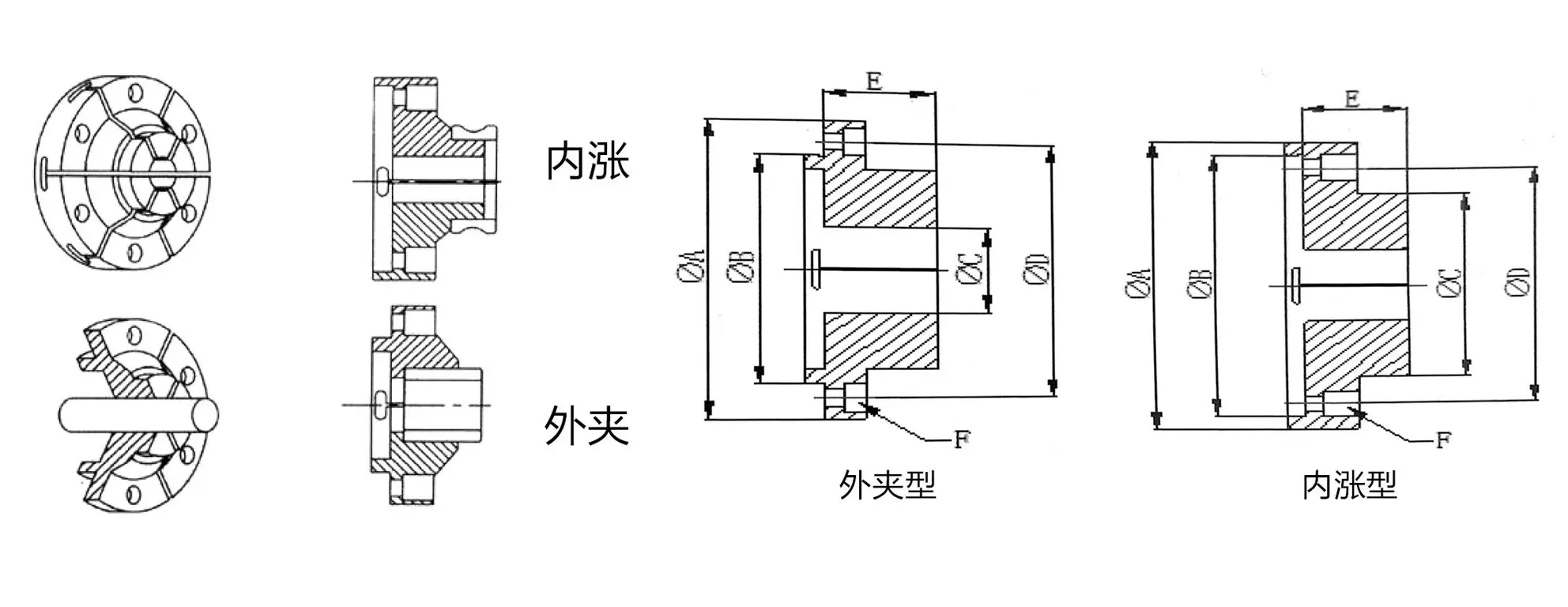

4.There are two ways of internal clamping and external clamping


Parameters

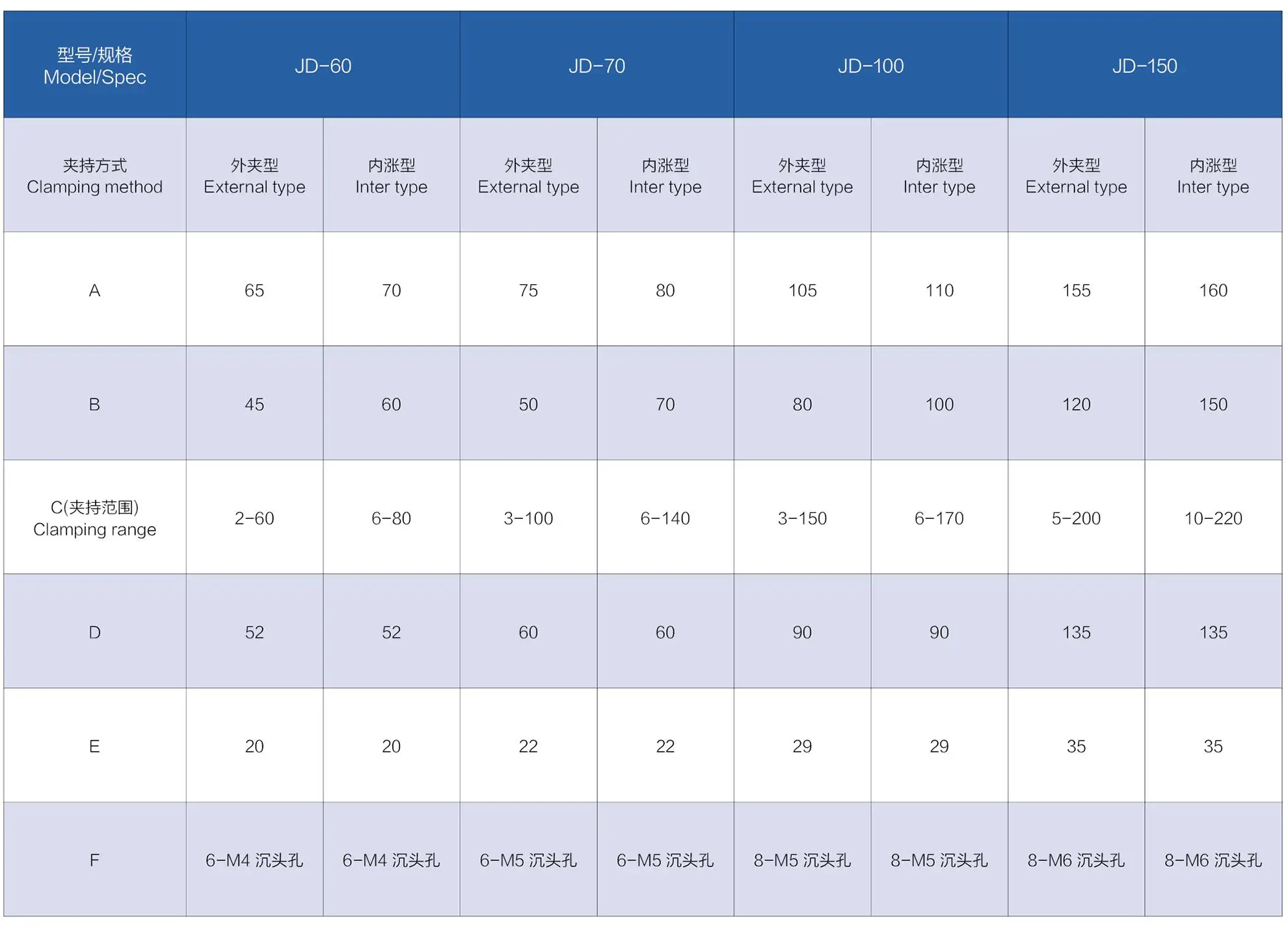

Performance Parameters




Model/Spec
JD-60
JD-70
JD-100
JD-150
Clamping method
External/Inter
External/Inter
External/Inter
External/Inter
Clamping range
2-60/6-80
3-100/6-140
3-150/6-170
5-200/10-220


Certifications




Work Flow & Packing












Custom Service



Poppy Pan

Mobile/Whatsapp/Wechat:
+86-18112877595
Email/Facebook: sales5@drakecn.com

www.drake-machinery.com
