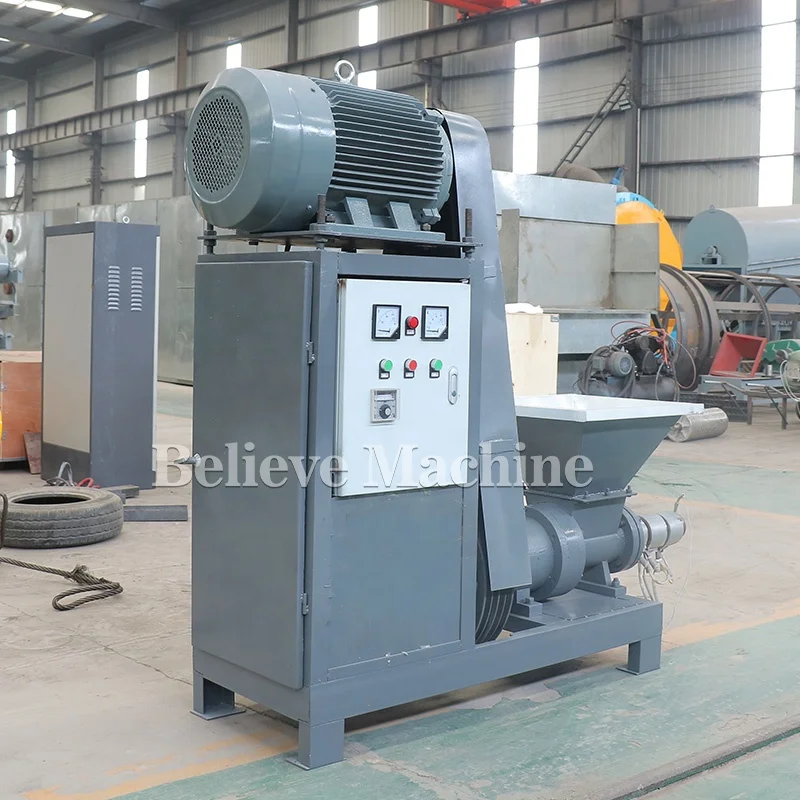

Hot sale sawdust making machine prices small briquette machine biomass briquette extruder machines wood sawdust
- Category: >>>
- Supplier: Henan Believe Machinery Manufacturing Co. Ltd.
Share on (1601224937213):
Product Overview
Description
Product Description

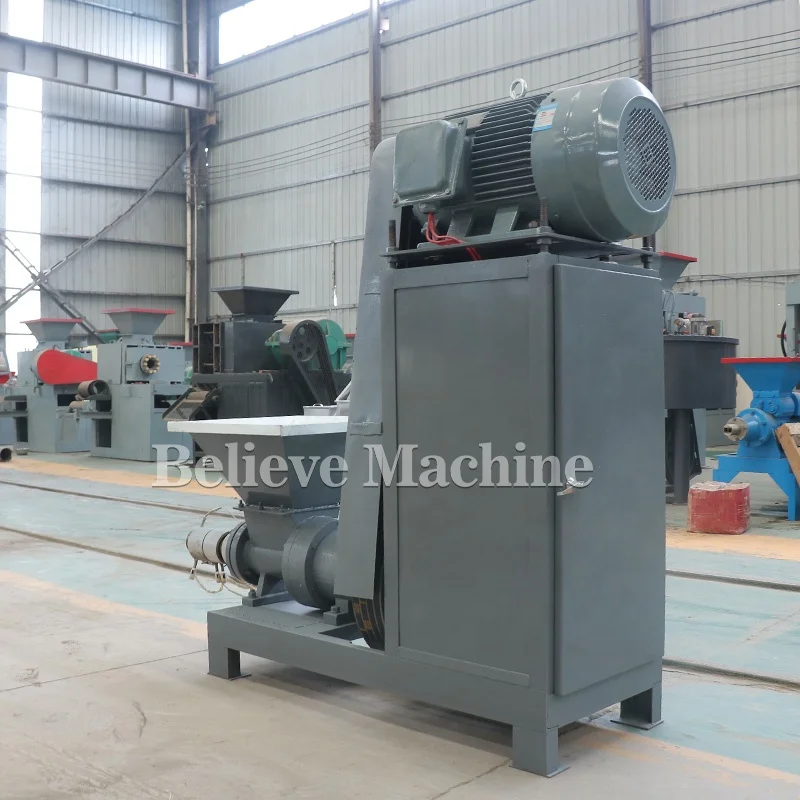

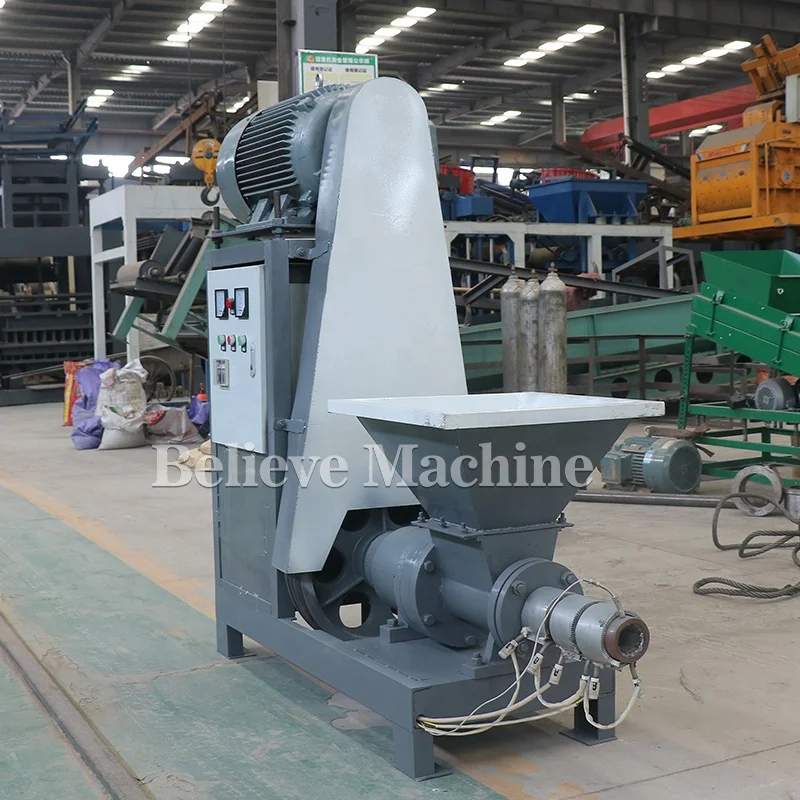

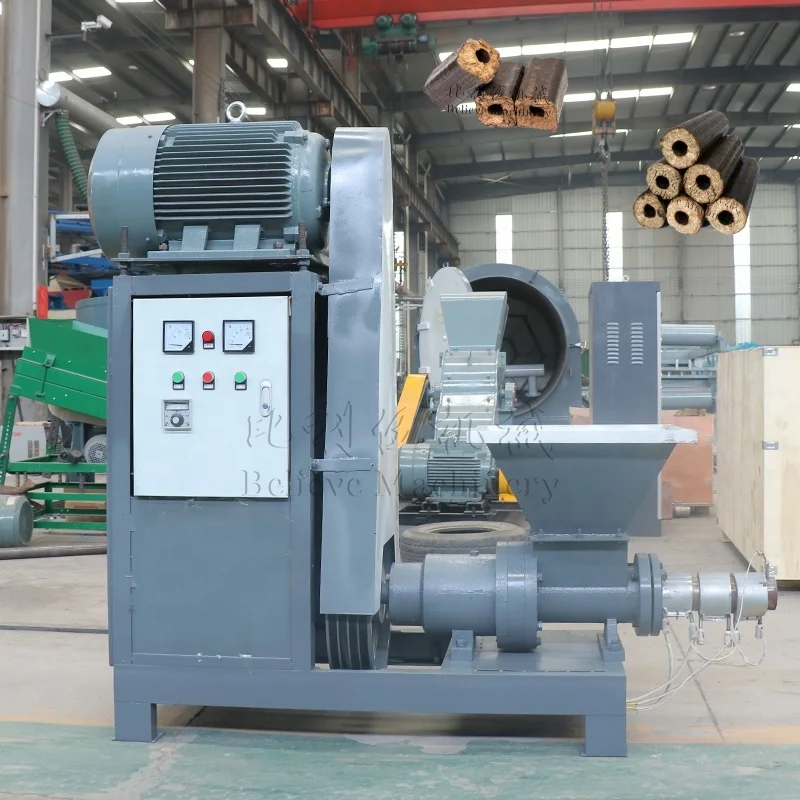

Hot sale sawdust making machine prices small briquette machine biomass briquette extruder machines wood sawdust
Hot sale sawdust making machine prices small briquette machine biomass briquette extruder machines wood sawdust is used to make sawdust, sugar cane, rice straw, rice stalk, corn stalk, cotton stalk, bean husk, into half-charcoal stick. After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. also could be used to heat boiler, fireplace,etc for warm in house.

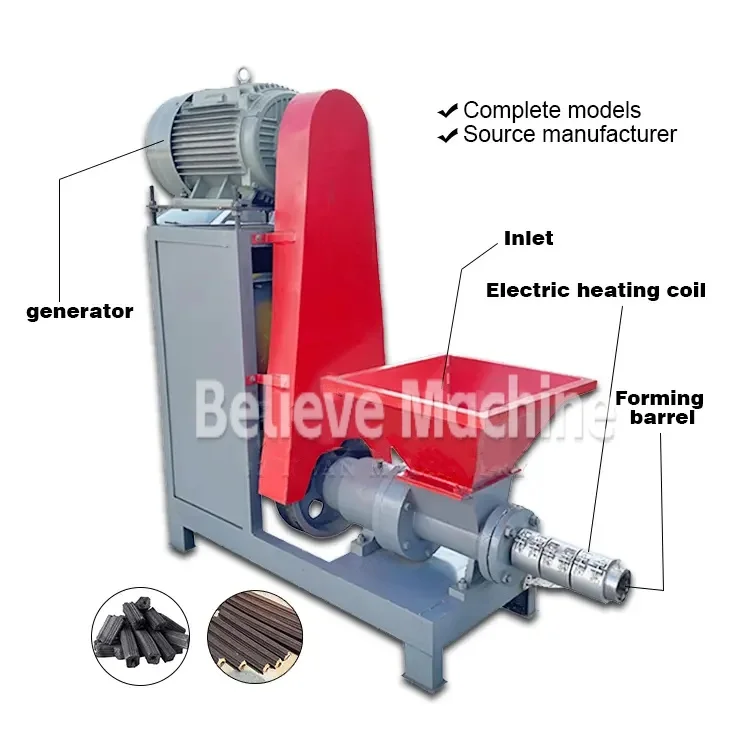

Product Details

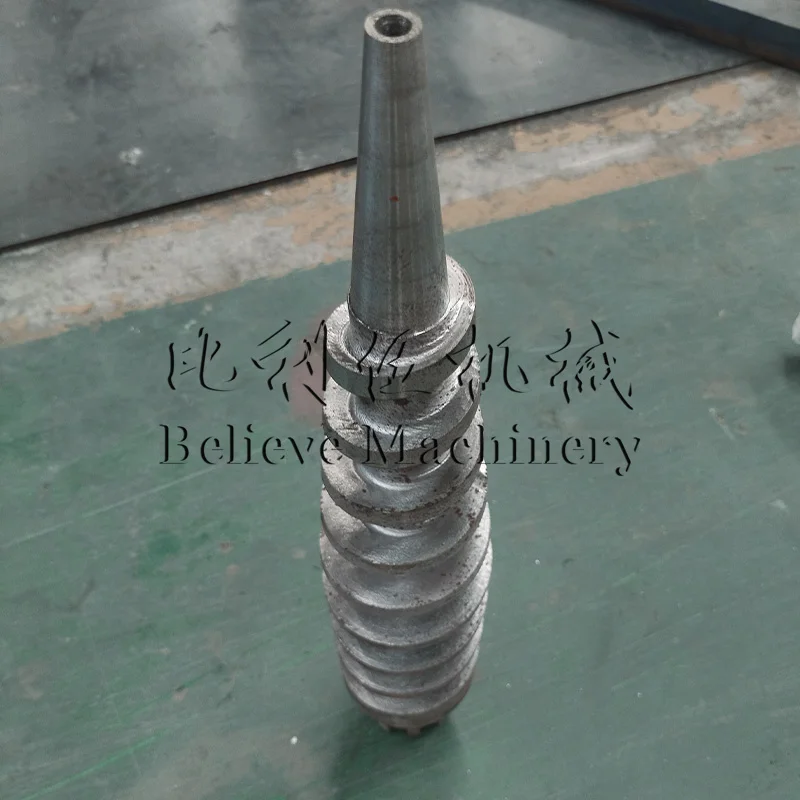

Propeller
⭐most important parts , also call screw propel
⭐wear-resistant, high pressure resistance, high abrasion resistance.
⭐should be repair the angle after 12-15ton
⭐different raw material need different screw pitch
⭐wear-resistant, high pressure resistance, high abrasion resistance.
⭐should be repair the angle after 12-15ton
⭐different raw material need different screw pitch

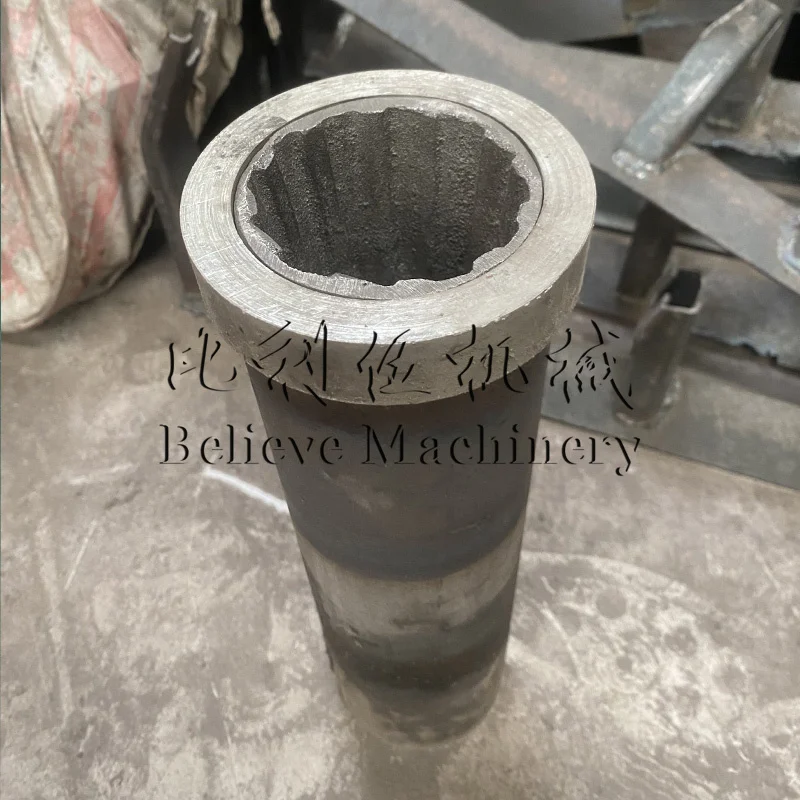

Mould barrel
⭐decide the shape, diameter of the final product
⭐thickness:12mm,length:38-45cm,diameter 50-80mm
⭐ 50 suitale for making charcoal,80mm for making biomass fuel
⭐ new type ,high-wear-resistant ,no need Scuff sleeve
⭐thickness:12mm,length:38-45cm,diameter 50-80mm
⭐ 50 suitale for making charcoal,80mm for making biomass fuel
⭐ new type ,high-wear-resistant ,no need Scuff sleeve

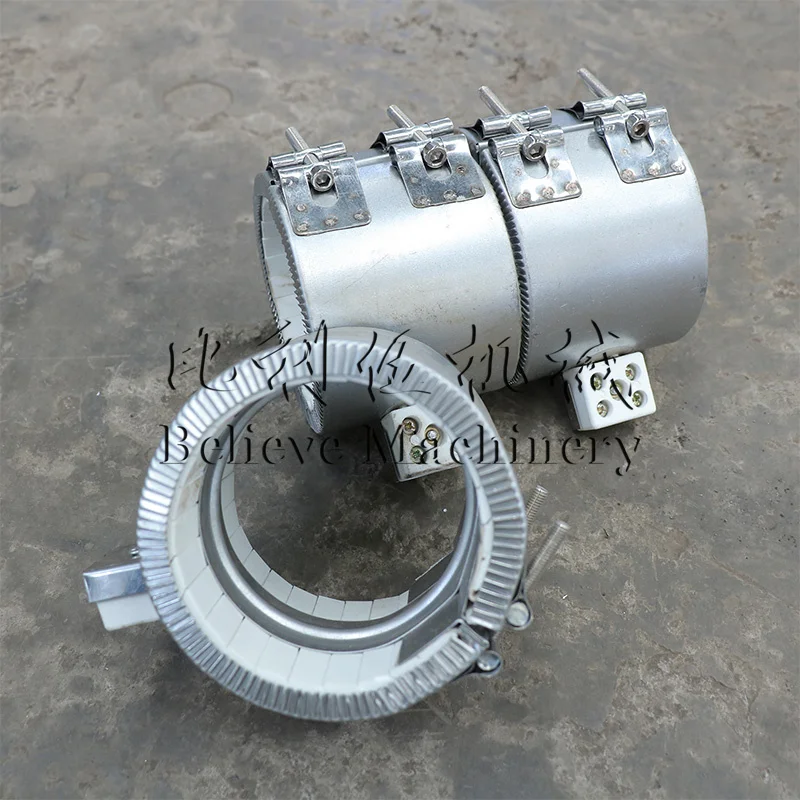

Heating rings
⭐ machine need 3 coil heater, diameter can be adjust
⭐1ps coil heater will need one 1.5-3kw electrical motor
⭐ basic construction consists of compacted MgO, high temperature resistance wire &Chrome Nickel Steel tube.
⭐1ps coil heater will need one 1.5-3kw electrical motor
⭐ basic construction consists of compacted MgO, high temperature resistance wire &Chrome Nickel Steel tube.

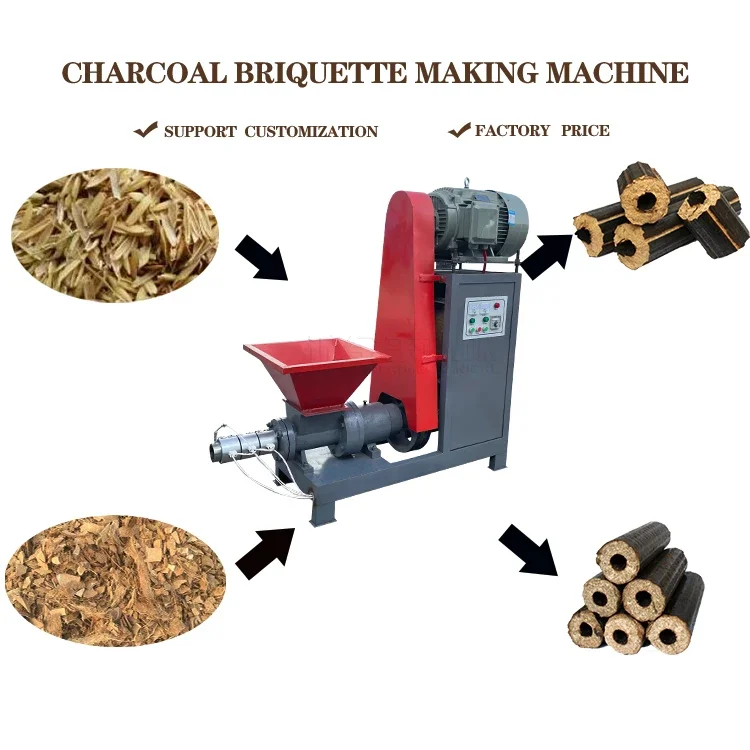

Raw Materials & Final Products
Any types of Agro-forestry waste Such as sawdust,stalk sawdust, paddy straw, sunflower stalk, maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo saw dust, bagasse, wood chips, rice husk, coffee husk,coir pith, jute sticks, groundnut shells, Bamboo , wood , straw dust, Mustard stalk and cotton stalks etc.
attention
1. Crushing the raw materials diameter into size no bigger than 5mm.
2. Dry the crushed materials to 5%-7%
2. Dry the crushed materials to 5%-7%

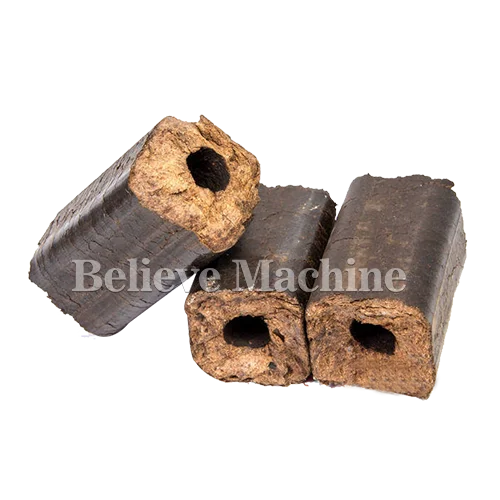

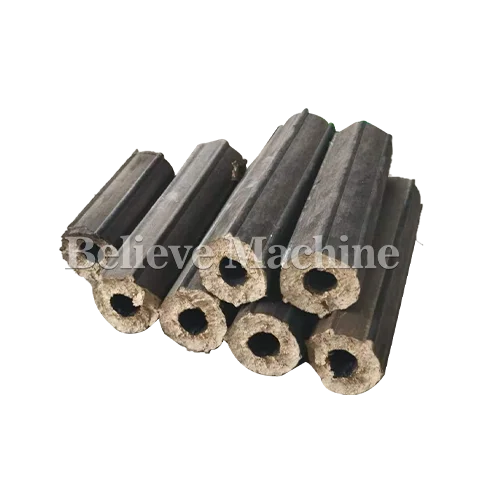

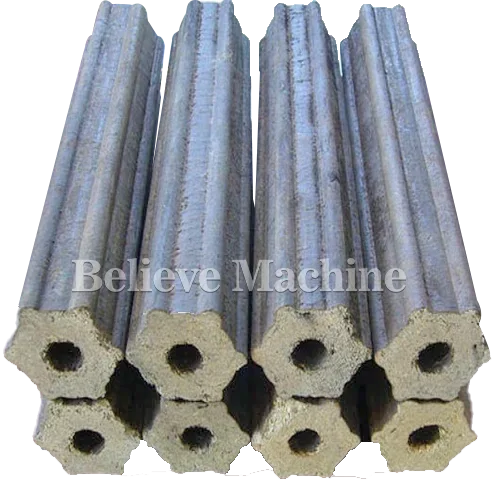

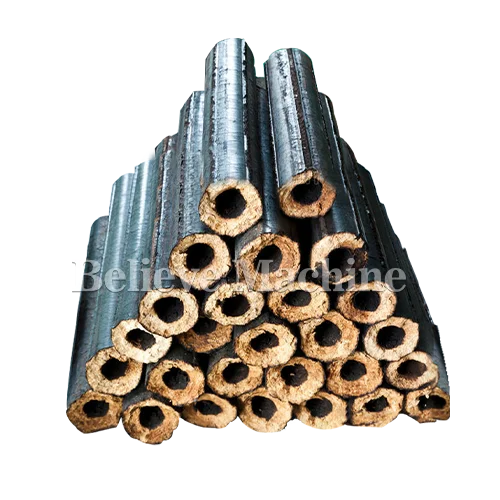

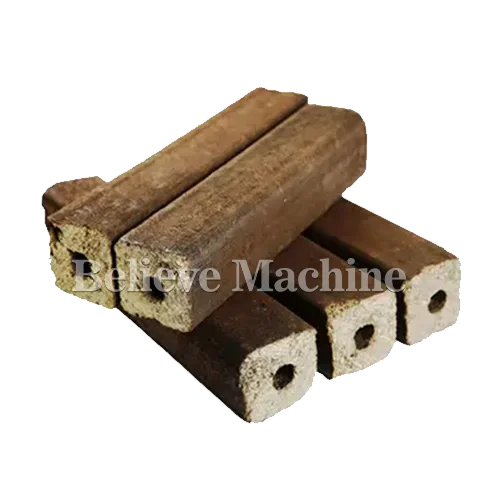

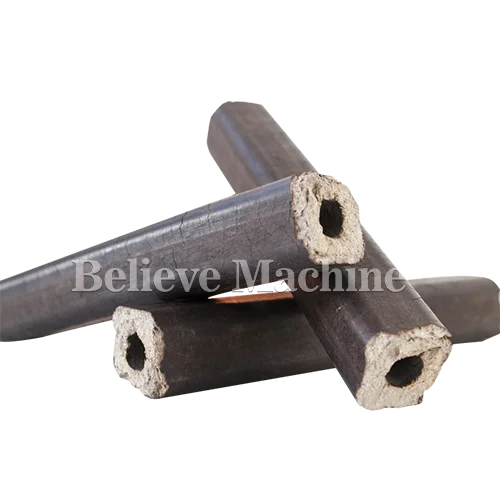

Finished product from the charcoal briquette machine:
1.The size: diameter of outlet briquettes can be 50-80mm;
2.The shape:Round, square, hexigonal stick shape;
3. The features:high density, good appearance and small in size, etc.
2.The shape:Round, square, hexigonal stick shape;
3. The features:high density, good appearance and small in size, etc.
Specification
Model | Power (kw) | Capacity (kg/h) | Size (m) |
BLW-50 | 18.5 | 500 | 1.55*0.5*1.5 |
BLW-80 | 22 | 800 | 1.8*1.1*1.5 |

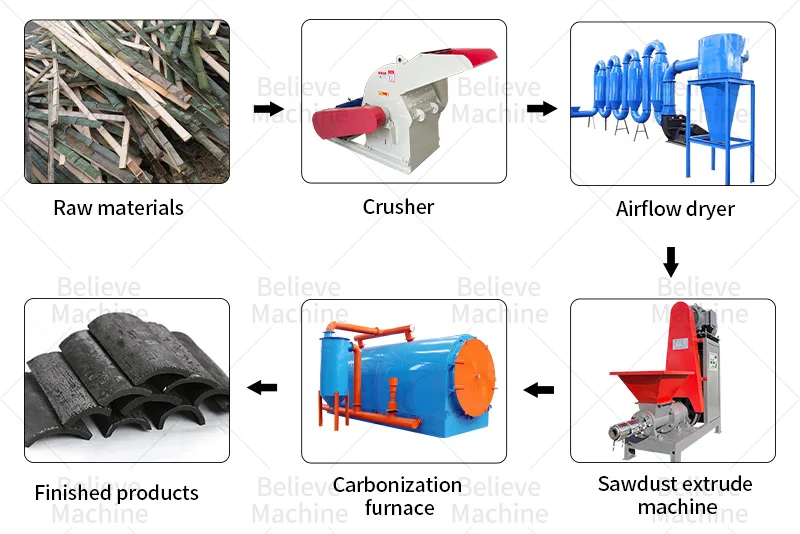

Product Line
Hot sale sawdust making machine prices small briquette machine biomass briquette extruder machines wood sawdust The entire production line for coal and charcoal
1. Crush the raw materials into small pieces (with a diameter of about 3-5mm);
2. Dry with a machine or in sunlight until the moisture content is below 12%;
3. Place the material into the feeding port of sawdust extrude machine;
4. Produce wood sticks without any additives from biomass raw materials;

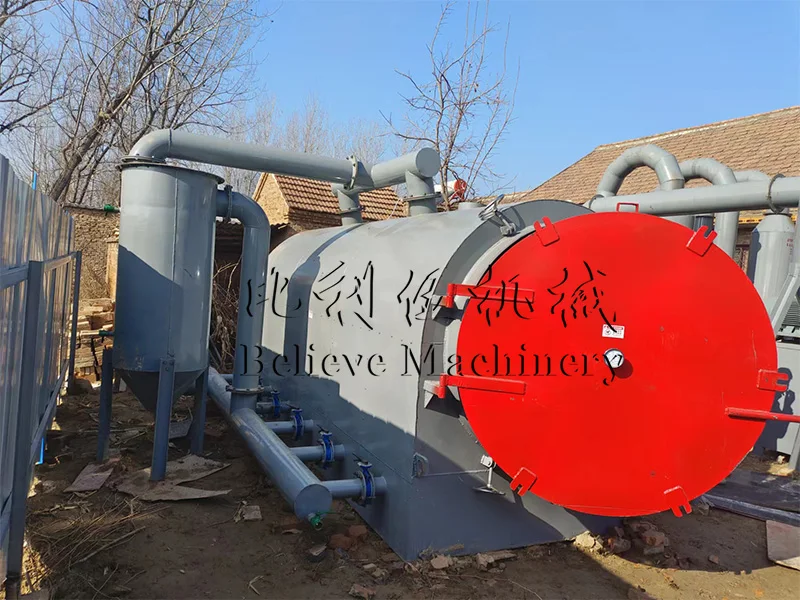

5. Carbonize the wood sticks.
6. Pour the remaining crushed materials in the furnace into the pulverizer and grind them into powder.
7. Pour the crushed material into molding machines such as ball pressing machines, hydraulic machines, and coal rod machines.
1. Crush the raw materials into small pieces (with a diameter of about 3-5mm);
2. Dry with a machine or in sunlight until the moisture content is below 12%;
3. Place the material into the feeding port of sawdust extrude machine;
4. Produce wood sticks without any additives from biomass raw materials;
5. Carbonize the wood sticks.
6. Pour the remaining crushed materials in the furnace into the pulverizer and grind them into powder.
7. Pour the crushed material into molding machines such as ball pressing machines, hydraulic machines, and coal rod machines.
Main features
❤ .Eco-friendly energy especially for agricultural countries
❤ .Equipped with automatic temperature control system and automatic briquette cutting system
❤ .Wood biomass briquette after carbonization are perfect charcoal which is widely used
❤ small size, light weight, simple installation, easy to operate;
❤ .high efficiency, saving energy obviously.
❤ .secure, reliable, very safe for the operator;
❤ .a unique circulation system, ensure that the equipment 24 hours of continuous work.
❤ .Equipped with automatic temperature control system and automatic briquette cutting system
❤ .Wood biomass briquette after carbonization are perfect charcoal which is widely used
❤ small size, light weight, simple installation, easy to operate;
❤ .high efficiency, saving energy obviously.
❤ .secure, reliable, very safe for the operator;
❤ .a unique circulation system, ensure that the equipment 24 hours of continuous work.

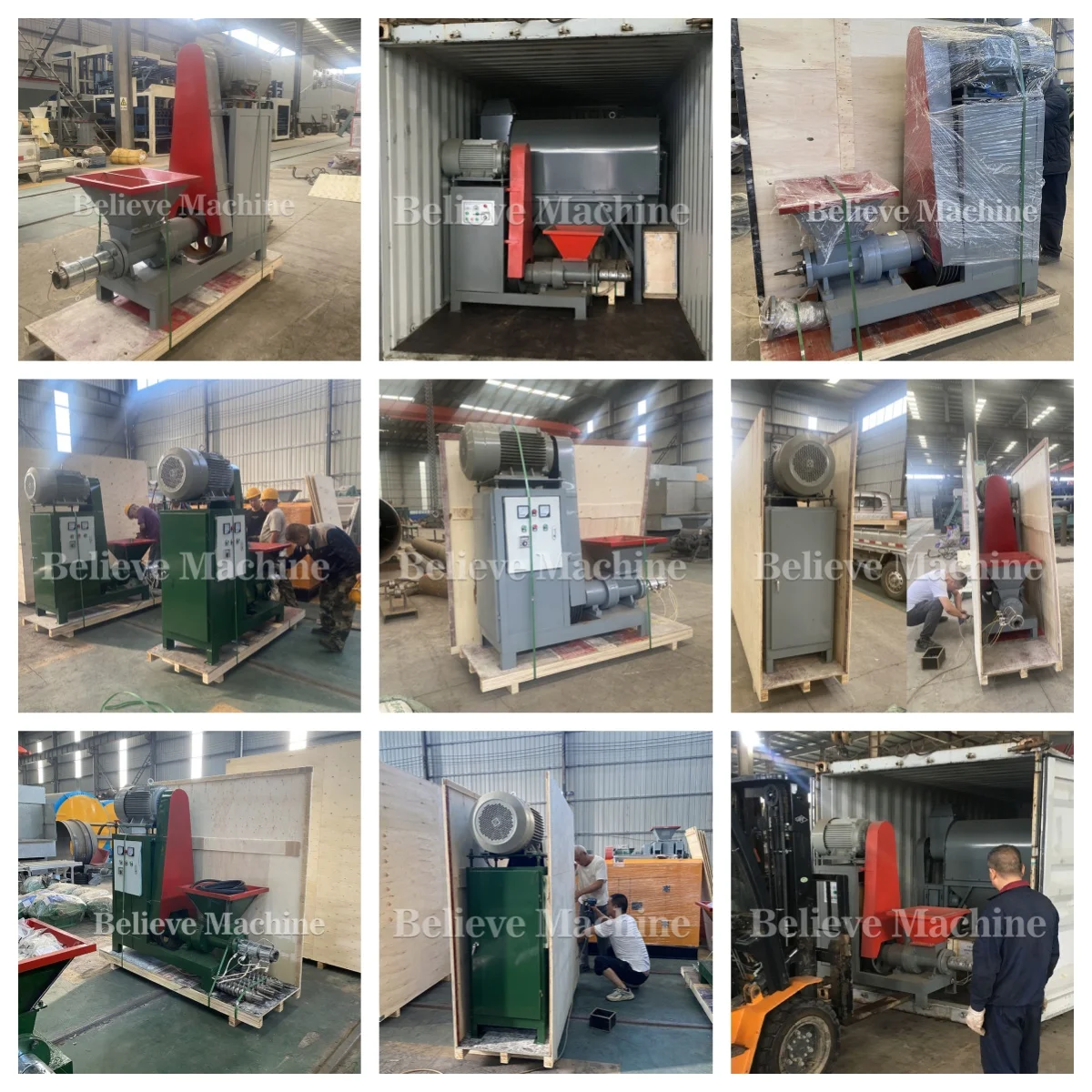

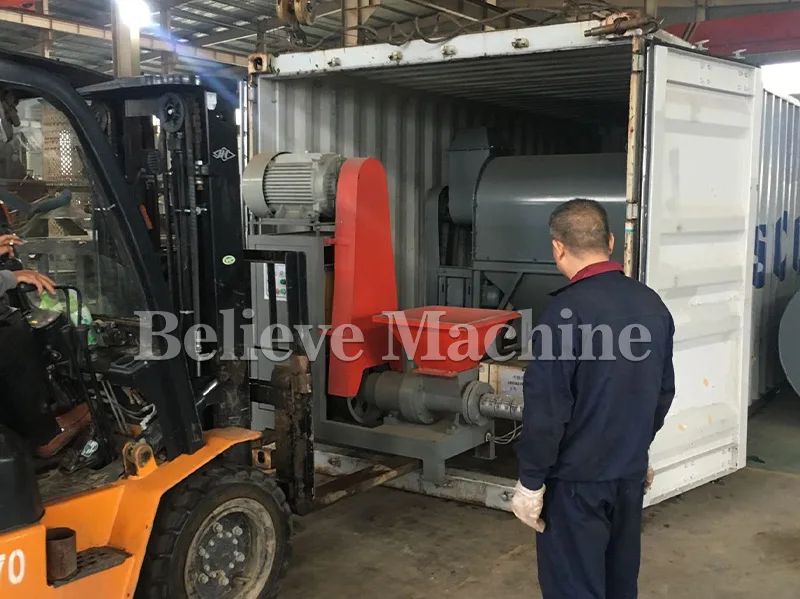

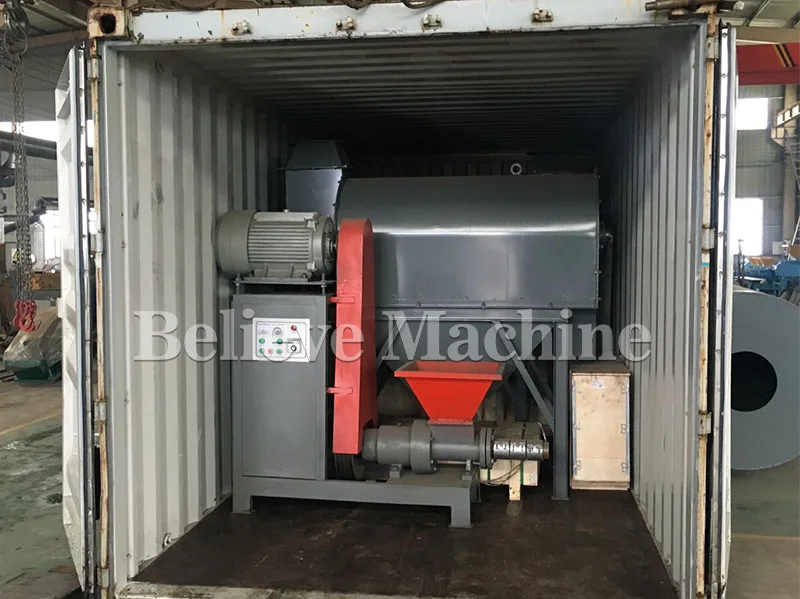

Packing & Delivery

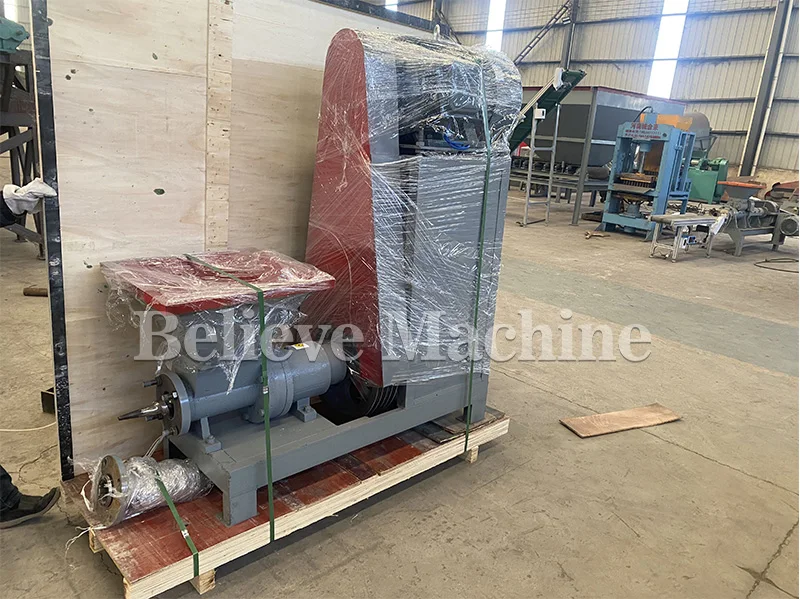

Packaging
⭐. First of all the machine with plastic film.
⭐. According to the size and weight, use wooden or metal box, fixed the machine into the box. (box materials can be used as your requirements).
⭐. Required of the machine parts will be placed on a fixed container to avoid collision and wear or lost.
⭐. According to the size and weight, use wooden or metal box, fixed the machine into the box. (box materials can be used as your requirements).
⭐. Required of the machine parts will be placed on a fixed container to avoid collision and wear or lost.
Shipping
Transportation:Shipping by LCL,FCL by sea transport.
Delivery time:3-7 days ,after deposit,Special circumstance will notify.
Shipping:we can be responsible for the shipping ,also accept client shipping agent.
Shippingport:Tianjin,Qingdao,Shanghai,Guangzhou etc.
Delivery time:3-7 days ,after deposit,Special circumstance will notify.
Shipping:we can be responsible for the shipping ,also accept client shipping agent.
Shippingport:Tianjin,Qingdao,Shanghai,Guangzhou etc.
Company Profile
We are real manufacturer, we produce ball press machine, tablet press machine, hydraulic press machine, pulverizer, charcoal furnace and so on type of molding machine. We have our own production team and R&D team. We always insist on the concept of quality and service and the principle of customer first, and we have won more than twenty national patents over the past decades, with excellent products and perfect after-sales service. Over the years, it has received numerous favorable comments from customers..

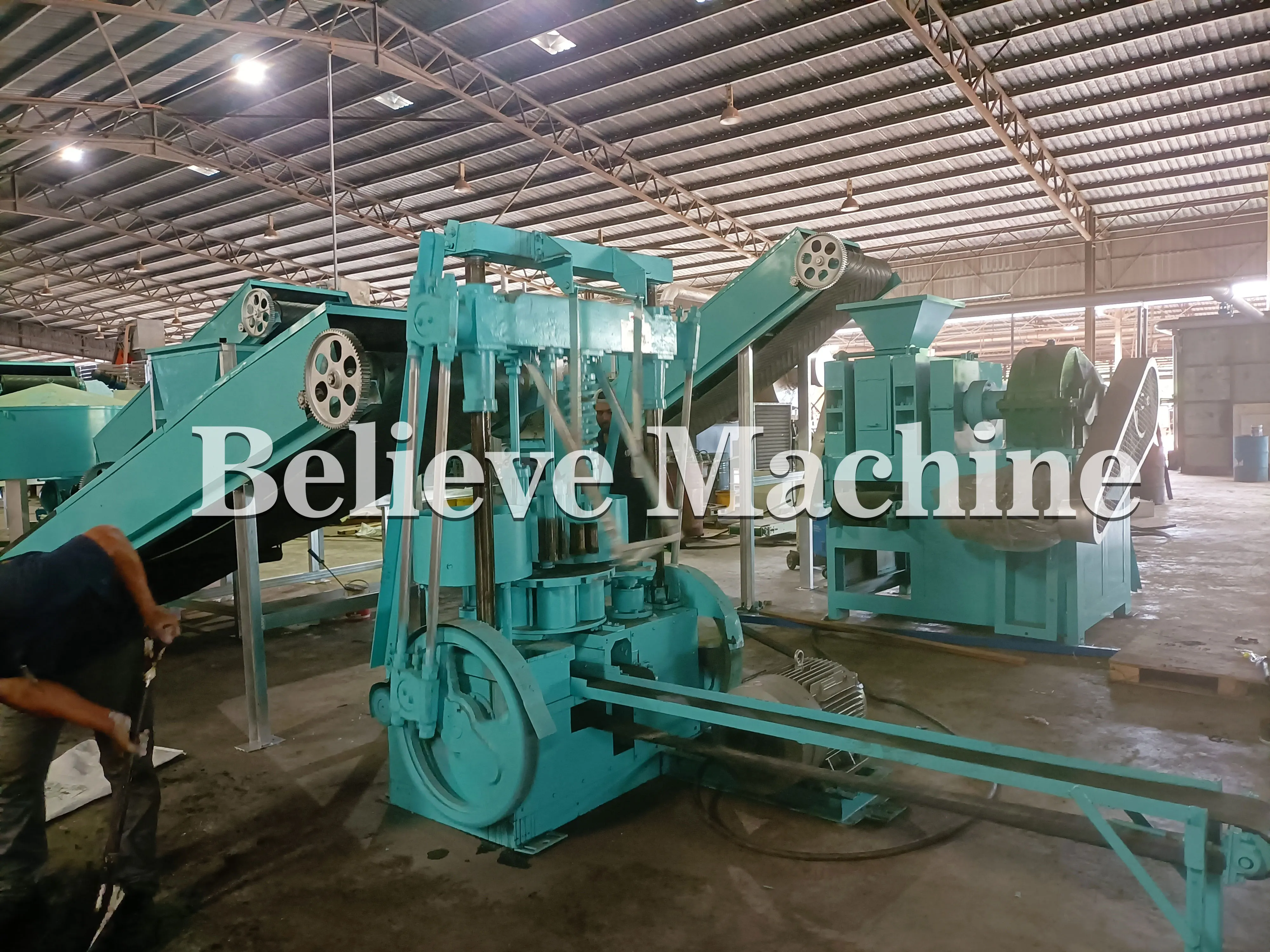

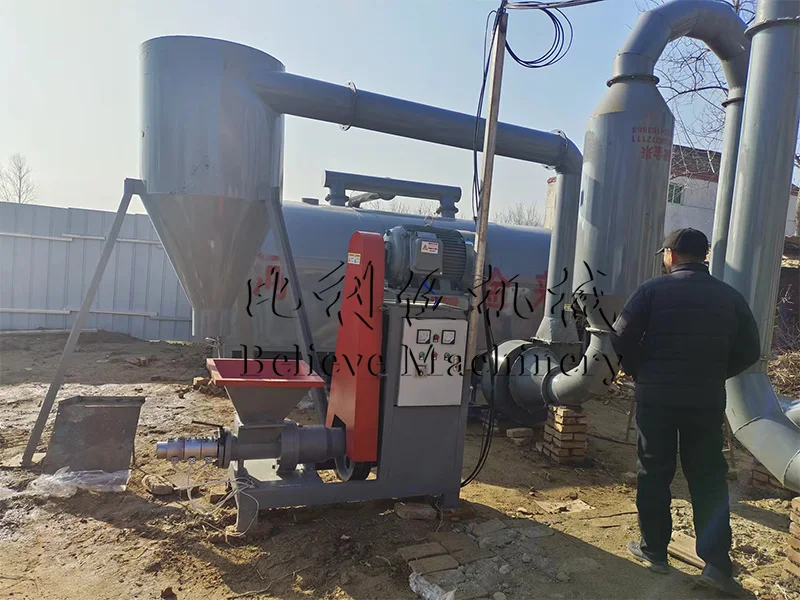

Successful Projects
Our services
Pre-sale service
1. according to your needs, choose the model suitable for you. 2.
2. according to your special requirements, design customized solutions and produce customized products for you.
Sales
1. Sign the contract, pay the deposit, we arrange the production. 2.
2. Product acceptance.
3. Help you make the construction plan.
After-sales service
1. Assigning engineers to provide on-site service for you free of charge.
2. install and debug the equipment, train the operation method. 3.
3. After installation, 1-2 technicians will be left behind to assist you in on-site production until customer satisfaction is reached.
1. according to your needs, choose the model suitable for you. 2.
2. according to your special requirements, design customized solutions and produce customized products for you.
Sales
1. Sign the contract, pay the deposit, we arrange the production. 2.
2. Product acceptance.
3. Help you make the construction plan.
After-sales service
1. Assigning engineers to provide on-site service for you free of charge.
2. install and debug the equipment, train the operation method. 3.
3. After installation, 1-2 technicians will be left behind to assist you in on-site production until customer satisfaction is reached.
