most quality 12v 24v 60led/m 180led/m smd 2835 ip20 ip42 ip65 ip67 indoor outdoor flex rope led strip light
- Category: >>>
- Supplier: Shenzhen Longsheng Photoelectric Technology Co. Ltd.
Share on (1601224958845):
Product Overview
Description

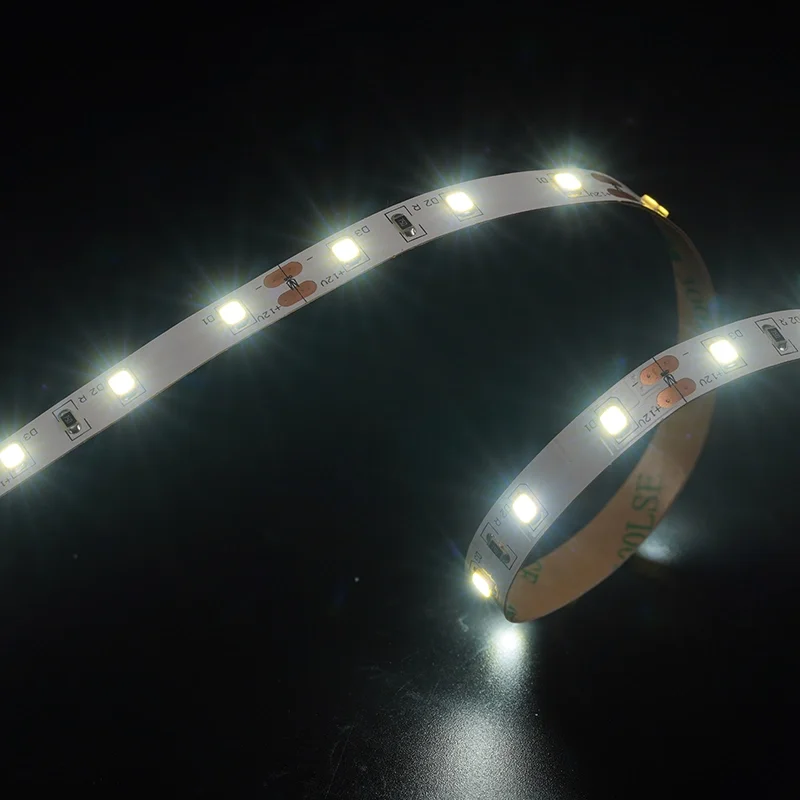

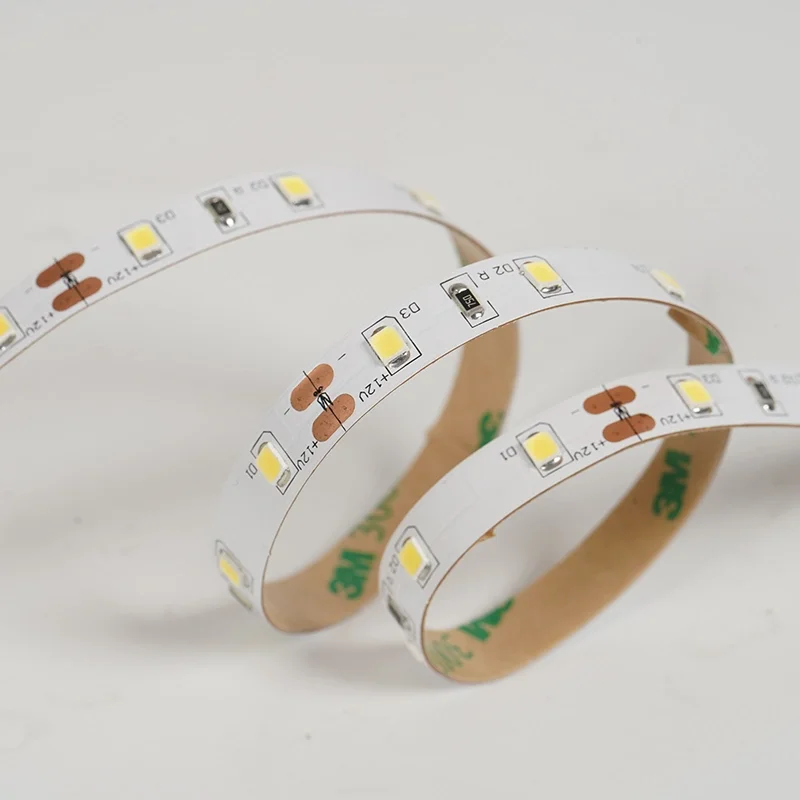

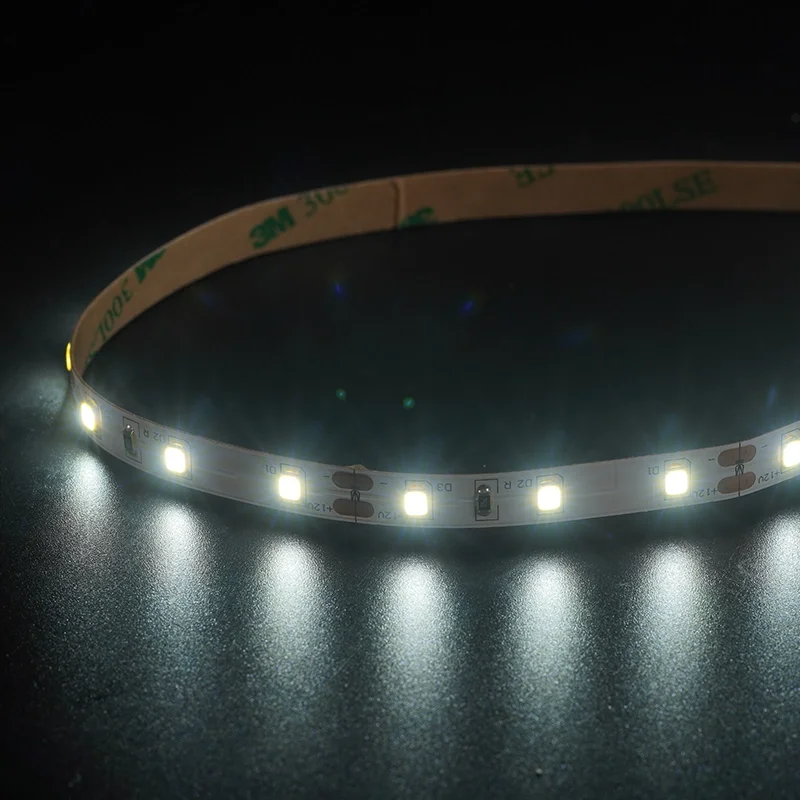

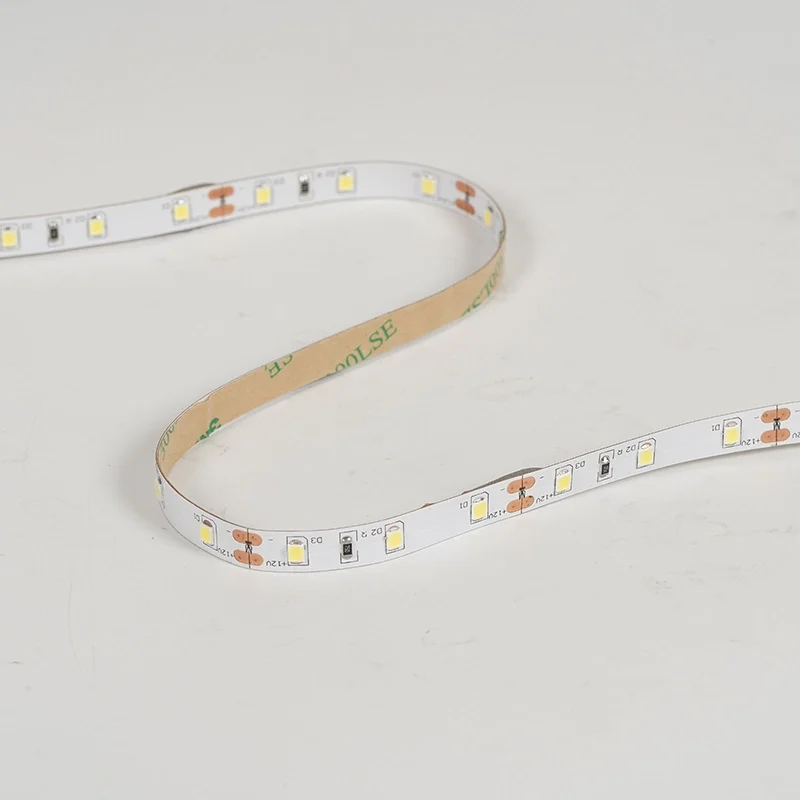

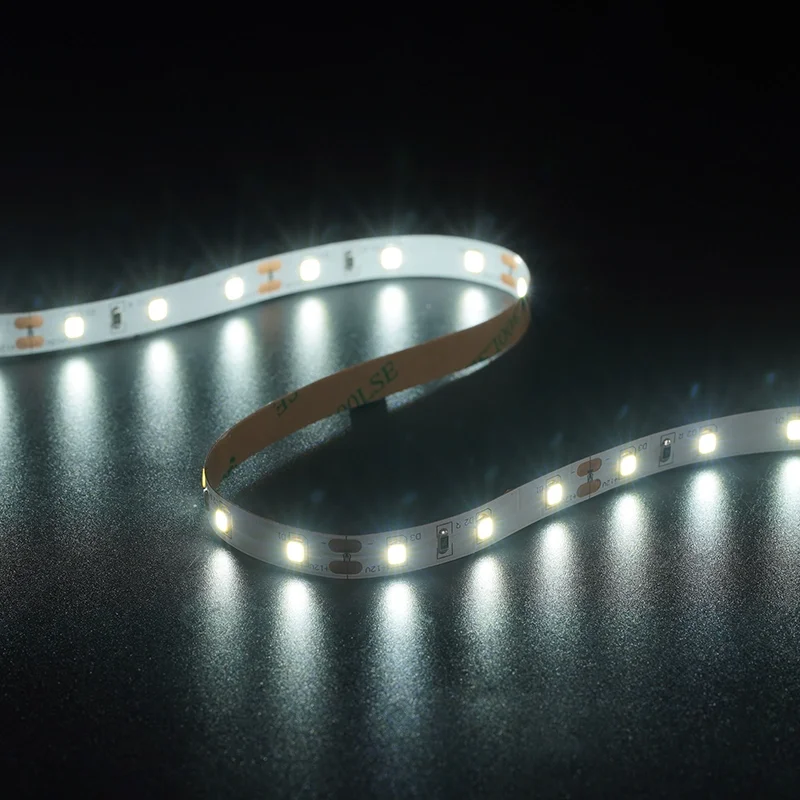

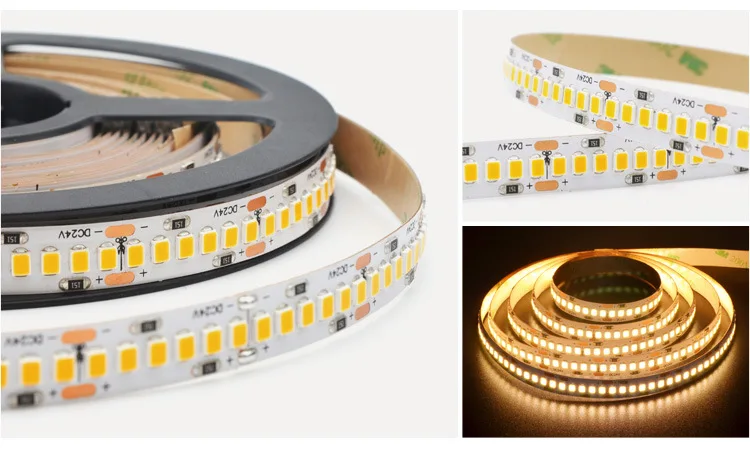

SMD 2835 Flexible LED Strip Lights CRI>90
Product Description
1. LED Type: SMD2835
2. LED Qty: 60leds/m, 72leds/m,120leds/m, 140leds/m, 180leds/m, 240leds/m, 480leds/m
3. Power: 4.8W/m, 6W/m, 9.6W/m, 12W/m, 14.4W/m, 19.2W/m
4. PCB: 5000*5mm, 5000*8mm, 5000*10mm
5. Input voltage: DC5V/DC12V/DC24V
6. Package: 5meters/roll
7. 2835: 3LEDs-cuttable (DC12V); 6LEDs-cuttable(DC24V); 1LEDs-cuttable( DC5V)
8. Connect quickly with connectors
9. Match the suitable power supply and remote controller
10.3m self-adhesive or matched mounting clip for easy stallationCertificate: CE & RoHS approval
11. Warranty: 3 years
Specifications:
1.Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low luminous Decay.
2.Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.
3. We always require same bin number SMD LEDs for different production batches for the same customer.
4.We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch. Normally 5 MacAdam LED is +/-100k
5. We can produce 3 MacAdam LED Strip/tape as customer request.
- 2835 assembled LEDs
- CIR 90/95/97
- One Bin for production, uniform light
- High Birghtness and high density
- Unqiue and strong PCB design
- 3 years warranty
| Item Type | 2835 Flexible LED strip Ra>90 one LED cuttable |
| LED Model | FE-2835-60 FE-2835-72 FE-2835-120 FE-2835-140 FE-2835-168 FE-2835-180 FE-2835-240 |
| LED QTY | 60leds/m, 72leds/m, 120leds/m, 140leds/m, 168leds/m 180leds/m, 240leds/m |
| CCT | 2700K/3000K/4000K/5000K/6000K |
| Ra | 80 or 90 or 95 or 97 |
| Dimmension(mm) | 5000*5*2 (L*W*H), 5000*8*2 (L*W*H),5000*10*2 (L*W*H), customized size |
| IP rating | IP20/IP65/IP67/IP68 |
| Beam Angle | 120° |
| Certificate | CE/ROHS |
| Warranty | 3 years |
FENI-LIGHTIGN Competitors
Connection and package
Q:How to choose the suitable power supply for 2835 120leds/m led strip?
A: 2835 120leds led strip is 9.6W/M normal
5M* 9.6W Per Meter Strip =48W
48W+ 20% Headroom For The PSU =105.6W
Select a 120W Power Supply Or Higher
Application
Company Profile
Certificate
FAQ
1. Are you a factory?Where is your factory?
Re: Yes, we are a profassional manufacture of led strips in shenzhen china,with over 8 years overseas marketing experience,and we have a subsidiary which are specialized in led indoor lighting and outdoor lighting .Welcome to our factory.
2. What kind of OEM do you provide?
Re: OEM design/packing/length/Color/ornaments shape/open mould when request. If you need us design your logo and brand on the product pls advise us your ideas.
3. Can I have samples to test?
Re: Yes, sample available.
Sample cost can be refundable after order confirmation when your quantity of the order reaches MOQ.
4. What's the payment method you accept?
Re: Usually by T/T. You can also pay by L/C, Western Union, Paypal and so on.
Re: Usually by T/T. You can also pay by L/C, Western Union, Paypal and so on.
5. How about the warranty?
Re: 5 years, 3 years, 2 years, 1 year,etc. Also can depend on customers’ requirements.
6.What is Delivery Time?
Re: 7~10 days or 10-15 days for normal orders; fast shipping for exact delivery time needs to discuss according to your order list ; for big & special orders,we both can negotiate.
7. What is the MOQ?
Re: Small order is available.
8. What is the package?
Re: Plain White Box; Colorful Box,Blister Package,etc , other designs. Also you can offer your own designs, you can also come to us for exact pictures for packing.
9. What is your shipping method?
Re: UPS,DHL,Fedex,TNT or EMS or Shipping by Air; Vessels by Sea or Domestic Shipping.
