Product Overview
Description
Products Description

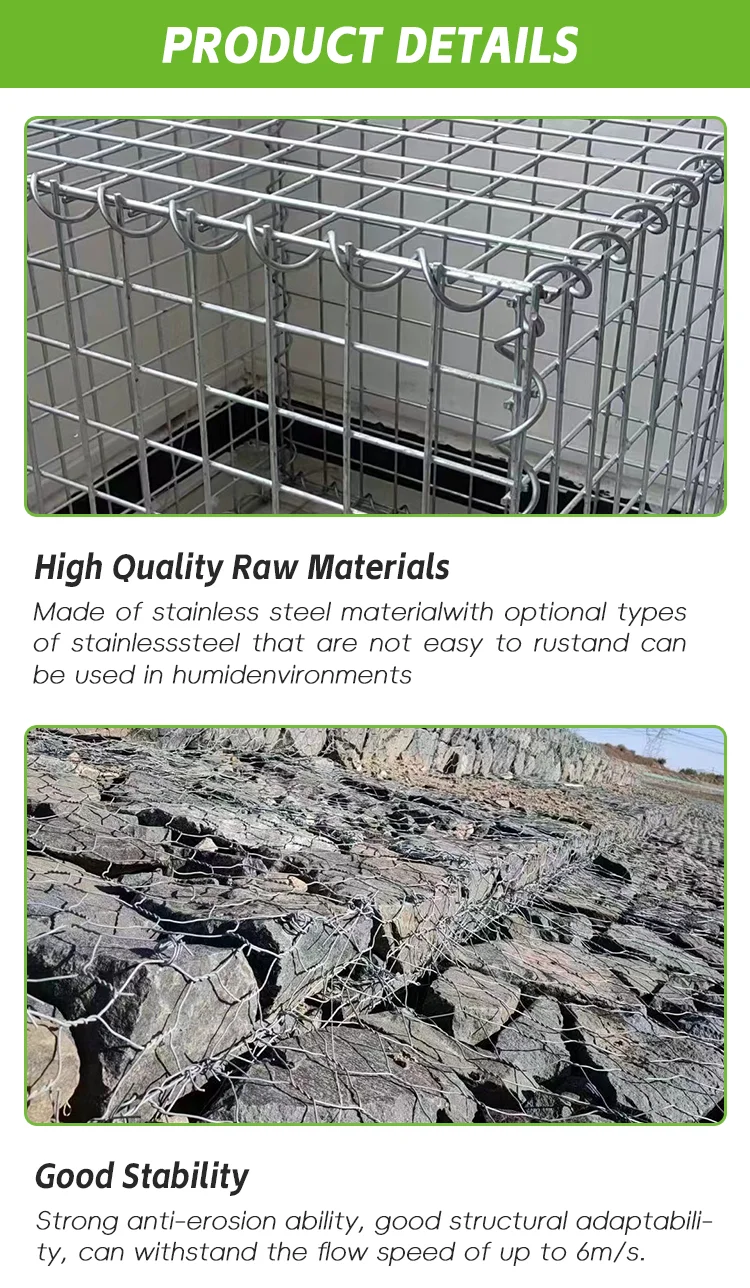

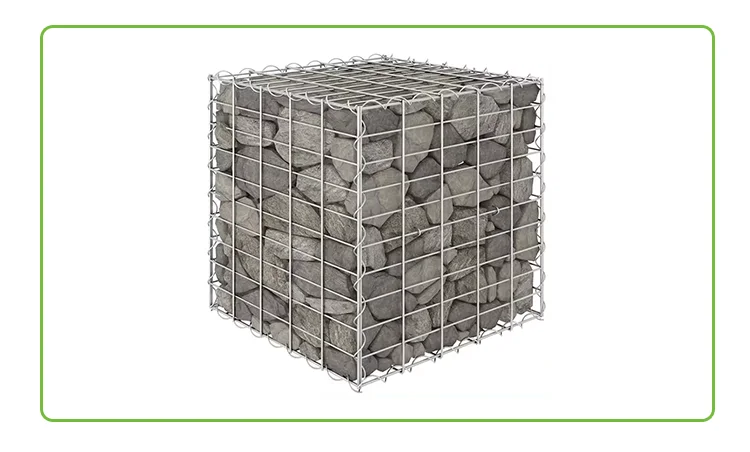

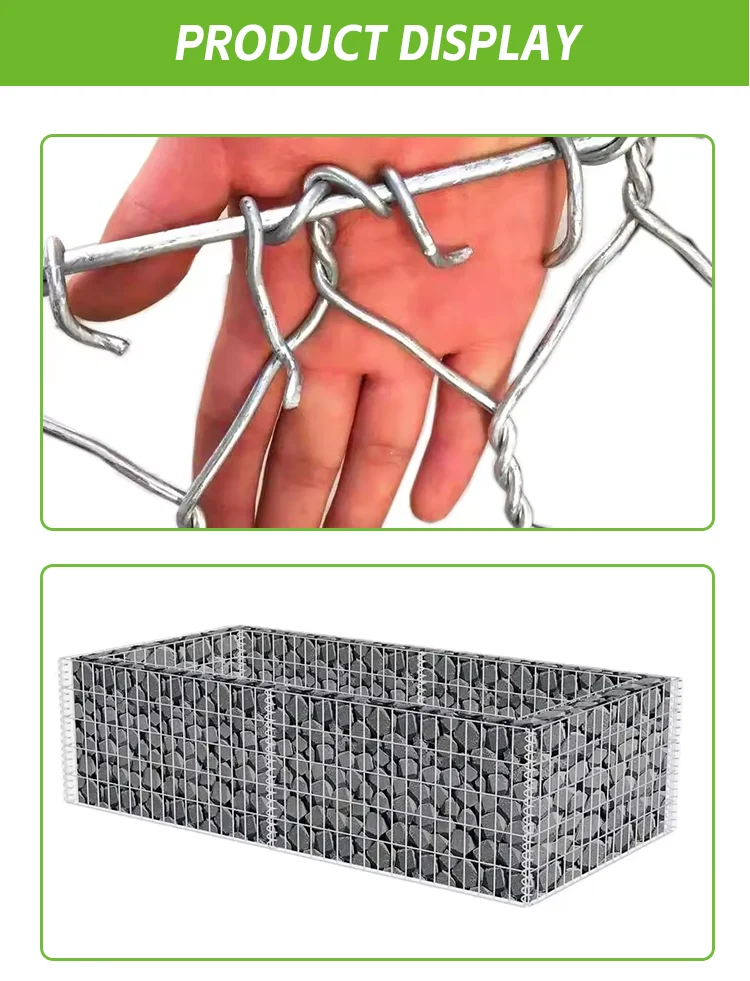

Gabion Wire Mesh

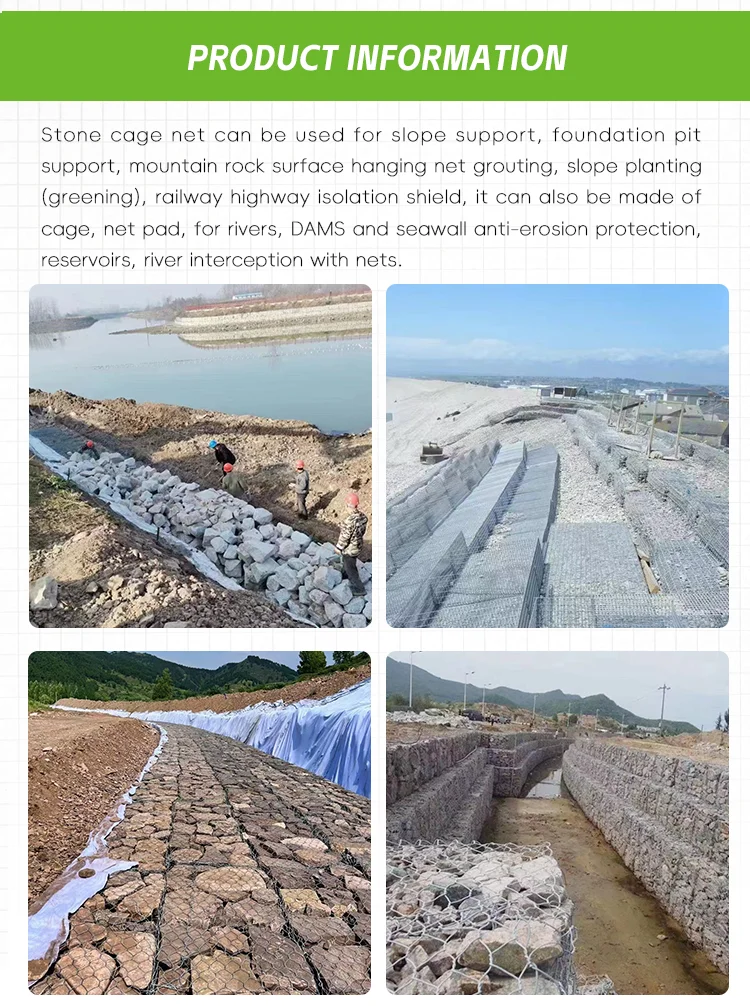

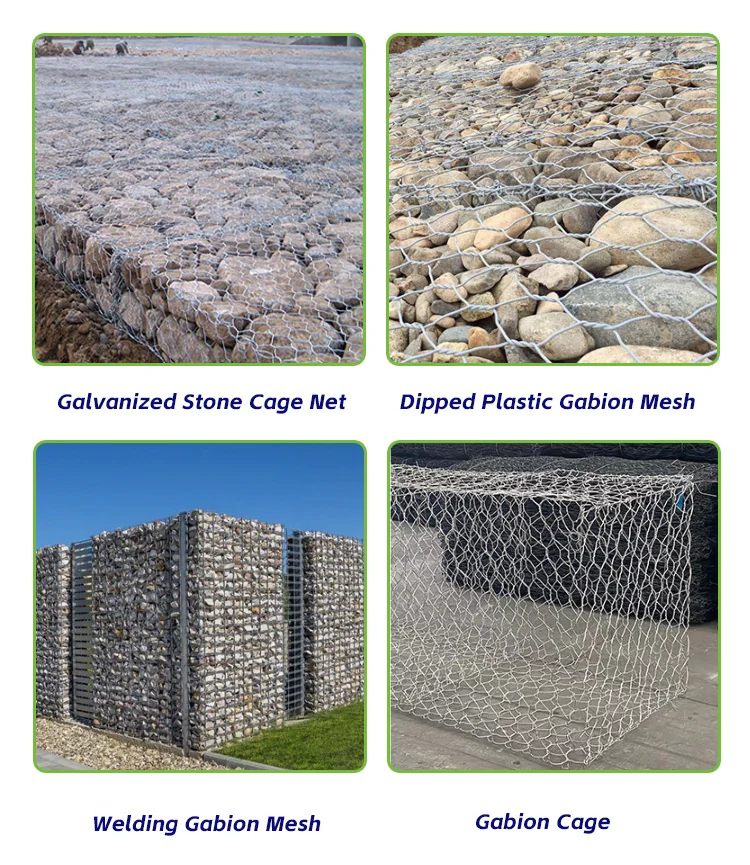

Stone cage net can be used for slope support, foundation pit support,mountain rock surface hanging net grouting, slope planting(greening),railway highway isolation sheield,it can also be made of cage,net pad,for rivers,DAMS and seawall anti-erosion protection, reservoirs, river interception with nets.

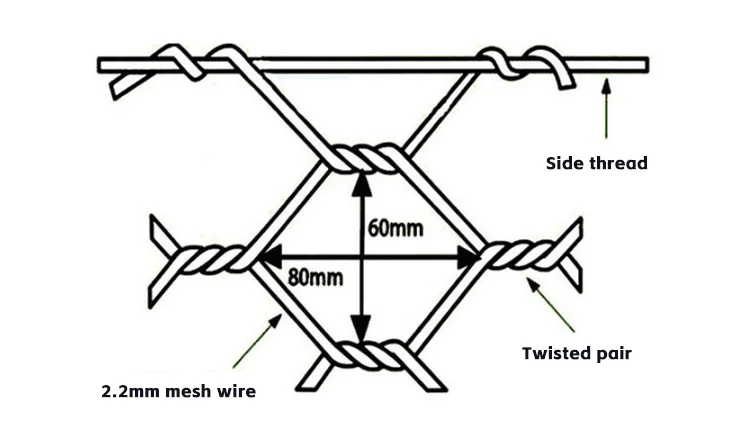

Hexagonal Metal Mesh Gabion | ||||||||||
Model | Opening (mm) | Body wirematerial | Side wire | Tie wire | Maximumwidth | |||||
DL60型 | 60x80 | 2.0-2.8 | 3.0-4.0 | 2.0-2.2 | 1.5m-6m | |||||
DL80型 | 80x100 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 1.5m-6m | |||||
DL80w型 | 约80x120 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 1.5m-6m | |||||
DL100型 | 100x120 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 1.5m-6m | |||||
DL100w型 | 100x150 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 1.5m-6m | |||||
DL120型 | 120x150 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 1.5m-6m | |||||

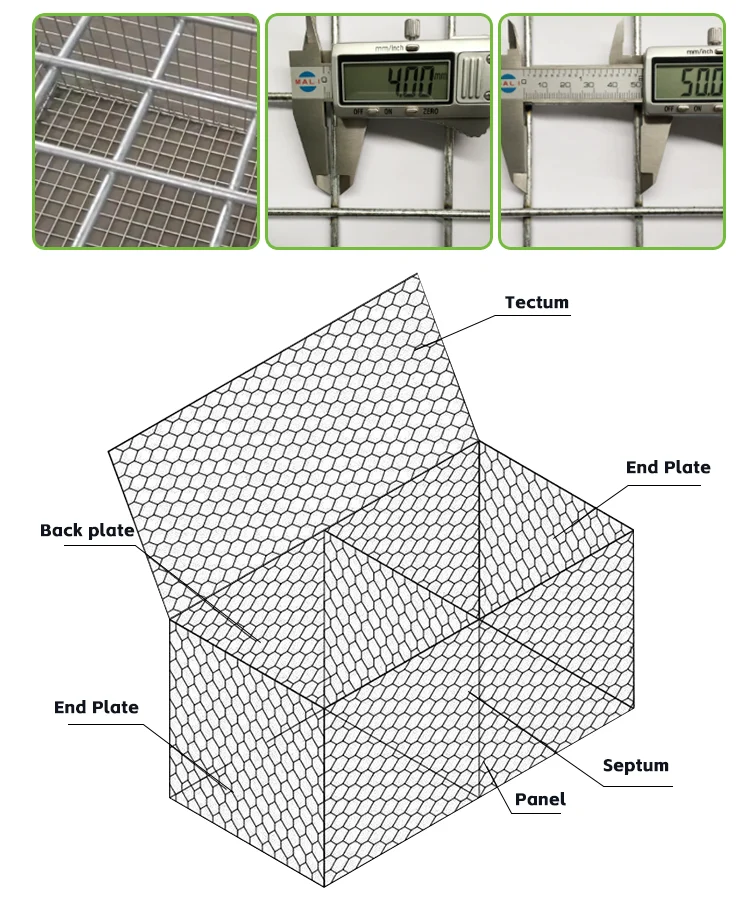

Dimensions of Gabion | ||||||||||
Length | Width | Height | Diaphragm | Volume (㎡) | Tolerance | |||||
2.0 | 1 | 0.15-0.3 | 1 | 0.3-0.6 | Width：5% Height：5% | |||||
3.0 | 1 | 0.15-0.3 | 2 | 0.45-0.9 | ||||||
4.0 | 1 | 0.15-0.3 | 3 | 0.6-1.2 | ||||||
2.0 | 1 | 0.5 | 1 | 1.0 | ||||||
3.0 | 1 | 0.5 | 2 | 1.5 | ||||||
4.0 | 1 | 0.5 | 3 | 2.0 | ||||||
1.0 | 1 | 1.0 | 0 | 1.0 | ||||||
1.5 | 1 | 1.0 | 0 | 1.5 | ||||||
2.0 | 1 | 1.0 | 1 | 2.0 | ||||||
3.0 | 1 | 1.0 | 2 | 3.0 | ||||||
4.0 | 1 | 1.0 | 3 | 4.0 | ||||||

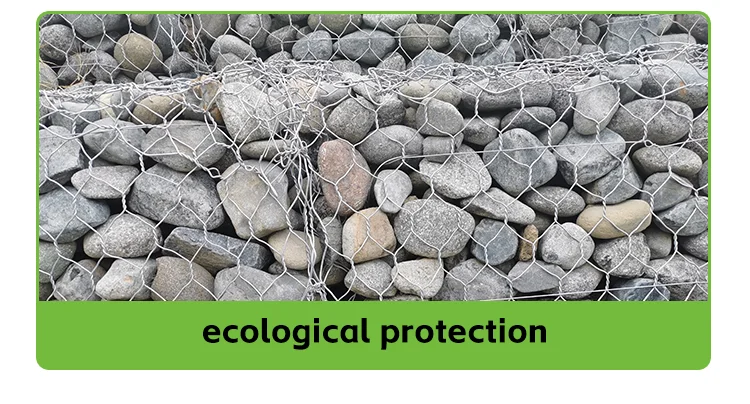

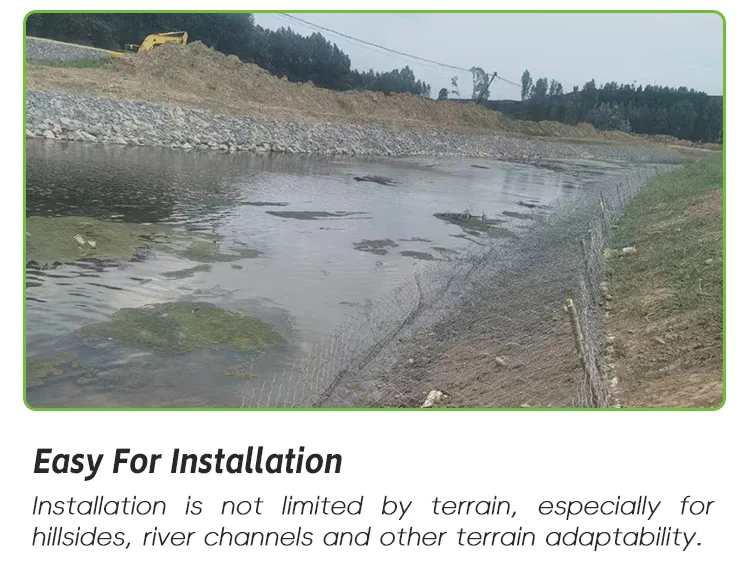

Usage Scenario
Loading & Shipment
Company Profile
Certifications
Customer Photos
FAQ
A: We are manufacturer,and we are in fence field for more than 20years.
Q: What's the lead time?
A: Normally our lead time is 20-30 days after we received the payment inadvance.Urgent order can be negotiated.
Q: Can you provide samples?
A: Yes, we can provide samples for you for free. You just need to bearthe samplefreight only. Once offacial order placed, we will deduct thesample freight from the total amount.
Q: How do you control the goods quality?
A: We are iSO certificated manufacturer, Qualified QC system is necessaryfor us.We have strict QC system from raw material purchasing until goodsloading
Q:Do you accept customized order?
A: Yes, you are highly welcome to place customized order to us. We havetechnical team to support and rich experiences to ensure zero error.
Q:i don't know how to install the products, can you do tutor services?
A: We are glad and we are professional to do tutor services. installationvideos can be provided.lf that can not meet your need, we can sendtechnicians for site tutoring.
