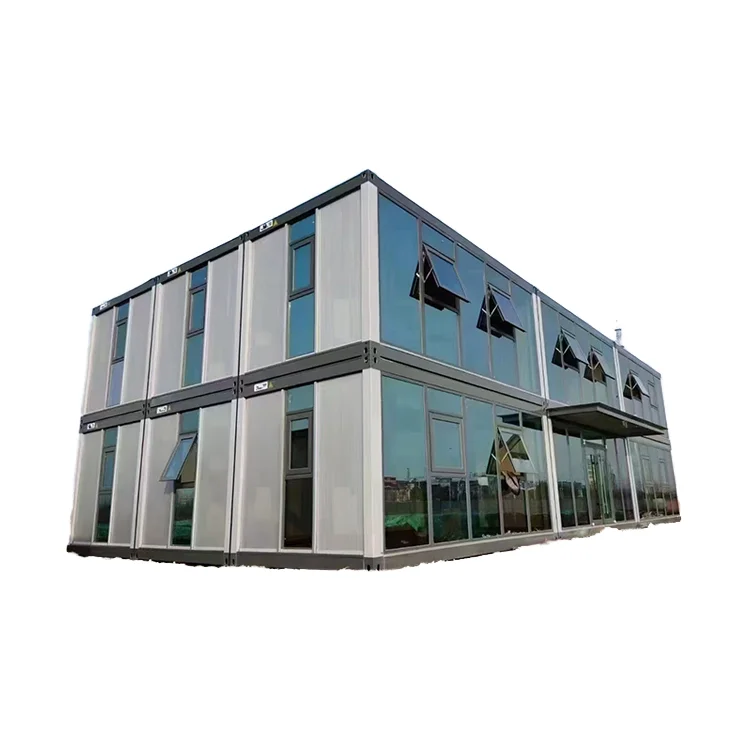

Luxury 20ft Mobile Office Container House Competitive Price Modular Detachable Flat Pack Home Shop Villa Includes Bedroom Toilet
- Category: >>>
- Supplier: Tangshan Junnan Trade Co. Ltd.
Share on (1601225101079):
Product Overview
Description

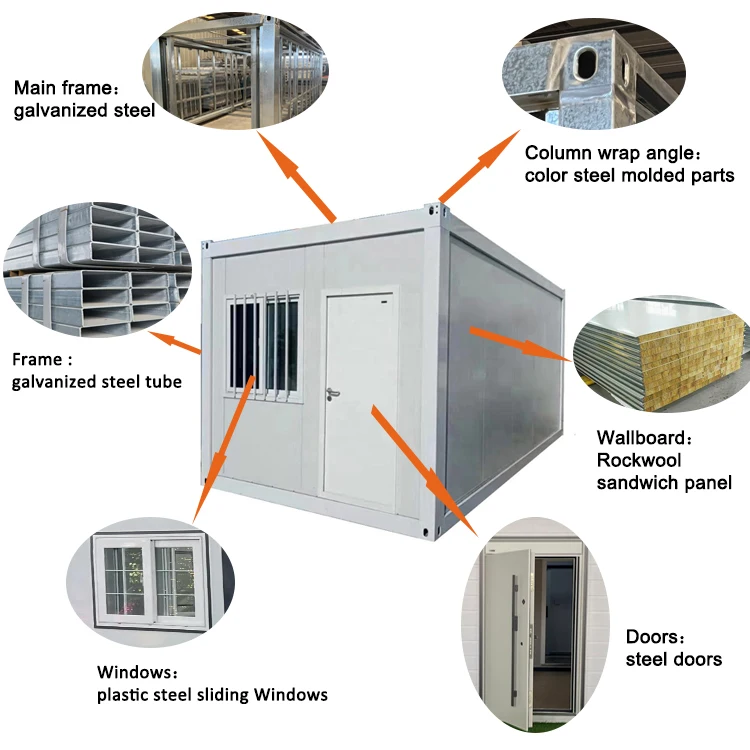

prefab flat pack Container House Configuration Parameters | ||||
Basic feature | External dimensions(mm) | 5835 length*2438 width*2896 height | ||
Internal dimensions (mm) | 5685 length*2288 width*2515 height | |||
Ground live load | 2.0KN/m² | |||
Structured surface | Electrostatic spraving white | |||
Main frame | Top frame | 170mm,top and side beams 2.3mm-2,top crossbeams-2,purlins of over 50 square steel -7,20*20*6000 square tubes -2,and 1 set of explosion-proof wire box. | ||
Bottom Frame | 160mm,bottom side beam 2.3mm-2 supports,bottom crossbeam-2 supports,purlins of 120 square steel-9 supports | |||
Pillar system | 2533*150*210*2.3mm | |||
Floor | Ground | 18mm glass magnesium plate | ||
1.6mm PVC plastic flooring | ||||
Wallboard | Composite plate | 950 double sided 0.30mm-75mm rock wool with a unit Weight of 50KG/m³，glass wool with a unit weight of 50KG/m³,H-port,with orange peel an one side and plain white on the othe,double-sided PE film. | ||
Doors and windows | Doors and windows | Steel door 970*1970mm | ||
1120*1120-2 plastic steel sliding windows,double push and double push,equipped with screen windows and anti-thef guardrails(U-PVC) | ||||
Electrical equipment | Light | LED decorative light 36W*2 | ||
Socket | Five l0A five hole socket, two 16A three hole socket | |||
Switch | One concealed distribution box with one single button switch | |||
Wire | 2*2.5² lighting,2*2.5² socket, 3*4² air conditioning socket,3*6² incoming line | |||
Industrial socket | 220V 50Hz 3P32A | |||
Decoration | Column wrap angle | 2535mm color steel plate | ||
House bottom | U-shaped flume | |||
Accessory | Wall panel fasteners | Z-shaped ferrules | ||
Accessory | Matching screws, drill tail nails, floor nails,cross half round head | |||
PRODUCT INTRODUCTION

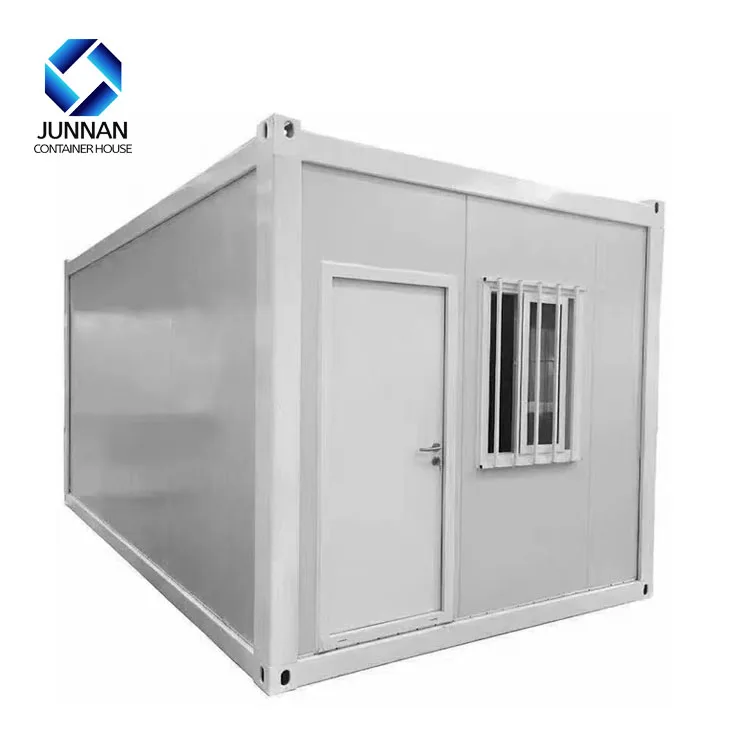

Prefab flat pack container house is sturdy and durable, with strong seismic resistance and deformation resistance.

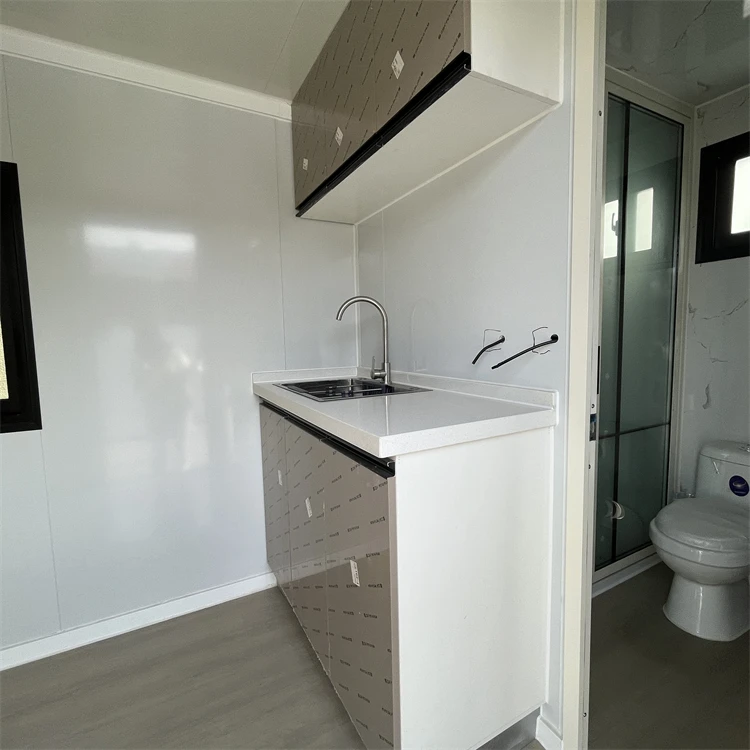

it has good sealing performance and can be assembled to expand the usage space, such as conference rooms,dormitory kitchens,bathrooms, etc. it is easy to disassemble and has superior performance, stable and firm performance, good shockproof p
erformance,waterproof,fireproof,and corrosion-resistant weight.
it has good sealing performance and can be assembled to expand the usage space, such as conference rooms,dormitory kitchens,bathrooms, etc. it is easy to disassemble and has superior performance, stable and firm performance, good shockproof p
erformance,waterproof,fireproof,and corrosion-resistant weight.

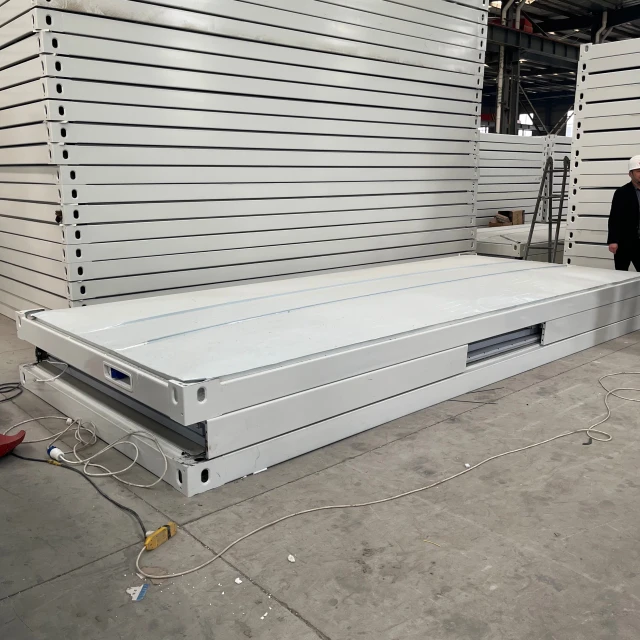

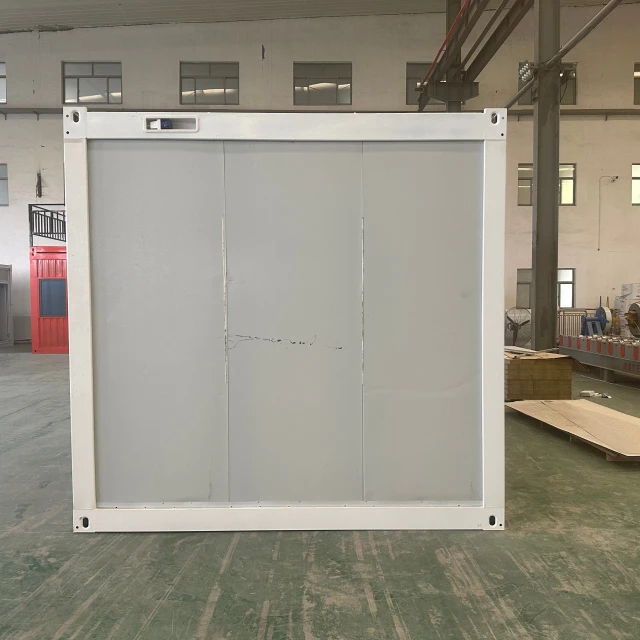

Folding Process
Delivery time: 3days after getting deposit. (based on actual quantity)

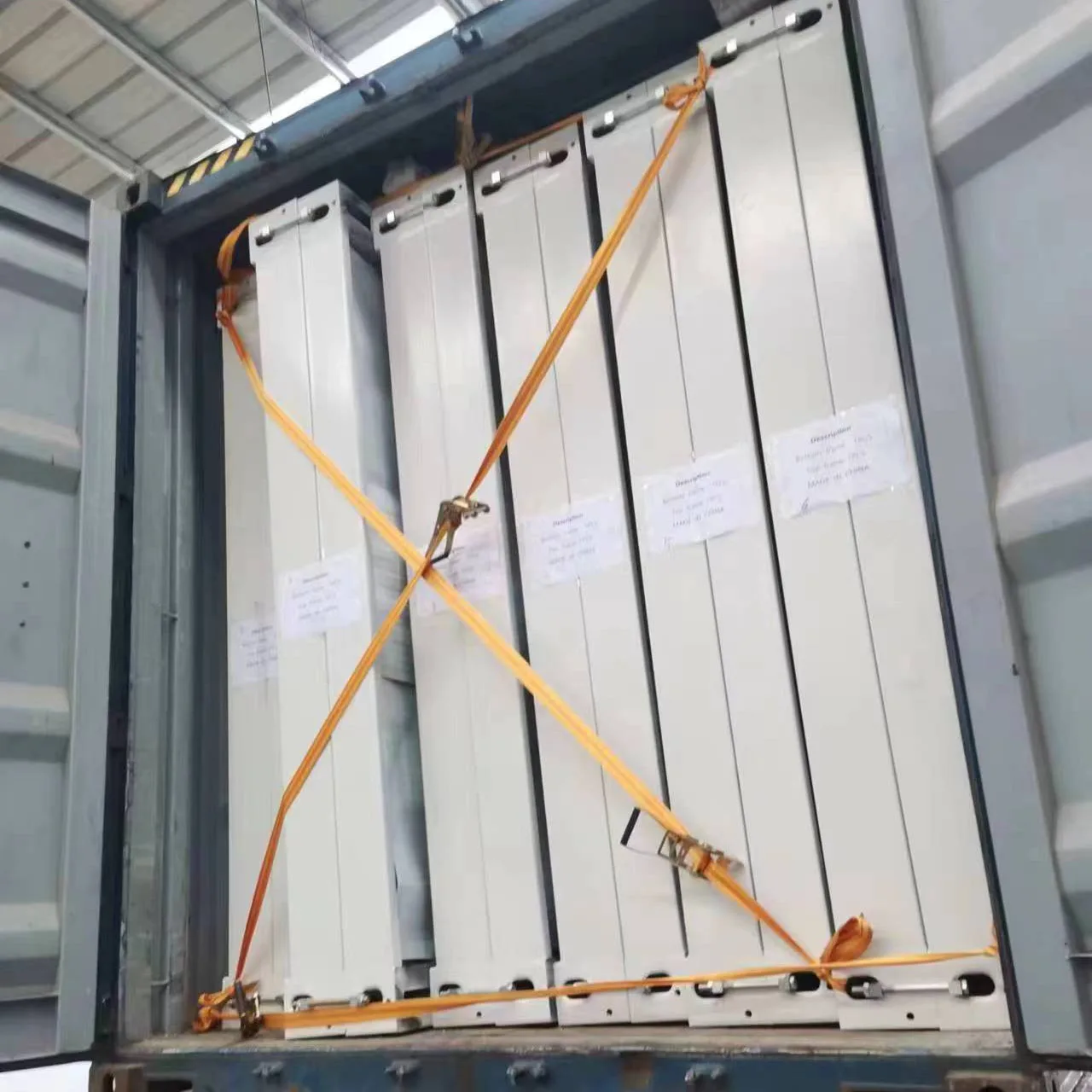

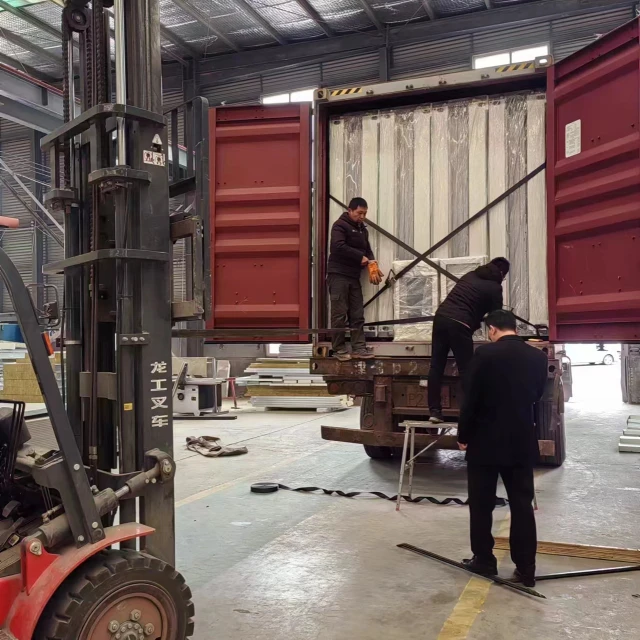

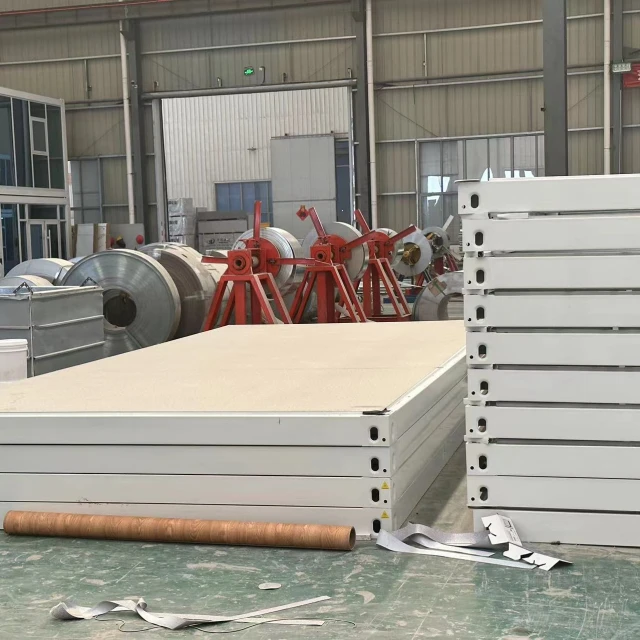

Package: Seaworthy export packages.
Package: Seaworthy export packages.
Tangshan Junnan Group was founded in 2015, which consists of five segments,Junnan Steel,Junnan Hardware, Junnan Steel Structure, Shuoen Machinery and Junnan Prefab House. Our Group started from iron and steel building materials, the founders and shareholders have more than 30 years of experience in the industry.
The company now spans across a wide range of fields, such as building materials, hardware,steel structure plants, steel machinery,prefabricated houses and so on.Junnan container house integrates designing,researching, developing, manufacturing and installation,to provide customers professional services with a full range of planning design and consulting, personalized customization of the whole industry chain.
The company now spans across a wide range of fields, such as building materials, hardware,steel structure plants, steel machinery,prefabricated houses and so on.Junnan container house integrates designing,researching, developing, manufacturing and installation,to provide customers professional services with a full range of planning design and consulting, personalized customization of the whole industry chain.
1. How long is the service life?
Answer: It can be used for 10 years.
2. What accessories are there in the container house?
Answer: We can provide you with furniture, household appliances, etc. according to your needs.
3.How many bedrooms are there in the container house?
Answer: It can be used for 10 years.
2. What accessories are there in the container house?
Answer: We can provide you with furniture, household appliances, etc. according to your needs.
3.How many bedrooms are there in the container house?
Answer: It can be customized for you according to the number of bedrooms you need.
4.How long is the warranty period?
Answer: One year. If you have any questions, please feel free to contact us to help you solve them.
4.How long is the warranty period?
Answer: One year. If you have any questions, please feel free to contact us to help you solve them.
