Stainless Steel Ceramic Clips Facade Cladding Hook Stainless Steel Anchor For Facade Fixing System For Porcelain Stoneware Tiles
- Category: >>>
- Supplier: Jiangsu Aozheng Metal Products Co. Ltd.
Share on (1601225211540):
Product Overview
Description
Specification
Product Description | |
1 | It is a security hook that allows you to comply with the requirements demanded by the regulations in force described in the Code Building Technician (CTE-DBHS1). |
2 | In the case of cladding on the facade, attached with adhesive cement, it guarantees respect for the standard and a breaking strength per hook between 50 and 65 kilos depending on the type of hook used. |

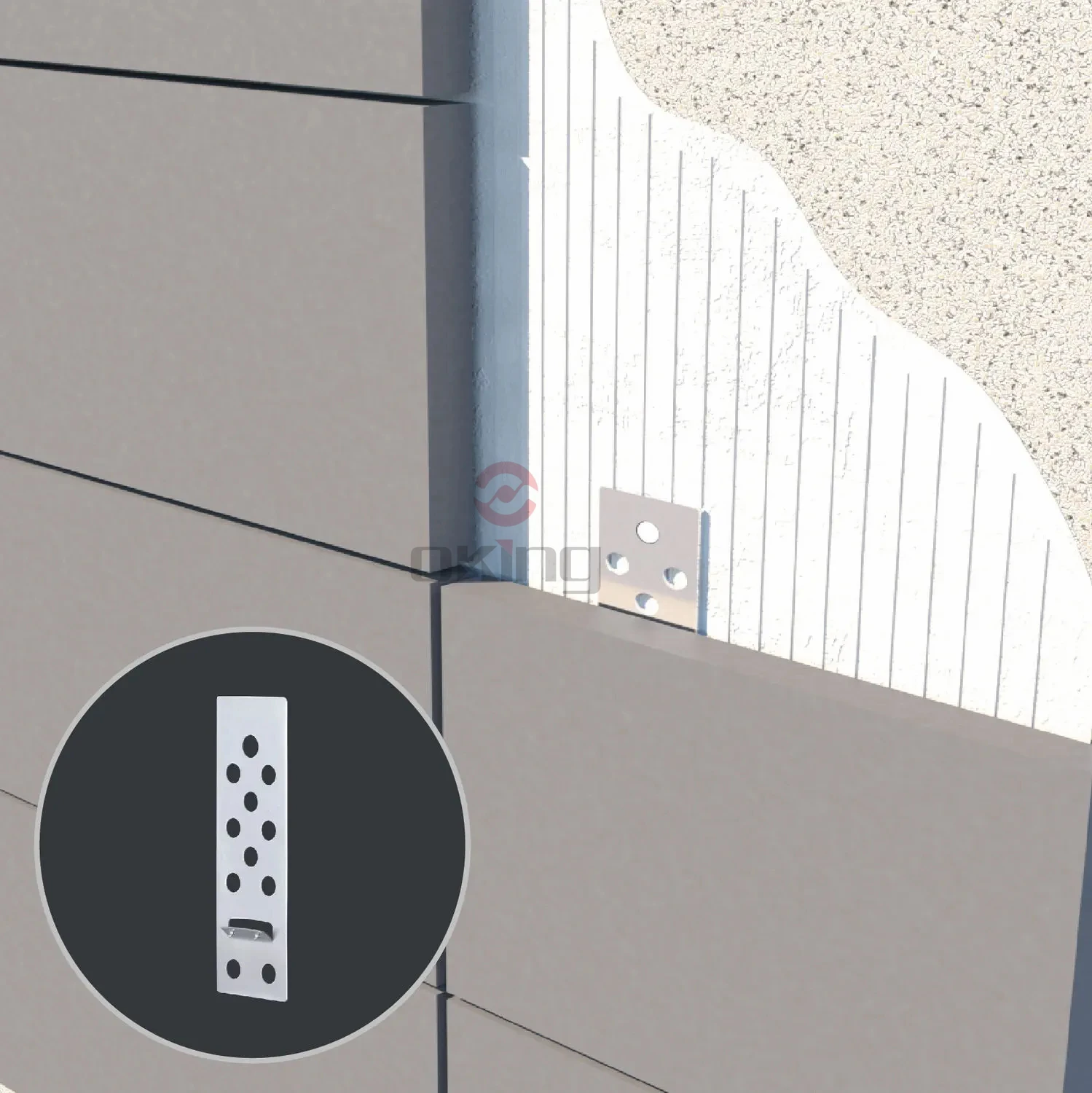

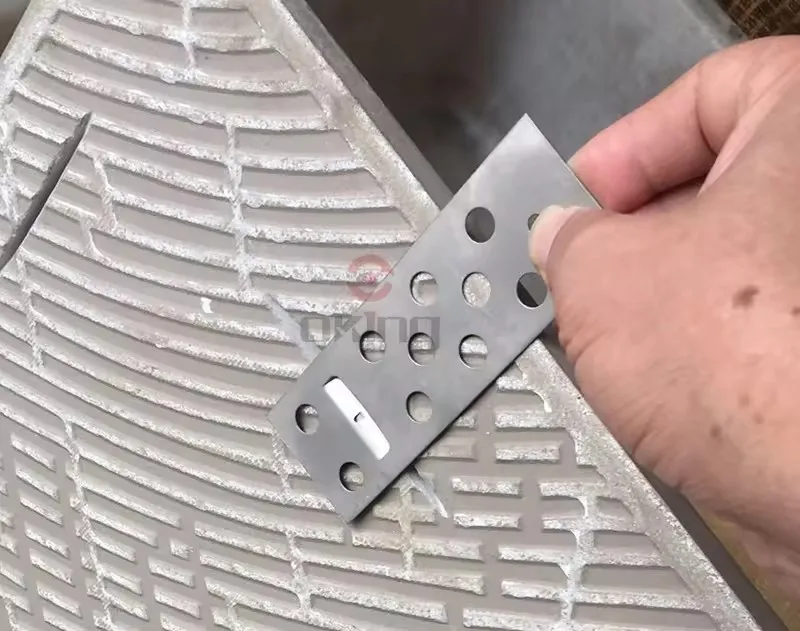

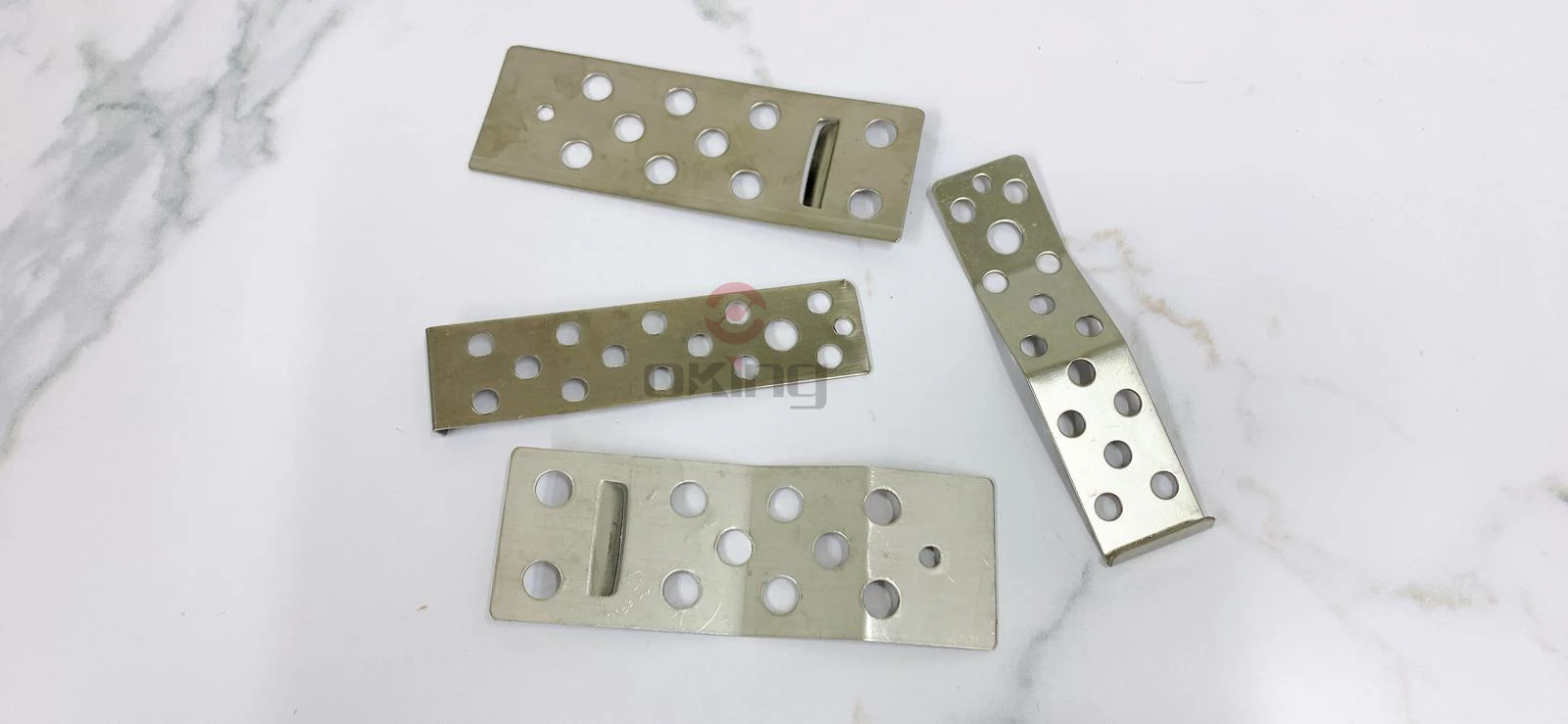

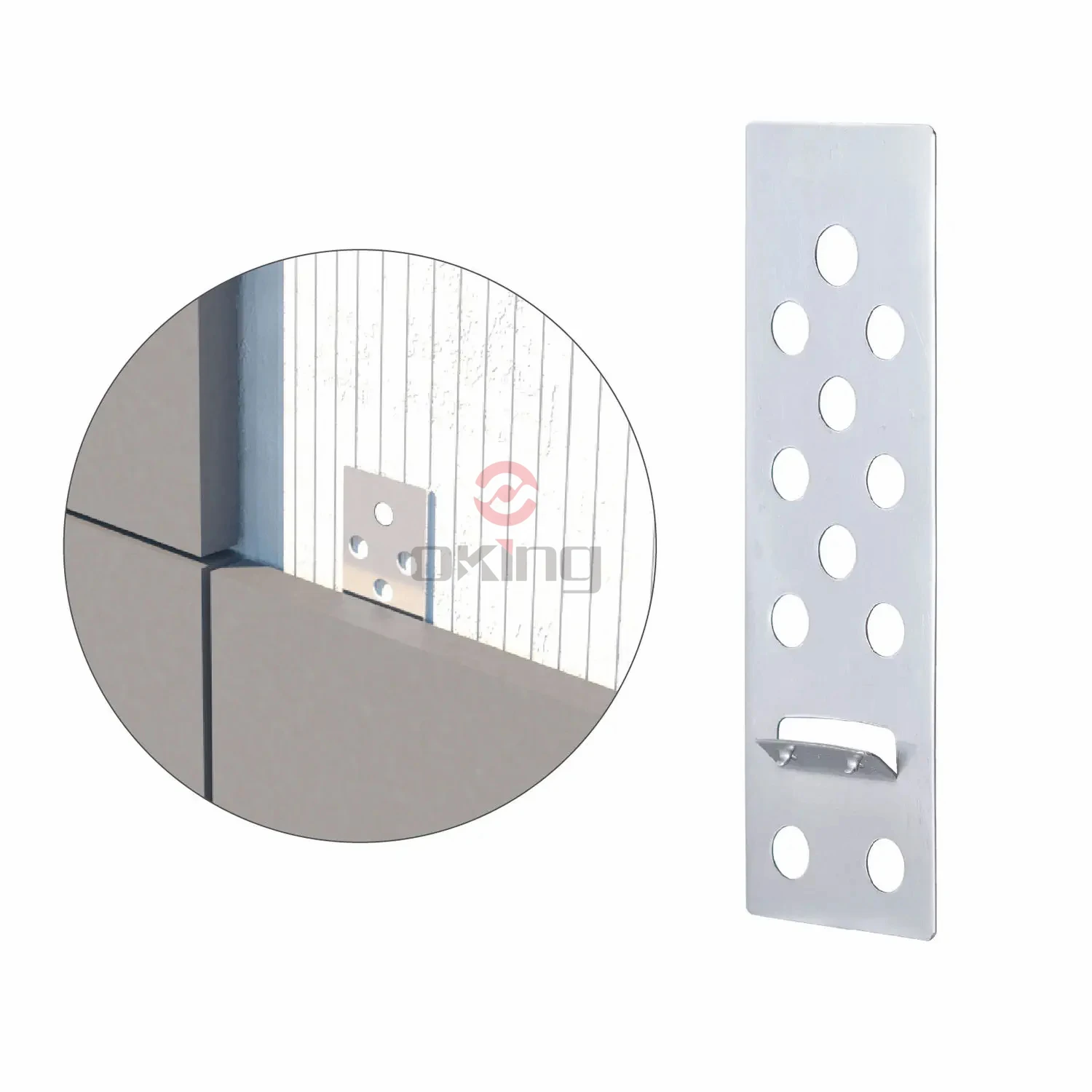

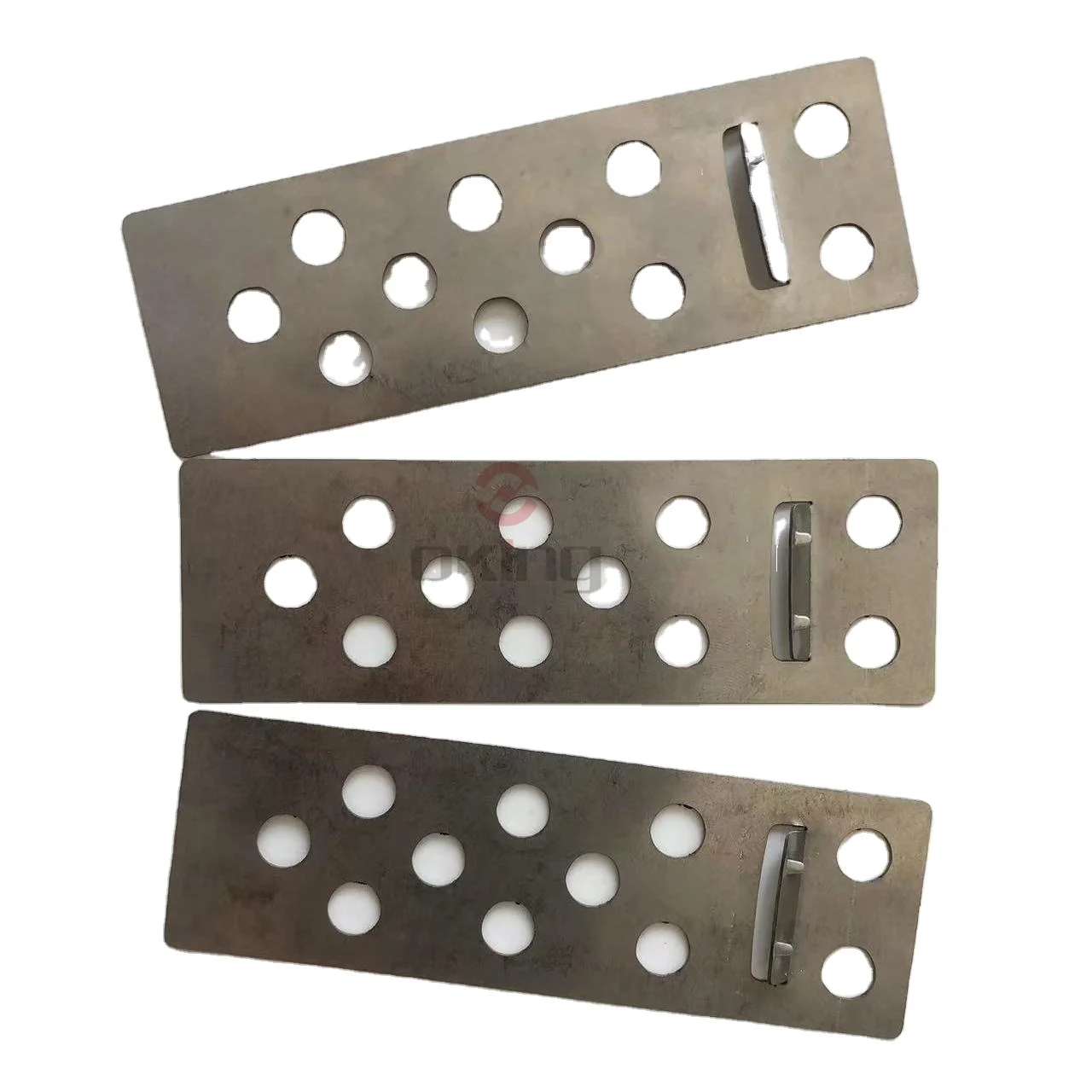

3 | It is a flat hook with perforations, made of steel AISI 304 / EN 1-4301 stainless steel, 0.5mm thick. It has a fin that is embedded in a slot made at 45º on the back of the tile, and with perforations to be able to be fixed to the supporting wall. It can be applied to any type of tile (ceramic, porcelain, natural stone,…) that has to be held vertically. Available for tiles thicker than 5, 6 and 8 mm (even 4 mm with mesh, see manual). |

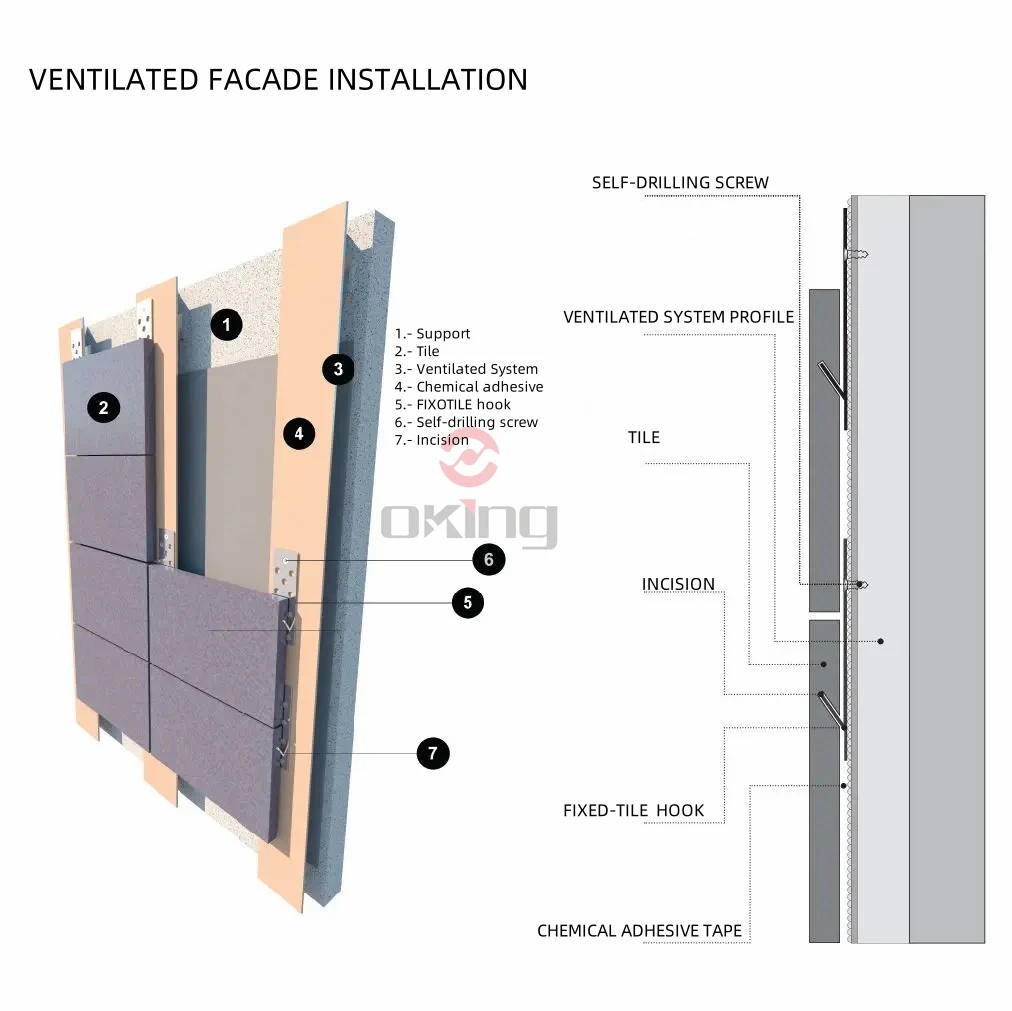

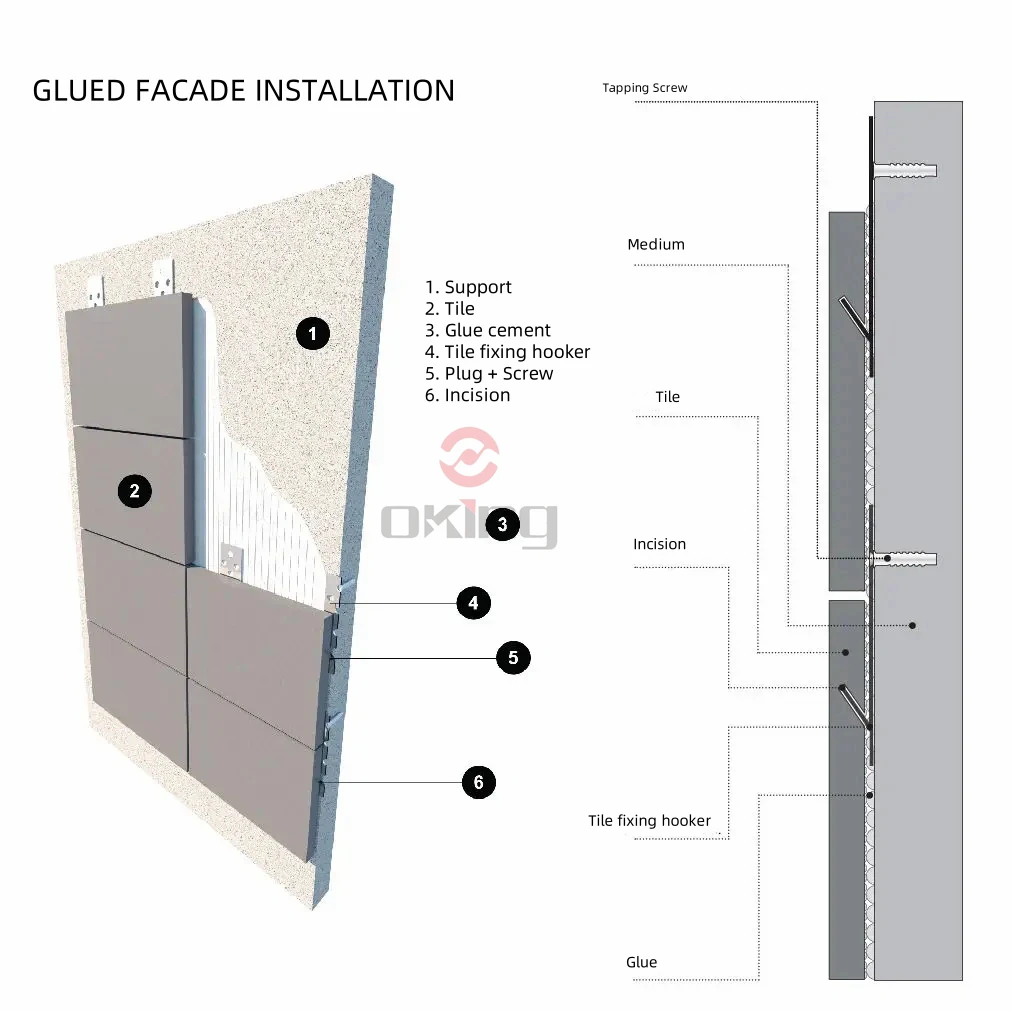

4 | In a glued, ventilated, or covered facade with SATE system, only the type of screws changes for fixing to the supporting wall. |
item | ceramic clips |
Warranty | 5 years |
After-sale Service | Online technical support, Onsite Installation, Other |
Project Solution Capability | 3D model design, total solution for projects, Others |
Application | Office Building |
Design Style | Modern |
Place of Origin | China |
Jiangsu | |
Brand Name | OKING |
Model Number | customized |
Type | stone facade system |
Product Name | ceramic clips |
Size | Customized Size |
Delivery Term | FOB CIF |
Delivery Time | 15 days |
MOQ | 5000pcs |
Material | Stainless Steel or customized |
Company Profile
Jiangsu Aozheng Metal Products Co., Ltd.
Is a comprehensive enterprise integrating research and development, production and sales of precision castings,construction hardware and curtain wall accessories. Aozheng has a modern production workshop,advanced production equipment, and a sound business model, professional technical staff,from the procurement of raw materials, smelting, stamping, to the sale of finished products,greatly reducing a lot of intermediate links, thus truly to bring benefits to customers.
Work area
Our Advantages
Exhibition
Packing & Delivery
FAQ
1.Q:Are you a trading company or manufacturer?
A:We are a company integrating industry and trade,we have our own factory,so we can directly produce products,and we can strictly control the quality.
2.Q:How to get sample?
A:We can supply free sample for you,you just need to pay the freight.
Standard products:5 days after order.
Customized products:15-20 days after order.
3.Q:What's your company's main product?
A:We are mainly engaged in metal products of curtain wall pendant,and all of them can be customized.
A:We are a company integrating industry and trade,we have our own factory,so we can directly produce products,and we can strictly control the quality.
2.Q:How to get sample?
A:We can supply free sample for you,you just need to pay the freight.
Standard products:5 days after order.
Customized products:15-20 days after order.
3.Q:What's your company's main product?
A:We are mainly engaged in metal products of curtain wall pendant,and all of them can be customized.
