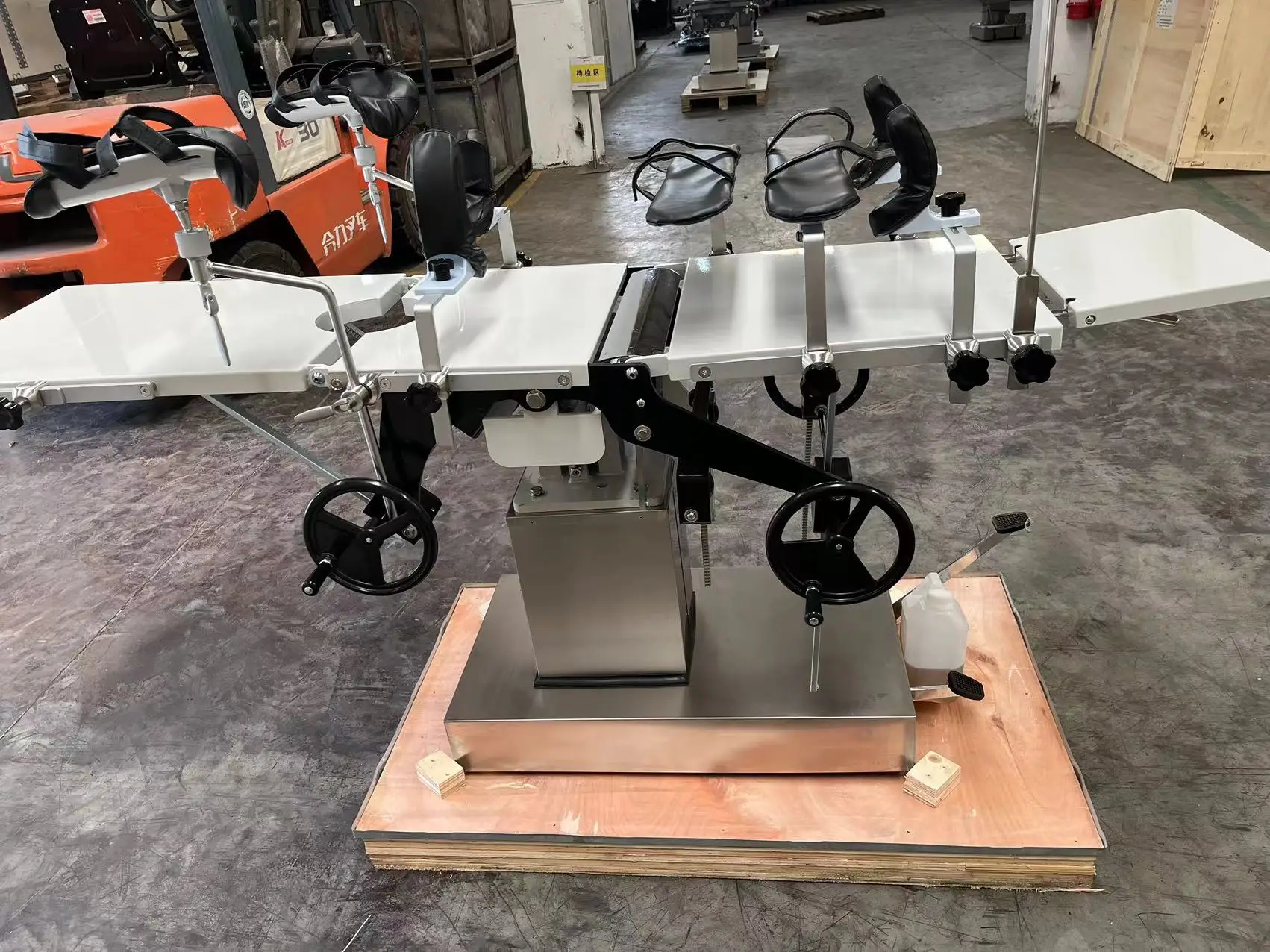

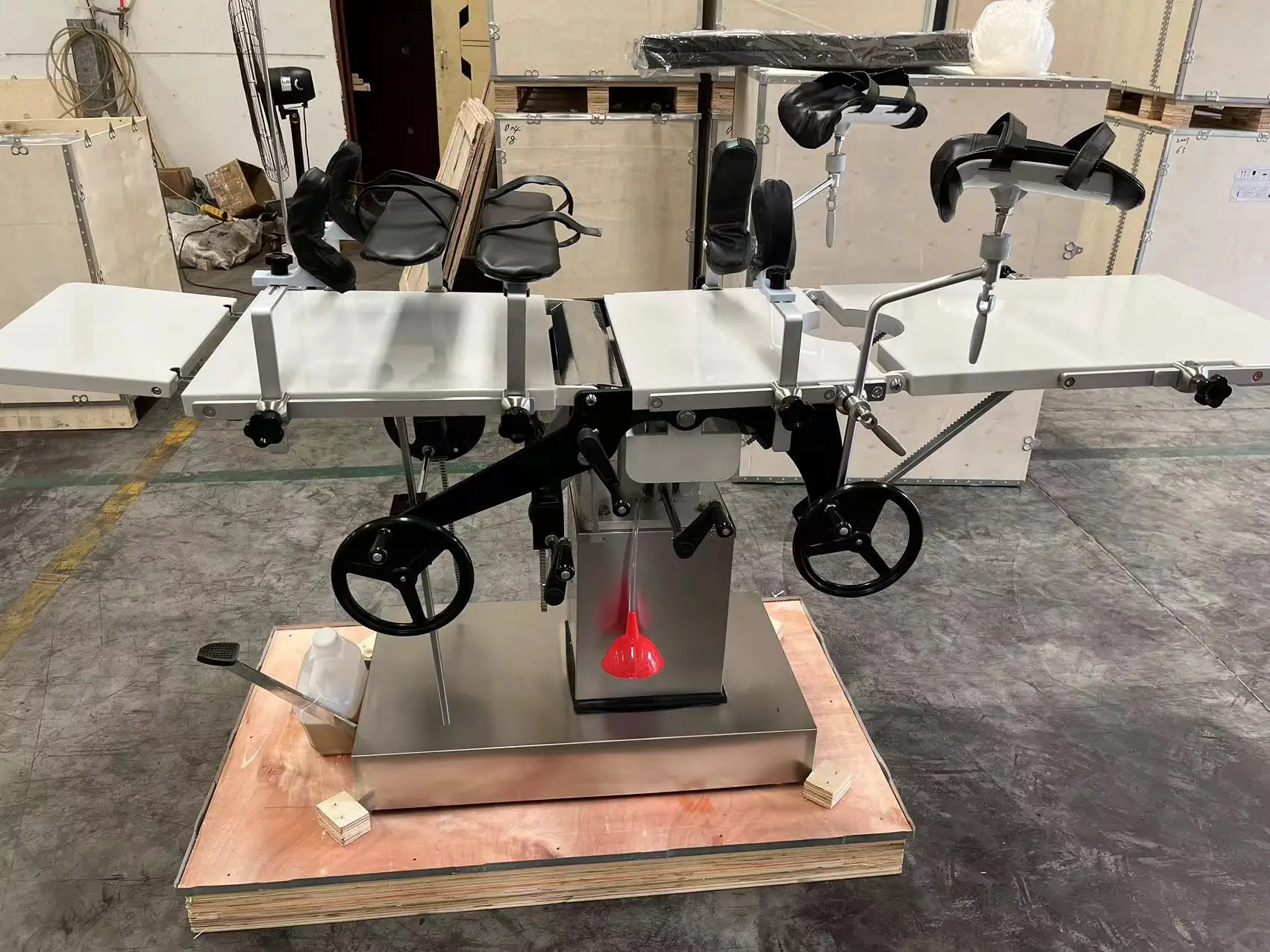

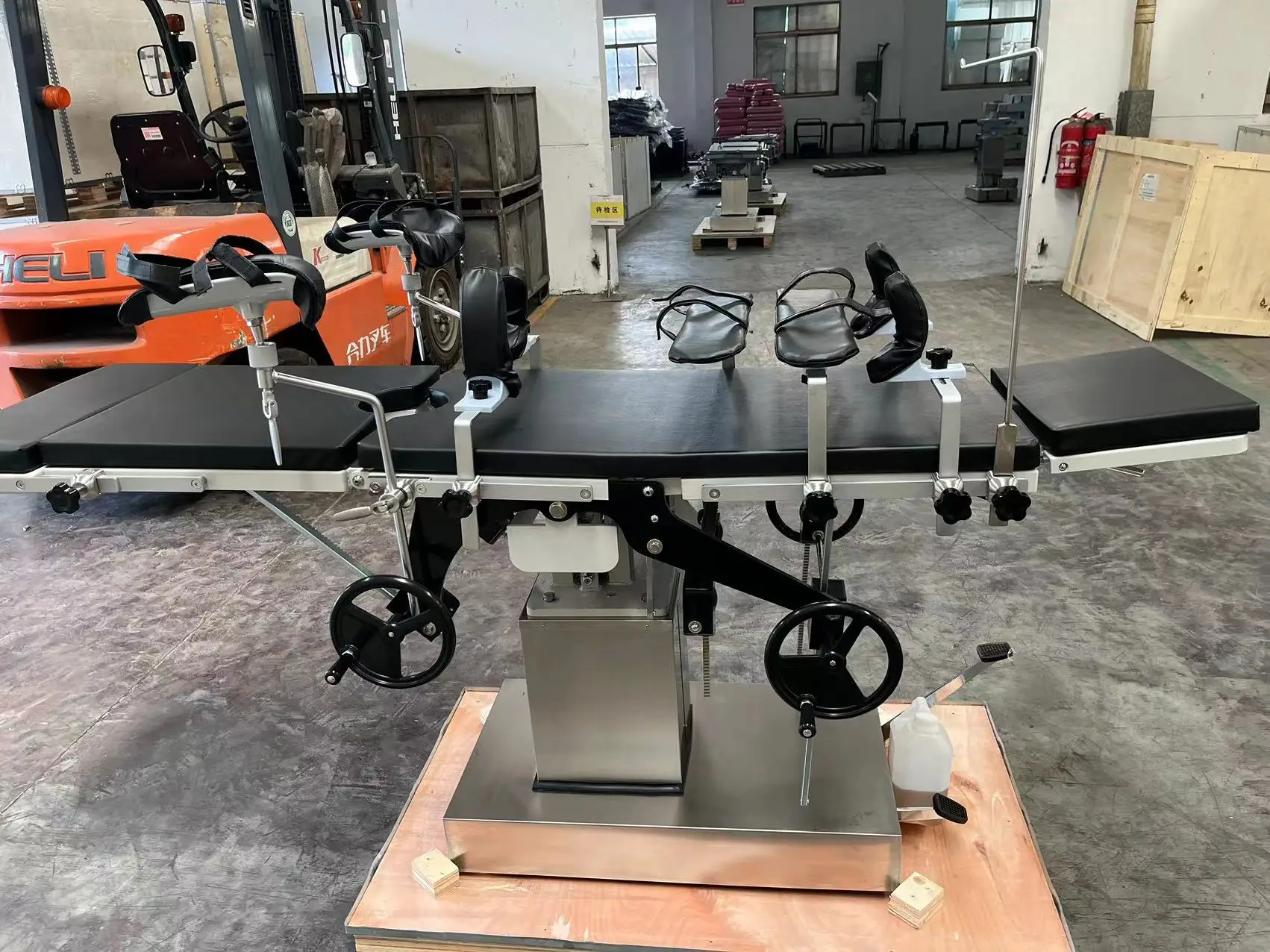

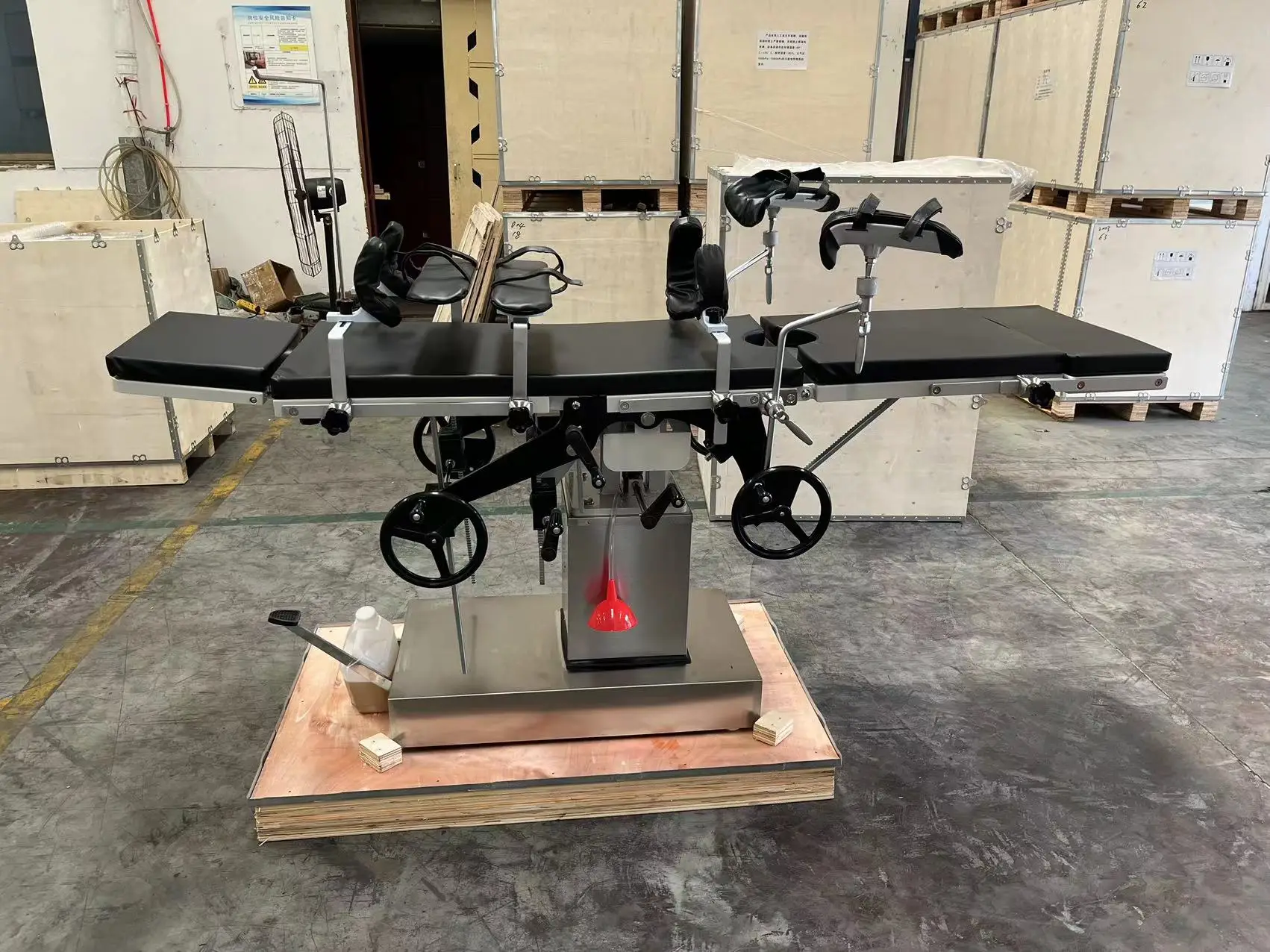

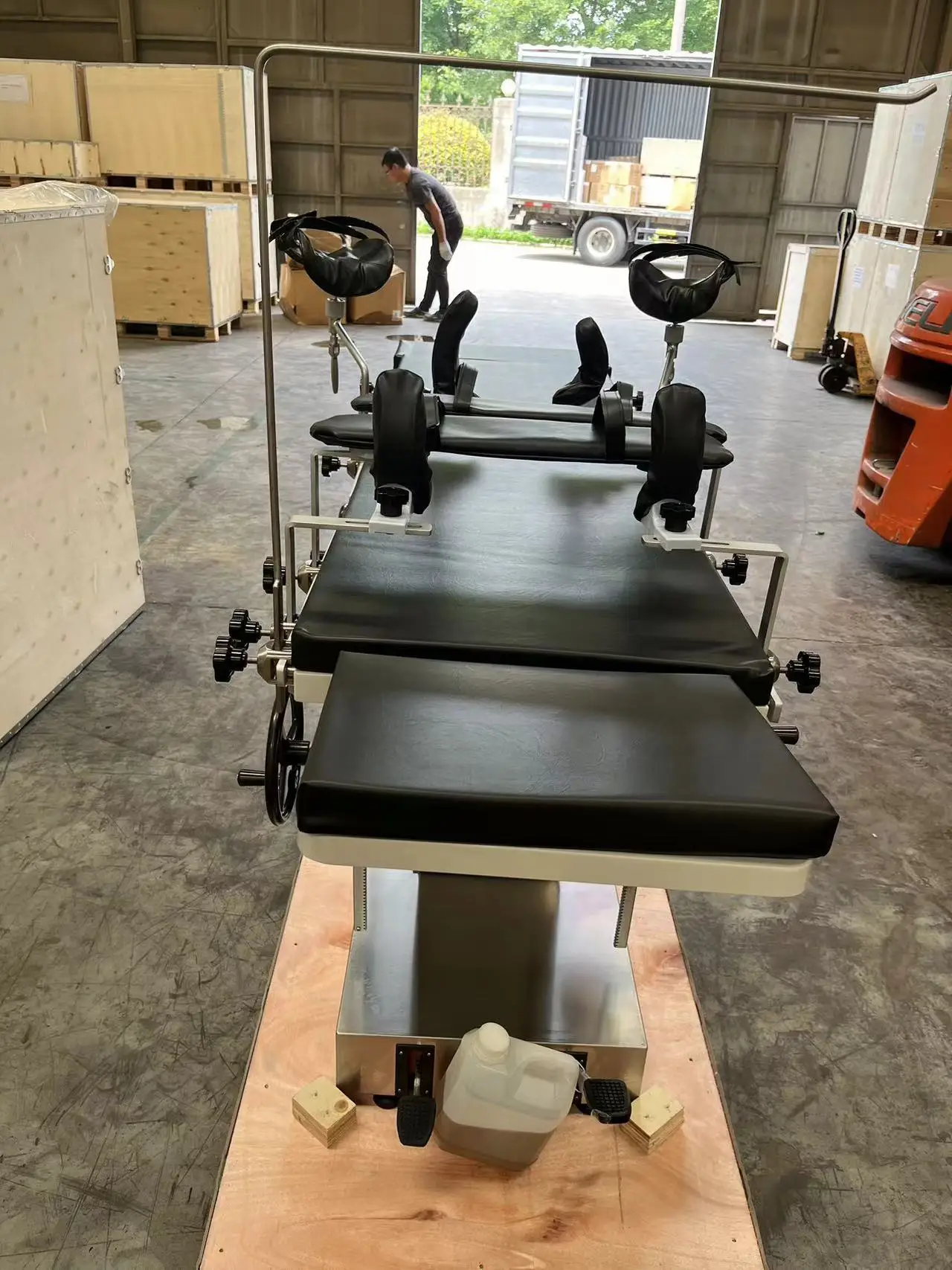

Hospital furniture hydraulic operation side controlled 3001 surgical bed OT operating table
- Category: >>>
- Supplier: Sichuan Mkr Co. Ltd.
Share on (1601225220230):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Brand Name | MKR |
Model Number | MKR-3008 |
Power Source | Hydraulic |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Metal |
Shelf Life | 1 year |
Quality Certification | CE ISO |
Instrument classification | Class II |
Safety standard | None |
Overall length | 1950mm |
Width | 520mm |
Max. Height | 970mm |
Max. Reversed Trendelenburg | ≥25° |
Max. Trendelenburg | ≥25° |
Max. Lateral Tilt | ≥20° |
Head Rest-raised from the horizon | ≥30° |
Head Rest-lowered from the horizon | ≥90° |
Back Section-raised from the horizon | ≥80° |
Back Section-lowered from the horizon | ≥10 |
General Description
The up and down motion of the table is controlled by hydraulic system with oil pump. It is well-designed with stable structure. It is suitable for surgical procedures of the head, neck, thorax, abdomen, perineum and extremities as well as for gynecological, obstetrical, urological and oto-rhino-laryngological operations. All the adjustments are convenient, safe and speedy.
The up and down motion of the table is controlled by hydraulic system with oil pump. It is well-designed with stable structure. It is suitable for surgical procedures of the head, neck, thorax, abdomen, perineum and extremities as well as for gynecological, obstetrical, urological and oto-rhino-laryngological operations. All the adjustments are convenient, safe and speedy.
Controlling Devices of Head-end Controlled Table
* Hand wheel (2) can adjust the operation table to move back and forth as well as lean from left to right, while hand wheel (3) adjusts the movements of the back section. Please follow the label attached to the hand wheel cover to study the way of operation.
* The waist part is controlled by Crank Handle (1) in the centre of this part.
* Both the ascending and descending movements of the table top are controlled by the oil pump. When the products leave the factory, the oil in the oil pump has been pumped into the pail, so the oil pump can not ascend. The consumers must put the oil from the pail into the oil pump through funnel (after putting the oil, the customer can take out the oil tube and funnel). The up and down movement of the board can be realized by repeatedly stepping on pump pedal（4）. The table top can elevate and will stop automatically when reaching the maximum height. When the pedal is pressed down to its limit, the table top will begin to descend slowly and gently.
* There are swivel castors on the base plate, convenient to move. The table is controlled by the floor institution devices and its fixation and movement are controlled by the same pedal (5). When the pedal is pressed down, the swivel castors lay down motivating the base plate to rise then the table can be moved. Relax the pedal, the table will be set stable on the floor.
* Hand wheel (2) can adjust the operation table to move back and forth as well as lean from left to right, while hand wheel (3) adjusts the movements of the back section. Please follow the label attached to the hand wheel cover to study the way of operation.
* The waist part is controlled by Crank Handle (1) in the centre of this part.
* Both the ascending and descending movements of the table top are controlled by the oil pump. When the products leave the factory, the oil in the oil pump has been pumped into the pail, so the oil pump can not ascend. The consumers must put the oil from the pail into the oil pump through funnel (after putting the oil, the customer can take out the oil tube and funnel). The up and down movement of the board can be realized by repeatedly stepping on pump pedal（4）. The table top can elevate and will stop automatically when reaching the maximum height. When the pedal is pressed down to its limit, the table top will begin to descend slowly and gently.
* There are swivel castors on the base plate, convenient to move. The table is controlled by the floor institution devices and its fixation and movement are controlled by the same pedal (5). When the pedal is pressed down, the swivel castors lay down motivating the base plate to rise then the table can be moved. Relax the pedal, the table will be set stable on the floor.
