High quality L158 Cast Iron Brazing Insert Cemented Carbide Fasteners for Cotton Gin Ribs Saw
High quality L158 Cast Iron Brazing Insert Cemented Carbide Fasteners for Cotton Gin Ribs Saw
High quality L158 Cast Iron Brazing Insert Cemented Carbide Fasteners for Cotton Gin Ribs Saw
High quality L158 Cast Iron Brazing Insert Cemented Carbide Fasteners for Cotton Gin Ribs Saw
High quality L158 Cast Iron Brazing Insert Cemented Carbide Fasteners for Cotton Gin Ribs Saw
High quality L158 Cast Iron Brazing Insert Cemented Carbide Fasteners for Cotton Gin Ribs Saw
High quality L158 Cast Iron Brazing Insert Cemented Carbide Fasteners for Cotton Gin Ribs Saw

High quality L158 Cast Iron Brazing Insert Cemented Carbide Fasteners for Cotton Gin Ribs Saw

Share on (1601225293115):


Price:$5.00 - $5.20

Quantity:


Product Overview

Description





Products Description










How does a cotton ginning machine work?
Cotton Ginning is the process of separating the cotton fibers from the cotton seeds. Perfect ginning operation would be performed if the separation of fibers from seed was effected without the slightest injury to either seeds or to the fiber. A cotton gin is a machine that quickly and easily separates the cotton fibers from the seeds, a job previously done by hand. These seeds are either used again to grow more cotton or, if badly damaged, are disposed of. It uses a combination of a wire screen and small wire hooks to pull the cotton through the screen, while brushes continuously remove the loose cotton lint to prevent jams.

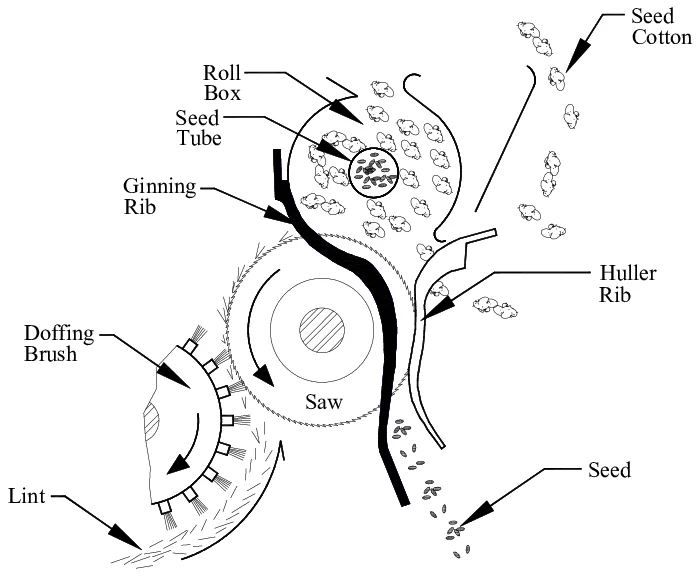

Saw Gin
Object:To separate the cotton fibers from the seed.
WORKING: The seed cotton is fed upon the lattice and carried forward to the spiked roller, which loosens the cotton and throw; it into the hopper.In hopper, the seed cotton comes into contact with rapidly revolving saw roller.Saws are threaded on a shaft. As the saws revolve, the teeth carry the fibres forward, but it is impossible for the seeds to follow and also, due to the heavier beating of the rapidly revolving saws on the seed cotton, the fibres are separated from seed and taken round until the brush strips the fibre from the teeth. Empty seeds husks and other broken seeds are thrown into grid, through which they pass into suitable receptacle. An air current from the cage draw the fibres along the trunk passage, and on reaching the revolving cage are brought under the pressure roller and delivered as a sheet, from which it is taken to the baling press.

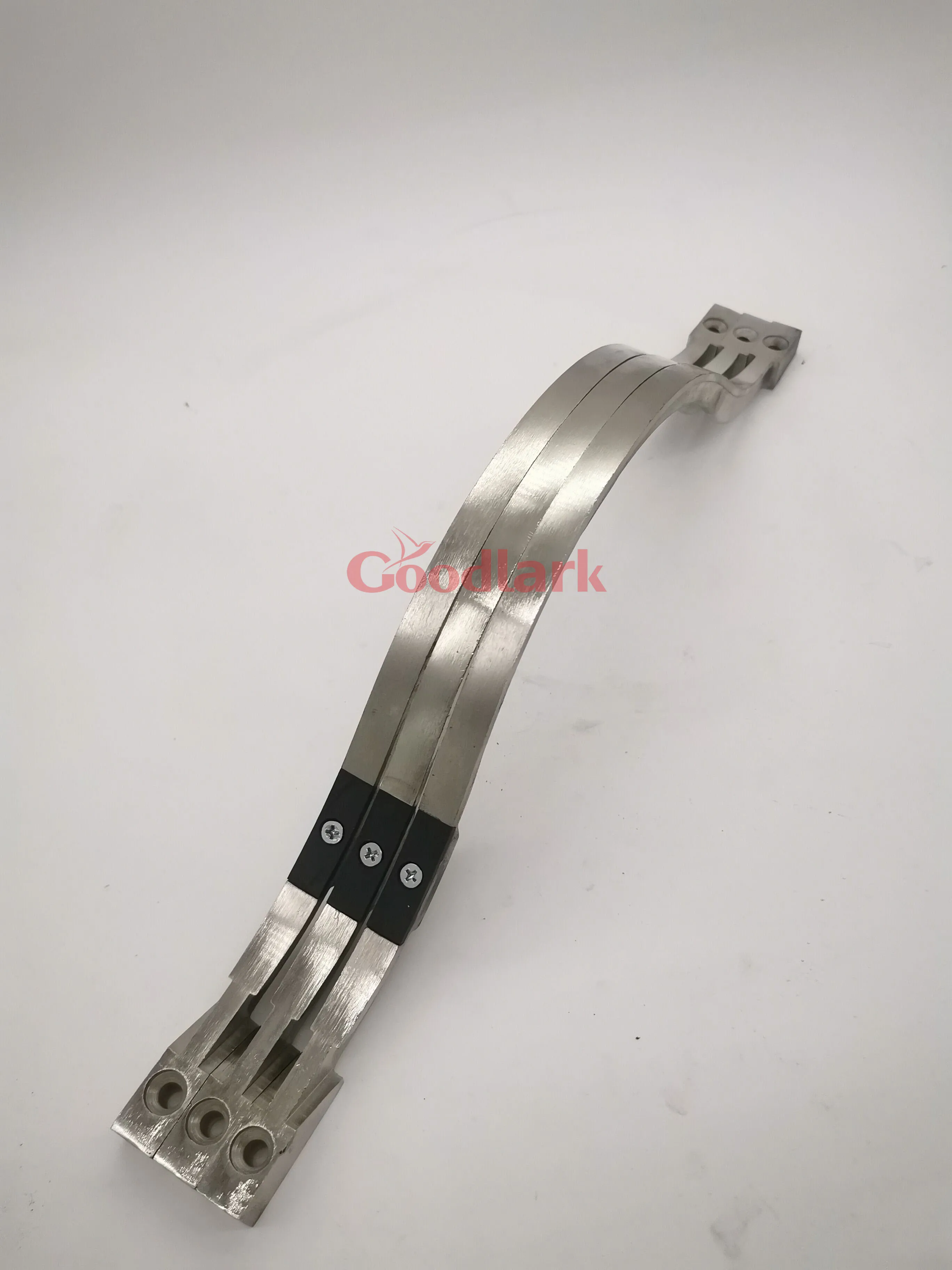

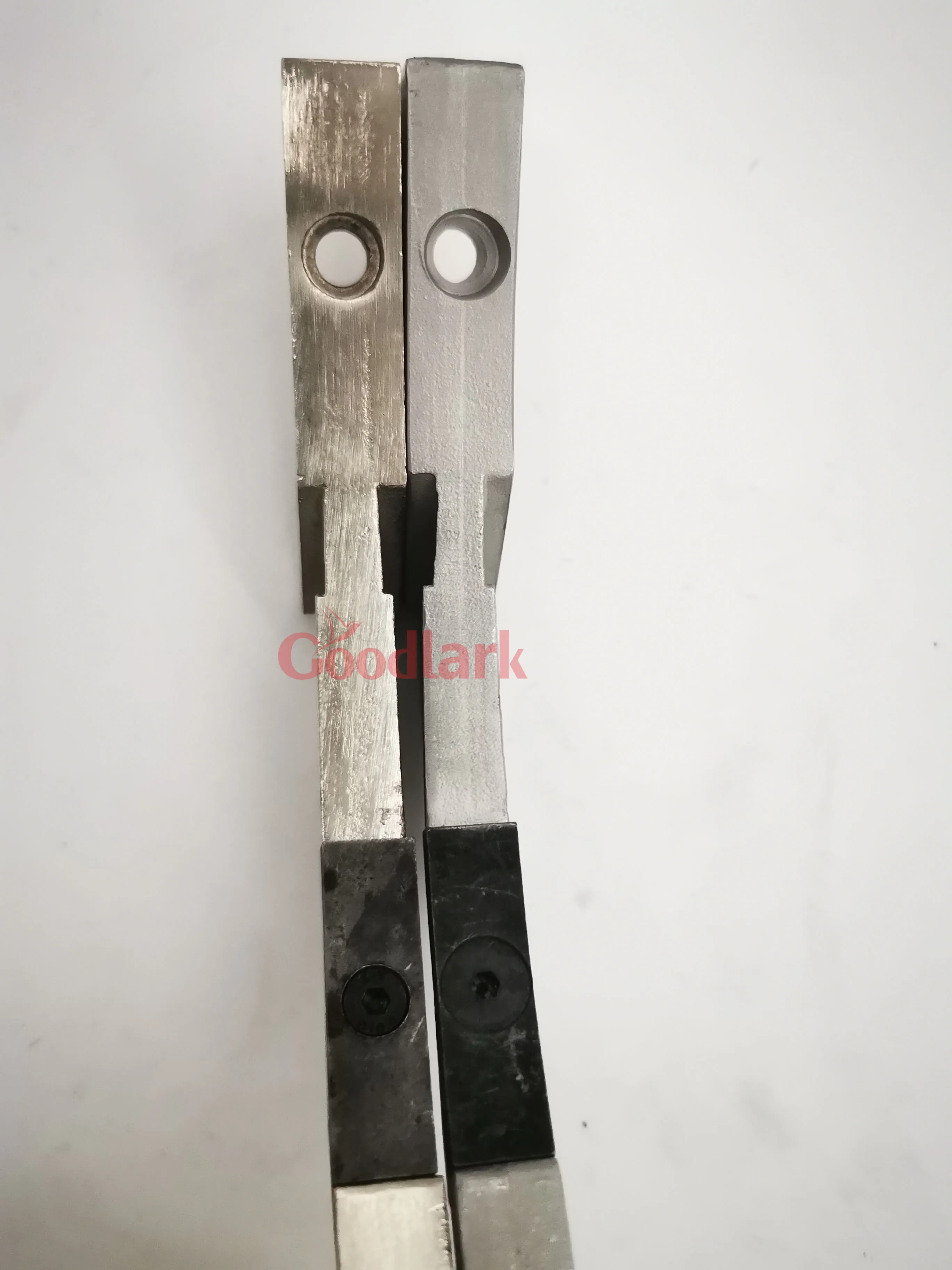

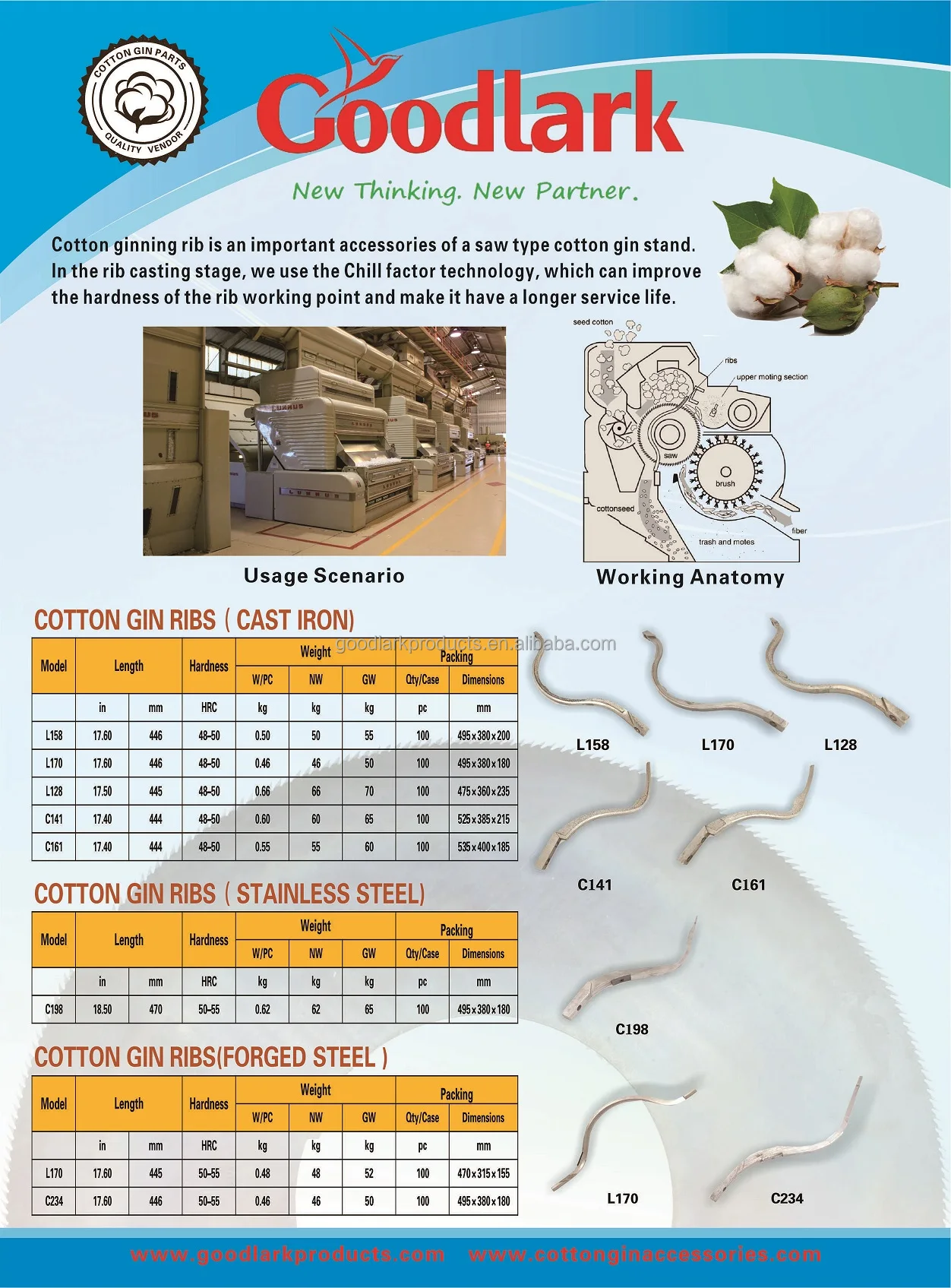

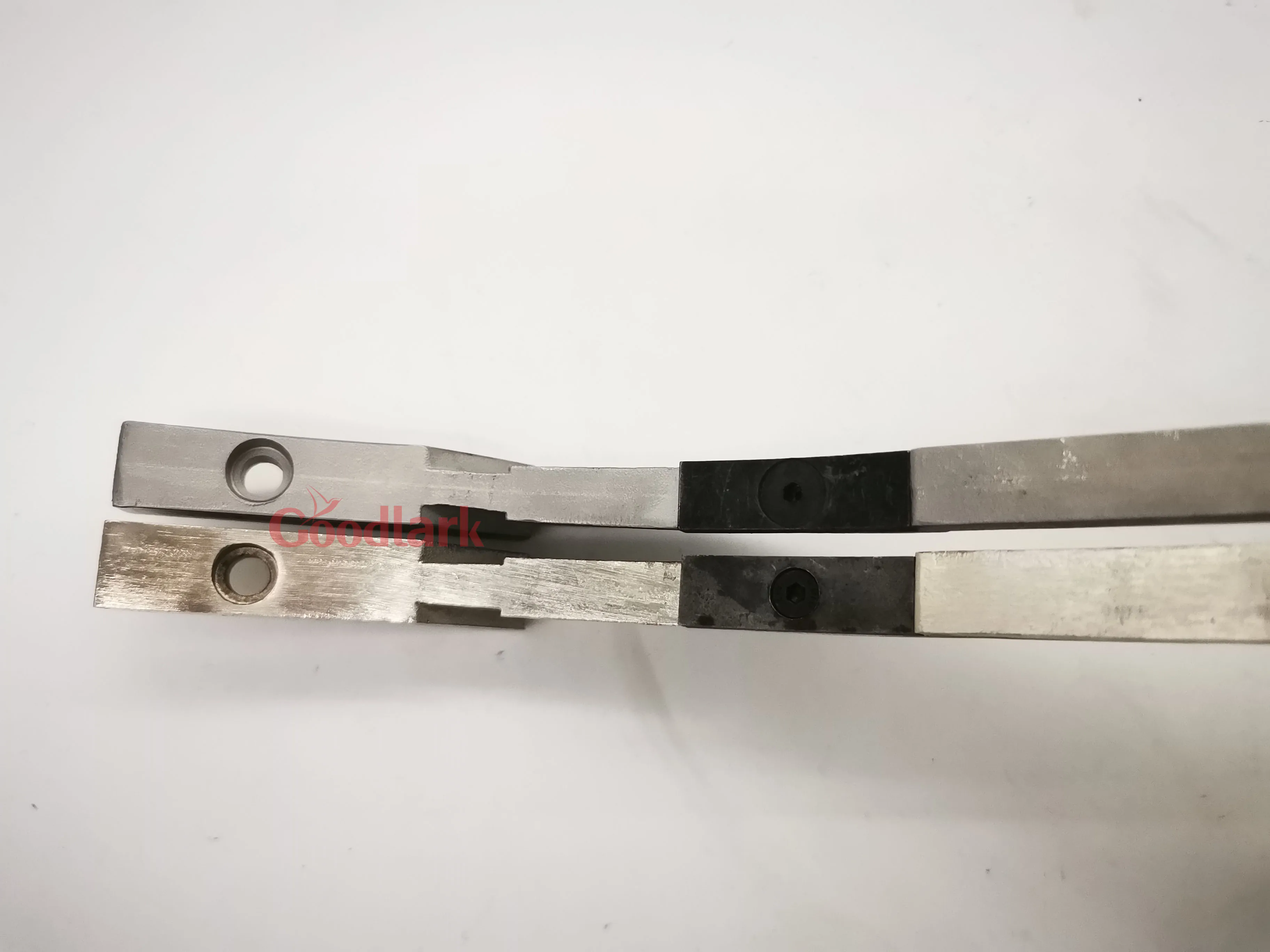

COTTON GIN RIBS （CAST IRON）
Model
Length
Hardness
Weight
Packing
W/PC
NW
GW
Qty/Case
Dimensions
IN
MM
HRC
kg
kg
kg
pc
mm
L158
17.60
446
48-50
0.50
50
55
100
495*380*200
L170
17.60
446
48-50
0.46
46
50
100
495*380*180
L128
17.50
445
48-50
0.66
66
70
100
475*360*235
L120
18.30
465
48-50
0.55
62
70
120
516*378*252
C141
17.40
444
48-50
0.60
60
65
100
525*385*215
C161
17.40
444
48-50
0.55
55
60
100
535*400*185
COTTON GIN RIBS (STAINLESS STEEL)
Model
Length
Hardness
Weight
Packing
W/PC
NW
GW
Qty/Case
Dimensions
IN
MM
HRC
KG
KG
KG
PC
MM
C198
18.50
470
50-55
0.62
62
65
100
495*380*180
COTTON GIN RIBS (FORGED STEEL)
Model
Model
Hardness
Weight
Packing
W/PC
NW
GW
Qty/Case
Dimensions
IN
MM
HRC
KG
KG
KG
PC
MM
L170
17.60
445
50-55
0.48
48
52
100
470*315*155
C234
17.60
446
50-55
0.46
46
50
100
495*380*180


1. Gin Rib is the main spare part of cotton machine. We adopt special material and process technology, and specialty produce line and could manufacture gin ribs for all brand of ginning machinery
2. product has high degree of finish, and high endurance.
3. According to the model, our products have170/158,128，141/161，130,160 in good quality with best price!
4. According to the material we can produce cast iron, forging and stainless steel




Hot Products




Application




Certifications




About Us








Logistics Transportation




FAQ


1.How can we guarantee quality?
Always a pre-production sample before mass production and do final inspection before shipment.
2.Why should you buy from us not from other suppliers?
Yancheng Goodlark International Trade Corp.,Ltd, since its establishment,has been committed to pursuing excellence and innovative technology as its core concept,and is committed to providing high-precision mechanical equipment and solutions for global customers.
