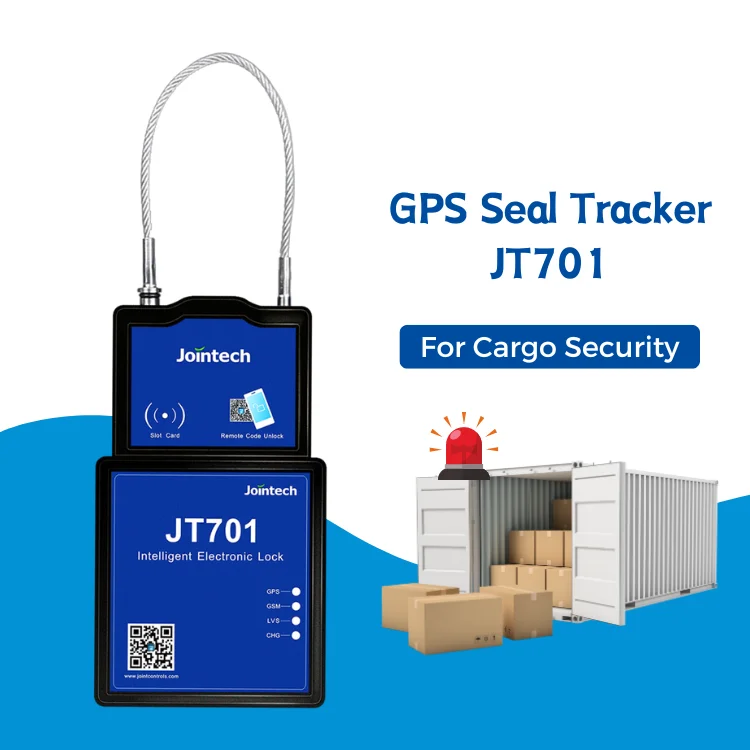

Jointech Jt709A Gps E Seal Track Container Auto Tracker Lock Gps Device Seal Gps Padlock Cargo Transportation Monitoring
- Category: >>>
- Supplier: Shenzhen Joint Technology Co. Ltd.
Share on (1601225629412):
Product Overview
Description
Product Introduction

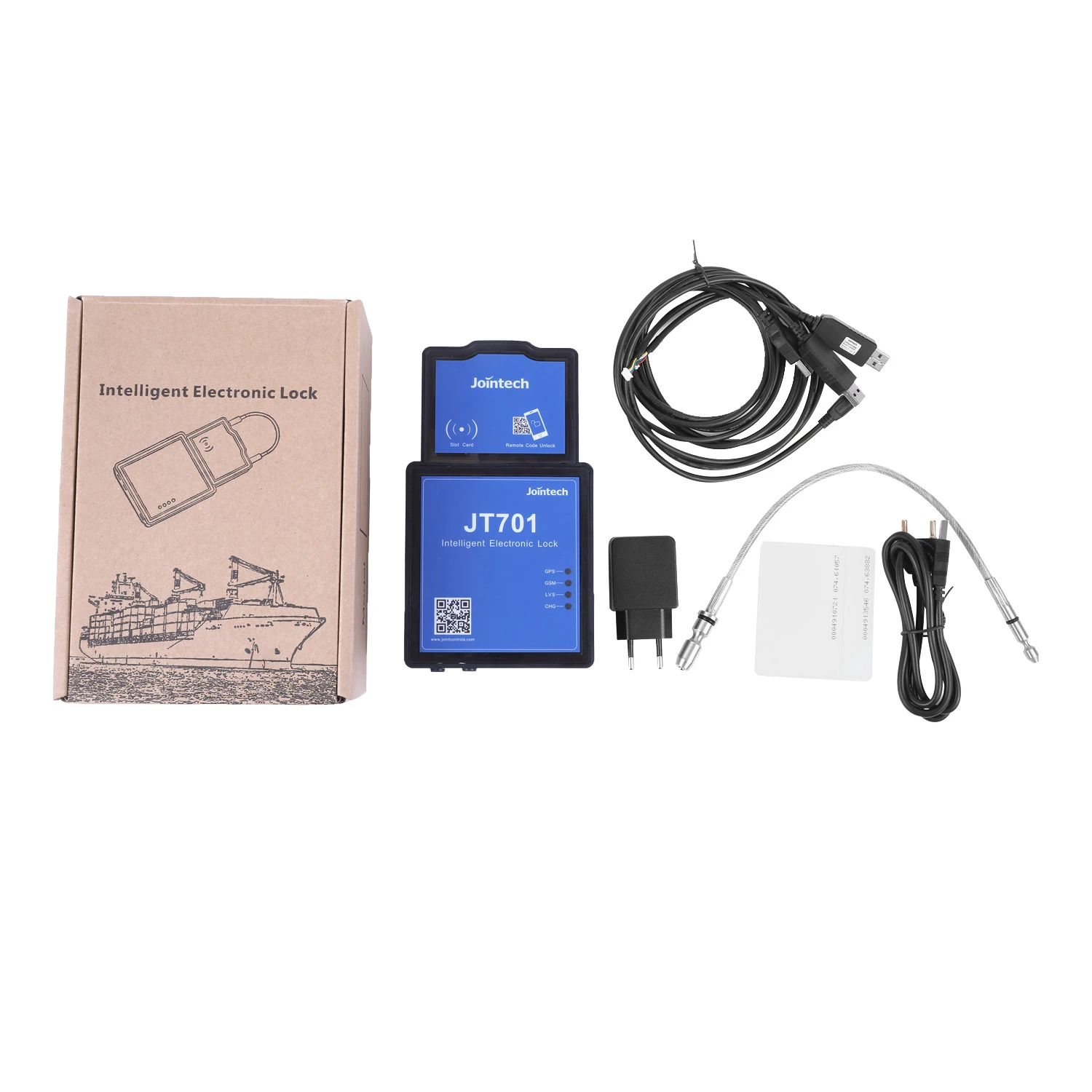

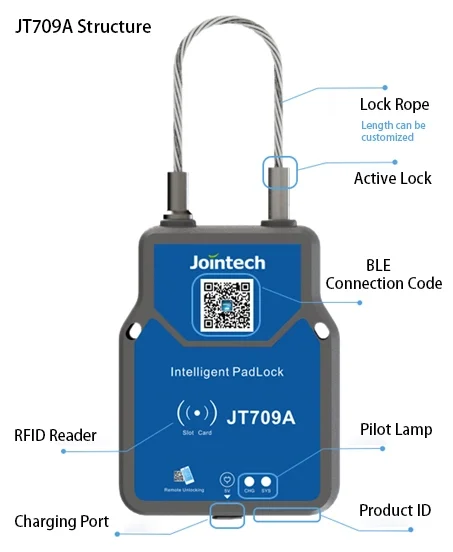

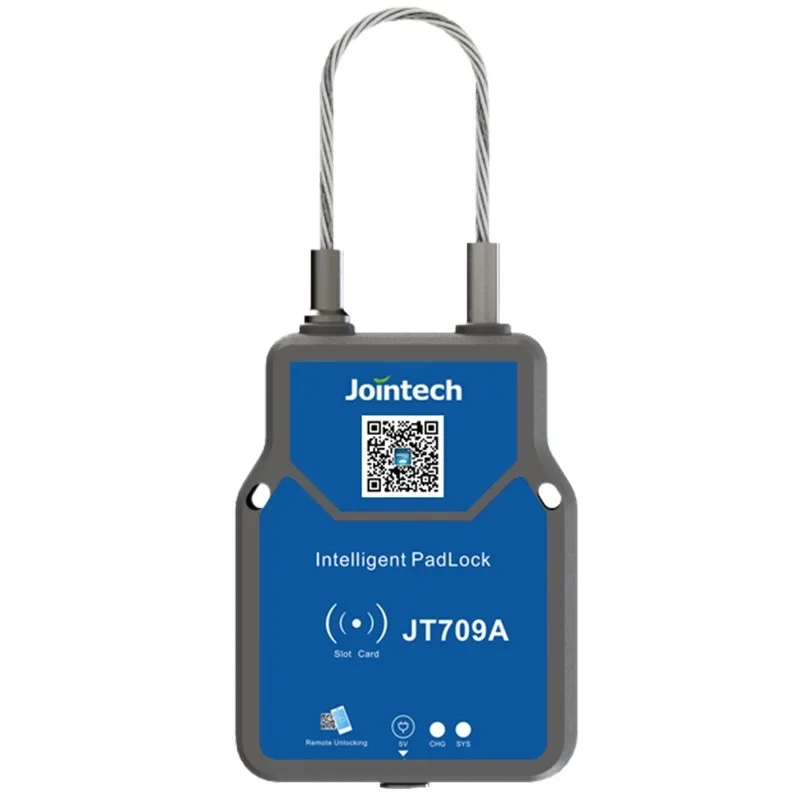

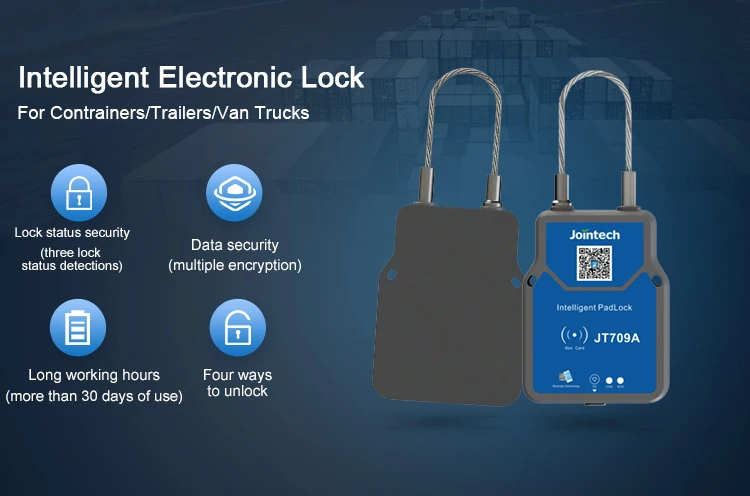

JT709A Smart GPS Lock
Precision-engineered to redefine how you safeguard and manage your valuable assets
JT709A is an industrial-grade intelligent electronic lock, which is the result of the comprehensive application of Beidou/GPS positioning, remote transmission, short-distance networking, micro-electric control, and low-power power management.
* BeiDou/GPS, high-precision geographic location information in real time.
* 2G/4G communication, live transmit the location, status, alarm and remote control of the lock in real time.
* Bluetooth module, authorized control through APP
* Multi-detection and micro-electricity control technology guarantees a safer and more reliable lock status check .
* Intelligent power management technology makes low power working for longer working time
* 2G/4G communication, live transmit the location, status, alarm and remote control of the lock in real time.
* Bluetooth module, authorized control through APP
* Multi-detection and micro-electricity control technology guarantees a safer and more reliable lock status check .
* Intelligent power management technology makes low power working for longer working time

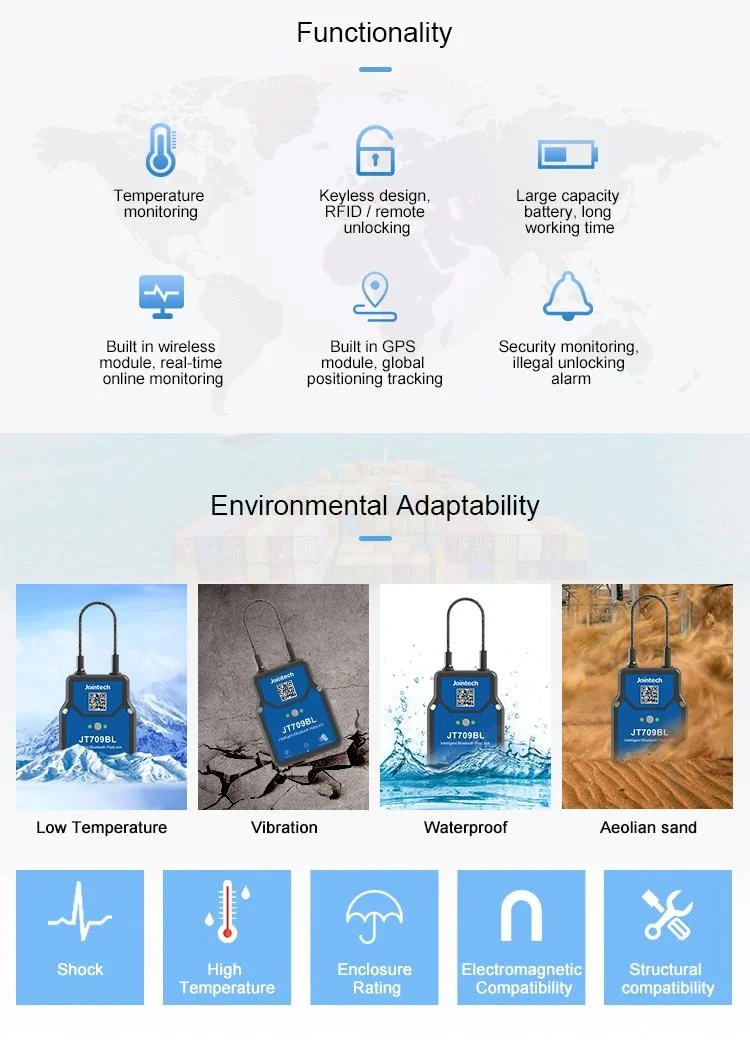

Main Features
* Positioning and tracking
* Data transmission by 2G/4G transmission
* Status monitoring (open lock, close lock, lock rope abnormality)
* Event trigger (vibration trigger, card trigger, alarm trigger)

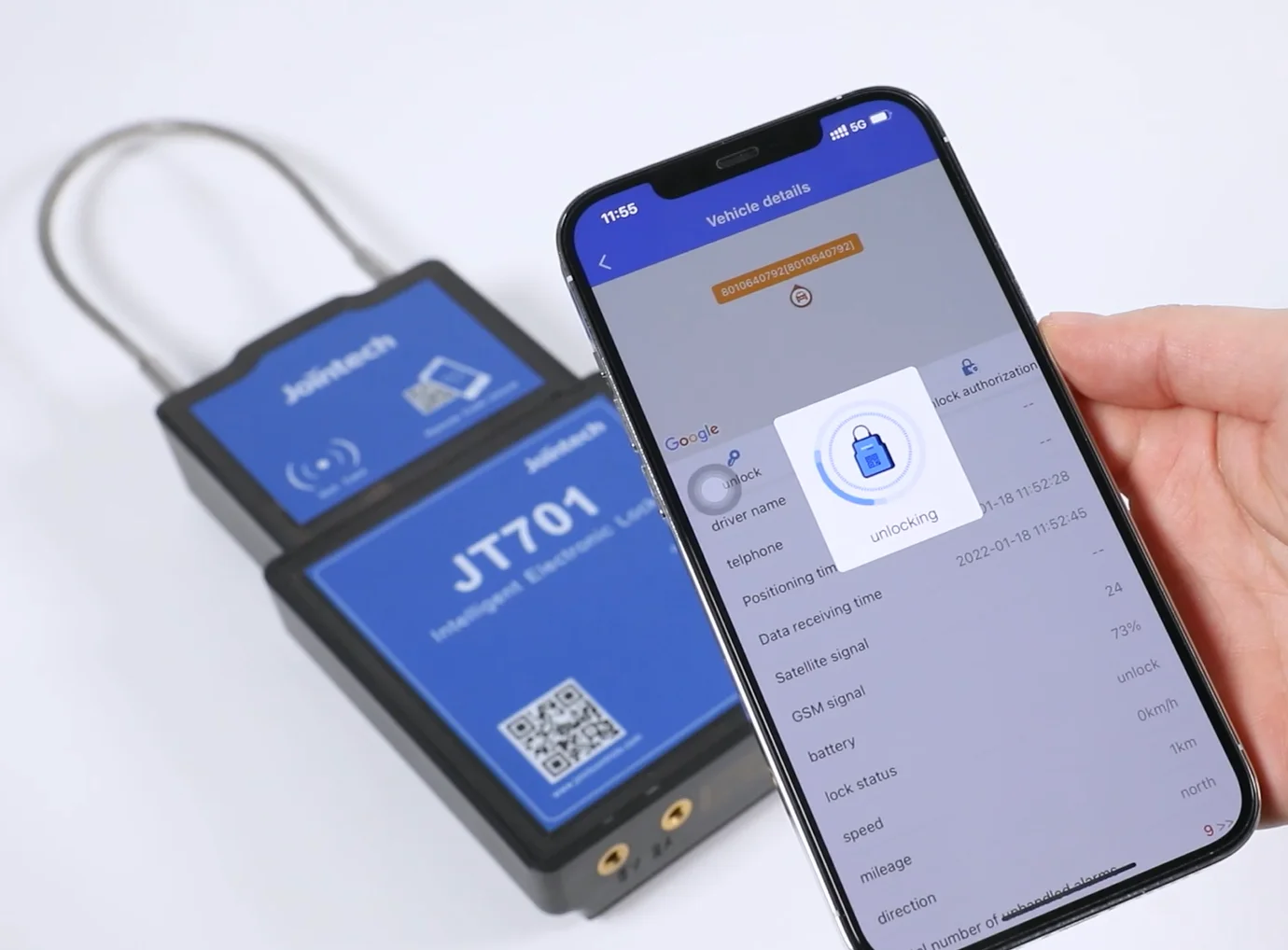

* Smart control: system and APP remote online unlocking Bluetooth offline unlocking
* Improper alarms: Illegal door opening alarm
lock rope cut alarm
low battery alarm
Open cover alarm
* Data transmission by 2G/4G transmission
* Status monitoring (open lock, close lock, lock rope abnormality)
* Event trigger (vibration trigger, card trigger, alarm trigger)
* Smart control: system and APP remote online unlocking Bluetooth offline unlocking
* Improper alarms: Illegal door opening alarm
lock rope cut alarm
low battery alarm
Open cover alarm
Host weight | About 390g (including lock rope) | ||
Shell material | Nylon fiber | ||
Built-in battery | 4500mAH, 3.7V rechargeable lithium battery | ||
Working temperature | -20℃ ~ 60℃ | ||
Storage temperature | -40℃ ~ 80℃ | ||
Relative humidity | 5%~95% | ||
Waterproof and dustproof grade | IP67 | ||
GNSS/Cellular module antenna | Built-in | ||
Cellular module communication frequency band | 2G Module | GSM/EDGE 850/900/1800/1900Mhz | |
4G European version | TDD-LTE B38/B40/B41 FDD-LTE B1/B3/B5/B7/B8/B20 WCDMA/HSDPA/HSPA+ B1/B5/B8 GSM/GPRS/EDGE 900/1800 MHz | ||
4G full Frequency band(4GG) | 4G LTE Frequency band： B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19 /B20/B25/B26/B28/B34/B38/B39/B40/B41/B66 UMTS/HSPA+: B1/2/B4/B5/B6/B8/B19 GSM/GPRS/EDGE: 850/900/1800/1900MHz | ||
SIM card | Micro-SIM card, dual card | ||
Lora Gateway (optional) | Frequency：433MHz Receiving sensitivity：-148dBm Maximum transmit power：17dBm Maximum transmission rate：300kBps Transmission distance：＞150m (open environment) | ||
Bluetooth gateway (optional) | Support Bluetooth 5.0 Bluetooth frequency : 2.4GHz ±30KHz Bluetooth communication distance : 2-10 meter Bluetooth antenna signal strength : ＞4 dBm | ||

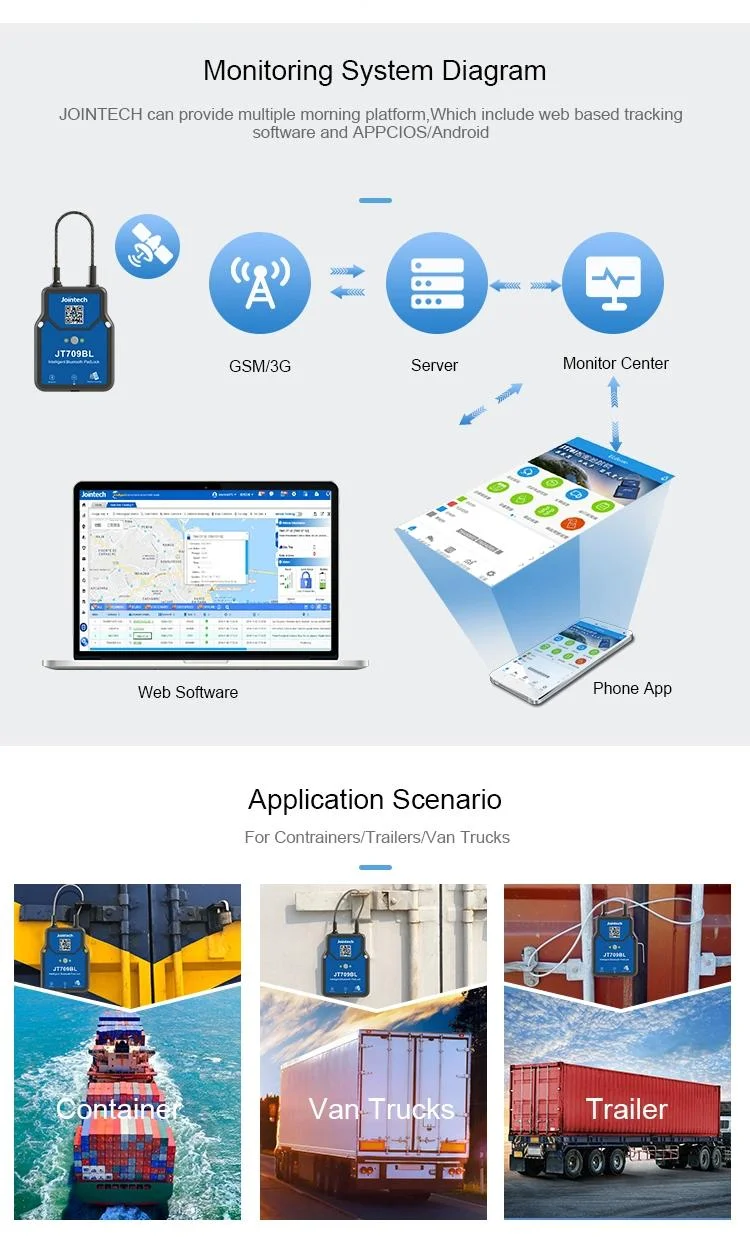

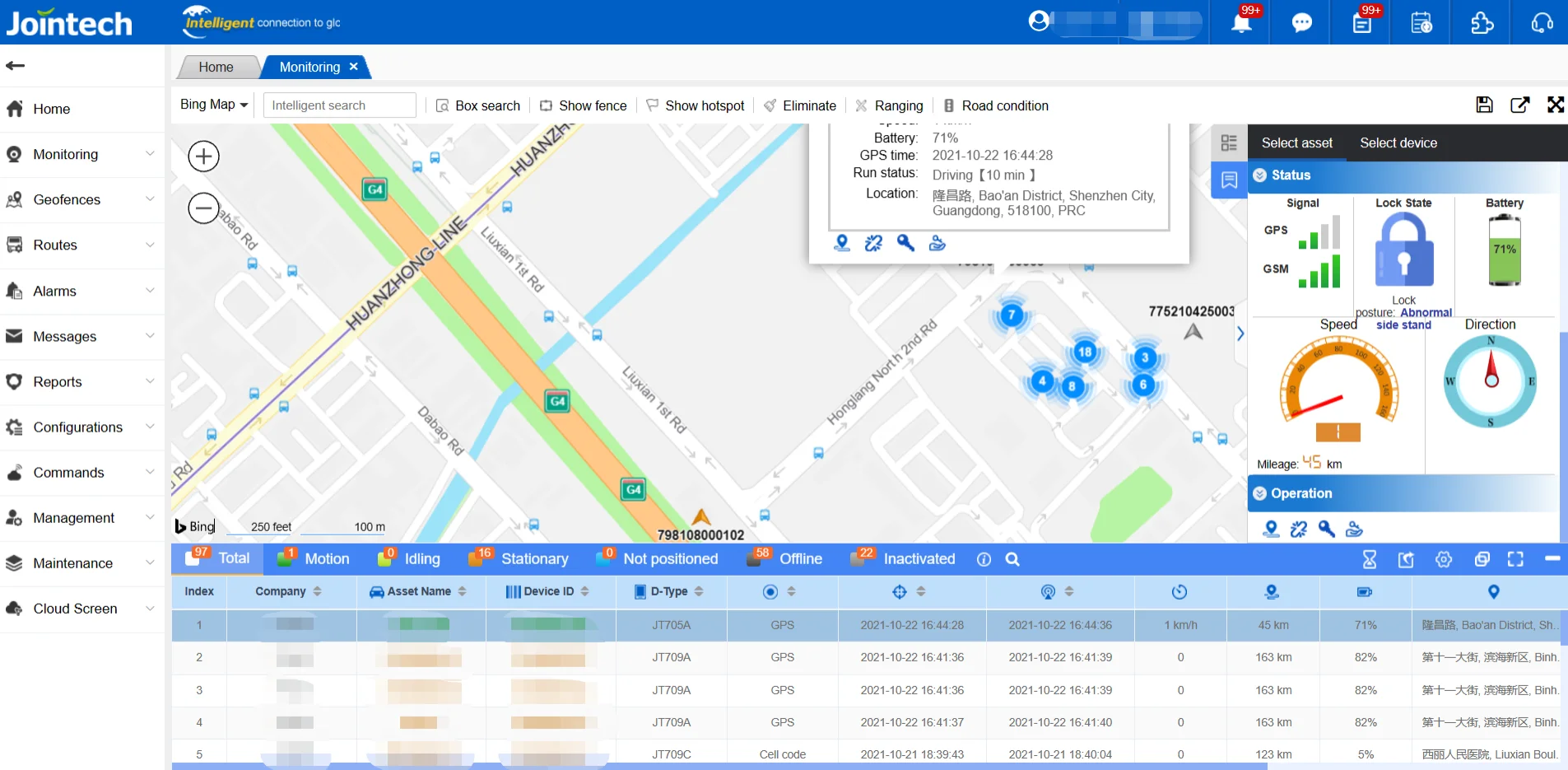

Jointech Platform Introduction
Software Advantage
Cooperating with the smart hardware (JT709A) released by Jointech globally. Jointech cloud platform is tailor-made for cross border logistics and transportation scenarios. It provides lOS, Android platform APP, multi-language application to make the assets at your fingertips! Experience it RIGHT NOW!
Real Time Tracking
➢ Location, speed, mileage;
➢ Lock status information;
➢ Temperature information (with temperature sensor);
➢ Remaining battery information.

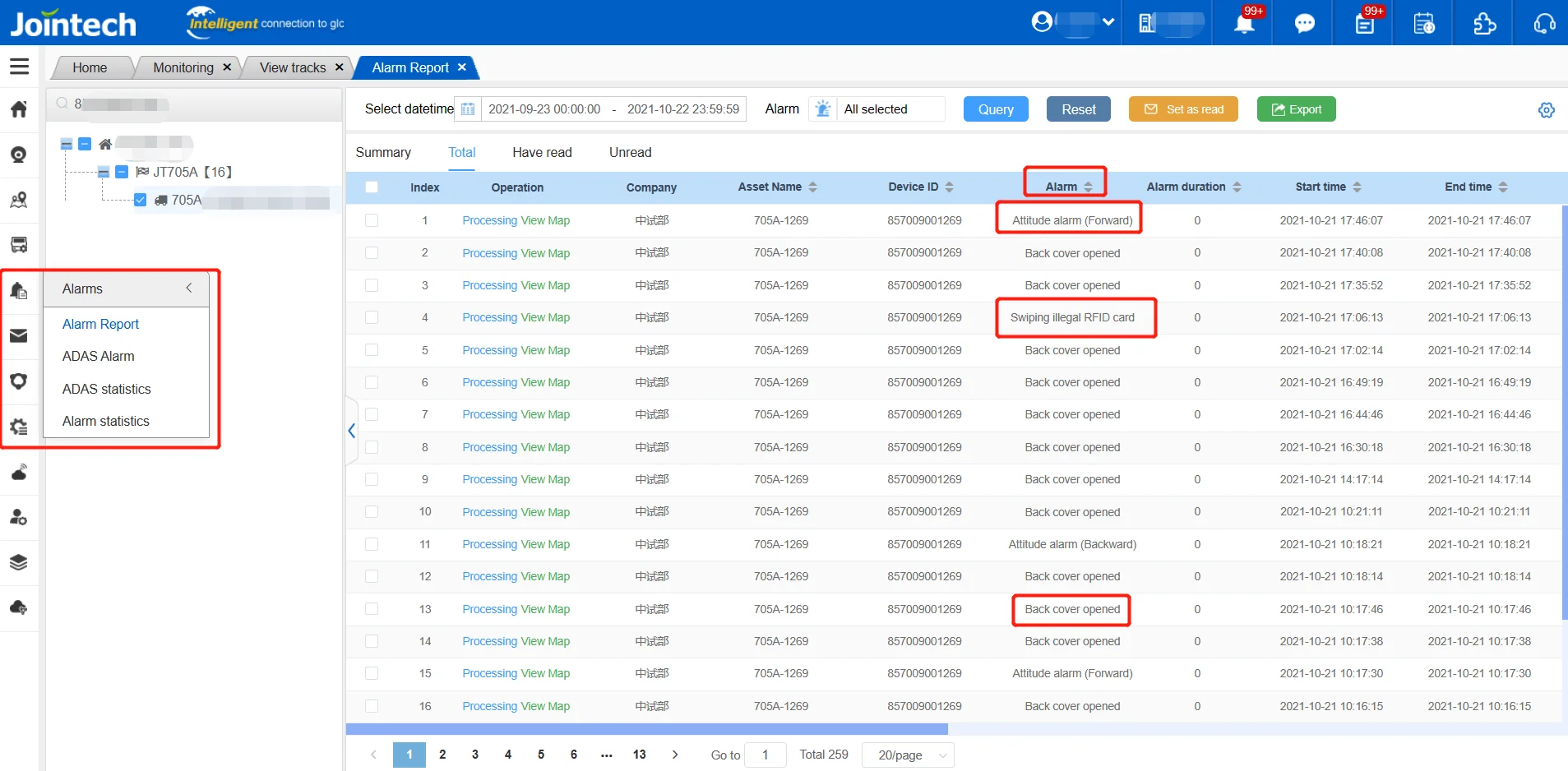

Real-time Alarm and Alarm Report
➢ Configure alarm information type.
➢ Web / App / SMS reminder.
➢ SMS sent to the designated mobile phone number (additional charge required).
➢ Mail is sent to the specified mailbox.
➢ Web / App / SMS reminder.
➢ SMS sent to the designated mobile phone number (additional charge required).
➢ Mail is sent to the specified mailbox.
Interested in exploring more functions, contact us NOW!!!
--Assets Monitoring
Application:

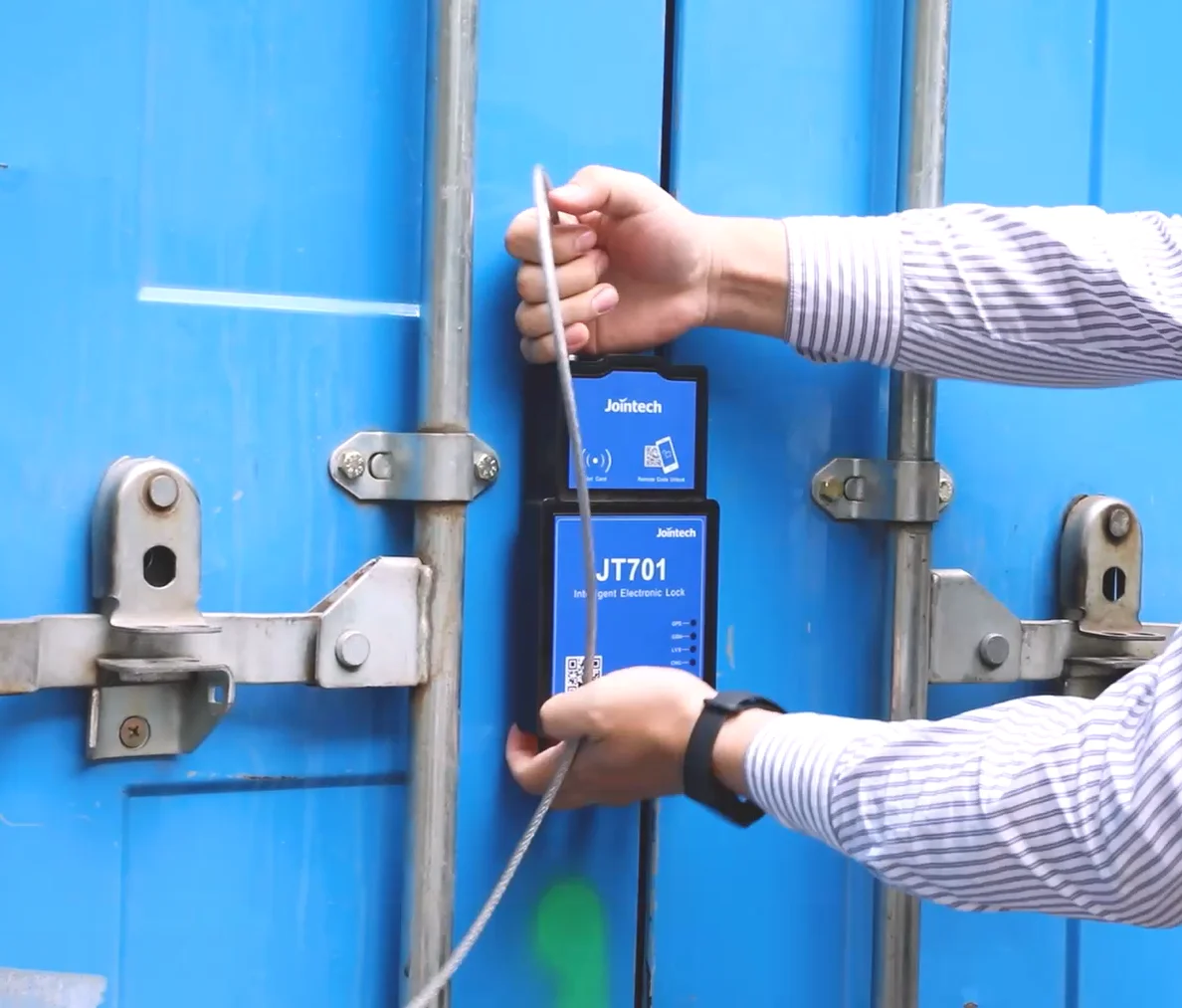

➢ Containers
➢ Van trucks
➢ Warehouse door
Scenario:
➢ Logistics distribution and trunk transportation
➢ Containers cross-border shipping
➢ Container railway transportation
➢ Warehouse supervision
➢ Containers
➢ Van trucks
➢ Warehouse door
Scenario:
➢ Logistics distribution and trunk transportation
➢ Containers cross-border shipping
➢ Container railway transportation
➢ Warehouse supervision
--Custom Operations
The security of customs operations can be complex and challenging due to risk of tampering during the inspection cycle. To solve our clients' problems, Jointech Integrate smart locks with customs and transportation systems streamlines logistics. This supports
electronic sealing, unsealing, and real-time monitoring, enhancing transit logistics' efficiency and security.
electronic sealing, unsealing, and real-time monitoring, enhancing transit logistics' efficiency and security.
Why Choose Us
About Us
Jointech, established in 2006, is a pioneering company specializing in the IoT applications for smart logistics, committed to become the world's foremost provider and operator of mobile asset management solutions. We offer comprehensive global solutions to monitor the status and ensure the safety of logistics equipment and the assets they transport. Our goal is to help customers reduce costs, ensure safety, promote information transparency, and facilitate scientific decision-making.
Jointech's Wall of Honor.
Currently, Jointech serves national customs, taxation bureaus, and other governmental agencies in over 80 countries and regions.
We also cater to top international and domestic logistics transportation companies, as well as renowned large-scale integrators and end customers.
Our products and solutions are renowned for their reliability, high performance, and sustainable competitive advantages.
Vision: To achieve intelligent connectivity of global mobile assets through the Container Alliance Cloud Platform.
We also cater to top international and domestic logistics transportation companies, as well as renowned large-scale integrators and end customers.
Our products and solutions are renowned for their reliability, high performance, and sustainable competitive advantages.
Vision: To achieve intelligent connectivity of global mobile assets through the Container Alliance Cloud Platform.
Our Wonderful Team
Jointech's success in IoT applications for smart logistics is driven by a diverse and dedicated team.
Our leadership, with decades of experience in technology and logistics, guides our strategic vision. Our R&D team develops cutting-edge IoT technologies. while our sales and customer support teams build strong customer relationships, ensure exceptional service and maintain high standards of implementation and support.
Together, we strive to connect global mobile assets through the Container Alliance Cloud Platform, enhancing logistics operations worldwide.

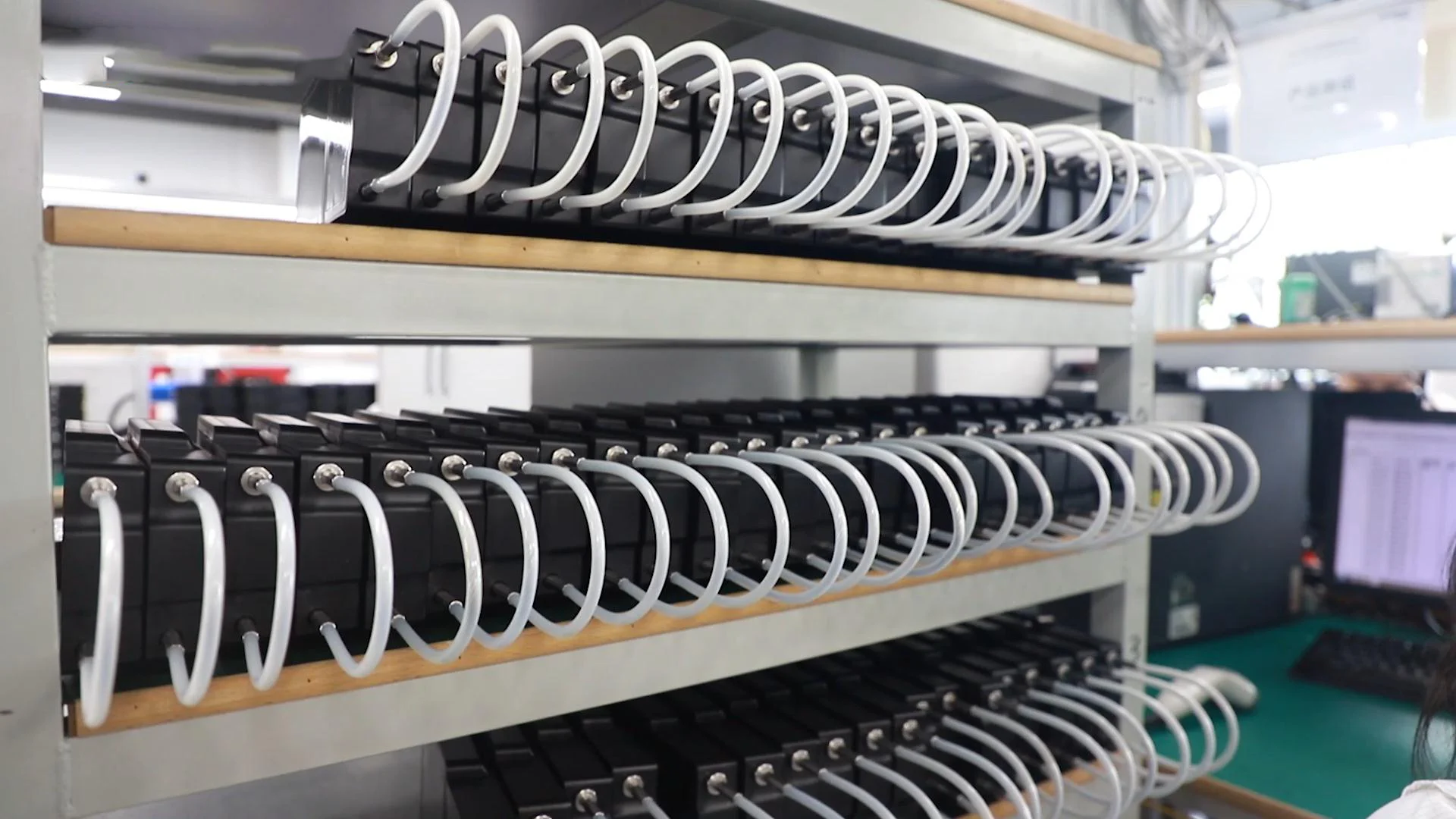

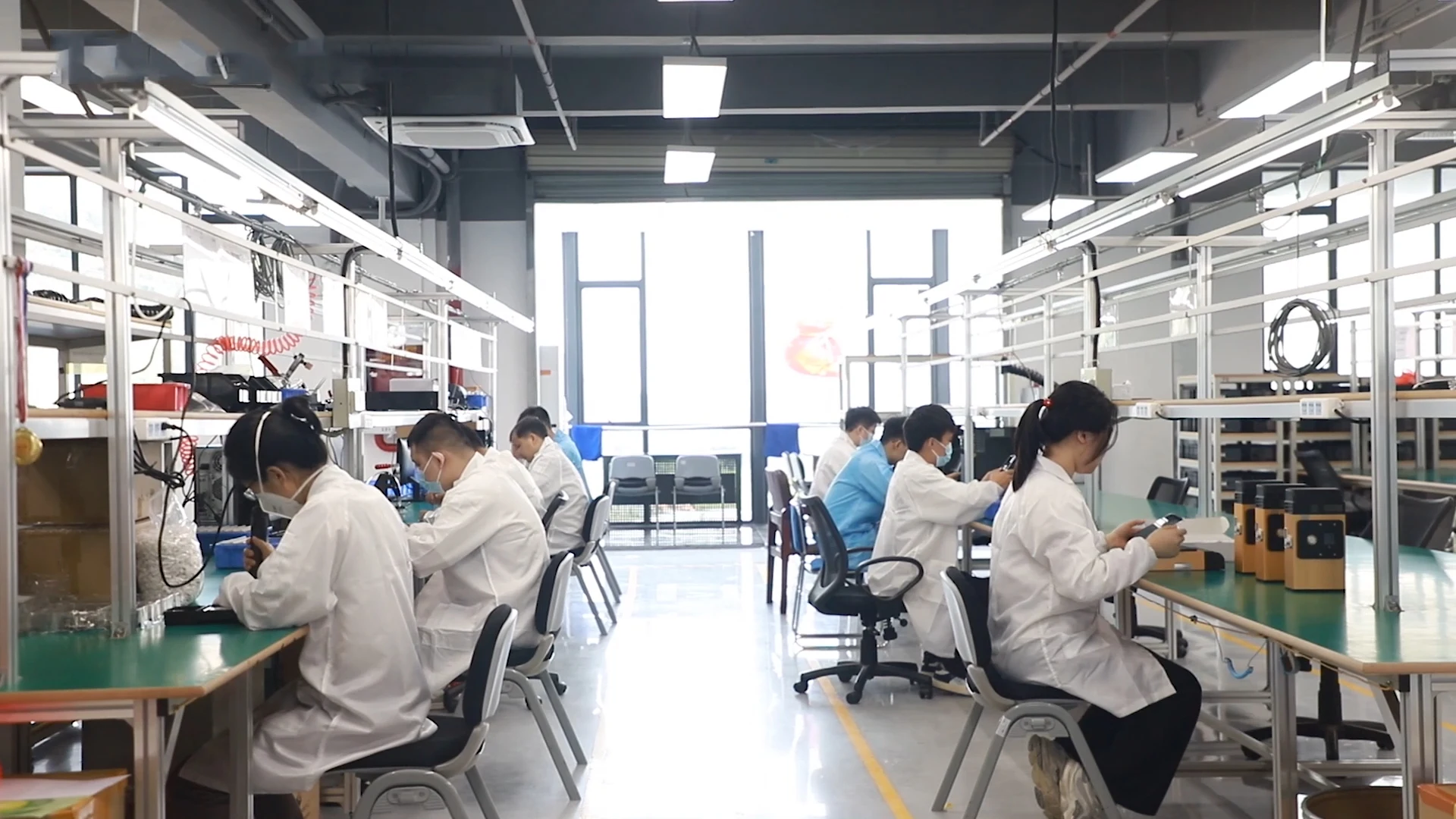

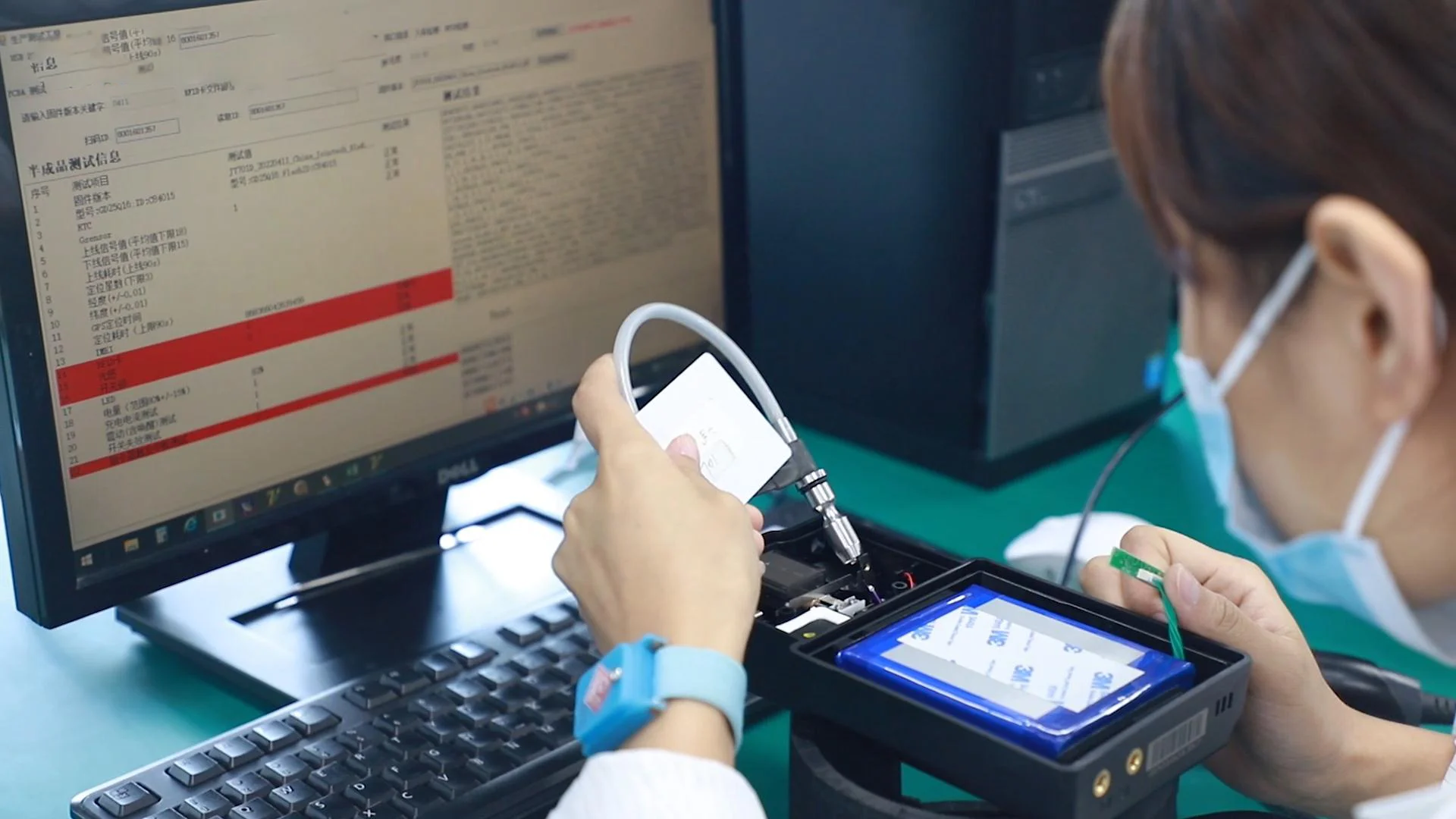

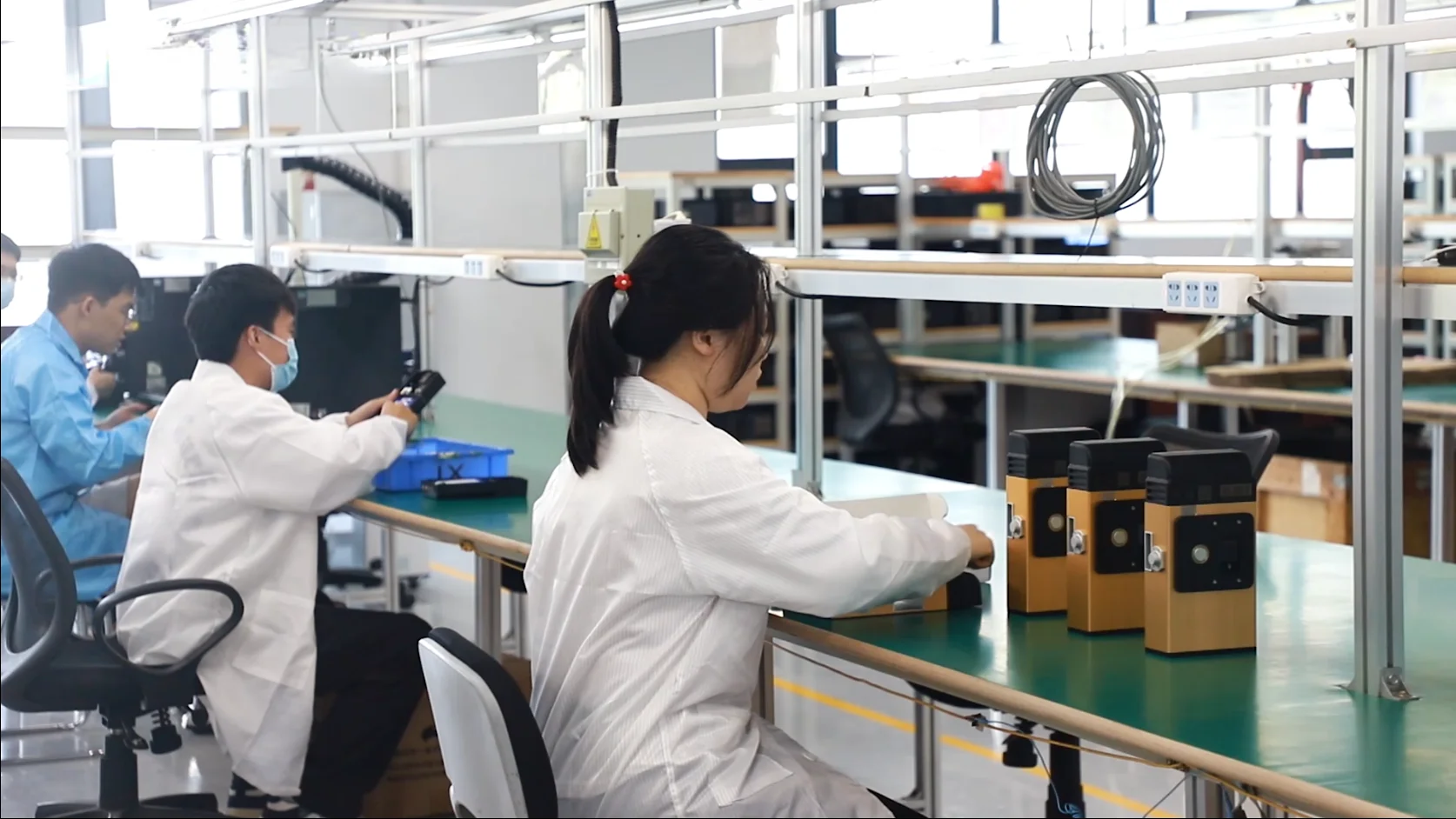

Our Own Factory
Jointech has professional standard production line, and have bulk order production capacity. The production capacity can reach 200,000 pcs smart hardware per year.
Flexible delivery time and quality assurance.
Certificate
Exhibition
Shipping & Packaging
Our clients & Partners
FAQ
Q1: Do you have your own factory?
A1: Yes, we are a manufacturer with 18 years of experience in providing mobile asset monitoring and management solutions.
Q2:Why choose us?
A2: Our company is a leader in the field of mobile asset monitoring in China, our products and services have covered more than 80 countries and regions around the world and enjoy high brand awareness and reputation in America, Africa, Asia and Europe.
Q3: Do you have your own tracking platform?
A3: Yes, we can provide not just web based tracking software, but also IOS/Android APP.
Q4: Do you provide customized hardware and software?
A4: Yes, we can provide not just customized hardware, but also software functionalities.
Q5: What is the MOQ?
A5: MOQ will be 1-2pcs.
Q6: What's your delivery time?
A6: For samples, 2-4 days, bulk order, 7-15 days generally.
Q7: How can I get your price list?
A7: Please contact us, we will email you the quotation.
Q8: Can we have our logo or company name to be printed on your products or the package?
A8: Yes, of course.
Q9: What is the Warranty period of your products?
A:9: 12 months.
Q10: If the products have quality problems, what after-sale service I can get?
A10: Online chat service, remote technology support and platform service.
Contact us ASAP if any problem with the products.
A1: Yes, we are a manufacturer with 18 years of experience in providing mobile asset monitoring and management solutions.
Q2:Why choose us?
A2: Our company is a leader in the field of mobile asset monitoring in China, our products and services have covered more than 80 countries and regions around the world and enjoy high brand awareness and reputation in America, Africa, Asia and Europe.
Q3: Do you have your own tracking platform?
A3: Yes, we can provide not just web based tracking software, but also IOS/Android APP.
Q4: Do you provide customized hardware and software?
A4: Yes, we can provide not just customized hardware, but also software functionalities.
Q5: What is the MOQ?
A5: MOQ will be 1-2pcs.
Q6: What's your delivery time?
A6: For samples, 2-4 days, bulk order, 7-15 days generally.
Q7: How can I get your price list?
A7: Please contact us, we will email you the quotation.
Q8: Can we have our logo or company name to be printed on your products or the package?
A8: Yes, of course.
Q9: What is the Warranty period of your products?
A:9: 12 months.
Q10: If the products have quality problems, what after-sale service I can get?
A10: Online chat service, remote technology support and platform service.
Contact us ASAP if any problem with the products.
