WODETEC 22 65 110 150 200Post tension Prestressed Hydraulic Jack YDC Hollow Hydraulic Jack
- Category: >>>
- Supplier: Henan Wode Heavy Industry Co. Ltd.Henan Ltd.
Share on (1601225646969):
Product Overview
Description
Product descriptions from the supplier
Overview
Product Description
YDC series light hydraulic jacks, integrating advanced technology and high-quality standards, have undergone accurate computer analysis and optimization combination, and have been verified by strict trial and error. The cylinder block is specially prestressed, which significantly reduces weight while maintaining excellent strength. The jack's compact size and lightweight form factor provide excellent performance with high strength, excellent sealing and high safety.
YDC series hydraulic jacks have flexible design and can be easily matched with a variety of accessories, which are widely suitable for various anchoring needs in prestressed and post-tensioned prestressing projects. Its stable and reliable performance ensures accurate operation and efficient completion in different engineering scenarios, and fully meets the strict requirements and expectations of customers and engineering projects.
Application
Application and features：

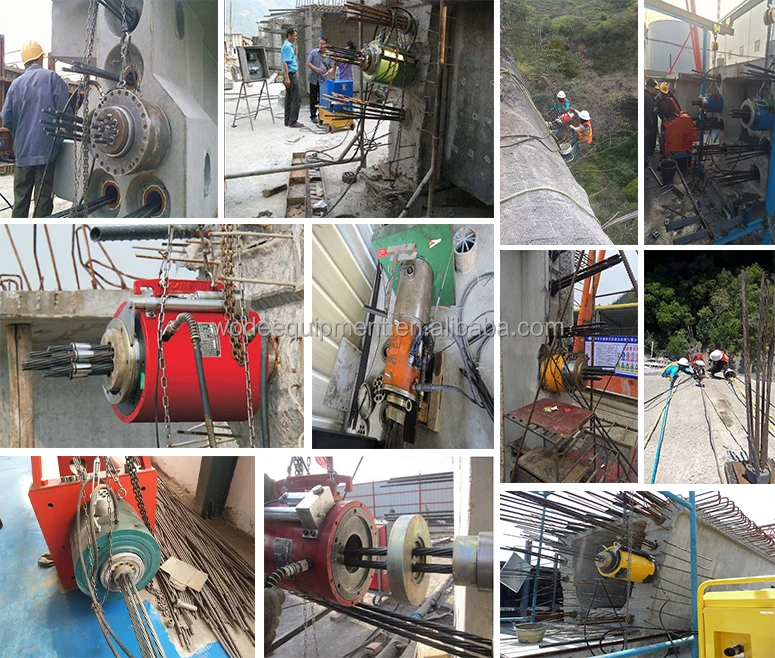

1.It is widely used for the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering matched with prestressed anchorage and strands.
2. It is suitable for stressing mono strands or multi strands, the specification is Φ15.24 andΦ12.7.
3. In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
4. Easy to use with reasonable price .
5. Jack is used for prestressing workshop.
1.It is widely used for the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering matched with prestressed anchorage and strands.
2. It is suitable for stressing mono strands or multi strands, the specification is Φ15.24 andΦ12.7.
3. In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
4. Easy to use with reasonable price .
5. Jack is used for prestressing workshop.
Product Parameters
Model | Tonnage | Tension force KN | Stroke mm | Central diameter mm | Dimension mm | Weight kgs | Tension area | Rated oil pressure | Number of max. Tension strands | ||||||||
YDC220 | 22 | 220 | 200 | Φ32 | Φ110*400 | 20 | 4398mm² | 50Mpa | Φ25 rebar | ||||||||
YDC650 | 65 | 650 | 200 | Φ60 | Φ190*345 | 58 | 12638mm² | 51Mpa | 3 strands | ||||||||
YDC1100 | 110 | 1100 | 200 | Φ80 | Φ230*356 | 80 | 20488mm² | 54Mpa | 5 strands | ||||||||
YDC1500 | 150 | 1500 | 200 | Φ90 | Φ270*356 | 120 | 30242mm² | 50Mpa | 7 strands | ||||||||
YDC2000 | 200 | 2000 | 200 | Φ114 | Φ296*372 | 135 | 35796mm² | 56Mpa | 9 strands | ||||||||
YDC2500 | 250 | 2500 | 200 | Φ128 | Φ348*373 | 180 | 48356mm² | 52Mpa | 12 strands | ||||||||
YDC3000 | 300 | 3000 | 200 | Φ142 | Φ375*385 | 250 | 57796mm² | 52Mpa | 14 strands | ||||||||
YDC3500 | 350 | 3500 | 200 | Φ158 | Φ416*385 | 290 | 70765mm² | 49Mpa | 17 strands | ||||||||
YDC4000 | 400 | 4000 | 200 | Φ158 | Φ424*385 | 310 | 76302mm² | 53Mpa | 19 strands | ||||||||
YDC4600 | 460 | 4600 | 200 | Φ190 | Φ473*390 | 400 | 87606mm² | 53Mpa | 22 strands | ||||||||
YDC5000 | 500 | 5000 | 200 | Φ193 | Φ480*395 | 430 | 93965mm² | 53Mpa | 24 strands | ||||||||
YDC5600 | 560 | 5600 | 200 | Φ193 | Φ510*400 | 460 | 107156mm² | 52Mpa | 27 strands | ||||||||
YDC6500 | 650 | 6500 | 200 | Φ205 | Φ538*400 | 500 | 124580mm² | 52Mpa | 31 strands | ||||||||
Remark | 1. There are available jacks in stock if tonnage is under 560 tons. 2. It need to be customized if tonnage is over 650 tons. 3. Standard stoke is 200mm, if there are specific requirement, it need to be customized. | ||||||||||||||||

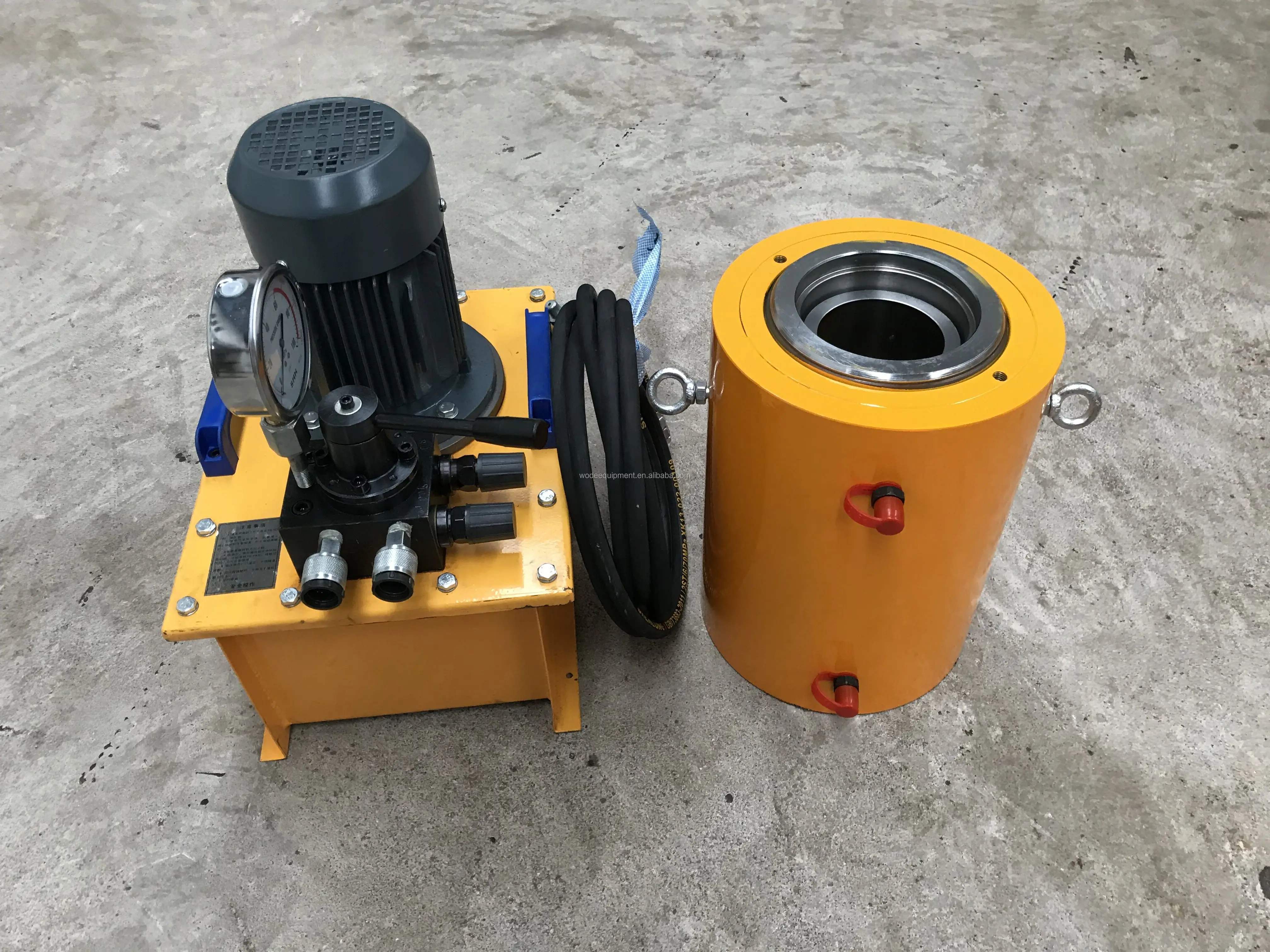

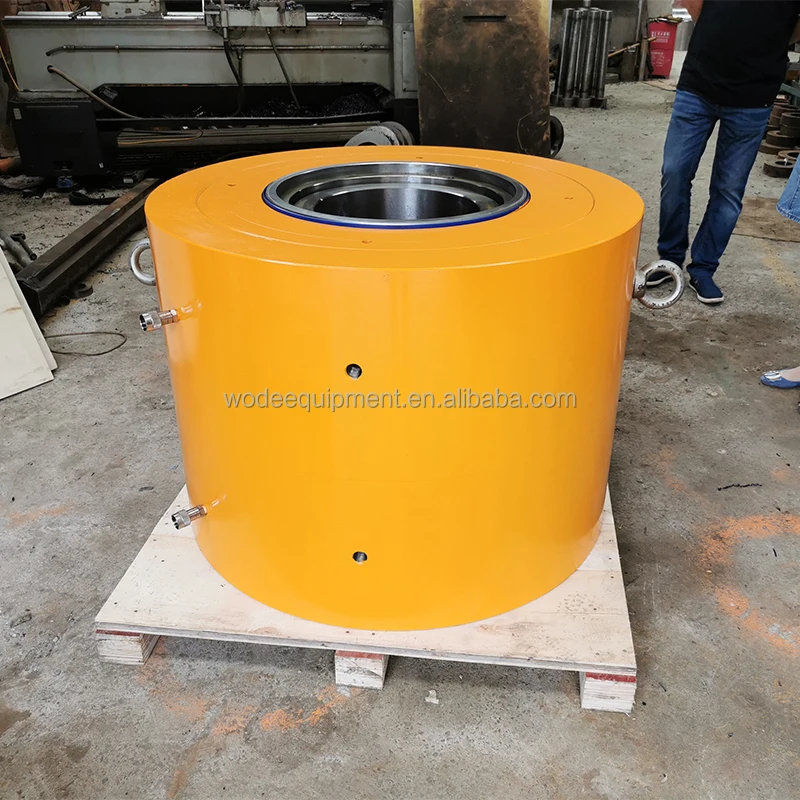

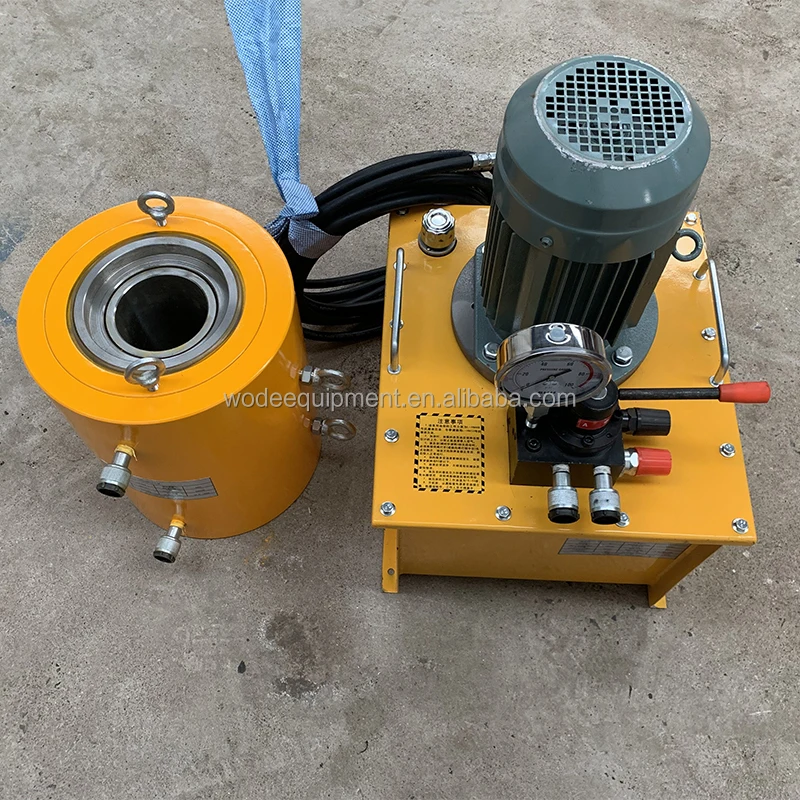

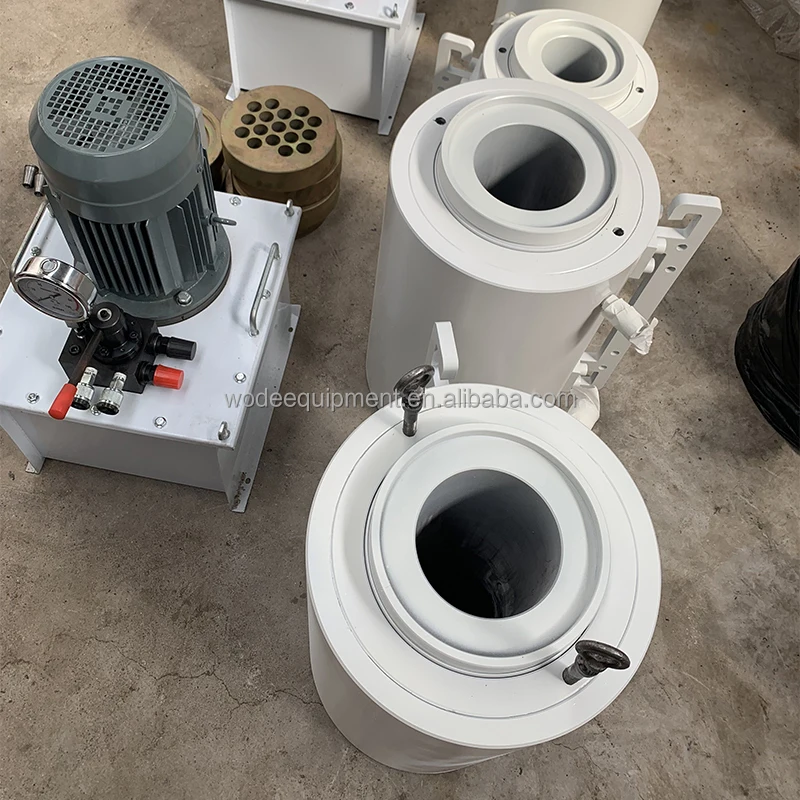

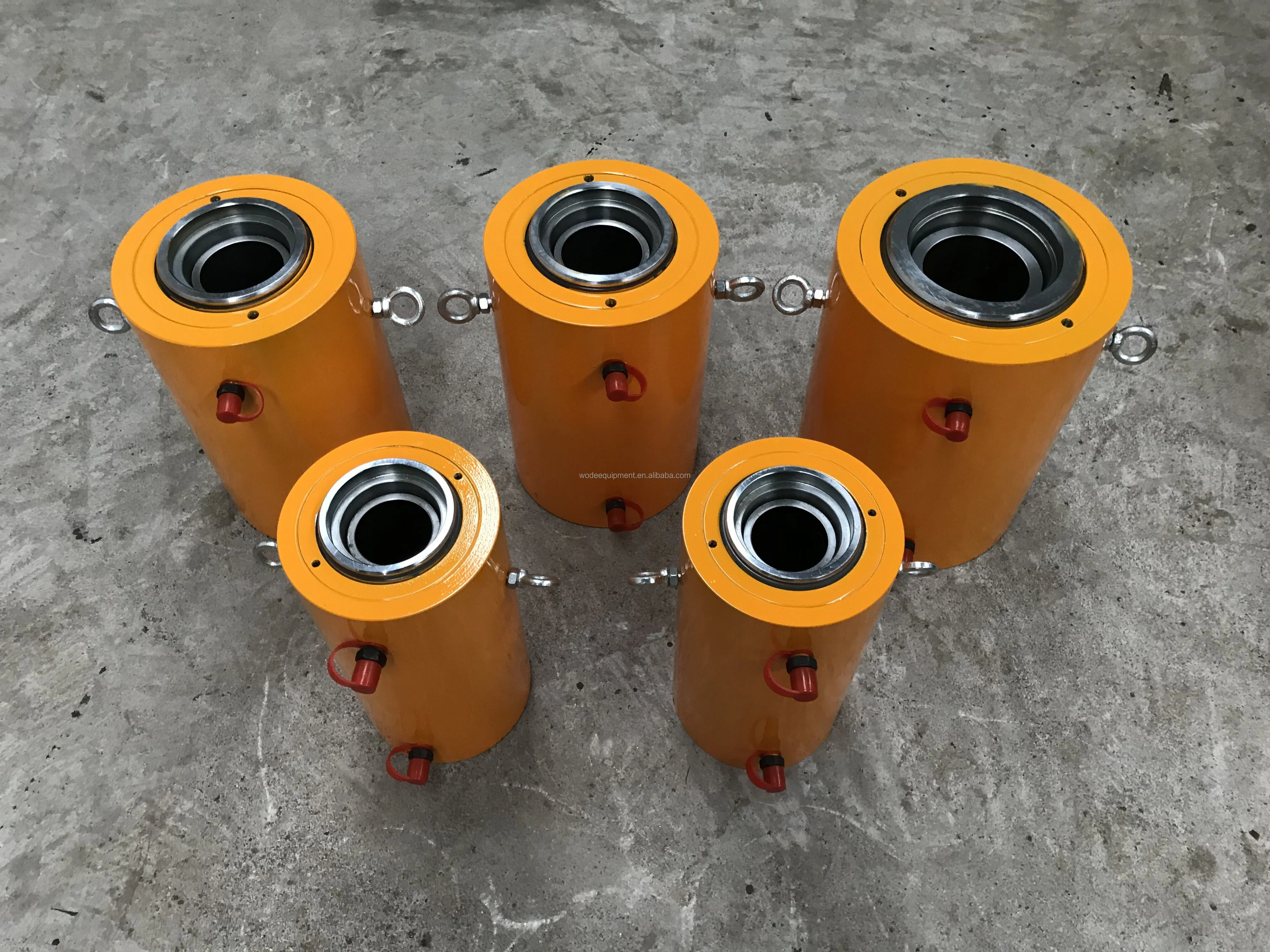

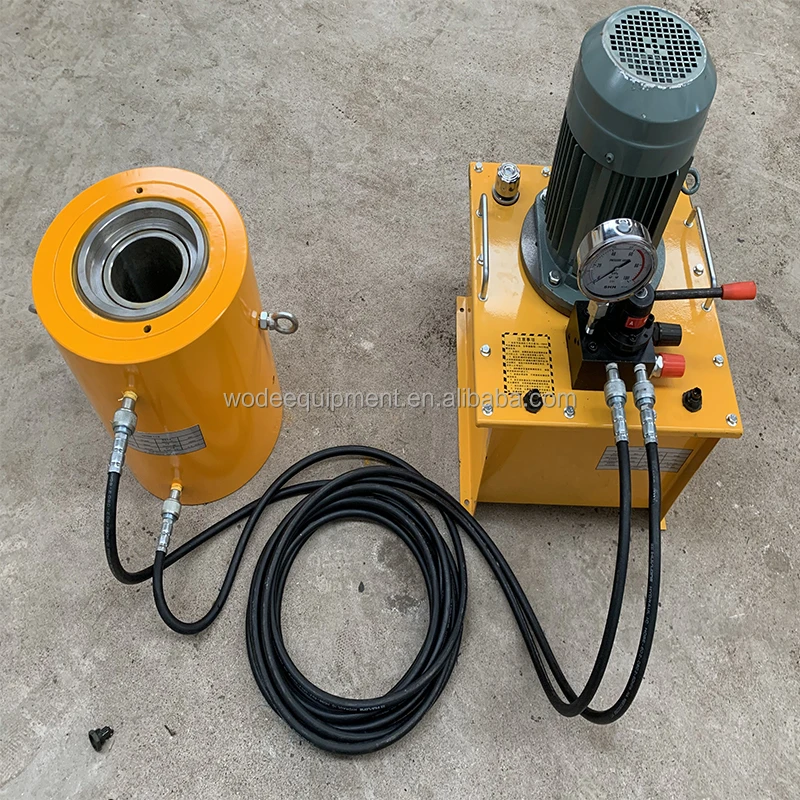

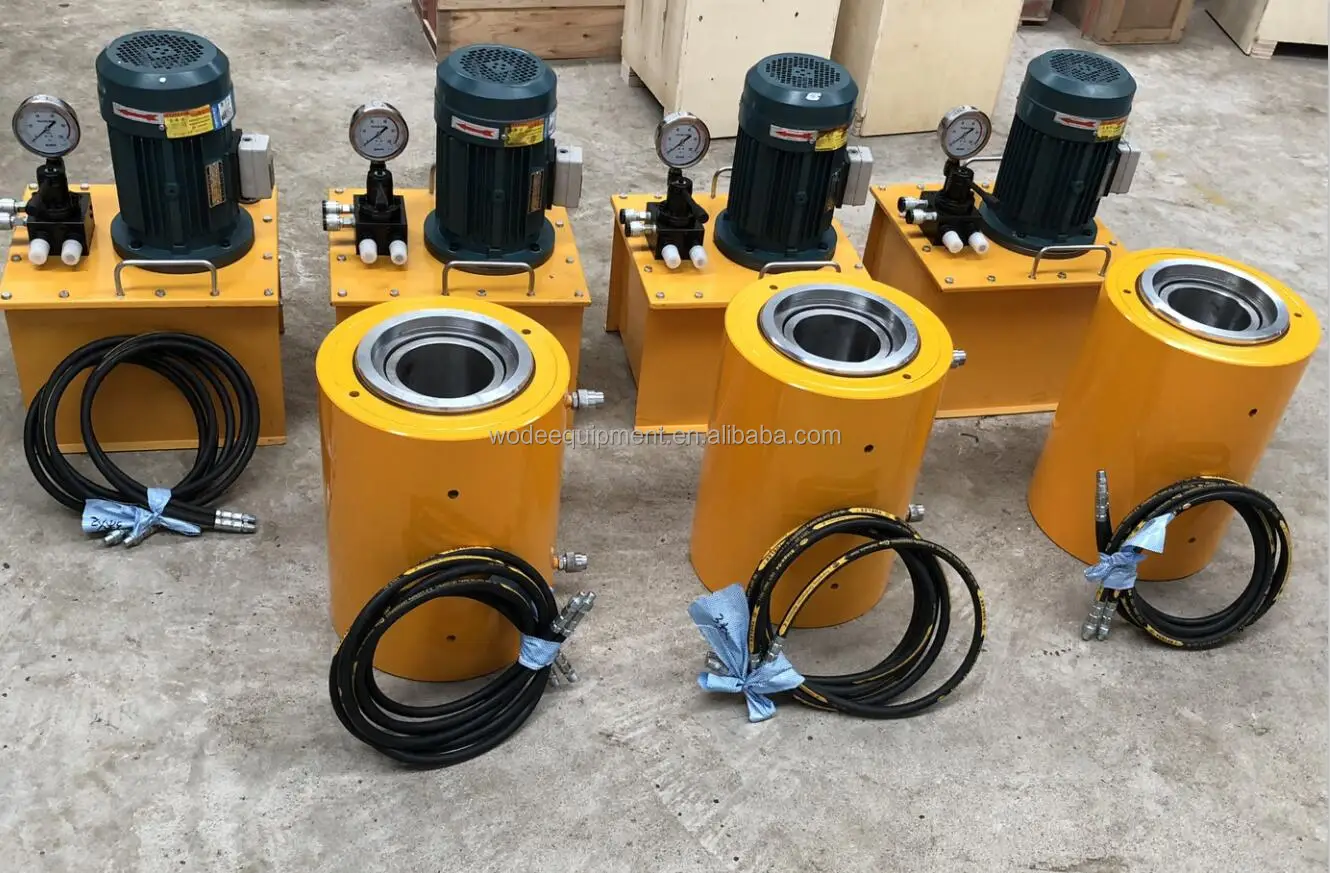

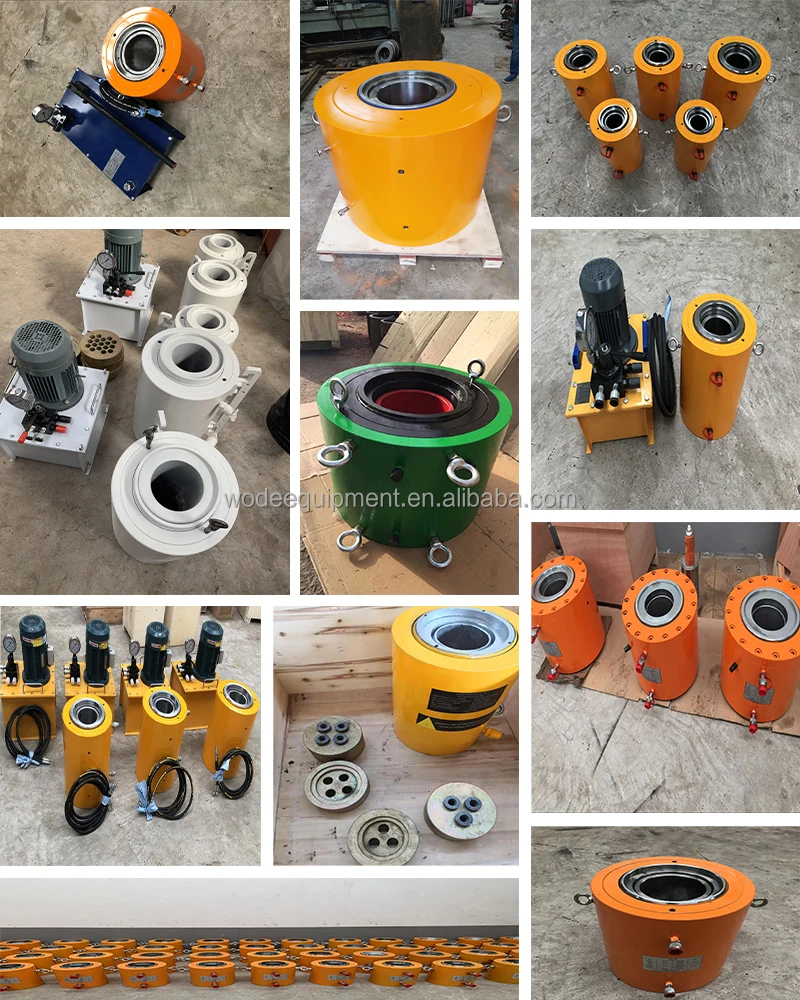

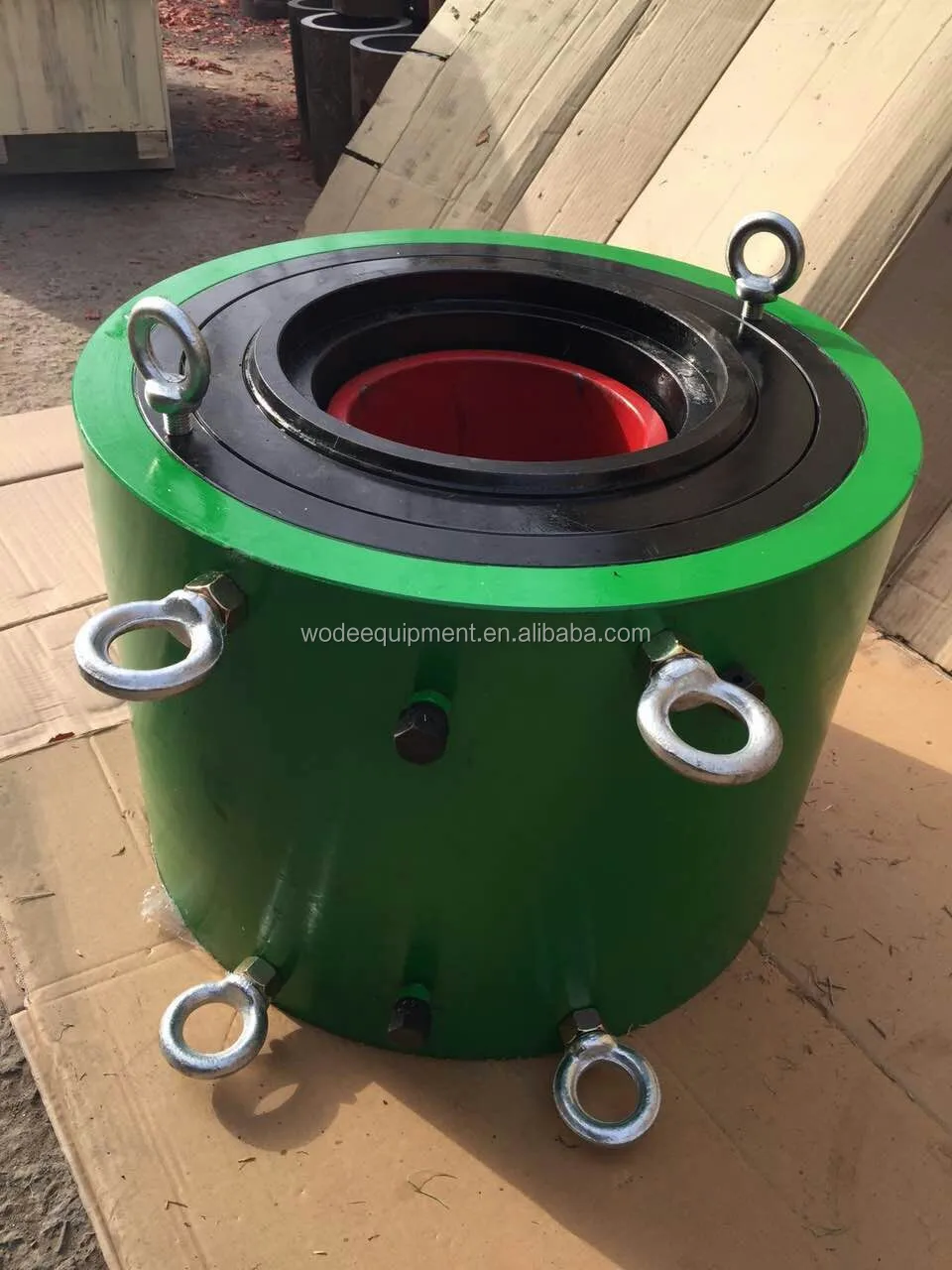

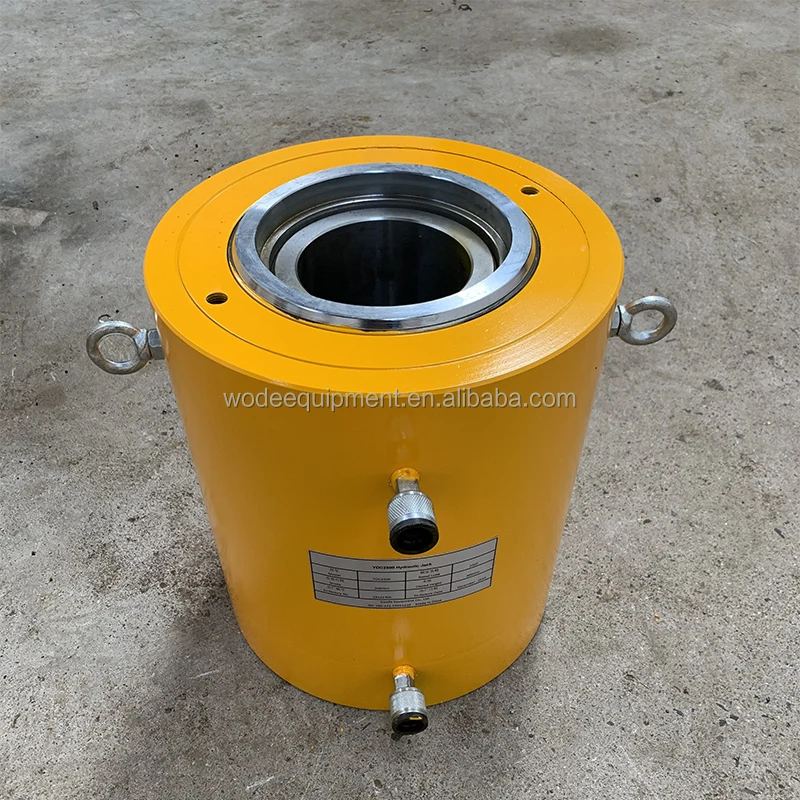

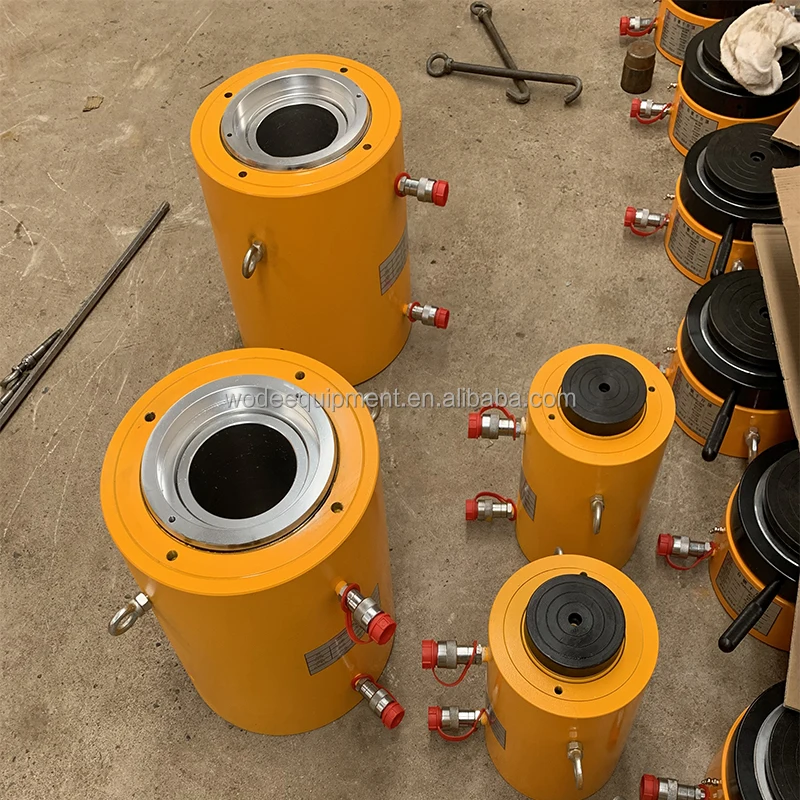

Product display
Recommend Products

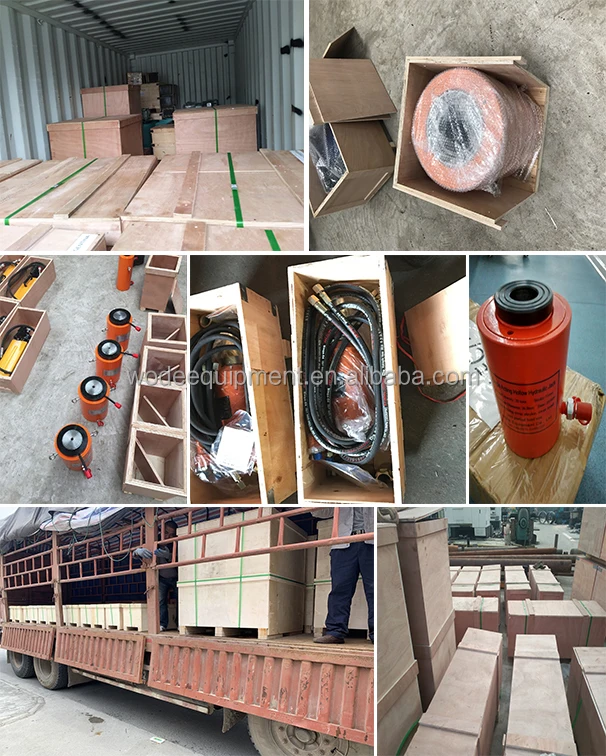

Packaging and delivery
Contact Supplier
Contact us for catalog and price
To make sure this type of jack is the right fit for your job, let us know a few things：
1. What is the tonnage and stroke you need? 2. Do you need anchor or other prestressing equipment?
3. Do you need electric pump for the jack? If you need, what's the voltage in your local? It is 3phase 380v 50Hz in China.
