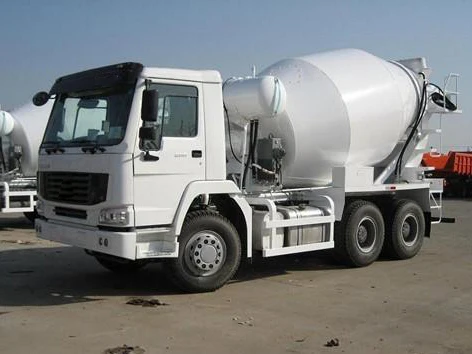

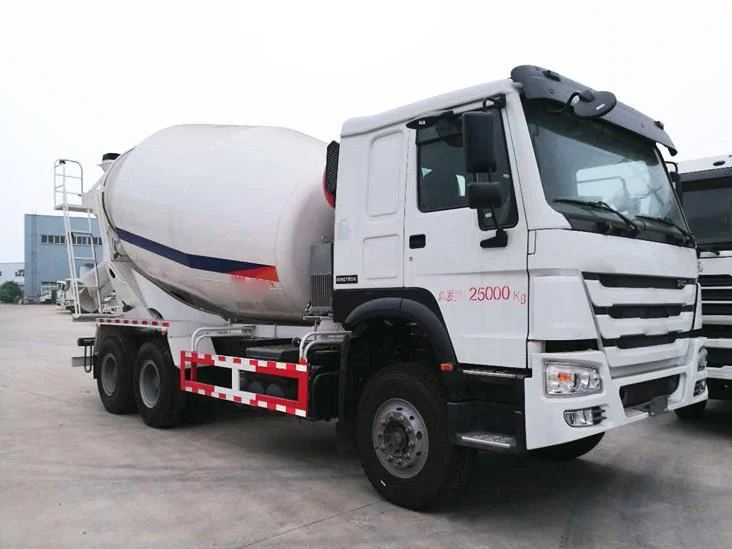

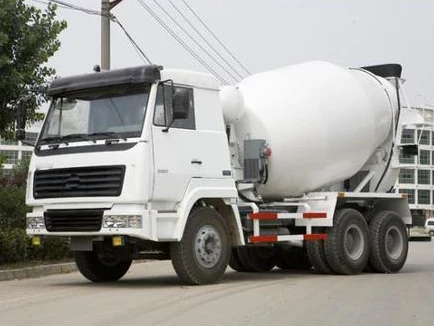

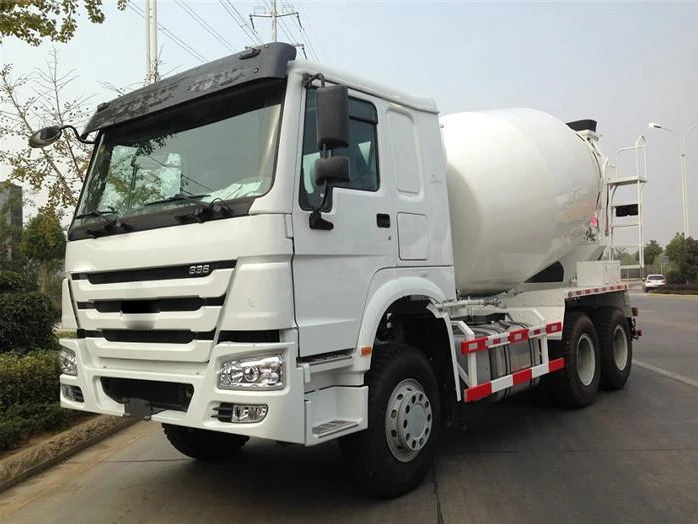

Sinotruk Howo Concrete Mixer Truck
Concrete mixer truck consists of truck chassis and concrete mixing delivery device, mixing tank keeping rolling during thetransportation process. It is special purpose vehicle that combines the functions of concrete mixing and delivery.
Cement mixer truck has three type: wet material type, material type and semidry material type according to concrete water content in the mixer truck shipment to points. It can be shipped by mixing plant (station) production of concrete or mixed according to the ratio of aggregate (sand and gravel), cement and water. During transport and segregation, it keeps slowly stirring wet material constantly to prevent the initial setting of concrete.
Product Paramenters
Typical truck model | ZZ5257GJBN3641W、ZZ5257GJBN3841W、ZZ5257GJBN4041W、ZZ5257GJBN4341W | ||
Cab | Model | HW76 | |
Type | HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. | ||
Engine | Model | WD615.87、WD615.69、WD615.47 | |
Rated power | 290HP（213Kw/rpm）、336HP（247Kw/rpm）、371HP（273Kw/rpm） | ||
Displacement | 4 stroke direct injection diesel engine | ||
Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | ||
Wheelbase | 3600+1400mm、3800+1400mm、4000+1400mm、4300+1400mm | ||
Mixer tanker size | 8CBM、9CBM、10CBM、12CBM | ||
Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | ||
Transmission | SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse | ||
Front axle | Steering axle with double T-cross section HF9 | ||
Drive axle | Pressed axle housing, central single reduction HC16 Ratio:5.73 | ||
Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel Aluminum fuel tank: with 400 L fuel tank with locking fuel cap | ||
Steering | Germany ZF, hydraulic steering with power assistance | ||
Brakes | Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS | ||
Wheel & Types | Rims: 8.0-20, 10 hole-steel Types 11.00-20 tube; Option: 12.00-20 tube, 12.00R20 tube | ||
Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | ||
