Share on (1601225765683):
CPU: ARM Cortex-A53 1.0GHz
OS: Linux
TF Card: upto 256GB
4G/3G: Supported

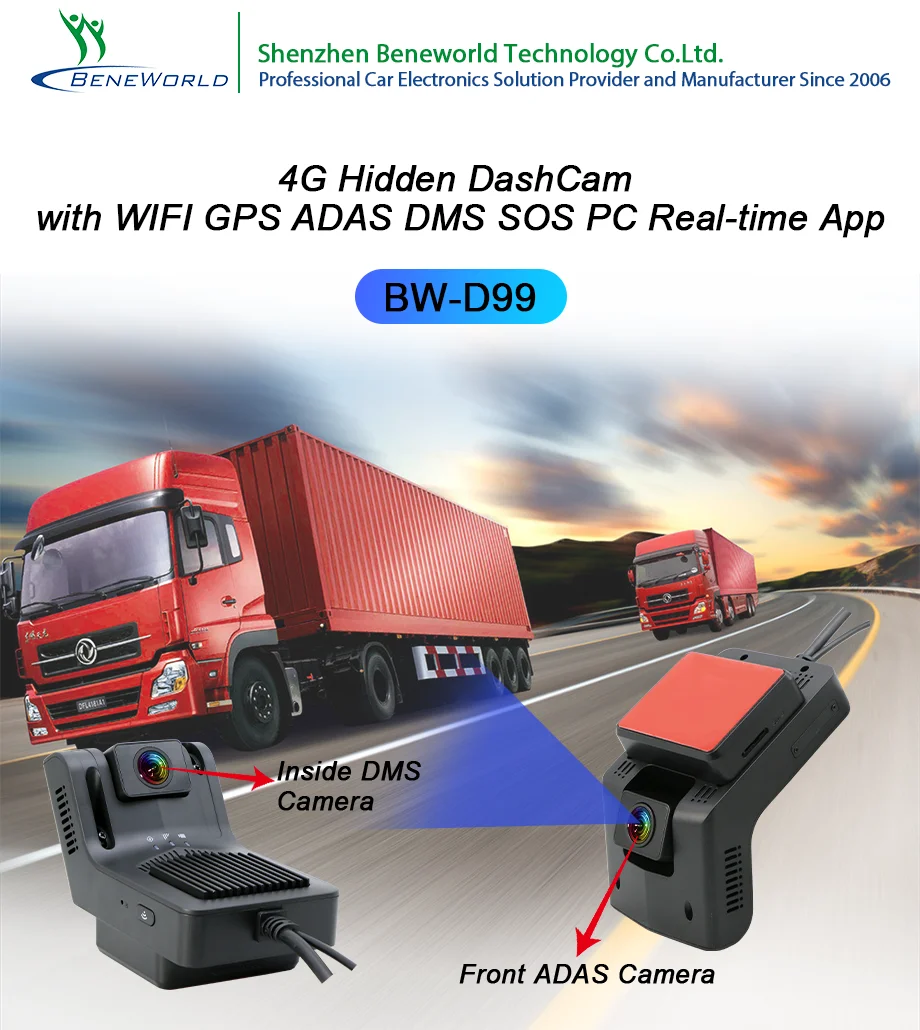

4CH Camera: Front 1080P with ADAS + Inside 1080P with DMS + Side AHD720P + Rear AHD720P
Functions: 4g GPS DVR ADAS DMS 24h tracking and monitoring
CMSV6: supported
Advantages:

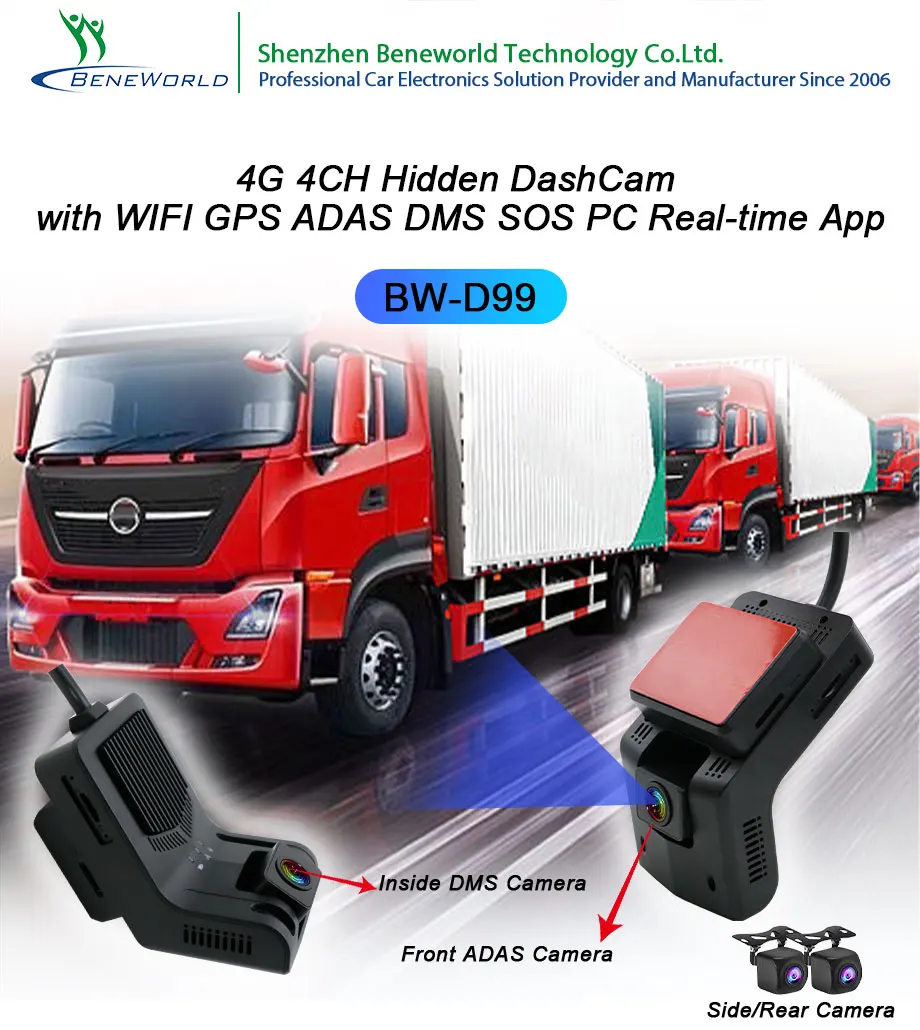

| Description | 4g 4ch Hidden DVR with ADAS DMS | ||||
| Model No. | BW-D99 | ||||
| CPU | ARM Cortex-A53 1.0GHz | ||||
| OS | Linux | ||||
| LCD | N/A | ||||
| Capacity | RAM | DDR3L 256MB | |||
| ROM | SPI NOR Flash | ||||
| TF Card | Up to 256GB | ||||
| Network | 4G | LTE-TDD: B34/B38/B39/B40/B41; LTE-FDD: B1/B3/B5/B8 | |||
| WIFI | 802.11 b/g/n, 2.4G, WIFI Hotspot supported | ||||
| Protocol | JT/T808/1078 | ||||
| GPS | External GPS Antenna | ||||

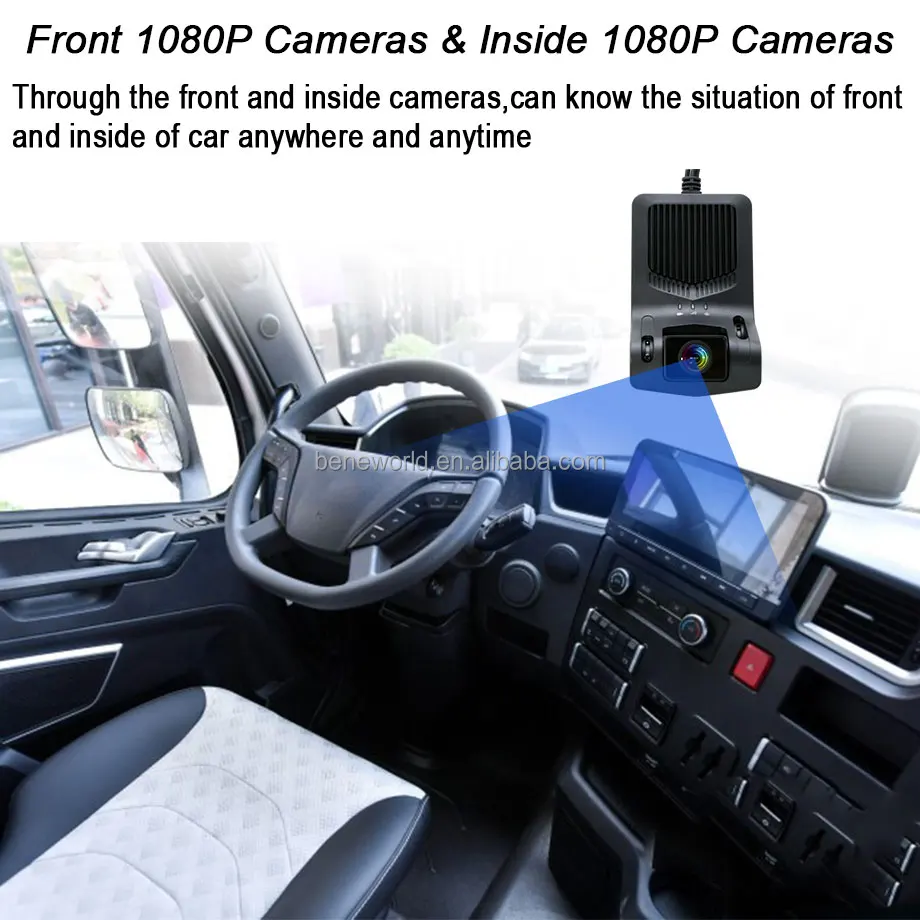

| Camera | Front | 1080P/25fps with ADAS | |||
| Inside | DMS, 1080P/25fps 4G+940IR Wide angle D=128°H=103°V=55° f2.0 | ||||

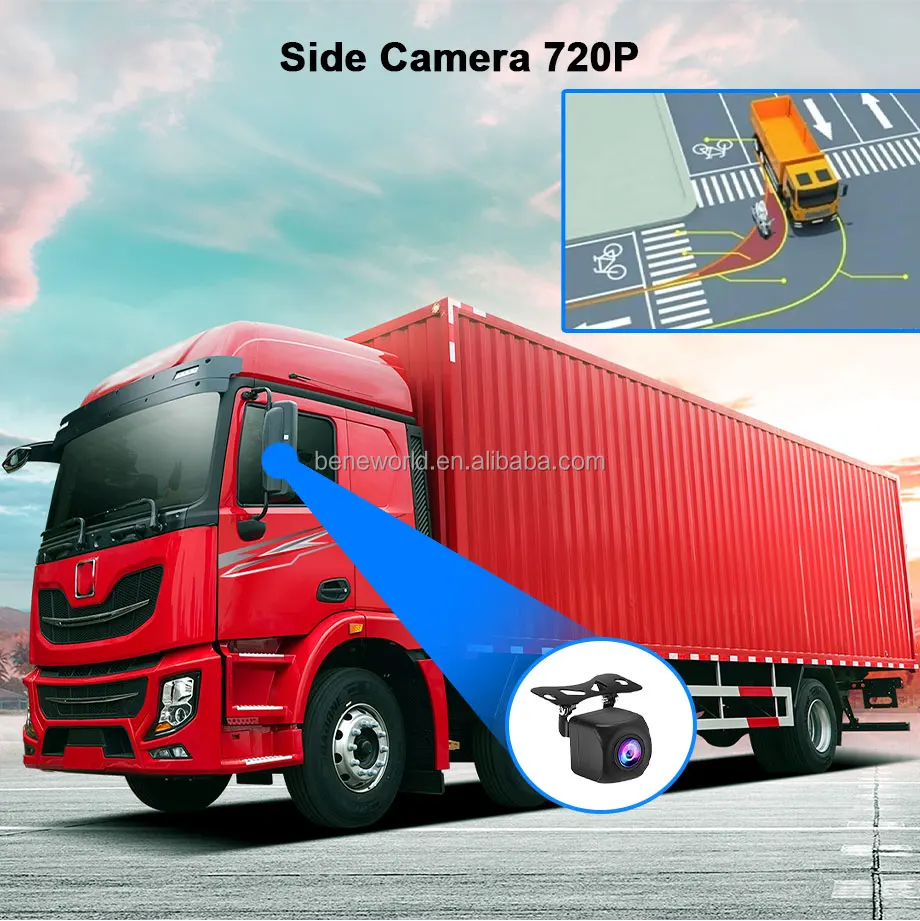

| Side | AHD720P | ||||

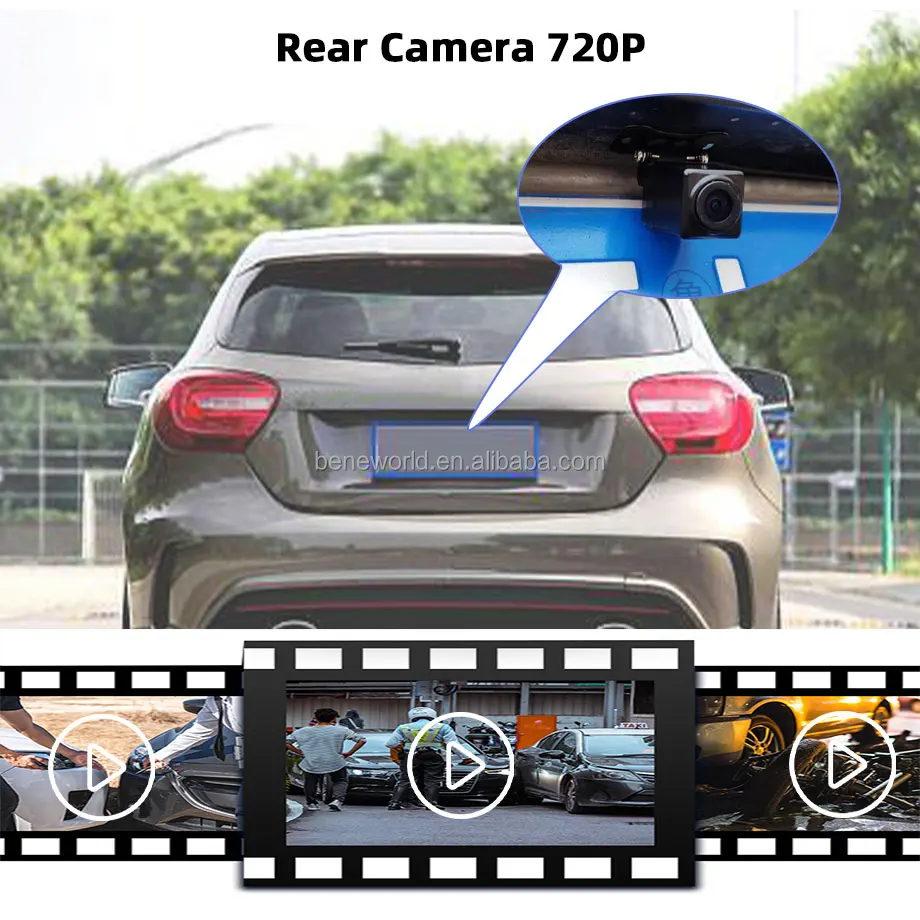

| Rear | AHD720P | ||||
| G-sensor | 3-axis G-sensor, Lock video if collisions when driving | ||||
| Parking Monitor | Supported | ||||
| Loop Recording | Supported | ||||

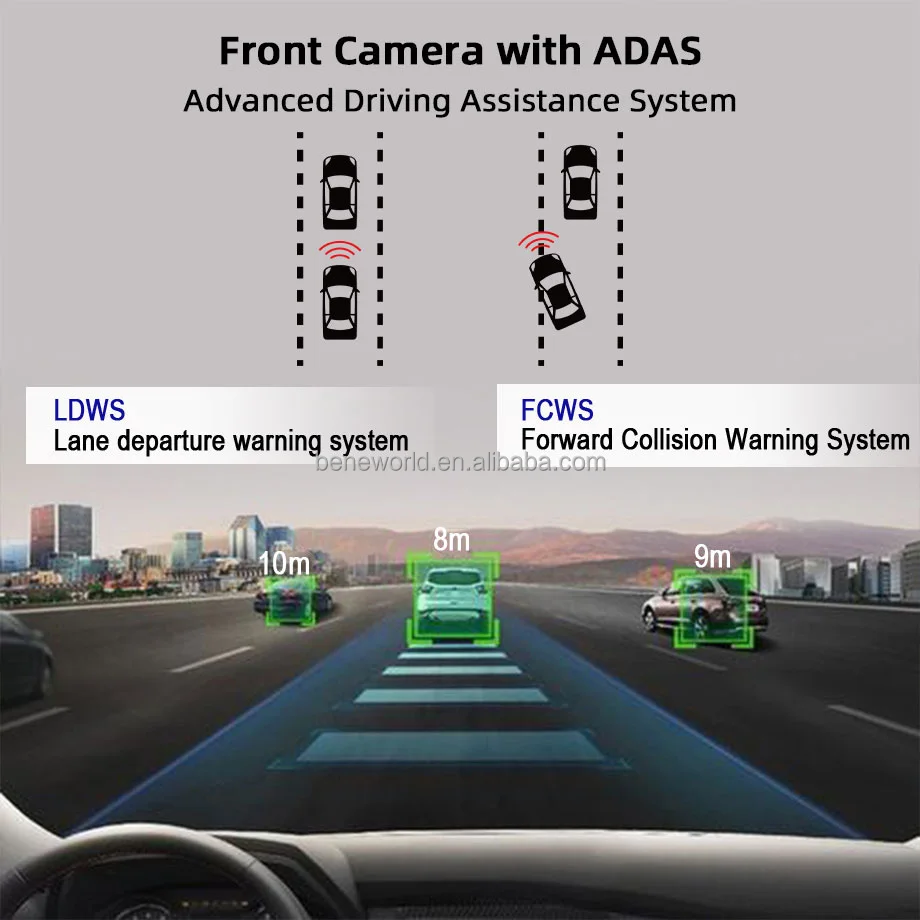

| ADAS | FCW Forward collision waring system LDW Lane departure waring system Pedestrian Collision Reminder | ||||
| DMS | Fatigue driving alert Calling / Smoking alert Distraction alert Block camera / No face alert Not wearing seat belt | ||||
| SOS | One button alarm | ||||
| Speaker | Built-in 1 * 8Ω/1.1W | ||||

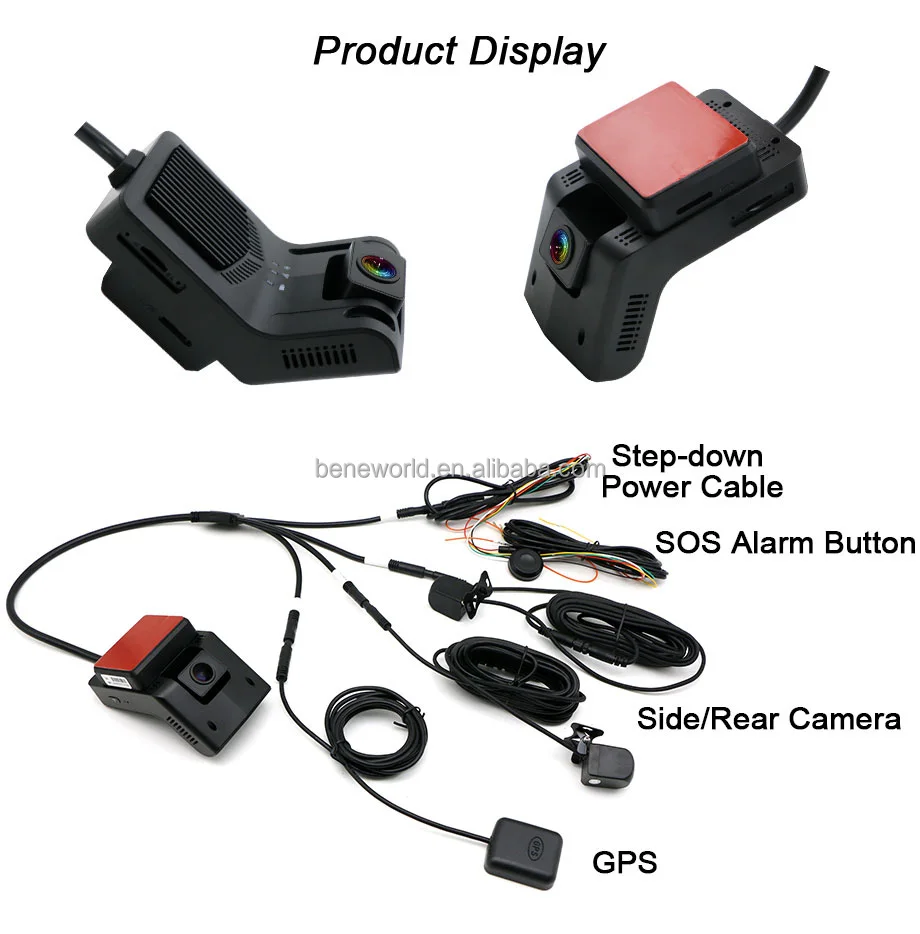

| I/O Ports | 1* Micro SIM | ||||
| 1* MicroSD | |||||
| 1* Power Cable | |||||
| 1* GPS Antenna | |||||
| 2* Rear Camera | |||||
| 1* RS232 Option | |||||
| Button | Reset | ||||
| Power Supply | 12V/24V(DC9~36V) | ||||
| Range of Temperature | Temperature | Usage | -20~65°C | ||
| Storage | -30~75°C | ||||
| Packaging Contents | |||||
| Device x 1pc | |||||
| User Manual x 1pc | |||||
| Color Box x 1pc | |||||
| Power Supply Cable x1pc | |||||
| GPS Antenna x1pc | |||||
| DMS Camera x 1pc | |||||












Shenzhen Beneworld Technology Co., Ltd. is a professional OEM/ODM/OBM manufacturer of Car Electronics and Consumer Electronics.
Our main products are GPS, Car DVR, Mirror Camera and Tablet PC. Our main markets include America, Europe, Asia and Africa.
We have our own international registered brand " Beneworld" and we're OEM ODM manufacturer for some big brands worldwide.
As we have strong R&D and in-house designing team, we know exactly what customers want and what is the market demand and trend from different countries and regions.
We developed many unique private and patent tooling and we released 2-3 items every month.
Our products are approval with certifications including FCC, CE,ROHS, CCC and so on.

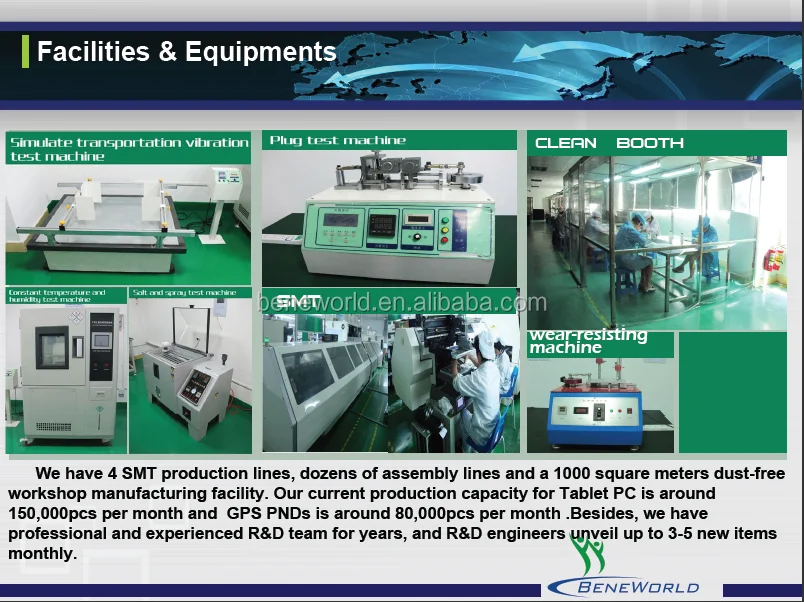

The perfect combination of advanced facilities&equipments, well-trained&skillful workers and
excellent management enable us to provide our customers with satisfied products and excellent services.

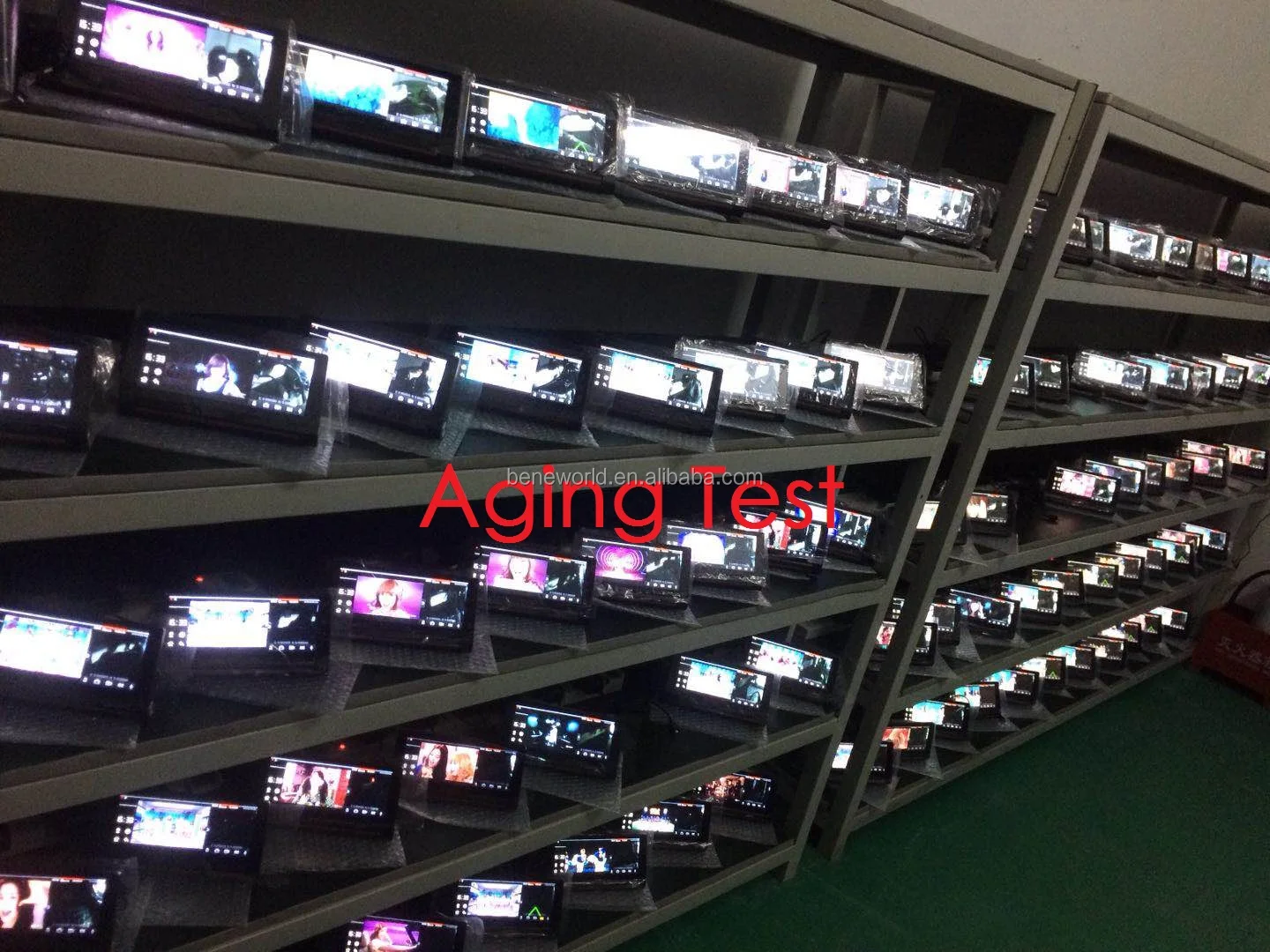

We have reliability of test evaluator with advanced equipments. We carry out 3 levels test for each material and prepare production of samples before mass production. We have strict quality control from IQC IPQC FQC OQC and QA. We do 100% double inspection for each unit before shipment.
Our business principle is very simple " Customer's full satisfaction is our success"
Welcome to contact with us and we feel sure we're your reliable supplier and partner as always.






1. Beneworld have more than 15 yesrs rich experience in OEM/ODM orders.
2. Release 3 new & private items every 2 months
3. Rich experience in customized orders with strong R&D team
4. Beneworld is VIP customer for many raw materials, we can get best price and fast delivery of raw materials.
5. We have strict quality control from IQC IPQC FQC OQC and QA. We do 100% double inspection for each unit before shipment.
6. Beneworld have done many successful special projects.

1.Q: What is the Minimum Order Quantity(MOQ)?
A: MOQ 200PCS, sample is avaiable for testing.
2.Q: How much do I need to pay for your OEM order?
A: No need to pay extra cost for our OEM service if order qty over 1000pcs.
3.Q: Can I buy samples from you?
A: Yes, samples are available.
4.Q: How long is the leading time? (How long do you need to prepare my goods?)
A: 3-5 days for sample orders. 5-7 days for mass production orders (based on different quantities).
5.Q: How will you ship the goods for me?
A: Ship by air by sea and express. We cooperate with international expresses such as DHL, UPS, FedEx,
TNT to enable our customers get their goods rapidly.
6.Q: How long will i receive the goods?
A: 5-7 days for air transportation, 3-5 days for international express.20-40 days for sea transportation.
7.Q: Could you put my brand name (logo) on products?
A: Yes, of course. OEM service is the most important part of our trade purpose.
8.Q: What payment method do you accept?
A: T/T, L/C, Western Union, Money Gram, etc.
9.Q: What certificates do you have?
A: all of our products are with CE / RoHS / FCC / UL compliant. For some models, the certificates are
already available. For other models, we will need your assistance to apply the certificates.
10.Q: What is your product quality?
A: our raw materials are purchased from qualified suppliers. And we have a strong quality control team to
guarantee our quality according to AQL standard. We always care what you care!!
11.Q: What is your warranty?
A: Our warranty is 12 months after delivery and we pay high attention to after sale service!!
