Best Quality Easy Operation 5.5Kw Power Of Motor Zlj 350 Grouting Reinforcement Drilling Rig
Best Quality Easy Operation 5.5Kw Power Of Motor Zlj-350 Grouting Reinforcement Drilling Rig
Best Quality Easy Operation 5.5Kw Power Of Motor Zlj-350 Grouting Reinforcement Drilling Rig
Best Quality Easy Operation 5.5Kw Power Of Motor Zlj-350 Grouting Reinforcement Drilling Rig
Best Quality Easy Operation 5.5Kw Power Of Motor Zlj-350 Grouting Reinforcement Drilling Rig
Best Quality Easy Operation 5.5Kw Power Of Motor Zlj-350 Grouting Reinforcement Drilling Rig
Best Quality Easy Operation 5.5Kw Power Of Motor Zlj-350 Grouting Reinforcement Drilling Rig

Best Quality Easy Operation 5.5Kw Power Of Motor Zlj 350 Grouting Reinforcement Drilling Rig

Share on (1601225856943):


Price:$2,200.00 - $2,300.00

Quantity:


Product Overview

Description





Product Description

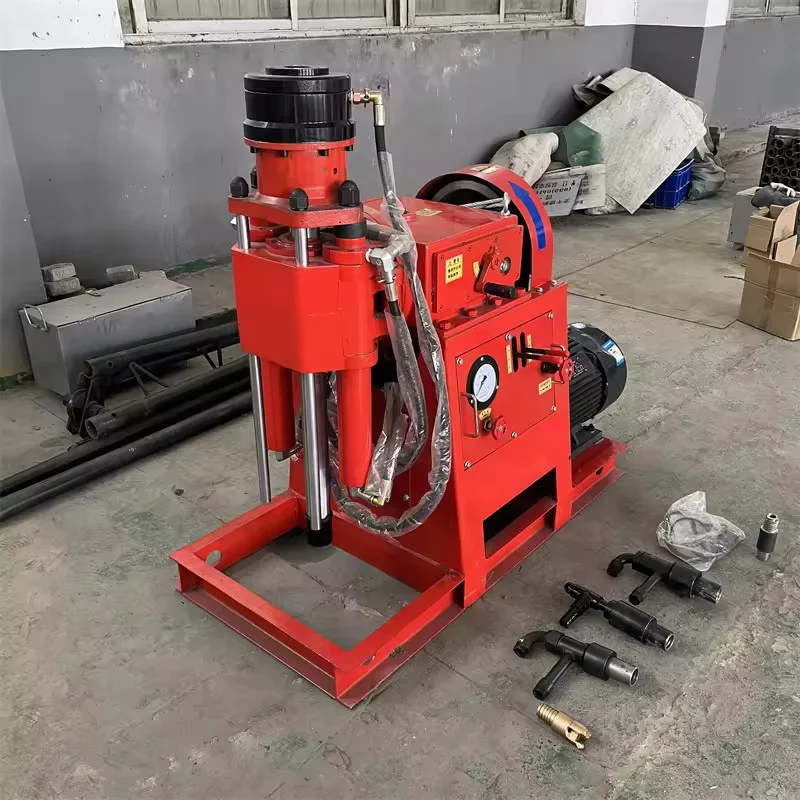

The  grouting drilling rig is mainly used for grouting reinforcement drilling at different angles in coal mines, tunnels, subways, and slope support. The drilling rig adopts mechanical transmission and hydraulic feed and has the characteristics of small size, light weight, easy operation and convenient maintenance.





Product parameter












































































































Parameters (units)ZK-550ZK-750ZK-1100ZK-1500
Supporting drill pipe diameter(mm)φ33.5/42φ33.5/42φ42φ42/50
Vertical shaft diameter(mm)φ44φ44φ44φ54
Vertical axis travel(mm)400400400400
Rated pulling force(KN)12 (at 7MPa)30 (at 7MPa)30 (at 7MPa)50 (at 10MPa)
Rated driving force(KN)9 (at 7MPa)20 (at 7MPa)20 (at 7MPa)30 (at 10MPa)
Drilling angle range(°)0-3600-3600-3600-360
Rated pressure of oil pump(MPa)12.512.51616
Rated flow rate of oil pump(L/min)12121616
Motor power (Kw)5.57.51115
Speed (r/min)1440140014601460
Rated voltage (V)380/660380/660380/660380/660
Quality(kg)380480530560
External
dimensions(mm)		1230x600x11801250x640x12651250x640x12651480x680x1290

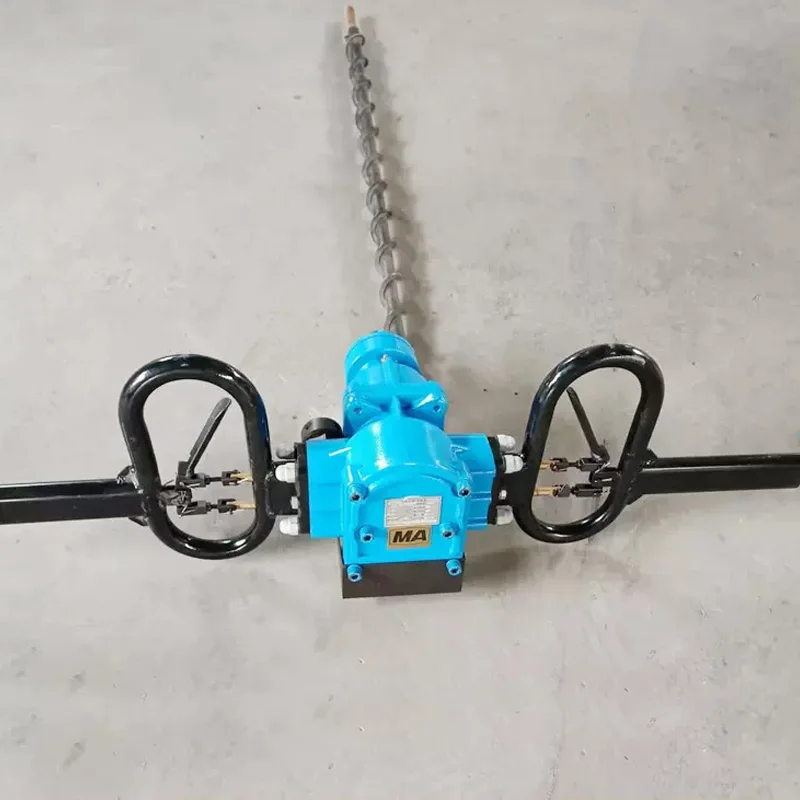

Basic performance parametersZK-140/4.1
working pressure(MPa)0.5
Rated torque(N.m)140
Rated reverse torque(N.m)140
Rated speed
(r/min)		280
Maximum output power
(K.w)		4.1
Maximum load torque
(N.m)		220
stall torque
(N.m)		240
Starting torque
(N.m)		230
Gas consumption
(m³/min)		5
No load speed
(r/min)		610
Torque at 1/2 idle speed(N.m)305
Noise(dB(A))110
Machine weight(kg)19
Drill tail size
(Mm)		18 cubic meters/24 cubic meters





Product Details







Advantage







Product Display







Field Application







Customer Feedback







Company Information






Q1. Are you original manufacture?


Yes,we are a manufacturer.


Q2. What is the delivery time ?


Generally we need 7-10 days to produce the machine after prepayment .If in stock, we will ship within 1-3 days.


Q3. How about the warranty ?


We supply 3YEARS warranty .


Q4. How should we do if the machine broken ?


You can take a video to us and our technicians will analyze the cause of the problem based on the video.


Q5. How should we do if parts are broken ?


We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order


Q6.  What kind terms of payment can be accepted?


T/T, L/C, Western Union is available.


Q7. Do you support customization?


Yes ,sir ,no problem .


Q8. How do you pack the machines ?


Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .
