Factory Sale 100W 200W 300W Pulsed Fiber Laser Cleaning Machine For Rust Removal
- Category: >>>
- Supplier: Jinan Frimcnc Equipment Co. Ltd.
Share on (1601225882777):
Product Overview
Description
Product Overview

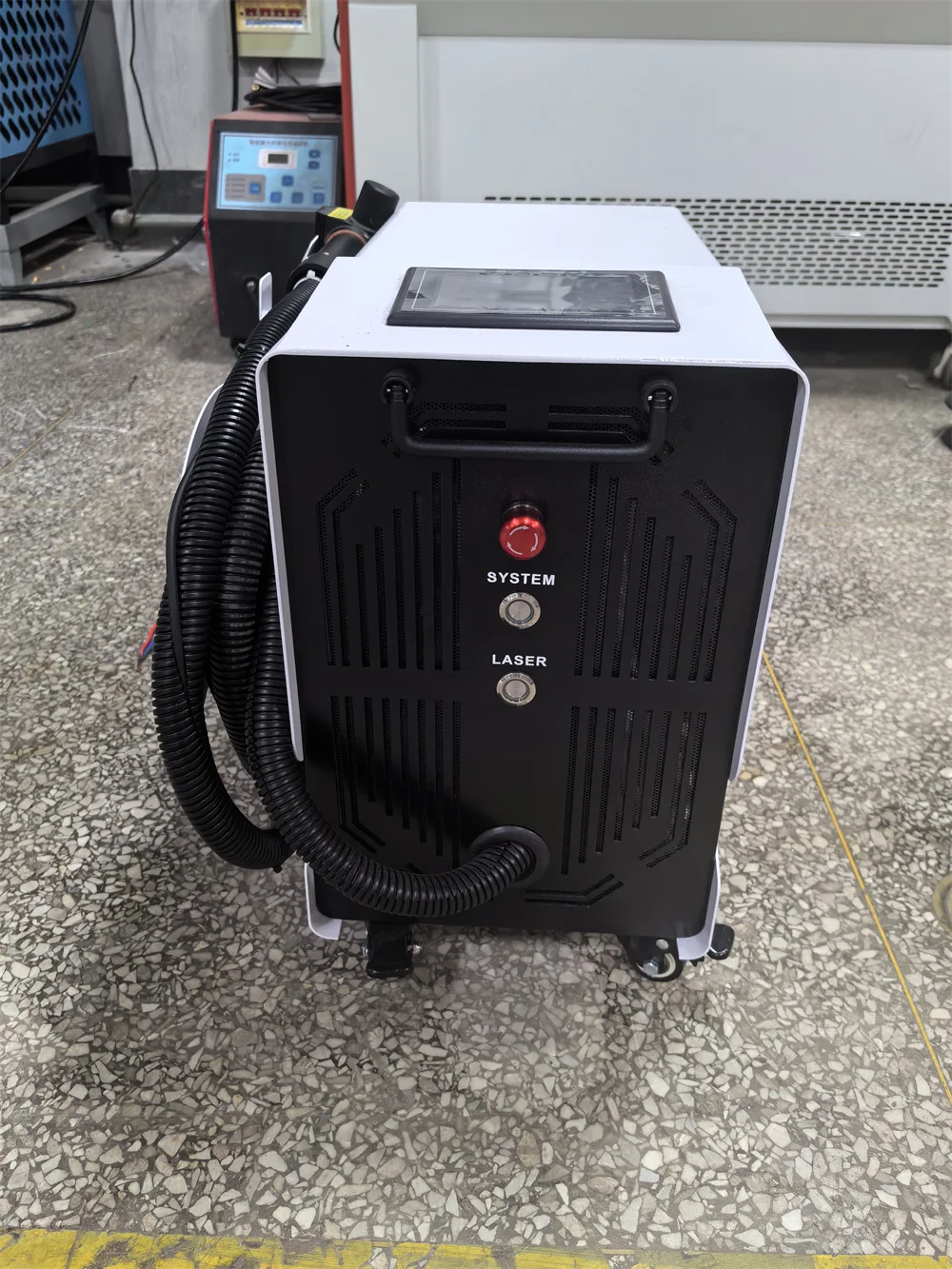

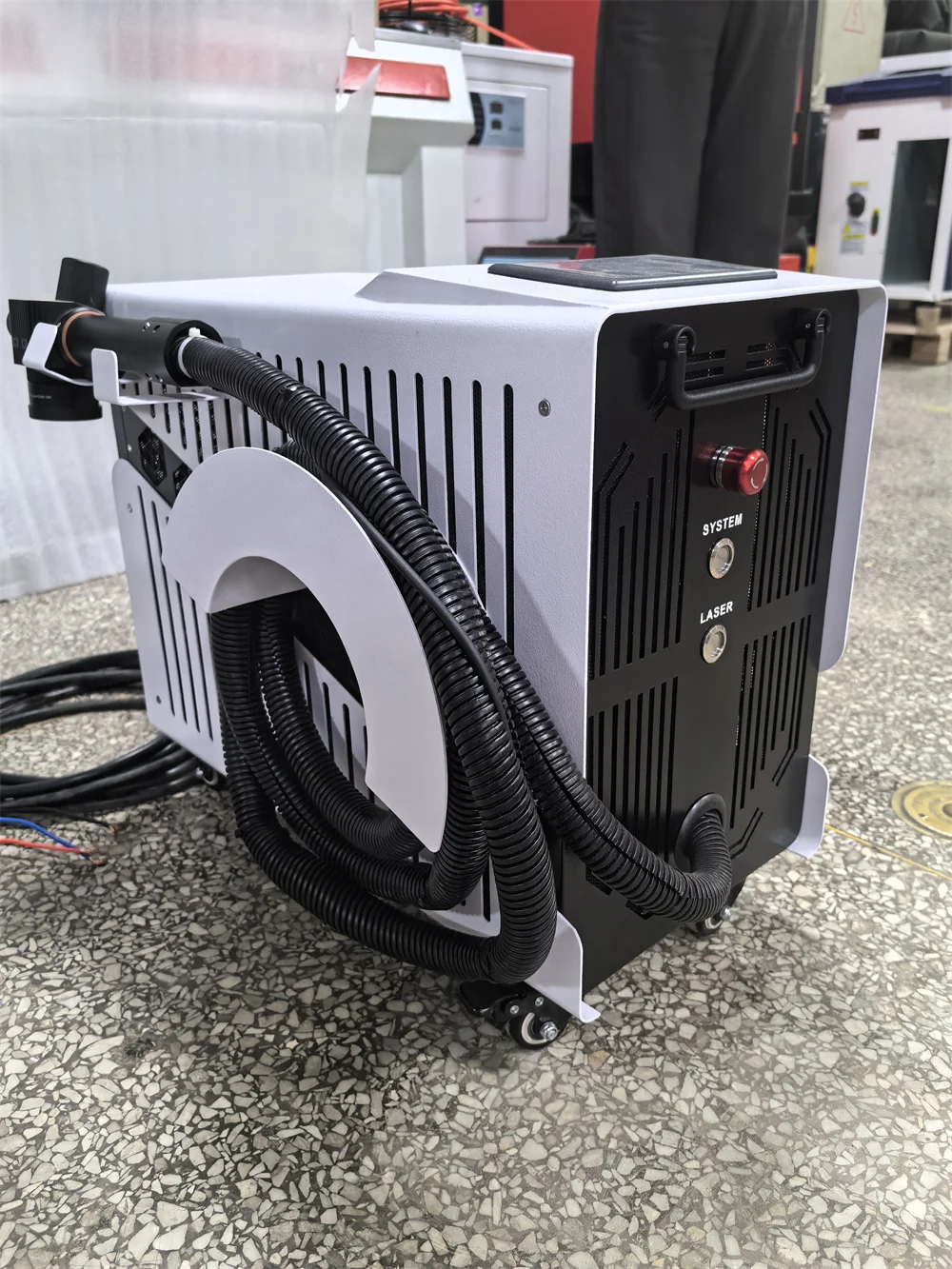

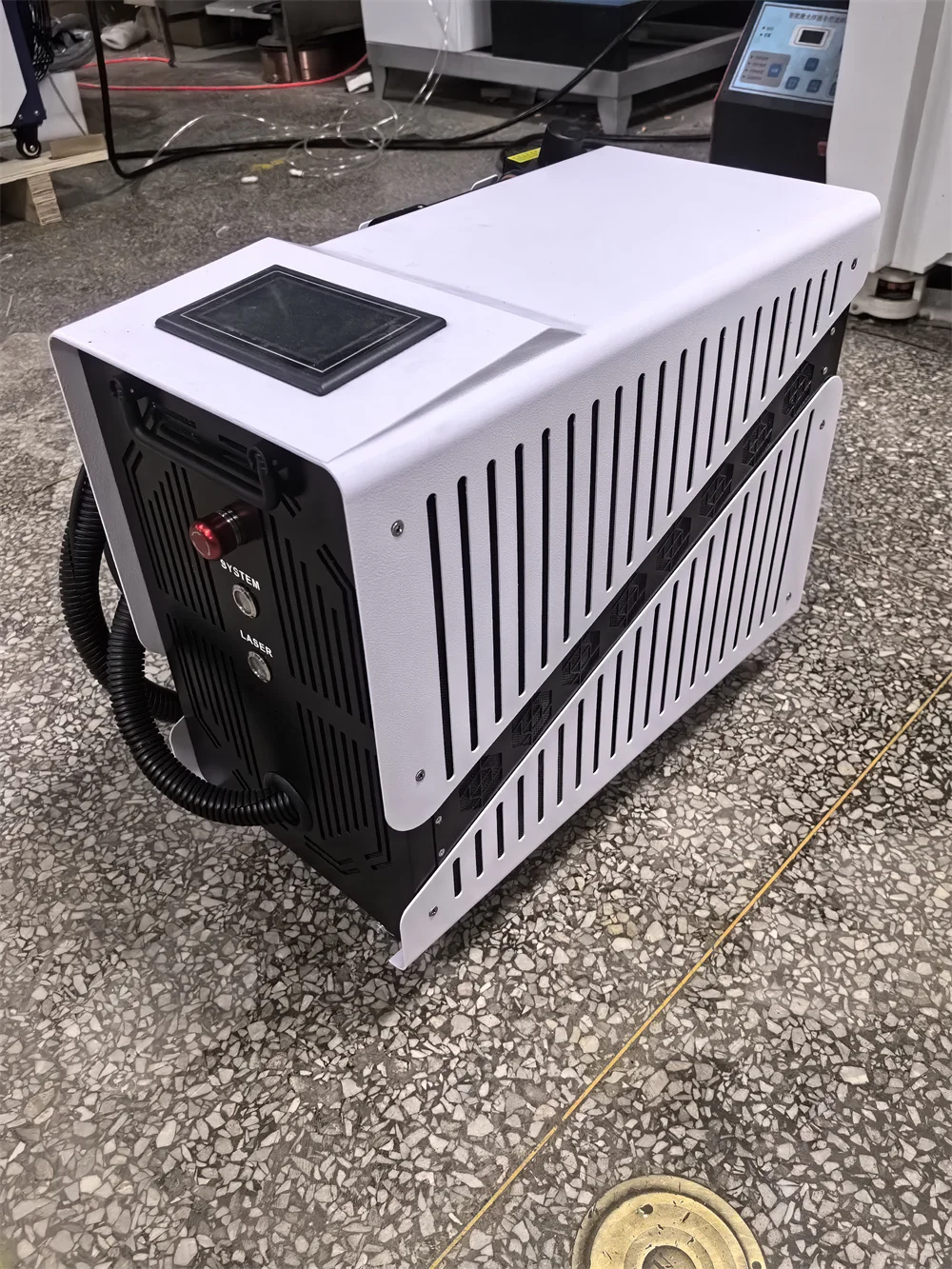

Description of FIRMCNC Brand laser cleaning machine
It is a new generation of high-tech products for surface treatment, which is easy to install, operate and realize automation. The operation is simple, turn on the power, turn on the device, and you can clean without chemical reagents, medium, dust, and water.
It can be cleaned on a curved surface, and the cleaning surface has a high degree of cleanliness. It can remove resin, paint, oil, Stains, dirt, rust, coatings, plating and oxide layers, and a wide range of industries, covering ships, auto repair, rubber molds, high-end machine tools, rails and environmental protection etc.
It can be cleaned on a curved surface, and the cleaning surface has a high degree of cleanliness. It can remove resin, paint, oil, Stains, dirt, rust, coatings, plating and oxide layers, and a wide range of industries, covering ships, auto repair, rubber molds, high-end machine tools, rails and environmental protection etc.
FIRMCNC Laser Cleaning Machine Feature
* Non-contact cleaning without damaging the matrix of the parts;
* Accurate cleaning, which can achieve precise position, accurate size selective cleaning;
* Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
* Simple operation;
* Ergonomics design;
* High cleaning efficiency, which can largely save time cost;
* Stable cleaning system with little maintenance.

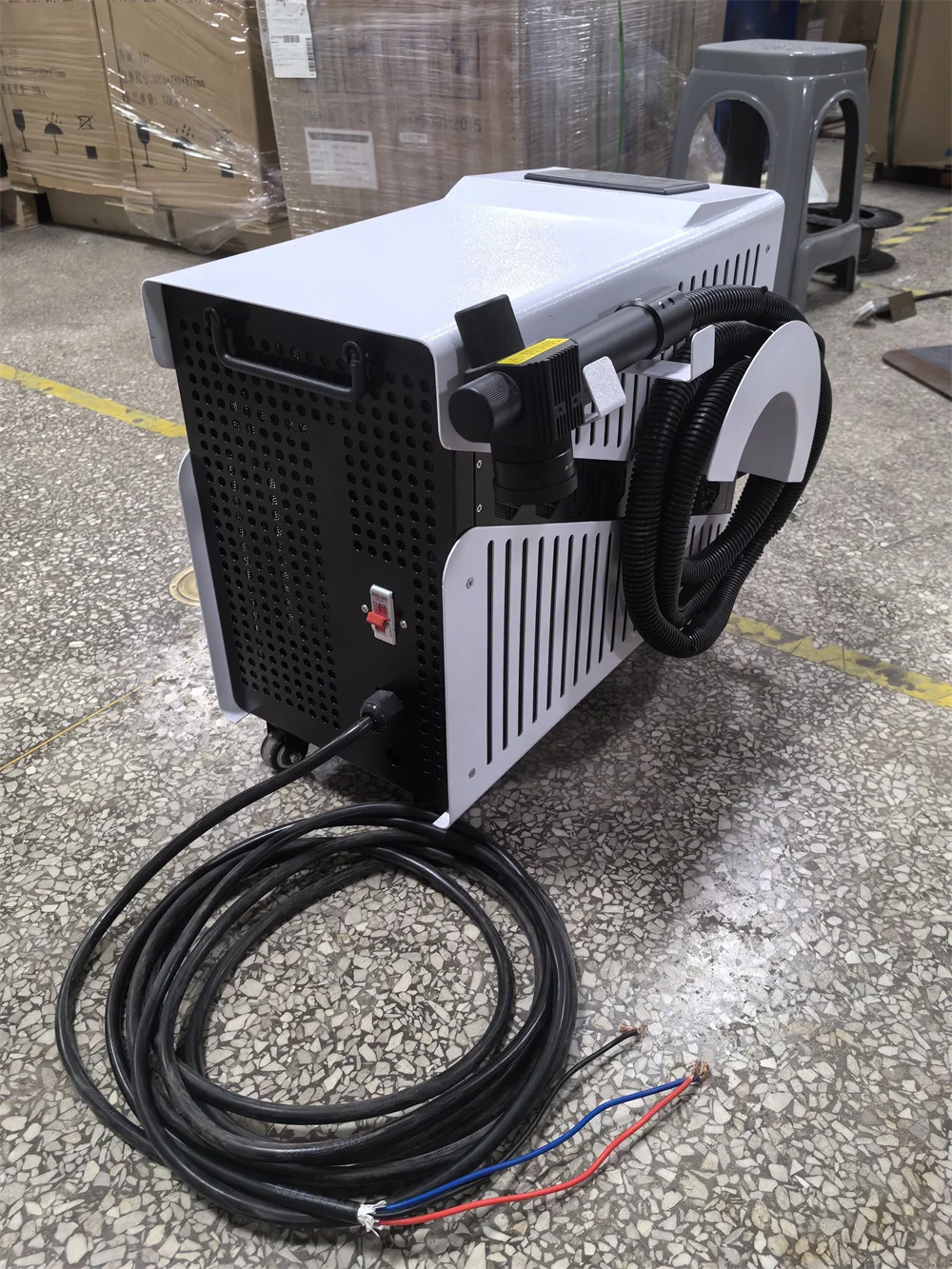

Mini Fiber Laser Cleaning machine

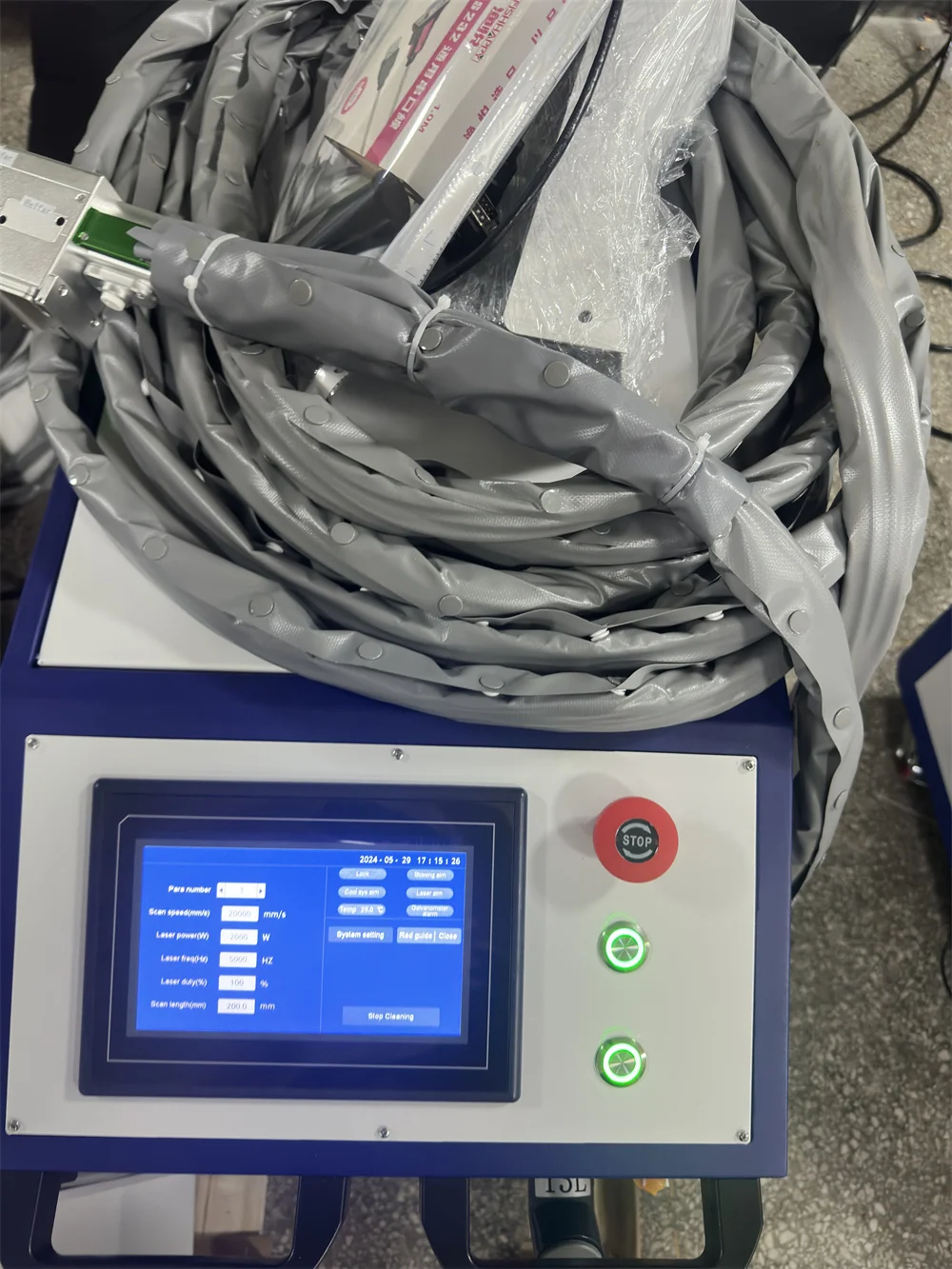

* Self-developed bottom layer control system and application software for laser cleaning
* The special software interface is clear, concise and easy to operate;
* Built-in database system, which can save and edit 50 sets of process data;
* Free adjustment of laser parameters such as laser power and laser repetition frequency;
* With online pulse width adjustment function (if supported by the laser), the process parameters can be
* The dual-axis version provides 7 cleaning modes: straight line, rectangle, circle, sine wave, double helix, free mode, and ring to meet the needs of various application scenarios;
* Adjustable scanning speed, up to 30m/s;
* The special software interface is clear, concise and easy to operate;
* Built-in database system, which can save and edit 50 sets of process data;
* Free adjustment of laser parameters such as laser power and laser repetition frequency;
* With online pulse width adjustment function (if supported by the laser), the process parameters can be
* The dual-axis version provides 7 cleaning modes: straight line, rectangle, circle, sine wave, double helix, free mode, and ring to meet the needs of various application scenarios;
* Adjustable scanning speed, up to 30m/s;
Optical Parameters | ||
Model | FMJ100W | |
Average laser power | ≥100W | |
Power instability | <5% | |
Laser Working Mode | Pulse | |
Pulse width | 150-190ns | |
Maximum monopulse energy | 1.7mJ | |
Power regulation range(%) | 0-100( Gradient Adjustable) | |
Repeat frequency(kHz) | 20-200(Gradient Adjustable) | |
Fiber length | 1.5m | |
Cooling mode | Air cooling | |
Cleaning Head Parameters | ||
Scan range (length * width) | 0mm~100 mm, continuously adjustable; Biaxial supporting 8 scanning modes | |
Scanning frequency | 10Hz~300Hz Continuous Adjustable | |
Field mirror focal length(mm) | 160mm( Optional 210mm/254mm/330mm/420mm) | |
Depth of focus | About 5 mm | |
Operating Environment | ||
Supply voltage | Optional single battery, 100W continuous work 80-90min Standard AC220V±10%, 50/60Hz power adapter (output DC48V) | |
Power consumption | ≤300W | |
Working environment temperature | 5ºC~40ºC | |
Working environment humidity | ≤80% | |
PRODUCT SPECIFICATIONS
FIRMCNC laser cleaning machine has the advantages of non-contact, no damage to the substrate, precise cleaning, "green" environmental protection, and online, and is especially suitable for high-speed online cleaning in designated areas.

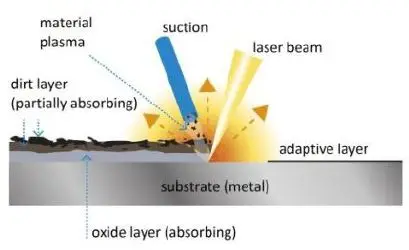

Schematic diagram as right shown

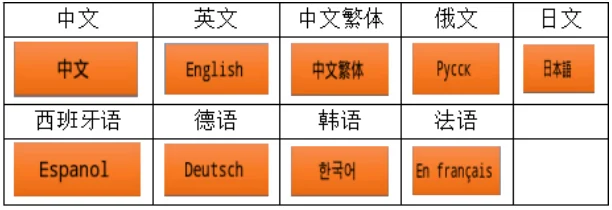

Language switching: set the system language mode
Support Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc.

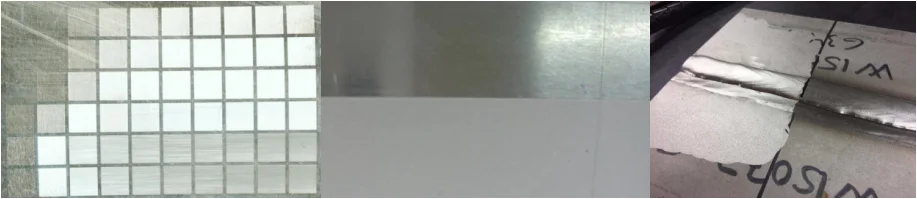

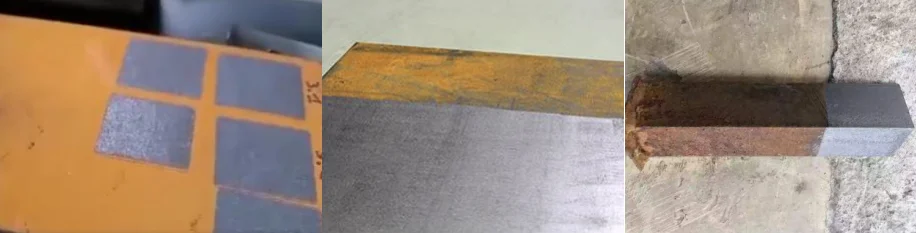

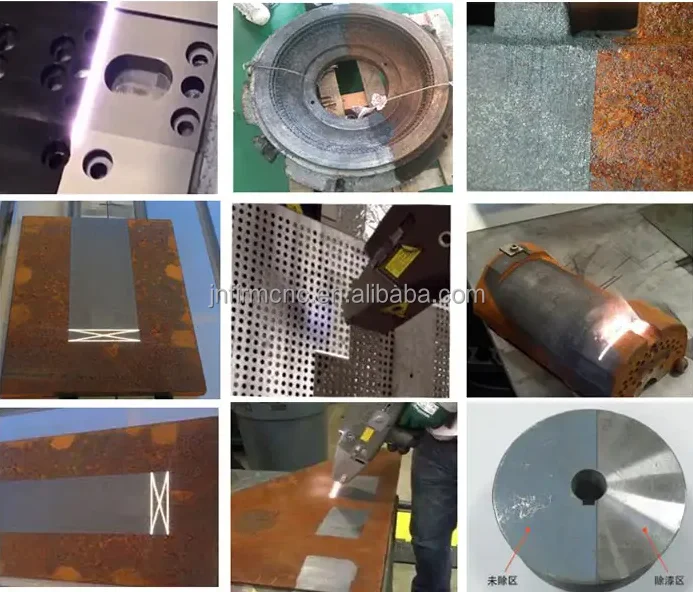

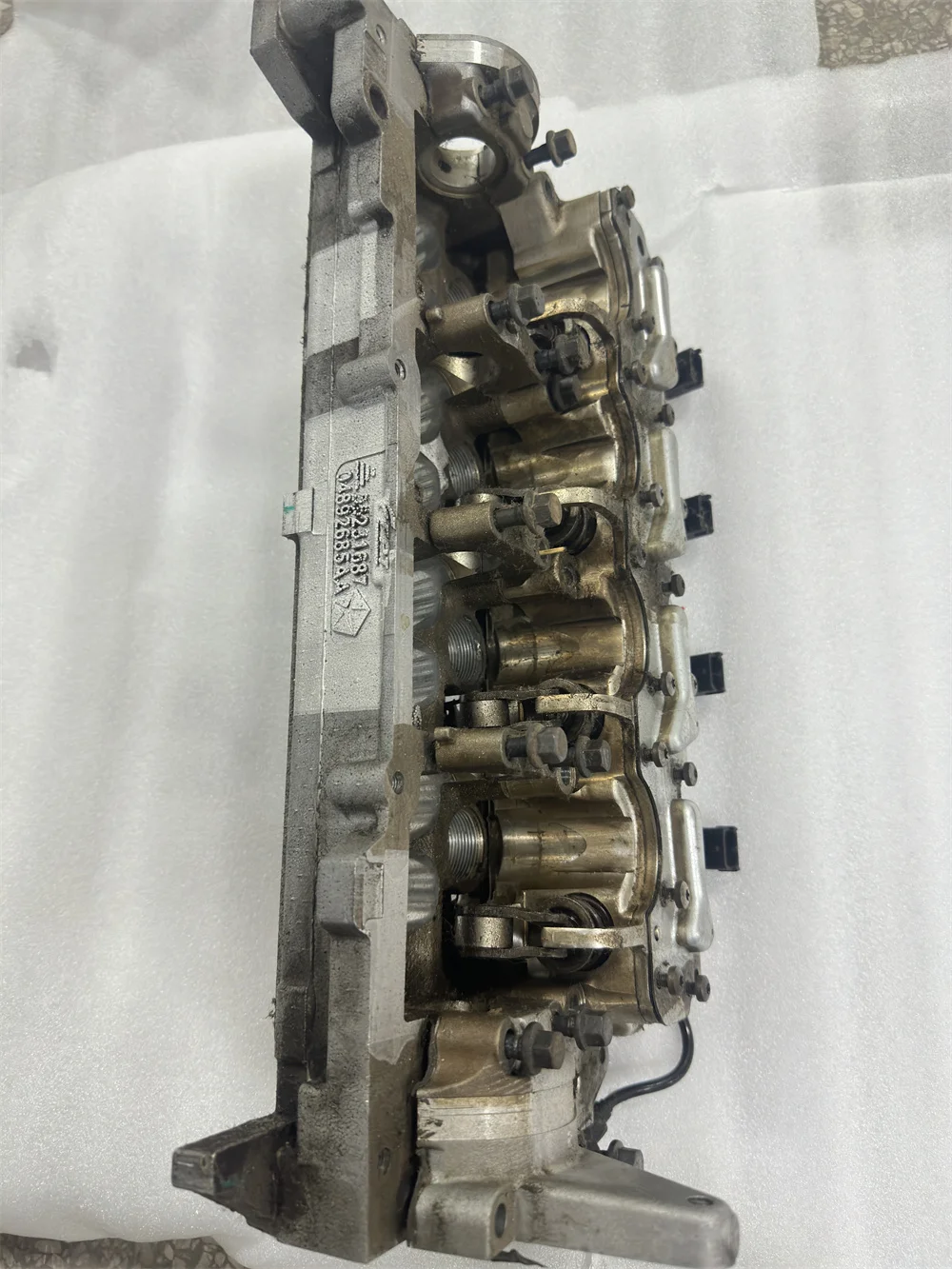

FIRMCNC laser cleaner samples
Laser cleaning of aluminum alloy before and after

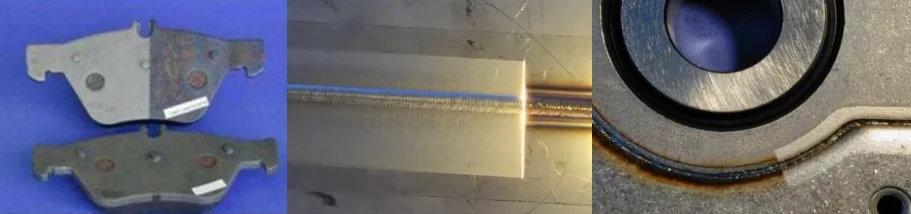

FIRMCNC laser cleaner samples
Laser cleaning of Metal Surface Oxide before and after
FIRMCNC laser cleaner samples
Laser rust removal before and after

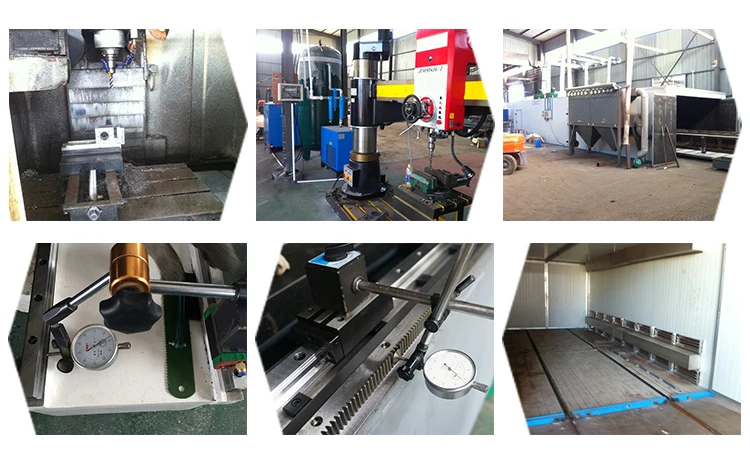

Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including laser machines, such as laser cutting machine, laser welding machine, laser cleaning machines, also have cnc router machines, wood lathe, mould cnc milling machine, fiber laser cutting machine, plasma cutting machine, edge banding machine, sliding saw table etc.

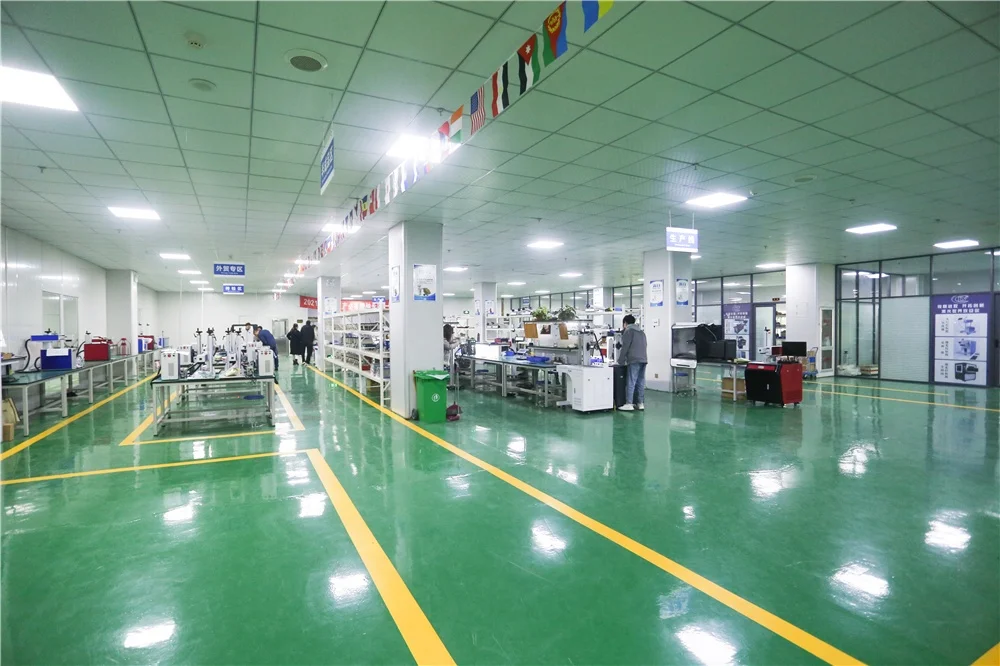

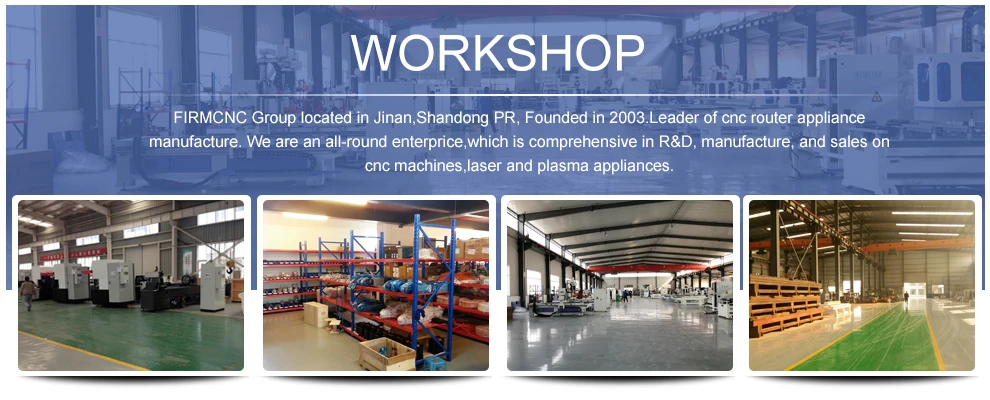

Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Our products including laser machines, such as laser cutting machine, laser welding machine, laser cleaning machines, also have cnc router machines, wood lathe, mould cnc milling machine, fiber laser cutting machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
