Home Energy Storage 5Kwh 10Kwh 15Kwh 20Kwh 25Kwh 48v 51.2v 100Ah 150Ah 200Ah 280Ah 300Ah 400Ah 500Ah Lithium Lifepo4 Battery
- Category: >>>
- Supplier: Shenzhen Basen Technology Co. Ltd.Shenzhen Ltd.
Share on (1601225920995):
Product Overview
Description
Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc

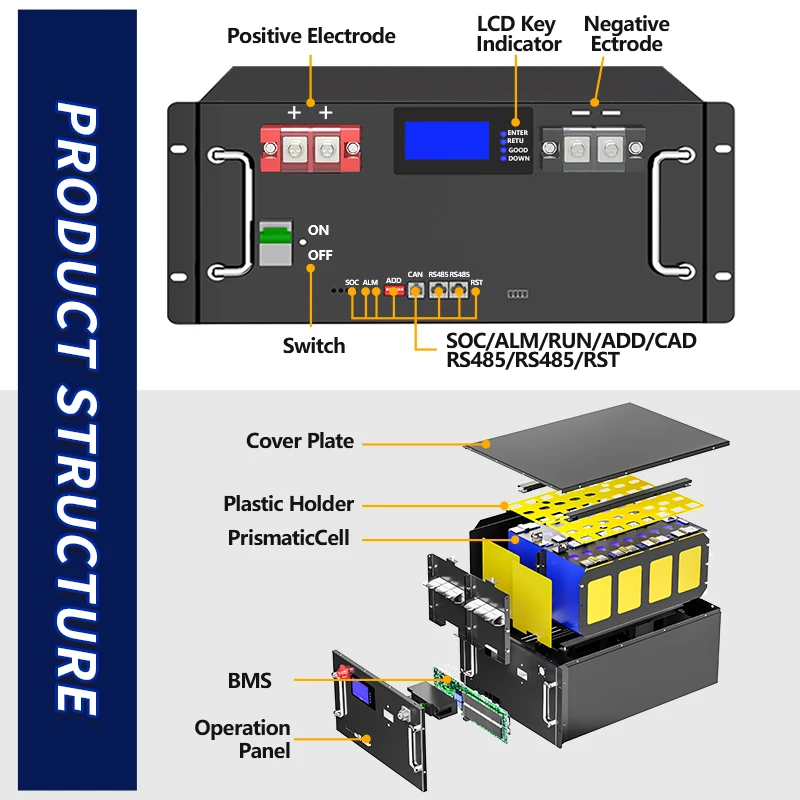

Product Introduction
Products Description
Model | BR48100A | BW-48230A | BW-48304A |
Nominal Voltage | 51.2V | 51.2V | 51.2V |
Nominal Capacity | 100Ah | 230Ah | 304AH |
Energy | 5120Wh | 11776Wh | 15360wh |
Series or Parallel Connection | 16S1P | 16S1P | 16S1P |
Maximum Charge Current | 100A | 200A | 200A |
Charge Current (-20 to - 10 ºC) | ≤0.05C | ≤0.05C | ≤0.05C |
Recommended Charge Voltage | 56V-57.6V | 56V-57.6V | 56V-57.6V |
BMS Charge Voltage Cut-Off | 57.6V (3.75±0.025vpc) | 57.6V (3.75±0.025vpc) | 57.6V (3.75±0.025vpc) |
Reconnect Voltage | 54.6V (3.34 ±0.05vpc) | 54.6V (3.34 ±0.05vpc) | 54.6V (3.34 ±0.05vpC) |

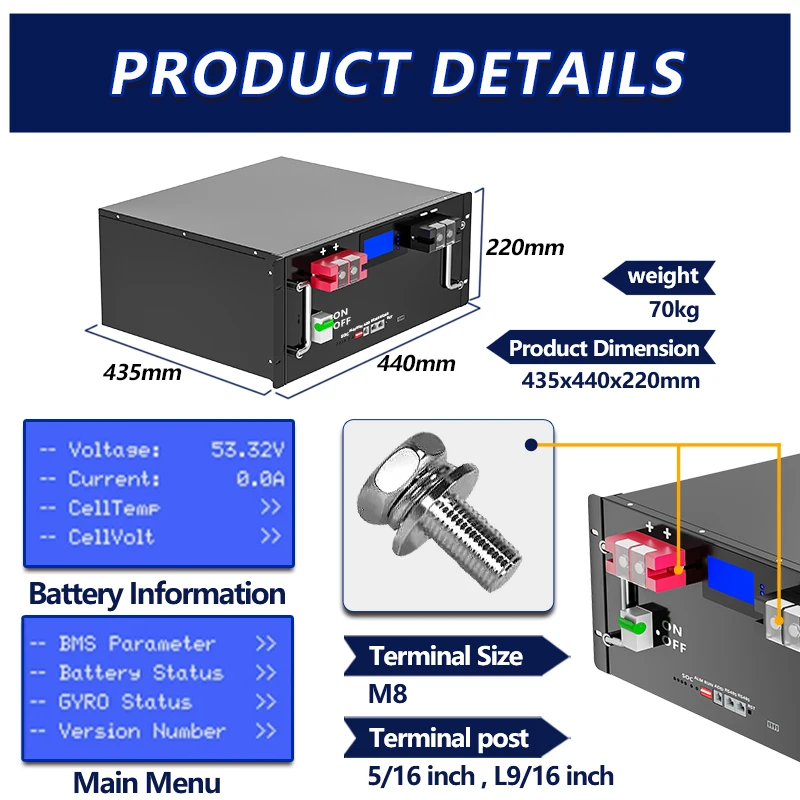

Dimensions (L x W x H) | 440*435*222mm (17.3x17.1x8.74”) | 480*248*618mm | 475*255*770mm |
Weight | 70KG with wooden packing | :116KG with wooden packing | 138KG with wooden packing |
Communication Interface | RS485 (Optional) | RS485 (Optional) | RS485/CAN (Optional) |
Case Material | Metal | Metal | Metal |
Enclosure Protection | IP54 | IP54 | IP54 |
Maximum Continuous Discharge Current | 100A | 200A | 200A |
BMS Discharge Current Cut-Off | 105A | 230A | 230A |
Reconnect Voltage | 45V | 45V | 45V |
Discharge Temperature | -20 to 60ºC (-4 to 140 ºF) | -20 to 60ºC (-4 to 140 ºF) | -20 to 60ºC (-4 to 140 ºF) |
Charge Temperature | 0 to 45ºC (32 to 113 ºF) | 0 to 45ºC (32 to 113 ºF) | 0 to 45ºC (32 to 113 ºF) |

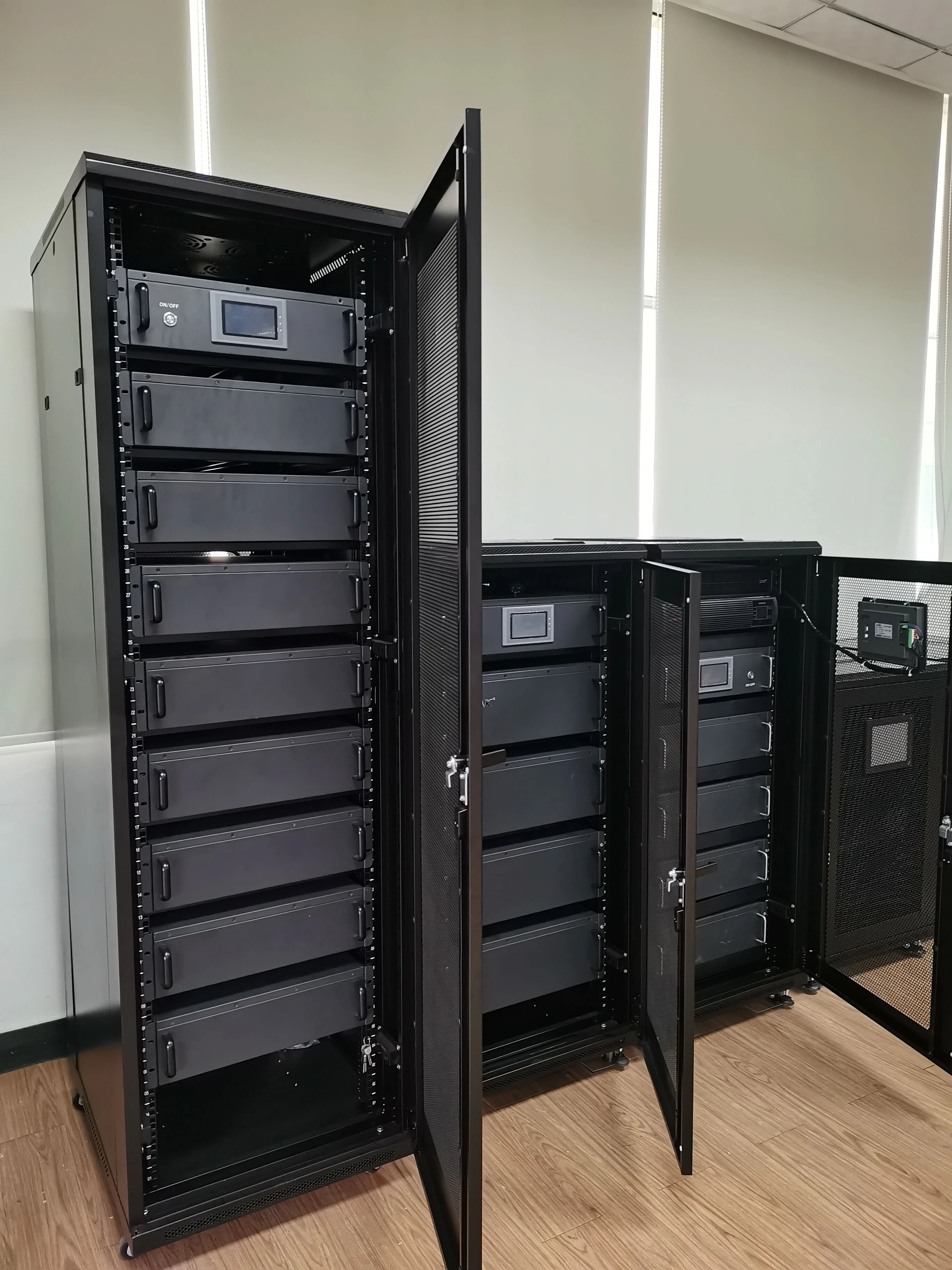

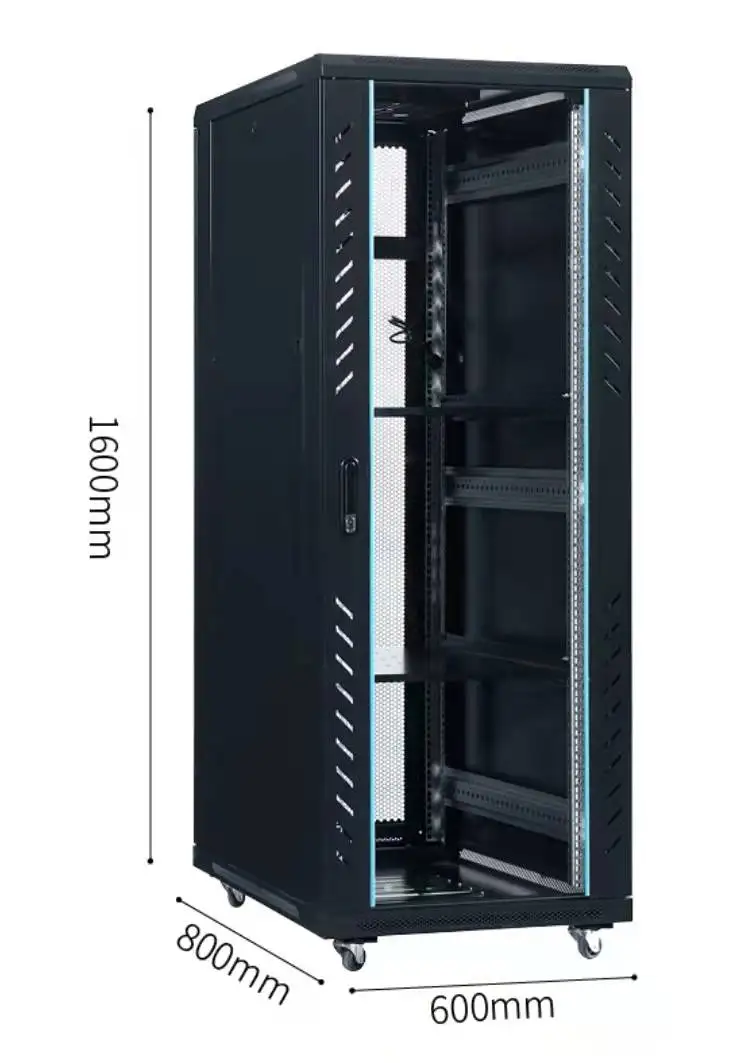

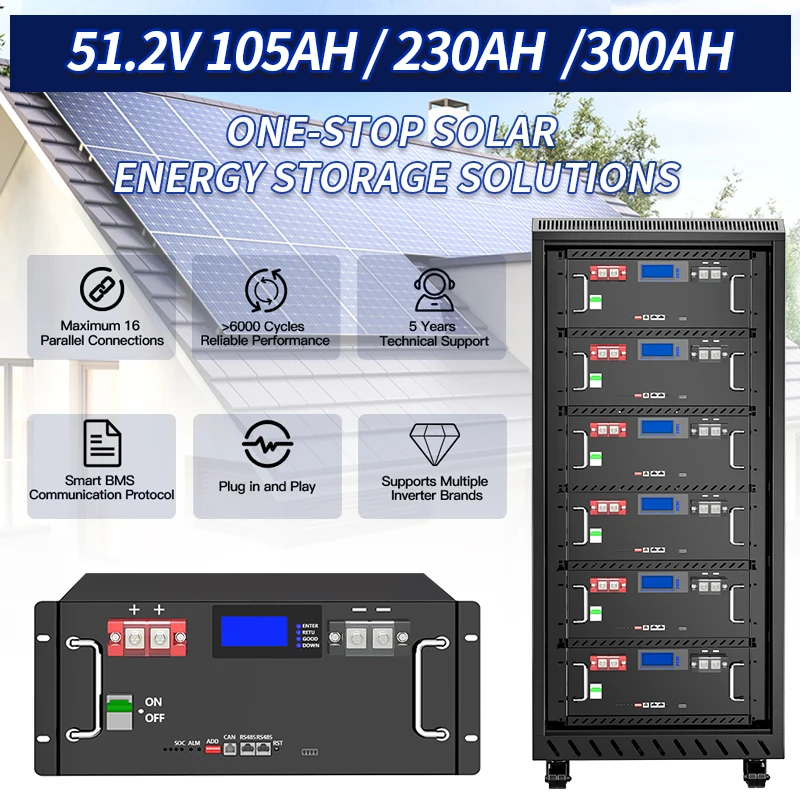

Rack Optional
Pls contact us if you need rack,lf you need more,we will have a discount for you.
4850*4pcs Rack 48100*4pcs Rack 48200*4pcs Rack 48200*8pcs Rack

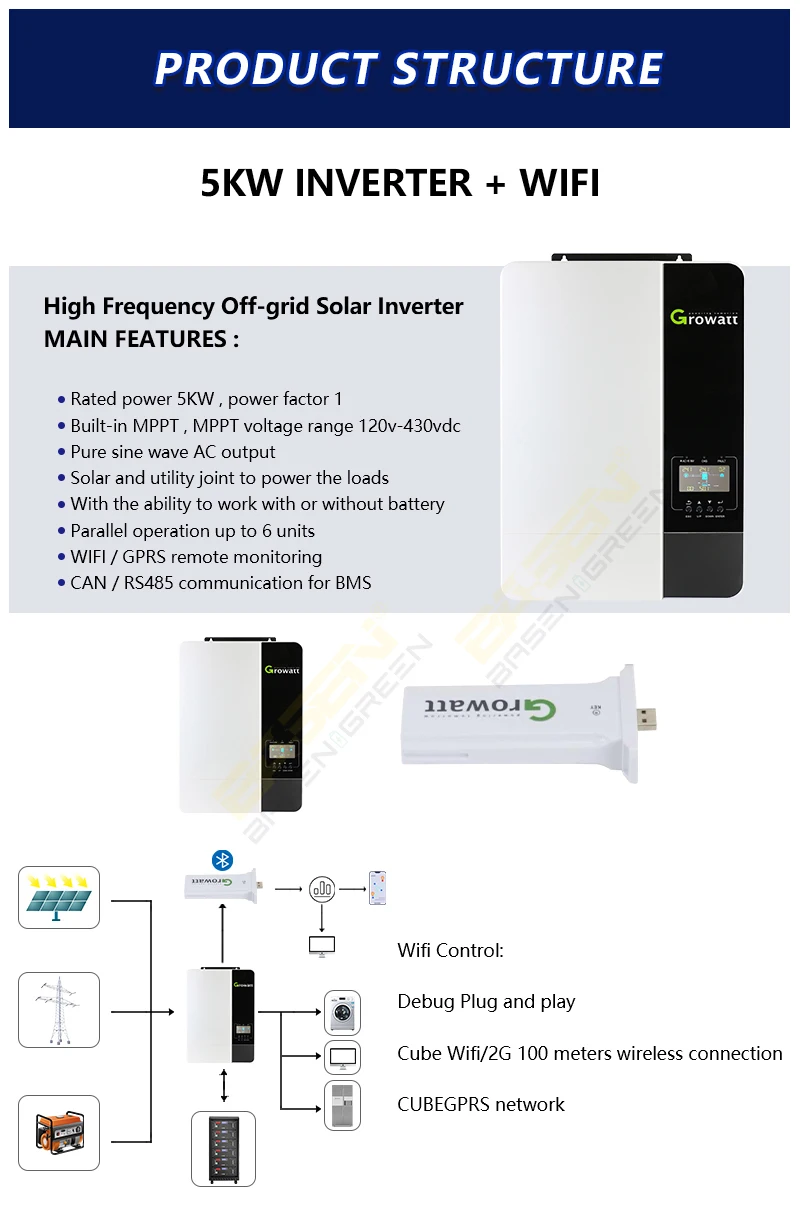

Inverter Support
Customized Services

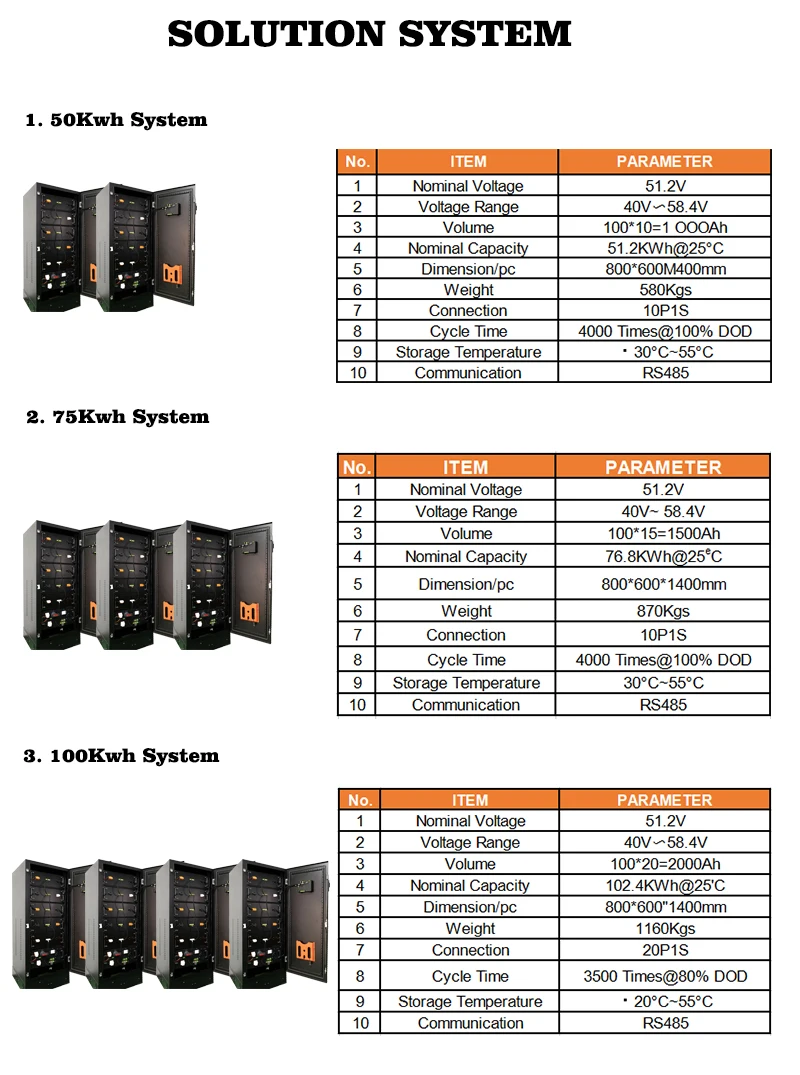

Customized Solutions
To provide you with a number of customized solutions, please contact our professional sales engineers, Click Here

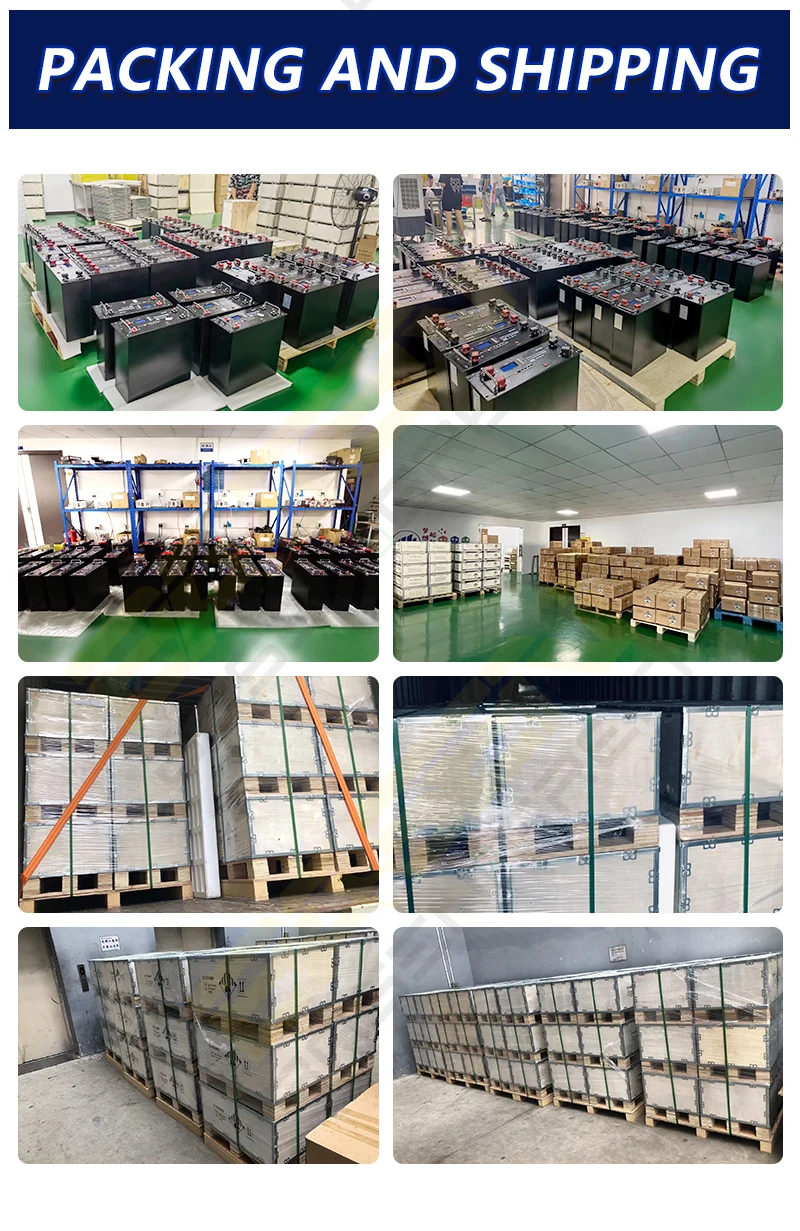

Packing and Shipping
About Shipping
We usually provide DDP shipping service for customers.
That's including all the tax fees and truck delivery to the door.
Packing with wooden packing for safety shipping.
Contact with Sales for more shipping details, Clike Here
Company Profile
FAQ
1.Q: I need more function such Bluetooth and LED screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you
an excellent solution, more than you expection.
an excellent solution, more than you expection.
2.Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low, can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.
3.Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used
for, all 5 Years?
for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the
battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.
battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.
4.Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more. 5.Q: What about the delivery time and shipping?
A: some of times in stock, we can make 3-7days fast delivery. For USA,Canada,Austraila and most of European country , we provide tax included services, door to door, once you place an order ,then you will receive your new battery pack in about 40-55 days at your home! We also have Oversea warehouse service, 3-7days arrive, no tax fees, please contact with our sales !

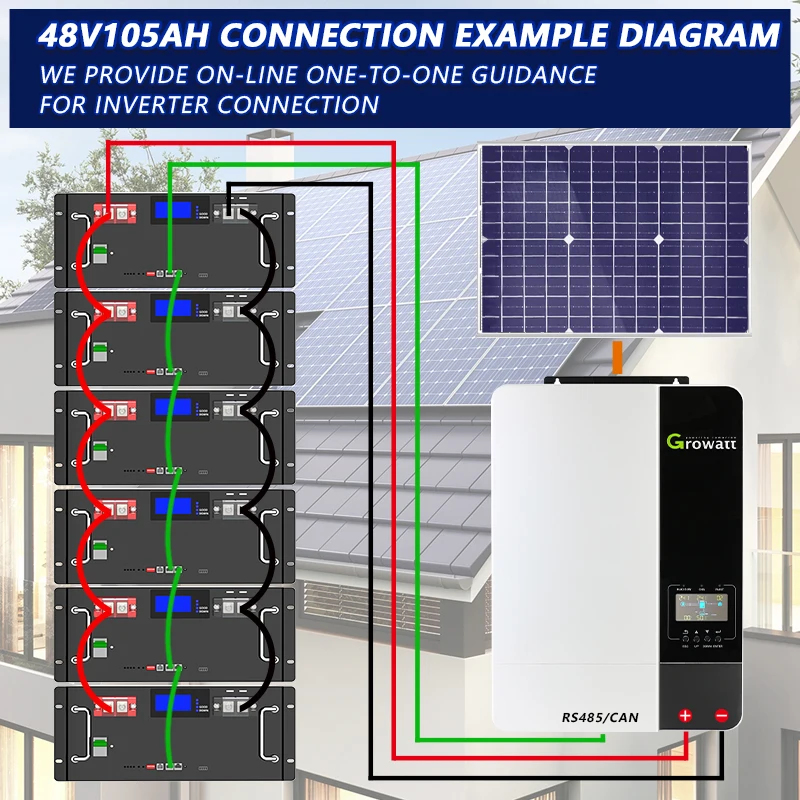

6.Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use ( 12V series ) and no any additional device.
