23.6 inch indoor electronic signboard, industrial touch display, industrial control query all in one machine

Share on (1601225942911):


Price:

Quantity:


Product Overview

Description






















































































































































































































type



Parameters/Description







display scale



16:9



Backlight source



ELED



resolving power



1920*1080pixels



brightness



300cd



contrast ratio



1000:1



color



16.7M



viewing angle



89°/89°/89°/89°(min)(CR≥10)



response time



8ms



to configure



CPU



RK3288/3566 quad core 1.8HZ



GPU



Mali-764



RAM



DDR-3 2/4GB



ROM



16/32G NAND Flash



operating system



Based on Android 7.1 /9.0/11.0(optional)



decode



resolving power



MAX 1080P



Video encapsulation



RM/RMVB, MP4, TS, FLV, AVI, VOB, MOV, WMV, etc



video coding



MPEG-1/2/4, H.263, H.264, WMV9, RV8/9/10, Divx-3/4/5, etc



Audio encoding



MP3, WMA, WAV, EAAC+, APE, FLAC, BSAC, OGG, etc



Image encoding



JPG, PNG, BMP, etc



Touch



Touch Control Solution



G+G



Touch point count



ten o'clock



response speed



<6MS



Minimum touch object



>2MM



Touch accuracy



±2MM



Gravity free touch control



support



Anti occlusion touch control



support



Touch frequency



More than 50000000 times



Touching objects



Electromagnetic pens, fingers, and other conductive objects



Touch resolution



32768 x 32768



Touch screen surface hardness



Mohs Level 7



Light transmittance



White glass ≥ 95%, anti glare glass ≥ 80%



Glass thickness



4mm tempered glass



Anti glare performance



Particle size<0.2um, reflectivity<2%



Touchscreen power supply system



USB



voice



built-in



OnboardRealtekALC269audio decoding controller,built-in amplifier output2.2W@4 Ωmax






network



Ethernet



100/1000Mbps adaptive



WIFI



Wireless protocol 802.11b/g/n



4G (optional)



Support the three network standards of China Mobile, China Unicom, and China Telecom



Interface



TF card



1 * Standard TF card interface



USB



2*USB



LVDS/HDMI



1*LVDS /1*HDMI1.4 OUT



network



1*RJ45



Power Supply



working voltage



AC110V/220V  50/60Hz



Maximum power consumption



70W



standby power



0.5W



Usage environment



working temperature



0~50°



Storage temperature



-10~60°



relative humidity



10~80RH without condensation



Note: The Android system can be upgraded to 4GB or 8GB RAM, and the ROM can be 32GB or 64GB; You can also choose a computer operating system








1.Product Image (Introduction)


The touch control all-in-one machine, which adopts the advanced multipoint touch interaction technology at home and abroad, is a multi-functional human-computer interaction terminal using screen touch operation, integrating the functions of interactive electronic whiteboard, audio, computer, Internet, multimedia playback, etc.


Widely used in industrial automation equipment, enterprise conferences, commercial exhibitions, hall inquiries, and other fields. For example, network multimedia teaching systems, educational training recording systems, enterprise product display systems, 4S store product experience systems, automated machine control panel query systems, airport station touch query systems, medical institution medical inquiry systems, telecommunications department business number selection systems, securities and stock trading systems, etc.


2. Product features


Adopting high-definition 1920 * 1080 resolution LCD panel, 178 ° all-round viewing angle, high color gamut, with special performance such as 3D digital noise reduction, dynamic contrast adjustment, intelligent elimination of residual images, and more perfect restoration.


Industrial grade power system: using industrial 2-in-1 power modules that comply with safety standards such as GB8898-2011, GB4943, GB9254, IEC/EN 60065:2014, reducing the number of modules and lowering the defect rate. Supports overvoltage protection, overcurrent protection, short circuit protection, and self recovery functions, making it safer and more reliable. Self regulating heat dissipation, meeting 24-hour uninterrupted use. LED high brightness high-frequency twin crystal backlight source, dynamic compensation, better color gamut, can perfectly present motion images in dynamic scenes.


Explosion proof and anti glare tempered glass effectively suppresses interference from external environmental light, resulting in soft and non glaring images.


Adopting G+G projection capacitive touch solution, high stability, no drift due to time and environmental changes, high transparency, sensitive response, and no delay.


Using industry stable and mature touch solutions, supporting up to 10 touch points. Highly stable, highly adaptable, not affected by environmental factors such as current, voltage, static electricity, etc., suitable for certain harsh environmental conditions.


Real time video and audio decoding; Real time video and audio playback; Compatible with multiple image, animation, and audio encodings, supports centralized control through TCP/IP networks, and can be distributed across the country based on the Internet, achieving super information dissemination through wide area networks and more efficient operational efficiency.


Compatible with Android and computer dual system touch operation, it can connect to the internet, play multimedia files, PPT presentations and other interactive teaching without the need for a computer. You can install application software according to your own needs.

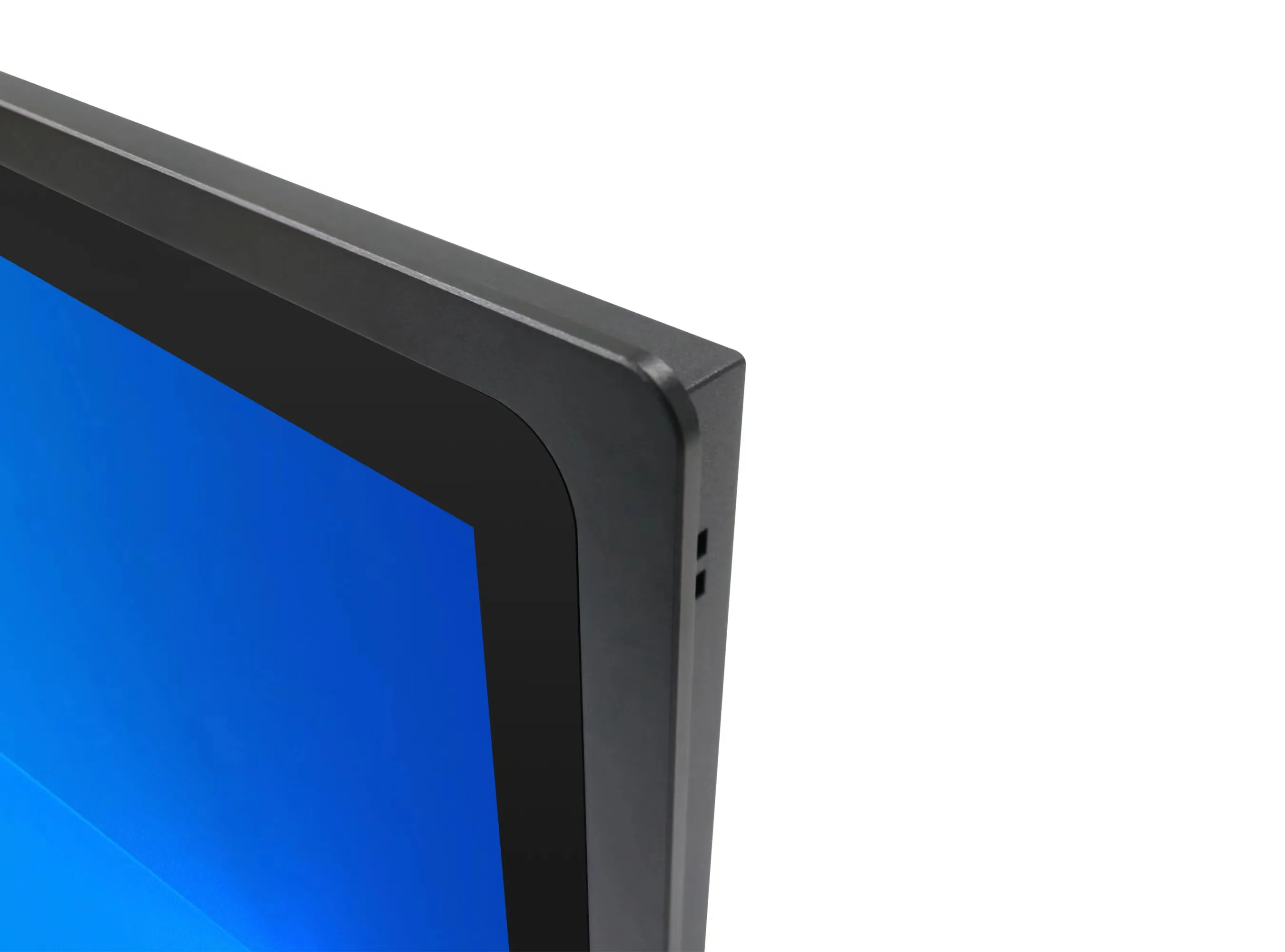

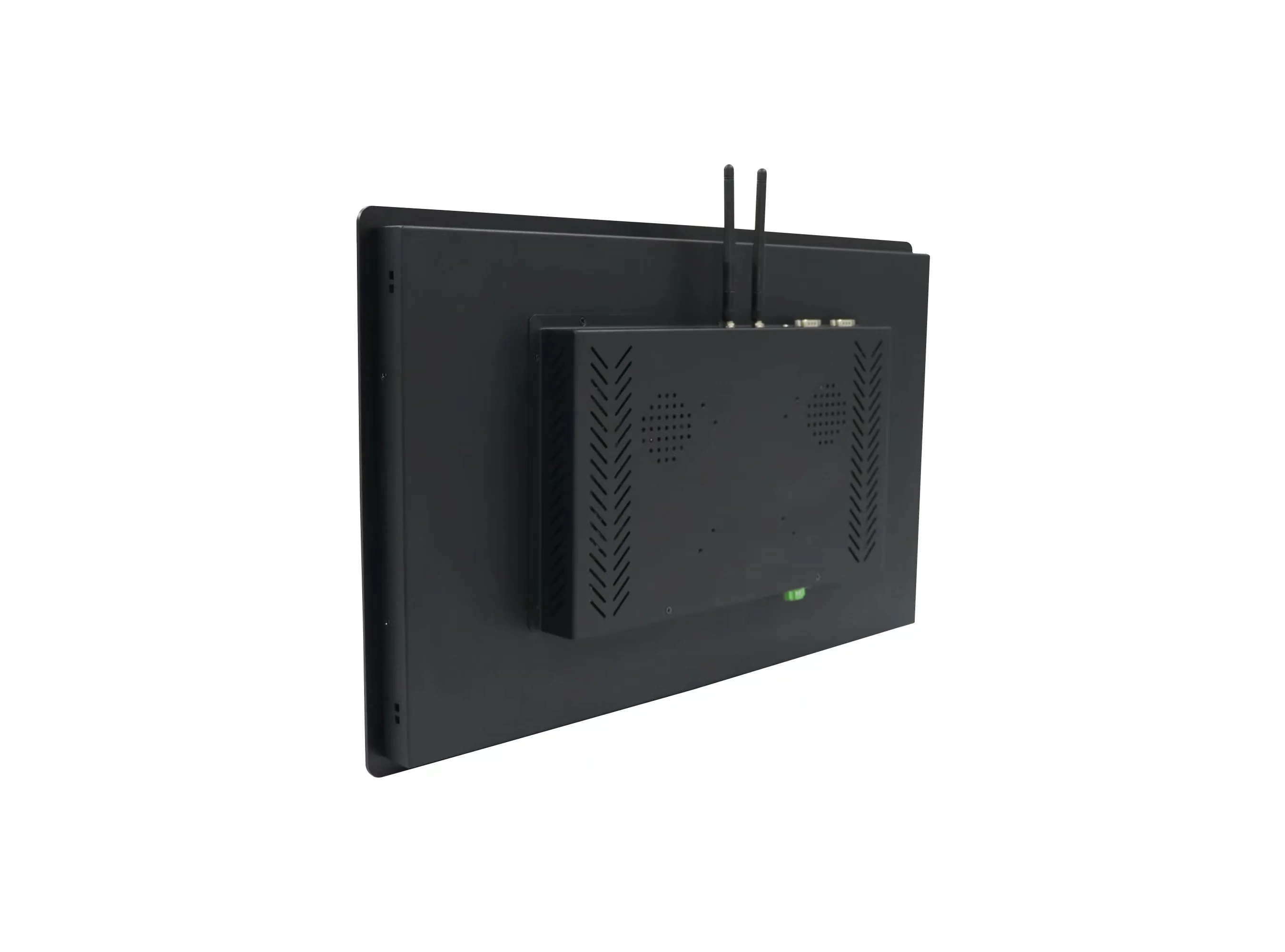

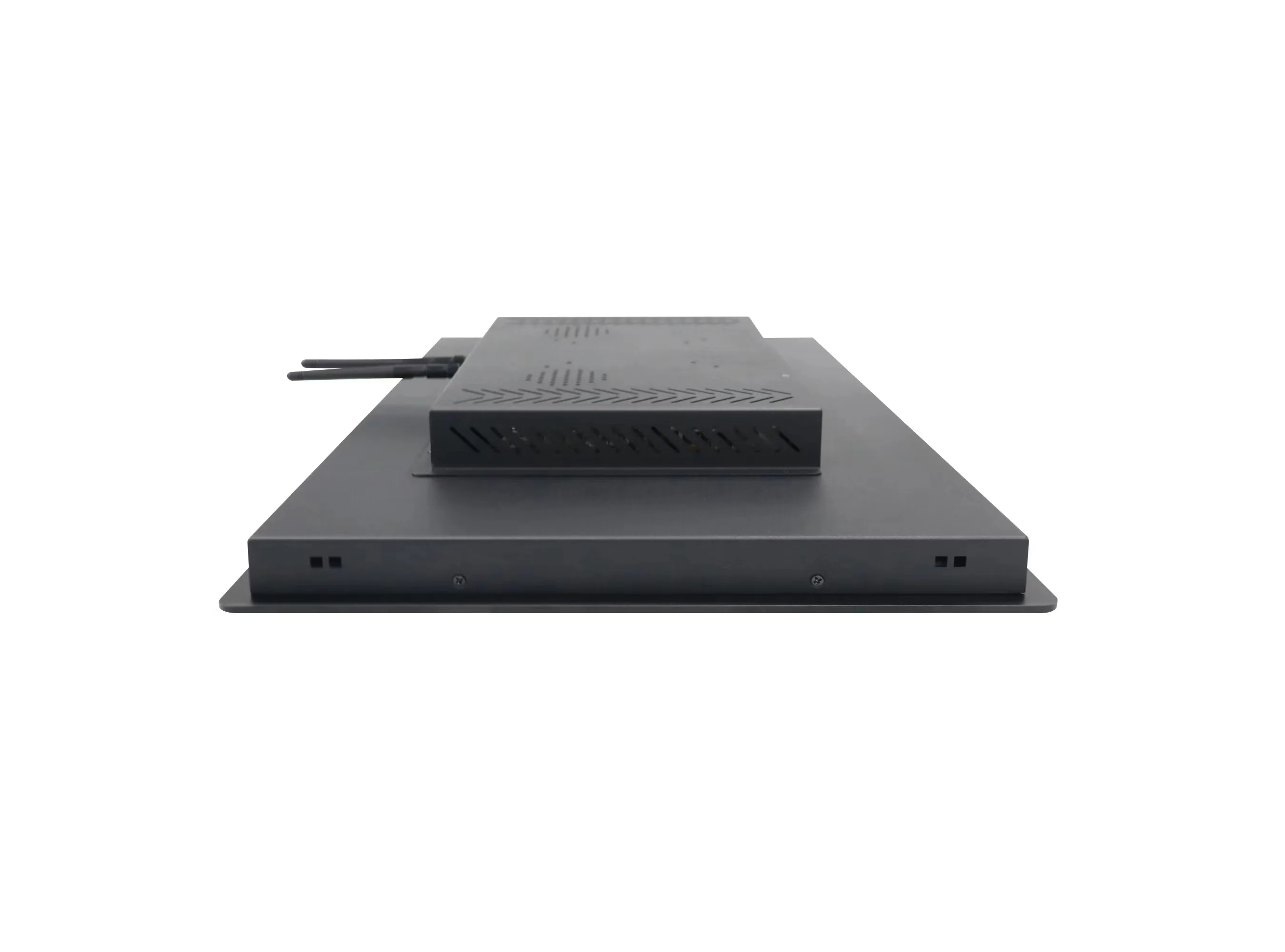

Integrated design: The back panel is formed by mold stamping, and the aluminum alloy high gloss front frame is designed. Compared with traditional sheet metal cutting, it has a smaller size deviation rate, fine workmanship, humanized detail design, and a simple and atmospheric product design, which is more aesthetically pleasing. It can reduce weight by 30%. Supports wall mounted and horizontal installation, easy to install, easy to maintain, industrial grade components, and better heat dissipation.


We can customize the shell shape, configuration, body color, and add logo according to customer requirements.













































type



Description/Explanation



enclosure



Power cord 1.5M * 1



Warranty card * 1, certificate of conformity * 1



COM serial port/PCI slot



WIFIantenna*2



Wall mounted accessory* 1



Single USB/DualUSB



7-43inch industrial control installation buckle



Installation method



Wall mounted horizontal fixation (horizontal screen)



Wall mounted vertical fixation (vertical screen)



Embedded/North mounted fixed installation
