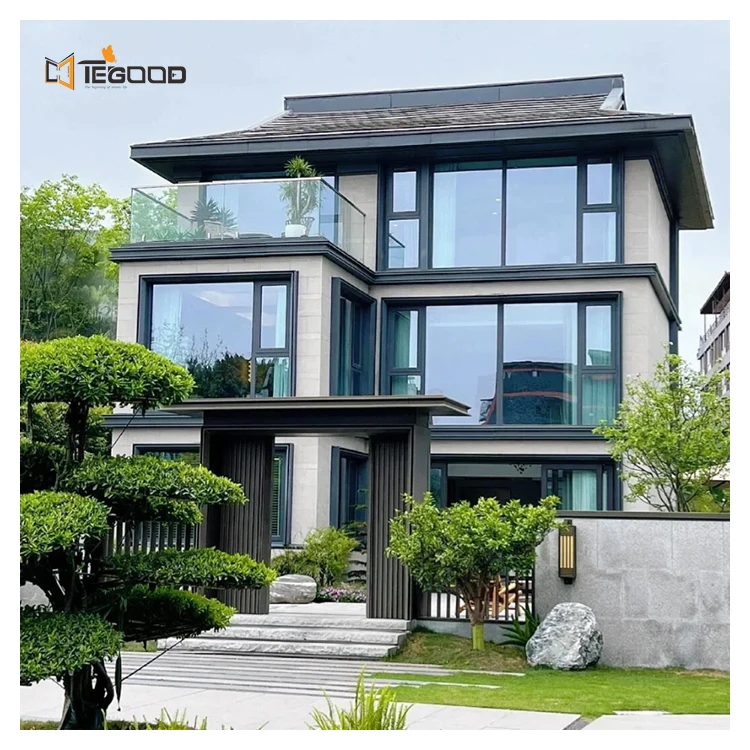

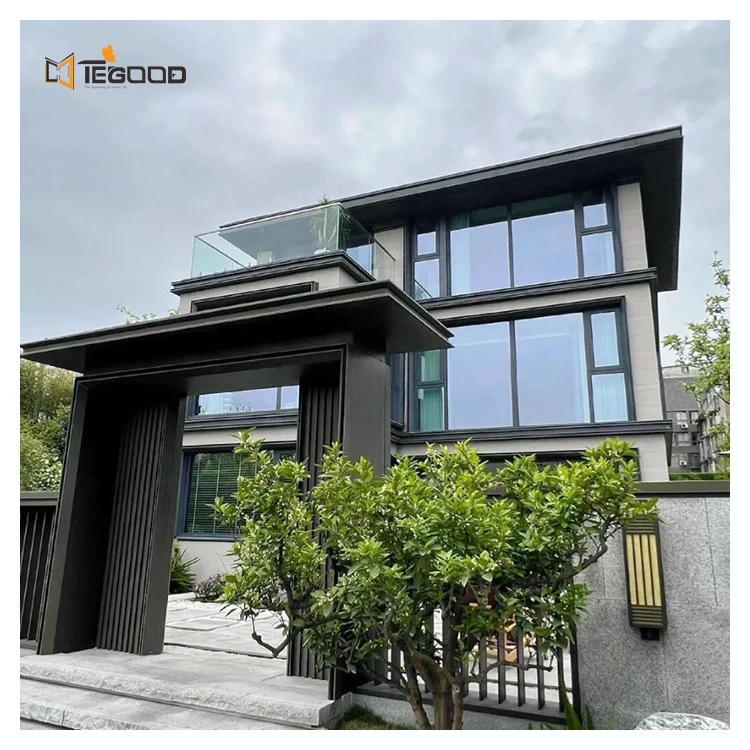

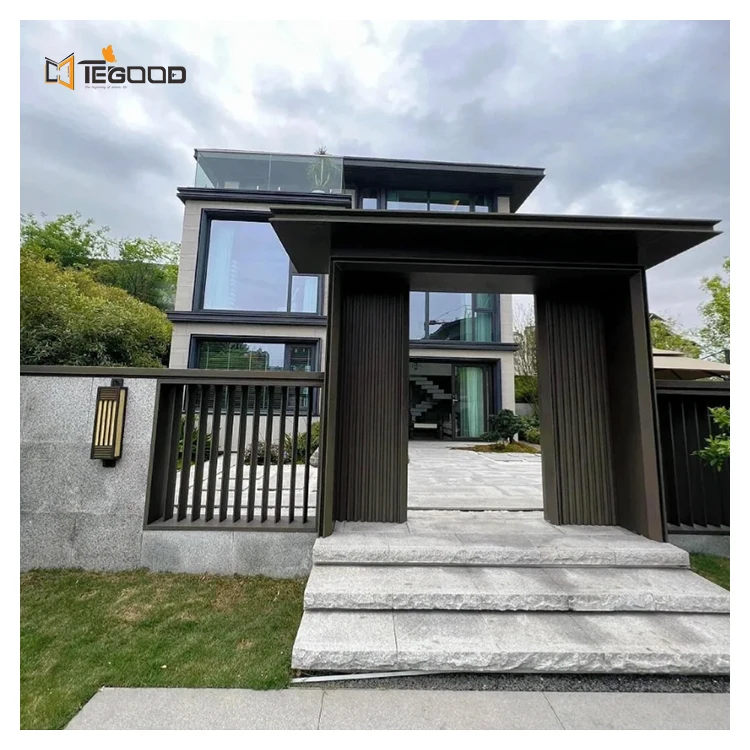

High Performance Thermal Break Aluminum DVH Triple Glass Inside Swing Windows For Villa Project
- Category: >>>
- Supplier: Suzhou TRYBA Building Materials Technology Co. LtdSuzhou Ltd
Share on (1601225972673):
Product Overview
Description
Specification
Window Type | UPVC Tilt and Turn Windows |
Frame material And thickness | UPVC 82mm |
Cavity design | 7 cavity, *Heat insulation performance is more excellent |
Sealing System | 3 EPDM |
Insulation strip material | PA66+GF25 |
Glass type | 6GLow-e+12A+6GLow-e+12A+6GLow-e |
Glass thickness | 30/36mm/45mm |
Color | Customization |
Hardware | German hardware--GU |
Water Tightness | Level 6 |
Air Tightness | Level 8 |
Wind Resistance | Level 6 |
Heat preservation | Less than0.8w/m².k |
Sound Insulation | 38db |

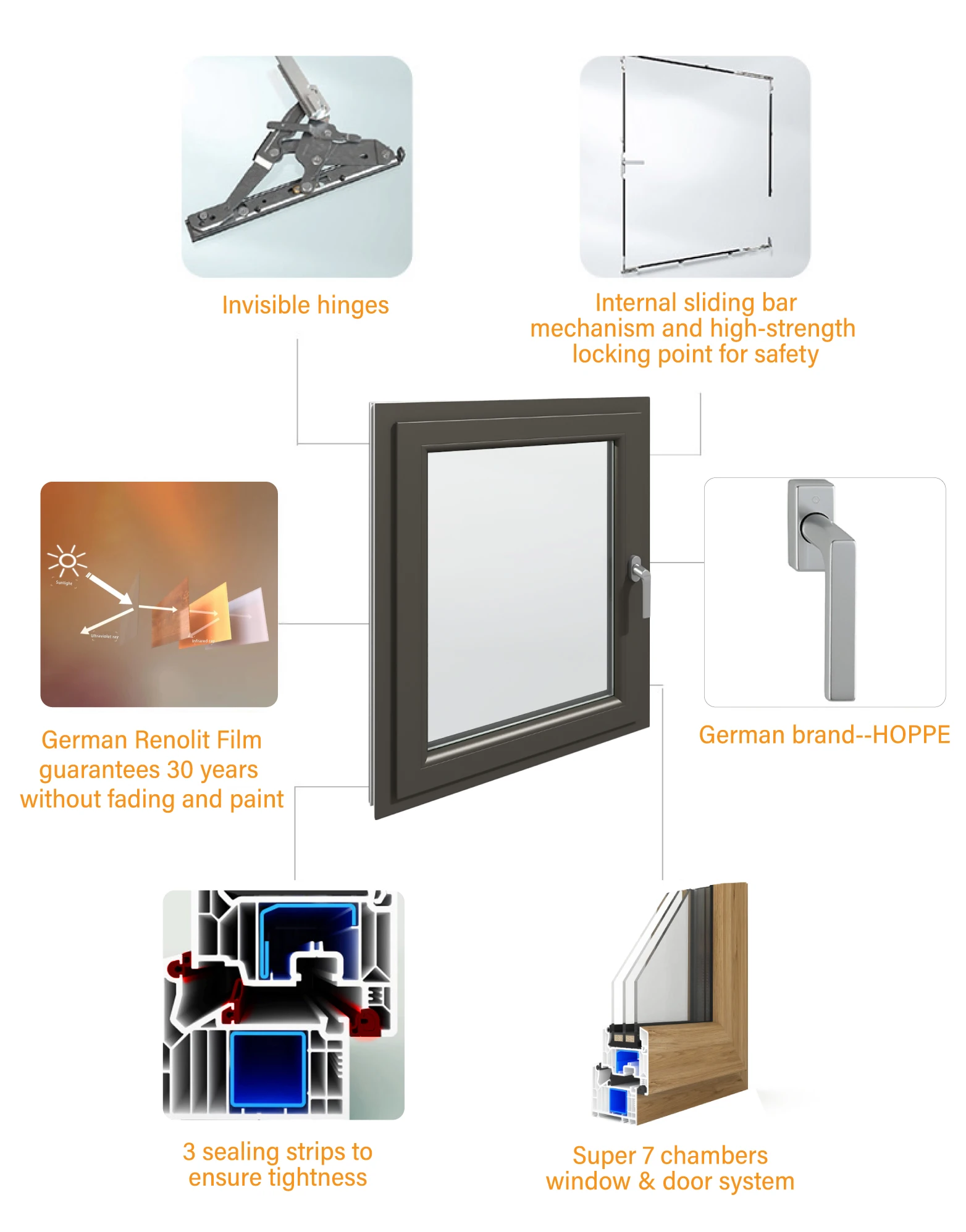

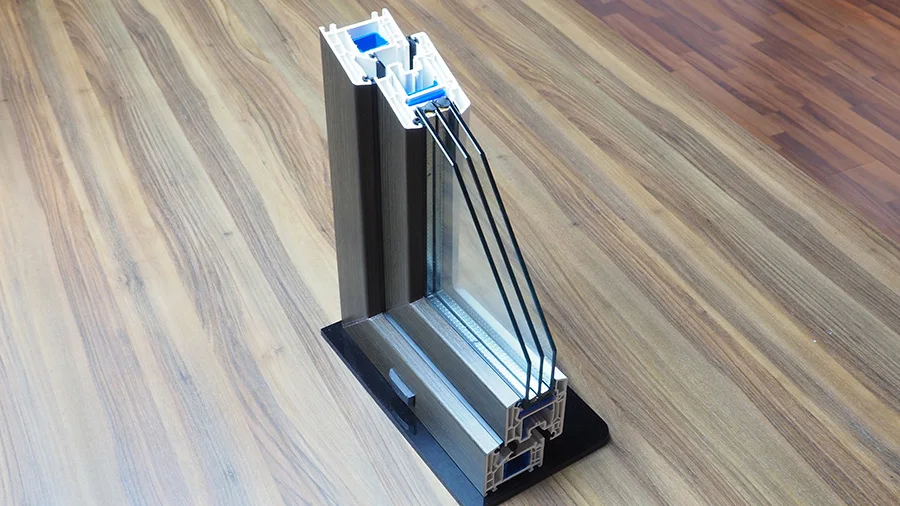

Tegood upvc passive house windows details
Advanced structural design, German hardware

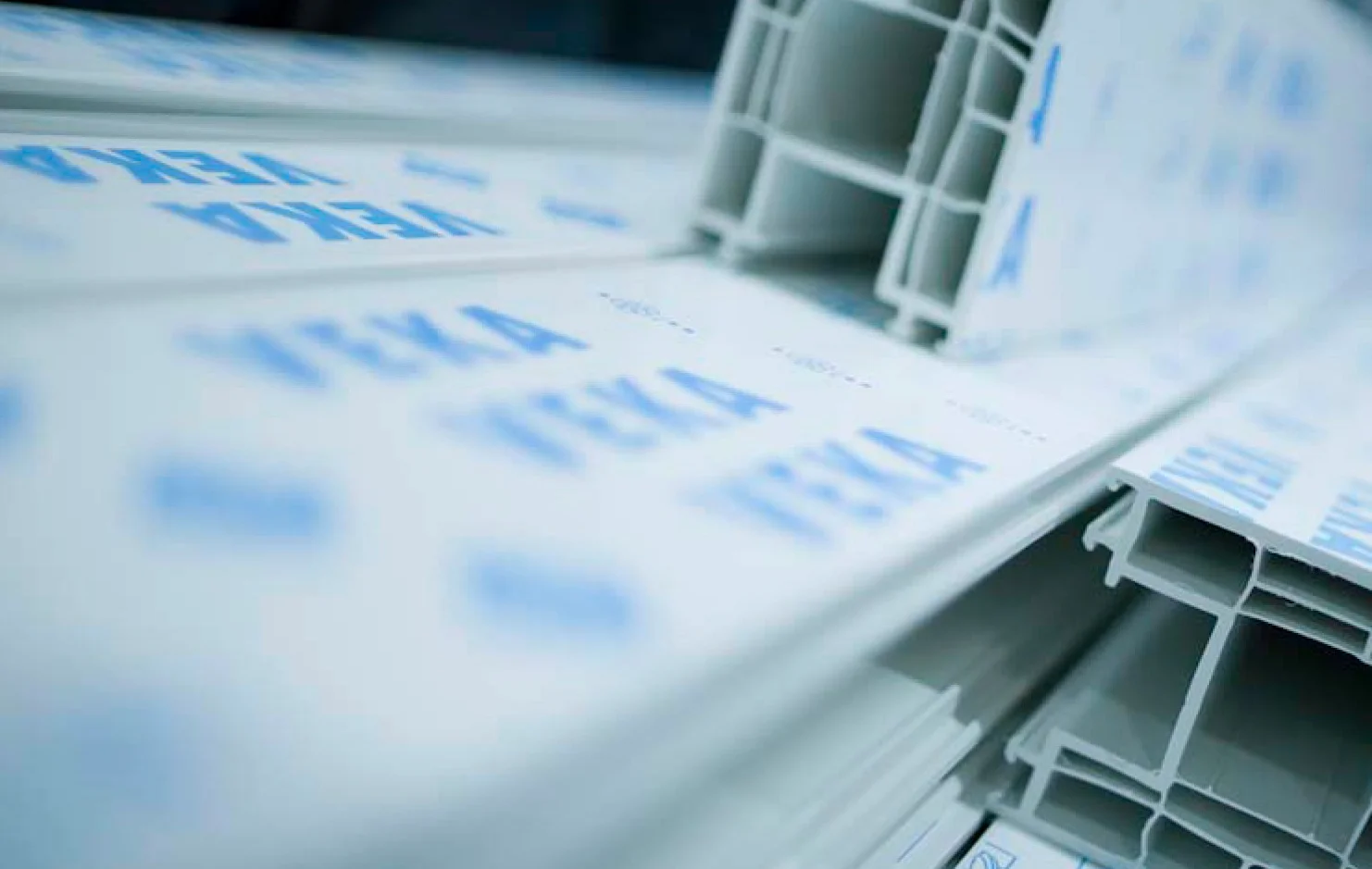

VEKA--Germany Top UPVC Frame Origin Brand
* 100% Quality Class A Profile
* European standard DIN EN 12608

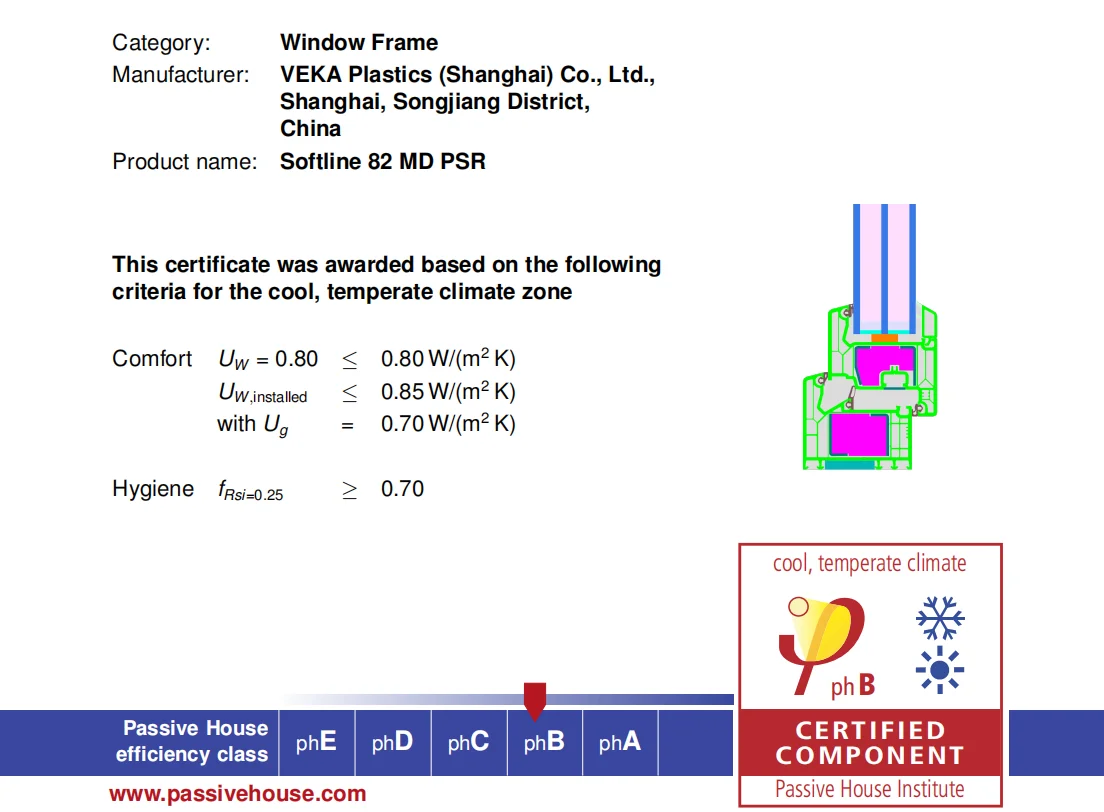

*Certifified Passive House Component

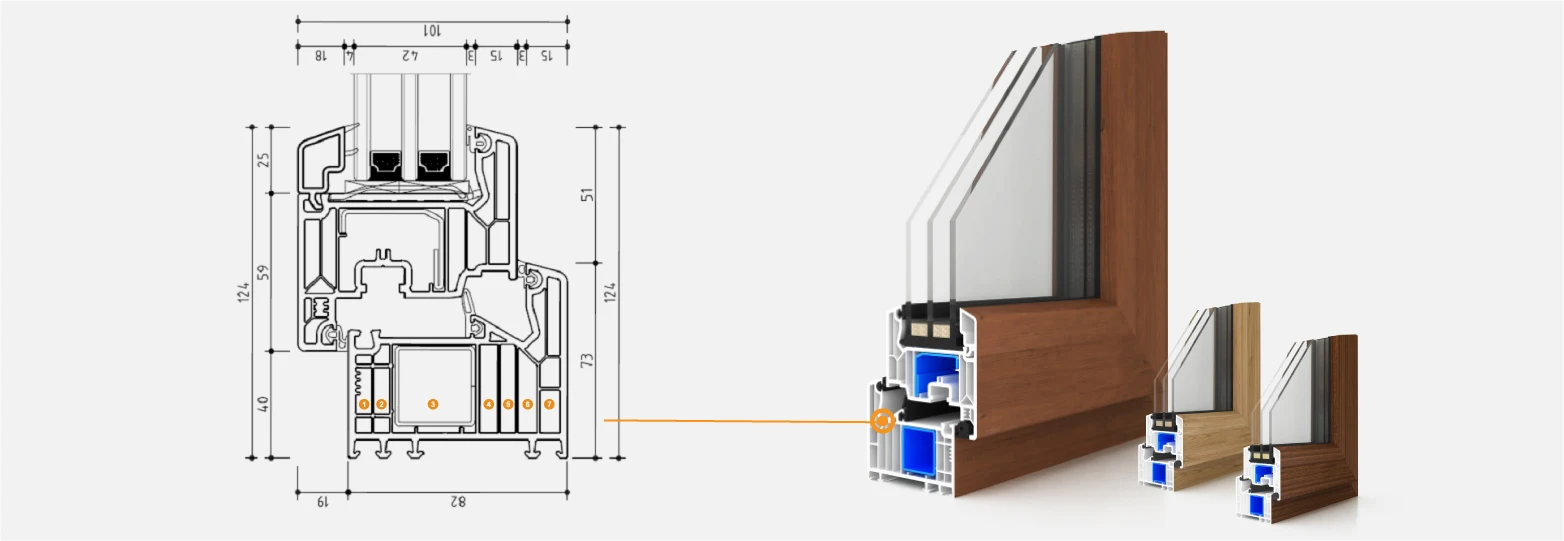

•The profile adopts high-performance PVC profile, the surface can be co-extruded or coated two processes, to achieve the appearance of diversity.
•Section wall thickness ≥3.0 mm, exceed international a class requirement, welding angle strength can increase 15-20% , load bending and torsion strength can increase 10-12% .
• Profile internal 7 cavity design and filled insulation materials, significantly improve the thermal insulation performance of the frame.
• Standard European Standard Notch, suitable for all kinds of European standard hardware, can realize a variety of opening.
• Special screw positioning design, so that the screw in the profile of the connection drawing force increased by 15-20% .
• Special Welding Glue Bar to ensure the sealing performance of windows.
• The maximum thickness of glass can be 45mm.
•Renolit Film: The normal service life is more than 30 years outdoors.
Performance parameter：Uw≤0.8 W/（㎡·K）for passive house windows
•Section wall thickness ≥3.0 mm, exceed international a class requirement, welding angle strength can increase 15-20% , load bending and torsion strength can increase 10-12% .
• Profile internal 7 cavity design and filled insulation materials, significantly improve the thermal insulation performance of the frame.
• Standard European Standard Notch, suitable for all kinds of European standard hardware, can realize a variety of opening.
• Special screw positioning design, so that the screw in the profile of the connection drawing force increased by 15-20% .
• Special Welding Glue Bar to ensure the sealing performance of windows.
• The maximum thickness of glass can be 45mm.
•Renolit Film: The normal service life is more than 30 years outdoors.
Performance parameter：Uw≤0.8 W/（㎡·K）for passive house windows

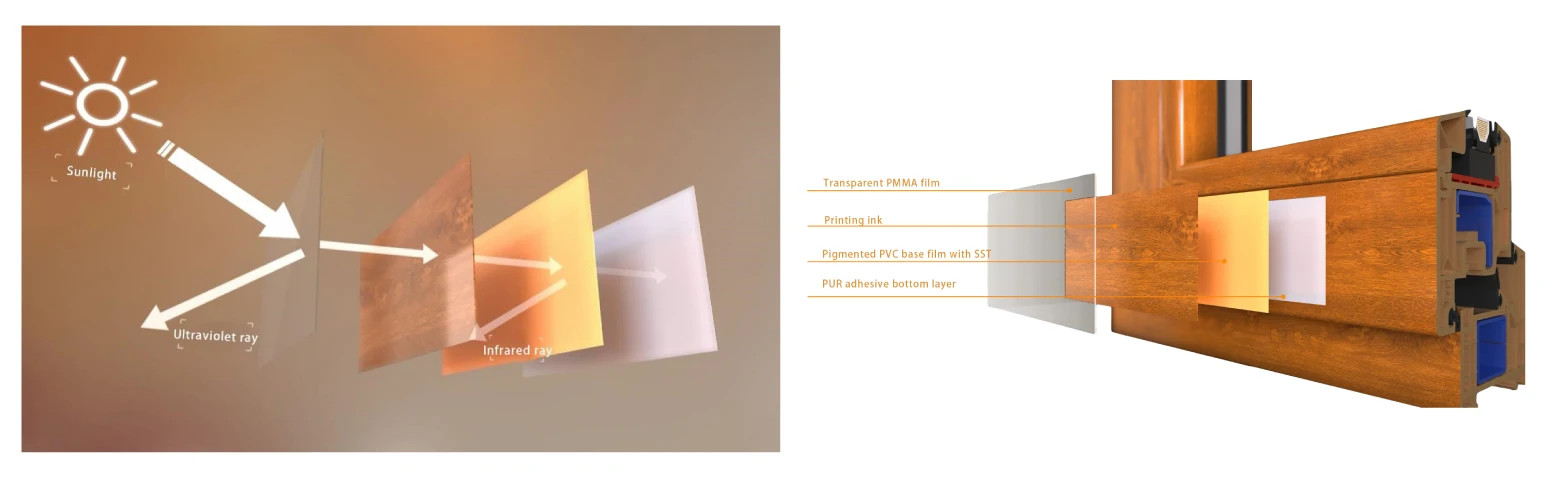

What is RENOLIT film
① PMMA film
The unique SST solar thermal shielding technology reduces the influence of sunlight and heat on the profile surface, reduces the temperature of the profile, so as to ensure that the profile is not deformed even under strong light, and ensure the air tightness of the window.
② Printing ink
Rich color, texture realistic.
③PVC base
The exterior facade has strong resistance to color decay and does not fade or fall off.
Easy to clean, as clean as new.
④PUR adhesive bottom layer
The solidification process is irreversible, the solidification strength is high, and the water resistance is good
The unique SST solar thermal shielding technology reduces the influence of sunlight and heat on the profile surface, reduces the temperature of the profile, so as to ensure that the profile is not deformed even under strong light, and ensure the air tightness of the window.
② Printing ink
Rich color, texture realistic.
③PVC base
The exterior facade has strong resistance to color decay and does not fade or fall off.
Easy to clean, as clean as new.
④PUR adhesive bottom layer
The solidification process is irreversible, the solidification strength is high, and the water resistance is good

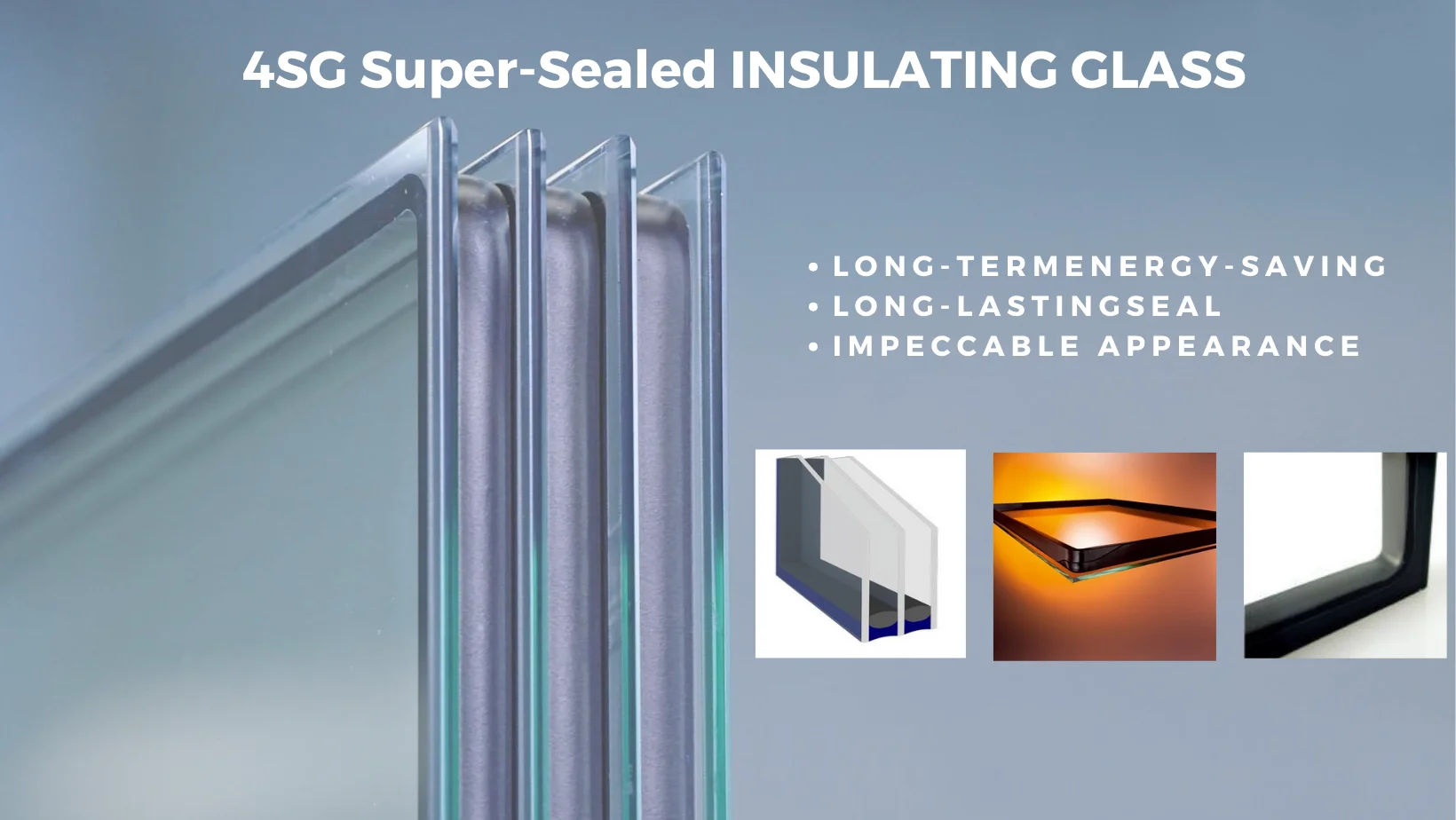

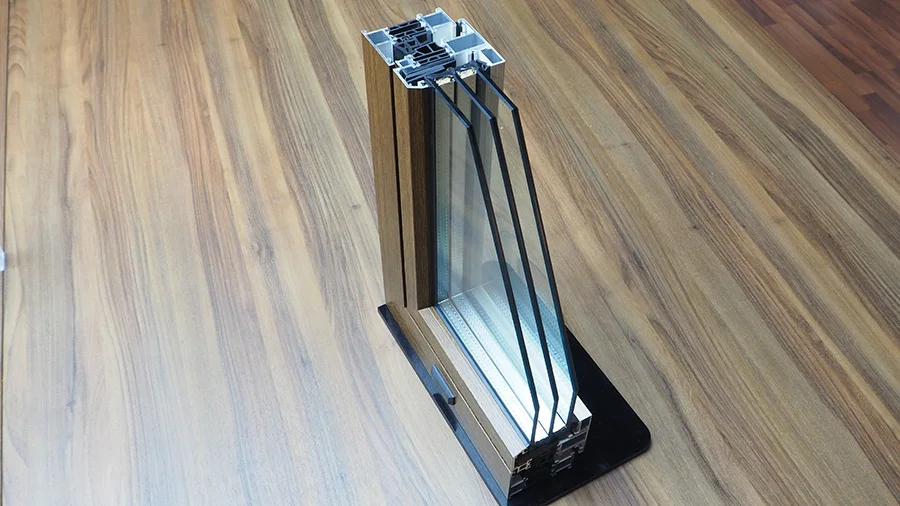

The superior performance of 4SG super-sealed insulating glass
4SG glass is a type of super-sealed insulating glass, which uses a flexible sealant instead of a traditional metal spacer to improve the sealing and thermal insulation of the insulating glass12. Compared with conventional insulating glass, 4SG glass has the following advantages:①It is integrated, without any joints, ensuring the absolute sealing of the glass cavity
②It adds integrated desiccant and stronger adhesive materials, improving the strength and stability of the glass
③It can produce large-sized insulating glass, with lower argon leakage rate
④It solves the problem of metal thermal bridge, improving the thermal insulation and energy efficiency of the glass
⑤ It reduces the vibration of the glass, improving the sound insulation performance of the glass
②It adds integrated desiccant and stronger adhesive materials, improving the strength and stability of the glass
③It can produce large-sized insulating glass, with lower argon leakage rate
④It solves the problem of metal thermal bridge, improving the thermal insulation and energy efficiency of the glass
⑤ It reduces the vibration of the glass, improving the sound insulation performance of the glass
Company Profile
Company Introduction
Who Are We?
Tegood window, one of the top manufacturers in China with more than 15 years of experience. Our factory is located in Shanghai,
China, which covers an area of 10,000 square meters, with an annual output value of about 100 million.
What We Do?
We mainly focus on high-end aluminum & UPVC windows and doors, passive house energy-saving windows and doors, customized railings,
glass houses and etc. Main markets are North America, Europe, Australia, Singapore, etc.
Why Choose Us?
Our goal is to provide customers with one-stop service for high-quality windows and doors. The unique design is not only more beautiful in appearance, but also more durable in daily use. Strong protection for you and your home. Renolit film imported from Germany is rarely used on the surface of window and doors, but we can do it.
It's aimed to protect window and door frames from fading and paint peeling for 30 years. Make your windows and doors stand out from ordinary products.
In addition, our products and designs can isolate noise, and the thermal insulation effect is also remarkable. It has won a number of certificates and patents. Tegood is an advocacy brand of system windows and doors in China.
Tegood window, one of the top manufacturers in China with more than 15 years of experience. Our factory is located in Shanghai,
China, which covers an area of 10,000 square meters, with an annual output value of about 100 million.
What We Do?
We mainly focus on high-end aluminum & UPVC windows and doors, passive house energy-saving windows and doors, customized railings,
glass houses and etc. Main markets are North America, Europe, Australia, Singapore, etc.
Why Choose Us?
Our goal is to provide customers with one-stop service for high-quality windows and doors. The unique design is not only more beautiful in appearance, but also more durable in daily use. Strong protection for you and your home. Renolit film imported from Germany is rarely used on the surface of window and doors, but we can do it.
It's aimed to protect window and door frames from fading and paint peeling for 30 years. Make your windows and doors stand out from ordinary products.
In addition, our products and designs can isolate noise, and the thermal insulation effect is also remarkable. It has won a number of certificates and patents. Tegood is an advocacy brand of system windows and doors in China.

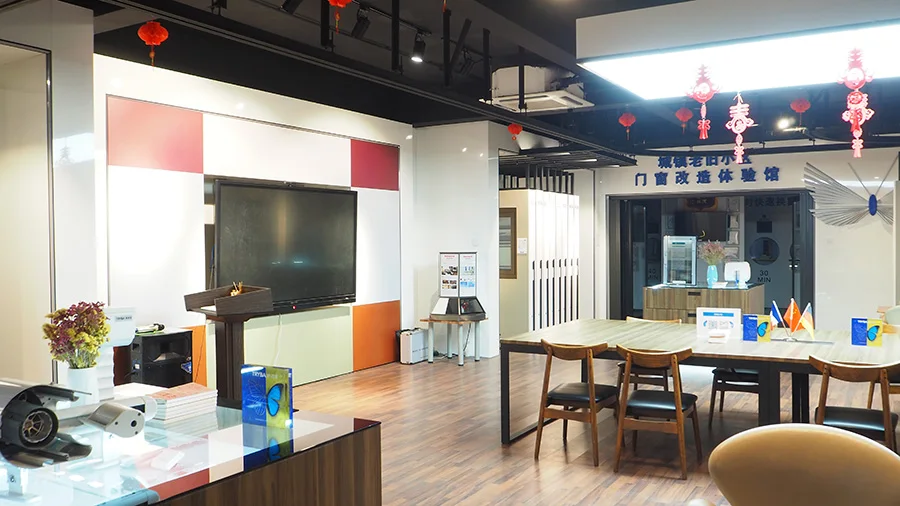

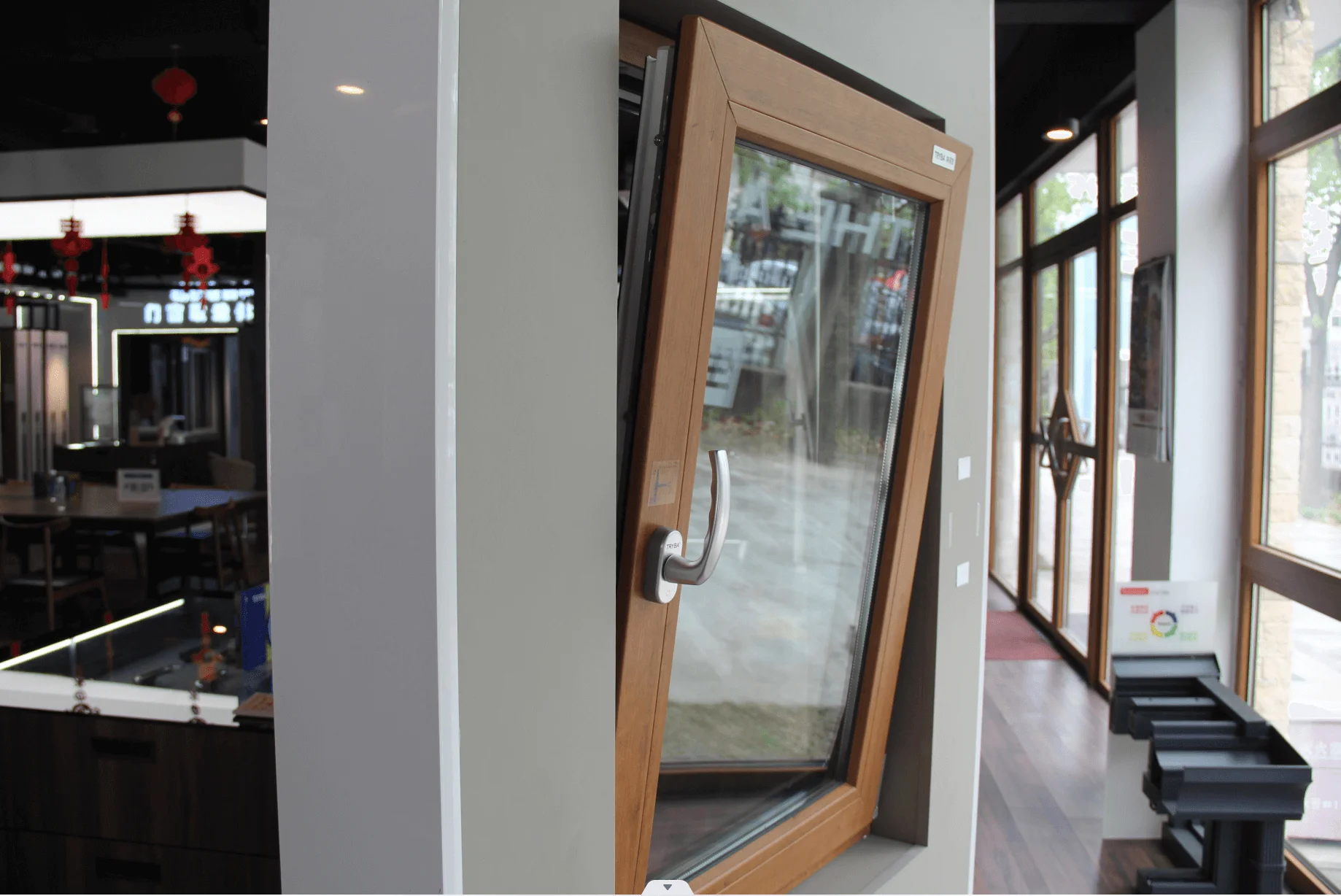

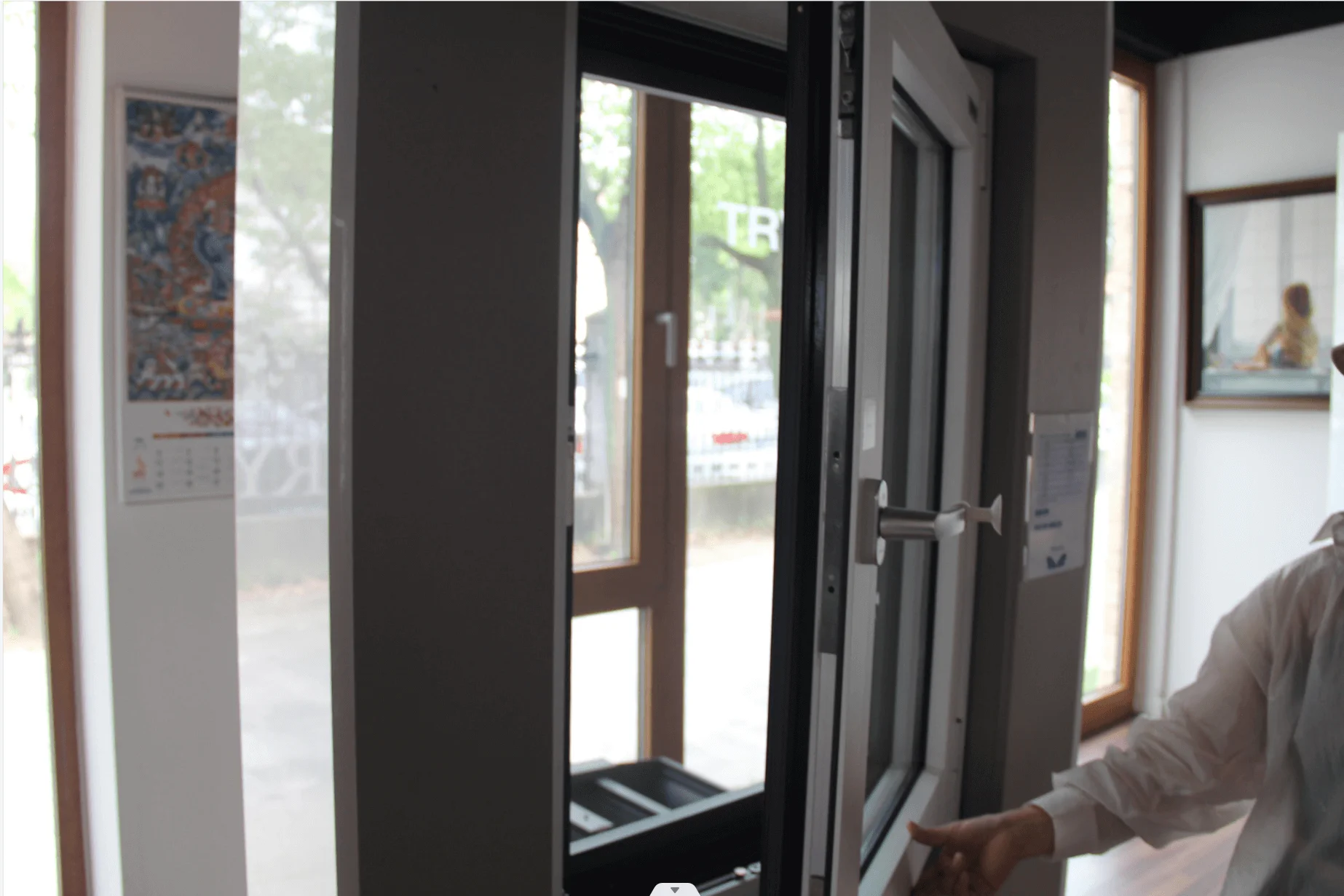

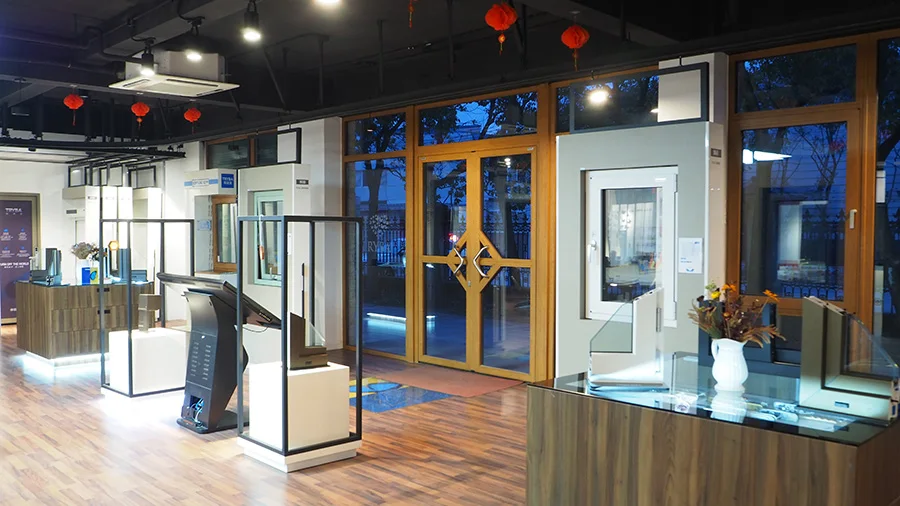

Sample Room

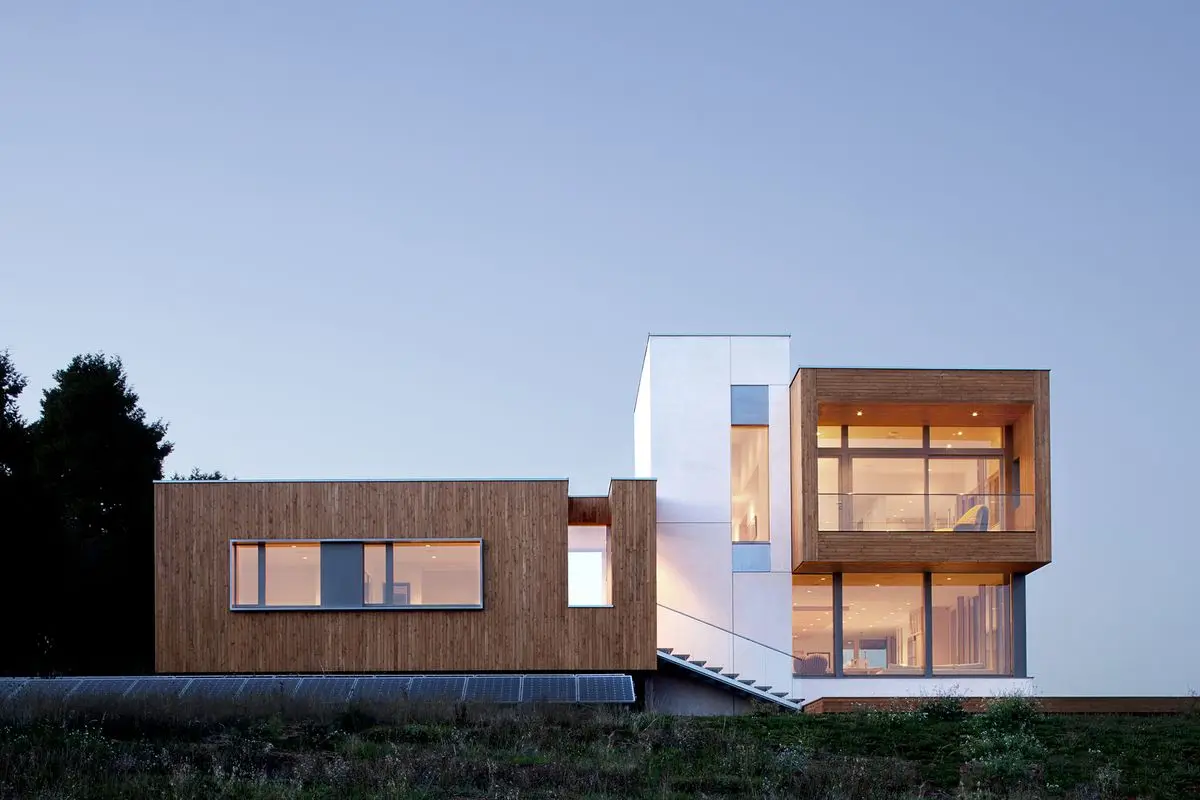

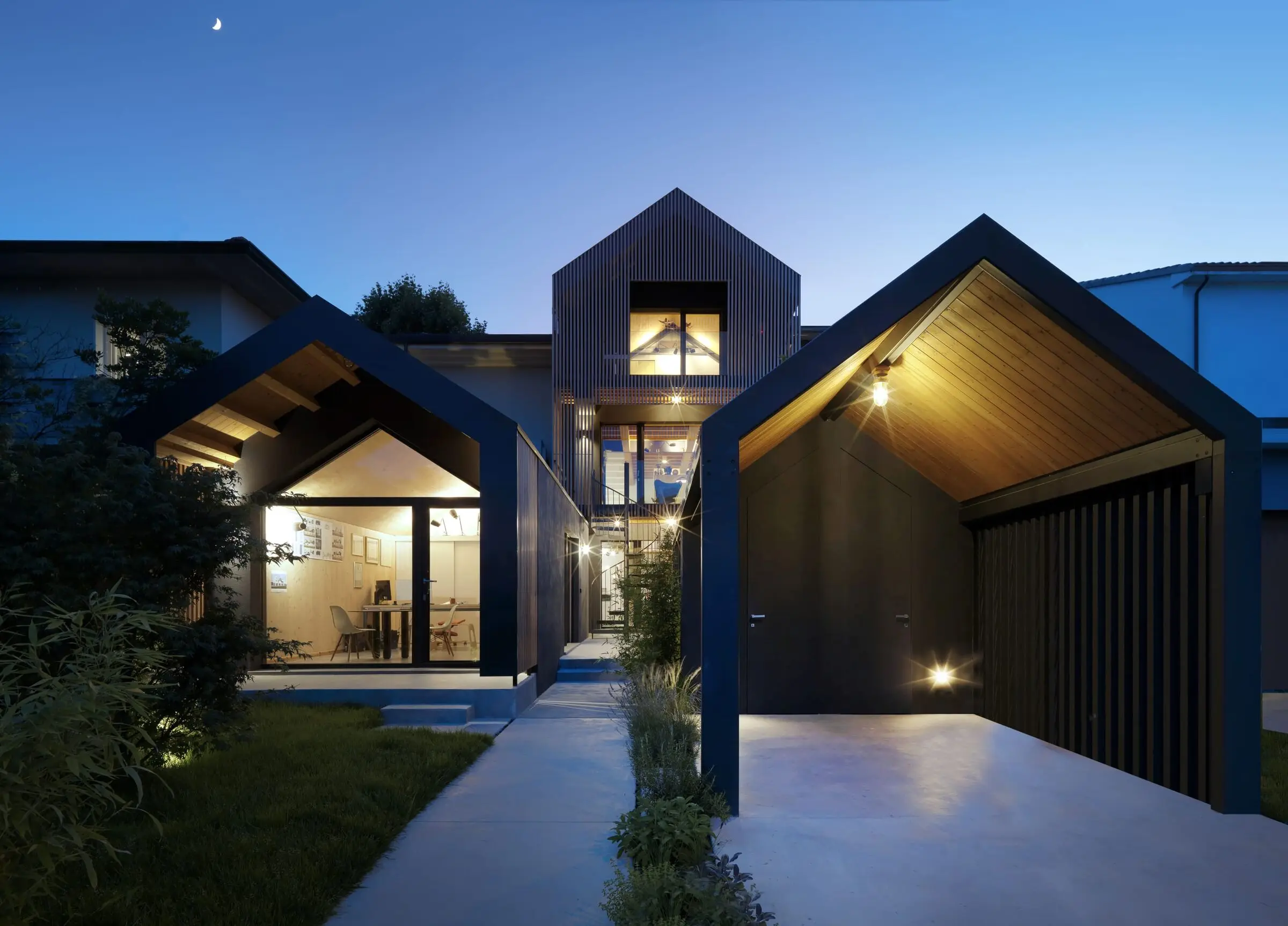

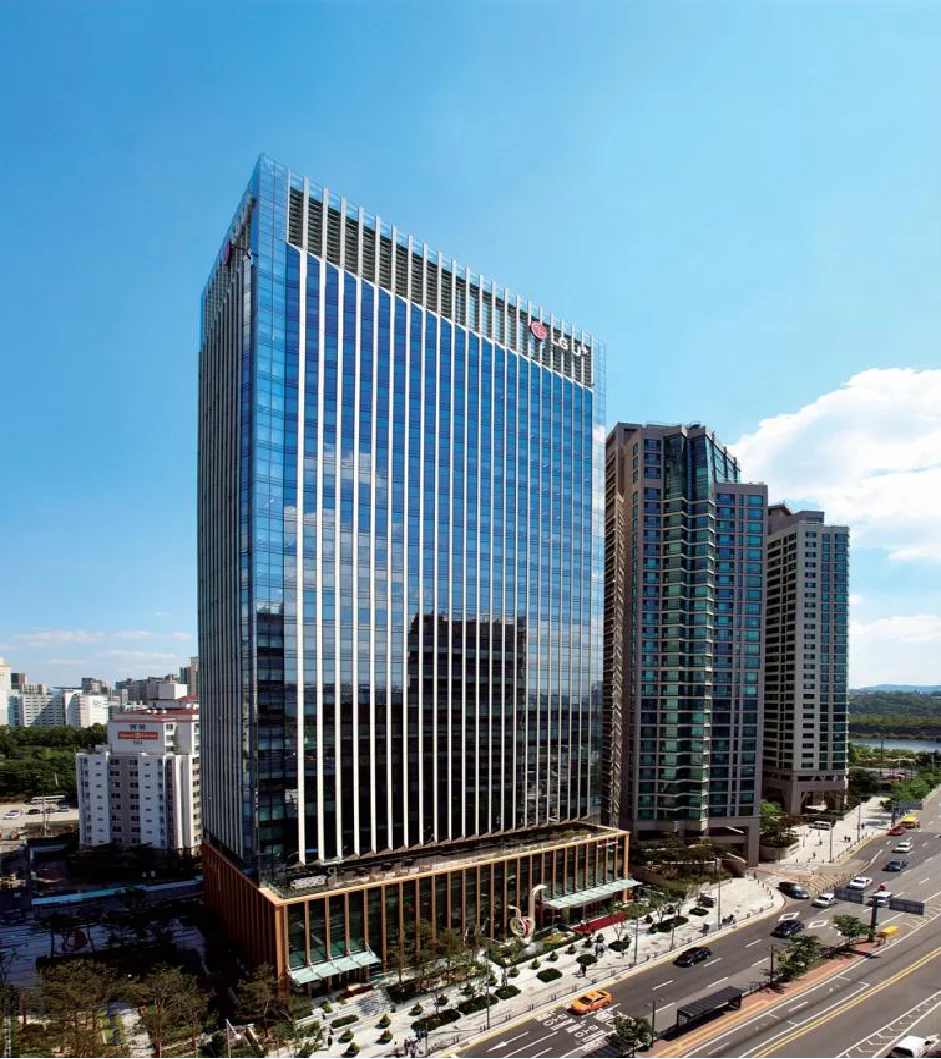

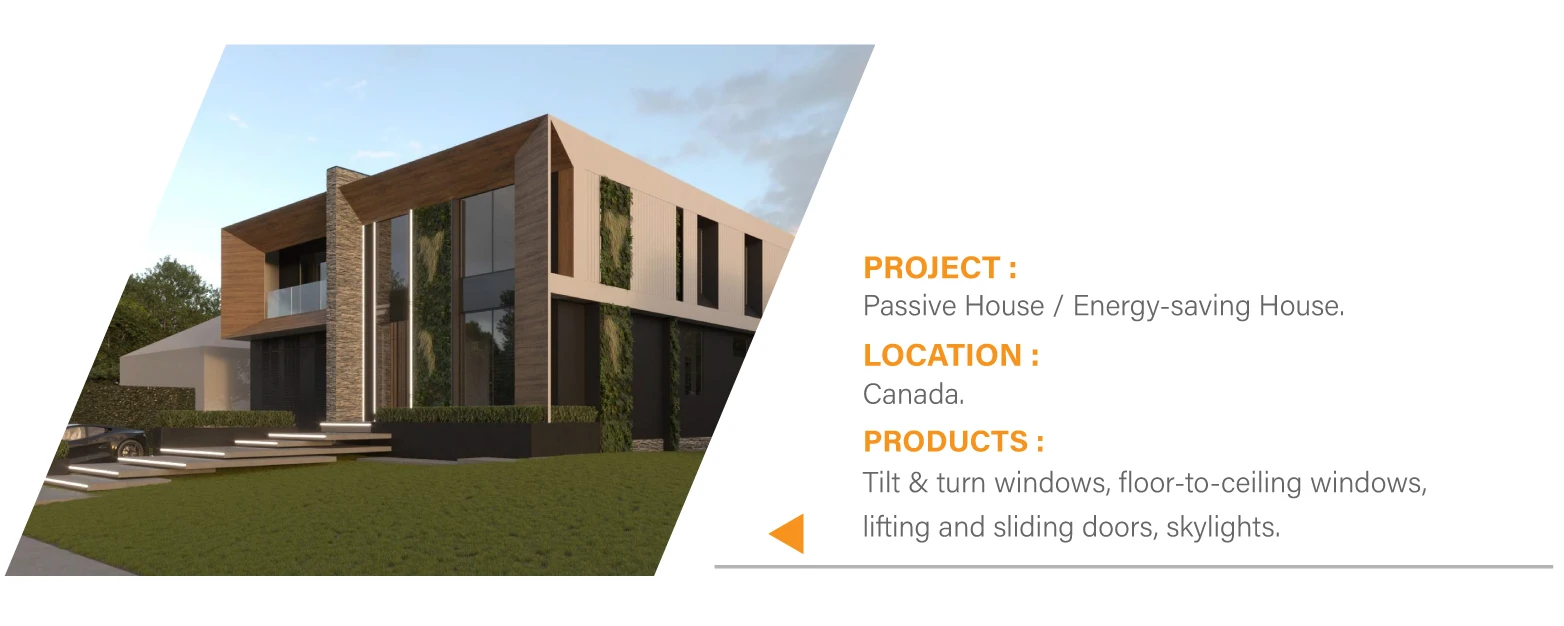

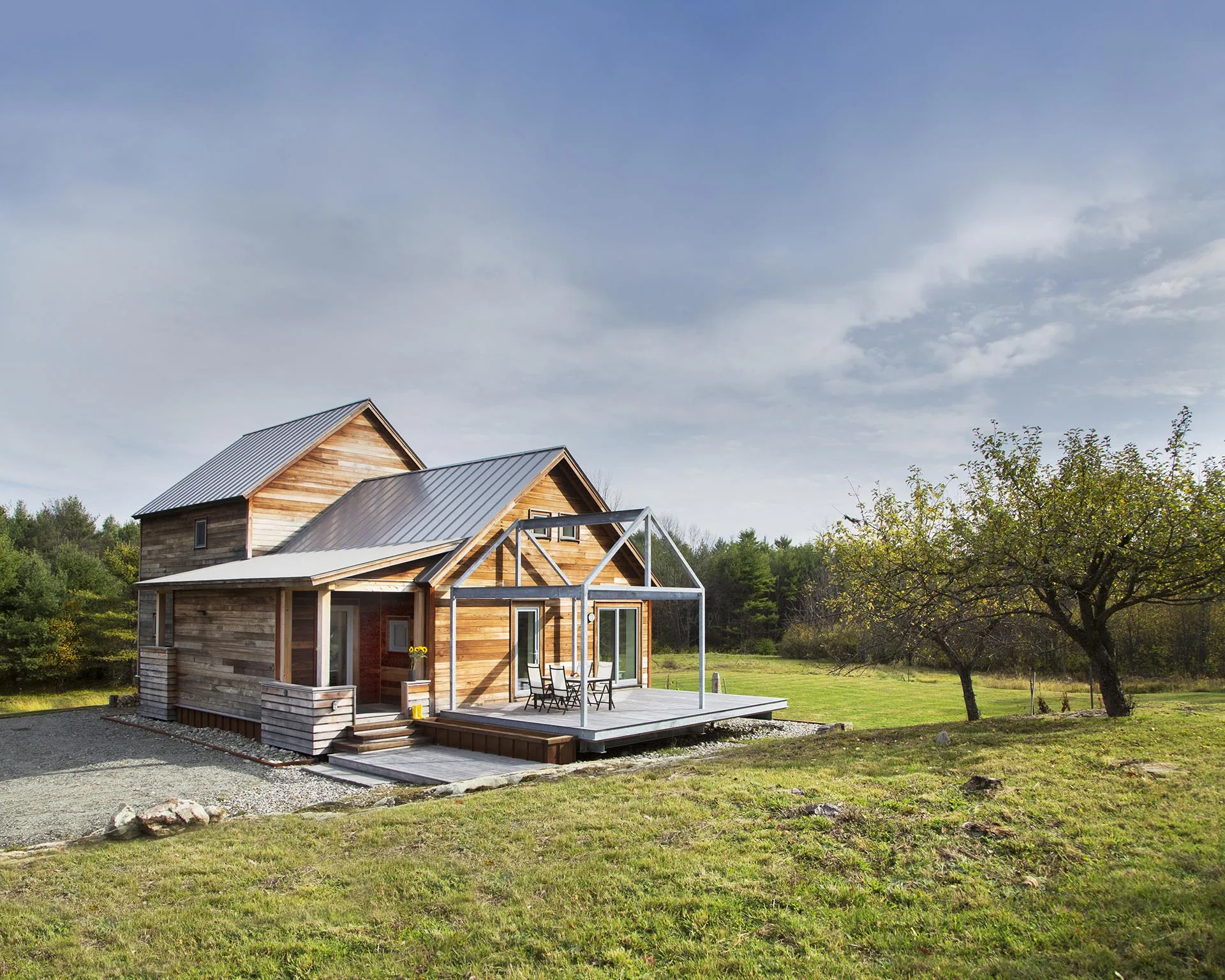

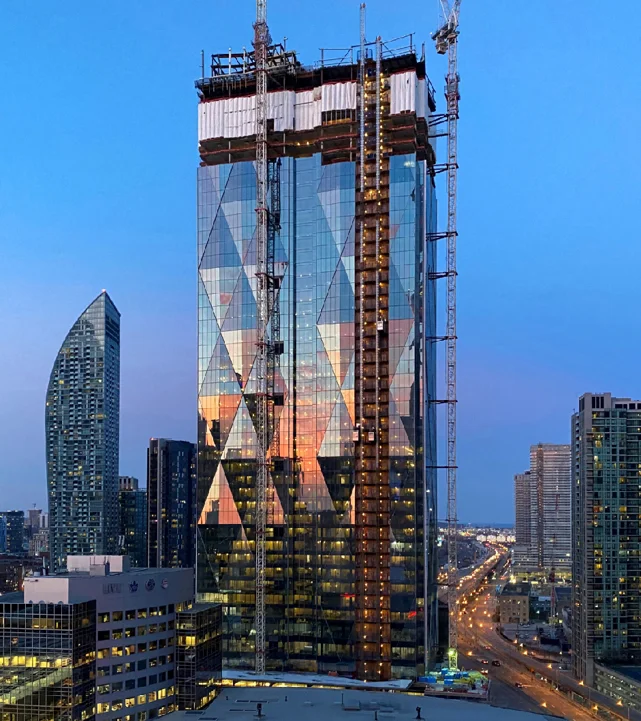

Project Cases
Public buildings
Expo. Zero Carbon Pavilion in London
Shanghai, China
San Xiang Hai Shang
Residential
Shenzhen, China
Residential
Shenzhen, China
Overseas Chinese Town

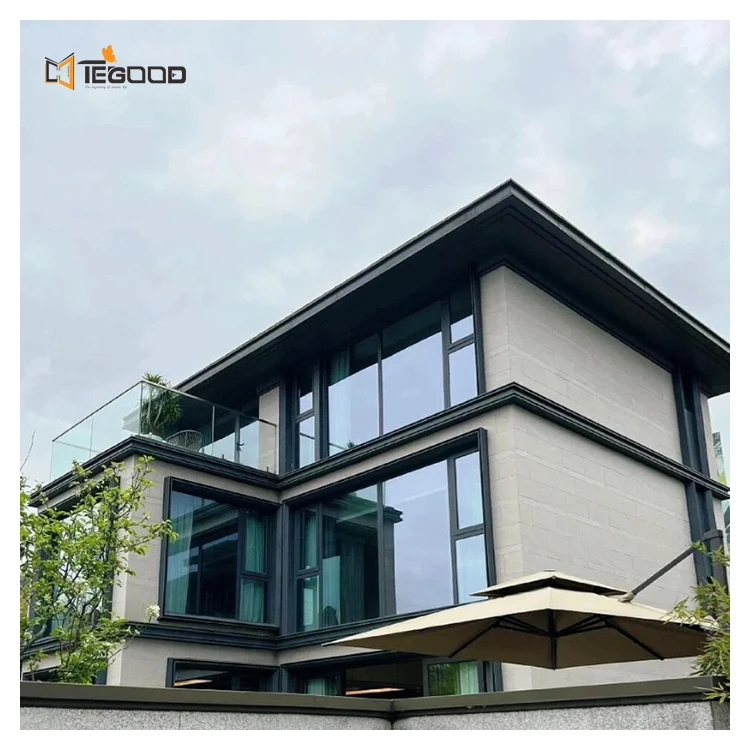

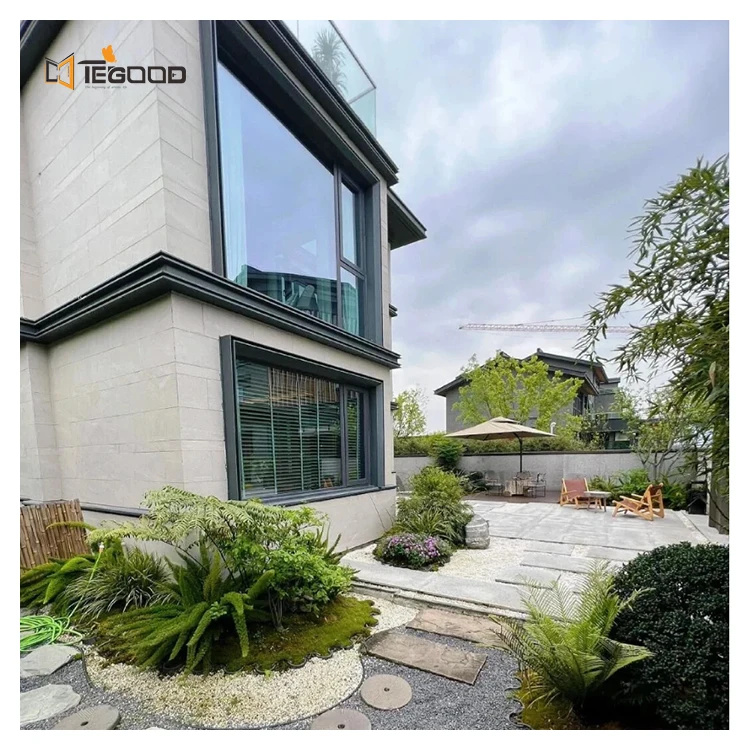

Villa
Suzhou, China
Villa
Suzhou, China
Melbourne.Australia
Commerical system
Double Glazing Plus laminated
Mixed used-5 Levels
Commerical system
Double Glazing Plus laminated
Mixed used-5 Levels
New York. America
Commercial residential building
Project Area: 8,000 sqm
Glass room
England
England
Packing & Delivery
Packing Description
There are three kinds of packing, such as bubble bag, bubble bag + wooden frame,
bubble bag + wooden case. If full container, we advise to use bubble bag. it can save more space and hold more goods in the same container. Usually, the packing is bubble bag + wooden frame. The best packing is bubble bag + wooden case, some bulk cargo and some developed countries, such as USA Australia and some countries in Europe,need wooden case packing,because their special requirement and wooden case can protect the goods very well.
bubble bag + wooden case. If full container, we advise to use bubble bag. it can save more space and hold more goods in the same container. Usually, the packing is bubble bag + wooden frame. The best packing is bubble bag + wooden case, some bulk cargo and some developed countries, such as USA Australia and some countries in Europe,need wooden case packing,because their special requirement and wooden case can protect the goods very well.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, we have one of the largest OEM factory in China's building materials industry.
Q: What are the main materials of your doors and Windows?
A: At present, our doors and Windows mainly use high-performance UPVC profiles/broken bridge aluminum profiles, standard hollow tempered white glass, low-e glass, using imported hardware accessories or Chinese top brand hardware.
Q: What’s your monthly production/supply capacity?
A: About 5000sqm/month.
Q: What’s your policy for samples?
A: We can provide free samples as your request, please contact us to talk about the specific policy.
A: We are manufacturer, we have one of the largest OEM factory in China's building materials industry.
Q: What are the main materials of your doors and Windows?
A: At present, our doors and Windows mainly use high-performance UPVC profiles/broken bridge aluminum profiles, standard hollow tempered white glass, low-e glass, using imported hardware accessories or Chinese top brand hardware.
Q: What’s your monthly production/supply capacity?
A: About 5000sqm/month.
Q: What’s your policy for samples?
A: We can provide free samples as your request, please contact us to talk about the specific policy.
Q: What can you do for me if the windows were damaged when I open the container ?
A: If the windows were damaged when you received,Please send us photo and we will replace you new one freely.
A: If the windows were damaged when you received,Please send us photo and we will replace you new one freely.
Q: What’s your payment term?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,balance before shipment. We accept 30% deposit by T/T before mass production, the balance paid before loading(L/C at sight is available)
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,balance before shipment. We accept 30% deposit by T/T before mass production, the balance paid before loading(L/C at sight is available)
