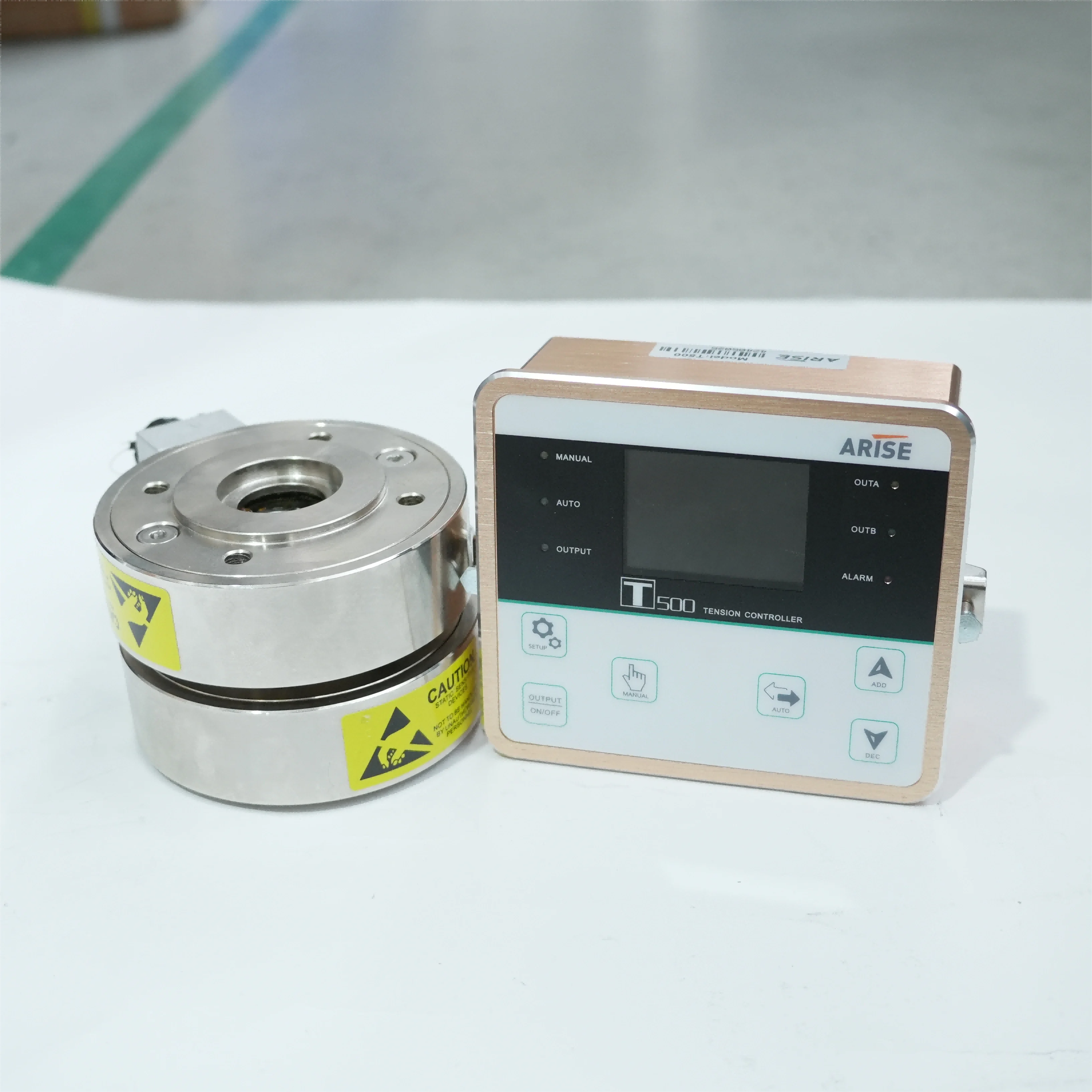

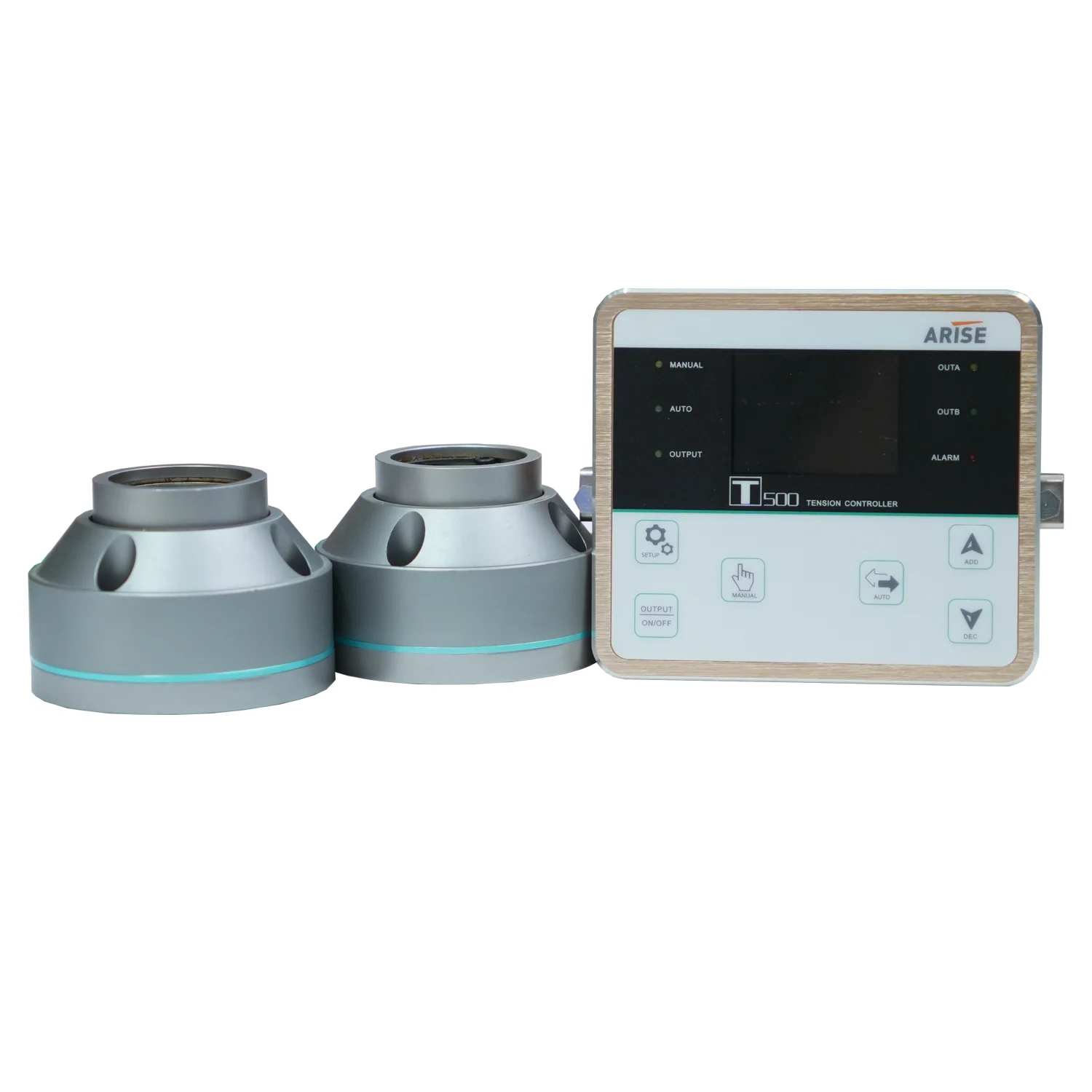

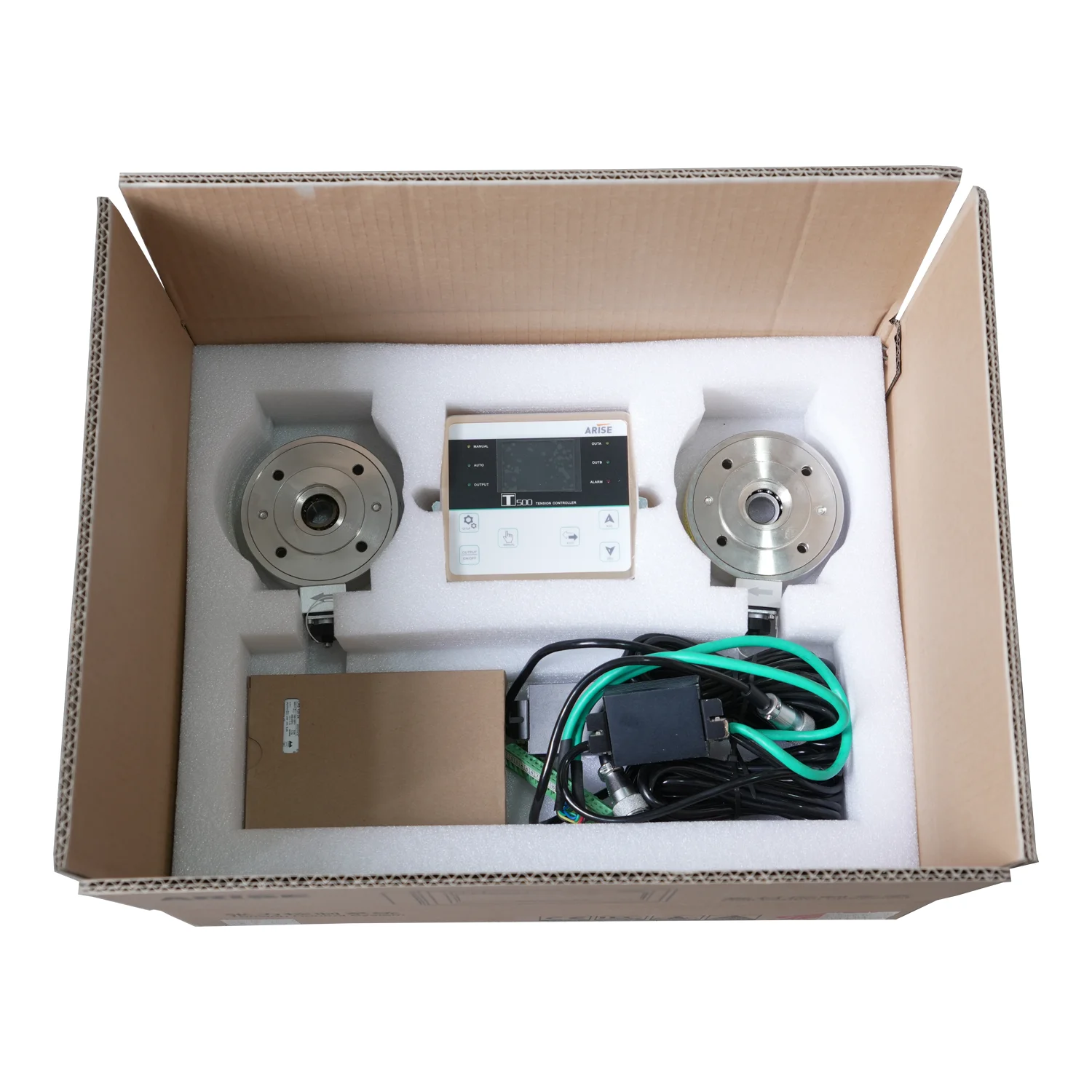

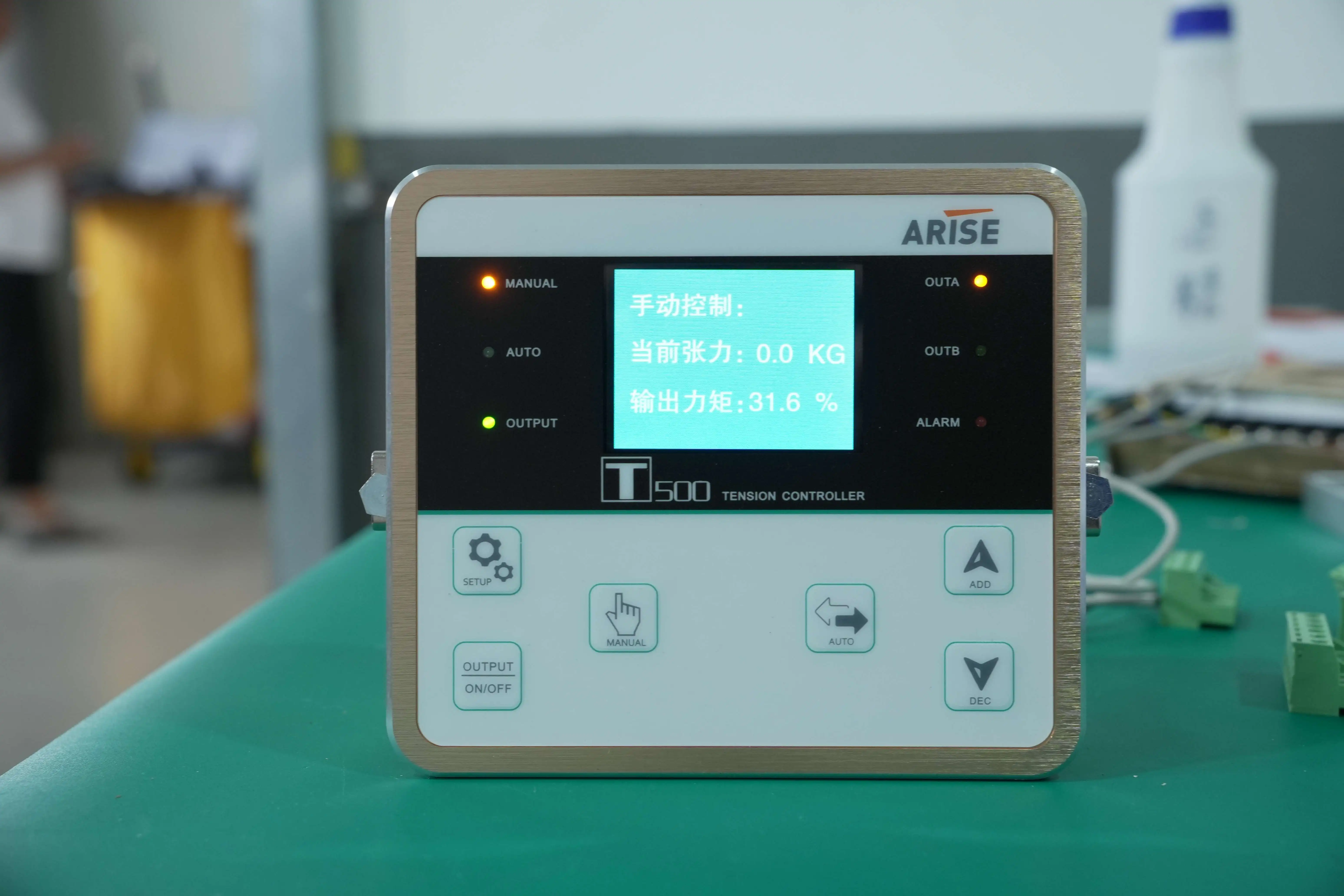

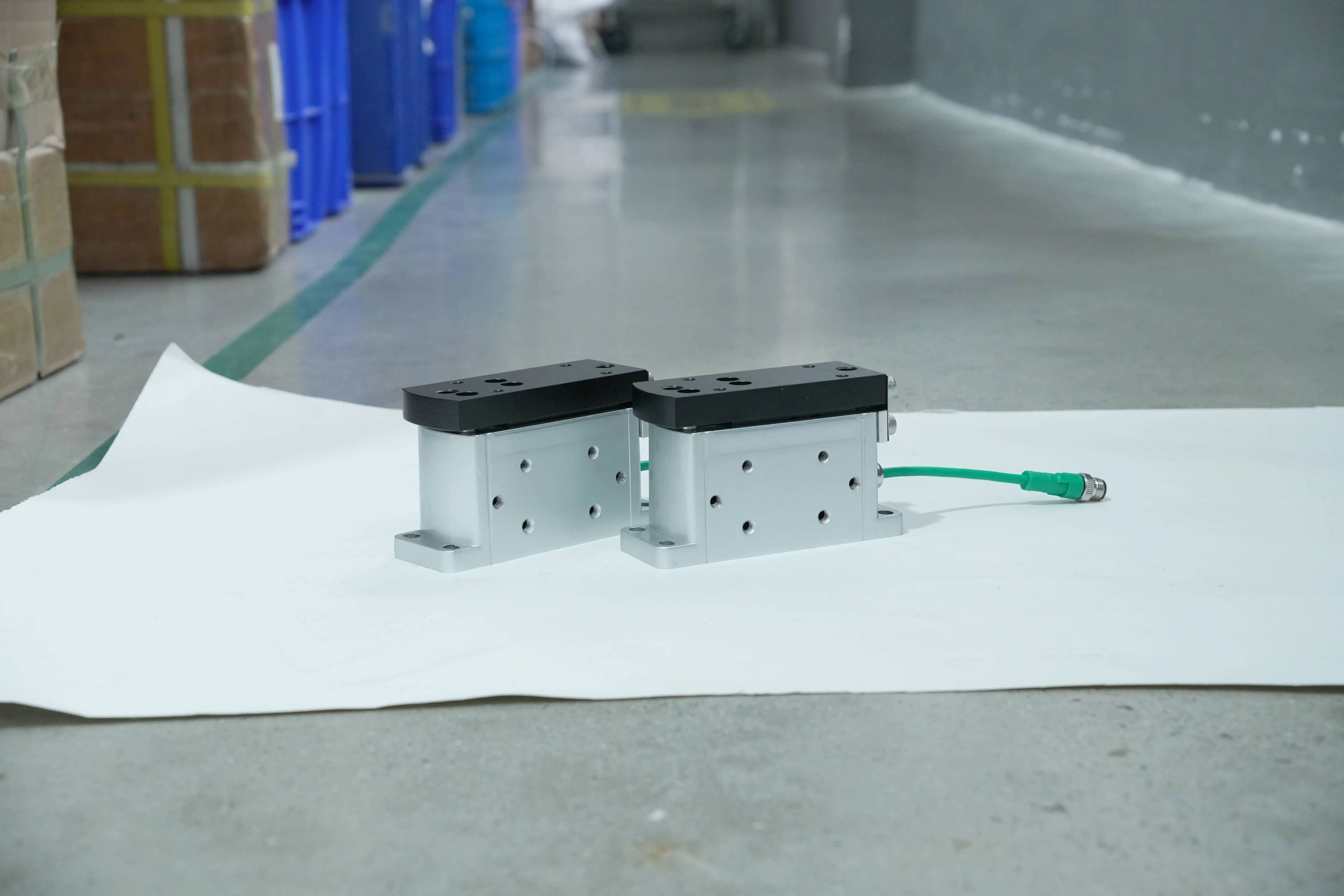

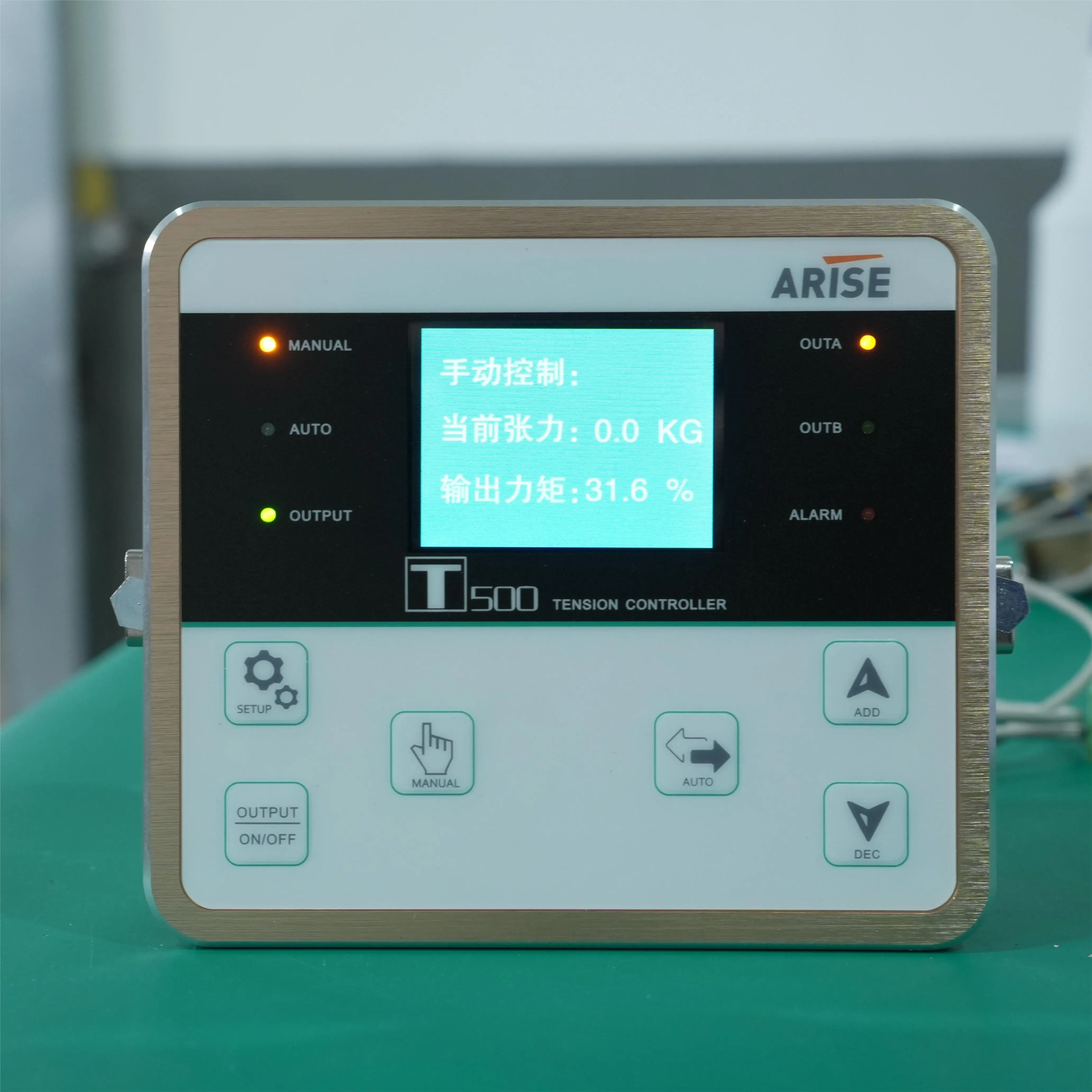

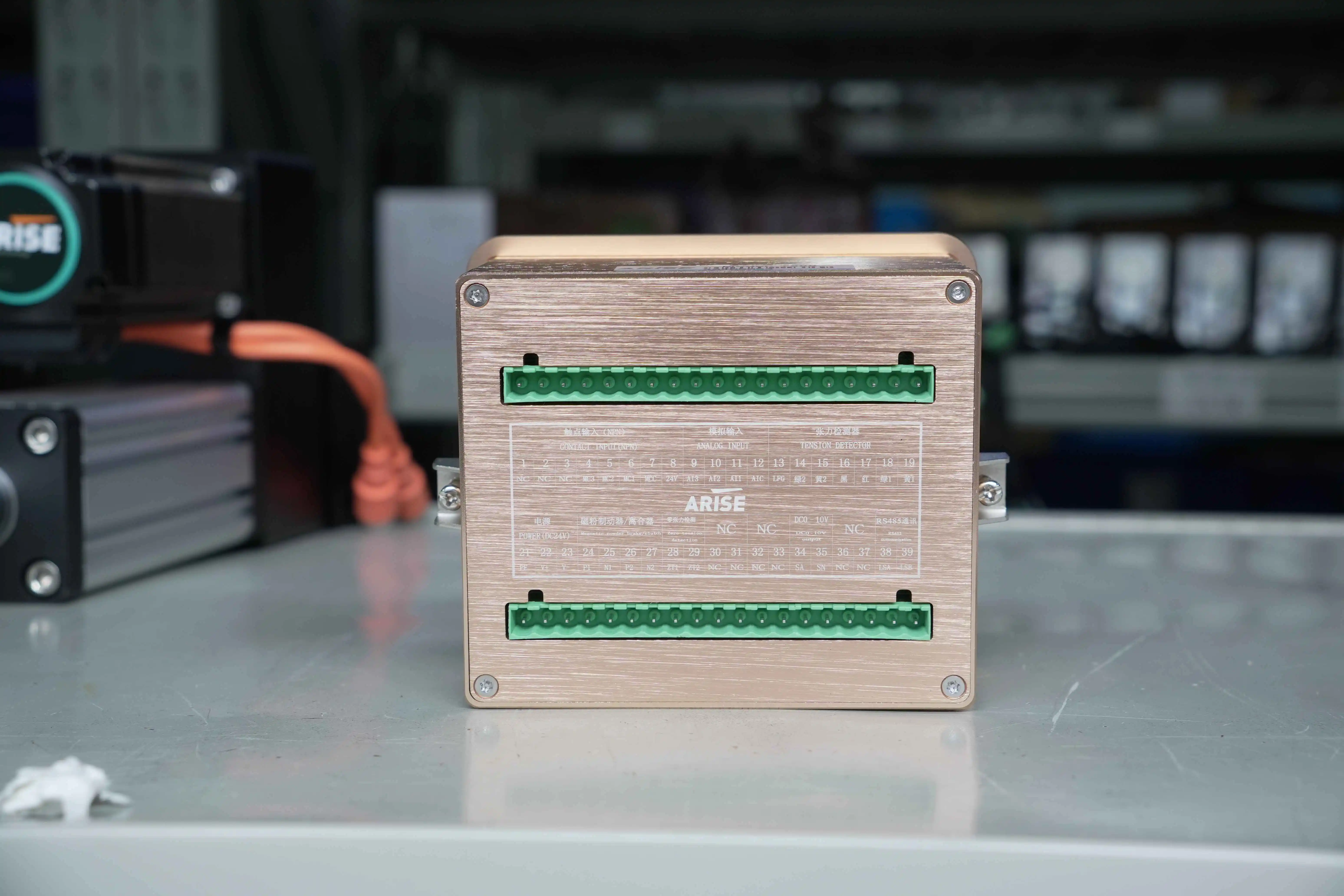

ARISE T500 automatic tension controller LS200 tension sensor printing machine spare part

Share on (1601226015579):


Price:$400.00

Quantity:


Product Overview

Description







Hello dear, WELCOME here. You are definitely interested in this Tension control system Just read on, A lot of practical information
below or click me. Passionate, I am waiting for you in China.




Operating Voltage
24V±1%
Current consumption
6.5A
Strain gauge amplifier
2 channels
input signal
sine wave
Analog input
0-10V
Voltage value
0-10V
Analog output
DCO-10V
Digital input
6 inputs,2-way programmable
The output voltage
24V, maximum 0.5A
Interface
ModbusRTU4
Rated operating temperature
+5 to +55℃

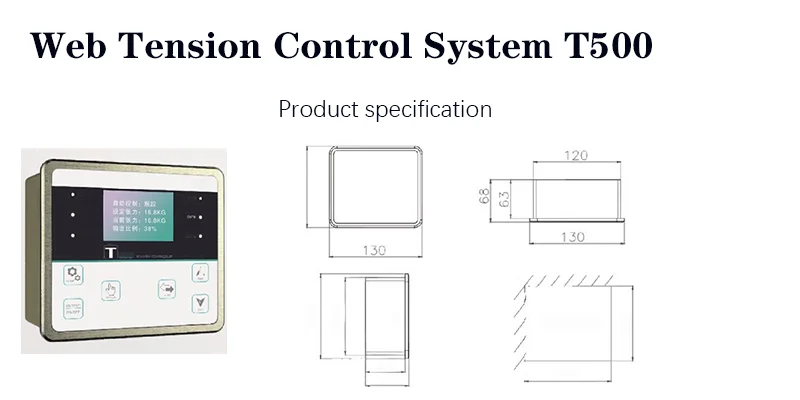

Dimensions (width x height x depth)
130x114X68


























Chongqing ARISE Technology Co., Ltd
Arise Technology Co., Ltd., located at the confluence of the two rivers in the beautiful mountain city of Chongqing, is a national high-tech enterprise integrating optics, machinery, electronics, and the internet. We specialize in the research and production of position sensors such as optical, CCD, color-sensitive, and ultrasonic sensors, as well as tension control and web guiding systems. Arise has a top-tier design and research team dedicated to making Arise a world-class brand. Our research and development department consists of experienced scientists with over 10 years of industry expertise, possessing strong innovation capabilities, adeptness in new device applications, and comprehensive software and hardware skills. Currently, our R&D facilities are well-equipped with both software and hardware platforms, comprehensive testing methods, robust technical documentation, and reserves. We hold four national invention patents, eight utility model patents, ten appearance patents, and two software copyrights. Our products have obtained international certifications such as EU CE, EMC electromagnetic interference, and ESD electrostatic testing.






















Q1.What about the lead time for production?
A1 :We are factory direct sales. We have strong production capacity, and general products will be shipped within 2-3 days. Customized products may be delayed to 4-5 days


Q2. What can you buy from us?
A2 : 1.Web guide system , 2.Tension control system , 3.Web monitoring system
4.Defect detection , 5 Thickness measurement , 6 Width measurement


Q3: Can the product be customized?
A3: Yes, our products support customization. All-in-one web guiding system Our Roller has a customized range of 100mm-1000mm. The automatic guide rail length of web monitoring can be customized in the range of 300mm-3000mm


Q4: How long can you provide warranty and after-sales service?
A4 :Most of our products come with a one-year warranty. To be honest, we have more than 20 years of experience, and you can rest assured about product quality. We support 24-hour online after-sales service


Q5:what services can we provide?
A1:Accepted Delivery Terms: FOB,CIF,EXW,DDP,DAF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken English,Chinese
