Product Overview
Description
Product Description
Huge Profile “HP ” Series Laser Cutting Machine

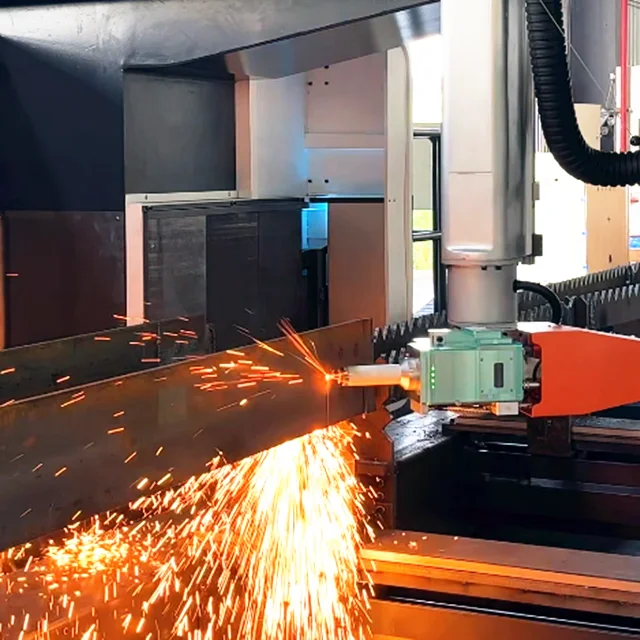

H-beam Laser Cutting Machine HP15 HP25. 3D 6-axis laser cutting machine delicate for H-beam, channel steel, and flat bevel cutting. With wide-body dual-drive gantry structure, high rigidity, strong load-bearing capacity, stable operation, integrated structure, stable, reliable, durable, 24h continuous operation.
Highlights of Steel Beams Laser Cutting Machine HP25:
• Cantilever H-beam laser cutting machine or gantry type H-beam laser cutting machine optional
• Support extending laser cutting length
• Open structure double station design saves loading and unloading time
• Ultra-high efficiency which can reach 15 times that of manual labor
• Metal cutting, punching, groove cutting, welding hole opening, marking to meet standards

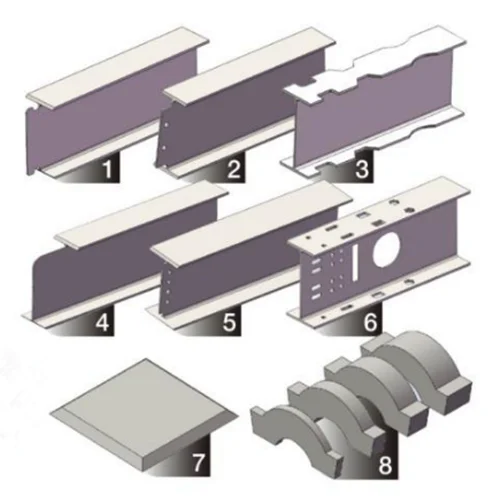

• Support convex cutting, bevel cutting, Z-cutting, and other node-cutting
• Support direct import of model files such as TEKLA, SolidWorks, etc.
• Cantilever H-beam laser cutting machine or gantry type H-beam laser cutting machine optional
• Support extending laser cutting length
• Open structure double station design saves loading and unloading time
• Ultra-high efficiency which can reach 15 times that of manual labor
• Metal cutting, punching, groove cutting, welding hole opening, marking to meet standards
• Support convex cutting, bevel cutting, Z-cutting, and other node-cutting
• Support direct import of model files such as TEKLA, SolidWorks, etc.
Applications:
It is widely used in professional equipment manufacturing industries such as steel structure, petroleum, chemical industry, and marine engineering. It is commonly used in laser cutting of H-shaped steel, curved steel, channel steel, and other cross-section cutting shapes.
About Machines

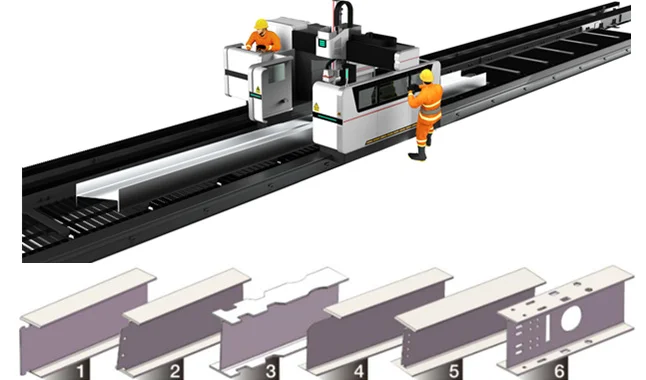

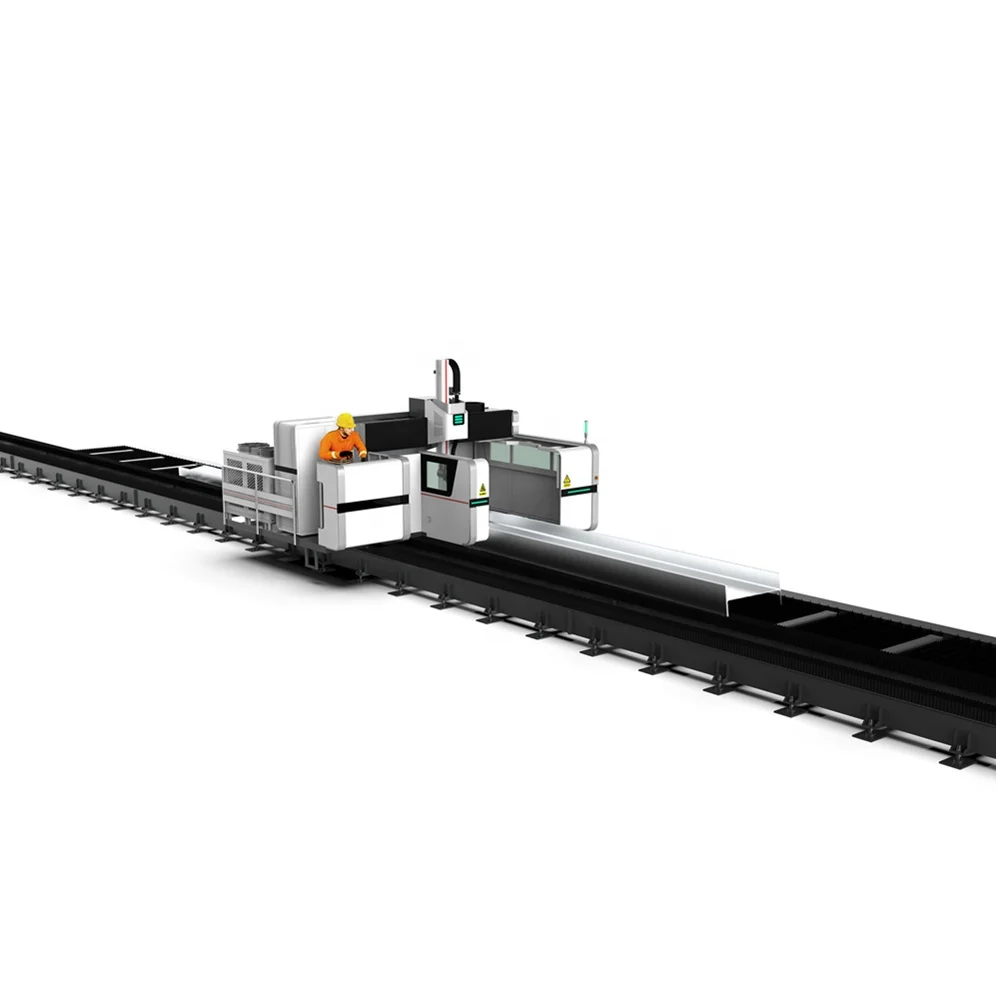

Gantry Type H-beam laser cutting machine
• Dedicated to structural material, cutting length can be extended infinitely
• Integrated design, compact structure
• 3D 6-axis technology, ultra-high efficiency
• Equipped with a centering device to control cutting accuracy effectively
• Open structure double-station design, saving loading and unloading time
• Processing efficiency can reach 15 times that of manual labor
Stable and safe structural design, 24-hour continuous operation
Cantilever Type H-beam laser cutting machine
• Meet the requirements for H-beam, metal sheet, and metal plate bevel cutting
• The plate width can reach 2.5 meters and above
• Wide-body dual-drive gantry structure, high rigidity, strong load-bearing capacity and stable operation
• One laser machine can be used for three purposes, and it can be operated all year round
• Modular heavy-duty ground rail bed structure, modular production, and quality assurance
Specification
| Mode | Gantry Type Steel Beams Laser Cutting Machine HP25 | Cantilever Type H-beam Laser Cutting Machine HP15 |
| Application | Laser cutting for Steel Beams | |
| Applicable Material | Metal, SS, CS, Aluminum, Brass, Copper, Galvanized Steel | |
| Condition | New | |
| Laser Type | Fiber Laser | |
| Cutting Area | For profile: Height≤ 500mm Width≤ 1200mm Length≤ 26000mm (customized) For metal sheet: Length 26000mm Width 2500mm | Height≤ 450mm Wide≤ 1000mm Length≤ 26000mm (customized) |
| Graphic Format Supported | such as TEKLA, SolidWorks, etc. | such as TEKLA, SolidWorks, etc. |
| Laser power | 12kW- 20kW | |
| X-axis travel | 26000mm | |
| Y-axis travel | 2550mm | 1500mm |
| Z-axis travel | 970mm | |
| A-axis travel (rotation axis) | ±90° | |
| C-axis travel (rotation axis) | ±45° | |
| U axis travel (follower axis) | ±40mm | |
| X Y Z maximum positioning speed | 30m/min | |
| Laser cutting accuracy | ≤0.5mm | |

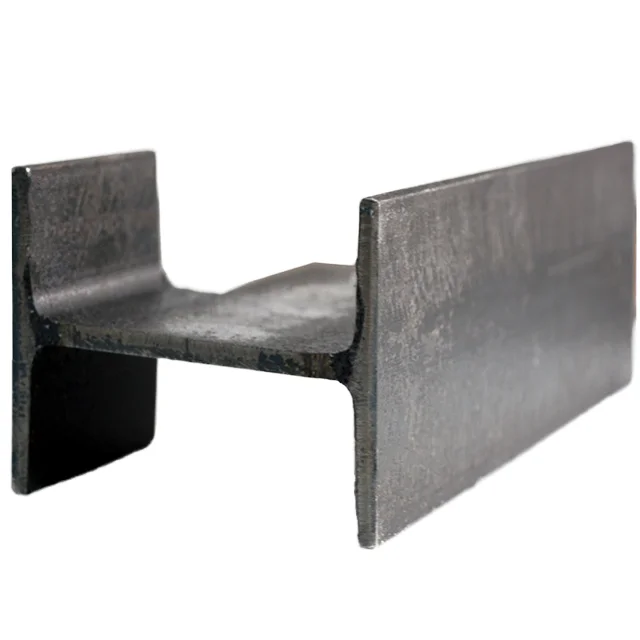

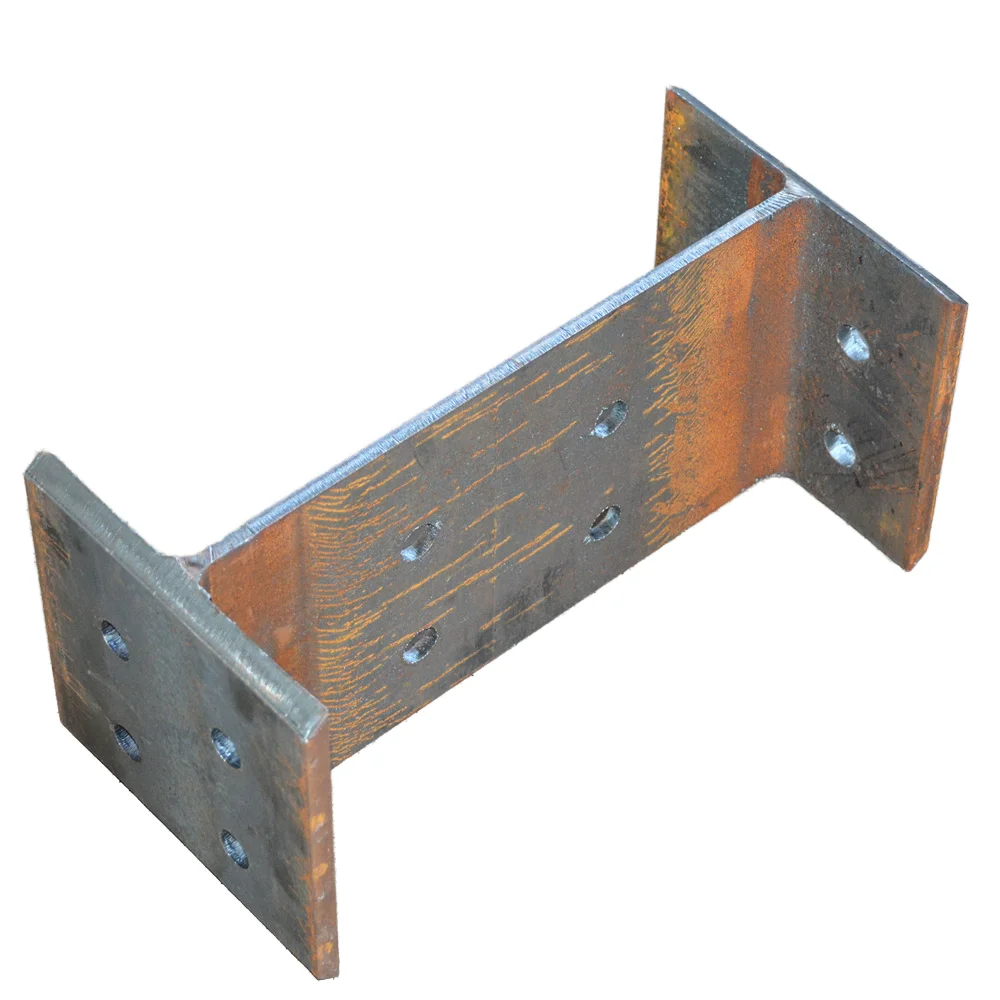

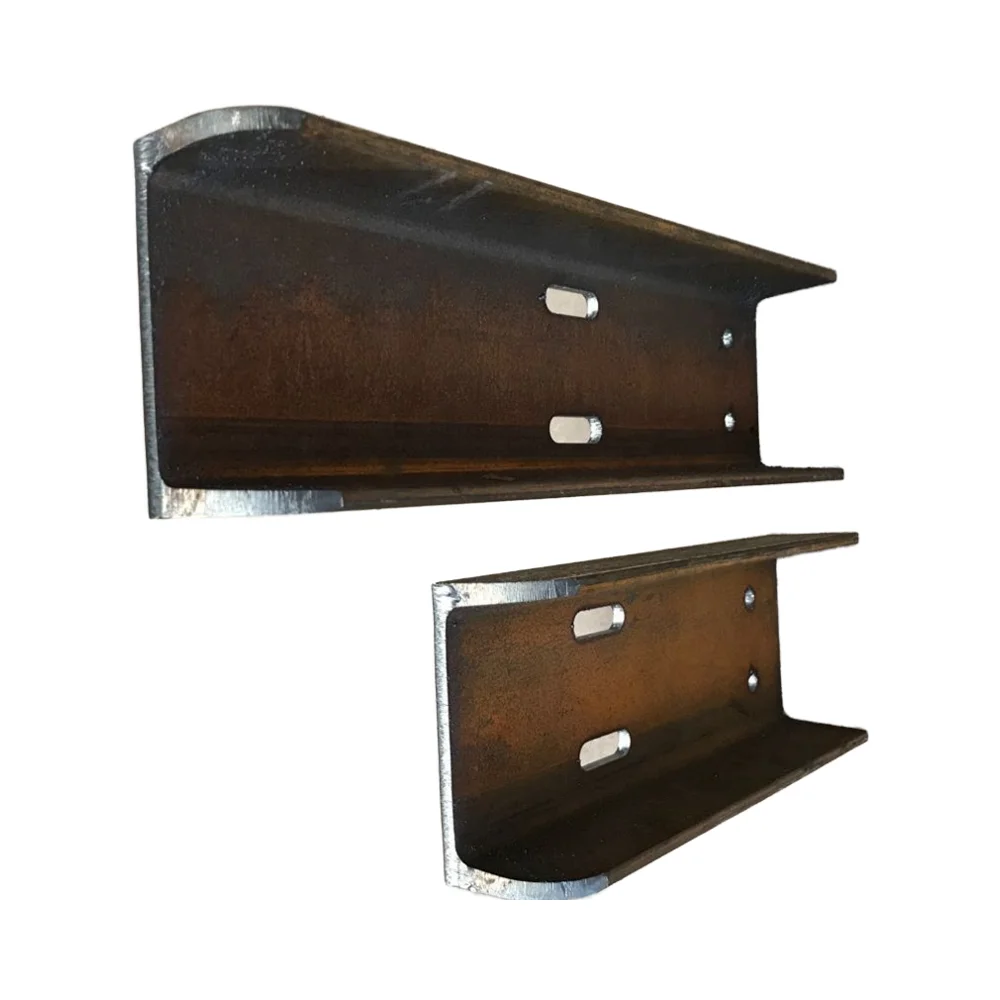

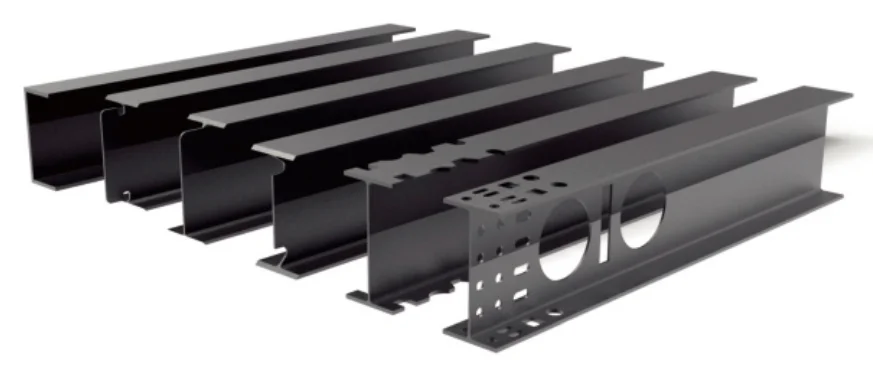

Sample Show
