China Gold Mining Equipment Mineral specific Gravity Aluminum Copper Separator processing Table Stirring Table Mining Machinery

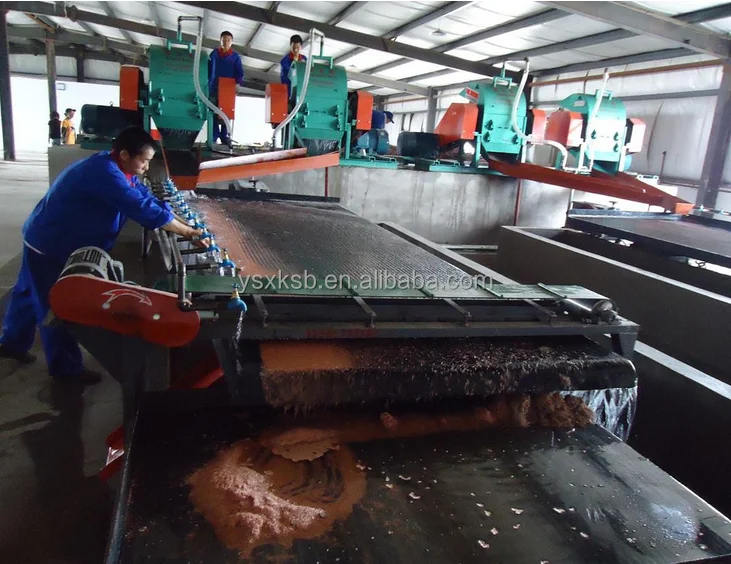

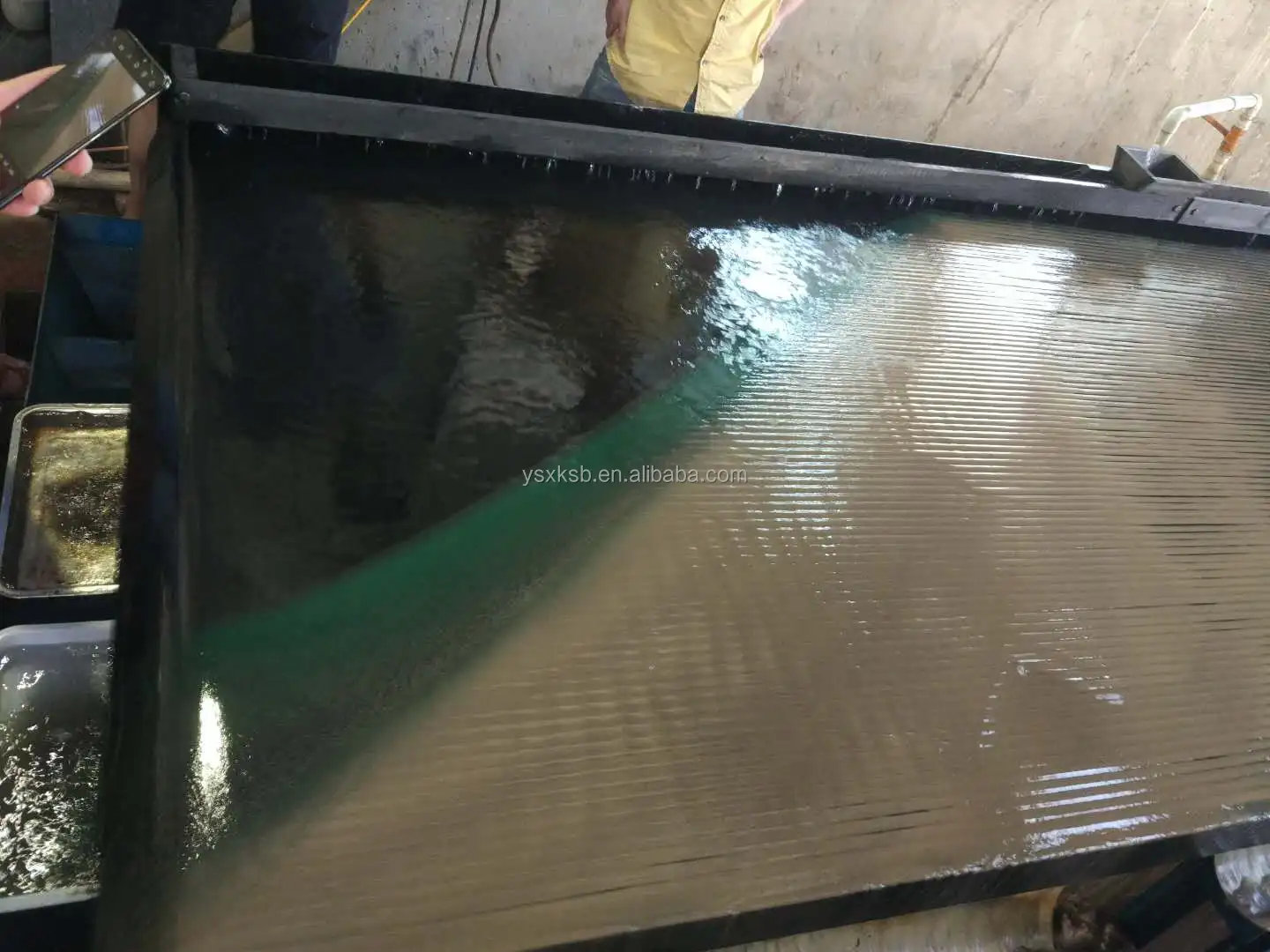

Ore Processing Equipment Shaking table is also called table concentrator, is a mineral separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum-Niobium, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Rutile, ilmenite, coal etc, can be separation all ore which have enough big specific gravity difference. E-waste and copper wire material also can use this shaking table.
The range of effective separating particle size of shaking table is 0.02-2mm.

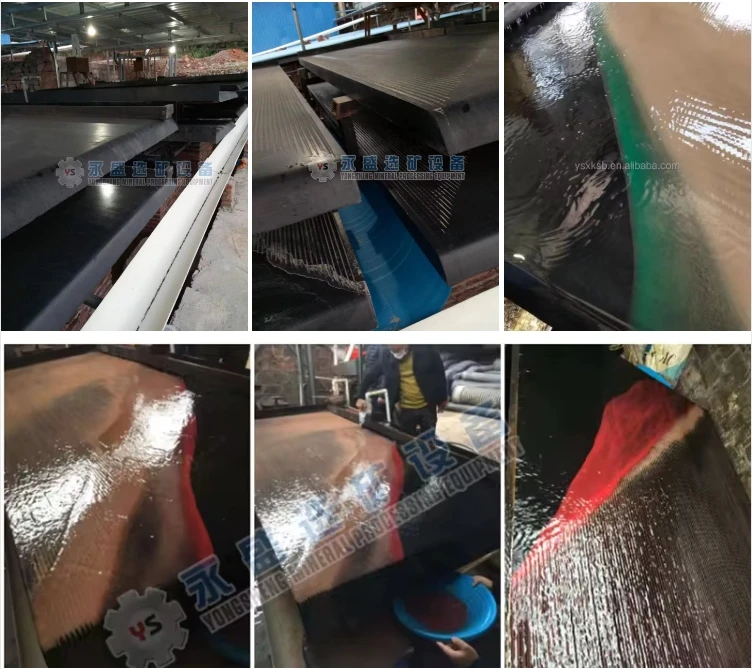

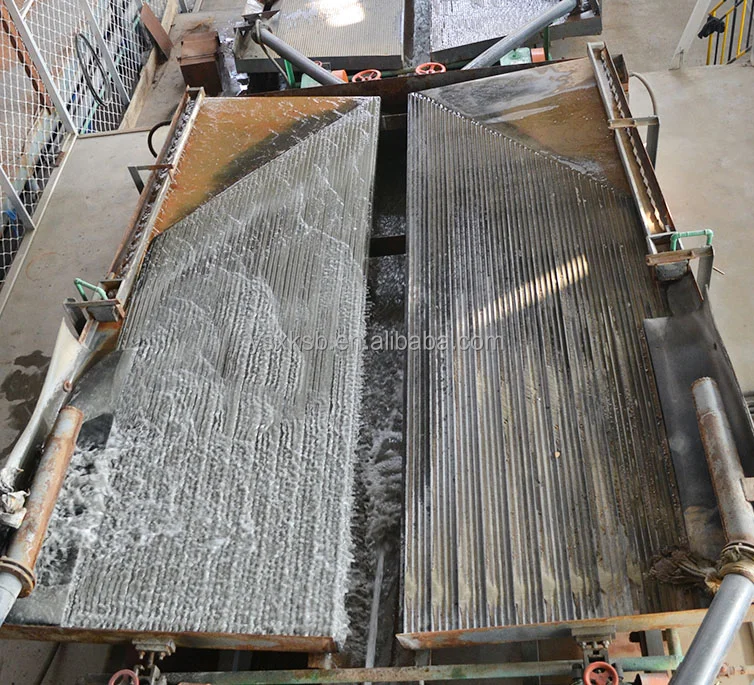

The working principle of shaking Table is separate the heavy material from light material by using their different proportion & specific gravity, under the effect of gravity, the minerals will divide into the ore concentrate, the middling and the tailing.
The prominent advantage of ore shaking table is precise separation. The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals.
Shaking Table Main Material:
The decks are constructed of steel framework and covered 16mm fiberglass and emery, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.
Product Stucture
Product Parameters
Model | Stroke (mm) | Cross Slope (°） | Feed size （mm） | Feed Density (%) | Water Consumption (t/h) | Capacity (t/h) | Power (KW) | Weight (KG) |
6S-4450*1855*1546 | 8-22 | 1-4 | 2-0.074 | 15-30 | 0.4-1 | 0.6-1.8 | 1.1 | 800 |
LY-3000*1620*1360 | 6-30 | 0-10 | 2-0.074 | 10-30 | 0.3-1.5 | 0.4-1.5 | 1.1 | 550 |
LY-2100*1050*850 | 12-28 | 0-8 | 2-0.074 | 10-30 | 0.2-1 | 0.3-0.8 | 1.1 | 350 |
LY-1100*500*430 | 9-17 | 0-10 | 2-0.074 | 10-30 | 0.1-0.5 | 0.05-0.2 | 0.55 | 150 |
Product packaging
FCL
One 20' GP can Load into 10 sets 6 s Shaking Table (Gravity separator table), One 40' GP can load into 20 sets 6 s ShakingTable (Gravity separator table).
LCL
Steel fram confrim, convenient for transport.
Structure Compare
6S-4450 Big Channel Steel Shaking Table ( 28# steel)
More stable, more convenient, no need pour the concrete to fix the anchor bolts on the ground. Fast install and operation, easy to dismount and move, especially apply cable to the uneven ground, false and virtual ground operation.
6S-4450 Small Channel Steel Shaking Table (12# steel)

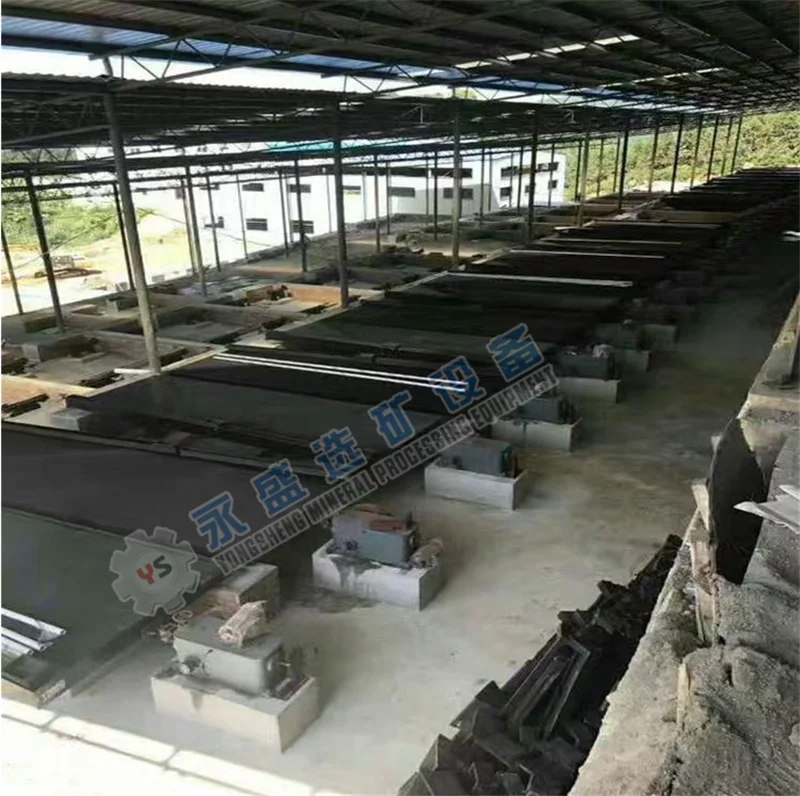

Easy to install, just need pour concrete to fix the anchor bolts on the ground, same effect compare with the normal shaking table, the price is moderate. Most clients like choose it.

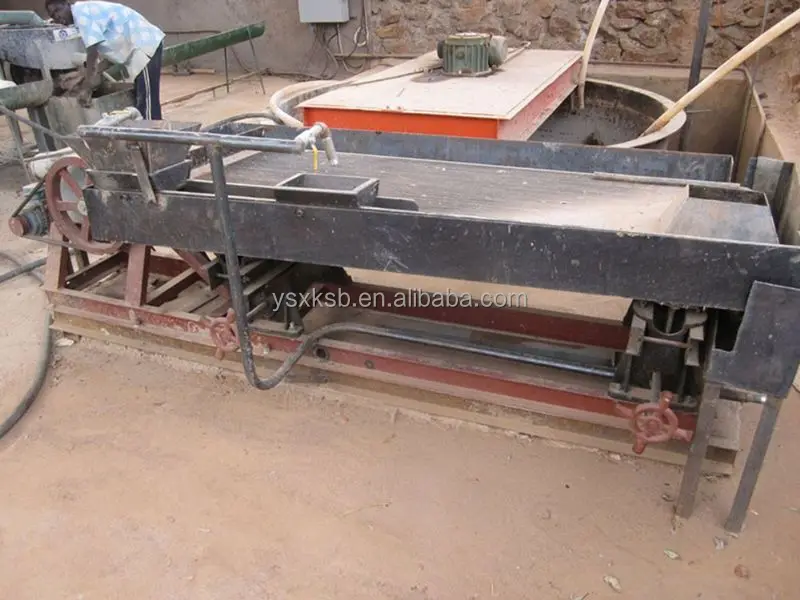

6S-4450 Normal Shaking Table
LY 3000 Small Lab Use Gold Shaking table
LY 2100 Small Lab Use gold Shaking table
LY 1100 Small Lab Use Gold Shaking table

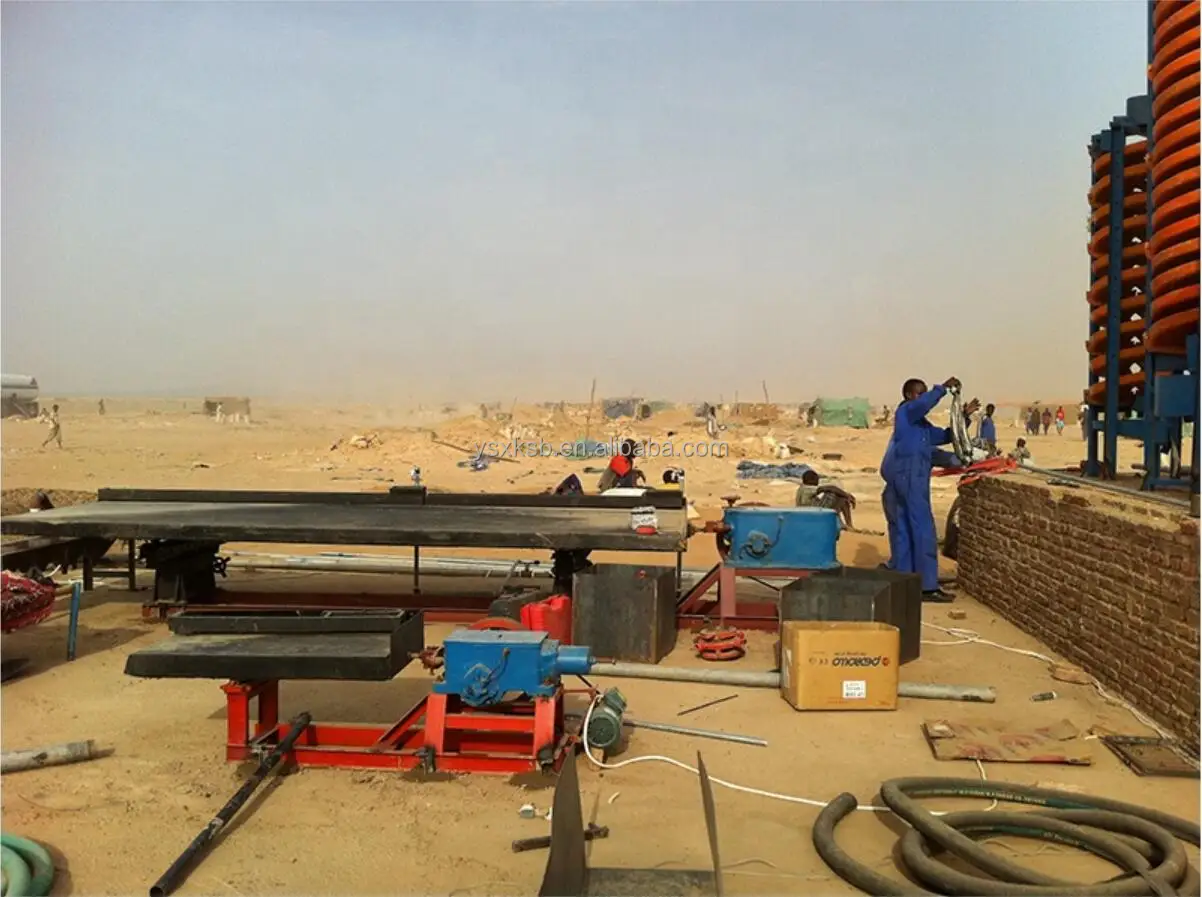

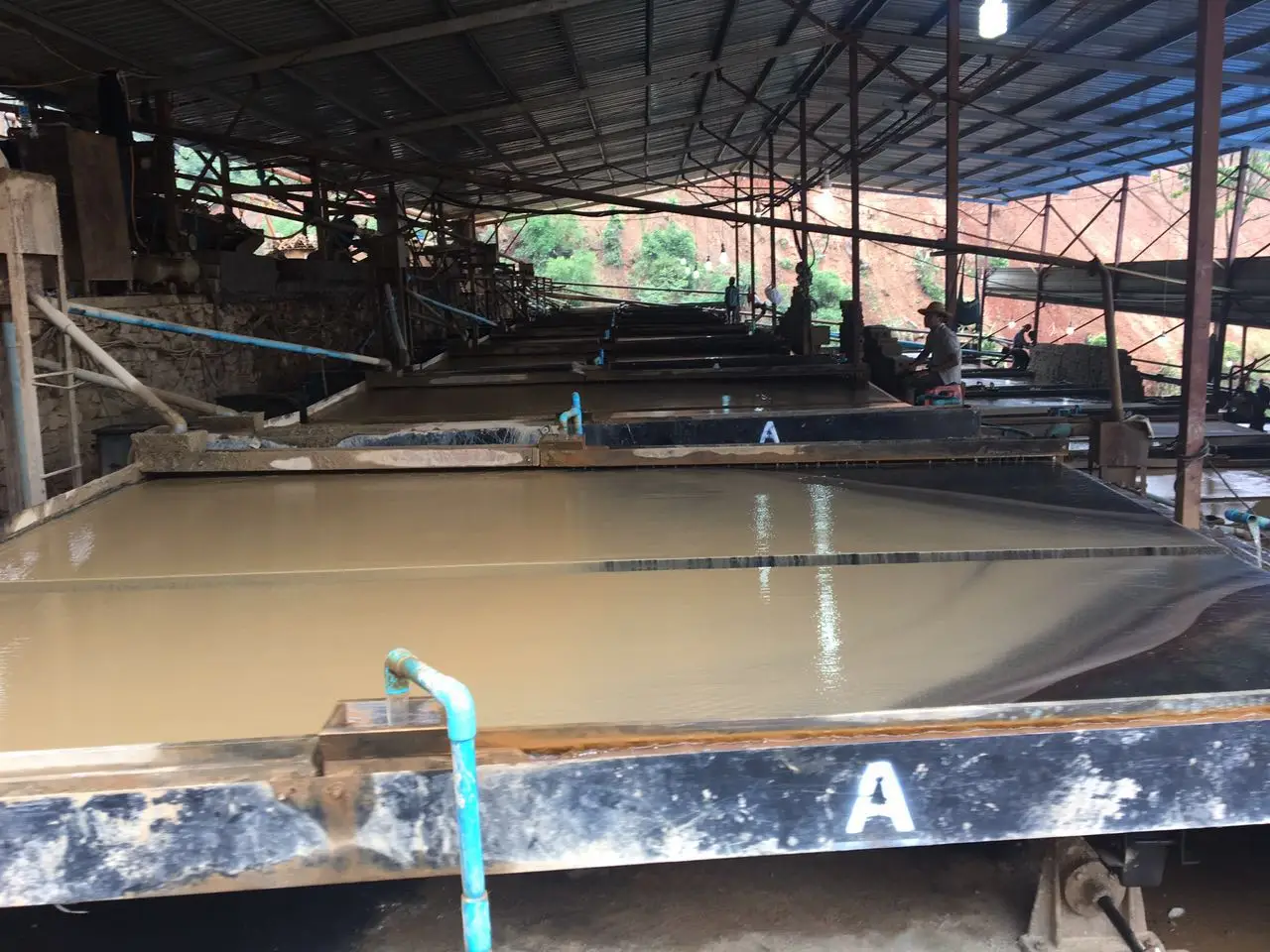

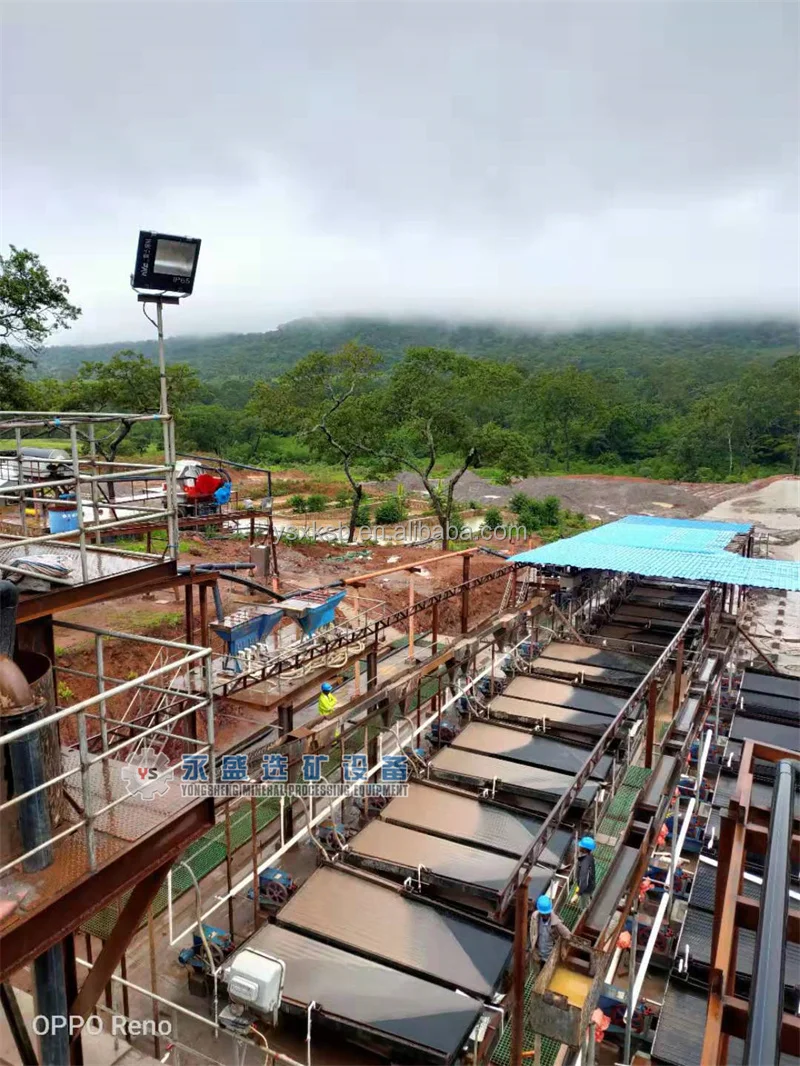

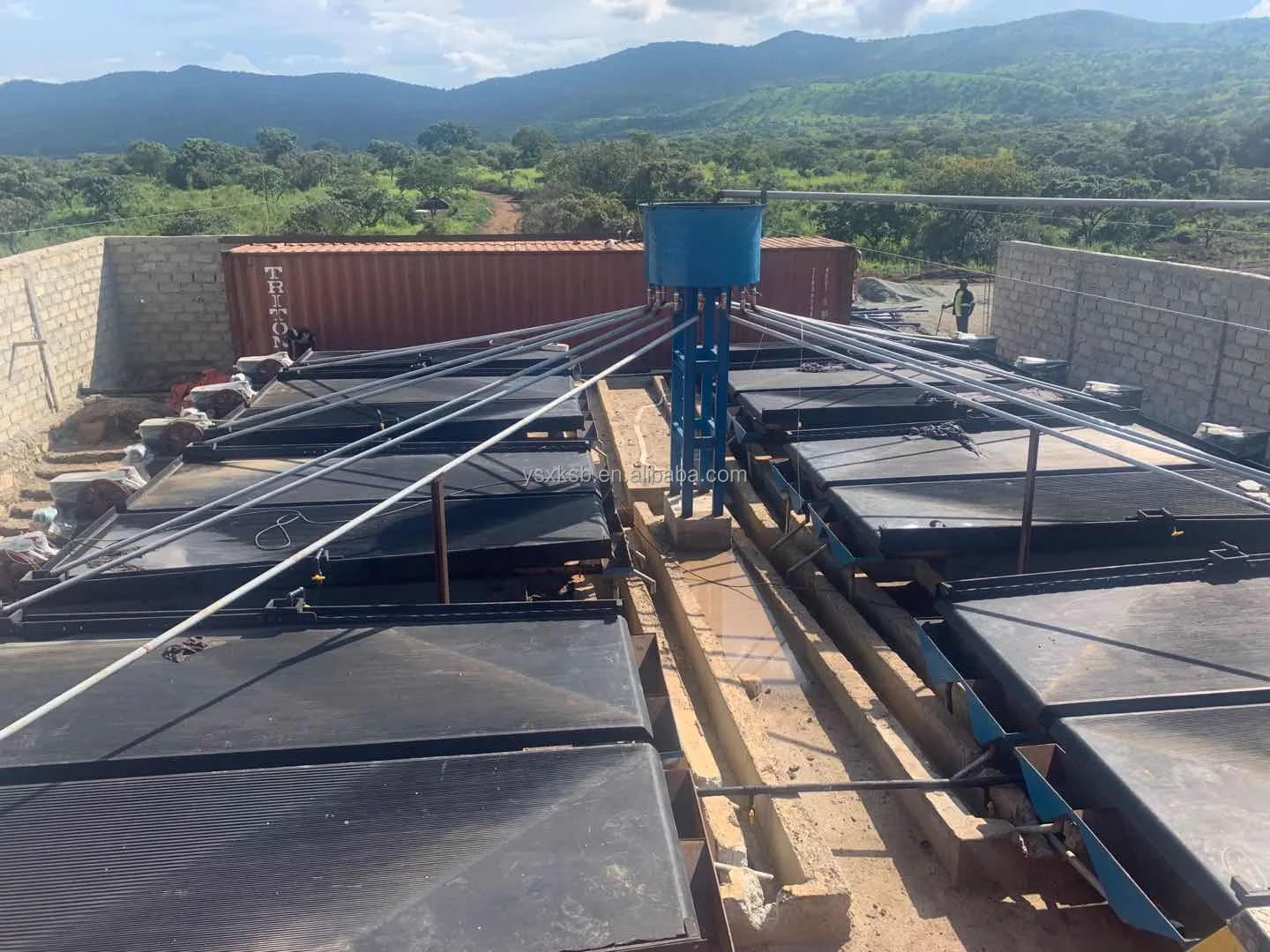

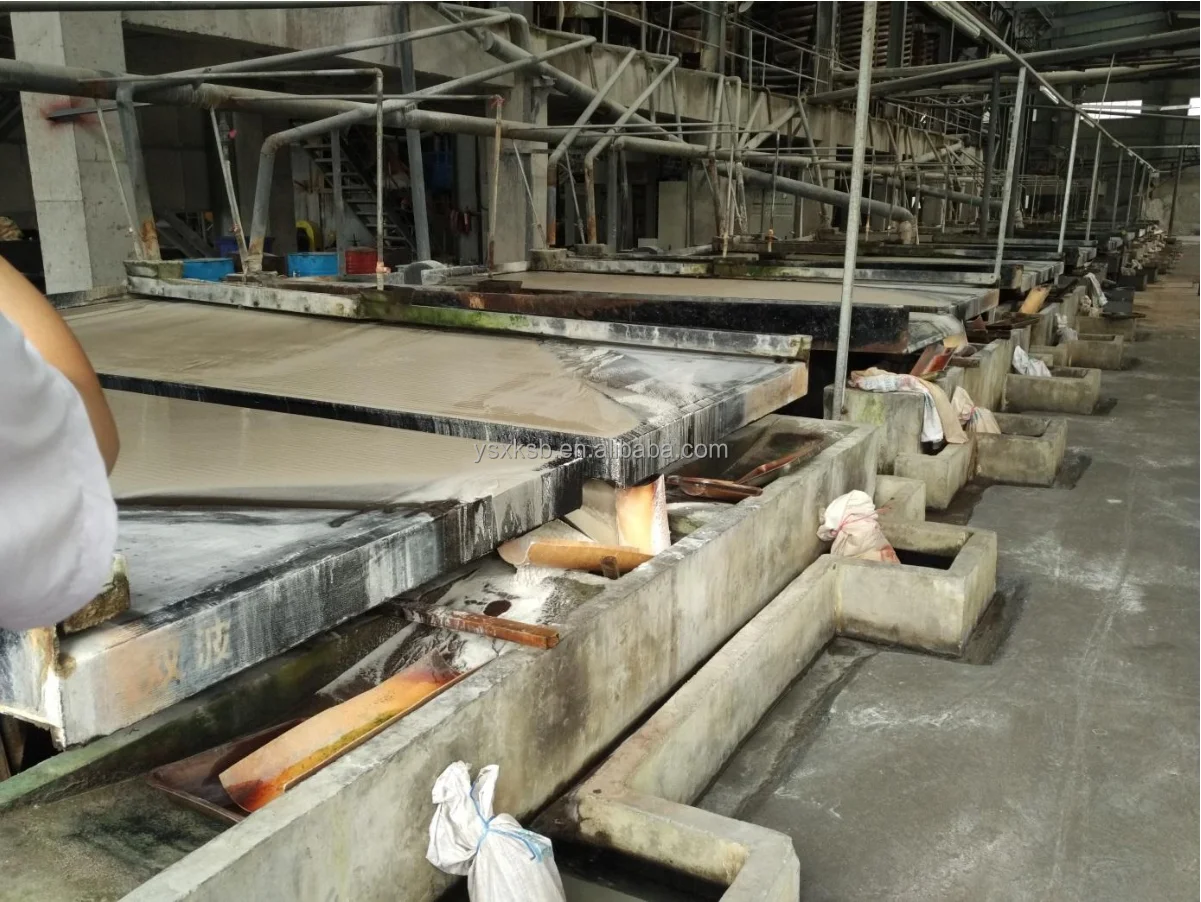

6 s Gold beneficiation processing equipment is a gravity equipment suitable for almost every type of heavy mineral separation. So it's widely applied both in China and abroad.

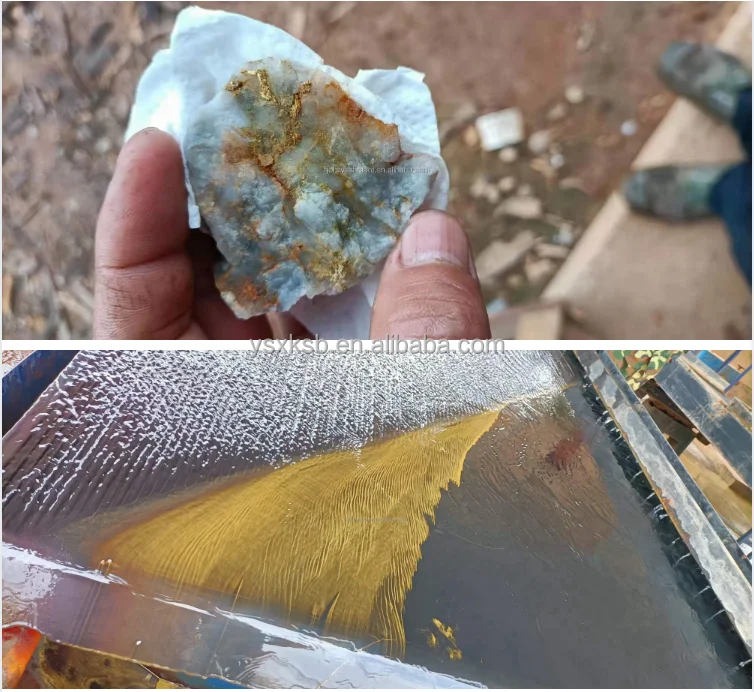

Are you still washing gold mine by hand?
