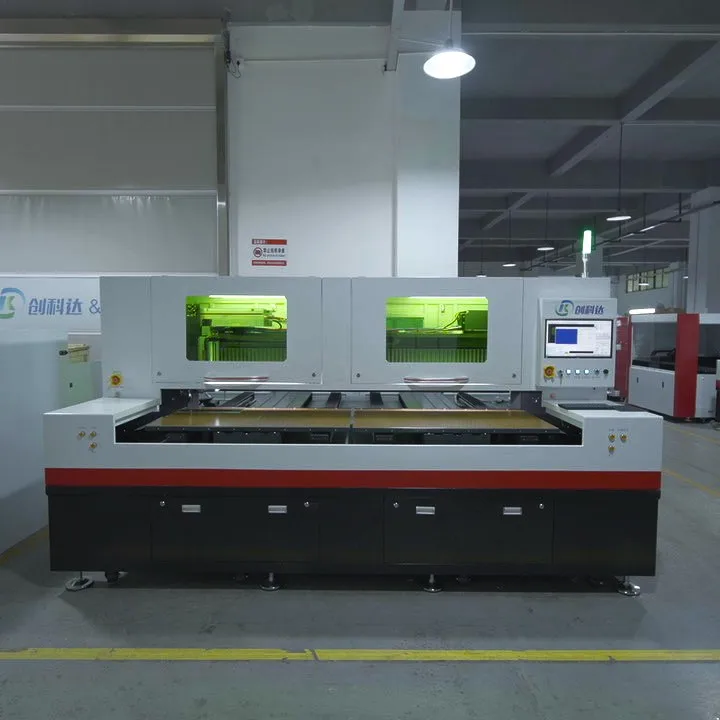

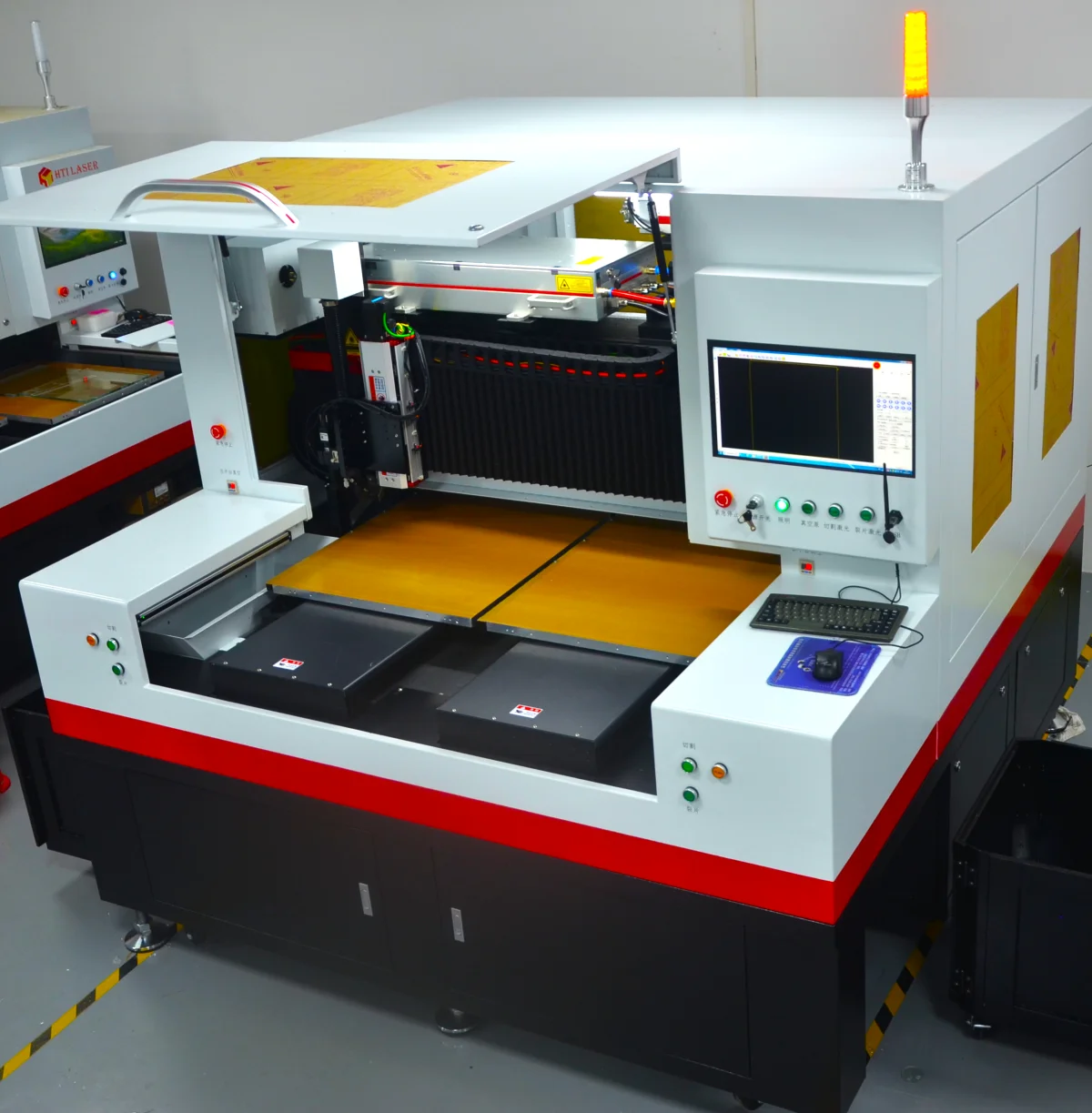

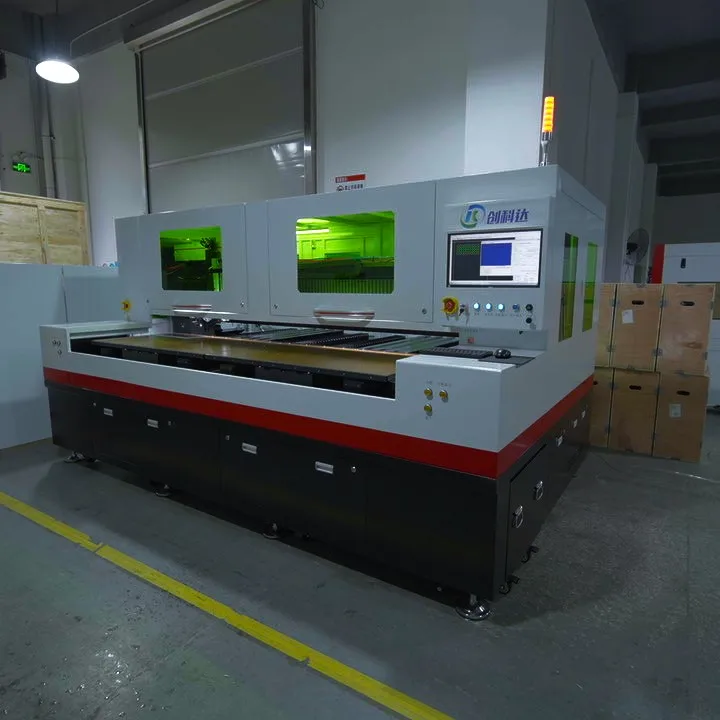

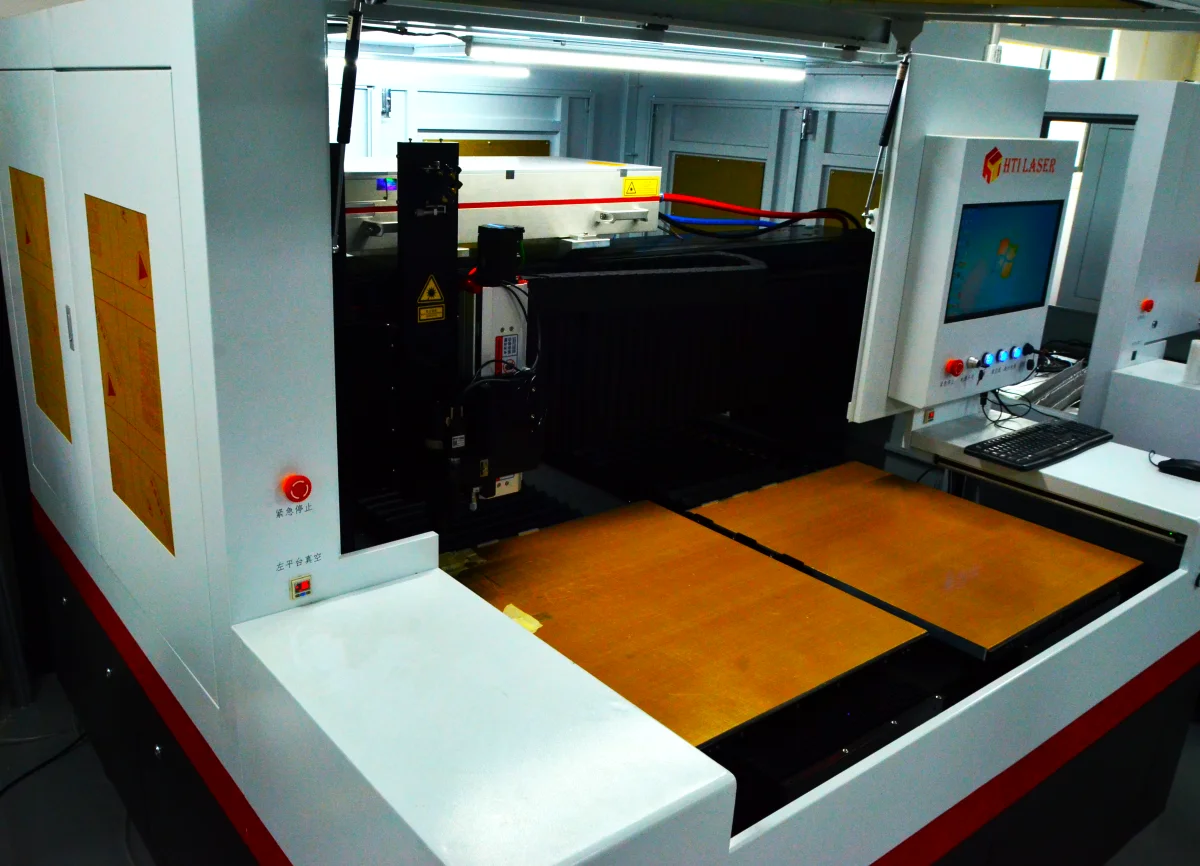

CKD Ultra large format Infrared Picosecond Glass Cutting & Splitting Machine (All in One) mobile phone glass
- Category: >>>
- Supplier: Shenzhen CKD Precision Mechanical &Electrical Co. Ltd.
Share on (1601226693197):
Product Overview
Description
Product Description

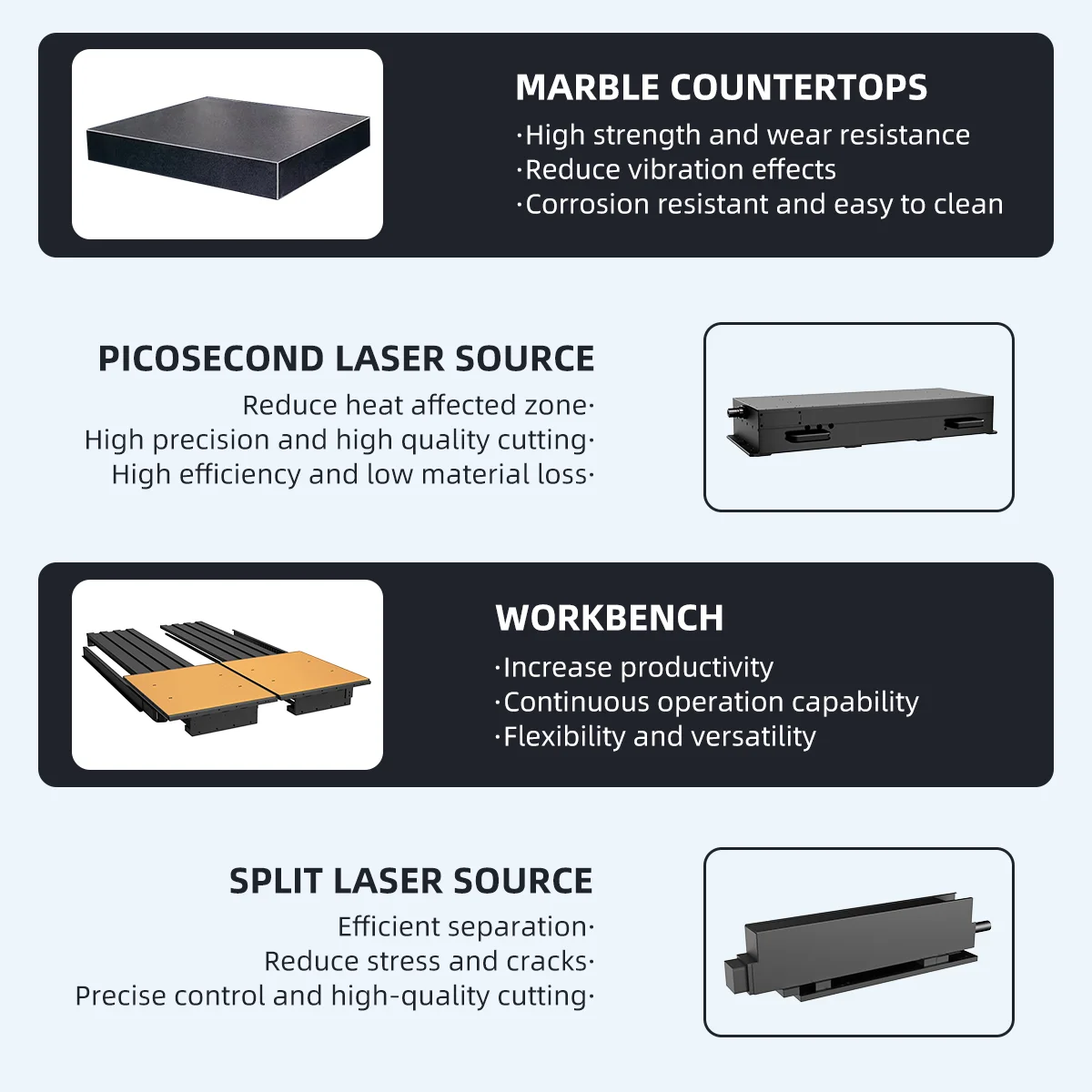

1. High-power picosecond laser source

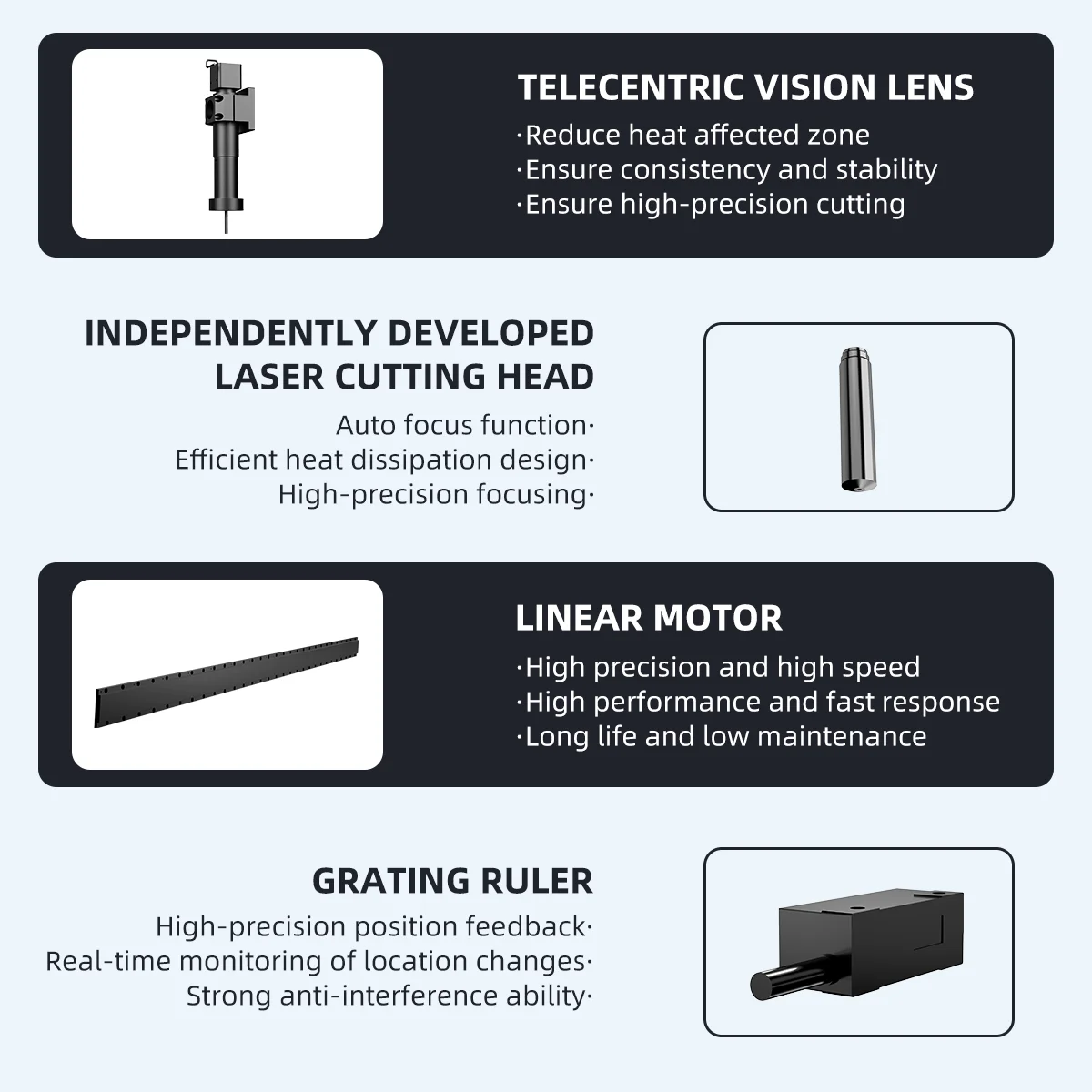

2. Self-developed glass cutting head with fully imported lenses for fine beam and long focal depth
3. Supports integrated cutting and breaking, as well as separate cutting and breaking processes
4. High-end linear motors for X/Y axes and German 0.1um digital grating scales
5. Motion control with standard PSO function for uniform control of laser spot spacing
6. Equipped with positioning CCD and telecentric optical lenses for precise recognition of circular and cross marks
7.Electrical components are from Schneider Electric of France
8.Switching power supply from Mean Well of Taiwan
9.Capable of cutting a single piece up to 19mm in thickness
10.The base of the motor platform and optical platform is made of natural marble for enhanced precision
2. Self-developed glass cutting head with fully imported lenses for fine beam and long focal depth
3. Supports integrated cutting and breaking, as well as separate cutting and breaking processes
4. High-end linear motors for X/Y axes and German 0.1um digital grating scales
5. Motion control with standard PSO function for uniform control of laser spot spacing
6. Equipped with positioning CCD and telecentric optical lenses for precise recognition of circular and cross marks
7.Electrical components are from Schneider Electric of France
8.Switching power supply from Mean Well of Taiwan
9.Capable of cutting a single piece up to 19mm in thickness
10.The base of the motor platform and optical platform is made of natural marble for enhanced precision
Large format, customizable, factory inspection supported
Applicable materials | ||||||||
Ultra clear class | plain white glass | high borosilicate glass | quartz glass | Phone glass cover | ||||
car glass | camera glass cover etc | LCD screen | K9 glass | filter cutting | ||||
mirror cutting etc | ||||||||
Specifications
Specification | Description |
The parameters of the cutting laser source | |
Cooling Method | Water cooling |
Pulse Width | <10ps |
Pulse Frequency | 1Hz - 1000kHz |
Wavelength | 1064nm |
Beam Quality | M^2 < 1.2 |
Power | 50W (options: 10W, 20W, 30W, 60W, 80W, etc.) |
Laser Type | Infrared picosecond pulse laser |
Cutting Performance | |
Drive Motor | XY Linear Motor + Optical Grating Scale |
Positioning Accuracy | ±2um |
Repeatability | ±1.5um |
Acceleration | 1G |
Linear Speed | Up to 1000mm/s |
Cutting Speed | Adjustable from 0-500mm/s |
Cutting Thickness | Ultra-clear glass single cut ≤19mm, Blue glass double cut ≤19mm |
Minimum Cutting Burr | ≤5um |
Cutting Precision | ±0.01mm |
X/Y Cutting Range | custom made |
Splitting laser source | |
Laser Type | RFC02 (Radio Frequency CO2) |
Cooling Method | Water cooling |
Wavelength | 10.6µm |
Power | 150W (options: 250W/350W) |
Pulse Frequency | 1-100kHz |

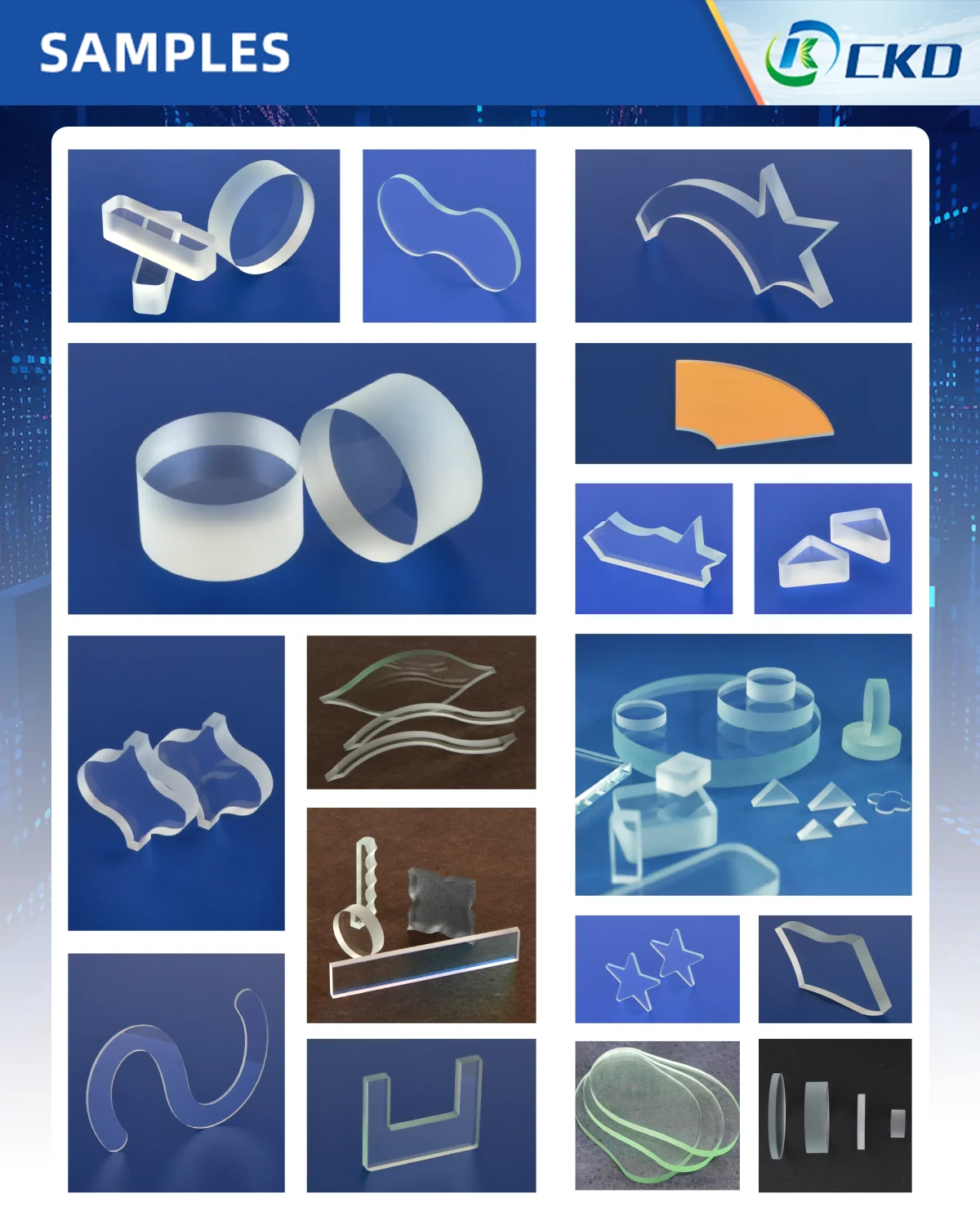

Sample
Product Packaging
FAQ
Q1: Could I visit your factory?
A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from
bao'an International airport to our factory.
Q2: How many years do you do this business?
A2: From 2008.
Q3: Does your factory have the design & development capacities, we need customized products?
A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q4: What is payment terms?
A4: 100% T/T advanced.
Q5: About shiping?
A5: 3-10 days after payment for standard products, please consult our sales for customized products.
Q6: How about your after service?
A6: Our engineers who has long time professional experience and sales will help you within 24h.
Q7: Do you have patents or core technology?
A7: Yes, for details, please contact our sales.
Q8: Where have you sold your products?
A8: Europe, Americas, Africa, and Asia.
A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from
bao'an International airport to our factory.
Q2: How many years do you do this business?
A2: From 2008.
Q3: Does your factory have the design & development capacities, we need customized products?
A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q4: What is payment terms?
A4: 100% T/T advanced.
Q5: About shiping?
A5: 3-10 days after payment for standard products, please consult our sales for customized products.
Q6: How about your after service?
A6: Our engineers who has long time professional experience and sales will help you within 24h.
Q7: Do you have patents or core technology?
A7: Yes, for details, please contact our sales.
Q8: Where have you sold your products?
A8: Europe, Americas, Africa, and Asia.
