Commercial High Speed Fresh Meat Dicer Meat Cube Cutter
- Category: >>>
- Supplier: Zhucheng Shuke Machinery Technology Co. Ltd.Zhucheng Ltd.
Share on (1601227171904):
Product Overview
Description
Company Profile
Products Description

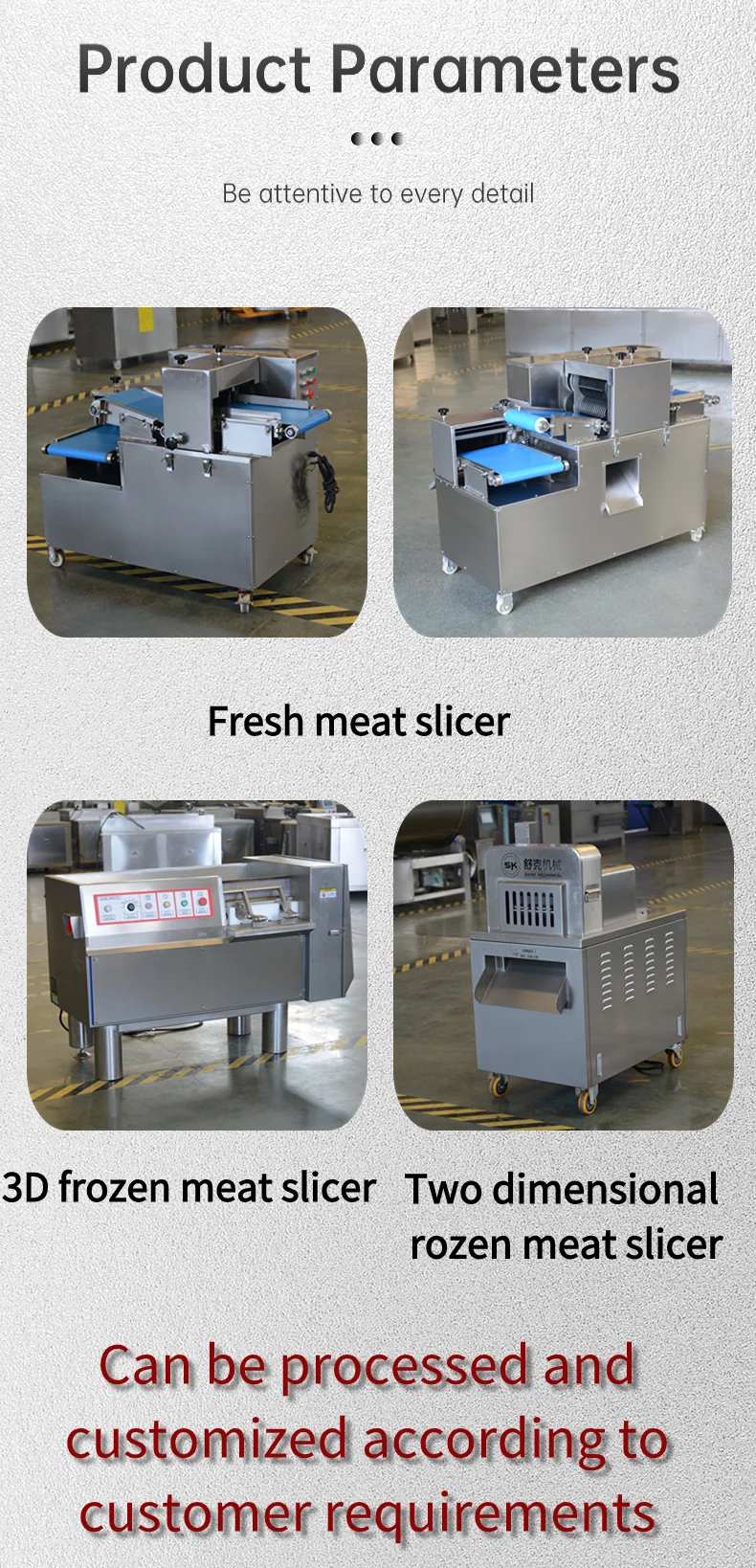

Product Paramenters

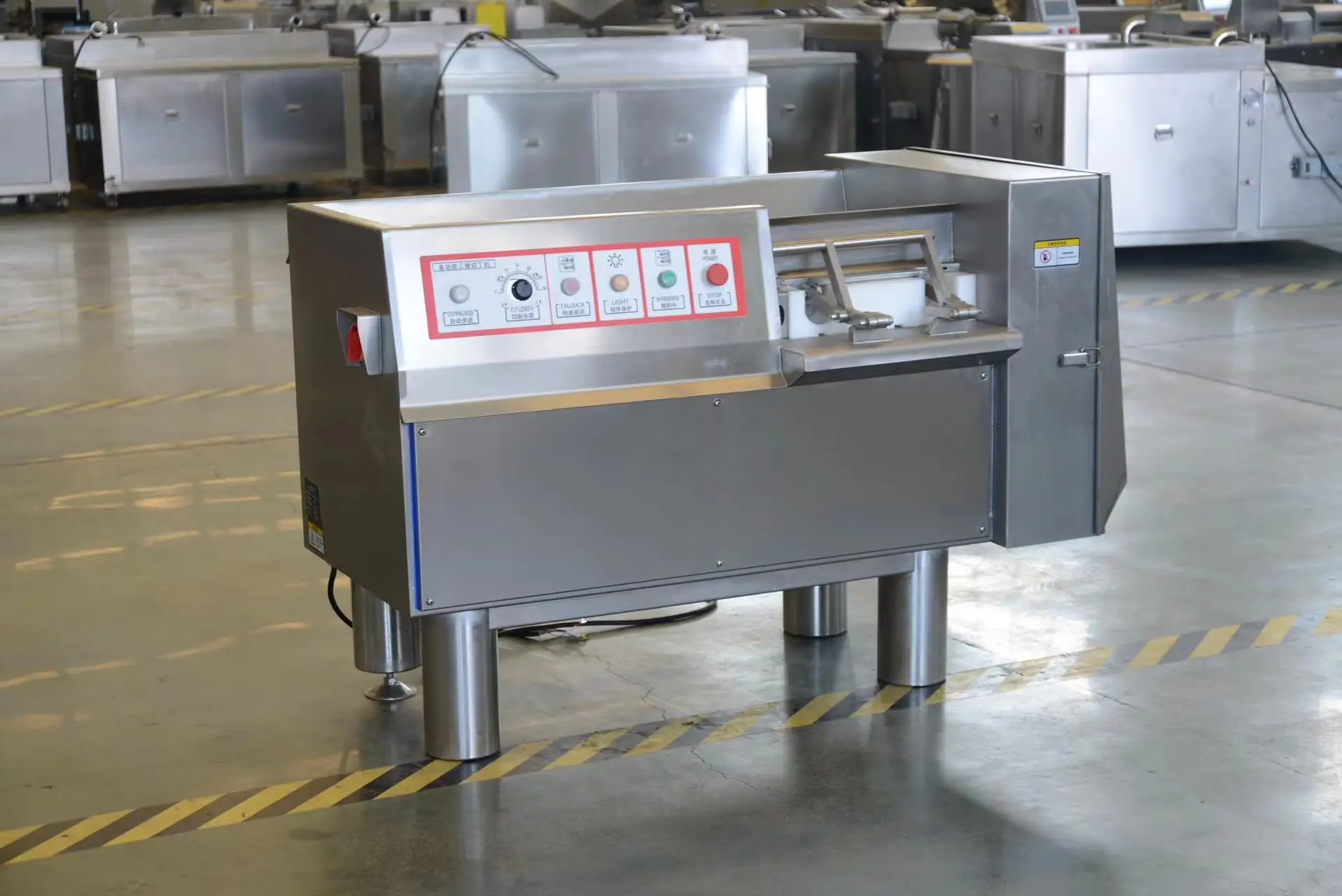

3D frozen meat slicer
This device has a compact structure and adopts optimized hygiene design. The casing and cutting blade grid are made of stainless steel material, and the cutting blade adopts double-edged cutting, resulting in high work efficiency. The minimum size of diced meat for cutting is 3mm, and the maximum size is 40mm. This equipment adopts hydraulic control, cutting out materials with perfect appearance and high work efficiency, which is an indispensable equipment in meat processing.
model | SQD-350 | SQD-550 |
Maximum length of loaded raw materials (mm) | 350 | 550 |
Cutting groove size (mm) | 84*84*350 | 120*120*550 |
Cutting size (mm) | 4-42 | 4-60 |
Power Supply (kw) | 2.6 | 3 |
Product scope of application
Meat free products, root vegetables, soy products, egg products, etc. For example, when pet freeze-dried food is diced, the maximum processing capacity can produce 3 tons per hour. The specific production capacity is related to the cutting size.
Details Images

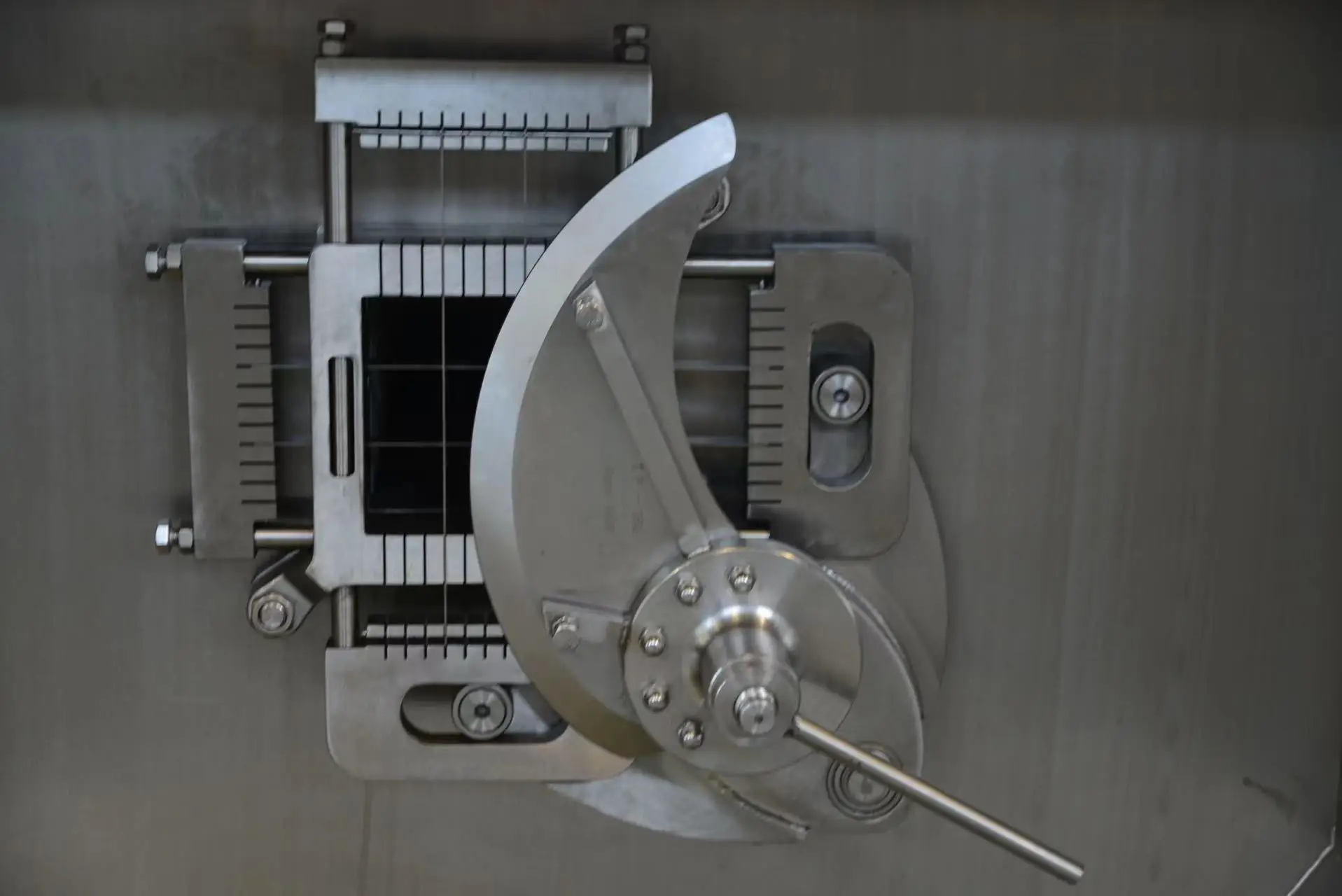

Tool carrier
The knife holder is a grid knife with an integrated blade head. The raw material is cast and precision processed by the machining center to prevent deformation. The two-point fixing is more sturdy and will not cause the phenomenon of continuous cutting when cutting meat due to the deformation of the knife holder
Adjusting the thickness cutting knob allows for stepless speed regulation of the push rod to meet the requirements of different cutting thicknesses
Pre pressure design is adopted to ensure even distribution of diced meat during the cutting process. Can adapt to normal cutting of solid materials such as meat from -5 ℃ to room temperature
When cutting with a single blade, the meat push rod moves in steps to ensure the correct cutting size.

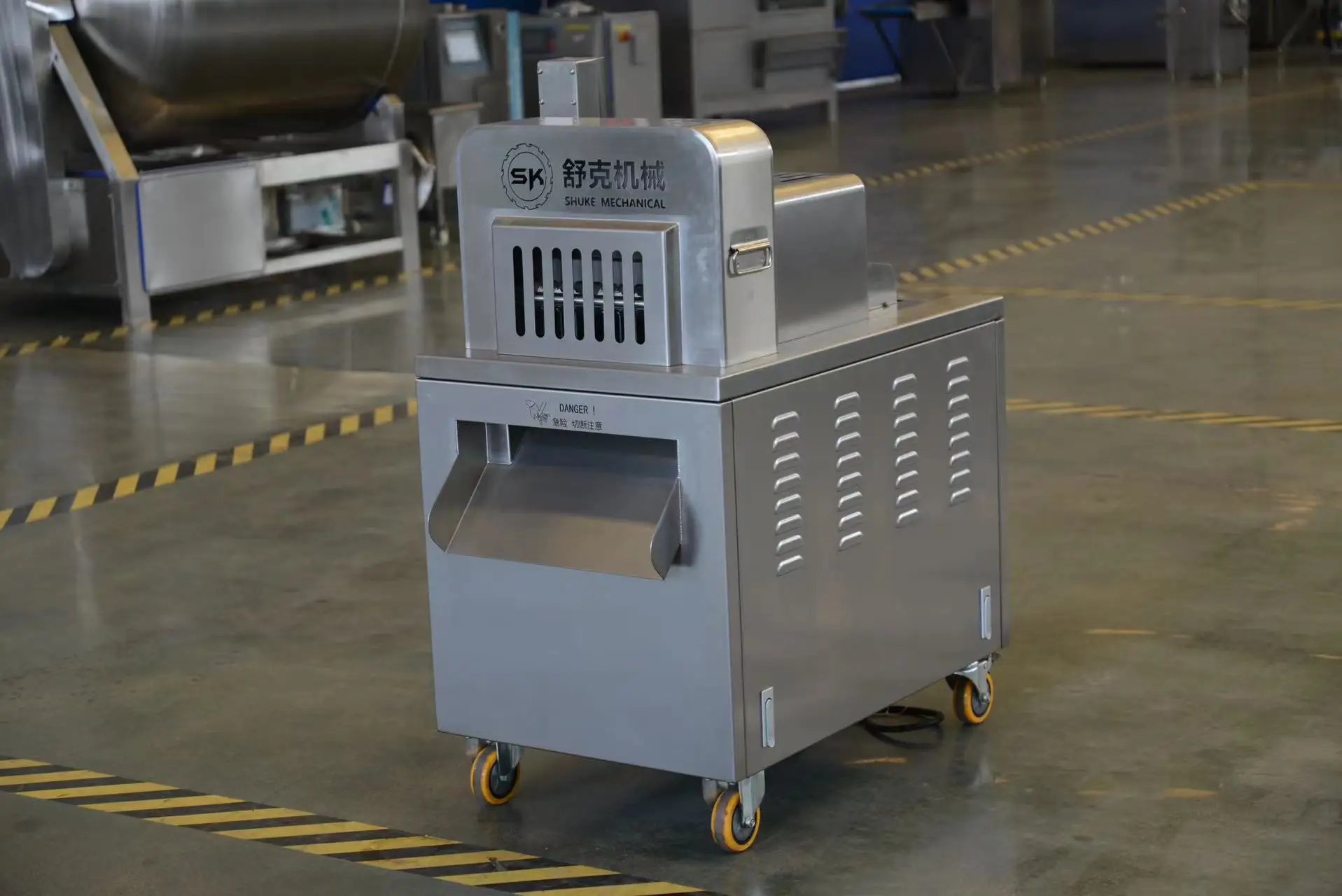

Two dimensional frozen meat slicer
This cutting machine cuts from two dimensions. Only change the length and width of the meat, with no change in thickness.
Chicken, duck, goose, and fish meat products can be cut into pieces, slices, and diced. Can be cut with bones, it can directly cut meat that has just been removed from the cold storage. It is suggested that meat temperature above -12 degrees Celsius is more conducive to machine maintenance
Chicken, duck, goose, and fish meat products can be cut into pieces, slices, and diced. Can be cut with bones, it can directly cut meat that has just been removed from the cold storage. It is suggested that meat temperature above -12 degrees Celsius is more conducive to machine maintenance
Conveyor belt
The conveying system and pressing system are detachable for easy cleaning
The conveying system and pressing system are detachable for easy cleaning
Automatic sensing device
Automatic shutdown when opening the lid is safer, ensuring the safety of workers during work
Automatic shutdown when opening the lid is safer, ensuring the safety of workers during work
Adaptive material pressing device
Automatically adjust according to different raw materials, regardless of the thickness of the material, it can be tightly pressed to ensure cutting effect
Automatically adjust according to different raw materials, regardless of the thickness of the material, it can be tightly pressed to ensure cutting effect

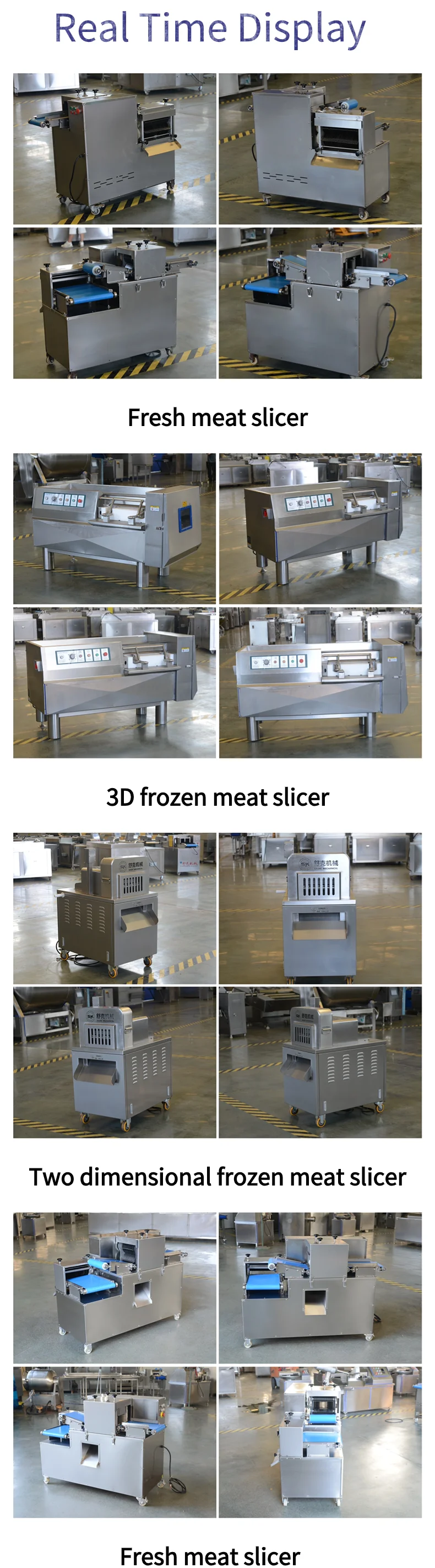

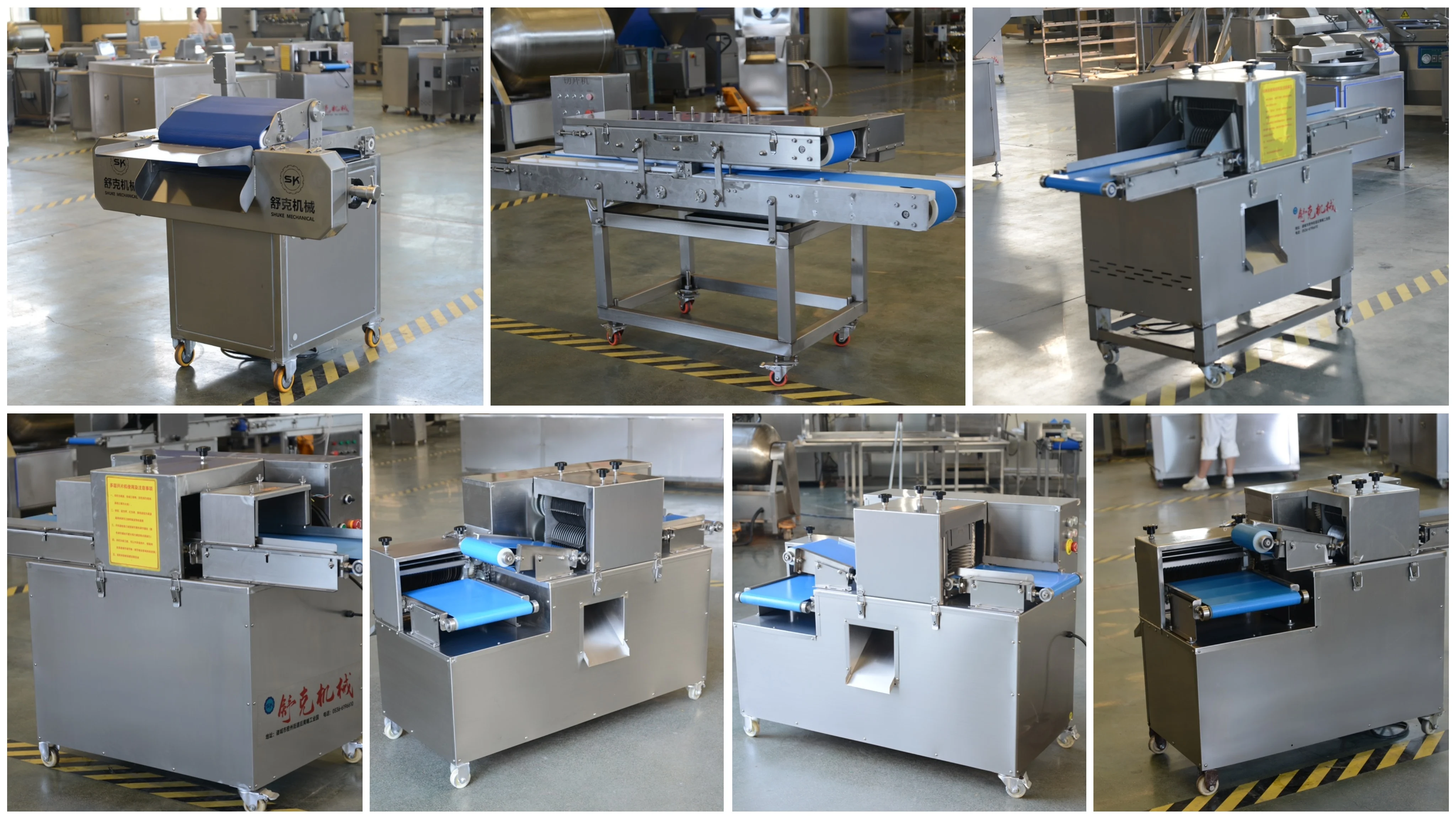

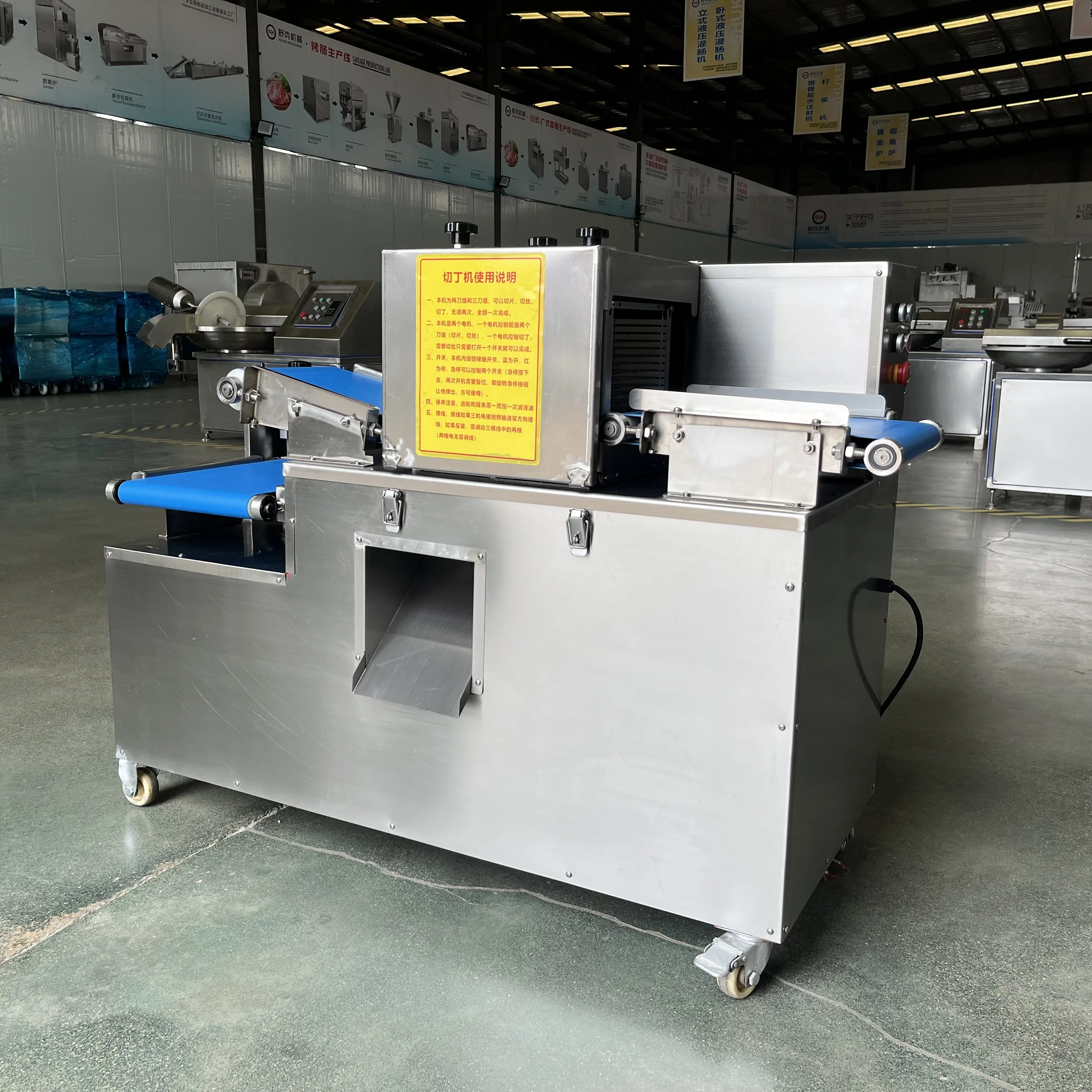

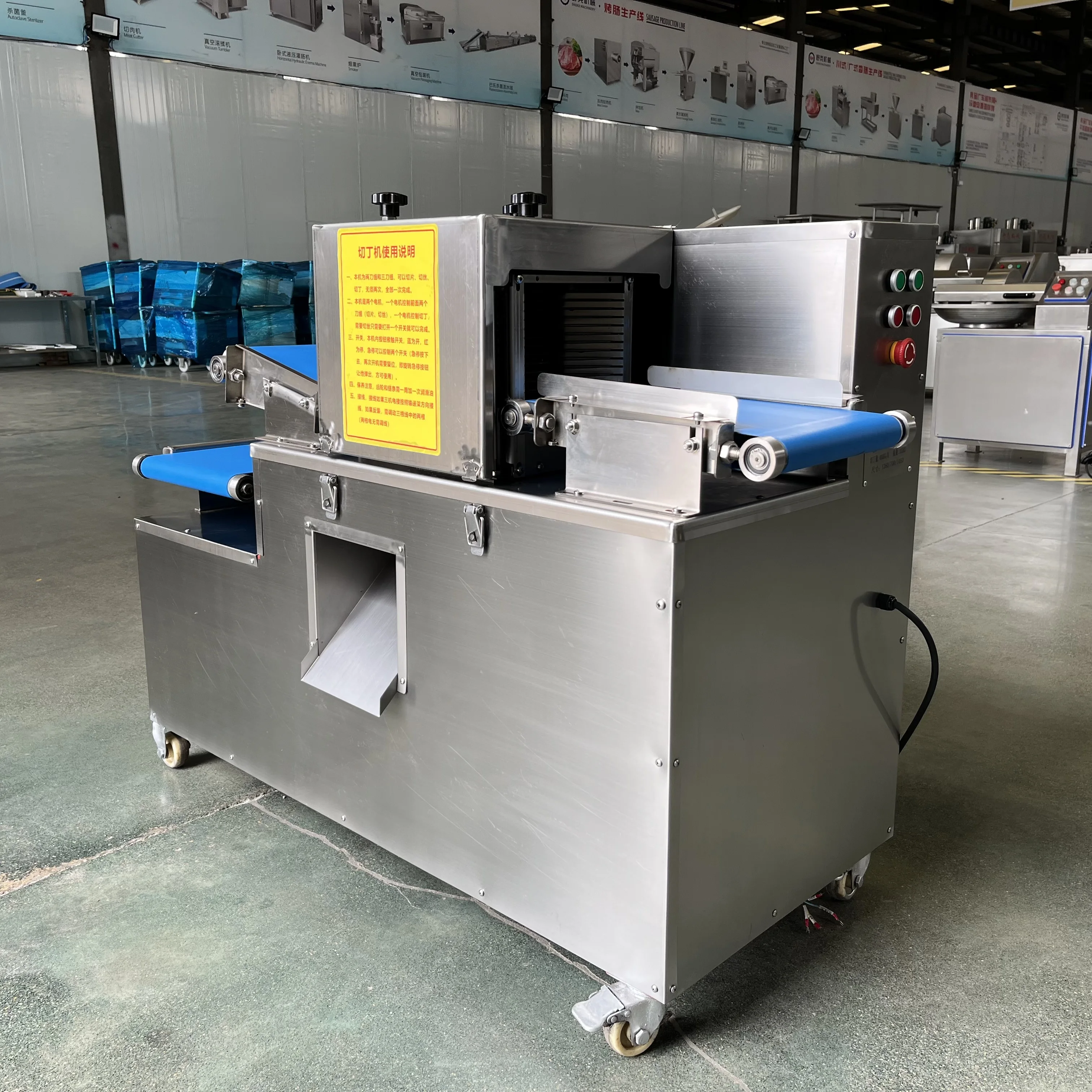

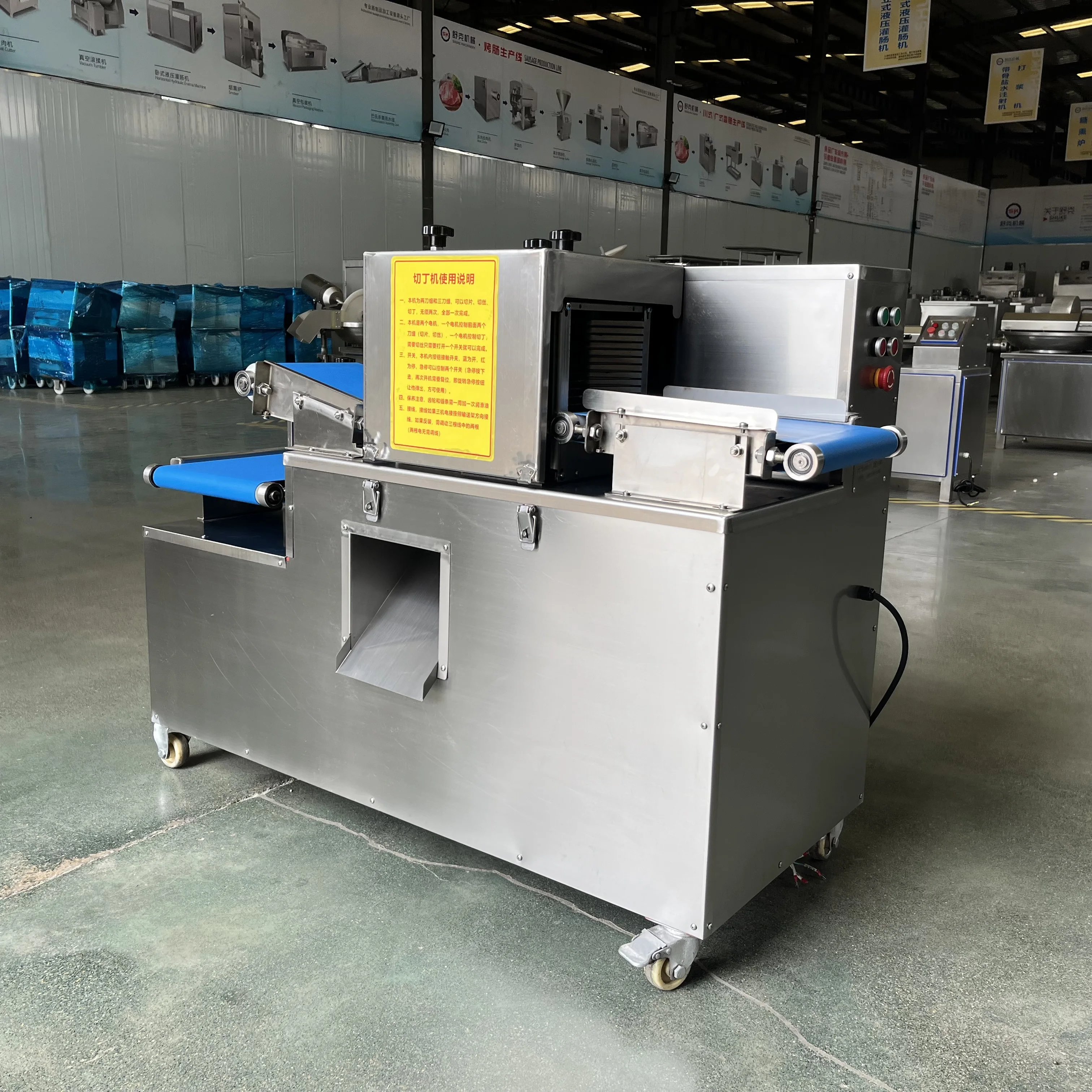

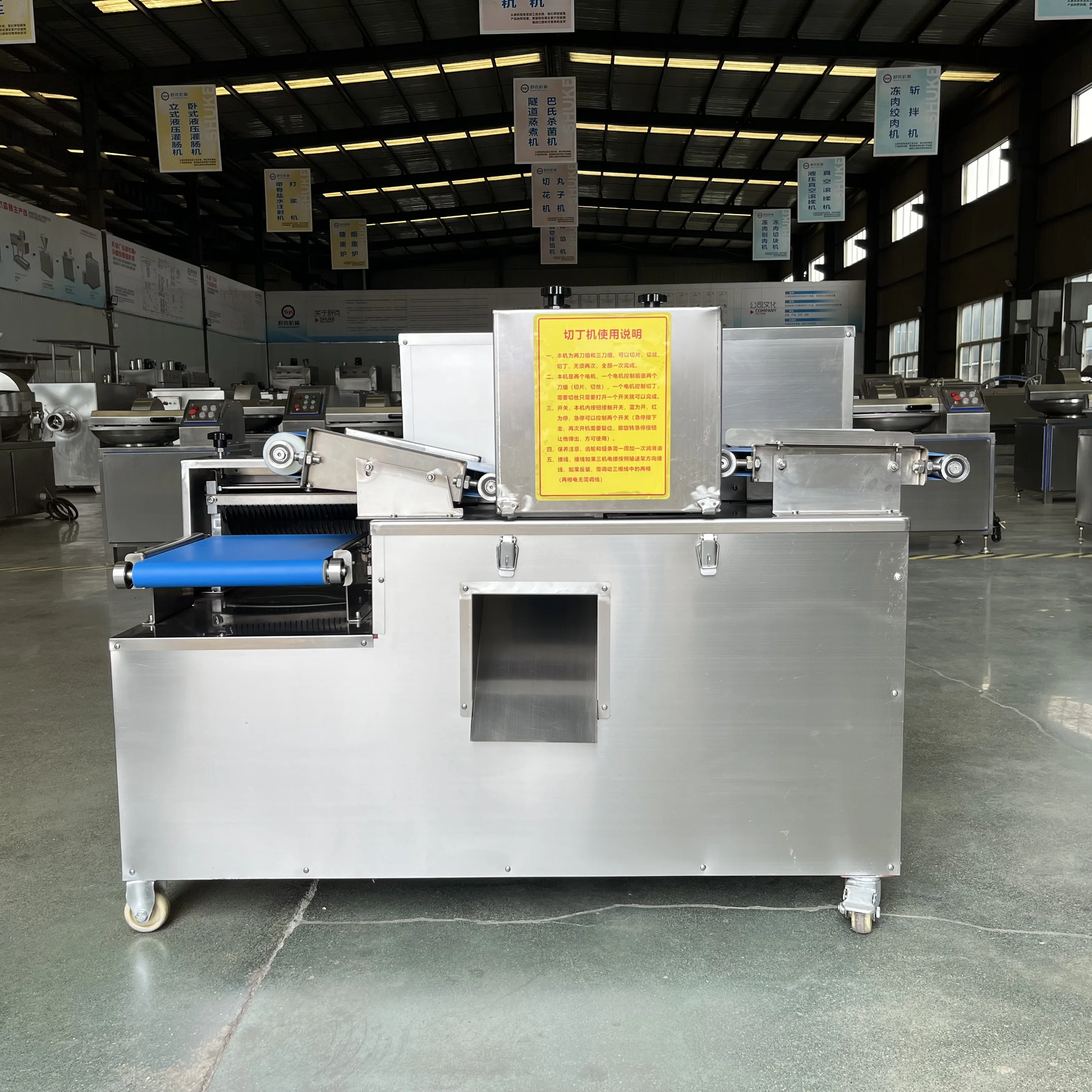

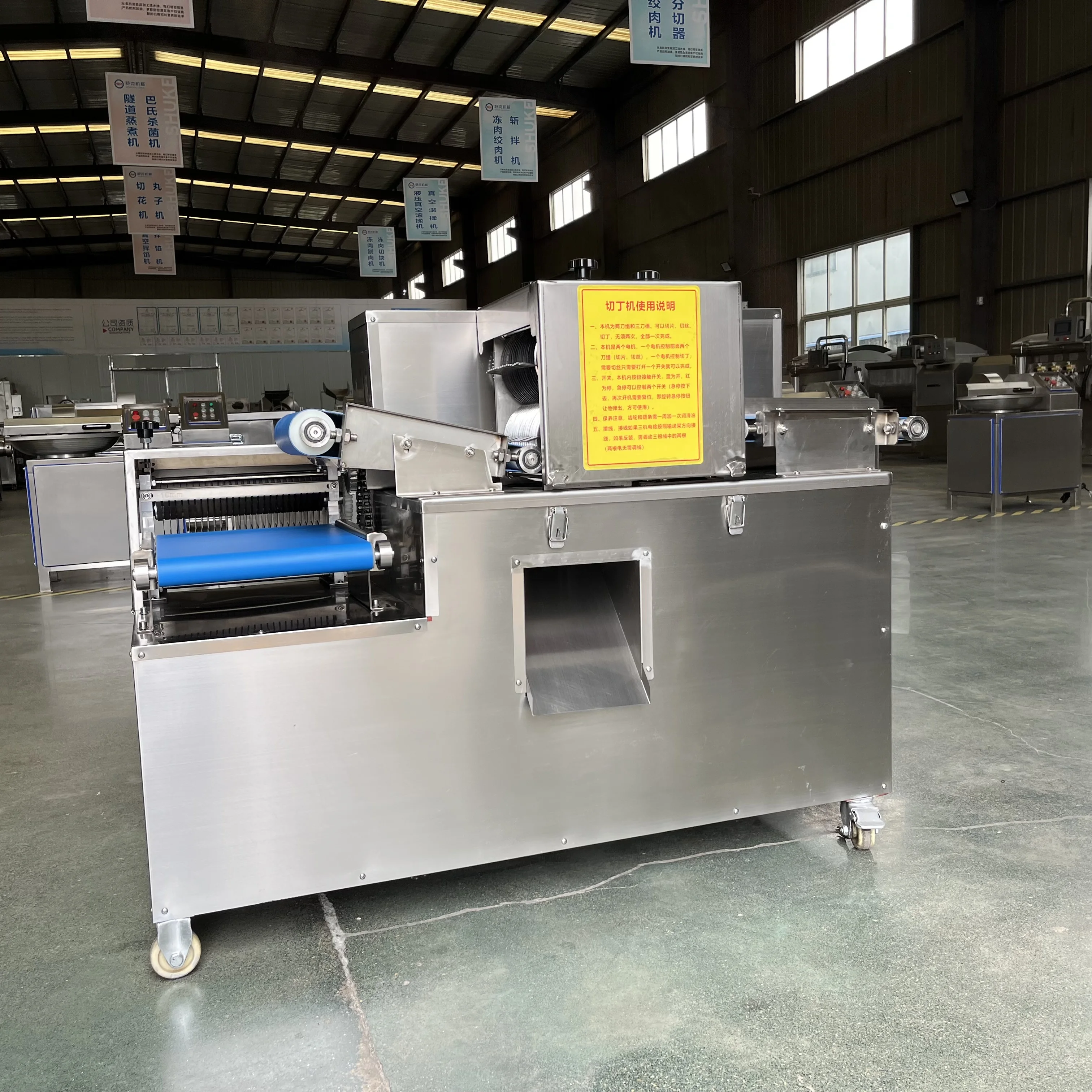

Fresh meat cutting equipment
Fresh meat cutting equipment is a series of models independently developed by our company, suitable for cutting boneless fresh meat. It mainly includes various models such as fresh meat slicer, slicer, slicer, and one-time shaping slicer. The knife handle is a quick detachable structure, and by replacing the knife handle, one machine can cut various sizes of diced meat, meat slices, or meat strips. The machine has a compact structure and is easy to move, making it very convenient to use as a standalone device or as a supporting assembly line.
Large fresh meat slicer
Meat chunks can be cut into small cubes at once, and can also be sliced or cut into strips by disassembling the knife and handle.The maximum size of raw meat that can be processed:140*140*200mm
Small fresh meat slicer
Meat chunks can be cut into small cubes at once, and can also be sliced or cut into strips by disassembling the knife and handle.The maximum size of raw meat that can be processed:80*80*200mm
name | Meat dicing machine | Meat slicer | Meat Stripper | Opening and cutting machine | Meat Chopper |
Power (kw) | 1.5 | 2.2 | 2.2 | 3 | 2.2 |
Capacity (kg) | 500 | 350 | 400 | 500 | 500 |
speed | |||||
Belt width (cm) | 15/30 | 30 | 30/40/50 | 24 | 24/30 |
Dimensions (cm) | 110*60*95 | 160*70*95 | 150*70*95 | 145*60*95 | 120*80*95 |
If you need other conveyor belt models or other customized requirements, please contact the customer. Our factory supports customized services.
