High Quality Cemented Carbide Bar ground tungsten carbide rod D0.9 x 100 mm
- Category: >>>
- Supplier: Hao Carbide Co. Ltd.Hao Ltd.
Share on (1601227307593):
Product Overview
Description

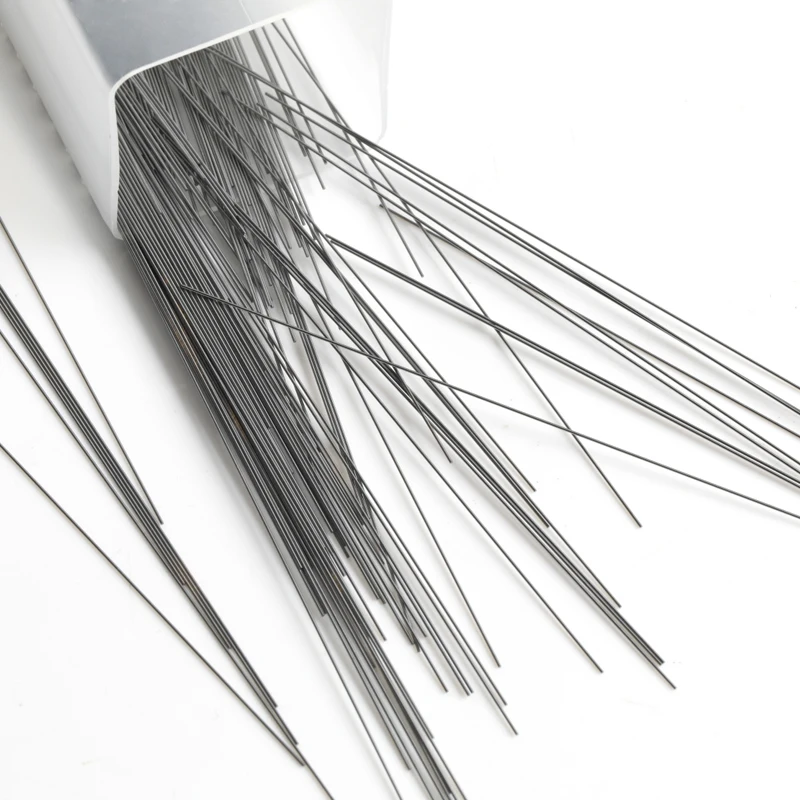

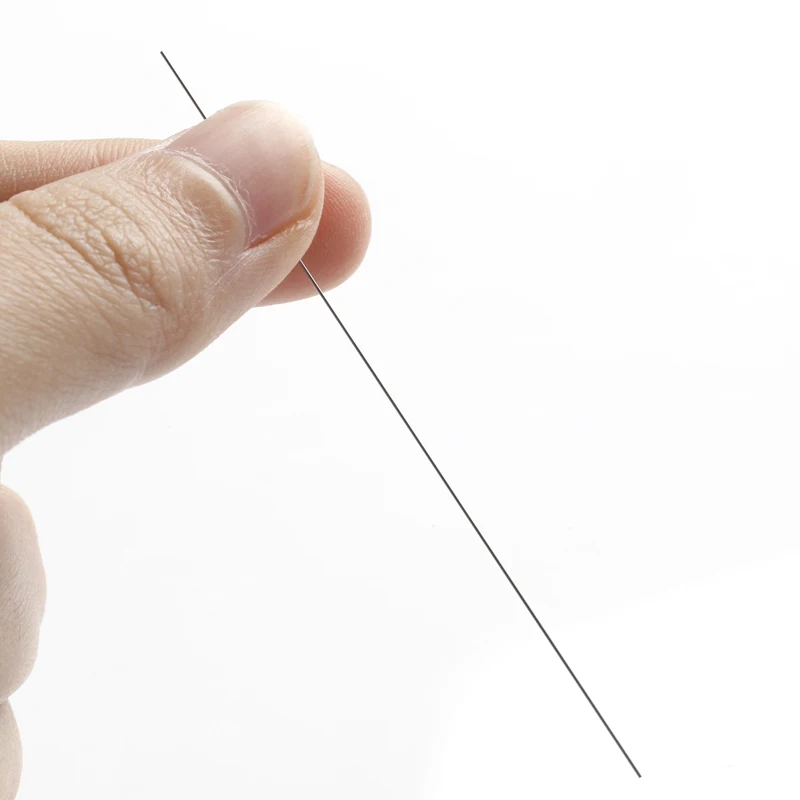

High Quality Cemented Carbide Bar ground tungsten carbide rod D0.9 x 100 mm
Advantages of tungsten carbide rods
1. Using over 99.95% high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.
2. Using ultra-fine grain size of tungsten carbide powder to produce, Hardness can reach to HRA 93.6, Bending strength can reach to 4000 N/mm².
3. Tolerance can reach to ±0.001 mm, straightness can reach to ±0.02 mm.
1. Using over 99.95% high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.
2. Using ultra-fine grain size of tungsten carbide powder to produce, Hardness can reach to HRA 93.6, Bending strength can reach to 4000 N/mm².
3. Tolerance can reach to ±0.001 mm, straightness can reach to ±0.02 mm.
Product Description
Grade
Grade | Grade ISO | Cobalt content (%) | Grain size of WC (μm) | Hardness (HRA) | Density (g/cm3) | TRS (N/mm2) | ||||||
JZ06U | K05-K10 | 6 | 0.4 | 94 | 14.85 | ≥4000 | ||||||
JZ08U | K10-K20 | 8 | 0.4 | 93.6 | 14.65 | ≥4000 | ||||||
JZ12U | K20-K40 | 12 | 0.4 | 92.5 | 14.15 | ≥4200 | ||||||
JZ12U-T | K20-K40 | 12 | 0.4 | 93 | 14.2 | ≥3800 | ||||||
JZ10S | K20-K40 | 10 | 0.6 | 92.3 | 14.4 | ≥3900 | ||||||
JZ10F | K20-K40 | 10 | 0.8 | 91.8 | 14.4 | ≥3800 | ||||||
JZ07C | K05 | 7 | 1.0 | 92 | 14.8 | ≥3000 | ||||||
Tungsten Cemented Carbide Ground Rod Grade Application | ||||||||||||
JZ06U | Be suitable for processing aluminum magnesium alloy, glass fiber, carbon fiber, wood, hard plastic, etc. Recommend for making micro tools and drills. | |||||||||||
JZ08U | Be suitable for processing resin, wood, titanium alloy, stainless steel, copper-aluminum alloy, composite material. Recommend making high speed drill, end mill, graver and micro-drill PCB with diameter less than 0.8 mm. | |||||||||||
JZ12U | Be suitable for semi-finishing and finishing process of stainless steel, mold steel and normal titanium alloy, etc. Recommend for making all types of high speed end mills, reamers and gravers. | |||||||||||
JZ12U-T | Be suitable for finishing process of stainless steel, mold steel and normal titanium alloy etc. Recommend for making all types of high speed end mills, reamers and gravers. | |||||||||||
JZ10S | Suitable for cutting alloy steel, stainless steel, non-ferrous metal, high temperature allooy and so on. | |||||||||||
JZ10F | For general use of milling and drilling, suitable for cutting alloy steel, stainless steel, non-ferrous metal, high temperature alloy and so on. | |||||||||||
JZ10C | Suitable for machining non-ferrous metal, aluminum with a high silicon content and graphite (with diamond coating). | |||||||||||

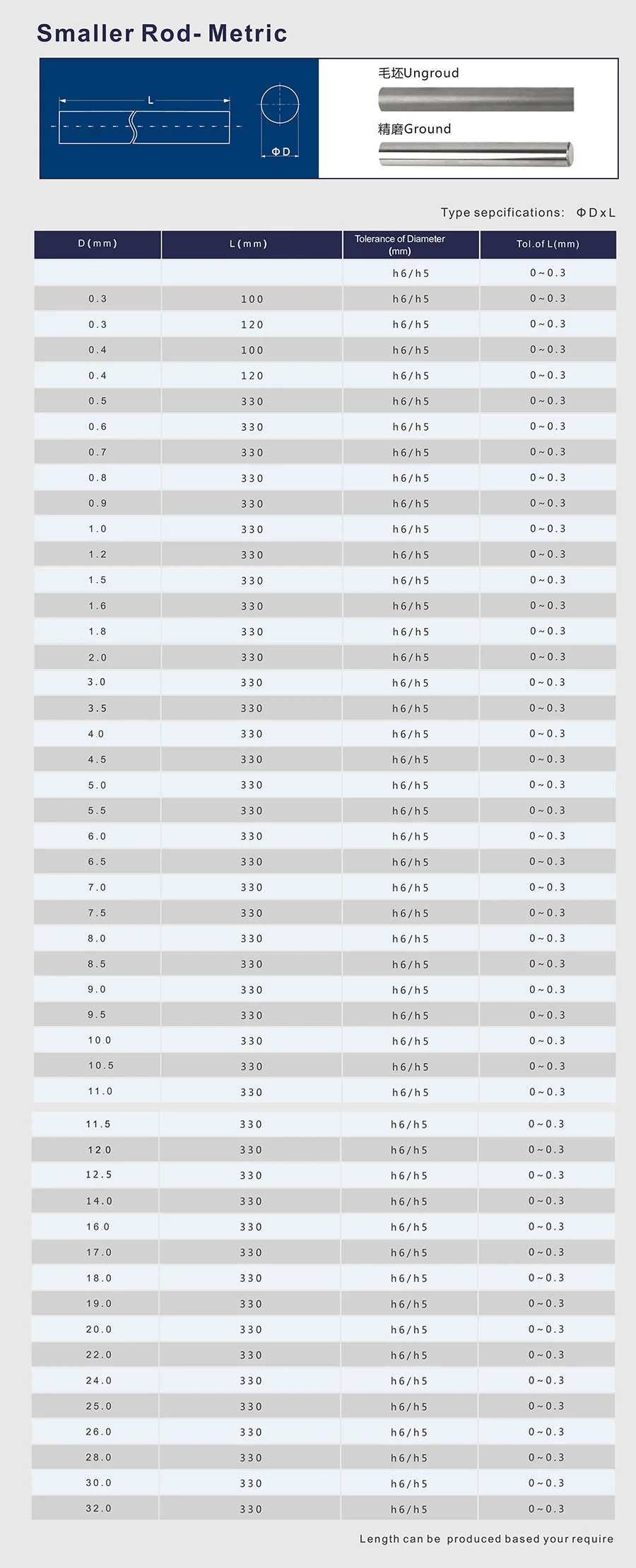

Specifications

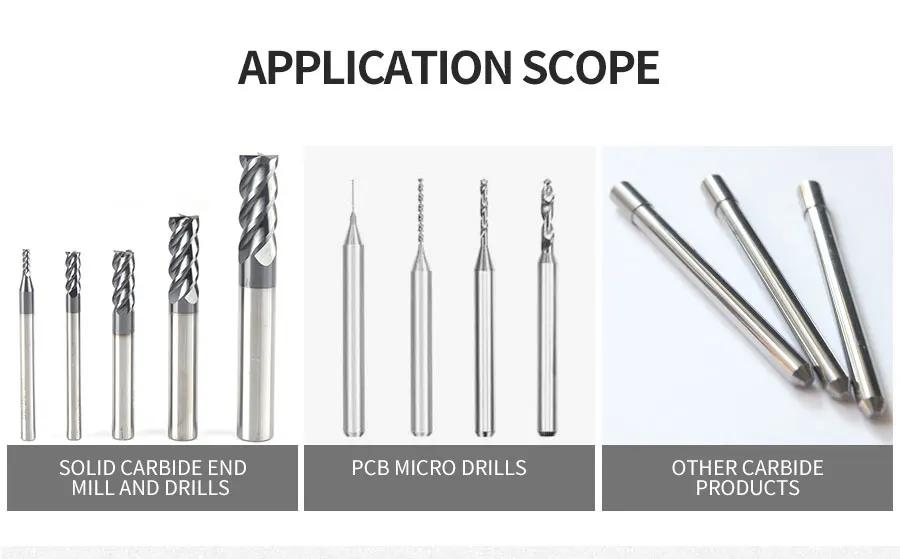

Applications
Application

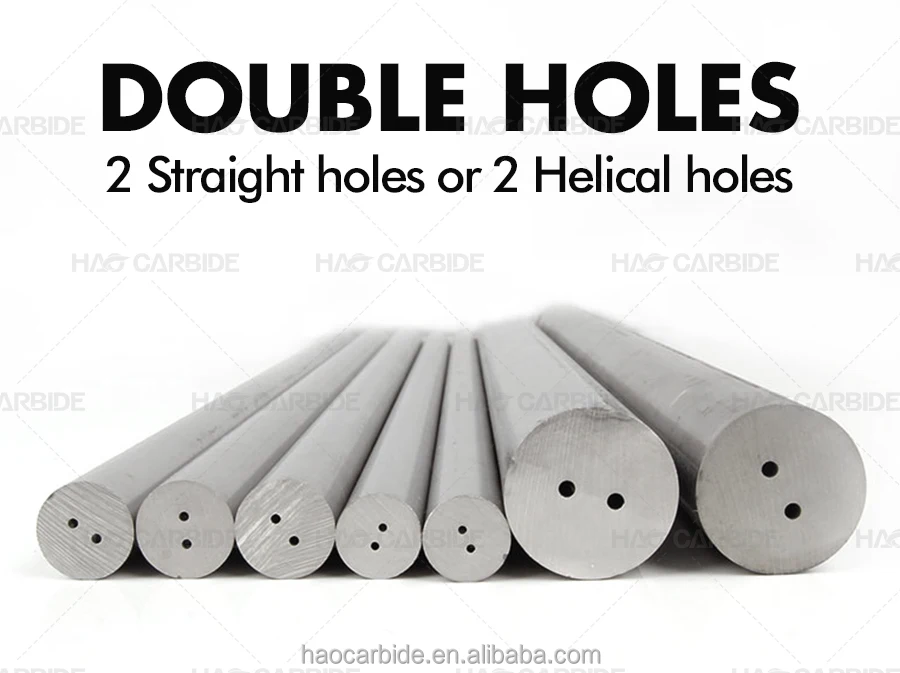

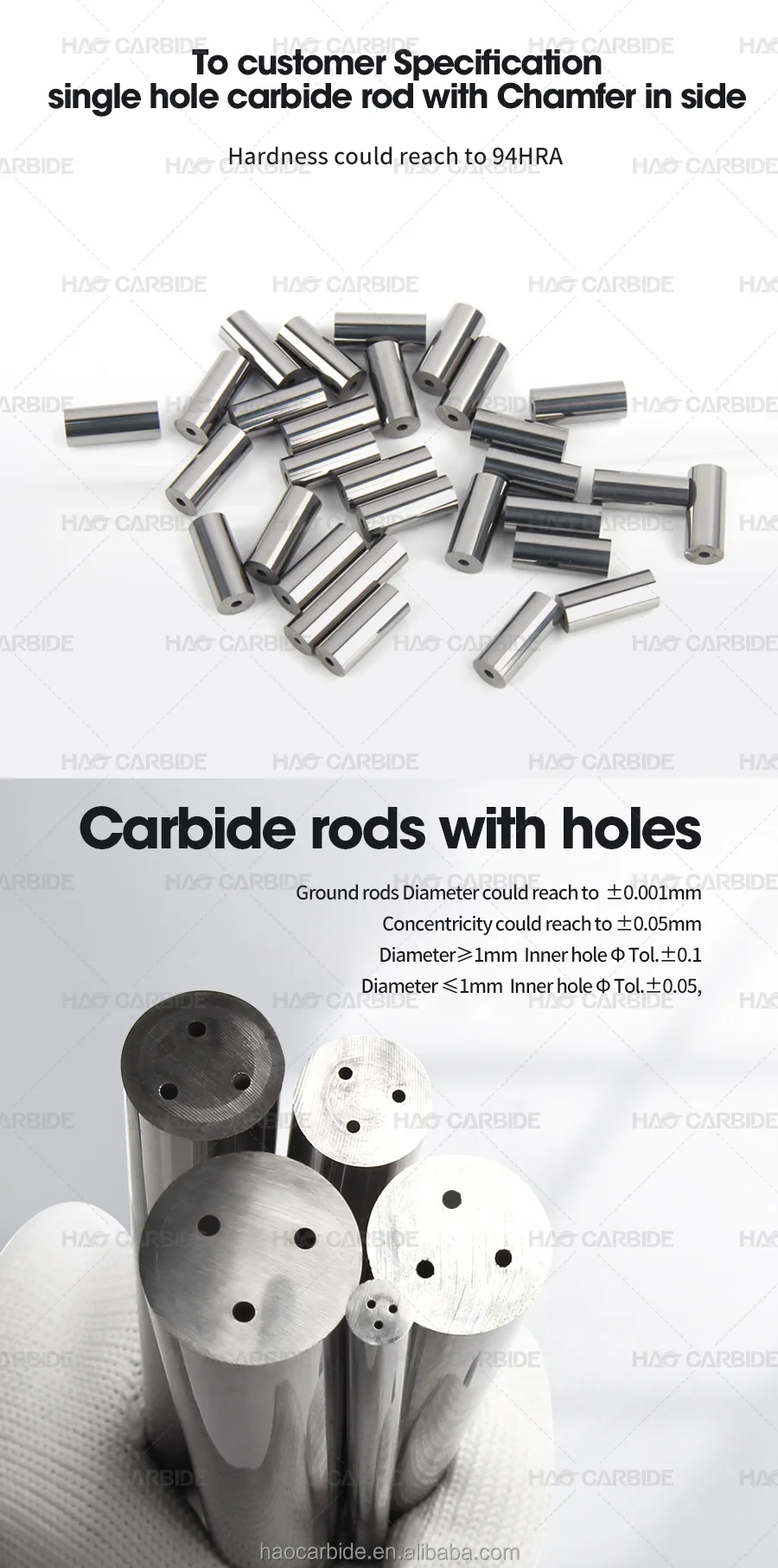

Our carbide rods can make precision tools like drills, end mills, milling cutters, and reamers in a variety of diameters and lengths, with coolant holes or without.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
HAO Carbide Co., Ltd. has more than 15 years experience in tungsten carbide industry. Located in Zhuzhou city Hunan province, "the town of tungsten carbide". We engaged in all kinds of tungsten carbide products. With high-quality raw materials, mature production technology and professional team, we provide the most qualified products and best service among China.
FAQ
Q1: Who we are? |
A1: HAO Carbide Co.,Ltd is established in 2009, located in Zhuzhou city the "town of tungsten carbide", with 2000 square meters of production workshop and 1000 square meters of office space. HAO Carbide is committed to building a world-renowned carbide product, ranging of tungsten carbide rods, plates, strips, balls, CNC cutting tools, molds & dies, etc. The company pays great attention to the research and development of new technology and new products, and 3-5% of the annual sales revenue is used as research and development expenses, hoping to better serve our customers. |
Q2: What's your company's production facilities and capacity? |
A2: Our company currently has 63 self-presses (50 sets of 3T, 10 sets of 6T, 2 sets of 25T and 1 set of 50T), 9 sets of hydraulic presses 12 sets of vacuum sintering furnaces and 3 sets of over-pressure sintering furnaces, and the capacity can reach 40 tons a month. |

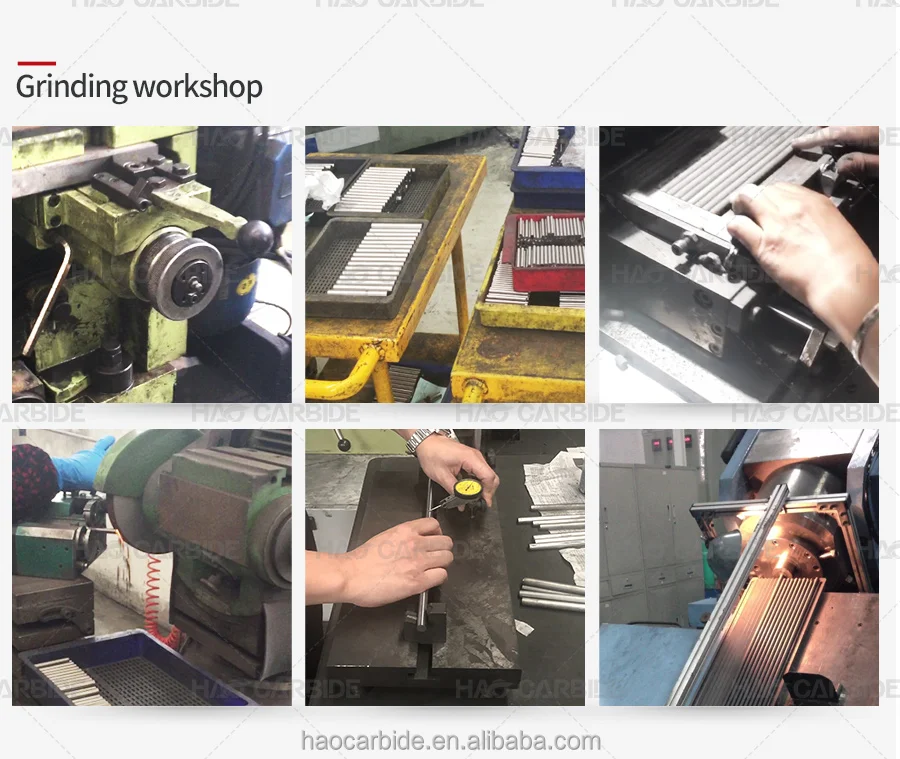

Q3: What processing equipment do you have? |
A3: 4 sets of Surface Grinder, 20 sets of Tool Grinder, 2 sets of Polishing Machine, 3 sets of Centerless Grinder, 1 set of Round Table Grinder, 2 sets of Wire Cutting. |
Q4: What's the payment terms? |
A4: 100% in advance or 30% in advance, balance before shipping. |
Q5: What's the longest length for carbide rods you have? |
A5: Based on the diameter, longest length is 1000mm. |
Q6: What's the maximum size / and minimum size for carbide rods? |
A6: The minimum diameter can reach 0.025mm and the maximum can reach more than 60mm, depending on your specific requirements. |
Q7: What's the delivery time? |
A7: Depending on your size and quantity, it is generally 5-10 days for rough stock, one month for small rods if there is no stock, and about 15 days for rough rods diameter over 16mm. |
